Arrow VT1210 Use and care manual

* Size rounded off to the nearest foot
BUILDINGDIMENSIONS
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
704880204
Model No. VT1210 VT1217 VT1224
VT1231 697.68608 697.68609
697.68610 697.68611
Owner's Manual &Assembly Instructions
BW1
Exterior Dimensions Interior Dimensions
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall)
Size Size Sq. Ft. Cu. Ft. Width Depth Height Width Depth Height
12'x10' 141 1/8" x 111 3/4" 110 801 146 1/8" 117" 103 1/4" 141 1/8" 111 3/4" 102"
12'x17' 141 1/8" x 198" 194 1419 146 1/8" 203 1/4" 103 1/4" 141 1/8" 198" 102"
12'x24' 141 1/8" x 284 1/4" 278 2037 146 1/8" 289 1/2" 103 1/4" 141 1/8" 284 1/4" 102"
12' x 31' 141 1/8" x 370 1/2" 362 2655 146 1/8" 375 3/4" 103 1/4" 141 1/8" 370 1/2" 102"
3,7m x 3,1m 3,58m x 2,84m 10,2m 22,7m 3,71m 2,97m 2,62m 3,58m 2,84m 2,59m
3,7m x 5,2m 3,58m x 5,03m 18,0m 40,2m 3,71m 5,16m 2,62m 3,58m 5,03m 2,59m
3,7m x 7,3m 3,58m x 7,22m 25,8m 57,7m 3,71m 7,35m 2,62m 3,58m 7,22m 2,59m
3,7m x 9,5m 3,58m x 9,41m 33,6m 75,2m 3,71m 9,54m 2,62m 3,58m 9,41m 2,59m
2
2
2
2
3
3
3
3

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation andAnchoring:Yourstoragebuilding mustbeanchoredtoprevent wind
damage.A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the combined use of an Arrow Floor Foundation Kit and an Arrow
Anchoring Kit as an effective method of securing your building to the ground (Available
by mail order or at your local dealer) or you may construct the foundation and anchoring
system of your choice.Your assembly instructions provide information on a few methods
commonly used to secure and level a storage building.

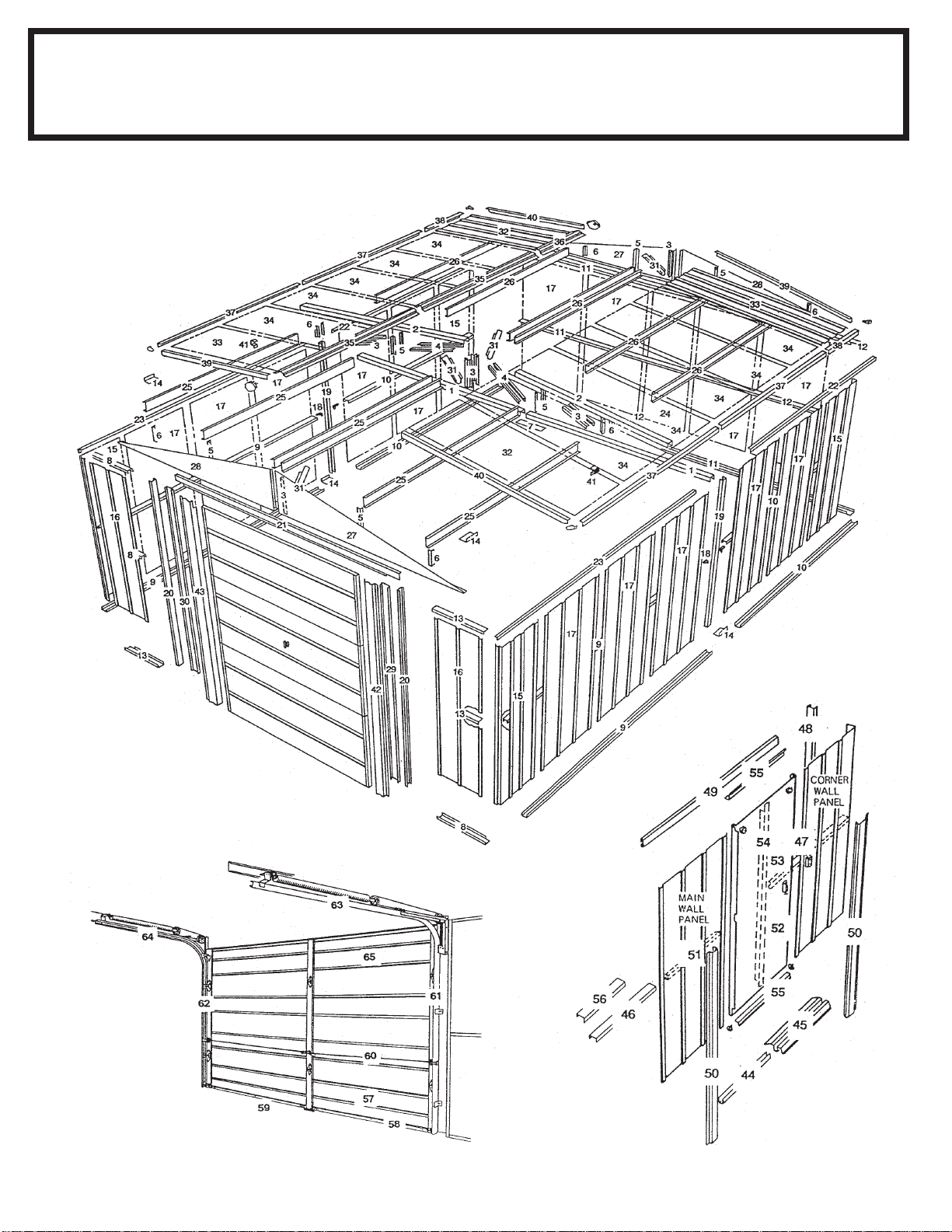

Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.

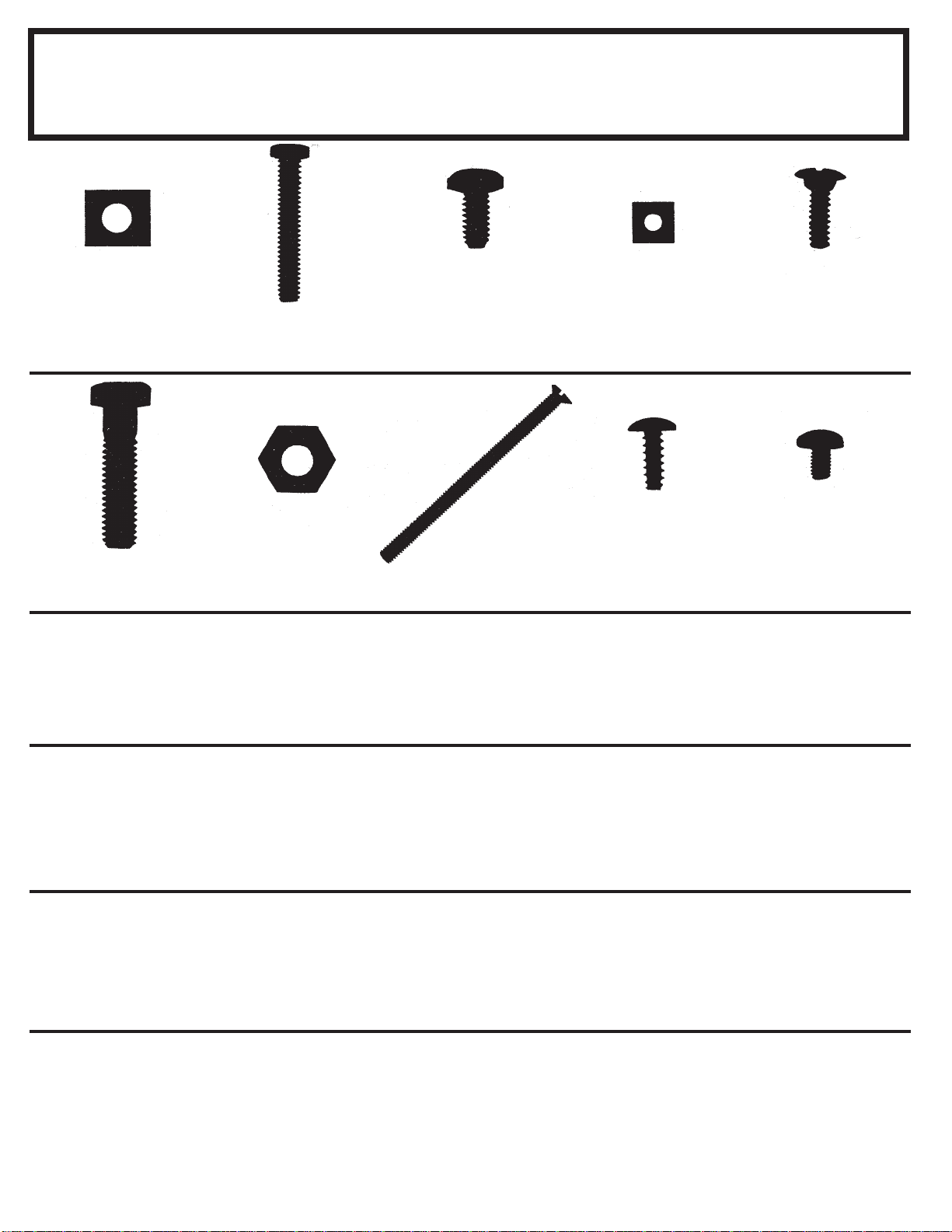

•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
A2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allow enough working space for ease of moving parts into position during assembly. Be sure there
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day. Be careful on wet or muddy
ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle
the fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of
foundation you wish to use in order to form a complete list of the materials you will need.
FoundationPreparation
•HammerandNails
• Spade or Shovel
• Hand Saw / Power Saw
•Lumberand/orConcrete
OptionalTime-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
•Square
• String (for squaring frame)
Required
• Work Gloves
•StepLadder
• Utility Knife / Scissors
• Pliers
•Carpenter'sLevel
•TapeMeasure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4

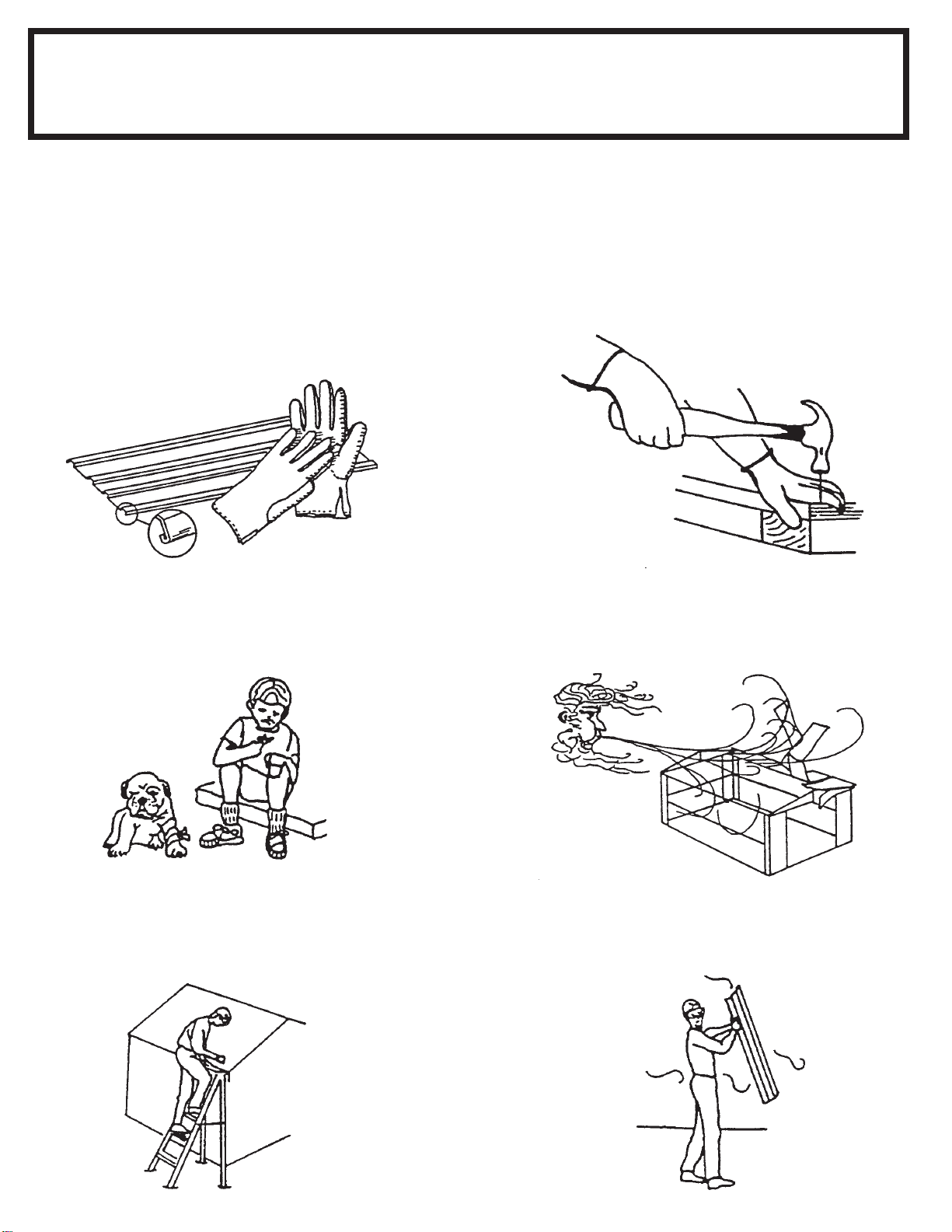

Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protectionandlongsleeveswhenassembling
orperforming anymaintenanceon yourbuild-
ing.
•Practicecautionwiththetoolsbeingusedinthe
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keepchildrenandpetsawayfromworksiteto
avoid distractions and any accidents which
mayoccur.
•Donotattempttoassemblethebuildingifparts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windyday,because thelargepanelsactingasa
"sail",canbewhippedaboutbythewindmaking
construction difficult and unsafe.
SAFETY FIRST....
A4
safetyedge
safetyedge
sharpedge
sharpedge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws.Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

6
ACCESSORIES....
A6 WEB
* Some drilling required to fit buildings without mid-wall bracing.
ModelNo.SS404
• Makes 8" to 12" (20-30cm)
wide shelves in any length.
• Brackets, braces,
hardwareincluded.
Lumber is not included.
ModelNo.SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrowbuildings.*
SHELF UNITS
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
10'Long,250lb.(113kg) load+
Fits all Arrow 10' wide buildings. 16 lbs. (7kg)AT101
Model No. Fits ShippingWeight
ATTIC KIT / WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organizespaceandcreatemore
useable space as an attic or
workbench. Will hold up to 250 lbs.
(113kg)evenlydistributed.
ANCHOR KIT
Model No. AK100
New concrete anchor system permits
anchoringanysizeArrowbuilding
directly to a concrete slab. Each kit
containsheavy-duty,hot-dipped
galvanizedsteelcornergussetsand
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonarydrillbitare included.
TOOL HANGING RACK
Model No. TH100
Theperfecttoolorganizer.Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers,pliers, etc. Holders
slide along channel for fully
adjustablespacing.Greatfor
garage,basement,or the back
of any door. Fits all Arrow
storagebuildings.
ROOFSTRENGTHENING(heavy snow load) KITS Extra roof beams and gable braces
designedforaddedprotectionagainstheavysnowaccumulation.Increasesthestrengthofyourroofby50%.
ANCHOR KIT
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps.Nodiggingor concrete
pouring,justinsertcable under roof,
over roof beams, into augers and twist
augersintotheground.Forbuildings
larger than 10'x9', use 2 kits.
FLOOR FOUNDATION KITS
MODELS FB47410, FB5465, FB106-A
FB109-A, FB1010 AND FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WAS
LEFT
BLANK
INTENTIONALLY
8

The Foundation ForYour Building
9
Foundation
BW9
Concrete Slab
The slab should be at least 3" to 4" (8-10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
●2 x 4's (5cm x 10cm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
PreparetheSite/ConstructaFoundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. Fill up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 2x4 (5cm x 10cm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note:Beforebeginningconstruction,checklocal building codes
regardingfootings,locationandotherrequirements.
1411/8"
3,58m
FRONT(ROLL-UPDOOR)
10' - 111 3/4" 2,84m
17' - 198" 5,03m
24' - 284 1/4" 7,22m
31' - 370 1/2" 9,41m
Note:FinishedSlabdimensions,withlumberremoved.
Reinforcing
Rods
Reinforcing
Rods
OptionalFooter Type ofFoundation
WeldedWire
Fabric

It is important that the entire floor frame be anchored after the building is erected.
Belowarerecommendedwaysofanchoring.
Anchoring Down The Building
Anchoring
A10
ArrowAnchoring Kit: (ModelNo. AK100 or 68383)
Recommendedforusewiththeconcretefoundation.
Contains:Cornergussets,perimeterclips,hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws.
Arrow Anchoring Kit: (Model No. AK4 or 60298)
Recommendedforusewithany suggested base.
Contains:4 Anchorswith Cable,Clamps and
installationinstruction.
Anchoring into Wood/Post:
Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
holesprovidedintheframes forproper anchoring.
10
OVERTHEBEAMS
AND INTO THE GROUND
1. 2.
1. 2.

11
Removefrombag ofscrews
and save for the Step 28
67545 21'
WeatherStripping(1)
66242
Door Slide (2) 66382 LowerDoorGuide (2)
7972
DoorHandleLockBracket(1)
66265
Edge Trim (4)
(Carton4)
66646
Washer(600)
(320)(Carton4)
66444
Roof Trim Cap
(2 right & 2 left) 66446(ArrowLogo)
PeakCap(2) 66610(NoSlot) #10-32x7/16"Bolt(2)
65914
#6Ax7/8"Screw(5)
(PackedwithScrews)
65900A
#10Bx1/2"BlackScrew(2)
(PackedwithScrews)
65408
#10-32x1/4"Bolts(4)
65989
1/4-20x1/2"HexHeadBolt(10)
(PackedwithScrews)
Hardware for Building
BW11
66098
PlasticSpacer(5)
65004
#8Ax5/16"Screw(403)
(190)(Carton4)
65106
#10-32SquareNut(200)
(184)(Carton4)
65101
1/4-20SquareNut(10)
(PackedwithScrews)
65943
#10-32x7/16"Bolt(194)
(184)(Carton4)
67293 10'
WeatherStripping(1)
(Carton4)
66260
Handle(2)

Parts List
12
Assembly Part Part
Key No. Number Description Carton 1 Carton 2 Carton 3 Carton 4
1 7855 Truss Lower Chord 2
2 7856 Truss Upper Chord 2
3 6382 Center Gable Brace 2 8
4 7739 Truss Diagonal 4
5 6381 Mid Gable Brace 4 4
6 6380 Outer Gable Brace 4 4
7 7738 Splice Plate 1
8 7834 Right Front Frame 3
9 7837 Side Frame 4
10 7914 Side Frame 4
11 8532 Right Rear Frame 3
12 8531 Left Rear Frame 3
13 7835 Left Front Frame 3
14 7857 Truss Support 2 2
15 7824 Corner Wall Panel 4
16 7825 Front Wall Panel 2
17 7822 Main Wall Panel 7 6
18 6228 Frame Support 4
19 7917 Truss Column 2
20 7839 Front Column 2
21 7831 Lintel 1
22 7915 Side Top Angle 2
23 7838 Side Top Angle 2
24 7823 Medium Wall Panel 1
25 7833 Roof Beam 6
26 7912 Roof Beam 6
27 7942 Right Gable 2
28 7943 Left Gable 2
29 7840 Right Track Support 1
30 7841 Left Track Support 1
31 6372 Gable Strut 2 2
32 7827 Left Roof Panel 2
33 7826 Right Roof Panel 2
34 7828 Middle Roof Panel 4 6
35 7843 Ridge Cap 1 1
36 6874 Ridge Cap 1
37 5220 Side Roof Trim 2 2
38 6014 Side Roof Trim 2
39 7845 Left Rake 2
40 7846 Right Rake 2
41 7913 Spring Support Bracket 2
42 7830 Right Door Jamb 1
43 7829 Left Door Jamb 1
44 7517 Lower Door Track 1
45 7560 Ramp 1
46 7950 Side Wall Channel 1
47 7949 Side Wall Channel 1
48 7951 Support Column 1
49 7958 Door Track 1
50 7946 Door Jamb 2
51 7948 Door Wall Brace 1
52 7945 Door 1
53 3719 Door Handle Brace 1
54 7947 Vertical Door Brace 1
55 6264 Horizontal Door Brace 2
56 8530 Splice Channel 1
57 9286 Door Panel (Bottom) 1
58 7808 Bottom Angle 1
59 8198 Vinyl Weatherstrip 1
60 7848 Door Panel (Lock) 1
61 67510 Right Vertical Track 1
62 67509 Left Vertical Track 1
63 67476 Right Horizontal Tack 1
64 67475 Left Horizontal Track 1
65 7847 Door Panel (Top) 1
Carton #4 of the 12' x17' can be deleted for a complete 12' x10' building, or more than one carton #4 may be used to extend depth in multiples of 7'.
BW12

13
Assembly by Key No.
BW13

14
66434(2)
#10-32 x 2 1/2" Flat
HeadBolt
67483
CableLacer
(2)
66441(14)
#10-32x3/8"Bolt
65900A(38)
#10Bx1/2"Black
TrussHeadScrew
(PackedwithScrews)
66432(4)
3/8-16x11/2"Hex
HeadBolt
65989(6)
1/4-20x1/2"Hex
HeadBolt
(PackedwithScrews)
Hardware for Roll-Up-Door
BW14
65106(16)
#10-32Square
Nut
65101(16)
1/4-20SquareNut
(PackedwithScrews)
66464(2)
1/4-2011/2" Hex
HeadBolt
66431(8)
1/4-20x5/8"Rib
NeckBolt
66433(4)
3/8-16HexNut
67525
Inside"T" Handle
(1)
67484
SpringClevis
(2)
67488
Heavy"S"Hook
(4)
67503
StileSpacer
(2)
67504
InsideLatchBar
Spacer(1)
67482
KeyedCable
(2)
67485
LeftBottom
Bracket(1)
67486
RightBottom
Bracket(1)
67490
#1Hinge
(4)
67491
#2Hinge
(2)
67493
TopFixture
(2)
67494
LiftHandle
(2)
67496
Roller
(8)
67497
Sheave
(4)
67500
Spring
(2)
67528LatchSet
(1)FlatLatchBar
(4)"S"Hooks
(2)Strikers
(2)SpringLatches
(2)LatchChains
67513
SpringRestraint
Cable(2)
67526
LockingHandle
(1)

1Assemble1/2trussatatime,using
#10-32x7/16" bolts and square nuts,
on all connections loosely.
2Attachtrusslowerchordtotruss
upper chord.
3 Attach 2 center gable braces to
the upper and lower chords at the
opposite end of truss.
4Attach2trussdiagonalstoupper
and lower chords.
5 Attach 2 mid gable braces to
upper and lower chords.
6 Attach 2 center gable braces to
upper and lower chords at middle of
truss.
7 Attach 2 outer gable braces to
upper and lower chords. Mount with
short leg of brace.
Step 1
BW15
●Parts Needed For ●
TrussAssembly 12x17, 12x24 & 12x31
ONLY
●●
●●
●7855 Truss Lower Chord (2)
●●
●●
●7856 Truss Upper Chord (2)
●●
●●
●6382 Center Gable Brace (8)
●●
●●
●7739 Truss Diagonal (4)
●●
●●
●6381 Mid Gable Brace (4)
●●
●●
●6380 Outer Gable Brace (4)
●●
●●
●7738 Splice Plate (1)
15
6382
6382
7739
7856
Short
Mounting
Leg
#10-32 Square Nut
#10-32x7/16" Bolt
7855
6380
6381
7738
EdgeTrim
MountingFlange of Brackets
MustFaceTowardsCenter
Of Truss Assembly
IMPORTANT:
SquareUp
Half Truss
8 Square up 1/2 truss, adjust and
tighten.
9 Make other half and square.
10 Splicebothhalves togetherwith
splice plate andfastencentergable
braces together, using 3 bolts and
nuts.
11 Cut the 4 pieces of edge trim in
halfandslipoverthebottomedgesof
gable braces. This trim is a must to
protect against injury from the sharp
edge.
Make 1 assembly for the 12x17
Make 2 assemblies for the 12x24
Make 3 assemblies for the 12x31
NOTE
Thedaybeforeconstructionofthebuilding,completethesub-
assemblies so they will be ready. EXAMPLE: Truss, floor
frames,roofbeams,gables,sideandoverheaddoors. Setthe
assemblies aside, so they will not get damaged.
Theremainderofthebuildingassemblyrequiresmorethan
1 work session and more than 1 person. Do not continue
beyondthispointifyoudonothaveenoughtimetocomplete
thewallassemblyandcantiedowntheassemblyovernight.
Completetheroofanddoorsonthefollowingday.

Thegablesgo on topofthefrontand
rearwallstosupport the roof beams.
The gables are packed nested to-
gether and might be mistaken as 1
piece. Carefully separate them be-
fore continuing.
1 Position mid and outer gable
braces on right and left gables.
Shortmounting flange of brace must
face center of gable. Fasten using
#10-32x7/16" bolts, washers and
square nuts. Assemble 2 sets of
gables.
Step 2
BW16
●Parts Needed For ●
Gables All Sizes
●●
●●
●6381 Mid Gable Brace (4)
●●
●●
●6380OuterGable Brace (4)
●●
●●
●7942 Right Gable (2)
●●
●●
●7943Left Gable (2)
16
7912
#10-32 Square Nut
#10-32x7/16" Bolt
7833
ShortMountingFlange
MustFace Towards
CenterofGable
Step 3 ●Parts Needed For ●
Roof Beam Assemblies
●●
●●
●7833 Roof Beam (2) (All Sizes)
●●
●●
●7912RoofBeam(2)(1217)
●●
●●
●7912RoofBeam(4)(1224)
●●
●●
●7912RoofBeam(6)(1231)

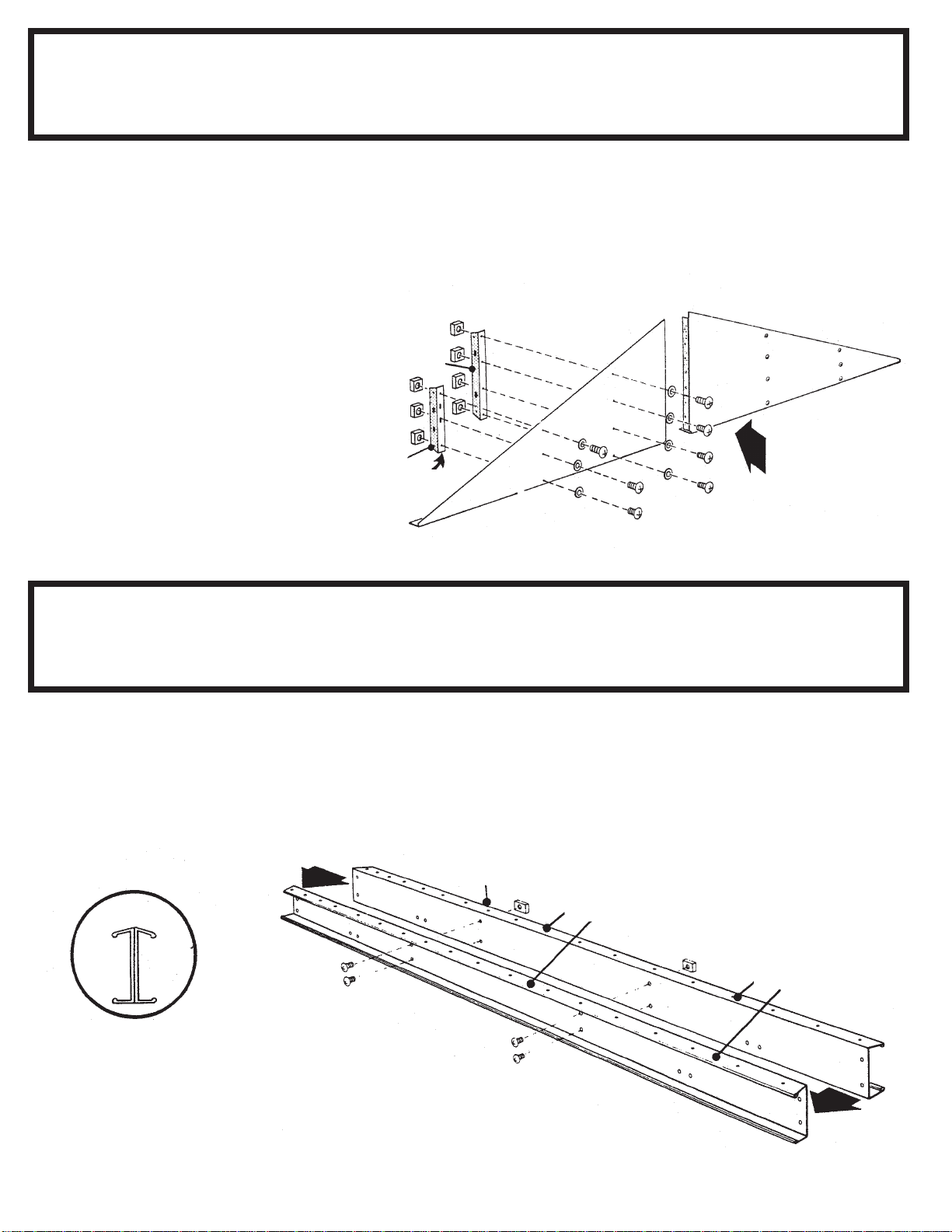

Theroofbeamsjointhegablestothe
truss and supports the roof panels.
1Align the holes on 2 roof beams,
back-to-backandfastenusing4#10-
32x7/16" bolts and square nuts. SmallHoles
onTop
7942
7943
6380
6381
#10-32x7/16" Bolt
#10-32 Square Nut
Washer
FRONT
Assembled
End
View

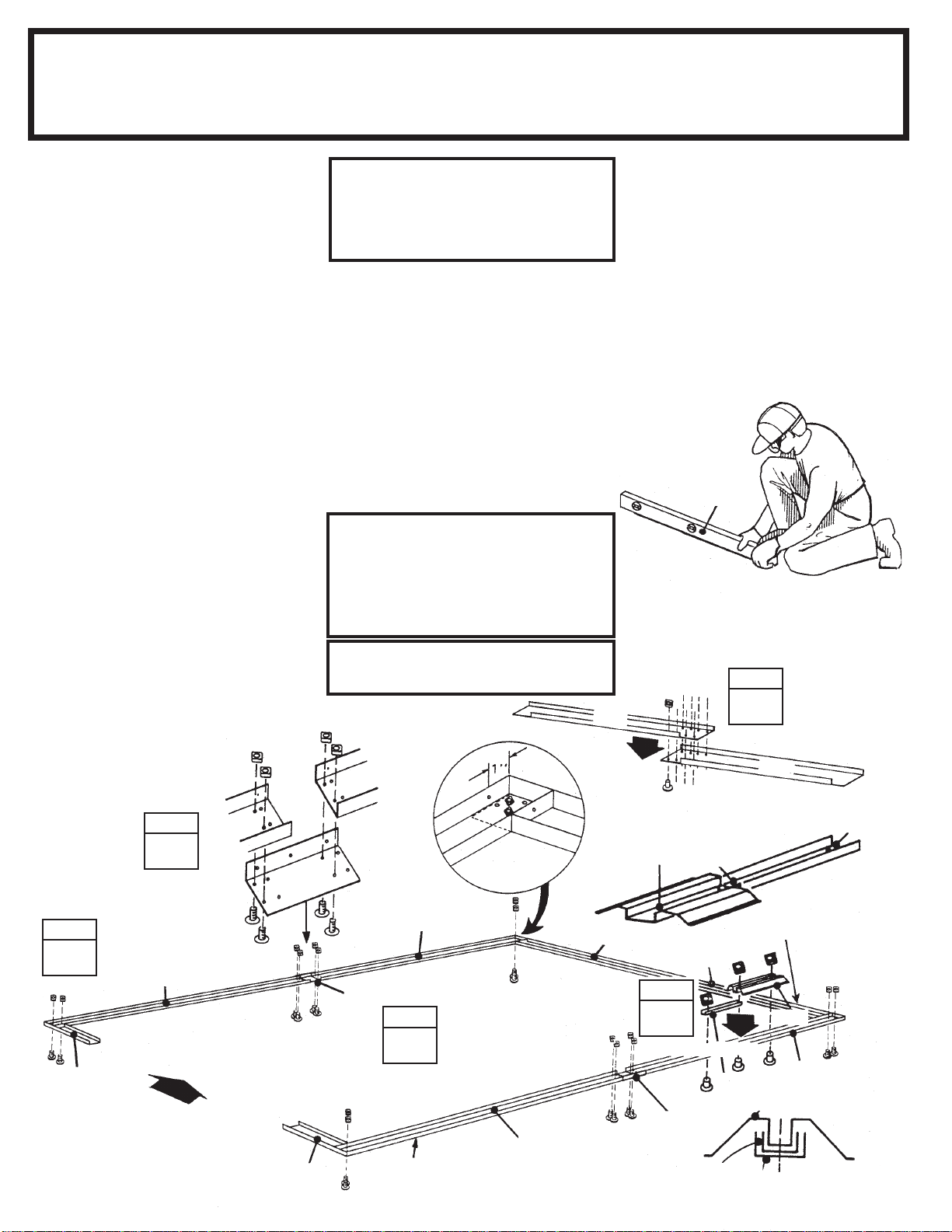

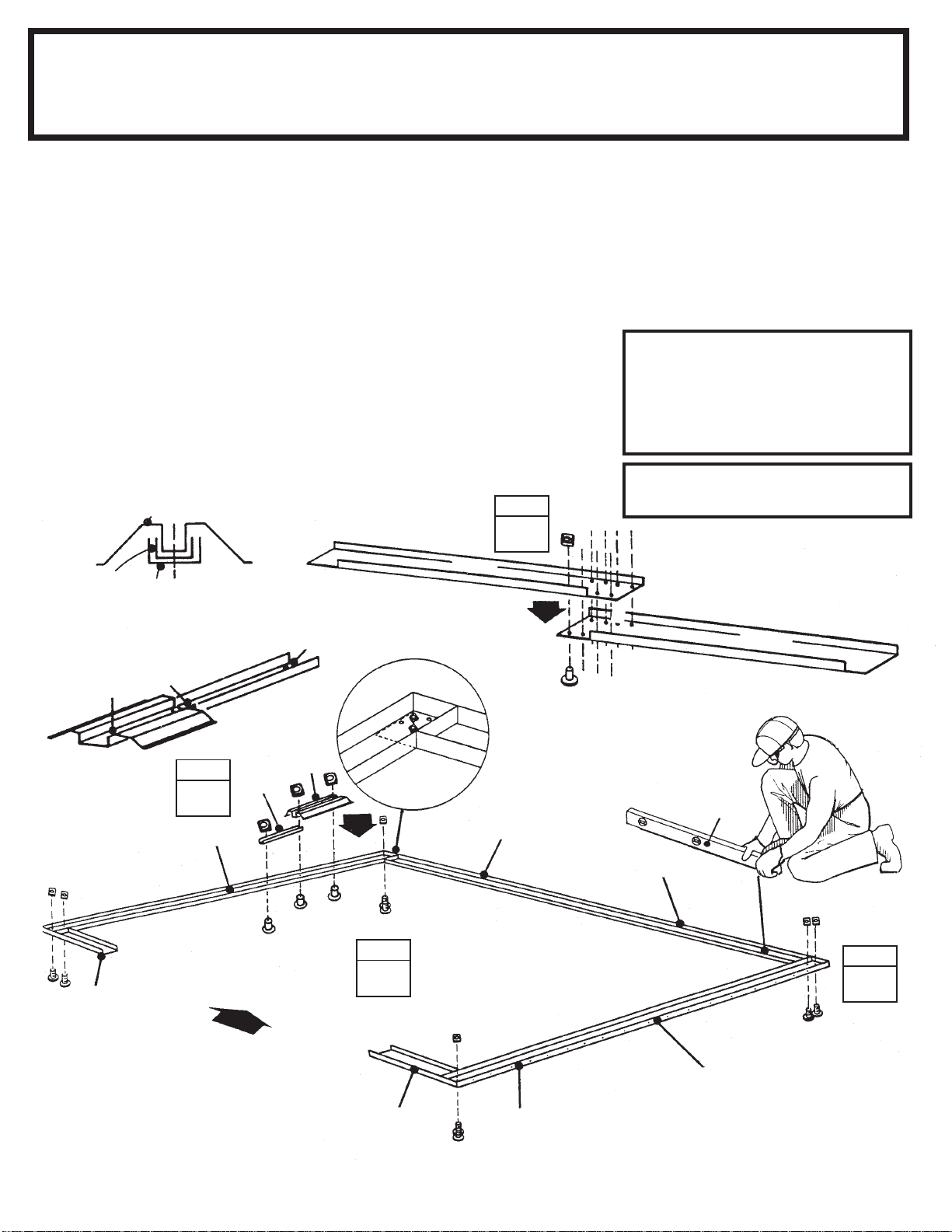

The rear floor frame is made up of 2
pieces. The holes in these pieces
will align when the pieces are posi-
tioned with correct amount of over-
lap. Theillustrationbelowshowsthe
proper overall length for the rear.
1Overlaprightandleftrearframes,
align holes, and fasten using 8 bolts
andnuts. Make3assemblies. Use1
assembly for this step.
Step 4
BW17
●Parts Needed For ●
Floor Frame Assembly 12x10
●●
●●
●8532 Right Rear Frame (1)
●●
●●
●8531 Left Rear Frame (1)
●●
●●
●7837 Side Frame (2)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7517 Lower Door Track (1)
●●
●●
●7560 Ramp (1)
17
#10-32 Square Nut
#10-32x1/4" Bolt
7837
8531
4 Select location of side door on
eitherside,towardtherearofbuild-
ing. Install lower door track and
ramp, notch toward outside, using
1/4"boltsandnuts,asshown. See
Step 12 for Rear Door Installation.
2Positionfloorframesasshown
and fasten at each corner using 2
bolts through the bottom and nuts
on top.
3 Measure the floor frame diago-
nally. When the diagonal mea-
surementsareequal,thefloorframe
is square.
7834 Position with small holes
towardoutsideofbuilding
7835
FRONT
7837
7517 7560
8532
Level
#10-32x7/16" Bolt
SIDE
REAR
Slot
Notchtowardoutside
ofbuilding
SideFrame
7517
7560
8531
Rear Frame 140 7/8" 3,6m
8532
STEP
1
STEP
4
STEP
3STEP
2
NOTE
Do not fasten the floor frames to
yourfoundation at this time. You
will anchor the building after it is
erected.
The floor frame must be square
and level or holes will not align.

The rear floor frame is made up of 2
pieces. The holes in these pieces
will align when the pieces are posi-
tioned with correct amount of over-
lap. Theillustrationbelowshowsthe
proper overall length for the rear.
1Overlaprightandleftrearframes,
align holes, and fasten using 8 bolts
andnuts. Make3assemblies. Use1
assembly for this step.
2 Position floor frames as shown
and fasten at each corner using 2
boltsthroughthebottomandnutson
top. Wheninstallingsideframe7914,
be sure set of holes 1" in from end of
frames are installed toward rear of
building.
3Fastensideframestogetherwitha
truss support using 4 bolts through
the bottom and nuts on top.
Step 5
BW18
●Parts Needed For ●
Floor Frame Assembly
12x17, 12x24, 12x31
●●
●●
●8532 Right Rear Frame (1)
●●
●●
●8531 Left Rear Frame (1)
●●
●●
●7914 Side Frame (see below)
●●
●●
●7857 Truss Support (see below)
18
#10-32 Square Nut
#10-32x7/16" Bolt
IF YOU ARE BUILDING A 12x24
Fastenadditionalsideframe7914andtruss
support7857tosideframe7914usingthe
sideconnection. Positionrearframeatrear
of assembly and fasten using the rear
cornerconnection.
IF YOU ARE BUILDING A 12x31
Fasten 2 additional side frames 7914 and
truss supports 7857 to side frame 7914
using the side connection. Positon rear
frameatrearofassemblyandfastenusing
therearcornerconnection.
4 Measure the floor frame diago-
nally. When the measurements
areequal,thefloorframeissquare.
5 Select location of side door on
eitherside,towardtherearofbuild-
ing. Install lower door track and
ramp,notchtowardoutside,using
1/4"boltsandnuts. SeeStep12for
Rear Door Installation.
7834 Position with small holes
towardoutsideofbuilding
FRONT
#10-32x1/4" Bolt
STEP
4
STEP
1
NOTE
Do not fasten the floor frames to
your foundation at this time.
You will anchor the building
after it is erected.
The floor frame must be square
and level or holes will not align.
●●
●●
●7837 Side Frame (2)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7517 Lower Door Track (1)
●●
●●
●7560 Ramp (1)
7837 7857
7517
7835
7837
7914
7857
7837
7914
STEP
3
STEP
2
RearFrame1407/8"
3,6m
Slot
Notchtowardoutside
ofbuilding
8531
8532
8531 8532 Level
7560
7914
7560
SideFrame
7517
SIDE
REAR
7857
NOTE
Position of holes, and fasten at
the 1st set of holes. See side
connection.
STEP
5
Level

Each screw and bolt in the wall re-
quires a washer.
1 Install a corner wall panel at the
corner of the floor frame as shown.
Thewidestpartofeach corner panel
must be placed along the side of the
building for all 4 corners. Fasten the
cornerpaneltothefloorframewith4
screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2Attachthefrontwallpanelstothe
front corner panels, as shown.
3Attachthemainwallpanelstothe
rear corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown.
4Double-checkthepartnumbersof
the wall panels, before proceeding.
Step 6
BW19
●Parts Needed For ●
Corners All Sizes ●●
●●
●7824 Corner Wall Panel (4)
●●
●●
●7825 Front Wall Panel (2)
●●
●●
●7822 Main Wall Panel (2)
19
7824
#10-32 Square Nut
#10-32x7/16" Bolt
7822
The floor frame must be square
and level or holes will not align.
Washer
7822
Washer
#8Ax5/16" Screw 7824
7825
7824
7824
STEP
4
STEP
2
STEP
3
7825 7825
7822
7822
SIDE SIDE
REAR
FRONT
7824
7824
7824
7824
Narrow
Side
STEP
1
Wide Side
TOP VIEW
7825

The mid frame pieces give rigidity to
the side and rear wall.
NOTE
Before installing mid frames
decide at which location you
want the entrance door. Do not
install the 1x2 mid frame at 1 of 3
locations.
1 Fastenarear frame assembly to
the main wall panels using screws.
2Fastenarightandleftfrontframe
tothefrontwallpanelsthesameway.
Step 7
BW20
●Parts Needed For ●
Frames 12x10
●●
●●
●Rear Frame Assembly (1)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7837 Side Frame (2)
●●
●●
●7950 Side Wall Channel (1)
●●
●●
●7949 Side Wall Channel (1)
●●
●●
●7951 Support Channel (1)
20
#10-32 Square Nut
#10-32x7/16" Bolt
7835
STEP
4
STEP
2STEP
3
STEP
1
3 Fasten side frame to the corner
panels using screws. Where rear
frame overlaps side frame in corner,
fasten using 2 bolts and nuts.
4 Fasten side wall channels to the
corner panels using screws. Fasten
overlaps in corners using bolts.
5 Fasten support column to side
frame and side wall channel using
bolts and nuts where shown. Fold
corner panel slightly away from col-
umntofastenboltsfromoutside. See
Step 12 for rear door installation.
7951 7949
STEP
5
7837
8532
8531
#8Ax5/16" Screw
7950
7834
SIDE
REAR
