Arrow VT1210-A Use and care manual

* Size rounded off to the nearest foot
BUILDING DIMENSIONS
CAUTION:SOMEPARTSHAVESHARPEDGES.CARE
MUSTBETAKENWHENHANDLINGTHEVARIOUSPIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETYINFORMATIONPROVIDEDINTHISMANUAL
BEFOREBEGINNINGCONSTRUCTION.WEARGLOVES
WHENHANDLINGMETALPARTS.
713781005
Model No. VT1210-A VT1217-A VT1224-A
VT1231-A 697.68608-A
697.68609-A 697.68610-A
697.68611-A
Owner's Manual & Assembly Instructions
BW01
Exterior Dimensions Interior Dimensions
*Approx. Foundation Storage Area (Roof Edge to Roof Edge) (Wall to Wall)
Size Size Sq. Ft. Cu. Ft. Width Depth Height Width Depth Height
12'x10' 141 1/8" x 111 3/4" 110 801 146 1/8" 117" 103 1/4" 141 1/8" 111 3/4" 102"
12'x17' 141 1/8" x 198" 194 1419 146 1/8" 203 1/4" 103 1/4" 141 1/8" 198" 102"
12'x24' 141 1/8" x 284 1/4" 278 2037 146 1/8" 289 1/2" 103 1/4" 141 1/8" 284 1/4" 102"
12' x 31' 141 1/8" x 370 1/2" 362 2655 146 1/8" 375 3/4" 103 1/4" 141 1/8" 370 1/2" 102"
3,7m x 3,1m 3,58m x 2,84m 10,2m 22,7m 3,71m 2,97m 2,62m 3,58m 2,84m 2,59m
3,7m x 5,2m 3,58m x 5,03m 18,0m 40,2m 3,71m 5,16m 2,62m 3,58m 5,03m 2,59m
3,7m x 7,3m 3,58m x 7,22m 25,8m 57,7m 3,71m 7,35m 2,62m 3,58m 7,22m 2,59m
3,7m x 9,5m 3,58m x 9,41m 33,6m 75,2m 3,71m 9,54m 2,62m 3,58m 9,41m 2,59m
2
2
2
2
3
3
3
3

2
Owner's Manual
Before beginning construction, check local building codes regarding footings, location
and other requirements. Study and understand this owner's manual.
Important information and helpful tips will make your construction easier and more
enjoyable.
Assembly Instructions: Instructions are supplied in this manual and contain all
appropriate information for your building model. Review all instructions before you begin,
and during assembly, follow the step sequence carefully for correct results.
Foundation and Anchoring:Yourstoragebuilding must be anchored to preventwind
damage.A foundation is also necessary as a base in order to construct a square and level
building. Anchoring and foundation materials are not included with your building. We
recommend the use of an Arrow Anchoring Kit as an effective method of securing your
building to the foundation (Available by mail order or at your local dealer) or you may
construct the foundation and anchoring system of your choice.Your assembly instructions
provide information on a few methods commonly used to secure and level a storage
building.

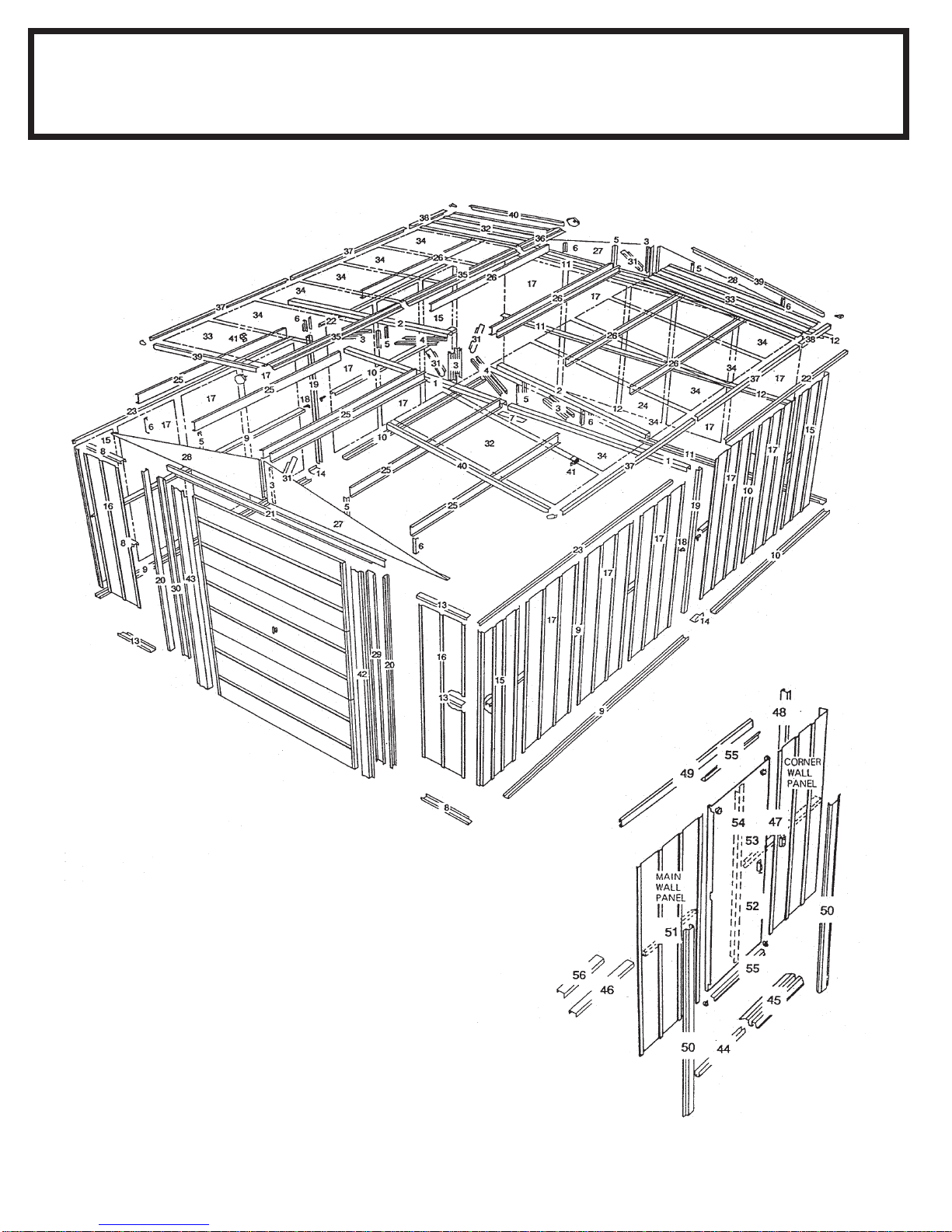

Parts and Parts List: Check to be sure that you have all the necessary parts for your
building.
•All part numbers can be found on the parts. All of these numbers (before the -) must agree with the
numbers on the parts list. The parts list is located on page 12.
•If you find that a part is missing, include the model number of your building and contact:
Arrow Group Industries, Inc. Customer Service Department
Route 50 East Breese, Illinois 62230
1-800-851-1085
•Separate contents of the carton by the part number while reviewing parts list. The first few steps
show how to join related parts to make larger sub assemblies which will be used later.
•Familiarize yourself with the hardware and fasteners for easier use during construction. These are
packaged within the carton. Note that extra fasteners have been supplied for your convenience.
BEFORE YOU BEGIN....
BW2

3
Selecting and Preparing Your Site: Before assembly, you will want to decide on
a location for your building. The best location is a level area with good drainage.
•Allowenoughworkingspace for ease of movingpartsintopositionduringassembly. Besurethere
will be enough space at entrance for doors to open fully and enough space around the building to
be able to fasten the panel screws from the outside.
•Before you begin the first steps in assembling your parts, a foundation should be constructed and
an anchoring system should be ready to use.
Watch the Weather: Be sure the day you select to install your building is dry and calm.
Do not attempt to assemble your building on a windy day.Be careful on wet or muddy ground.
Teamwork: Whenever possible, two or more people should work together to assemble
your building. One person can position parts or panels while the other is able to handle the
fasteners and the tools.
Tools and Materials: These are some basic tools and materials you will need for the
construction of your building. Decide which method of anchoring and the type of foundation
you wish to use in order to form a complete list of the materials you will need.
FoundationPreparation
•HammerandNails
• Spade or Shovel
• Hand Saw / Power Saw
•Lumberand/orConcrete
OptionalTime-Savers
• Wrench / Nut Driver
• Electric / Cordless Drill
•Square
• String (for squaring frame)
Required
• Work Gloves
•Step Ladder
• Utility Knife / Scissors
• Pliers
•Carpenter'sLevel
•TapeMeasure
Required
• Eye Goggles
• No. 2 Phillips Screwdriver
(With Hardened Magnetic Tip)
Note: A power screwdriver or vari-
able speed drill with Phillips-tip at-
tachment can speed assembly by
as much as 40%.
PLAN AHEAD....
A3

4
Safety precautions are important to follow throughout the construction of your building.
•Care must be taken when handling various
pieces of your building since some contain
sharp edges. Please wear work gloves, eye
protectionandlongsleeveswhenassembling
orperforming anymaintenanceon yourbuild-
ing.
•Practicecautionwiththetoolsbeingusedinthe
assembly of this building. Be familiar with the
operation of all power tools.
•Never concentrate your total weight on the
roof of the building. When using a step ladder
make sure that it is fully open and on even
ground before climbing on it.
•Keepchildrenandpetsawayfromworksiteto
avoid distractions and any accidents which
mayoccur.
•Donotattempttoassemblethebuildingifparts
are missing because any building left partially
assembled may be seriously damaged by light
winds. Call 1-800-851-1085
•Do not attempt to assemble the building on a
windyday,because thelargepanelsactingasa
"sail",canbewhippedaboutbythewindmaking
construction difficult and unsafe.
SAFETY FIRST....
A4
safety edge
safety edge
sharp edge
sharp edge

Finish: For long lasting finish, periodically clean and wax the exterior surface. Touch-
up scratches as soon as you notice them on your unit. Immediately clean the area with
a wire brush; wash it and apply touch-up paint per manufacturer's recommendation.
Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom. Heavy
amounts of snow on roof can damage building making it unsafe to enter. In snow country,
Roof Strengthening Kits are available for most Arrow Buildings for added protection
against heavy snow accumulation.
Doors: Always keep the door tracks clear of dirt and other debris that prevent them from
sliding easily. Lubricate door track annually with furniture polish or silicone spray. Keep
doors closed and locked to prevent wind damage.
Fasteners: Use all washers supplied to protect against weather infiltration and to protect
the metal from being scratched by screws.Regularly check your building for loose screws,
bolts, nuts, etc. and retighten them as necessary.
Moisture: A plastic sheet (vapor barrier) placed under the entire floor area with good
ventilation will reduce condensation.
Other Tips....
• Wash off inked part numbers on coated panels with soap and water.
• Silicone caulking may be used for watertight seals throughout the building.
Do not store swimming pool chemicals in your building. Combustibles and
corrosives must be stored in air tight approved containers.
Keep this Owner's Manual and Assembly Instructions for future reference.
5
CARE & MAINTENANCE....
A5 Web

6
ACCESSORIES....
A6 WEB
* Some drilling required to fit buildings without mid-wall bracing.
ModelNo.SS404
• Makes 8" to 12" (20-30cm)
wide shelves in any length.
• Brackets, braces,
hardwareincluded.
Lumber is not included.
ModelNo.SS900-A
• Grey color
• 3 shelves
• Holds up to 85 lbs. (38kg)
(even weight distribution)
Heavy-duty, galvanized steel shelf units help organize storage
space. They easily mount on the wall or sit on the floor. Fits all
Arrowbuildings.*
SHELF UNITS
Must be drilled for use as workbench in Estator.
+ Even weight distribution.
10'Long,250lb.(113kg)load+
Fits all Arrow 10' wide buildings. 16 lbs. (7kg)AT101
Model No. Fits ShippingWeight
ATTIC KIT / WORKBENCH KIT
Heavy-duty galvanized steel bars that
fit all 10' wide Arrow buildings. They
install quickly and easily to help
organizespaceandcreatemore
useable space as an attic or
workbench. Will hold up to 250 lbs.
(113kg)evenlydistributed.
ANCHOR KIT
Model No. AK100
New concrete anchor system permits
anchoringanysizeArrowbuilding
directly to a concrete slab. Each kit
containsheavy-duty,hot-dipped
galvanizedsteelcornergussetsand
perimeter clips which fit over the floor
frame and lag bolt into a concrete slab.
Full assembly instructions and a 1/4"
masonarydrillbitare included.
TOOL HANGING RACK
Model No. TH100
Theperfecttoolorganizer.Twin
25 1/2" (65cm) steel channels
plus five heavy-duty snap-in
hangers and a small tool holder for
screwdrivers,pliers, etc. Holders
slide along channel for fully
adjustablespacing.Greatfor
garage,basement,or the back
of any door. Fits all Arrow
storagebuildings.
ROOF STRENGTHENING (heavy snow load) KITS Extra roofbeamsandgable braces
designedforaddedprotectionagainstheavysnowaccumulation.Increasesthestrengthofyourroofby50%.
ANCHOR KIT
Model No. AK4
Anchor Kit contains heavy-duty steel
augers, 60' (18m) of steel cable and 4 cable
clamps.Nodiggingor concrete
pouring,justinsert cable under roof,
over roof beams, into augers and twist
augersintotheground.Forbuildings
larger than 10'x9', use 2 kits.
FLOOR FOUNDATION KITS
MODELS FB47410, FB5465, FB106-A
FB109-A AND FB1014-A
A simple new floor frame system made of heavy-duty, hot-dipped
galvanized steel. Use as foundation for plywood, sand or stone.

THIS
PAGE
WA S
LEFT
BLANK
INTENTIONALLY
7

THIS
PAGE
WA S
LEFT
BLANK
INTENTIONALLY
8

The Foundation For Your Building
9
Foundation
BW9

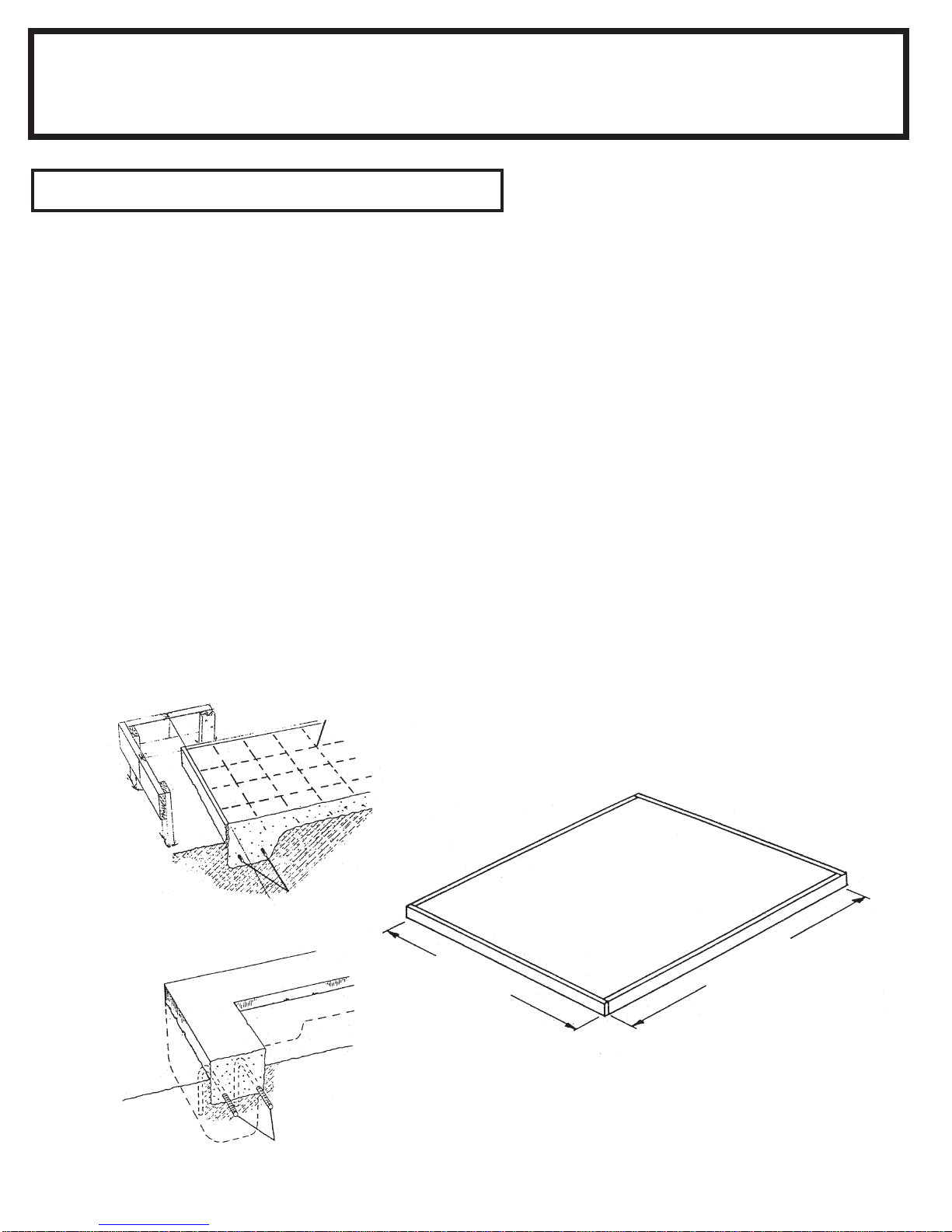

Concrete Slab
The slab should be at least 4" (10cm) thick. It must be level and flat to provide good support for the frame.
The following are the recommended materials for your foundation.
●2 x 4's (5cm x 10cm) (will be removed once the concrete cures)
●Concrete ●Sheet of 6 mil plastic
●We recommend for a proper strength concrete to use a mix of:
1 part cement ●3 parts pea sized gravel ●2 1/2 parts clean sand
PreparetheSite/ConstructaFoundation
1. Dig a square, 6" (15cm) deep into the ground (remove grass).
2. Fill up to 4" (10cm) in the square with gravel and tamp firm.
3. Cover gravel with a sheet of 6 mil plastic.
4. Construct a wood frame using four planks of 2x4 (5cm x 10cm)
lumber.
5. Pour in concrete to fill in the hole and the frame giving a
total of 4" (8-10cm) thick concrete. Be sure surface is level.
Allow 3 - 5 hours for construction and a week for concrete curing time.
Note:Beforebeginningconstruction,checklocalbuilding codes
regardingfootings,locationand otherrequirements.
1411/8"
3,58m
FRONT(ROLL-UPDOOR)
10' - 111 3/4" 2,84m
17' - 198" 5,03m
24' - 284 1/4" 7,22m
31' - 370 1/2" 9,41m
Note:FinishedSlabdimensions,withlumberremoved.
Reinforcing
Rods
Reinforcing
Rods
OptionalFooter Type ofFoundation
WeldedWire
Fabric

It is important that the entire floor frame be anchored after the building is erected.
Belowarerecommendedwaysofanchoring.
Anchoring Down The Building
Anchoring
BX10
Arrow Anchoring Kit: (ModelNo.AK100or68383)
Recommendedforusewiththeconcretefoundation.
Contains:Cornergussets,perimeterclips,hardware,
1/4" masonary drill bit and installation instruction.
Anchoring into Concrete:
1. For poured concrete slab or footing or patio blocks:
Use 1/4" x 2" Lag Screws.
2. For Anchor Post of Concrete poured after building is
erected: Use 1/4" x 6" Lag Screws.
Arrow Anchoring Kit: (ModelNo.AK4or60298)
Recommendedforusewithany suggestedbase.
Contains:4 Anchorswith Cable,Clamps and
installationinstruction.
Anchoringinto Wood/Post:
Use 1/4" Wood Screws. There are 1/4" (0,63cm) dia.
holesprovidedintheframes forproperanchoring.
10
OVERTHEBEAMS
AND INTO THE GROUND
1. 2.
1. 2.

11
Removefrombag of screws
and save for the Step 28
67545 21'
WeatherStripping(1)
66242
Door Slide (2) 66382 LowerDoorGuide (2)
7972
DoorHandle
LockBracket(1)
66265
Edge Trim (4)
(Carton5)
66646
Washer(600)
(320)(Carton5)
66444
Roof Trim Cap
(2 right & 2 left) 66446(ArrowLogo)
PeakCap(2) 66610(NoSlot) #10-32x7/16"Bolt(2)
65914
#6Ax7/8"Screw(5)
(PackedwithScrews)
65900A
#10Bx1/2"BlackScrew(2)
(PackedwithScrews)
65408
#10-32x1/4"Bolts(4)
65989
1/4-20x1/2"HexHeadBolt(10)
(PackedwithScrews)
Hardware for Building
BW11
66098
PlasticSpacer(5)
65004
#8Ax5/16"Screw(403)
(190)(Carton5)
65106
#10-32SquareNut(200)
(184)(Carton5)
65101
1/4-20SquareNut(12)
(PackedwithScrews)
65943
#10-32x7/16"Bolt(194)
(184)(Carton5)
67293 10'
WeatherStripping(1)
(Carton5)
66260
Handle(2)
67488(2)
3/16 x 1 5/16"
Heavy"S"Hook
66464(2)
1/4-20x11/2"HexHead
Bolt

Parts List
12
Carton 3 & 4
Assembly Part Part Wayne Dalton
Key No. Number Description Carton 1 Carton 2 Door Carton 5
1 7855 Truss Lower Chord 2
2 7856 Truss Upper Chord 2
3 6382 Center Gable Brace 2 8
4 7739 Truss Diagonal 4
5 6381 Mid Gable Brace 4 4
6 6380 Outer Gable Brace 4 4
7 7738 Splice Plate 1
8 7834 Right Front Frame 3
9 7837 Side Frame 4
10 7914 Side Frame 4
11 8532 Right Rear Frame 3
12 8531 Left Rear Frame 3
13 7835 Left Front Frame 3
14 7857 Truss Support 2
15 7824 Corner Wall Panel 4
16 7825 Front Wall Panel 2
17 7822 Main Wall Panel 7 6
18 6228 Frame Support 4
19 7917 Truss Column 2
20 7839 Front Column 2
21 7831 Lintel 1
22 7915 Side Top Angle 2
23 7838 Side Top Angle 2
24 7823 Medium Wall Panel 1
25 10462 Roof Beam 6
26 7912 Roof Beam 6
27 7942 Right Gable 2
28 7943 Left Gable 2
29 10460 Right Track Support 1
30 10461 Left Track Support 1
31 6372 Gable Strut 2 2
32 7827 Left Roof Panel 2
33 7826 Right Roof Panel 2
34 7828 Middle Roof Panel 4 6
35 7843 Ridge Cap 1 1
36 6874 Ridge Cap 1
37 5220 Side Roof Trim 2 2
38 6014 Side Roof Trim 2
39 7845 Left Rake 2
40 7846 Right Rake 2
41 7913 Spring Support Bracket 2
42 7830 Right Door Jamb 1
43 7829 Left Door Jamb 1
44 7517 Lower Door Track 1
45 7560 Ramp 1
46 7950 Side Wall Channel 1
47 7949 Side Wall Channel 1
48 7951 Support Column 1
49 7958 Door Track 1
50 7946 Door Jamb 2
51 7948 Door Wall Brace 1
52 7945 Door 1
53 3719 Door Handle Brace 1
54 7947 Vertical Door Brace 1
55 6264 Horizontal Door Brace 2
56 8530 Splice Channel 1
Carton #5 of the 12' x17' can be deleted for a complete 12' x10' building, or more than one carton #5 may be used to extend depth in multiples of 7'.
BW12

13
Assembly by Key No.
BW13

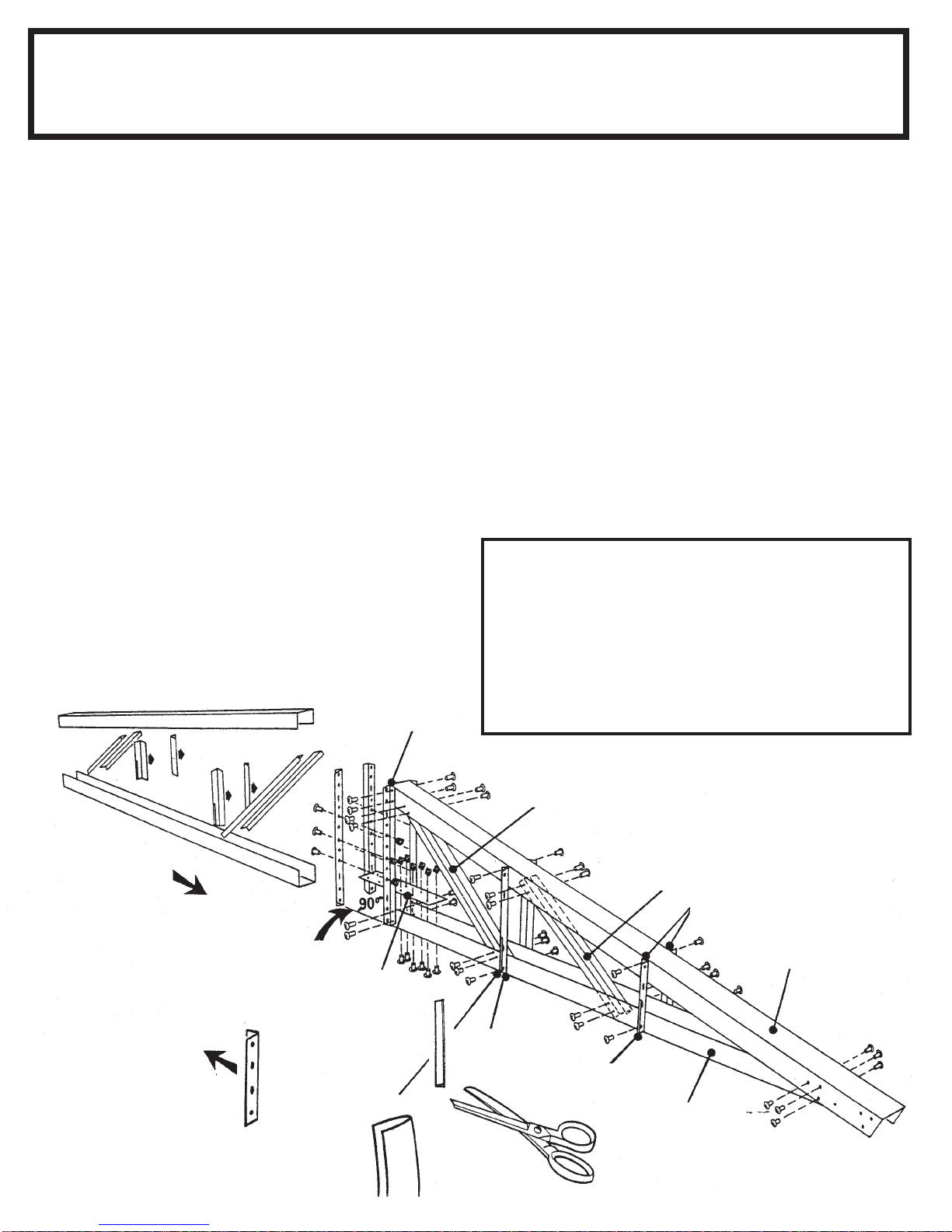

1Assemble1/2trussatatime,using
#10-32x7/16" bolts and square nuts,
on all connections loosely.
2Attachtrusslowerchordtotruss
upper chord.
3 Attach 2 center gable braces to
the upper and lower chords at the
opposite end of truss.
4Attach2trussdiagonalstoupper
and lower chords.
5 Attach 2 mid gable braces to
upper and lower chords.
6 Attach 2 center gable braces to
upper and lower chords at middle of
truss.
7 Attach 2 outer gable braces to
upper and lower chords. Mount with
short leg of brace.
Step 1
BW14
●Parts Needed For ●
Truss Assembly 12x17, 12x24 & 12x31
ONLY
●●
●●
●7855 Truss Lower Chord (2)
●●
●●
●7856 Truss Upper Chord (2)
●●
●●
●6382 Center Gable Brace (8)
●●
●●
●7739 Truss Diagonal (4)
●●
●●
●6381 Mid Gable Brace (4)
●●
●●
●6380 Outer Gable Brace (4)
●●
●●
●7738 Splice Plate (1)
14
6382
6382
7739
7856
Short
Mounting
Leg
#10-32 Square Nut
#10-32x7/16" Bolt
7855
6380
6381
7738
EdgeTrim
MountingFlange of Brackets
MustFaceTowardsCenter
Of Truss Assembly
IMPORTANT:
SquareUp
Half Truss
8 Square up 1/2 truss, adjust and
tighten.
9 Make other half and square.
10 Splicebothhalves togetherwith
splice plate andfastencentergable
braces together, using 3 bolts and
nuts.
11 Cut the 4 pieces of edge trim in
halfandslipoverthebottomedgesof
gable braces. This trim is a must to
protect against injury from the sharp
edge.
Make 1 assembly for the 12x17
Make 2 assemblies for the 12x24
Make 3 assemblies for the 12x31
NOTE
Thedaybeforeconstructionofthebuilding,completethesub-
assemblies so they will be ready. EXAMPLE: Truss, floor
frames,roofbeams,gables,sideandoverheaddoors. Setthe
assemblies aside, so they will not get damaged.
Theremainderofthebuildingassemblyrequiresmorethan
1 work session and more than 1 person. Do not continue
beyondthispointifyoudonothaveenoughtimetocomplete
thewallassemblyandcantiedowntheassemblyovernight.
Completetheroofanddoorsonthefollowingday.

Thegablesgo on topofthefrontand
rearwallstosupportthe roof beams.
The gables are packed nested to-
gether and might be mistaken as 1
piece. Carefully separate them be-
fore continuing.
1 Position mid and outer gable
braces on right and left gables.
Shortmounting flange of brace must
face center of gable. Fasten using
#10-32x7/16" bolts, washers and
square nuts. Assemble 2 sets of
gables.
Step 2
BW15
●Parts Needed For ●
Gables All Sizes
●●
●●
●6381 Mid Gable Brace (4)
●●
●●
●6380OuterGableBrace (4)
●●
●●
●7942 Right Gable (2)
●●
●●
●7943Left Gable (2)
15
7912
#10-32 Square Nut
#10-32x7/16" Bolt
10462
ShortMountingFlange
MustFace Towards
CenterofGable

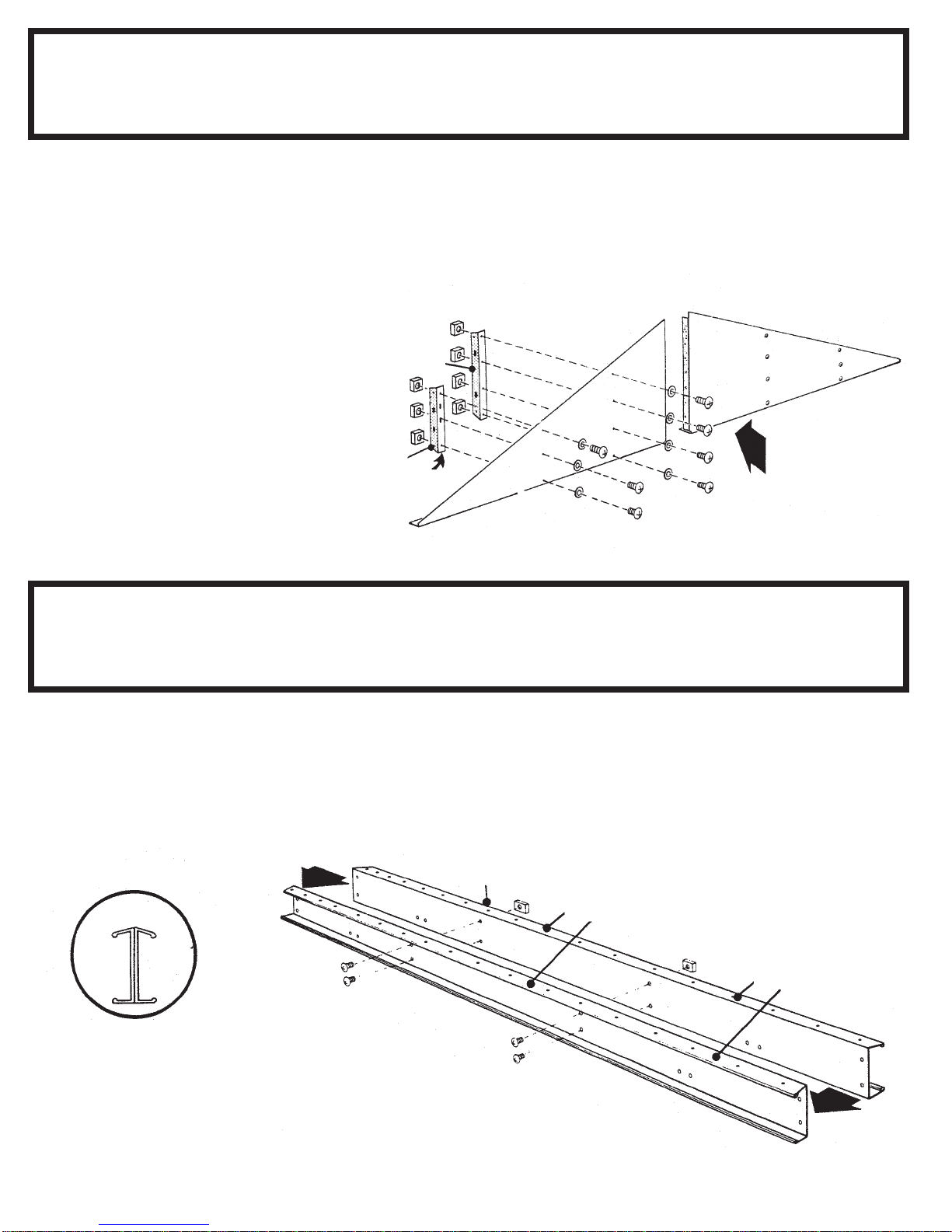

Step 3 ●Parts Needed For ●
Roof Beam Assemblies
●●
●●
●10462 Roof Beam (2) (All Sizes)
●●
●●
●7912RoofBeam(2)(1217)
●●
●●
●7912RoofBeam(4)(1224)
●●
●●
●7912RoofBeam(6)(1231)
Theroofbeamsjointhegablestothe
truss and supports the roof panels.
1Align the holes on 2 roof beams,
back-to-backandfastenusing4#10-
32x7/16" bolts and square nuts. SmallHoles
onTop
7942
7943
6380
6381
#10-32x7/16" Bolt
#10-32 Square Nut
Washer
FRONT
Assembled
End
View

The rear floor frame is made up of 2
pieces. The holes in these pieces
will align when the pieces are posi-
tioned with correct amount of over-
lap. Theillustrationbelowshowsthe
proper overall length for the rear.
1Overlaprightandleftrearframes,
align holes, and fasten using 8 bolts
andnuts. Make3assemblies. Use1
assembly for this step.
Step 4
BW16
●Parts Needed For ●
Floor Frame Assembly 12x10
●●
●●
●8532 Right Rear Frame (1)
●●
●●
●8531 Left Rear Frame (1)
●●
●●
●7837 Side Frame (2)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7517 Lower Door Track (1)
●●
●●
●7560 Ramp (1)
16
#10-32 Square Nut
#10-32x1/4" Bolt
7837
8531

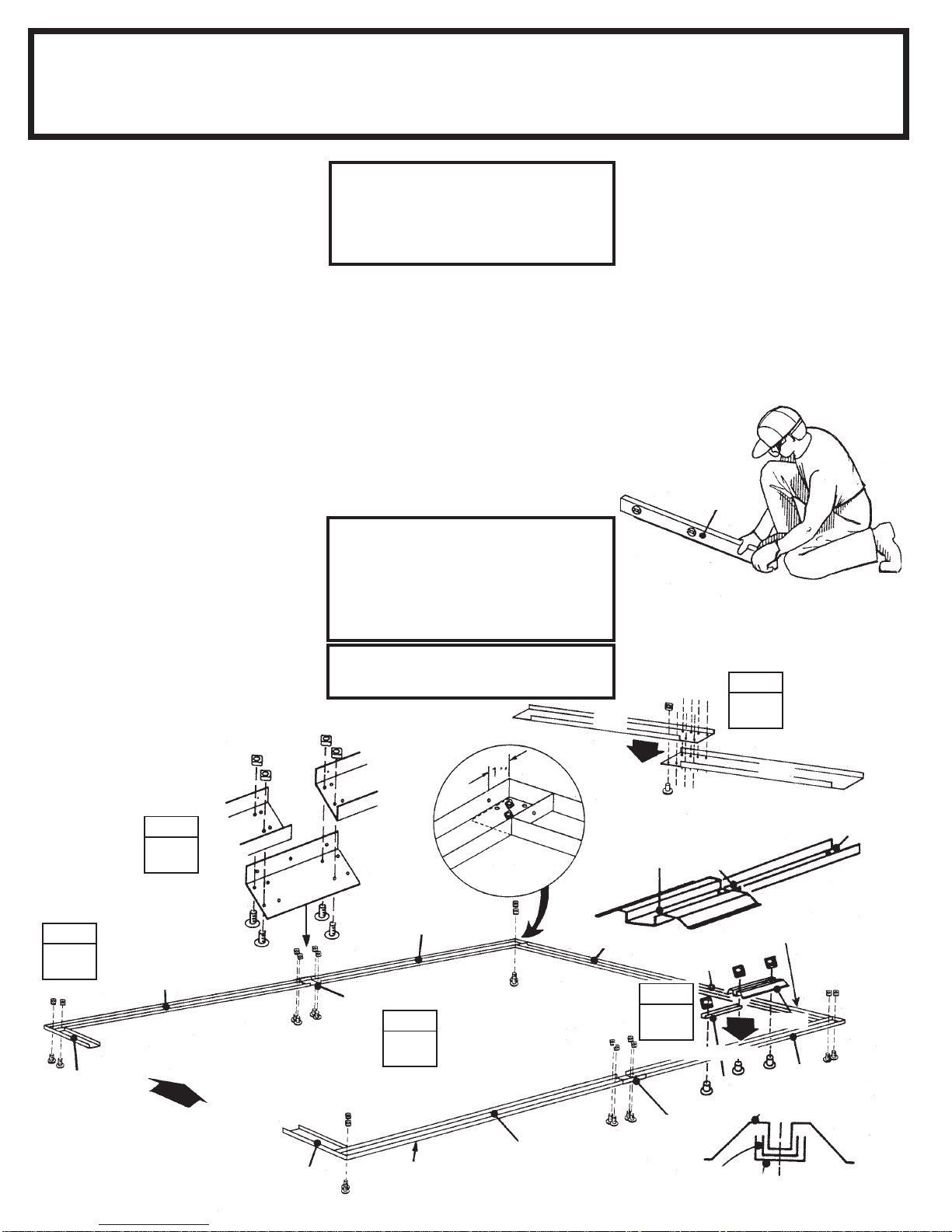

4 Select location of side door on
eitherside,towardtherearofbuild-
ing. Install lower door track and
ramp, notch toward outside, using
1/4"boltsandnuts,asshown. See
Step 12 for Rear Door Installation.
2Positionfloorframesasshown
and fasten at each corner using 2
bolts through the bottom and nuts
on top.
3 Measure the floor frame diago-
nally. When the diagonal mea-
surementsareequal,thefloorframe
is square.
7834 Position with small holes
towardoutsideofbuilding
7835
FRONT
7837
7517 7560
8532
Level
#10-32x7/16" Bolt
SIDE
REAR
Slot
Notchtowardoutside
ofbuilding
SideFrame
7517
7560
8531
Rear Frame 140 7/8" 3,6m
8532
STEP
1
STEP
4
STEP
3STEP
2
NOTE
Do not fasten the floor frames to
yourfoundation at this time. You
will anchor the building after it is
erected.
The floor frame must be square
and level or holes will not align.

The rear floor frame is made up of 2
pieces. The holes in these pieces
will align when the pieces are posi-
tioned with correct amount of over-
lap. Theillustrationbelowshowsthe
proper overall length for the rear.
1Overlaprightandleftrearframes,
align holes, and fasten using 8 bolts
andnuts. Make3assemblies. Use1
assembly for this step.
2 Position floor frames as shown
and fasten at each corner using 2
boltsthroughthebottomandnutson
top. Wheninstallingsideframe7914,
be sure set of holes 1" in from end of
frames are installed toward rear of
building.
3Fastensideframestogetherwitha
truss support using 4 bolts through
the bottom and nuts on top.
Step 5
BW17
●Parts Needed For ●
Floor Frame Assembly
12x17, 12x24, 12x31
●●
●●
●8532 Right Rear Frame (1)
●●
●●
●8531 Left Rear Frame (1)
●●
●●
●7914 Side Frame (see below)
●●
●●
●7857 Truss Support (see below)
17
#10-32 Square Nut
#10-32x7/16" Bolt
IF YOU ARE BUILDING A 12x24
Fastenadditionalsideframe7914andtruss
support7857tosideframe7914usingthe
sideconnection. Positionrearframeatrear
of assembly and fasten using the rear
cornerconnection.
IF YOU ARE BUILDING A 12x31
Fasten 2 additional side frames 7914 and
truss supports 7857 to side frame 7914
using the side connection. Positon rear
frameatrearofassemblyandfastenusing
therearcornerconnection.
4 Measure the floor frame diago-
nally. When the measurements
areequal,thefloorframeissquare.
5 Select location of side door on
eitherside,towardtherearofbuild-
ing. Install lower door track and
ramp,notchtowardoutside,using
1/4"boltsandnuts. SeeStep12for
Rear Door Installation.
7834 Position with small holes
towardoutsideofbuilding
FRONT
#10-32x1/4" Bolt
STEP
4
STEP
1
NOTE
Do not fasten the floor frames to
your foundation at this time.
You will anchor the building
after it is erected.
The floor frame must be square
and level or holes will not align.
●●
●●
●7837 Side Frame (2)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7517 Lower Door Track (1)
●●
●●
●7560 Ramp (1)
7837 7857
7517
7835
7837
7914
7857
7837
7914
STEP
3
STEP
2
RearFrame1407/8"
3,6m
Slot
Notchtowardoutside
ofbuilding
8531
8532
8531 8532 Level
7560
7914
7560
SideFrame
7517
SIDE
REAR
7857
NOTE
Position of holes, and fasten at
the 1st set of holes. See side
connection.
STEP
5
Level

Each screw and bolt in the wall re-
quires a washer.

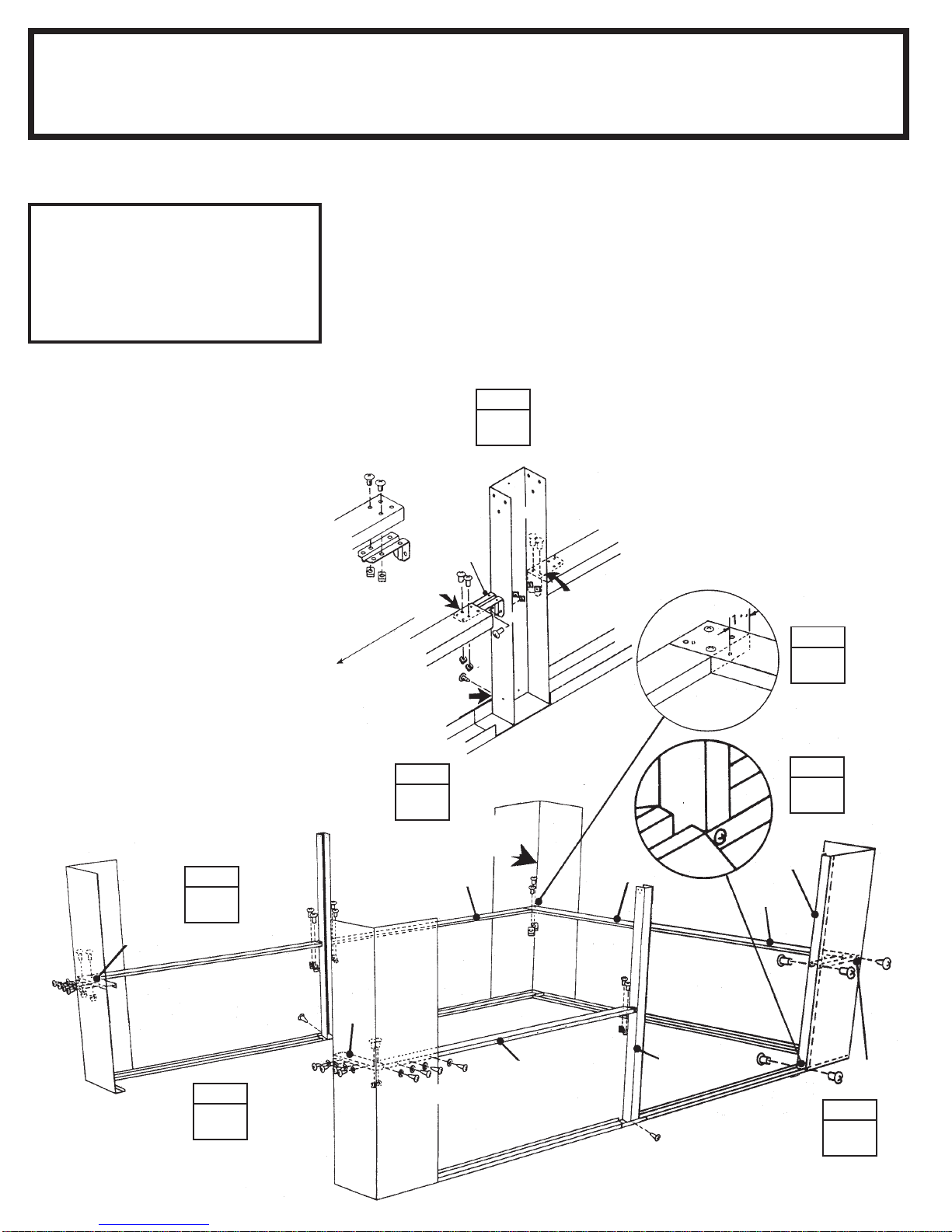

1 Install a corner wall panel at the
corner of the floor frame as shown.
Thewidestpartofeach corner panel
must be placed along the side of the
building for all 4 corners. Fasten the
cornerpaneltothefloorframewith4
screws.
Support the corner panel with a step
ladder until a wall panel is attached.
2Attachthefrontwallpanelstothe
front corner panels, as shown.
3Attachthemainwallpanelstothe
rear corner panels, as shown.
NOTE
Be careful to install the correct
panel in each position as shown.
4Double-checkthepartnumbersof
the wall panels, before proceeding.
Step 6
BW18
●Parts Needed For ●
Corners All Sizes
●●
●●
●7824 Corner Wall Panel (4)
●●
●●
●7825 Front Wall Panel (2)
●●
●●
●7822 Main Wall Panel (2)
18
7824
#10-32 Square Nut
#10-32x7/16" Bolt
7822
The floor frame must be square
and level or holes will not align.
Washer
7822
Washer
#8Ax5/16" Screw 7824
7825
7824
7824
STEP
4
STEP
2
STEP
3
7825 7825
7822
7822
SIDE SIDE
REAR
FRONT
7824
7824
7824
7824
Narrow
Side
STEP
1
Wide Side
TOP VIEW
7825

The mid frame pieces give rigidity to
the side and rear wall.
NOTE
Before installing mid frames
decide at which location you
want the entrance door. Do not
install the 1x2 mid frame at 1 of 3
locations.
1 Fastenarear frame assembly to
the main wall panels using screws.
2Fastenarightandleftfrontframe
tothefrontwallpanelsthesameway.
Step 7
BW19
●Parts Needed For ●
Frames 12x10
●●
●●
●Rear Frame Assembly (1)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7837 Side Frame (2)
●●
●●
●7950 Side Wall Channel (1)
●●
●●
●7949 Side Wall Channel (1)
●●
●●
●7951 Support Channel (1)
19
#10-32 Square Nut
#10-32x7/16" Bolt
7835
STEP
4
STEP
2STEP
3
STEP
1
3 Fasten side frame to the corner
panels using screws. Where rear
frame overlaps side frame in corner,
fasten using 2 bolts and nuts.
4 Fasten side wall channels to the
corner panels using screws. Fasten
overlaps in corners using bolts.
5 Fasten support column to side
frame and side wall channel using
bolts and nuts where shown. Fold
corner panel slightly away from col-
umntofastenboltsfromoutside. See
Step 12 for rear door installation.
7951 7949
STEP
5
7837
8532
8531
#8Ax5/16" Screw
7950
7834
SIDE
REAR

The mid frame pieces give rigidity to
the side and rear wall.
NOTE
Before installing mid frames
decide at which location you
want the entrance door. Do not
install the 1x2 mid frame at 1 of 3
locations.
1 Fastenarear frame assembly to
the main wall panels using screws.
2Fastenarightandleftfrontframe
tothefrontwallpanelsthesameway.
3 Attach 4 frame supports to the
middleofthe2trusscolumnsusing
2 bolts and nuts on each.
4Fastensideframe7914totherear
corner panel using screws. Be sure
setofholes1"infromend offrameis
installed toward rear of building.
Whererearframeoverlapssideframe
in corner, fasten using 2 bolts and
nuts. Fasten opposite end to frame
supportontrusscolumn,using2bolts
andnutsin the 1st setofholes. Fas-
ten truss support to truss column at
bottomwith1screwatthe1stholeon
column. Support column assembly
with step ladder.
Step 8
BW20
●Parts Needed For ●
Frames
12x17, 12x24 & 12x31
●●
●●
●7837 Side Frame (2)
●●
●●
●6228 Frame Support (4)
●●
●●
●7949 Side Wall Channel (1)
●●
●●
●7951 Support Column (1)
20
#10-32 Square Nut
STEP
4
STEP
2
STEP
3
STEP
1
5 Fasten side frame 7837 to the
frontcornerpanelusingscrews. Fas-
ten overlap in corner. Fasten oppo-
siteendtotheframesupportontruss
column,using 2nd set of holes. This
will leave a gap between side frame
and truss column.
STEP
6
Fora12x24buildingrepeat
columnprocedurehere
●●
●●
●Rear Frame Assembly (1)
●●
●●
●7834 Right Front Frame (1)
●●
●●
●7835 Left Front Frame (1)
●●
●●
●7917 Truss Column (see below)
●●
●●
●7914 Side Frame (see below)
STEP
5
STEP
7
#8Ax5/16" Screw
7837
7835
7834
#10-32x7/16" Bolt
7917 7949
8531
7951
8532
7914
SIDE
REAR
GAP
1stHOLE
ON COLUMN
7837
7914
1stSET
OFHOLES
2ndSET
OFHOLES
6228
7917
7837
FRONT OF BUILDING
6 Fasten side wall channel to the
rear corner panel using screws.
7 Fasten support column to side
frame and side wall channel using
bolts and nuts where shown. Fold
corner panel slightly away from col-
umntofastenboltsfromoutside. See
Step 12 for rear door installation.
IF YOU ARE BUILDING A 12x24
Each side of building will have 2 column
assembliesand2extrasideframes7914.
IF YOU ARE BUILDING A 12x31
Each side of building will have 3 column
assembliesand4extrasideframes7914.
GAP
Support this truss column with a
step ladder until next step
