Art HMI0701 User manual

HMI0701
User’s Manual
BeijingART Technology Development Co., Ltd.
1

2
Contents
Contents .........................................................................................................................2
Chapter 1 Overview.......................................................................................................3
Chapter 2 Product Features...........................................................................................4
Chapter 3 Software Resource.........................................................................................7
3.1 WINCE...............................................................................................................7
3.2 Linux..................................................................................................................8
Chapter 4 Dimensions ...................................................................................................9

3
Chapter 1 Overview
HMI0701 embedded motherboard which has a large number of functions is an ARM9 embedded system platform.
It uses Atmel Corporation AT91SAM9261 microprocessor, expands an adequate number of storage resources and
a typical embedded system interface, and provides complete WinCE and Linux system solutions. HMI0701 has
strong anti-interference ability, high integration, easy installation; low power consumption, electromagnetic
compatibility, and can work in harsh environments
Hardware Features
Size: 233×174×40 mm
CPU: Atmel AT91SAM9261
Operating Frequency Range: 200MHz
SDRAM: 64MB SDRAM
NandFlash: 256MB (Can upgrade to 1GB)
Display System
Type: 7 inch TFT LCD screen
Resolution: 800 × 480
Dot pitch: 0.330 (H) × 0.330 (V)
Touch Screen: 4-line Resistance Touch Screen
Backlight: LED backlight
Light Transmission Rate: 85%
Communication Interface:
RS232 Serial Port: 1x 5-line serial port, baud rate--115200 Kbps
Debugging Serial Port: 1x 3-line serial port, baud rate--115200 Kbps
Interface for RS485: 1x industrial grade standard RS485
USB HOST: 2 x USB2.0, baud rate-- 12Mbps
USB Device: 1 x USB2.0, baud rate-- 12Mbps
Ethernet: one, 10M/100Mbps self-adaptive
Other Device:
1 x DC buzzer
3 x LED
Clock
Reset button
Operation Temperature
Operation Temperature: -10℃~ +60℃
Storage Temperature: -20℃ ~ +75℃
Humidity: 90% (max)
Power: 2W
Power Supply: 12~36VDC

Chapter 2 Product Features
General Purpose Interface
HMI0701 interface distribution shown as below
Ethernet: standard RJ-45 Ethernet port, support standard TCP/IP protocol, 100M Ethernet port, DM9000A, with
connection and transmission indicator.
Pin Signal Name
1 TX+
2 TX-
3 RX+
4、5 2.5V
6 RX-
7、8 GND
9~12 LED
13、14 Case
Serial Communication Port
AT91SAM9261 itself with a debug serial port, three standard serial port, HMI0701 board leads to an RS-232
standard communication interface, an RS-485 serial interface and a DEBUG port, DEBUG and RS485 serial port are
multiplexed serial.
4

RS232 serial port
Pin Pin Definition
2 RXD1
3 TXD1
5 GND
7 RTS1
8 CTS1
1、4、6、9 NC
DBUG and RS485 multiplex serial port
Pin Pin Definition
2 DTXD
3 DRXD
5 GND
7 TXD0
8 RXD0
1、4、6、9 NC
Interface for USB: two USB Host interface, one USB device interface.
USB Device interface synchronizes with PC, and USB Host interface supports USB keyboard, mouse, U-disk
and other devices.
USB Host interface
Pin Signal Name Pin Signal Name
1 VBUS 5 VBUS
2 HDMA 6 HDMB
3 HDPA 7 HDPB
4 GND
USB Device interface
Pin Signal Name Pin Signal Name
1 VBUS 3 DDP
2 DDM 4 GND
5

Power Interface shown as below
Power Interface
Pin Pin Definition
1 12V~36V
2 GND
3 EGND
6

7
Chapter 3 Software Resource
HMI0701 Tablet PC provides all function components driver，the specification of the software resource are as
follows:
3.1 WINCE
zKernel Version
¾WindowsCE.net 5.0
zDriver Features
¾10M/100M Ethernet Card DM9000A Driver
¾NAND FLASH Driver(Identified as a disk on WinCE5.0 operating system)
¾RTC Driver
¾RS232/RS485 Driver
¾USB HOST Driver supports USB mouse, keyboard, USB flash device etc.
¾USB Device Driver
¾USB wireless network card driver, support 802.11b/g protocol
¾TFT Liquid Crystal Screen Driver
¾Touch Screen Driver
¾Backlight Control Driver
¾Buzzer Driver
¾LED Driver
zComponent Features
¾Support ActiveSync, Microsoft Excel Viewer, Microsoft Word View, Word Pad application
¾Support .NET Compact Framework 2.0, COM, DCOM，MFC, SQL Server CE 3.0, MSXML 3.0
¾Support RAS/PPP, TAPI 2.0, TCP/IP, Ping, IE6, FTP Server, Telnet Server, Web Server and other
network protocols
¾Support BMP, GIF, JPG, PNG and other image codecs
¾Support Registry Save Function
zOther Features
¾User can set 1~30min into the IDLE status to reduce power consumption, and the backlight automatic
closing (click touch screen or mouse can wake-up)
¾Support transition screen display

8
3.2 Linux
zKernel Version
¾Linux2.6.27
zSupport File Systems
¾Yaffs (file system can be read/wrote, recommend)
¾Cramfs (only read file system, recommend when does not update data online)
¾NFS (network file system)
¾Ext2
¾Ramdisk
¾FAT16/32
zDriver Features
¾10M/100M Ethernet Card DM9000A Driver
¾NAND FLASH Driver
¾RTC Driver
¾RS232/RS485 Driver
¾USB HOST Driver supports USB mouse, keyboard, USB flash device etc.
¾USB wireless network card driver (optional)
¾TFT Liquid Crystal Screen Driver
¾Touch Screen Driver
¾Backlight Control Driver
¾Buzzer Driver
¾LED Driver
zLinux Applications and Service Programs
¾Busybox
¾Telnet, Ftp, TFTP
¾ifconfig, ping, route
zEmbedded Graphics System
¾Qt/Embedded, MiniGUI

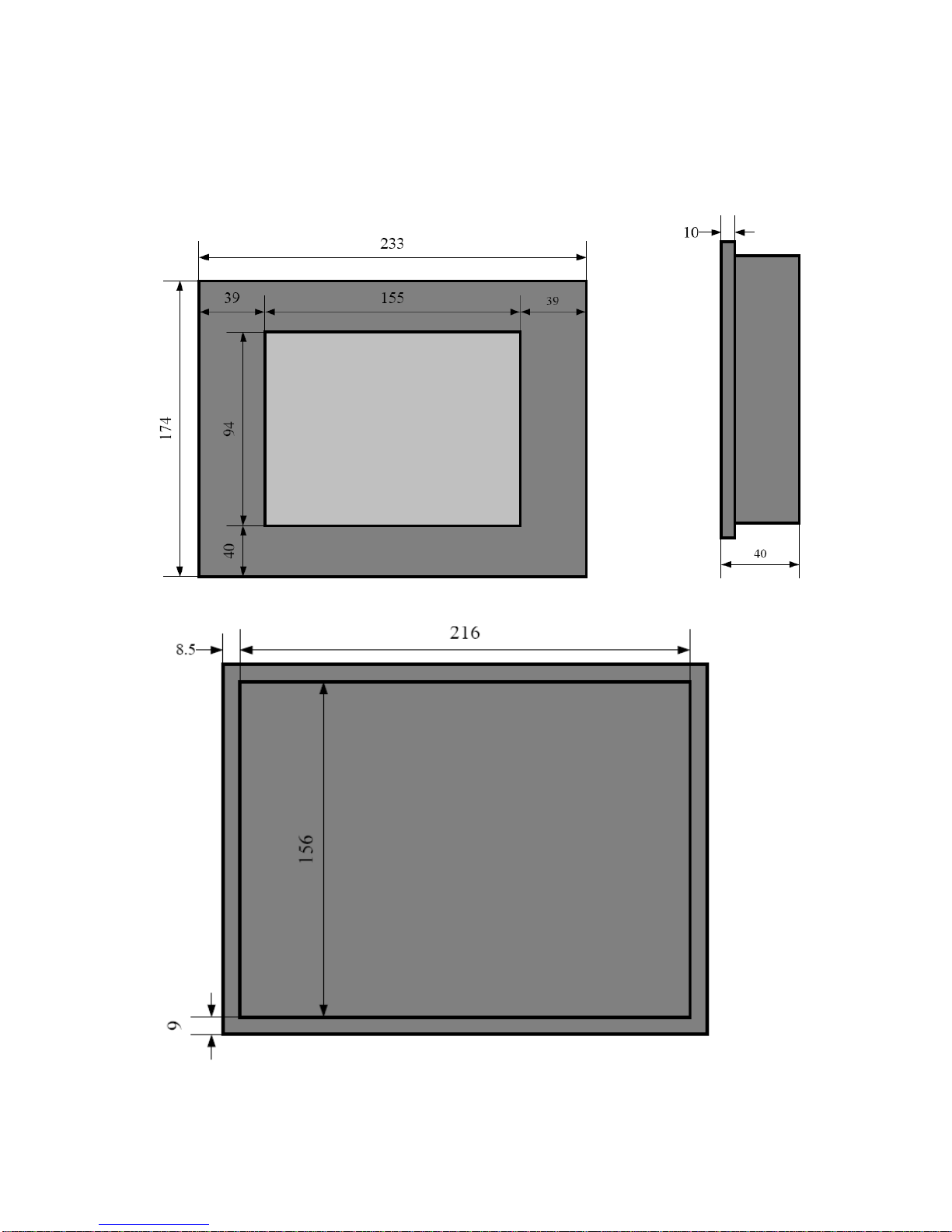

Chapter 4 Dimensions
Mechanical Character
