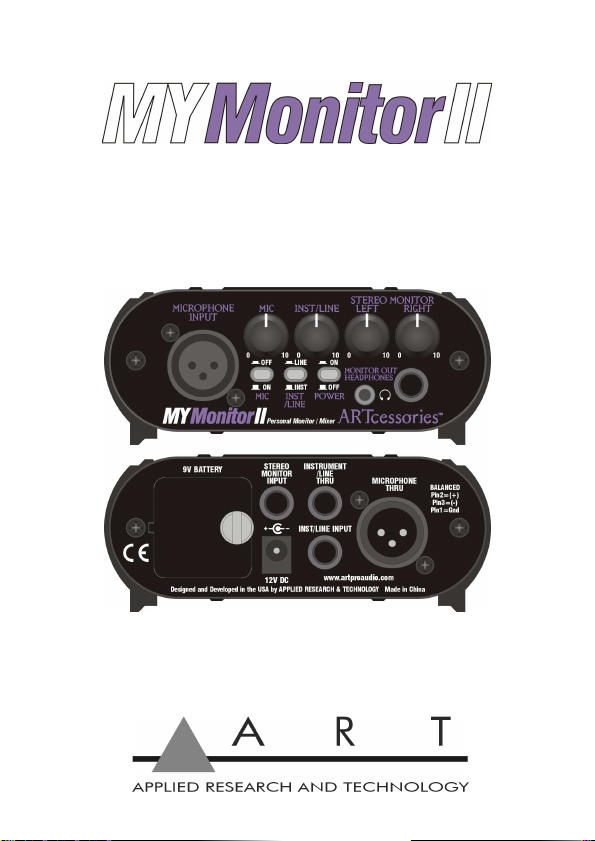

Art MyMONITORII User manual

Personal Monitor / Mixer
Artcessories
User's Manual

IMPORTANT SAFETY INSTRUCTION – READ FIRST
This symbol, whenever it appears,
alerts you to the presence of
uninsulated dangerous voltage
inside enclosure-voltage that may be
sufficient to constitute risk of shock.
This symbol, whenever it appears,
alerts you to important operating
and maintenance instructions in
the accompanying literature.
Please read the manual.
Read Instructions: Retain safety and operating instructions for
future reference. Heed all warnings printed here and on the
equipment. Follow the operating instructions printed in this user
guide.
Do not open: There are no user serviceable parts inside. Refer
any service work to qualified technical personnel only.
Grounding: Only connect the unit to equipment with properly
grounded mains power. Do not defeat the grounding and
polarization means of the power cord plug of the connected
equipment. Do not remove or tamper with the ground
connection on the power cord of the connected equipment.
Environment: Protect from excessive dirt, dust, heat, and
vibration when operating and storing. Avoid tobacco ash, drink
spillage and smoke, especially that associated with smoke
machines.
Handling: Protect the controls from damage during transit. Use
adequate padding if you need to ship the unit. To avoid injury to
yourself or damage to the equipment, take care when lifting,
moving or carrying the unit.
Servicing: Refer servicing to qualified technical personnel.
Installation: Install the unit in accordance with the instructions
printed in the user guide.

INTRODUCTION:
The MYMonitorII lets a performer hear them self through
headphones exclusively or mixed with the output of a
mixer or other stereo source. The microphone thru
provides a direct connection to your mixer and allows for
phantom powering of condenser microphones from the
board.
The instrument/line input and thru connections allow you
to locally monitor your instrument while still connecting
direct to your amplifier.
While supplied with a 12V DC adapter, the MYMonitorII
can also be battery powered for portable applications.
The pop-less microphone on/off switch lets you locally
mute the microphone. The headphone section has
independent 1/8-inch and 1/4-inch outputs with plenty of
drive for both.
The product is designed for the highest quality audio
performance and its compact rugged package will give
you years of reliable use.

FEATURES:
• High performance low noise circuitry
• Microphone input and thru with pop-less on/off mute
• Instrument/Line input and thru jacks
• Stereo Monitor input
• Monitor Out / Headphone output section has 1/8-
inch and 1/4-inch jacks
• 9V battery and 12V DC power operation
• Compact and rugged package is designed for years
of use
• Perfect for professional, home, and project studios

INSTALLATION and OPERATION:
1. Connect your microphone output to the XLR
MICROPHONE INPUT. Next connect the XLR
MICROPHONE THRU directly to the XLR microphone
input on you mixer. Your microphone can be phantom
powered from your mixer, if needed, as the MYMonitorII
will allow power to pass directly through the units XLR
connections.
2. Connect your instrument, line, or speaker level
signal to the INST/LINE INPUT. Connect a 1/4-inch
phone jack cable from the INSTRUMENT/LINE THRU
and the other end to where your signal was going to,
The MYMonitorII is then inline with the feed to your
amplifier or other device.
3. Connect your mixers monitor output or other stereo
source to the STEREO MONITOR INPUT.
4. Connect headphones or other stereo monitoring
system to the MONITOR OUT/HEADPHONES outputs.
One or both outputs can be used at the same time.
5. Connect the supplied 12V DC power supply to the
MYMonitorII or install a 9V battery for portable
operation. Push the POWER switch in to enable power
and the switch will light red if power is available. When
using a battery for power, be sure to turn the POWER
switch off when not using the unit in order to maximize
battery life.
6. When using a microphone source, pushing the MIC
switch in will mute the microphones audio signal (off).

7. The INST/LINE switch, when in the out position,
gives you enough gain for instrument level signals. If
you have a higher line or speaker level signal then push
the switch in and the signal will be attenuated at the
input to prevent clipping.
8. Once connections have been made and switches
set you can adjust the front panel level controls for the
desired signal levels at the headphone/monitor outputs.
The local monitor mix and level are only applied to local
monitor outputs. The source microphone and instrument
signals are still fed directly thru the unit to any other
equipment connected to the thru connections.

SPECIFICATIONS:
Frequency Response: 10 Hz - 50 kHz,
±1.0 dB @ +0 dBu
THD: <.05% (typical)
Maximum Gain: 44 dB (mic)
38 dB (instrument)
17 dB (line)
14 dB (stereo monitor)
Signal to Noise Ratio: >96 dB
Maximum Input Level: +6 dBu (mic)
+12 dBu (instrument)
+32 dBu (line)
+32 dBu (stereo monitor)
Input Impedance: 4.5k Ohms (mic)
1m Ohm (instrument)
100k Ohms (line,
stereo monitor)
Maximum Output Level: +12 dBu
Output Impedance: 47 Ohms
Power Requirements: 12V DC @ 150 mA
(Adaptor included)
9V @ 15 mA (typical)
(IEC 6LR61, ANSI-1604A)
Dimensions HxWxD (in): 1.85 x 4.6 x 4.3
HxWxD (mm): 47 x 117 x 109
Weight (lbs/kg): 1.10 / 0.50

WARRANTY INFORMATION:
Limited Warranty (USA only)
Applied Research and Technology will provide warranty
and service for this unit in accordance with the following
warrants:
Applied Research and Technology, (ART) warrants to
the original purchaser that this product and the
components thereof will be free from defects in
workmanship and materials for a period of three years
from the date of purchase. Applied Research and
Technology will, without charge, repair or replace, at its
option, defective product or component parts upon
prepaid delivery to the factory service department or
authorized service center, accompanied by proof of
purchase date in the form of a valid sales receipt.
Exclusions
This warranty does not apply in the event of misuse or
abuse of the product or as a result of unauthorized
alterations or repairs. This warranty is void if the serial
number is altered, defaced, or removed.
ART reserves the right to make changes in design or
make additions to or improvements upon this product
without any obligation to install the same on products
previously manufactured.
ART shall not be liable for any consequential damages,
including without limitation damages resulting from loss
of use. Some states do not allow limitations of incidental
or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty gives you
specific rights and you may have other rights, which

vary, from state to state. The warranty terms listed
above are only valid within the United States of America.
For units purchased outside the United States, an
authorized distributor of Applied Research and
Technology will provide service. For information on
warranty and service policies outside of the U.S., please
contact your local distributor.
Please fill in the following information for your reference:
Date of purchase: _________________________
Purchased from: _________________________

SERVICE:
The following information is provided in the unlikely
event that your unit requires service.
1. Be sure that the unit is the cause of the problem.
Check to make sure that the unit has power
supplied, that all cables are connected correctly,
and that the cables themselves are in working
condition. You may want to consult with your dealer
for assistance in troubleshooting or testing your
particular configuration.
2. If you believe that the ART unit is at fault, go to
www.artproaudio.com. Select "Support", then
"Return Authorization Request" to request a return
authorization number.
3. If you are returning the unit for service, pack the
unit in its original carton or a reasonable substitute.
The original packaging may not be suitable as a
shipping carton, so consider putting the packaged
unit in another box for shipping. Print the RA
number clearly on the outside of the shipping box.
Print your return shipping address on the outside of
the box.
4. Include with your unit: a note with the RA number
and your contact information, including a return
shipping address (we cannot ship to a P.O. box)
and a daytime phone number, and a description of
the problem, preferably attached to the top of the
unit. Also include a copy of your purchase receipt.
