Artcoustic CPH-1000D User manual

CPH-1000D AMPLIFIER
Owners manual
artcoustic.com

WELCOME TO THE WORLD
OF ARTCOUSTIC
OWNERS MANUAL – CPH-1000D ARTCOUSTIC LOUDSPEAKERS
The Artcoustic CPH-1000D is a professional 2-channel,
digital amplifier which performs smoothly and accurately,
even in the most demanding conditions.
Designed in-house, the CPH-1000D oers incredible
2-channel, or bridged single-channel performance, in a
rack mountable chassis, just 1U high. It combines high
performance with a silent and speed ecient, dual-fan
cooling system making it a suitable solution for almost any
application.
Use it in recording studios, or commercial applications
such as bars, restaurants & hotels, as well as high quality
Hi-Fi and home cinema systems.
It features two amp modules with a total of 450 Watt,
8 ohms per channel, or bridged, single-channel 1000 Watt,
8 ohms. It has been optimized to complement all the
Artcoustic subwoofers’ impedance and tonality, making it
the perfect match with amazing detail, control and
dynamics.
Thank you for purchasing an Artcoustic product.
All the best,
The Artcoustic Team

ARTCOUSTIC LOUDSPEAKERS
INPUT SENSITIVY CONTROL
SIGNAL PRESENCE, CLIP AND PROTECTION INDICATOR
STABLE PERFORMANCE DOWN TO 4 OHMS
AUTO TURN ON, TURN OFF  SIGNAL SENSING 60 MINUTES
CROSSOVER, LOWPASS, FULL RANGE, 80 HZ AND
120 HZ 24 DB PER OCTAVE
ASOF (ARTCOUSTIC SUBWOOFER OPTIMIZED FILTER) SLAM,
DEPTH 1 AND DEPTH 2
HIGH CURRENT BIPOLAR CLASS D TECHNOLOGY
EXTENDED PROTECTION CIRCUIT
INCREDIBLE CLASS D AMPLIFIER PERFORMANCE
2 x 450 Watt 8 ohms and 1000 Watt single channel bridged.
COVENIENT FEATURES
SMALL SIZE AND WEIGHT
CPH-1000D only occupies a 1U rack space and weighs as little as 2.8 kg
making it an ideal choice in an already crowded equipment rack.
OWNERS MANUAL – CPH-1000D
FEATURES
CPH-1000D

Full range: 20 Hz - 20 KHz ± 0.5 dB
Low-pass: 80 Hz 24 dB/oct 120 Hz 24 dB/oct
S/N Ratio: >103 dB - THD (at 1 watt into 8 ohms) 1KHz <0.05%
Damping factor: >300 - Input impedance: 20 Kohms balanced
Maximum input level: 7 V
Load impedance: 4-8 ohms
Input sensitivity: (0 dB)
Power supply: 115 V/230 V-50/60 Hz
Input terminal: RCA
Output terminal: Binding post
Protection: Heat, over current, Short and DC
Dimensions (H x W x D) : 44 x 430 x 180 mm
Weight: 2.8 Kg
STEREO
Load
Power
4Ω
500W+500W
8Ω
450W+450W
12Ω
240W+240W
16Ω
180W+180W
BRIDGED
Load
Power
4Ω
not recommended
8Ω
1000W
12Ω
800W
16Ω
600W
S/N RATIO
2.8 kg
WEIGHT
H: 44 W: 430 D: 180 mm
DIMENSIONS
80 Hz 24 dB/oct
120 Hz 24 dB/oct
LOW PASS
POWER SUPPLY
DC 115V/230 50/60 Hz
MAX POWER CONSUMPTION
1300W - 3400BTU/H
OWNERS MANUAL – CPH-1000D
20 Hz 20 kHz
OPERATING RANGE
± 0.5 dB
103 dB
LOAD IMPEDANCE
4-8 ohms
Ω
SPECIFICATIONS
CPH-1000D
ARTCOUSTIC LOUDSPEAKERS

ARTCOUSTIC LOUDSPEAKERS
910 13 14 15 16 18
64
28 357
1
12 17

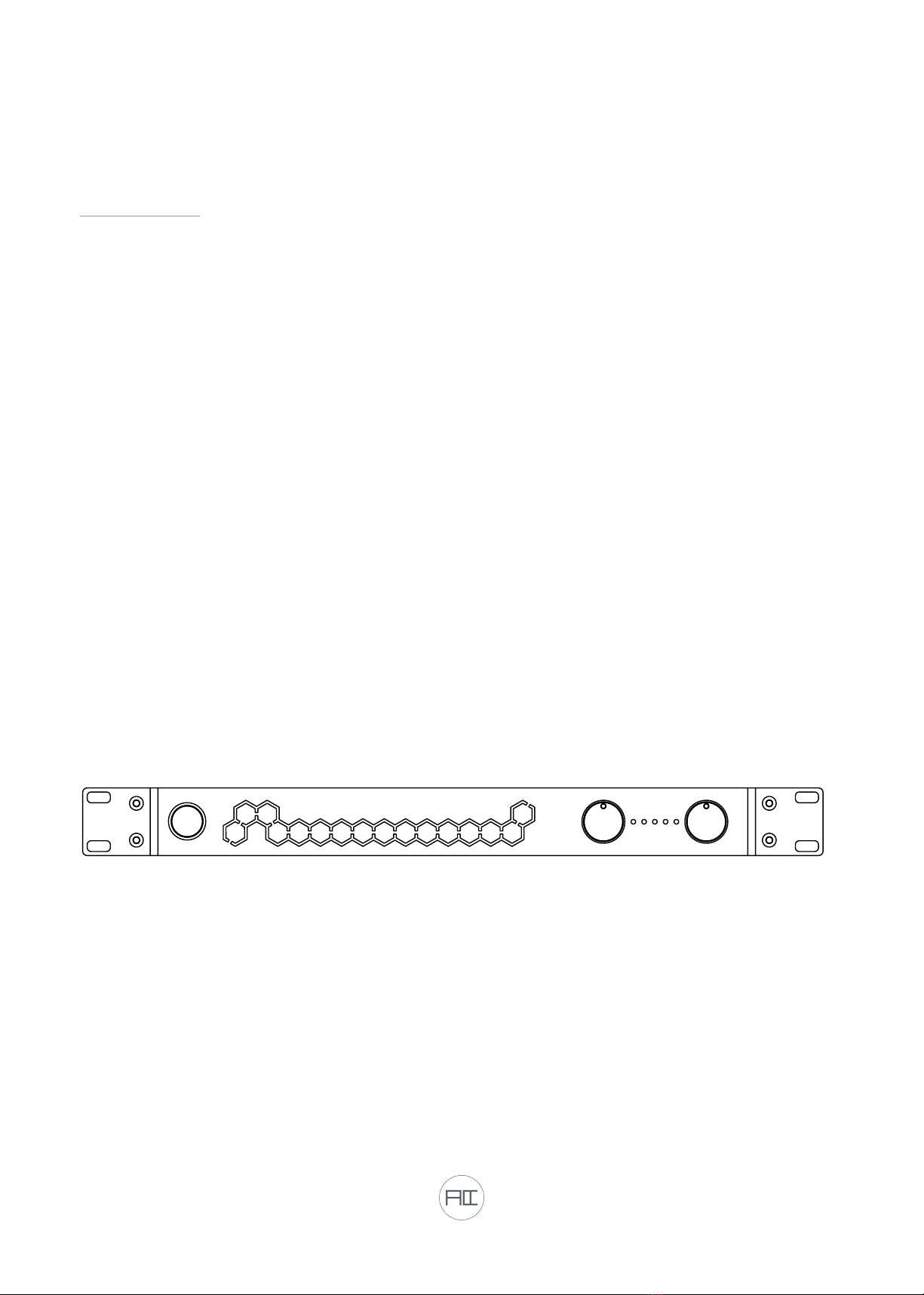

CPH-1000D Professional Digital Amplifier
11
MODE
STEREO
PARALLEL
BRIDGE
LIFT
GROUND
FULL
RANGE
80Hz
100Hz
SLAM
DEPTH 1
DEPTH 2
LPF EQ
Designed and Engineered in Denmark, made in China
(PARALLEL/BRIDGE) CHANNEL ACHANNEL B
CHANNEL B CHANNEL A
BRIDGE +
BRIDGE
OUTPUT AC INPUT
115V 230V
1. On/O Switch
2. Channel A Volume Control
3. Channel A Signal Indicator
4. Channel A Clip Indicator
5. Power On Indicator
6. Channel B Clip Indicator
7. Channel B Signal Indicator
8. Channel B Volume Control
9. Channe B RCA input
10. Input Setting, Parallel, Stereo and Bridged
11. Channel A input (Bridged and Parallel)
12. Ground Lift
13. Low-Pass Filter
14. ASOF EQ
15. Channel B Speaker Outputs
16. Channel A Speaker Outputs
17. AC Power Socket/FUSE
18. Voltage Selector (Check correct voltage)
OWNERS MANUAL – CPH-1000D
OVERVIEW
CPH-1000D

ARTCOUSTIC LOUDSPEAKERS
Ensure the input setting switch is moved to the correct position for the application.
The EQ switch is designed specifically for Artcoustic subwoofers. A good starting point Depth 1
ASOF EQ. FILTERS AND FILTER SLOPE EXPLAINED
SLAM
DEPTH 1
DEPTH 2
Flat response with no EQ added to the signal. Recommended setting for environments where less
dynamics and lower distortion is required.
MODE
STEREO
PARALLEL
BRIDGE
LIFT
GROUND
FULL
RANGE
80Hz
100Hz
SLAM
DEPTH 1
DEPTH 2
LPF EQ
Designed and Engineered in Denmark, made in China
(PARALLEL/BRIDGE) CHANNEL ACHANNEL B
CHANNEL B CHANNEL A
BRIDGE +
BRIDGE
OUTPUT
40Hz
20Hz 30Hz
SLAM
DEPTH1
DEPTH2
50Hz
0dB
+3dB
+6dB
+4.5dB
+7.5dB
EQ slope optimized for the medium to large Artcoustic subwoofers .The Depth 2 setting has a more
conservative slope and a 10 Hz higher entry point, enhancing frequencies from around 45Hz and down.
This setting is optimised for cinema and public address installations.
EQ slope optimized for smaller Artcoustic subwoofer models, such as SUB Z-IWS, SUB Z and SUB 1
subwoofer. The Depth 1 setting, mainly enhances the very deep frequencies, below 35Hz.
This setting is good for installations with main focus on 2-channel music reproduction.
OWNERS MANUAL – CPH-1000D
SETUP

PARALLEL AND BRIDGED SETTING
INPUT A AND B 
Allow space above the amplifier to allow for heat to escape. Do not cover.
STEREO LIFT
GROUND
FULL
RANGE
80Hz
100Hz
SLAM
DEPTH 1
DEPTH 2
LPF EQ
Designed and Engineered in Denmark, made in China
(PARALLEL/BRIDGE) CHANNEL A
CHANNEL B CHANNEL A
BRIDGE +
BRIDGE
OUTPUT AC INPUT
A
MODE
STEREO
PARALLEL
BRIDGE
LIFT
GROUND
FULL
RANGE
80Hz
100Hz
SLAM
DEPTH 1
DEPTH 2
LPF EQ
Designed and Engineered in Denmark, made in China
(PARALLEL/BRIDGE) CHANNEL ACHANNEL B
CHANNEL B CHANNEL A
BRIDGE +
BRIDGE
OUTPUT AC INPUT
115V 230V
Please check the following settings are in place on the back of the amplifier when
using with any Artcoustic subwoofer.
A
B
CH B on the front of the amplifier will be the subwoofer gain.
Set to 12 (clock face) on the dial as a good starting point.
A
B
detail A
Input A and Input B
detail B
Channel B Volume Control
LOW PASS 
C
FULL
RANGE
80Hz
100Hz
SLAM
DEPTH 1
DEPTH 2
LPF EQ
Designed and Engineered in Denmark, made in China
CHANNEL B CHANNEL A
BRIDGE +
BRIDGE
OUTPUT AC INPUT
115V
detail C
Low Pass Filter Switch
Bypass (you’re using the crossover in the AV processor - set speakers
to ‘small’, crossover at 80-120Hz).
EQ  Slam For flat response, Depth 1 and Depth 2 for extended bass response. Slam is a good
default. For Depth 1 and Depth 2, check sub is ok at higher volumes as more energy is used
with the EQ settings in place.

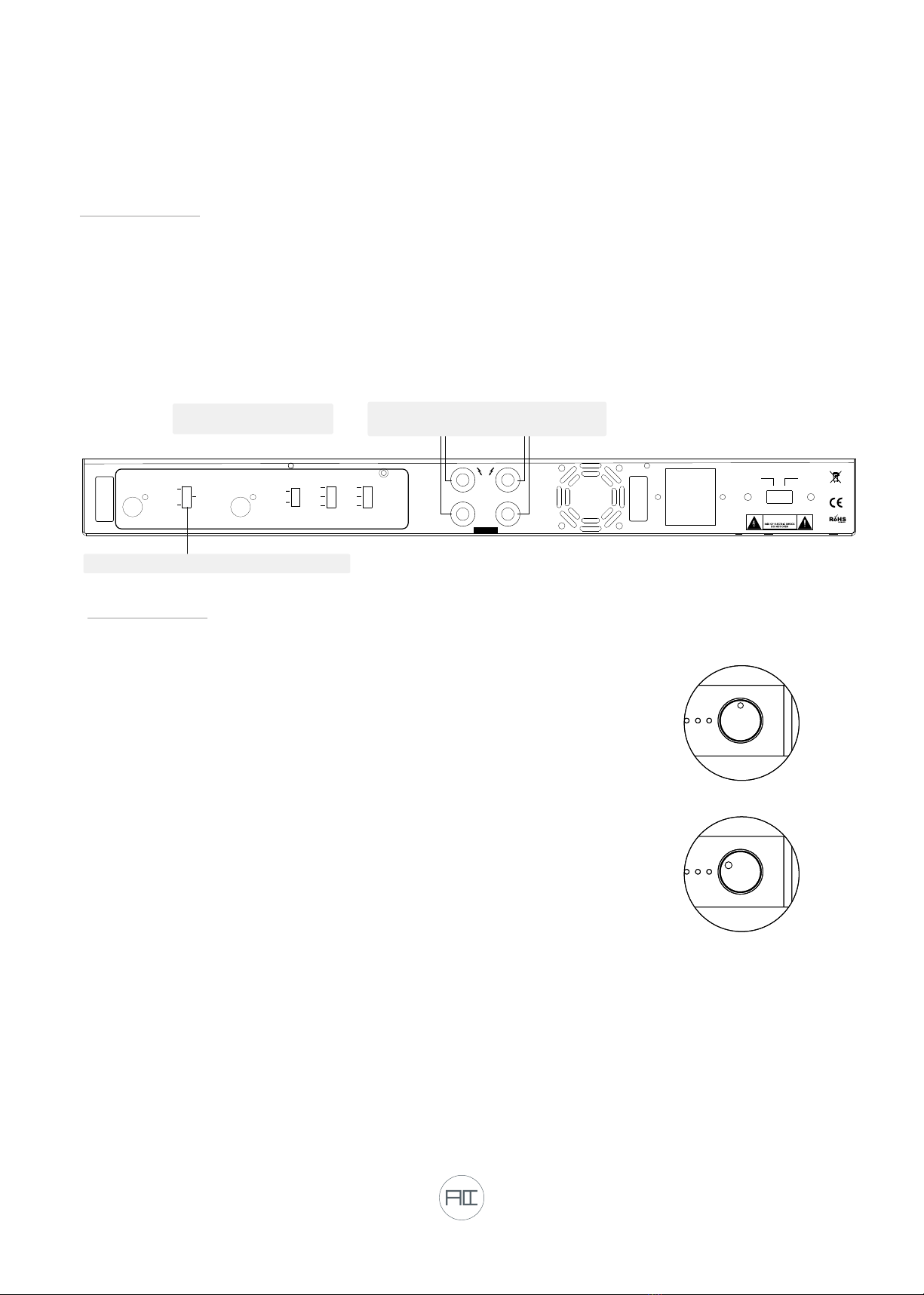

PARALLEL CONNECTION
OWNERS MANUAL – CPH-1000D
SETUP
ARTCOUSTIC LOUDSPEAKERS
Switch setting Parallel Switch settings according to
setup
Channel A&B speakers outputs
IMPORTANT! connect maximum
2 subwoofers
Channel A mono input

+30dB
-60dB/ CH-B +35dB
+30dB
-60dB/ CH-B +35dB
fig 1.
fig 2.
ARTCOUSTIC LOUDSPEAKERS
Please check the following settings are in place on the back of the amplifier when
using with any Artcoustic subwoofer.
BRIDGED CONNECTION SUB 4
IMPORTANT ! BRIDGED SETTINGS IS FOR SUB 4 ONLY
MODE
STEREO
PARALLEL
BRIDGE
LIFT
GROUND
FULL
RANGE
80Hz
100Hz
SLAM
DEPTH 1
DEPTH 2
LPF EQ
Designed and Engineered in Denmark, made in China
(PARALLEL/BRIDGE) CHANNEL ACHANNEL B
CHANNEL B CHANNEL A
BRIDGE +
BRIDGE
OUTPUT AC INPUT
115V 230V
A
BAC
Channel A mono and bridged subwoofer input
Switch settings according to
setup
Channel A&B Bridged speakers outputs
IMPORTANT! connect maximum 1 SUB 4
SIGNAL SENSING TROUBLESHOOTING
If your amplifier doesn’t switch on at low play back level:
1. please make sure you have checked the above settings including EQ
setting default set to slam.
If you still experience a none-responsive amplifier, or amplifier shut down
at low playback level, we recommend the following.
2. To set front sensitivity dial as described at fig.1 and at the same time
increase subwoofer output level within your receiver speaker settings.
3. For further signal sensing sensitivity, set the front dial as described in
fig. 2 and at the same time further increase subwoofer output within your
receiver speaker settings.
OWNERS MANUAL – CPH-1000D
SETUP

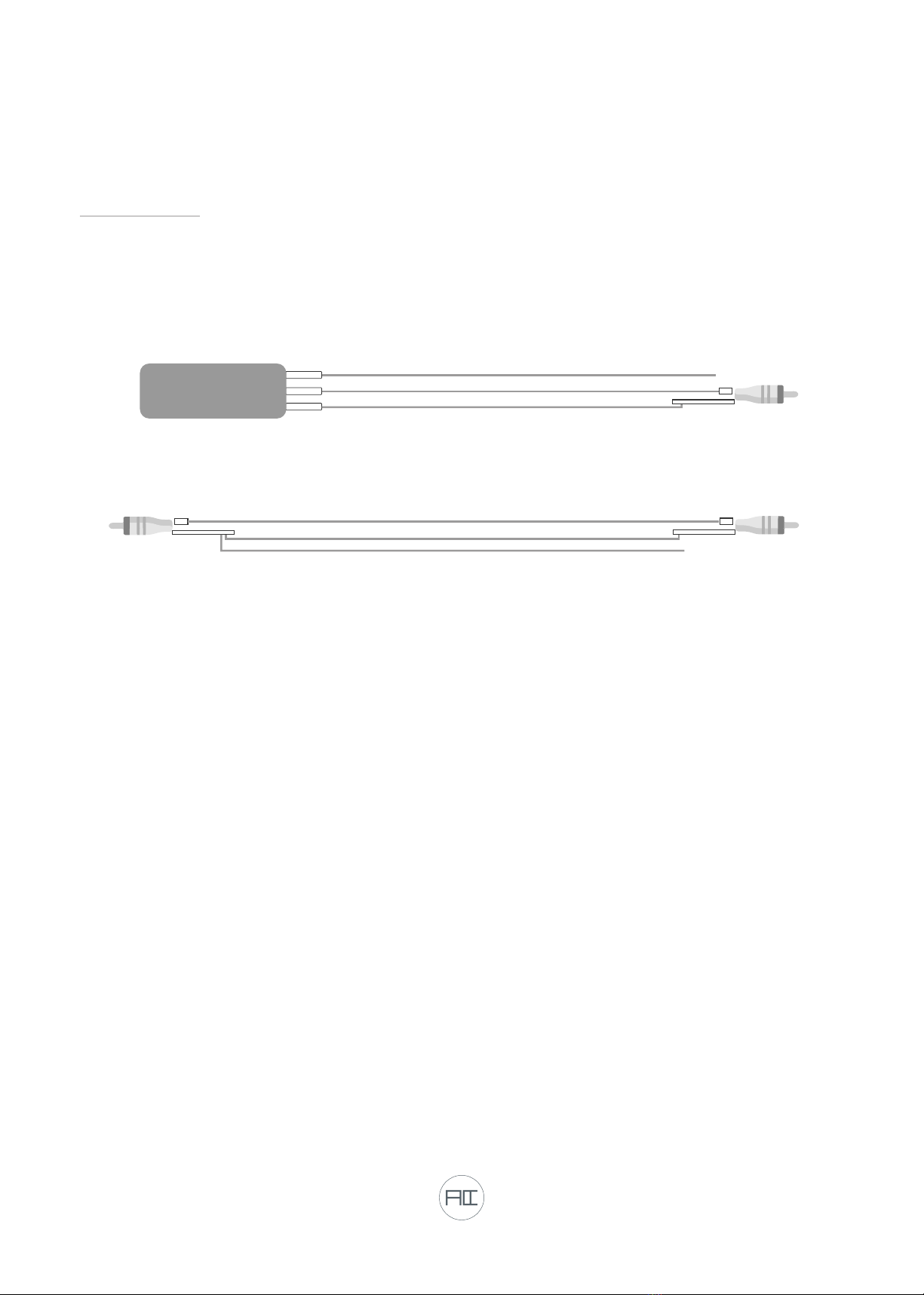

XLR source RCA Amplifier
GND
+
-
Shield, leave open in amplifier end
RCA source RCA Amplifier
+
-
Shield, leave open in amplifier end
+
-
+
-
SEMI BALANCED INTERCONNECTION
Use a two core and single shield interconnection cable, terminate shield in source
endonly, leave the shield open in receiving amplifier end.
ARTCOUSTIC LOUDSPEAKERS
OWNERS MANUAL – CPH-1000D
CONNECTIVITY

482
44
461
31.75
188
Art
coustic
CPH-1000D Professional Digital Amplifier
SCHEMATICS
dimension are in mmCPH-1000D Amplifier

ARTCOUSTIC LOUDSPEAKERS
OWNERS MANUAL – CPH-1000D
SAFETY INSTRUCTIONS
WARNING
Refer all servicing to qualified service
personnel. Servicing is required when
the product has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the product, the
product has been exposed to rain or
moisture, does not operate normally or
has been dropped.
To completely disconnect unit power
from the AC mains, disconnect the unit’s
power cord from the mains socket.
Note: If the Artcoustic subwoofer is placed on a thick
carpet blocking the air outlet, we recommend to use
the special Artcoustic carpet spikes.
Not included as standard, please order separately.
This product complies with Part 15 of the FCC Rules.
Its operation is subject to the following two conditions:
- This product may not cause harmful interference.
- This product must accept any interference received,
including interference that may cause undesired operation.
Do not use this
product near water
Clean rear panel
with dry cloth only
Do not block any
ventilation opening
Do not install near
any heat sources
If wall-mounted,
ensure the use of
matching screws
and rawl plugs
SAFETY
To reduce the risk of fire and
electric shock do not expose this
product to rain or moisture.
Do not place product filled
with liquids such as vases
on the product.
Do not open product. There are no
user-serviceable parts inside.
Always use the power supply
shipped with this product.
Using a power supply with wrong
voltage or polarity, can damage
the electronics.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.

ARTCOUSTIC LOUDSPEAKERS
OWNERS MANUAL – CPH-1000D
WARRANTY
∙ For deterioration of component parts, the nature of which is to become worn or
depleted with use, such as batteries.
∙For damages caused by incorrect installation, connection or packing.
∙For damages caused by accidents, lightning, water, fire heat, war, public
disturbances or any other cause beyond the reasonable control of Artcoustic
and its appointed distributors.
∙For damages caused by any use other than correct use described in the user
manual, negligence, modifications, or use of parts that are not made or authorized
by Artcoustic
lf it is found necessary to return the product for repair, you will be given a form to fill out
and return. You should not return the product without previous acceptance. To validate your
warranty, you will need to produce the original sales invoice or other proof of ownership
and date of purchase.
Is valid only for products
purchased from an authorised
Artcoustic retailer or dealer.
Is valid from the date of purchase
for a period of 3-years for passive
loudspeakers, and 2-years for powered
loudspeakers and electronics.
Is limited to the repair of the
equipment (which could be a repair or
replacement at our discretion, neither of
which aects your original warranty).
Neither transportation, nor any
other costs, nor any risk for removal,
transportation and installation of products
is covered by this warranty.
Will not be applicable in cases other than defects in materials and/or workmanship
at the time of purchase and will not be applicable:
IS NOT APPLICABLE
IS APPLICABLE
