Artcoustic CPH-TRIO User manual

CPH-TRIO OWNERS MANUAL
www.artcoustic.com

Welcome to the world of Artcoustic!
CPH-Trio Amplifier
The new compact CPH-Trio amplifier comes with an impressive
selection of features. This 2.1 digital amplifier features speaker line
level input to connect with virtually any device. For loss less audio,
connect to your digital devices through the Trio Coaxial Digital input,
or wireless through the latest Hi-Fi grade, Bluetooth technology.
The CPH-Trio amp, is equipped with some simple but very handy filters,
such as the Artcoustic ASOF sub frequency EQ filter and a flat shelve
treble filter, combined with easy-to-use volume and gain controls. It
comes with an efficient and easy-to-use digital crossover, ensuring
perfect acoustic integration.
Thank you for purchasing the Artcoustic CPH-Trio.
All the best,
The Artcoustic Team

Whats in the box.
- 1 pcs Artcoustic Trio 2.1 digital amplifier
- 1 pcs DC 24 volt, AC multi-voltage power supply
- 1 pcs power cord
- 1 pcs RF antenna
- 1 pcs A5 size users users manual

CPH-TRIO FEATURES
High end class D amplifier performance
2 x 50 watt 4 ohm stereo output and 1 x 100 watt 4 ohm subwoofer output
Convenient features
- Input sensitivity control
- Power and channel select indicator
- RCA inputs
- Speaker level inputs
- Bluetooth wireless connectivity
- Stereo and subwoofer link out
- Stable performance down to 4 ohms
- Auto turn on, turn off - signal sensing
- Crossover, low-pass, full range and 80 Hz 12 dB per octave
- Crossover, high-pass, full range, 80 Hz and 100 Hz 12 dB per octave
- ASOF (Artcoustic Subwoofer Optimized Filter)
- Extended protection circuit
Bass setting 1
Ensure the input setting switch is moved to the correct position for the application.
The ASOF EQ switch is designed specificially for Artcoustic speakers and subwoofers.

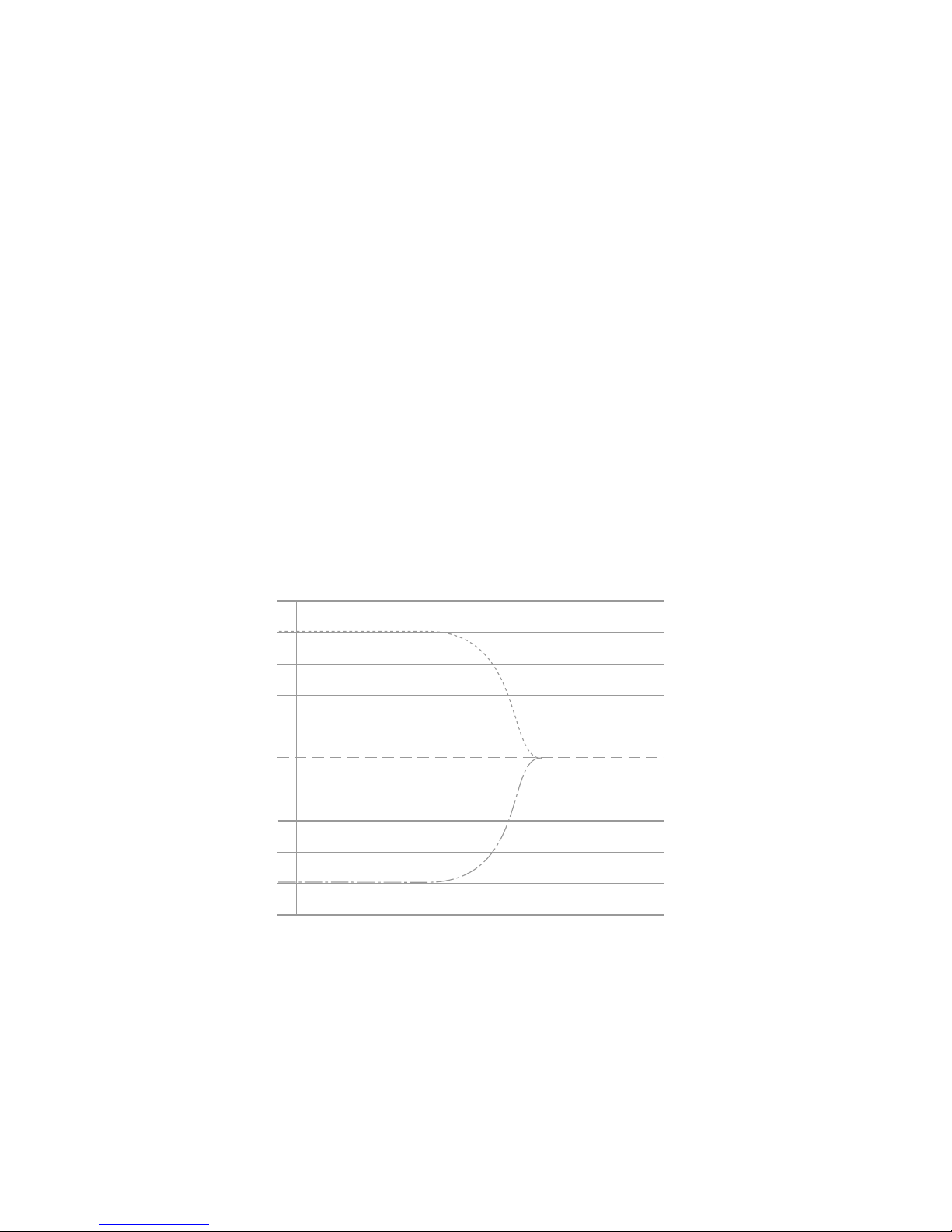

ASOF EQ. Filters and filter slope explained.
Bass setting 1
EQ slope optimized for smaller Artcoustic subwoofer models, such as IWS-10, CPH-10 Sub and Impact 1.
The Depth 1 setting mainly enhances the very deep frequencies below 45 Hz. This setting is good for
installations with main focus on 2-channel music reproduction.
This setting is also recommended for setups without the use of subwoofer and has especially been timbre
matched to the smaller Artcoustic fullrange models, Target SL and the more powerful CPH-10P.
Bass setting 2
Flat response with no EQ added to the signal. Recommended setting for environments where less dynamics
and lower distortion is required.
Bass setting 3
EQ slope optimized for setups with much reduced dynamic range, often used for speech only applications.
40Hz
20Hz 30Hz 50Hz
0dB
+3dB
+6dB
+4.5dB
-3dB
-4.5dB
-6dB
Bass setting 2
Bass setting 3

CPH-Trio Technical Specifications
SPECIFICATIONS
ON/OFF
SELECT AUX 1 AUX 2 BTDIGITAL
BASS TREBLE SUB LEVEL
+6dB
FLAT
-6dB
FULL
RANGE
100Hz
120Hz
HIGH PASS
FILTER
+3dB
FLAT
-3dB
+3dB
FLAT
-3dB
VOLUME
CPH-TRIO
Artcoustic CPH-Trio 2.1 Digital Amplifier
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China

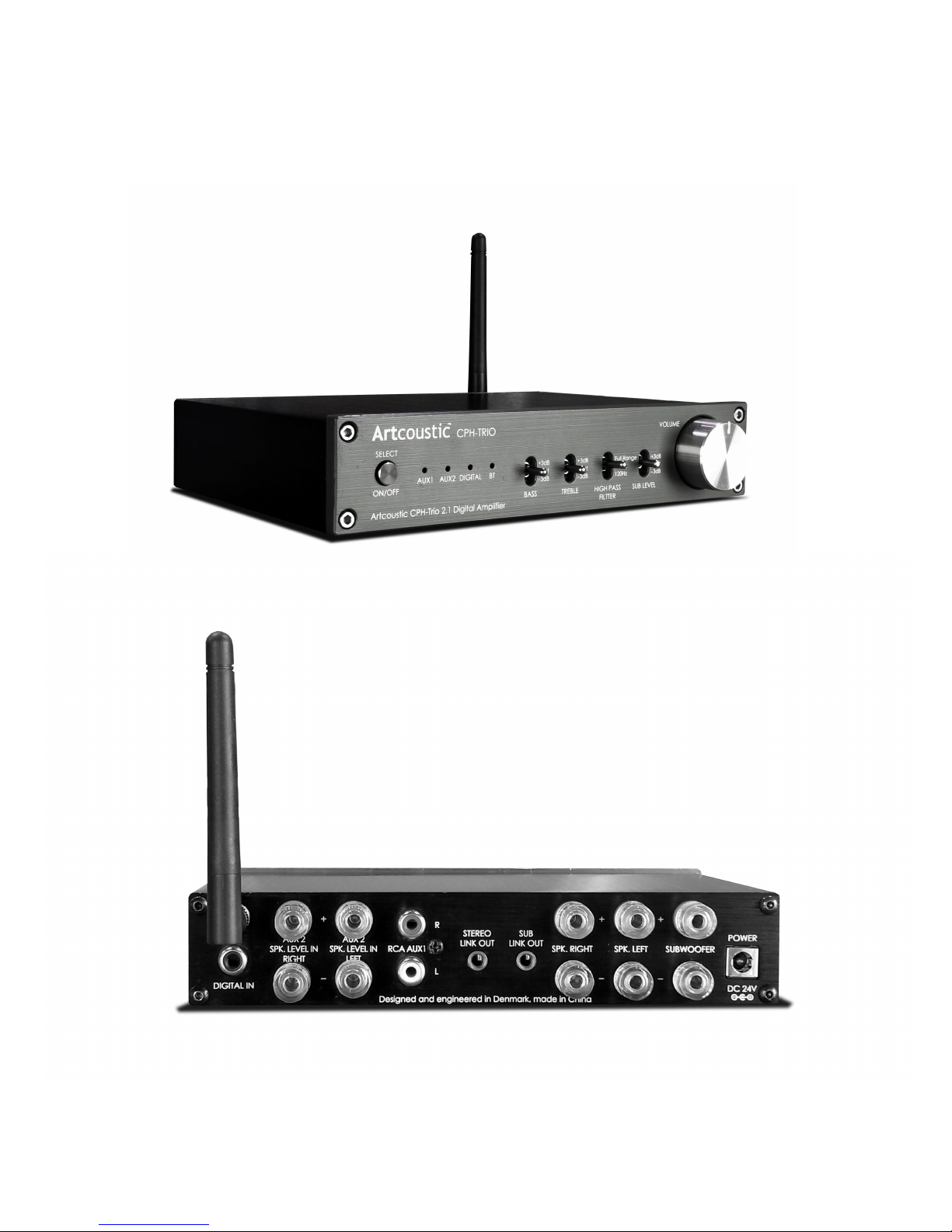

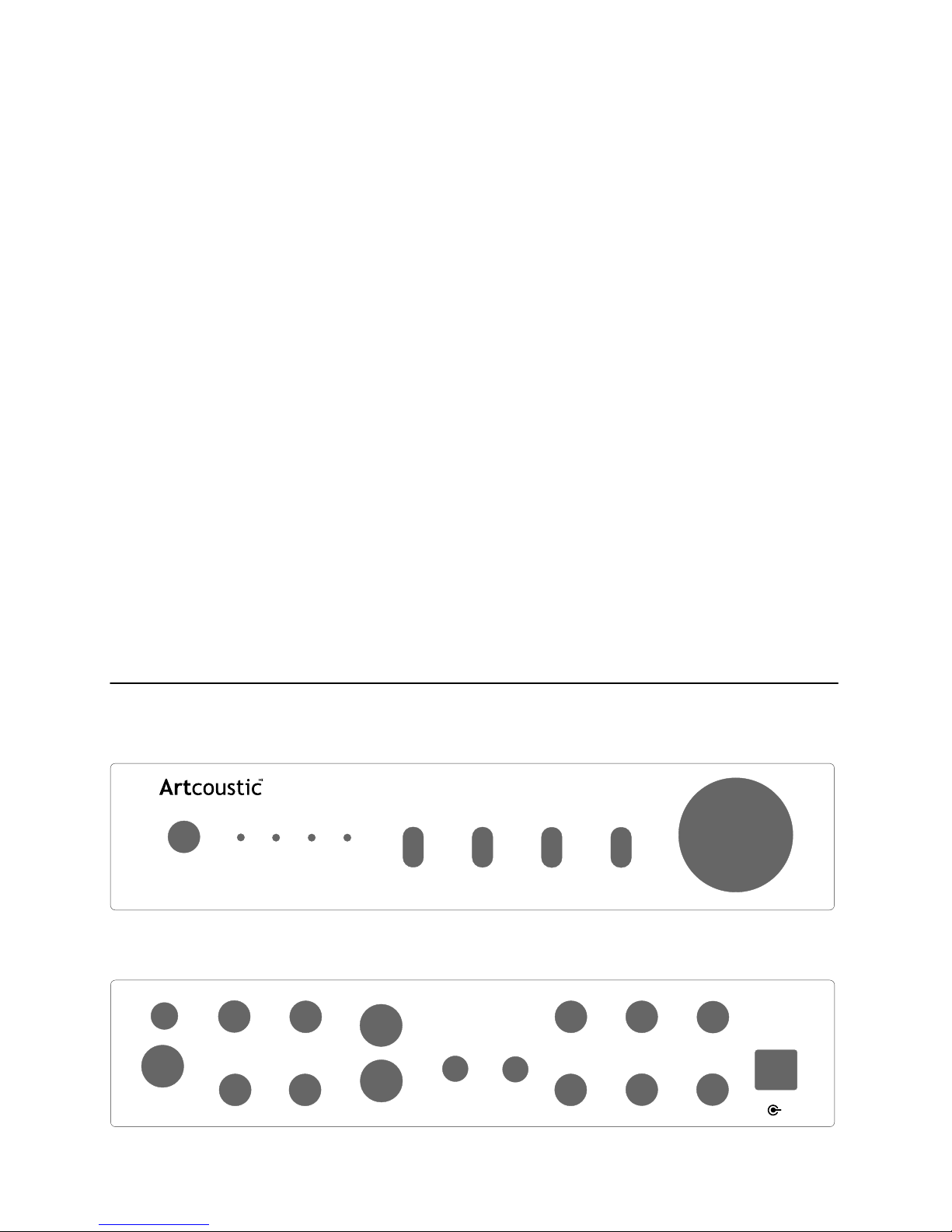

Front panel layout
Rear panel layout
-Stereo 2 x 50 watt 4 ohm
-Sub 1 x 100 watt 4 ohm
-Full range: 20 Hz - 20 kHz ± 1 dB
-Sub Low - pass filter: 80 Hz 12 dB / oct
-Hi - pass filter: 80 Hz 12dB / oct & 100 Hz 12 dB / oct
-SNR•> BT: 71 dB 84 dB HI 79dB RCA 78 dB
-THD (at 1 watt into 4 ohms kHz ) < / RCA 0.003 % 0.002 % 0.001 %
-Input Impedance: 20 Kohms balanced
-Maximum input level: -90 dBV
-Load impedance: 4 - 8 ohm
-Input sensitivity: RCA 2 Vrms 10 Vrms, BT / COAX 0 dB
-Power supply: DC 24 V 4 A
-Input terminals: speaker level binding posts
-Wireless Bluetooth
-Output terminals: speaker binding posts
-Dimensions: 180 x 127 x 37 mm
-Weight: 0.75 kg

R
L
Analogue source
Connecting amplifier in analogue stereo
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
CONNECTIVITY

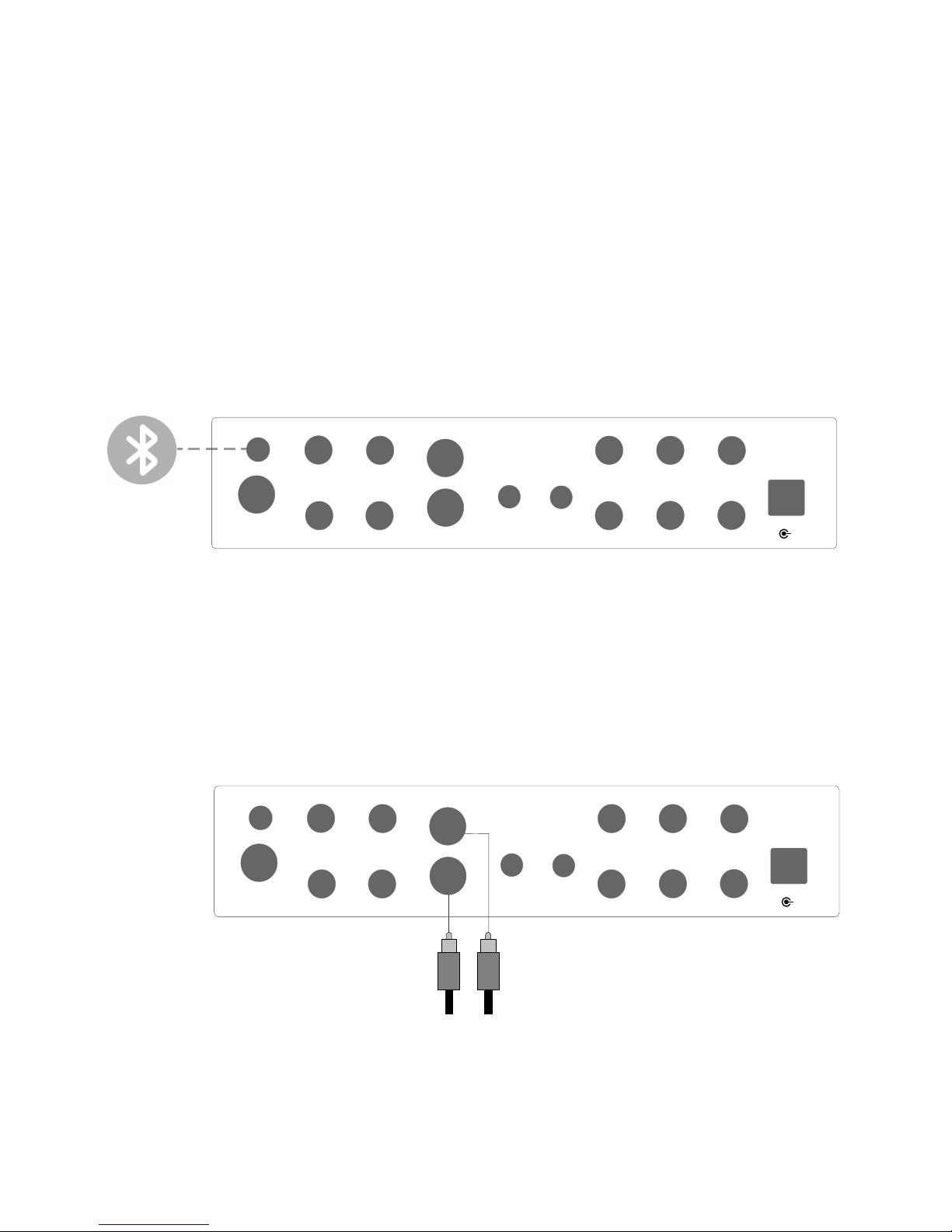

CONNECTING WITH BLUETOOTH
Fast and easy wireless connection for virtually every phone or tablet.
1. Enable Bluetooth pairing on your device and select CPH-Trio 2.1 as your Bluetooth receiver.
2. A short sound sequence will come through the speaker, indicating that connection has 
successfully been made.
3. Adjust the volume on CPH-Trio and your mobile phone, tablet or other Bluetooth device.
Note: Re-naming and unpairing of the Artcoustic CPH-Trio can be done from the paired device.
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
CONNECTING WITH WIRES
On the rear panel of CPH-Trio the RCA L & R input will support an analog signal to connect both the L &
R channel in order to achieve Stereo output.

L
Digital source
Connecting with high quality digital input and digital audio converter
function (DAC).
CONNECTIVITY
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
CONNECTING WITH DIGITAL COAXIAL INPUT (DAC)
On the rear panel of CPH-Trio the RCA digital input will support a digital loss-less signal, enabling the Trio
amplifier to be used as a high quality DAC.
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
CONNECTING WITH SPEAKER LEVEL BINDING POST INPUT
On the rear panel of CPH-Trio the screw terminal binding posts will support an analogue stereo signal,
resulting in similar output performance, as when connected with RCA connectors.
Connecting amplifier in analogue stereo, speaker level input
Analogue speaker
level source

CONNECTIVITY
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
R
L
Connecting CPH-Trio using Chromecast Audio, or similar wireless device.

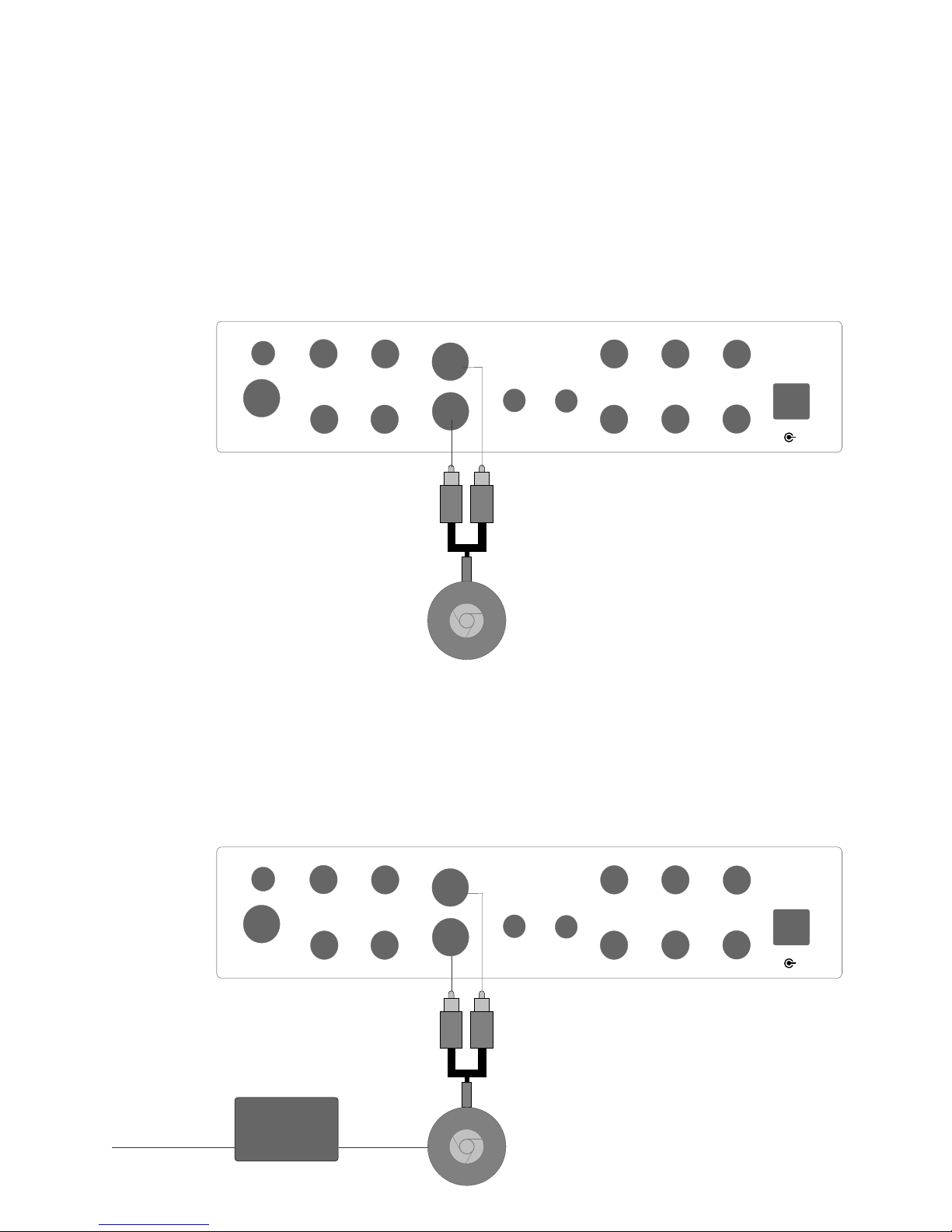

CONNECTING WITH WIFI
There are many high quality WIFI solutions available, the below setup using the Google Chromecast Audio should
serve as one example only.
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
R
L
Connecting CPH-Trio using Chromecast Audio and matched ethernet adapter.
CONNECTING OVER IP ADDRESSABLE ETHERNET
Connecting the CPH-Trio amplifier using ethernet IP addressable setup has never been easier. Connect a single or
multiple units to an advanced reliable network using Google Chromecast Audio and a selected Chromecast
matched ethernet adapter, which conveniently also serves as the Chromecast power supply.
Ethernet
Adapter
Micro USB
audio and
5V DC power
Ethernet input
Chromecast or Ugreen
ethernet adapter

R
L
CONNECTIVITY
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China

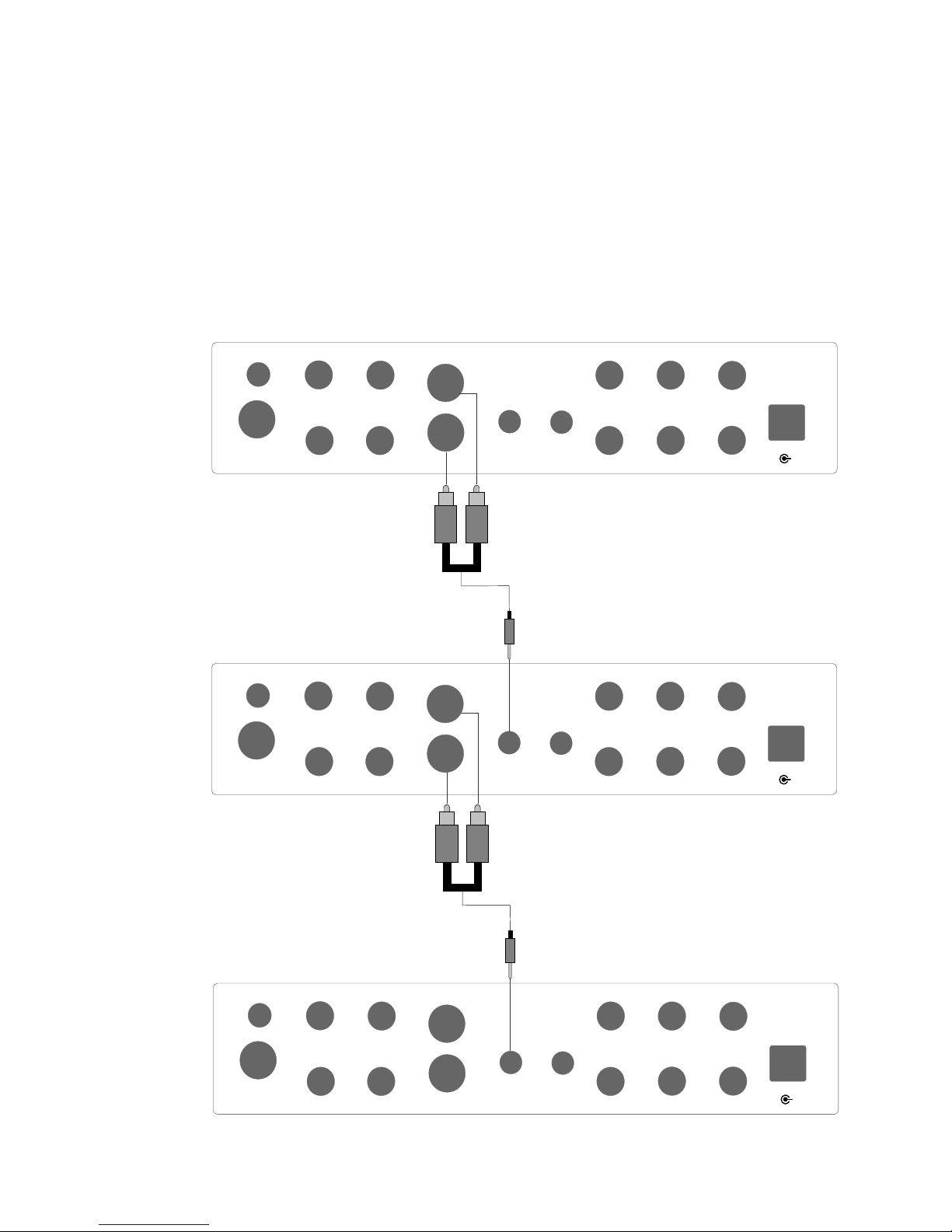

Connecting CPH-Trio multiple units and link function.
CONNECTING MULTIPLE AMPLIFIERS AND ACTIVE CROSSOVER
Multiple amplifiers can easily be connected using the stereo and subwoofer link out function.
NOTE: Crossover, EQ and master volume front panel settings will control the link out signal behavior.
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
R
L

CONNECTIVITY

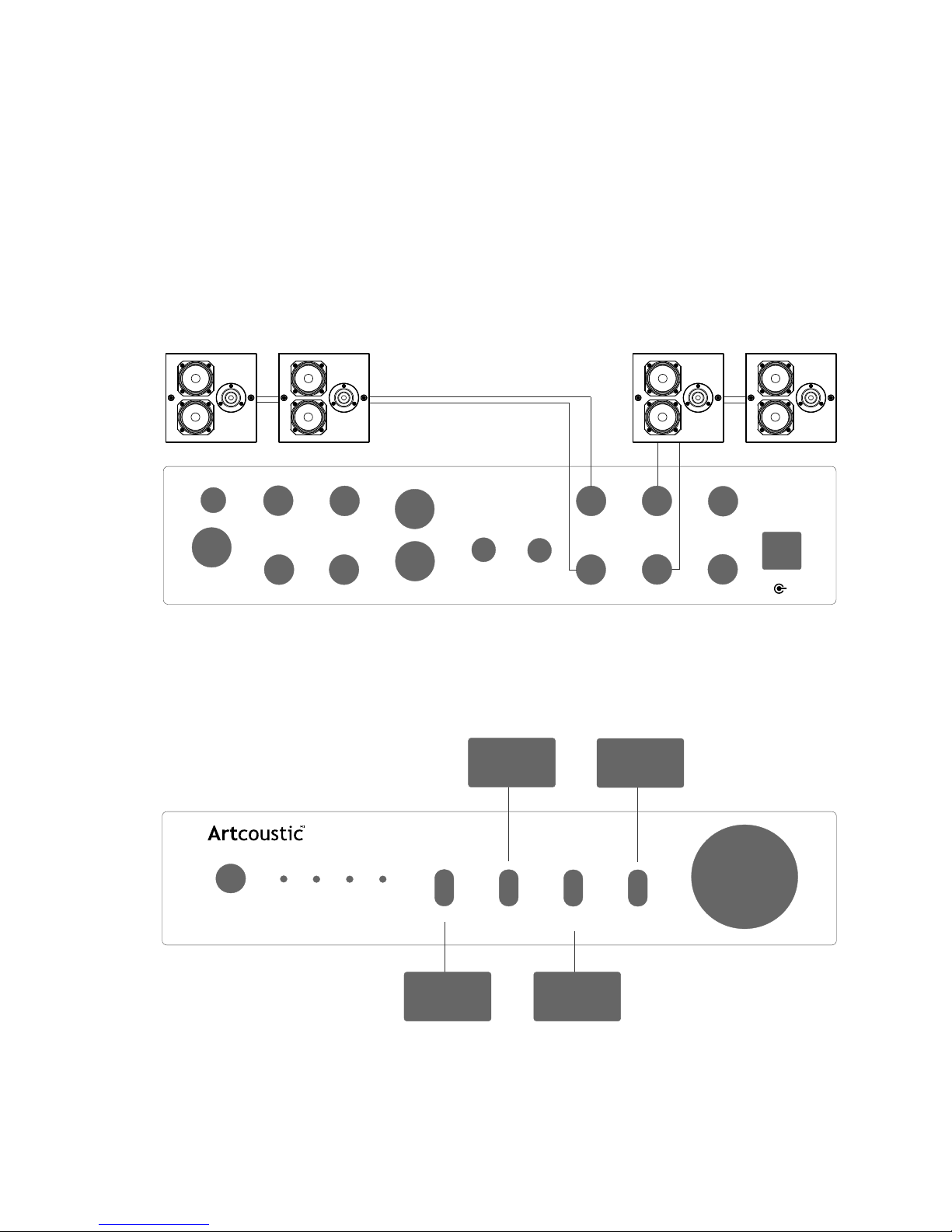

CONNECTING WITH FULL RANGE SPEAKERS
The CPH-Trio amplifier can power up to 4 pcs. 8 ohm speakers simultaneously, making it a powerful cost efficient
solution for commercial and residential high-end music systems.
CONNECTING WITH FULL RANGE SPEAKERS
Front panel fioter and EQ settings
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
Target SL Target SL
ON/OFF
SELECT AUX 1 AUX 2 BTDIGITAL
BASS TREBLE SUB LEVEL
+6dB
FLAT
-6dB
FULL
RANGE
100Hz
120Hz
HIGH PASS
FILTER
+3dB
FLAT
-3dB
+3dB
FLAT
-3dB
VOLUME
CPH-TRIO
Artcoustic CPH-Trio 2.1 Digital Amplifier
ASOF low frequency
EQ. Set to best liking
and according to
room setup
High frequency
EQ. Set to best liking
and according to
room setup
High pass filter
set to full range
Sub level, only
functional in
conjunction with a
subwoofer

RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
CPH-10P CPH-10P
ON/OFF
SELECT AUX 1 AUX 2 BTDIGITAL
BASS TREBLE SUB LEVEL
+6dB
FLAT
-6dB
FULL
RANGE
100Hz
120Hz
HIGH PASS
FILTER
+3dB
FLAT
-3dB
+3dB
FLAT
-3dB
VOLUME
CPH-TRIO
Artcoustic CPH-Trio 2.1 Digital Amplifier
CONNECTING WITH FULL RANGE SPEAKERS
Front panel filter and EQ settings
ASOF low frequency
EQ. Set to best liking
and according to
room setup
High frequency
EQ. Set to best liking
and according to
room setup
High pass filter
set to full range
Sub level, only
functional in
conjunction with a
subwoofer
CONNECTIVITY
CONNECTING WITH FULL RANGE SPEAKERS
The CPH-Trio amplifier can power up to 4 pcs. 8 ohm speakers simultaneously, making it a powerful cost efficient
solution for commercial and residential high-end music systems.

CONNECTING WITH SUBWOOFER AND SATTELITE SPEAKERS
Front panel filter and EQ settings

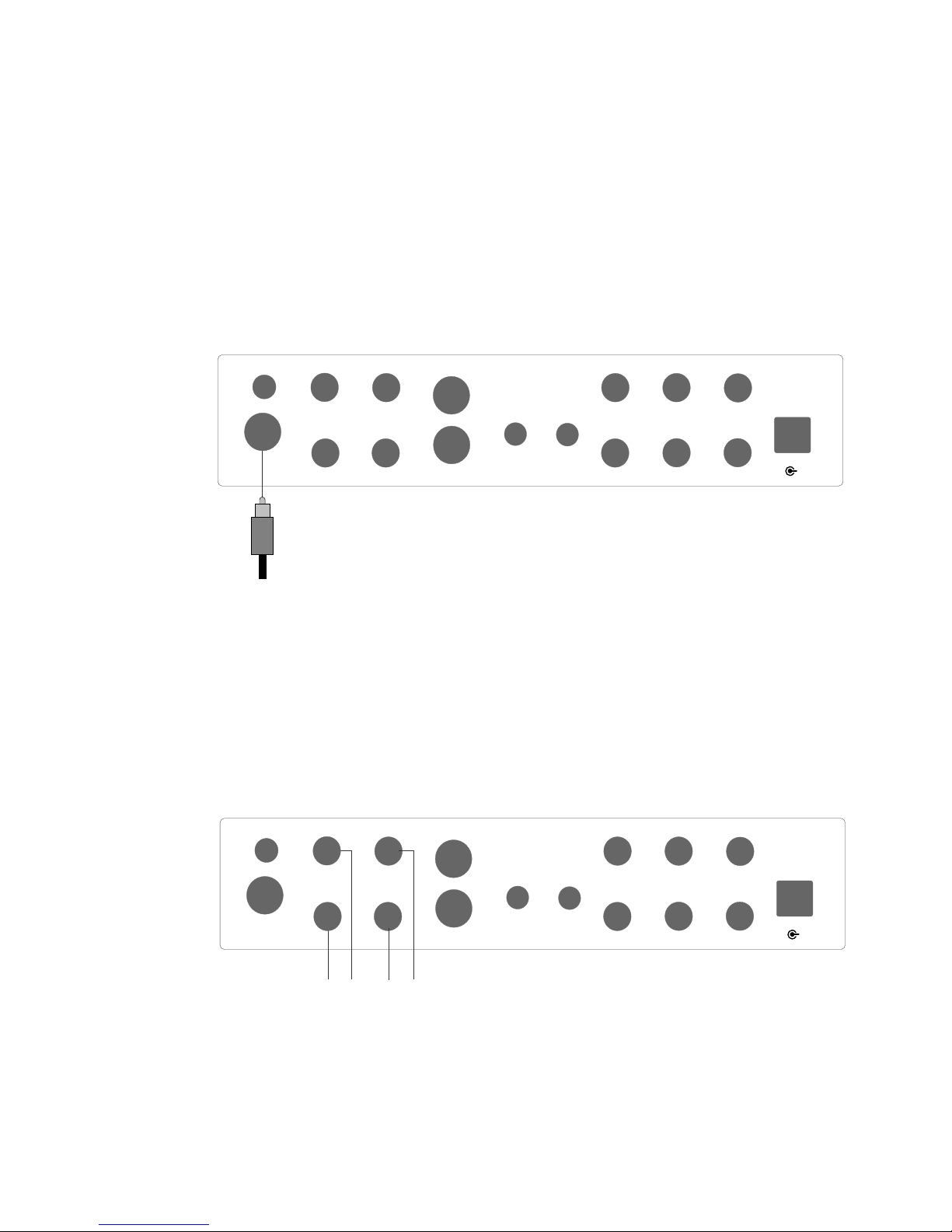

CONNECTIVITY
CONNECTING WITH SUBWOOFER AND SATTELITE SPEAKERS
The CPH-Trio amplifier can power up to 4 pcs. 8 ohm speakers and 2 pcs. Artcoustic 8 ohm subwoofers simultaneously,
making it a powerful cost efficient solution for commercial and residential setups.
RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
Target Mini SL Target Mini SL
CPH-10 Sub
ON/OFF
SELECT AUX 1 AUX 2 BTDIGITAL
BASS TREBLE SUB LEVEL
+6dB
FLAT
-6dB
FULL
RANGE
100Hz
120Hz
HIGH PASS
FILTER
+3dB
FLAT
-3dB
+3dB
FLAT
-3dB
VOLUME
CPH-TRIO
Artcoustic CPH-Trio 2.1 Digital Amplifier
ASOF low frequency
EQ. Set to best liking
and according to
room setup
High frequency
EQ. Set to best liking
and according to
room setup
High pass filter,
recommended
setting 100Hz
Subwoofer output
level, set to best
liking and according
to room setup

RCA AUX 1
SPK. RIGHT SPK. LEFT SUBWOOFER
AUX 2
SPK. LEVEL IN
LEFT
AUX 2
SPK. LEVEL IN
RIGHT
DIGITAL
IN
++ +
-- -
+
-
+
-
R
L
RF POWER
DC 24V
+
-
STEREO
LINK OUT SUB
LINK OUT
Designed and engineered in Denmark, made in China
Multi Stereo Soundbar
CPH-10 Sub
CONNECTIVITY
CONNECTING WITH SUBWOOFER AND SATTELITE SPEAKERS
The CPH-Trio amplifier can power up to 2 pcs. 12 ohm C-2 stereo soundbars and 2 pcs. Artcoustic 8 ohm subwoofers
simultaneously, making it a powerful cost efficient solution for commercial and residential TV installations.
CONNECTING WITH SUBWOOFER AND SATTELITE SPEAKERS
Front panel filter and EQ settings
ON/OFF
SELECT AUX 1 AUX 2 BTDIGITAL
BASS TREBLE SUB LEVEL
+6dB
FLAT
-6dB
FULL
RANGE
100Hz
120Hz
HIGH PASS
FILTER
+3dB
FLAT
-3dB
+3dB
FLAT
-3dB
VOLUME
CPH-TRIO
Artcoustic CPH-Trio 2.1 Digital Amplifier
ASOF low frequency
EQ. Set to best liking
and according to
room setup
High frequency
EQ. Set to best liking
and according to
room setup
High pass filter,
recommended
setting 100Hz
Subwoofer output
level, set to best
liking and according
to room and setup

SAFETY:
1. Do not use this product near water.
2. Clean rear panel only with dry cloth.
3. Do not block any ventilation openings.
4. Do not install near any heat sources, such as radiators, heat registers, stoves.
Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product,
the product has been exposed to rain or moisture, does not operate normally or has been dropped. To completely
disconnect unit power from the AC mains, disconnect the unit’s power cord from the mains socket.
WARNING:
To reduce the risk of fire and electric shock do not expose this product to rain or moisture.
1. Do not place product filled with liquids such as vases on the product .
2. Do not open product. There are no user-serviceable parts inside.
3. Always use the power supply shipped with this product. Using a power supply with wrong 
voltage or polarity can damage the electronic.
This product complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions:
This product may not cause harmful interference.
This product must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
WARRANTY:
Is valid only for products purchased from an authorized Artcoustic retailer or dealer.
Is valid from the date of purchase for a period of 3 years for passive loudspeakers, 2 years for powered loudspeakers
and electronics.
Is limited to the repair of the equipment (which could be a repair or replacement at our discretion, neither of which
affects your original warranty). Neither transportation, nor any other costs, nor any risk for removal, transportation
and installation of products is covered by this warranty.
Is only valid for the original owner. It is not transferable.
Will not be applicable in cases other than defects in materials and/or workmanship at the time of purchase and will
not be applicable:
For deterioration of component parts, the nature of which is to become worn or depleted with use, such as batteries.
For damages caused by incorrect installation, connection or packing.
For damages caused by any use other than correct use described in the user manual, negligence, modifications,
or use of parts that are not made or authorized by Artcoustic UK Ltd.
For damages caused by faulty or unsuitable ancillary equipment.
For damages caused by accidents, lightning, water, fire heat, war, public disturbances or any other cause beyond
the reasonable control of Artcoustic UK Ltd. and its appointed distributors.
If it is found necessary to return the product for repair, you may be given a Return Merchandise Authorization. You
should not return the product without this authorization, if given.
To validate your warranty, you will need to produce the original sales invoice or other proof of ownership and date
of purchase.
SAFETY INSTRUCTIONS

www.artcoustic.com
