Artecta LED PIXEL 1 User manual

LED PIXEL 1 V1
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: A9915120
MANUAL
ENGLISH

1
Ordercode: A9915120
LED PIXEL 1
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................3
Connection with the mains.........................................................................................................................................4
Return Procedure..........................................................................................................................................................4
Claims..............................................................................................................................................................................4
Description of the device.................................................................................................................................................5
Features ..........................................................................................................................................................................5
Front.................................................................................................................................................................................5
Installation...........................................................................................................................................................................6
Setup and Operation ........................................................................................................................................................6
Control Modes...............................................................................................................................................................6
Setup LED Pixel 1 with Lighting Controller..............................................................................................................6
Device Linking ...............................................................................................................................................................7
Control Panel .................................................................................................................................................................7
DMX Addressing ............................................................................................................................................................7
Menu Overview.............................................................................................................................................................8
Main Menu Options......................................................................................................................................................8
1. DMX Address ..........................................................................................................................................................9
2. Segment Grouping..............................................................................................................................................10
3. Pixel Range (Pxxx)................................................................................................................................................11
4. Show / Self-Test MODE (Shxx) ............................................................................................................................13
DMX Channels .............................................................................................................................................................14
150 channels (RGB) .................................................................................................................................................15
75 channels (RGB) ...................................................................................................................................................16
39 channels (RGB) ...................................................................................................................................................17
21 channels (RGB) ...................................................................................................................................................18
3 channels (RGB) .....................................................................................................................................................19
Maintenance....................................................................................................................................................................20
Troubleshooting ...............................................................................................................................................................20
No Light.........................................................................................................................................................................20
No Response to DMX..................................................................................................................................................21
Product Specifications....................................................................................................................................................22

2
Ordercode: A9915120
LED PIXEL 1
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a device must be
returned to the factory, it is important that the device be returned in the original factory box and
packing.
Your shipment includes:
●Artecta LED PIXEL 1
●User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
●be qualified
●follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

3
Ordercode: A9915120
LED PIXEL 1
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
●Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
●Never remove warning or informative labels from the device.
●Never use anything to cover the ground contact.
●Never leave any cables lying around.
●Do not open the device and do not modify the device.
●Do not connect this device to a dimmer pack.
●Do not switch the device on and off in short intervals, as this will reduce the device’s life.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Only use the device indoors, avoid contact with water or other liquids.
●Only operate the device after having checked if the housing is firmly closed and all screws are tightly
fastened.
●Only operate the device after having familiarized with its functions.
●Avoid flames and do not put close to flammable liquids or gases.
●Always keep the case closed while operating.
●Always allow a free air space of at least 50 cm around the device for ventilation.
●Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord holding it by the plug. Never pull out the plug by tugging the power cord.
●Make sure that the device is not exposed to extreme heat, moisture or dust.
●Make sure that the available voltage is not higher than stated on the rear panel.
●Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
●If device was dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
●If your Artecta device fails to work properly, discontinue the use immediately. Pack the device
securely (preferably in the original packing material), and return it to your Artecta dealer for service.
●For adult use only. The device must be installed beyond the reach of children. Never leave the
device running unattended.
●Never attempt to bypass the thermostatic switch or fuses.
●The user is responsible for correct positioning and operating of the LED Dim 12. The manufacturer will
not accept liability for damages caused by the misuse or incorrect installation of this device.
●Repairs, servicing and electric connection must be carried out by a qualified technician.
●WARRANTY: Till one year after date of purchase.
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●The maximum ambient temperature ta= 40 °C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40 °C.
●If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!

4
Ordercode: A9915120
LED PIXEL 1
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE
GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the
device. Be prepared to provide the model number, serial number and a brief description of the cause for
the return. Be sure to properly pack device, any shipping damage resulting from inadequate packaging
is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a device is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.

5
Ordercode: A9915120
LED PIXEL 1
Description of the device
The Artecta LED Pixel 1 is a DMX to SPI converter with multiple functions.
SPI is being used to pixel-control digital LED strips. With the LED Pixel 1 you have the possibility to choose
one of 6 SPI protocols to control the LED strips.
The LED Pixel 1 is suitable to use with constant-voltage LED strips. With the Phoenix terminal connections it
is easy to connect the device to the mains power supply and to connect LED strips.
Features
●Power supply: 12–24 V DC
●Wide range of SPI controls built-in
●Input Protocol: DMX-512
●DMX In/Out: 3-pin terminal connector
●Output Protocol: SPI
●SPI control: UCS2903, UCS2904, WS2801, WS2812, WS2911, TM1812, APA101, P943F
●Pixel Control: 1CH W
2CH Dynamic White
3CH RGB
4CH RGBW
●Pixel Count: 320 IC's max
●Pixel Groups: 1, 2, 4, 8, All
●Housing: Black powder-coated metal
●12–24 V DC IN: 4-pin Phoenix terminal (maximum cable gauge: 2,0525 mm)
●PIXEL OUT: 4-pin Phoenix terminal (maximum cable gauge: 2,0525 mm)
●IP rating: IP20
●Protection class: II
●Operation temperature: -10 °C to +55 °C
●Dimensions: 230 x 45 x 15 mm (LxWxH)
●Weight: 0,16 kg
Front
Fig. 01
01) DMX IN: Phoenix terminal connector (Ground, Data -, Data +)
02) DMX OUT: Phoenix terminal connector (Ground, Data -, Data +)
03) DC IN: Phoenix terminal connector (Ground, 12-24V)
04) Control buttons (Menu, Up and Down)
05) PIXEL OUTPUT: (Ground, Data, NC, 12-24V)
06) OLED display

6
Ordercode: A9915120
LED PIXEL 1
Installation
Remove all packing materials from the LED Pixel 1. Check if all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Setup and Operation
Before plugging the device in, always make sure that the power supply matches the product
specification voltage.
Control Modes
Setup LED Pixel 1 with Lighting Controller
01) Use a 3-pin XLR cable to connect the LED Pixel 1 to DMX.
02) Connect a lighting controller to the LED Pixel 1 "in" socket.
03) Connect the LEDstrips to the LED Pixel 1.
04) Supply electric power to LED Pixel 1. Do not supply power before the whole system is set up and
connected properly.
Setup LED Pixel 1 with Lighting Controller
Fig. 03
Note: Link all cables and check the voltage of your Pixelstrip before connecting electric power

7
Ordercode: A9915120
LED PIXEL 1
Device Linking
You will need a serial data link to run light shows of one or more devices using a DMX-512 controller or to
run synchronized shows of two or more devices set to a master/slave operating mode. The combined
number of channels required by all the devices on a serial data link determines the number of devices
the data link can support.
Important:
Devices on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 devices on one serial data link without the use of a DMX
optically isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of devices on a DMX data link: 30 devices
Control Panel
A) OLED display
B) MENU button
C) UP button
D) DOWN button
Fig. 04
DMX Addressing
The control panel on the front side of the base allows you to assign DMX addresses, which is the first
channel with which the LED Dim will respond to the controller.
When using multiple LED Dims, make sure you set the DMX addresses right.
Please, be sure that you do not have any overlapping channels in order to control each LED Dim
correctly. If two or more LED Dims are addressed similarly, they will work similarly.
Controlling:
After having addressed all LED Dim devices, you may now start operating these via your lighting
controller.
Note: After switching on, the LED Dim will automatically detect whether DMX 512 data is received or not.
If it does not, the problem may be:
●The XLR cable from the controller is not connected with the input of the LED Dim.
●The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert an XLR termination plug (with 120 Ohm) in the last device in order to ensure
proper transmission on the DMX data link.

8
Ordercode: A9915120
LED PIXEL 1

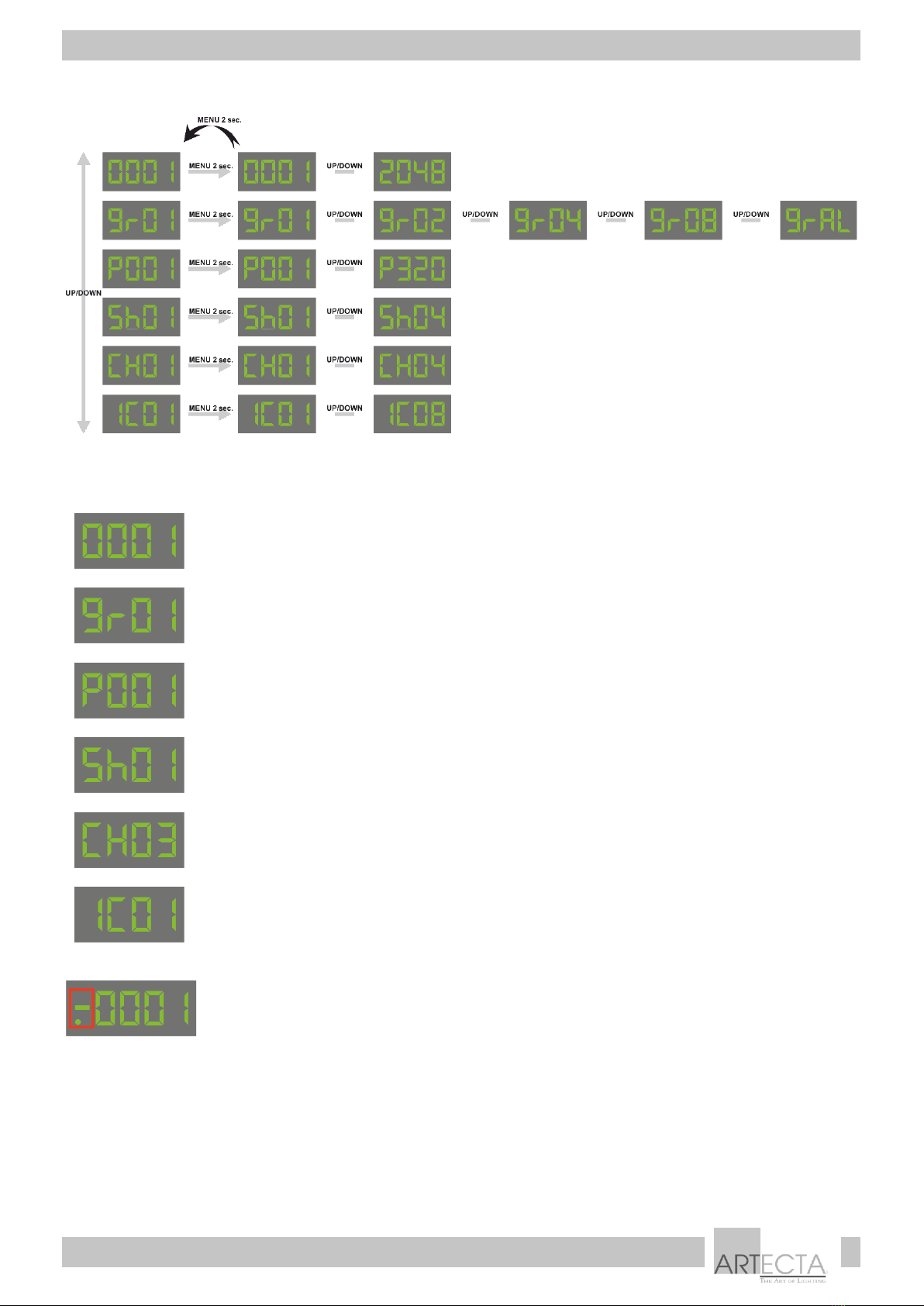

Menu Overview
Main Menu Options
1. DMX Address
2. Segment grouping (determines the pixel size))
3. Pixel control (defines the total pixels under control)n
4. Show / Self Test
5. Channel Mode (Do NOT change this)
6. Integrated Circuit (Do NOT change this)
Press and hold the MENU button for 2 seconds to enter/exit edit mode for the current menu option.
The bar and dot will flash whenever you are in edit mode.
Press and hold MENU for 2 seconds to enter/exit edit mode.

9
Ordercode: A9915120
LED PIXEL 1
1. DMX Address
In this menu you can set the DMX starting address.
01) While in main menu, press the UP/DOWN buttons until the display shows .
02) Press and hold down the MENU button for 2 seconds to enter.
03) Press the UP/DOWN buttons to select the DMX starting address. The adjustment range is 001–2048.
04) Press the MENU button to save changes.
Note:
The DMX address configures the base address for the first color (red) of the first segment, or group of
segments (determined by the 9rxx setting ) of the LED Pixel 1. Successive DMX channels control the
remaining colors within the various segments.
When setting the base address, ensure that sufficient channels remain at the upper end to control all of
the pixels. For instance, a 5 meter Havana Pixel Strip RGB 24 V (A0852126 )with 50 pixels requires 150 DMX
channels, so the base address in such a case cannot be greater than 363 (513-150=363).

10
Ordercode: A9915120
LED PIXEL 1
2. Segment Grouping
In this menu you can set the segment grouping.
01) While in main menu, press the UP/DOWN buttons until the display shows .
02) Press and hold down the MENU button for 2 seconds to enter.
03) Press the UP/DOWN buttons to select the DMX starting address. The adjustment range is gr01-gr02-
gr04-gr08-grAL.
04) Press the MENU button to save changes.
Note:
The segment grouping determines how the various segments of the LED Pixel 1 are matched to the
incoming group(s) of three (RGB) DMX channels to form the controllable pixels (i.e. pixel resolution).
The options range from the assignment of a set of RGB channels for each individual segment (i.e. a pixel
size of 1 segment: 9r01); up to assigning one set of RGB channels to control the whole strip (i.e. up to 320
segments as one pixel, controlled by just 3 channels: 9rAL).
The diagram above shows how the 10 segments within each meter section are affected by the 9rxx
option; these settings would be repeated across the remaining length of the Havana Pixel Strip RGB 24 V
(A0852126 ).
It all depends on the value you have set in the Pxxx menu (max. P320).

11
Ordercode: A9915120
LED PIXEL 1
3. Pixel Range (Pxxx)
01) While in main menu, press the UP/DOWN buttons until the display shows .
02) Press and hold down the MENU button for 2 seconds to enter.
03) Press the UP/DOWN buttons to select the total number of pixels. The adjustment range is P001-P320.
04) Press the MENU button to save changes.
This menu defines the total number of pixels you are controlling. This option is interdependent with the 9rxx
segment grouping setting, which determines how many segments form each pixel, and how many DMX
channels are required to control them.
Without looking at the length of your pixel strip
1 Pixel @ 24V = 6 LEDS = 10 cm
1 Pixel @ 12V = 3 LEDS = ± 5 cm
1 Pixel @ 5V = 1 LED = ± 1,7 cm
Below are some examples for a 24V setup:
gr01
Pixels
Length
Channels
P080
8 m
240 CH
P040
4 m
120 CH
P020
2 m
60 CH
P010
1 m
30 CH
gr02
Pixels
Length
Channels
P080
16 m
240 CH
P040
8 m
120 CH
P020
4 m
60 CH
P010
2 m
30 CH
gr04
Pixels
Length
Channels
P080
32 m
240 CH
P040
16 m
120 CH
P020
8 m
60 CH
P010
4 m
30 CH
gr08
Pixels
Length
Channels
P080
64 m
240 CH
P040
32 m
120 CH
P020
16 m
60 CH
P010
8 m
30 CH
When the strip you’ve selected doesn’t fully light up, the problem may be a wrong value you’ve selected
for Pxxx.

12
Ordercode: A9915120
LED PIXEL 1
Example:
A 5-meter Havana Pixel Strip RGB 24 V (A0852126 )with 50 pixels requires 150 DMX channels.
When you set the value to P005, only the first 50 cm (at a set value of gr01) will light up and not the entire
strip.
When you set the value to P005, only the first 100 cm (at a set value of gr02) will light up and not the
entire strip.
There are no major issues with setting the Pxxx value too high for a given number of pixels.
The only minor issue caused by setting the Pxxx value higher than the actual number of pixels becomes
apparent when the show/self-tests Sh03 and Sh04 are performed.
In Sh03, the scrolling pixel will disappear at the upper end (while it visits non-existent segments) before
running back down the length of the strip.
In Sh04, the halfway split in the strip will move toward the upper end.

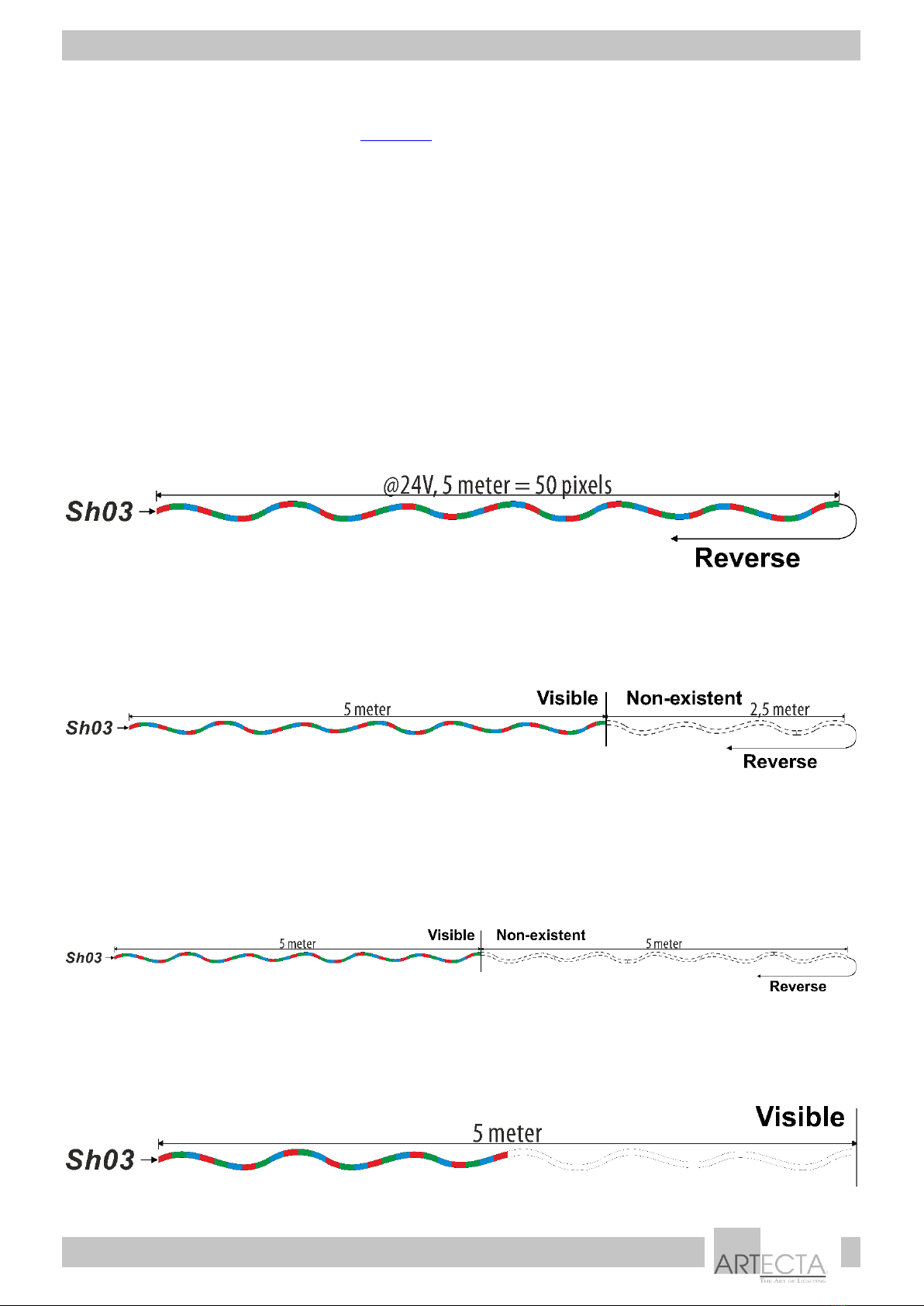

Option 1
Set values: gr01 and P050
The Sh03 show program will run to the end of the strip and then reverse in a different color.
Option 2
Set values: gr01 and P075
The Sh03 show program will run to the end of the 5m strip and keep on running for 25 pixels that are
non-existent. Only when reaching the set value of P075 will the show reverse.
When reaching the 50th pixel the program will become visible again.
Option 3
Set values: gr01 and P100
The Sh03 show program will run to the end of the strip and keep on running for 50 pixels that are
non-existent. Only when reaching the set value of P100 will the show return.
That means that the entire strip will momentarily appear to black out. However this is not true. The sh03
show will keep running from the non-existent 51th to 100th pixel and then reverse.
When reaching the 50th pixel the program will become visible again.
Option 4
Set values: gr01 and P025
When the value is set too low, the pixels which lie beyond the stated limit will not illuminate.
So when using a 5 meter strip with 50 pixels and you set it to P025, will result in half of the strip never
lighting up.

13
Ordercode: A9915120
LED PIXEL 1
4. Show / Self-Test MODE (Shxx)
This menu option provides self-test routines designed to help check for stuck or failed emitters within an
installation. No DMX input is required to run these tests.
01) Configure the required segment grouping and pixel range settings for the installed Havana Pixel Strip
RGB 24 V (A0852126 ).
02) Use the UP/DOWN buttons repeatedly until the display shows Shxx (where xx is a value between 01
and 04).
03) Press and hold the MENU button for roughly two seconds until the bar and dot on the left side of the
display start flashing .
04) Use the UP/DOWN buttons to choose any of the four test sequences:
Sh01
Shows a rapid sequential strobing through all red, green and blue emitters
Sh02
Slowly fades between all red, green and blue emitters
Sh03
Shows a band of pixels which scroll from begin to end and back again, alternately using the
red, green and blue emitters*
Sh04
Shows two separate slow fades in each half of the strip, alternately using the red, green and
blue emitters*
* The exact manner in which the Pixel strip responds to these tests is determined by the 9rxx and Pxxx
menu settings, see page 10-12.
05) Press and hold the MENU button for roughly two seconds until the bar and dot on the left side of the
display stop flashing.
Note: The last state of the test pattern will remain until either a DMX input is applied or the power input is
cycled.
6. Channel Working Mode:
CH01 for single white
CH02 for DW (CW+WW)
CH03 for RGB
CH04 for RGBW(Clear lighting Flex Pixel Tube, RGBW, 6 pixels control per meter)
Note:
Currently Highlite does not sell any RGBW LEDstrip with 24V.
7. Select different ICs
Your Pixel Driver 1 can control many different flex pixel tapes, but on the
market, there are many manufactures who use different ICs.
IC01:UCS2904(Clear lighting Flex Pixel Tube, RGBW, 8 pixels control per
meter)
IC02:WS2911, UCS2903
IC03:WS2812
IC04:TM1812
IC05:WS2801
IC06:APA101
IC08
Note: All of our currently available LEDstrips have to be set to IC08

14
Ordercode: A9915120
LED PIXEL 1
DMX Channels
Depending on the values set in grxx and Pxxx, the DMX channels will be set.
The maximum number of DMX channels is 320 channels when set to P0320 and when using multiple
pixelstrips.
Example:
5 meter Havana Pixel Strip RGB 24 V (A0852126 ) with all 50 pixels used.

15
Ordercode: A9915120
LED PIXEL 1
150 channels (RGB)
Set to gr01 and P050
Channel 1 –Section 1 (Pixel 1=10 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 2 –Section 1 (Pixel 1-2=10 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 3 –Section 1 (Pixel 1-2=10 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 4 –Section 2 (Pixel 3-4=10 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 5 –Section 2 (Pixel 3-4=10 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 6 –Section 2 (Pixel 3-4=10 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest









Channel 142 –Section 23 (Pixel 48=10 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 143 –Section 23 (Pixel 48=10 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 144 –Section 23 (Pixel 48=10 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 145 –Section 24 (Pixel 49=10 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 146 –Section 24 (Pixel 49=10 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 147 –Section 24 (Pixel 49=10 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 148 –Section 25 (Pixel 50=10 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 149 –Section 25 (Pixel 50=10 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 150 –Section 25 (Pixel 50=10 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest

16
Ordercode: A9915120
LED PIXEL 1
75 channels (RGB)
Set to gr02 and P050
Channel 1 –Section 1 (Pixel 1-2=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 2 –Section 1 (Pixel 1-2=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 3 –Section 1 (Pixel 1-2=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 4 –Section 2 (Pixel 3-4=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 5 –Section 2 (Pixel 3-4=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 6 –Section 2 (Pixel 3-4=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest









Channel 67 –Section 23 (Pixel 45-46=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 68 –Section 23 (Pixel 45-46=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 69 –Section 23 (Pixel 45-46=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 70 –Section 24 (Pixel 47-48=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 71 –Section 24 (Pixel 47-48=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 72 –Section 24 (Pixel 47-48=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 73 –Section 25 (Pixel 49-50=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 74 –Section 25 (Pixel 49-50=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 75 –Section 25 (Pixel 49-50=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest

17
Ordercode: A9915120
LED PIXEL 1
39 channels (RGB)
Set to gr04 and P050
Channel 1 –Section 1 (Pixel 1-4=40 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 2 –Section 1 (Pixel 1-4=40 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 3 –Section 1 (Pixel 1-4=40 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 4 –Section 2 (Pixel 5-8=40 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 5 –Section 2 (Pixel 5-8=40 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 6 –Section 2 (Pixel 5-8=40 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest









Channel 31 –Section 11 (Pixel 41-44=40 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 32 –Section 11 (Pixel 41-44=40 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 33 –Section 11 (Pixel 41-44=40 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 34 –Section 12 (Pixel 45-48=40 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 35 –Section 12 (Pixel 45-48=40 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 36 –Section 12 (Pixel 45-48=40 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 37 –Section 13 (Pixel 49-50=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 38 –Section 13 (Pixel 49-50=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 39 –Section 13 (Pixel 49-50=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest

18
Ordercode: A9915120
LED PIXEL 1
21 channels (RGB)
Set to gr08 and P050
Channel 1 –Section 1 (Pixel 1-8=80 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 2 –Section 1 (Pixel 1-8=80 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 3 –Section 1 (Pixel 1-8=80 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 4 –Section 2 (Pixel 9-16=80 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 5 –Section 2 (Pixel 9-16=80 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 6 –Section 2 (Pixel 9-16=80 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 7 –Section 3 (Pixel 17-24=80 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 8 –Section 3 (Pixel 17-24=80 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 9 –Section 3 (Pixel 17-24=80 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 10 –Section 4 (Pixel 25-32=80 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 11 –Section 4 (Pixel 25-32=80 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 12 –Section 4 (Pixel 25-32=80 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 13 –Section 5 (Pixel 33-40=80 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 14 –Section 5 (Pixel 33-40=80 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 15 –Section 5 (Pixel 33-40=80 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
Channel 16 –Section 6 (Pixel 41-48=80 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 17 –Section 6 (Pixel 41-48=80 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 18 –Section 6 (Pixel 41-48=80 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest

19
Ordercode: A9915120
LED PIXEL 1
Channel 19 –Section 7 (Pixel 49-50=20 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 20 –Section 7 (Pixel 49-50=20 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 21 –Section 7 (Pixel 49-50=20 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
3 channels (RGB)
Set to grAL and P050
Channel 1 –Section 1 (Pixel 1-50=500 cm) Red
0–255
Gradual adjustment Red, from dark to brightest
Channel 2 –Section 1 (Pixel 1-50=500 cm) Green
0–255
Gradual adjustment Green, from dark to brightest
Channel 3 –Section 1 (Pixel 1-50=500 cm) Blue
0–255
Gradual adjustment Blue, from dark to brightest
