ADF Web HD67626-A1 User manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 1 of 27
User Manual
Revision 1.000
English
S7comm / SNMP Agent - Converter
(Order Code: HD67626-A1)
for Website information:
http://www.adfweb.com/? roduct=HD67626
for rice information:
http://www.adfweb.com/? rice=HD67626-A1
Benefits and Main Features:
Triple electrical isolation
Two Ethernet ports
Temperature range: -40°C/+85°C (-40°F/+185°F)
For others S7comm devices, see also the following links:
S7comm from/to …
www.adfweb.com? roduct=HD67618 (Modbus TCP S ave)
www.adfweb.com? roduct=HD67619 (PROFIBUS S ave)
www.adfweb.com? roduct=HD67620 (IEC61850 Server)
www.adfweb.com? roduct=HD67621 (Seria )
www.adfweb.com? roduct=HD67622 (Modbus S ave)
www.adfweb.com? roduct=HD67623 (CAN)
www.adfweb.com? roduct=HD67624 (CANopen)
www.adfweb.com? roduct=HD67625 (DeviceNet S ave)
www.adfweb.com? roduct=HD67627 (EtherNet/IP S ave)
www.adfweb.com? roduct=HD67628 (KNX)
www.adfweb.com? roduct=HD67629 (MQTT)
www.adfweb.com? roduct=HD67630 (BACnet S ave)
www.adfweb.com? roduct=HD67631 (Ethernet)
www.adfweb.com? roduct=HD67632 (OPC UA Server)
www.adfweb.com? roduct=HD67633 (PROFINET S ave)
www.adfweb.com? roduct=HD67D39 (LoRaWAN)
www.adfweb.com? roduct=HD67E28 (S7comm)
Do you have an your customer protocol?
See the following links:
www.adfweb.com? roduct=HD67003
Do you need to choose a device? do you want help?
Ask it to the following link:
www.adfweb.com?Cmd=helpme
Use
r Manual

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 2 of 27
INDEX:
age
INDEX 2
U DATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAM LE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
OWER SU LY 7
FUNCTION MODES 8
LEDS 9
ETHERNET 10
USE OF COM OSITOR SW67626 11
NEW ROJECT / O EN ROJECT 12
SOFTWARE O TIONS 13
SET COMMUNICATION 15
S7COMM ACCESS 17
SET SNM ACCESS 20
MIB FILE 21
U DATE DEVICE 22
MECHANICAL DIMENSIONS 24
ORDERING INFORMATIONS 25
ACCESSORIES 25
DISCLAIMER 26
OTHER REGULATIONS AND STANDARDS 26
WARRANTIES AND TECHNICAL SU ORT 27
RETURN OLICY 27
Pagina 2 di 27
UPDATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
Revision Date Author Chapter Description
1.000 11/03/2021 Ff All First release version
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 3 of 27
SECURITY ALERT:
G ENERAL I NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I NTENDED U SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q UALIFIED P ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R ESIDUAL R ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 4 of 27
EXAMPLE OF CONNECTION:

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 5 of 27
CONNECTION SCHEME:
Figure
1
: Connection scheme for HD67
626
-
A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 6 of 27
CHARACTERISTICS:
The HD67626-A1 is a S7comm / SNM Agent Converter.
It allows the following characteristics:
Two-directional information between S7comm and SNM ;
Mountable on 35mm Rail DIN;
Wide power supply input range: 8…24V AC or 12…35V DC;
Wide temperature range: -40°C / 85°C [-40°F / +185°F].
CONFIGURATION:
You need Compositor SW67626 software on your C in order to perform the following:
Define the parameter of the SNM ;
Define the parameter of the S7comm;
Define the S7comm requests to send to the S7comm servers;
Define the SNM OIDs in read and write;
Export the MIB file;
Update the device.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 7 of 27
POWER SUPPLY:
The devices can be powered between a wide range of tensions. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
HD67626-A1 8V 24V 12V 35V
Consumption at 24V DC:
Device W/VA
HD67626-A1 4
Caution: Not reverse the po arity power
HD67626-A1

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 8 of 27
FUNCTION MODES:
The device has got two functions mode depending of the position of the Dip1 of ‘Dip-Switch A’:
The first, with Dip1 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip1 in On position, is used for upload the roject/Firmware.
For the operations to follow for the updating (see ‘U DATE DEVICE’ section).
According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 9 of 27
LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Norma Mode Boot Mode
1: ON [supply voltage ]
(green)
ON: Device powered
OFF: Device not powered
ON: Device powered
OFF: Device not powered
2: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
3: SNM communication
(green) Blinks when a SNM response is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
4: S7comm communication
(green) Blinks when a S7comm response is received B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
5: Not used (green) OFF B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress
6: Not used (green) OFF B inks quick y: Boot state
B inks very s ow y (~0.5Hz): update in progress

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 10 of 27
ETHERNET:
The Ethernet connection must be made using Connector3 or Connector4 of HD67626-A1 with at least a Category 5E cable. The maximum
length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To
connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a C/ LC/other is recommended
the use of a cross cable.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 11 of 27
USE OF COMPOSITOR SW67626:
To configure the Converter, use the available software that runs with Windows called SW67626. It is downloadable on the site
www.adfweb.com and its operation is described in this document. (This manual is referenced to the last version of the software present on
our web site). The software works with MSWindows (X , Vista, Seven, 8, 10, 11; 32/64bit).
When launching the SW67626, the window below appears (Fig. 2).
Note:
It is necessary to have installed .Net Framework 4.
Figure 2: Main window for SW67626

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 12 of 27
NEW CONFIGURATION / OPEN CONFIGURATION:
The “New Configuration” button creates the folder which contains the entire device’s configuration.
A device’s configuration can also be imported or exported:
To clone the configurations of a programmable “S7comm / SNM Agent - Converter” in
order to configure another device in the same manner, it is necessary to maintain the
folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the
button “Open Configuration”.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 13 of 27
SOFTWARE OPTIONS:
By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the
compositor.
In the section “Language” it is possible to change the language of the
software.
In the section “Connection Options”, it is possible to check if there are some
updatings of the software compositor in ADFweb.com website.
Checking the option “Check Software Update at Start of Program”, the
SW67626 check automatically if there are updatings when it is launched.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 14 of 27

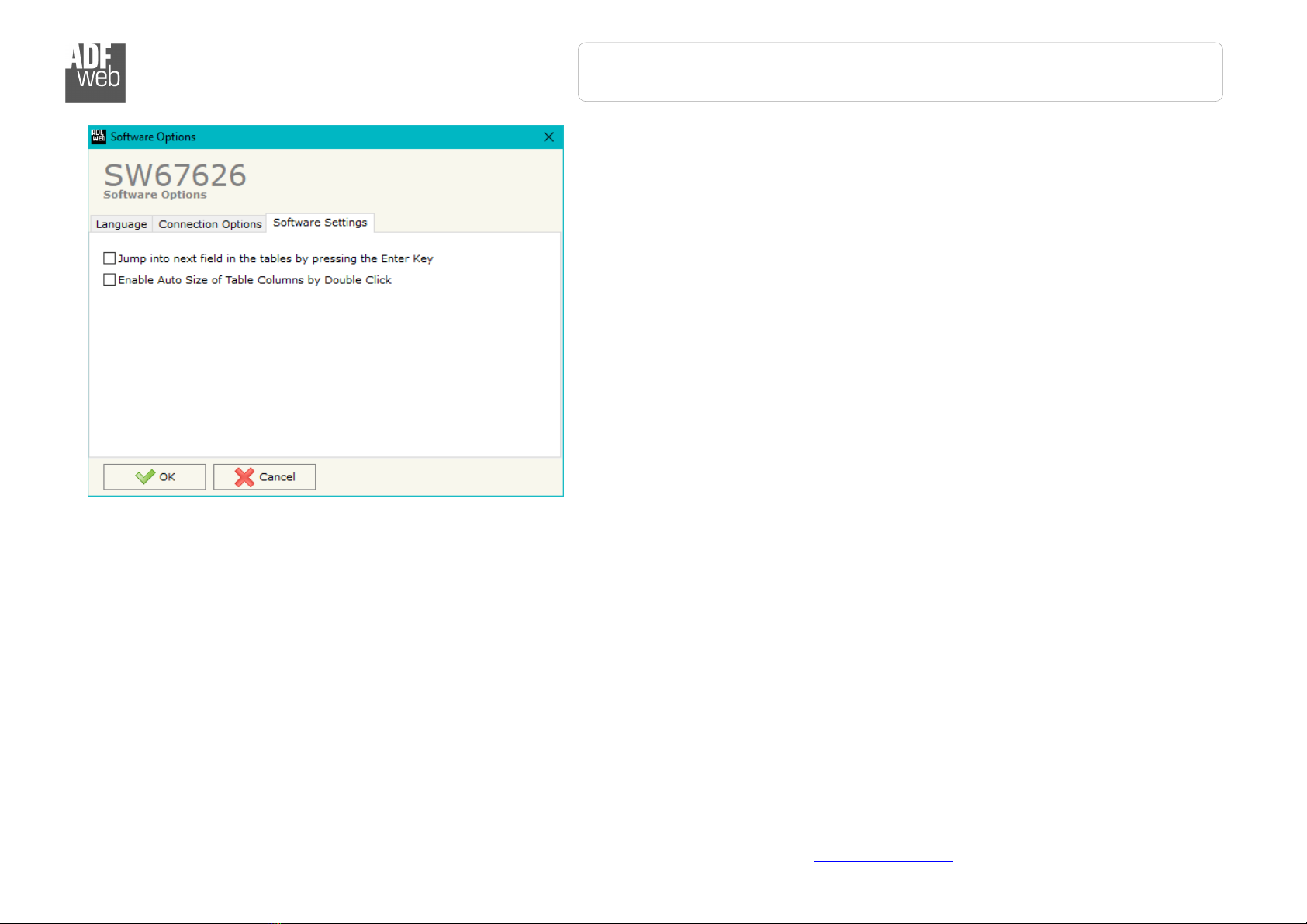

In the section “Software Settings”, it is possible to enable/disable some
keyboard’s commands for an easier navigation inside the tables contained in
the different sections of the software.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 15 of 27
SET COMMUNICATION:
This section define the fundamental communication parameters of two buses, SNM and S7comm.
By ressing the “Set Communication” button from the main window for SW67626 (Fig. 2) the
window “Set Communication” appears (Fig. 3).
The means of the fields for “Ethernet Connection” are:
In the field “Device Name (Hostname)” the Hostname to assign to the converter is
defined;
If the field “Obtain an IP Address Automatica y (DHCP for Cab e Connection)” is
checked, DHC for LAN connection is enabled;
If the field “Enab e DNS” is checked, DNS protocol is enabled;
In the field “Primary DNS” the I Address of the primary DNS server is defined;
In the field “Secondary DNS” the I Address of the secondary DNS server is defined.
The means of the fields for “S7comm” are:
In the fields “IP ADDRESS” the I address for S7comm side of the converter is defined;
In the fields “SUBNET Mask” the SubNet Mask for S7comm side of the converter is
defined;
In the fields “GATEWAY” the default gateway of the net is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the
net.
The means of the fields for “SNM Agents” are:
In the field “IP ADDRESS” the I address of SNM side of the converter is defined;
In the field “SUBNET Mask” the SubNet Mask of SNM side of the converter is defined;
In the field “GATEWAY” the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the
net;
In the field "SNMP Name of Station" the name for SNM Agent station is defined;
In the field "Contact" the contact for SNM Agent station is defined;
Figure 3: “Set Communication” window

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 16 of 27
In the field "Location" the location for SNM Agent station is defined;
In the field “Version” the version of SNM is defined;
If SNM V3 is used, the following fields must be filled:
oIn the field “User” the user for the SNM authentication is defined;
oIn the field “Security Leve ” the type of security used is defined;
oIn the field “Authority” the password for the SNM authentication is defined;
oIn the field “Authority Mode” the mode used for the authentication is defined;
oIn the field “Privacy” the password for rivacy authentication is defined;
oIn the field “Privacy Mode” the mode used for rivacy is defined;

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 17 of 27
Figure
4a
:
“S7 rotocol Access

S7comm Read” window
S7comm ACCESS:
By ressing the “S7comm Access ” button from the main window of SW67626 (Fig. 2), the window “Set S7comm Access” appears (Fig. 4).
The window is divided in two parts, the “S7comm Read” that contains the data that the converter reads from the S7comm servers and
“S7comm Write” that contains the data that the converter writes into the S7comm servers.
The means of the fields in the window “S7comm Read” are the following:
In the field “PLC Address” the I address of the LC that contains the data to be read is defined;
In the field “PLC Port” the port used for S7comm communication is defined;
In the field “PLC Type” the family of the LC is defined;
In the field “Rack” the Rack’s ID of the LC is defined;
In the field “S ot” the Slot’s ID is defined;
In the field “Data Type” the data format of the variable to read is defined;
In the field “Data Identifier” the identifier of the variable to read is defined;
In the field “PLC Area” the memory area where the data is located inside the LC is defined;
In the field “PLC Add” the starting memory address where the data is located is defined;
In the field “PLC Bit” the starting bit of the selected LC Address is defined;
In the field “Po Time” the frequency of the request is defined (in ms);
In the field “Position” the starting byte of the internal memory array from which mapping the data read is defined;

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 18 of 27
In the field “Start Bit” is used for the “Bit” data. It is possible to select the bit of the selected osition where mapping the data;
If the field “Swap” is checked, the bytes’ order is reversed;
If the field “Swap W” is checked, the words’ order is reversed;
In the field “Mnemonic” a description of the data inserted in the row is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 19 of 27
Figure 4b: “S7 rotocol Access  S7comm Write” window
The means of the fields in the window “S7comm Read” are the following:
In the field “PLC Address” the I address of the LC that contains the data to be read is defined;
In the field “PLC Port” the port used for S7comm communication is defined;
In the field “PLC Type” the family of the LC is defined;
In the field “Rack” the Rack’s ID of the LC is defined;
In the field “S ot” the Slot’s ID is defined;
In the field “Data Type” the data format of the variable to read is defined;
In the field “Data Identifier” the identifier of the variable to read is defined;
In the field “PLC Area” the memory area where the data is located inside the LC is defined;
In the field “PLC Add” the starting memory address where the data is located is defined;
In the field “PLC Bit” the starting bit of the selected LC Address is defined;
In the field “Po Time” the frequency of the request is defined (in ms);
By checking the field “On Change” the S7comm write request is sent only if SNM data are changed;
By checking the field “On CMD” the S7comm write request is sent when a SNM writing for the selected variable is received;
In the field “Position” the starting byte of the internal memory array from which taking the data to write is defined;
The field “Start Bit” is used for the “Bit” data. It is possible to select the bit of the selected osition from which taking the data;
If the field “Swap” is checked, the bytes’ order is reversed;
If the field “Swap W” is checked, the words’ order is reversed;
In the field “Mnemonic” a description of the data inserted in the row is defined.

Industrial Electronic Devices
ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31
User Manual
S7comm /
SNMP Agent
Document code: MN67626_ENG Revision 1.000 age 20 of 27
SET SNMP ACCESS:
By pressing the “Set SNMP Access” button from the main window for SW67626 (Fig. 2) the “Set SNM Access” window appears (Fig. 5). In
this section, it is possible to create the OIDs for SNM side to read or write using GET and SET commands or to be sent as TRA messages.
The window is divided into two tables, one for SNM readings and one for SNM writings.
The data of the columns in the “SNM
Read” have the following meanings:
If the field “Enab e” is
checked, the SNM OID is
enabled;
In the field “Community
Name” the name of the
Community is defined;
In the field “Type” the type of
data of the OID is defined
(Octet String or Integer);
If the field “On Change” is checked, the OID is sent as Trap when the data from S7comm side change;
If the field “On CMD” is checked, the OID is sent as Trap when the a S7comm response is received;
If the field “On Timer” is checked, the OID is sent as Trap cyclically;
In the field “Time (ms)” the delay time for the Trap send is defined (if “On Timer” option is checked);
In the field “Position” the starting byte of the internal memory array where taking the data is defined;
In the field “Start Bit” the starting bit of the selected osition is defined;
In the field “Num Bits/Bytes” the dimension of the OID is defined. For ‘Int’ type the dimension is in bit, for ‘String’ type the
dimension is in bytes;
In the field “Description” the description/name of the OID is defined;
In the field “IP Address” the I Address of the SNM device where addressing the Trap message is defined. This field is used only
when ‘On Change’ or ‘On Timer’ option is checked;
In the field “Conversion” it is possible to select the data conversion to apply to the data;
In the field “Mnemonic” a brief description of the OID is defined.
Figure
5a
: “
Set SNM Access
-
> SNM Read
” window
