CONTENTS
General .................................. 12
Accessories............................ 12
Installation and
safety notices ......................... 12
Supplied equipment .............. 13
Installation.............................. 13
Connection diagram .............. 17
Features ................................. 19
Specifications ........................ 19

12
General
Thank you for deciding to use a Blau-
punkt product. We hope you enjoy us-
ing this new piece of equipment.
Please read these operating instruc-
tionsbeforeusingtheequipmentfor
the first time.
The Blaupunkt editors are constantly
working on making the operating in-
structions clearer and easier to under-
stand. However, if you still have any
questions on how to operate the equip-
ment, please contact your dealer or the
telephone hotline for your country. You
will find the telephone numbers printed
at the back of this booklet.
We provide a manufacturer guarantee
for our products bought within the Eu-
ropean Union. You can view the guar-
anteeconditionsatwww.blaupunkt.de
or ask for them directly at:
Blaupunkt GmbH
Hotline CM/PSS 6
Robert Bosch Str. 200
D-31139 Hildesheim
Accessories
We recommend you use accessories
thathavebeenapprovedbyBlaupunkt.
Installation and safety notices
Before connecting your signal conver-
ter, please read the following informati-
on carefully.
Thebattery’s negative terminal must
remain disconnected whilst you are
installing and connecting the unit.
Whilst doing so, you must observe the
vehicle manufacturer’s safety notices
(airbags,alarmsystems,tripcomputers,
immobilizers).
Beforedrillinganyholes,youmustmake
sure that no installed cables or vehicle
components can be damaged.
Wheninstallingthesignalconverter,se-
lect a location in the vehicle that allows
you to attach it firmly into place using
screws.Theinstallationlocationshould
be such that the signal converter does
notget inthe wayof thedriver andcan-
notendangertheoccupantsintheevent
ofthevehiclesuddenlycomingtoahalt,
forinstance,duringanemergencystop.
SAFETY INFORMATION

13
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
Supplied equipment
Thesignal converteris suppliedwith all
thepartslistedbelow.Pleasecheckthat
therangeofpartssuppliedwithyourde-
viceiscomplete.Ifoneofthelistedparts
is missing, please contact your dealer
immediately.
●Signal Converter
●Connecting cable
●RGB adapter
●Installation and operating instruc-
tions
Signal Converter
7 607 003 550
Installation
Note:
•Beforeconnectingthemonitorsto
your signal converter, check that
the +/- and the switched positive
areconnected properly.Aftercon-
necting the +/- and the switched
positive, the red LED on the sig-
nal converter must light up!
Positive connection

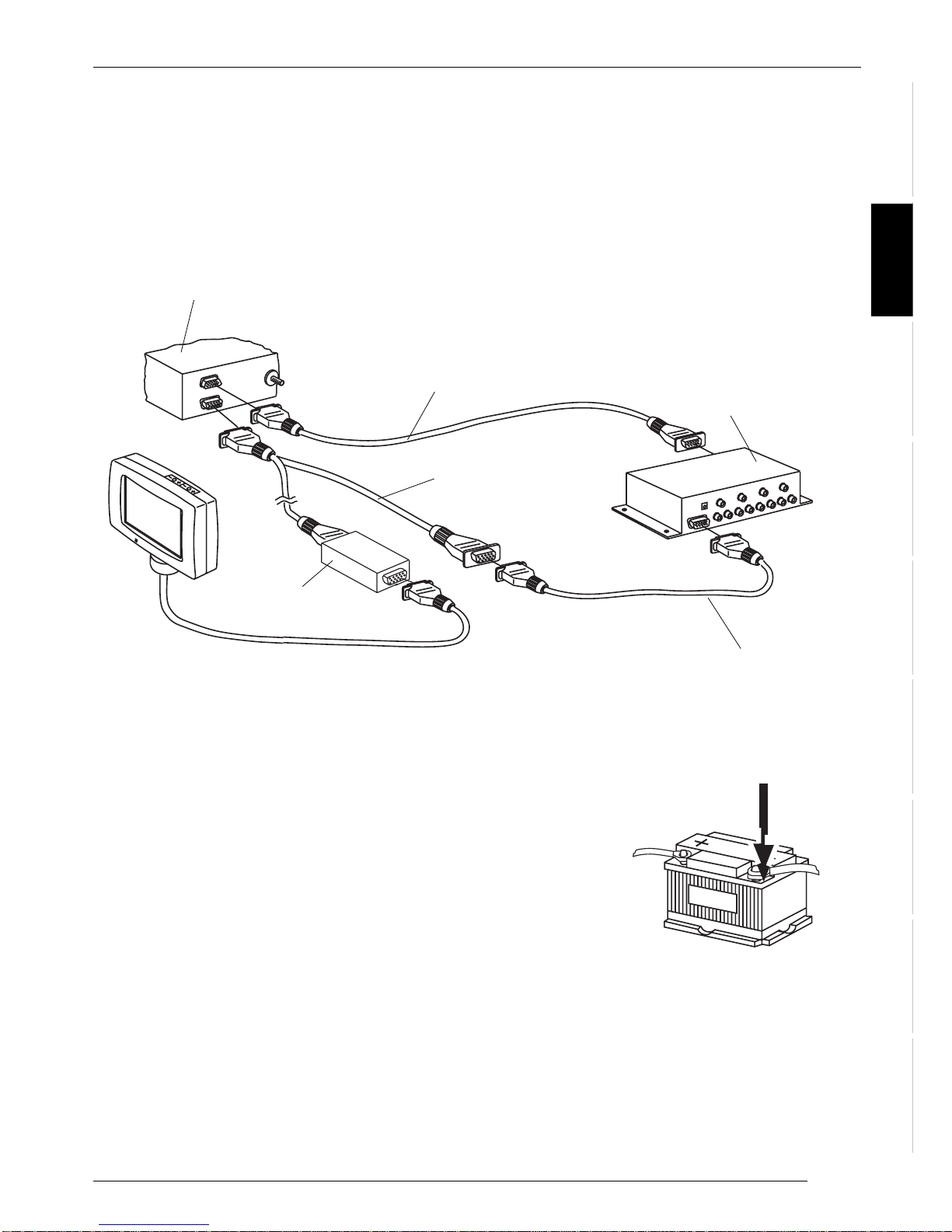

Connectthefuseholder(5Afuse)topro-
tect the positive cable (3) (see Fig. 1).
The fuse holder must be connected to
the positive terminal at a distance of
max. 30 cm from the vehicle battery (if
necessary, drill a hole in the bulkhead
use the appropriate cable grommets).
Switched positive
Connecttheswitchedpositivecable(4)
(seeFig.1)totheswitchedpositiveout-
put( )ofthemainsystemunit(e.g.
car radio or navigation unit). If connect-
ingtothevehicle’sterminal15,youmust
connect a fuse holder (1A fuse) to pro-
tecttheswitchedpositivecable(4)(see
Fig. 1). The fuse holder must be con-
nected to the positive terminal at a di-
stance of max. 30 cm from the vehicle
battery (if necessary, drill a hole in the
bulkhead and use the appropriate ca-
ble grommets).
Negative (earth) connection
Attach the negative cable (1) (see Fig. 1)
directlytothe vehiclebodyusinga screw.
Scratch the surface down to the bare
metal at the point at which the earth con-
tact is made and apply graphite grease
(important for a good earth connection).
SUPPLIED EQUIPMENT INSTALLATION
Connecting cable
RGB adapter

14
•Iftheinstallationrequiresholestobe
drilled or any other changes to the
vehicle to be made, please contact
a specialist workshop in your area.
Note:
You cannot display PAL video on the
wide vision TV monitor using the RGB
input.
In this case, the PAL video signal must
be connected directly to theAV input of
the wide vision TV monitor.
INSTALLATION

15
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
INSTALLATION
12V
Earth/GND
+12V Permanent +12V
(1)
(3) (4)
Fig. 1
1
R1 L1
Monitor
Audio in
RGB IN
DC 12V IN

16
RGB out
Monitors
Fuse ( 4A)
Video in
RGB in Audio in
INSTALLATION
4132
R1 R2 R3 R4L1 L2 L3 L4
Monitor
Audio in
RGB IN
DC 12V IN
F
U
S
E
RGB OUT
OUTPUT 321 4

17
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
CONNECTION DIAGRAM
Signal converter
TravelPilot DX
7 607 001 601 / 1,5 m
7 607 001 602 / 4 m
7 607 001 601 / 1,5 m
7 607 001 602 / 4 m
12V
RGB adapter
7 607 001 600

18
CONNECTION DIAGRAM
Various components connected as an example
Rear
Monitor
Rear
Monitor
Rear
Monitor
Rear
Monitor
CDC-A08
IDC-A09
CDC
out
Speakers
DVD - Player (IVDP-01)
Video out
AV
in
Digital
out
Audio L out
Audio R out
RGB in
Video 4
Audio L 4
Audio R 4
Video 3
Audio L 3
Audio R 3
Video 2
Audio L 2
Audio R 2
Video 1
Audio L 1
Audio R 1
Signal Converter (IVSC-5501)
M 1
M 2
M 3
M 4
RGB
out
IVMS/R
DX-N
RGB
out Video
in
Preamp
out
CDC
in
Car Radio
2x Aux-in
DX-N
Monitor
Amplifier
Anschlußkabel/Additional Cables:
1RGB-Y-Cable 7 607 001 600
2RGB-Cable 7 607 001 601 (1,5)
7 607 001 602 (4m)
3RCA-Y-Cable 7 607 001 507
4RCA-Cable 7 607 885 093 (1,3m)
7 607 886 093 (5m)
5ISO-RCA 7 607 893 093
6AUX 2-in 7 607 001 508
7C1-4x Cinch 7 607 893 093 (0,35m)
8RGB-Adapter
2
1
3
2
4
4
Aux
in
4
6
7
4
8

19
DANSK
ENGLISH DEUTSCH
FRANÇAIS
ITALIANO
NEDERLANDS
SVENSKA
ESPAÑOL
PORTUGUÊS
SPECIFICATIONS
Features
4 audio/video inputs:
Cinch jacks
1 RGB input:
15-pin Sub-D socket
4 monitor outputs:
CCVS 50Hz, 8-pin jack, with power,
earth, switched positive
1 RGB output:
15-pin Sub-D plug-type connector
Conversion:
RGB (NTSC) 60 Hz in CCVS 50Hz
CCVS 50Hz in RGB (NTSC) 60 Hz
Power input:
4-pin plug-type connector
Metal housing
Specifications
Video input:
Composite Video, 0.7 ~ 2.0 Vpp,
75 Ohm
Audio input:
0 ~ 0.3 Vrms, 10-20 kHz
RGB input (video signal, internal re-
sistance 100 ohm):
min –1.0 / max 1.0 Vdc
typical 0.7 / max 2.0 Vpp
RGBinput(composite-sync, internal
resistance 100 ohm):
min –1.0 / max 1.0 Vdc
min 0.7 / typical 1.0 / max 2.0 Vpp
Video output:
Composite Video, 0.7 ~ 2.0 Vp-p,
75 Ohm
Audio output:
0 ~ 0.3 Vrms, 10-20 kHz
RGBoutput(videosignal, internalre-
sistance 100 ohm):
min –1.0 / max 1.0 Vdc
typical 0.7 / max 2.0 Vpp
RGB output (composite sync, inter-
nal resistance 100 ohm):
min –1.0 / max 1.0 Vdc
min 0.7 / typical 1.0 / max 2.0 Vpp
Power supply:
DC 12V, +/- 10%, max. 5A

05/02 CM/PSS - 8 622 403 178
