ArtFox Vista 16R Extreme User manual

Vista 16R Extreme
Hybrid beam spot wash, 3D effects
User Manual

CONTENTS
Chapter 1 Installation and attention
1. Maintenance ..................................................................................................... 1
2. Statement.......................................................................................................... 2
3. Safety Precaution ............................................................................................. 3
4. Product Instruction ........................................................................................... 4
5. Cable connection（DMX） ............................................................................ 5
6. Rigging (Optional) ........................................................................................... 6
Chapter 2 Panel operation
1. Brief ................................................................................................................. 7
2. Operation.......................................................................................................... 8
1. Operate light with touch or encoder button .............................................. 9
2. Parameter value setting ........................................................................... 10
3. Boolean parameter setting....................................................................... 11
4. Sub Menu（Parameter） ........................................................................ 12
3. Operation and parameter instruction
1. Set DMX Address ................................................................................... 13
2. Set Light work mode ............................................................................... 14
3. Set display ............................................................................................... 15
4. Test light .................................................................................................. 16
5. Set light run parameter ............................................................................ 17

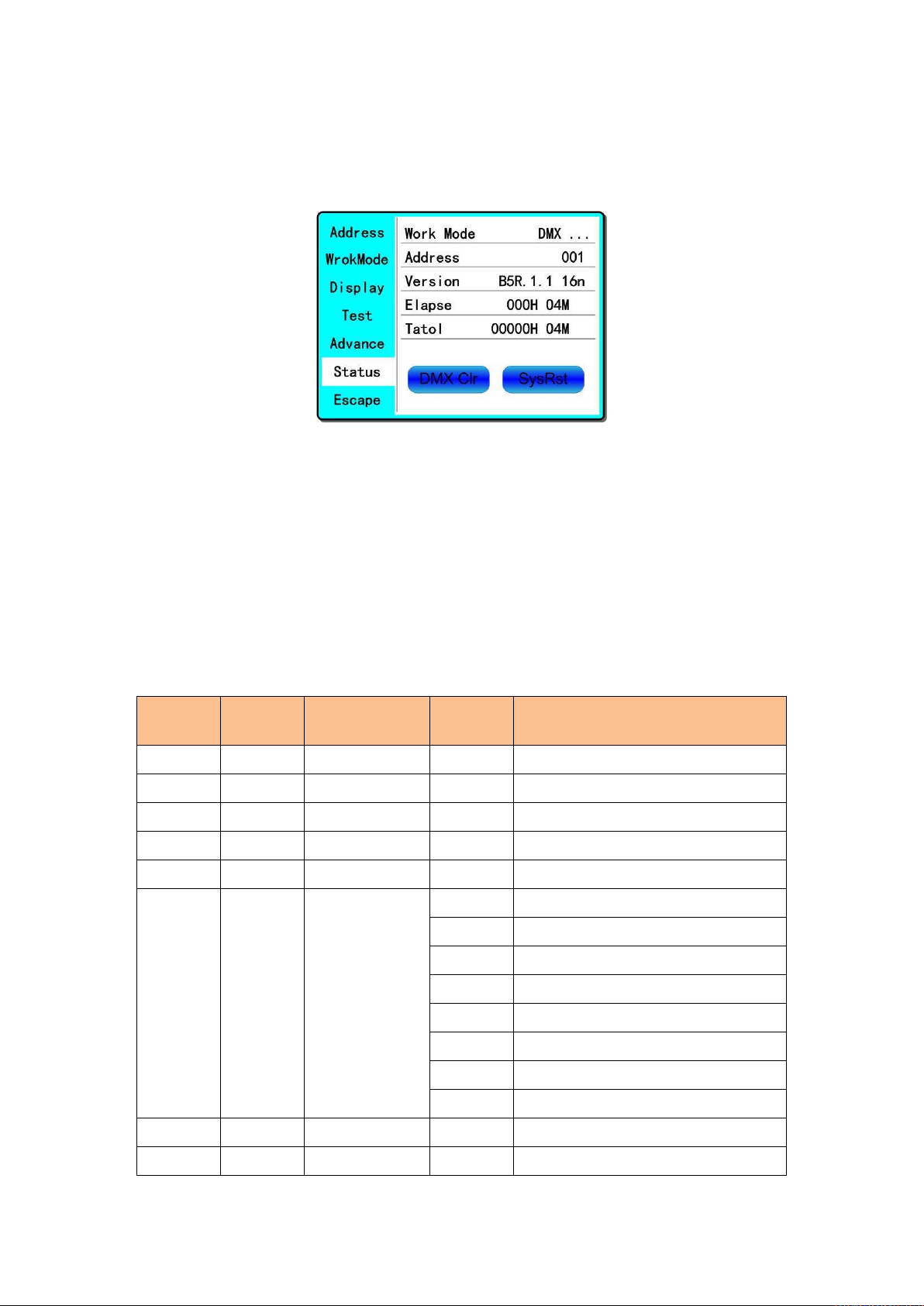

6. View status .............................................................................................. 18
Chapter 3 Channel description
1. Channel function ............................................................................................ 19

Chapter 1 Installation and attention
1. Maintenance
 To reduce the risk of electrical shock or fire, do not expose this unit to rain or
moisture.
 Intermittently using will extend this item’s service life.
 Please clear the fan ,fan net , and optical lens in order to keep good work state.
 Do not use the alcohol or any other organic solvent to wipe the shell.
2. Statement
The product has perfect performance and integrity packing. All users should be
strictly complying with the warning and operating instructions as stated. Or we aren’t
in charge of any result by misusing. Any damage resulting by misuse is not within the
Company’s warranty. Any fault or problem caused by neglecting the manual is also
not in the charge of dealers.
Note: All information is subject to change without prior notice.
3. Safety Precaution
 In order to guarantee the product’s life, please don’t put it in the damp places or
even the environment over 60degress.
 Always mount this unit in safe and stable matter.
 Install or dismantle should operate by professional engineer.
 Using lamp，the change rate of power voltage should be within±10%，If the
voltage is too high，it will shorten the light’s life; If it’s not enough, will influence
the effect.
 Please restart it 20 minutes later after turning off light , until full-cooling.
Frequent switching will reduce the life span of lamps and bulbs; intermittent
using will improve the life of bulbs and lamps.
 In order to make sure the product is used well, please read the Manual carefully.
4. Product Instruction
 Lamp: 350W(16R) (life:2200 hours Color temperature: 8000K)
 Channel mode:20 DMX512 Channel
 Pan scan：540°(16bit) Electric correction

 Tilt scan：270° (16bit) Electric correction
 Amazing dot matix, four tact switch, 180° turning show
 Color wheel: one color wheel, 13 kinds of color chips in one color wheel
 Gobo: 13 static gobos, 9 rotation gobos;
 Effect Wheel: Rotation eight prism, effect move , frost
0-100% mechanical dimming, mechanical dimming and free dimming available.
 strobe macro control available.
 Lens optical system achanical fouce .beam angle 0～4°
 Over heat protection
 Power Input: 100-240V，50/60Hz
 Power Dissipation：450W
 IP level :IP20
 Magnetic ballast and AC/Dc power supply
5. Cable connection（DMX）
 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded,
120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those
specified. The end connections must be made using XLR type 3 or 5-pin
male/female connectors. A terminating plug must be inserted into the last
projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2
and 3.
 IMPORTANT: The wires must not make contact with each other or with the
metal casing of the connectors. The casing itself must be connected to the shield
braid and to pin 1 of the connectors.
Figure 1 DMX Cable connection

6. Rigging (Optional)
This equipment can be positioned and fixed by clamp in every direction of the stage.
Locking system makes it easy to fasten to the bracket.
Attention! Two clamps is needed to fix the equipment. Every clamp is locked by
fastener of 1/4 kind. Fastener can only be locked clockwise.
Attention! Fasten a safety string to the additional hole of side aluminum piece. The
secondary accessory can not hang on the delivery handle. Nip the equipment on
bracket.
 Check if rigging clamp (not including the one inside) damaged or not? If stand
ten times weight as the equipment. Make sure the architecture can stand ten times
weight as all the equipments, clamps, wirings and other additional fixtures.
Screws for clamping must be fixed firmly. Take one M12 screw (Grade 8.8 or higher)
to clamp bracket, and then screw the nuts.
 Level the two hanging points at the bottom of clamp. Insert fastener to the bottom,
lock the two levers by 1/4 rotating clockwise; then install another clamp.
 Install on safety string which stands at least ten times weight as equipment.
Terminal of the accessory is designed for clamps.
 Make sure pan/tilt lock unlocked or not. Keep the distance more than 1M from
equipment to flammable material or lighting source.

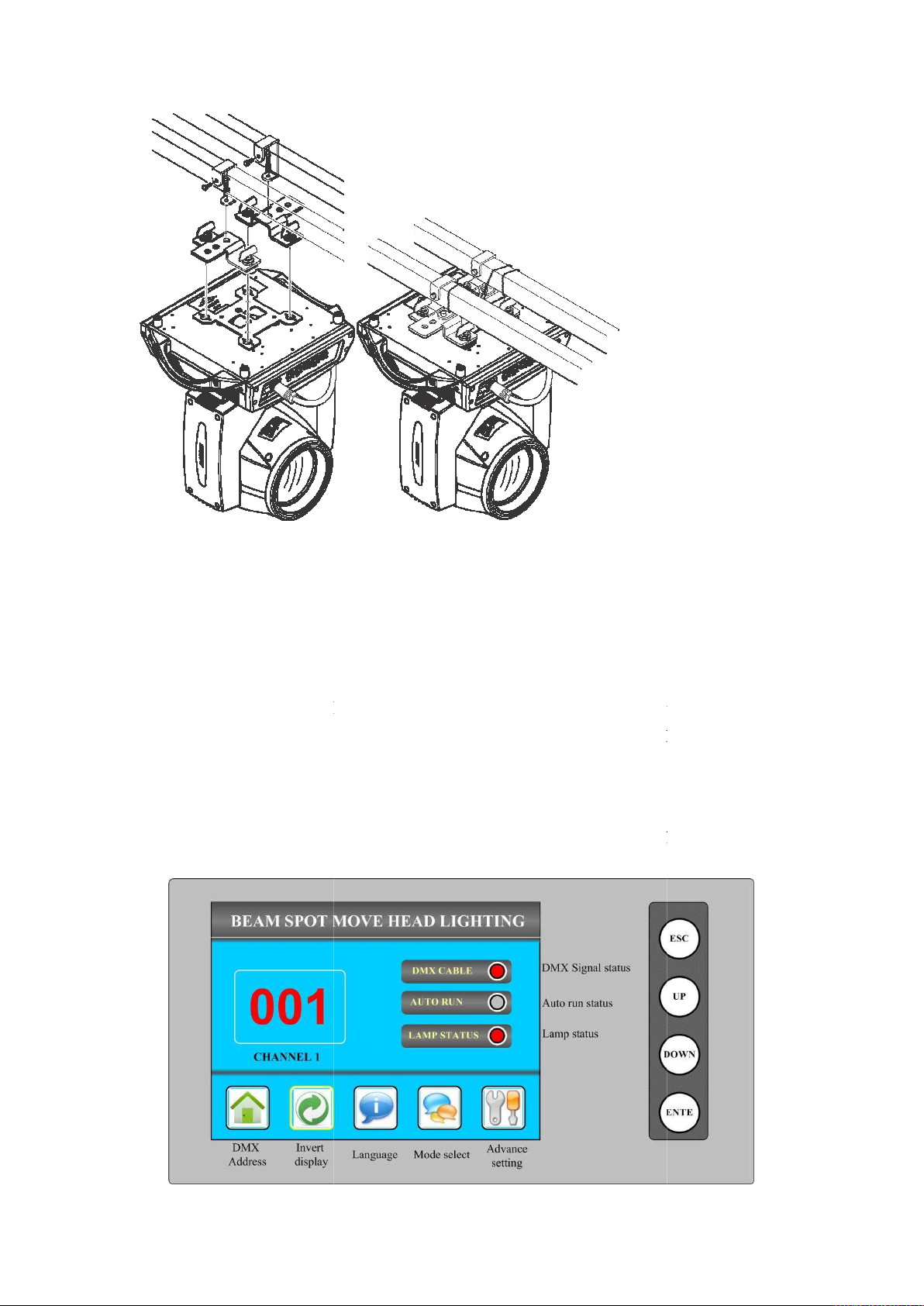

Figure 2 Installation
Chapter 2 Panel operation
1. Brief
The light panel diagram show as
and right are
a is encoder button, both of touch and coder button can operate light and
setting.
Display & operation just like ‘Android operation system’, touch the item will set or
modify setting.
Note: Prevent damage the touch or TFT displayer, Can not use sharp objec
displayer.
Chapter 2 Panel operation
The light panel diagram show as
Figure 3
, Left area is TFT Displayer, support touch,
a is encoder button, both of touch and coder button can operate light and
Display & operation just like ‘Android operation system’, touch the item will set or
Note: Prevent damage the touch or TFT displayer, Can not use sharp objec
, Left area is TFT Displayer, support touch,
a is encoder button, both of touch and coder button can operate light and
Display & operation just like ‘Android operation system’, touch the item will set or
Note: Prevent damage the touch or TFT displayer, Can not use sharp objec
ts chick

Figure 3Panel diagram
2. Operation
1. Operate light with touch or encoder button
 The left area is TFT Displayer and touch, chick item or value with finger will to
complete operation of set light setting(parameters) or view light state.
 The area on the right hand side is rotary encoder with button, As auxiliary input
interface, if disable touch function,, the encoder can been choose to set or view
the item, and then press the encoder button to confirm the selection, rotary
encoder again set the parameter value, finally, Press encoder button one again to
save value or setting.
2. Parameter value setting
When the selected item is value need to been modified, the dialog shown in Figure 4
will popup.
Figure 4 Dialog of value setting
 Modify value：Can quickly modify value via pull the slider to the desired
position, or click the button of ‘up’ or ‘down’ whit finger on the right side to set
the exact desired value, another way is roll encoder on the right hand side of
panel.
 Apply value：When Value had been modified, Then press the bottom of ‘apply’ in
the left corner to apply to the light, but hav’t saved；
 Save Value：Any time, click on the lower right corner of the "OK" button, the
setting will been saved into internal memory.
3. Boolean parameter setting
 when the selected parameters is a Boolean value (such as ON or OFF), can
directly modify setting by chick corresponding item, the setting will been saved
right now.
 When the parameter is a key item, chick corresponding item, a dialog shown in
Figure 5 will been popup ask for the confirm. Chick ‘sure’ to confirm.

Figure 5 Dialog of confirm
4. Sub Menu（Parameter）
Chick item of main menu, enter corresponding sub menu, shown in Figure 6, total 6
sub menu, includes class of parameter and status:
 ADDRESS：Set light DMX address.
 WORKMOD：Set light work mode, master or slave mode when in auto run mode.
 DISPLAY： Set display parameter, eg. select language.
 TEST：Used for test light, modify DMX channel data to test function， the
corresponding function of reference channel function table.
 ADVANCE：Set light running parameter.
 STATUS：view light current status.

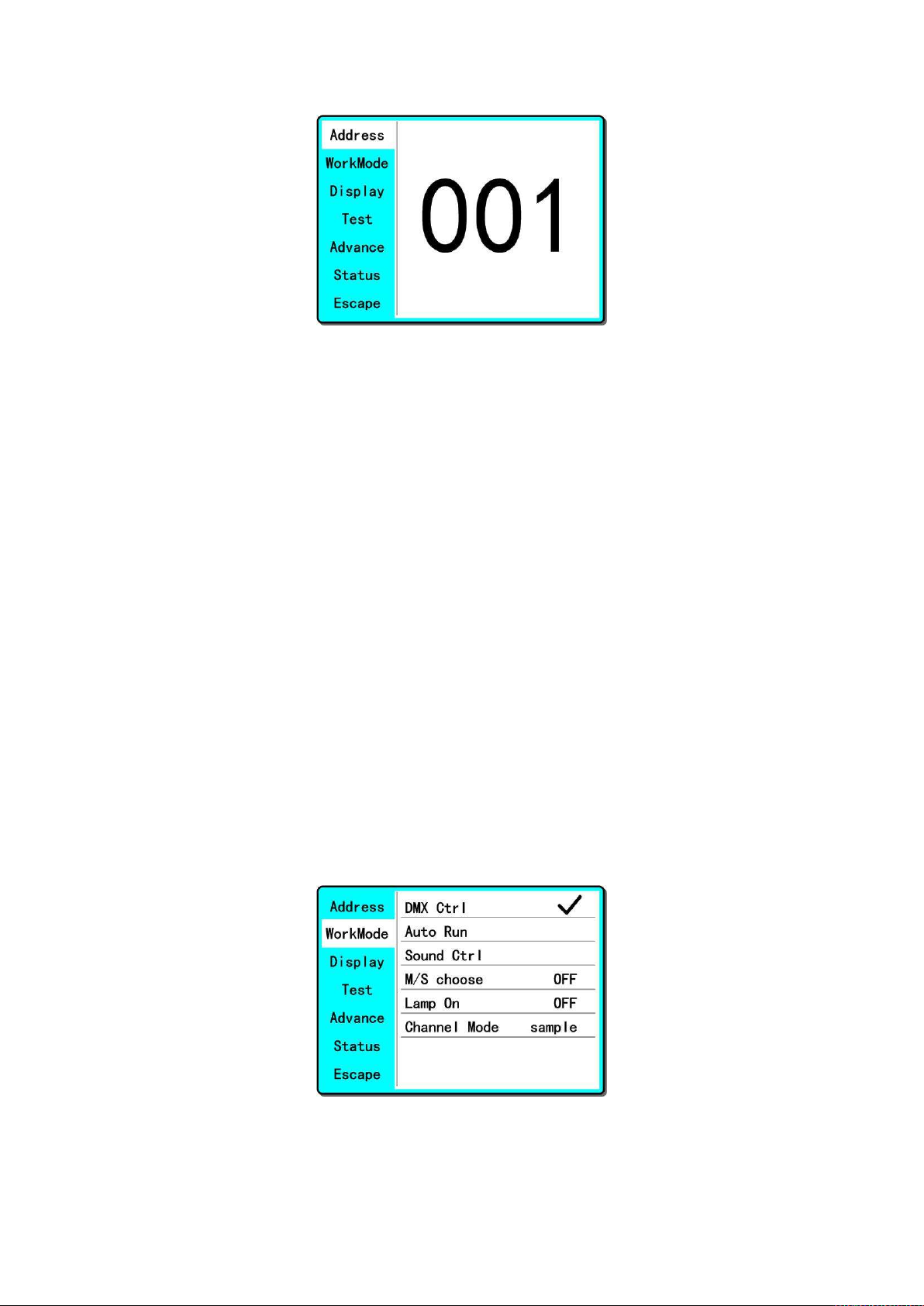

Figure 6Parameter menu

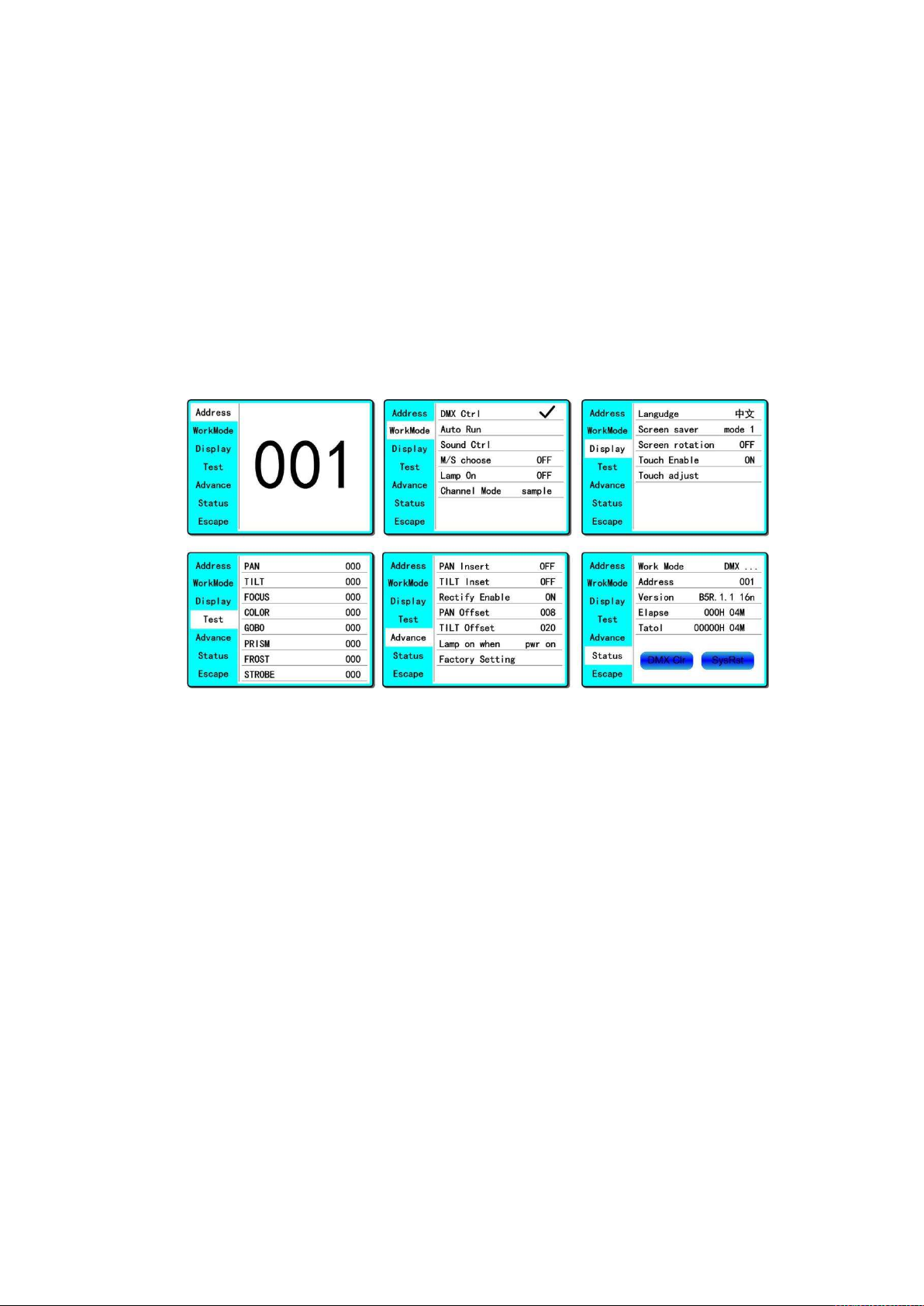

3. Operation and parameter instruction
Via following operation, enter sub menu(parameter menu) shown in Figure 6
 In main menu, chick 1/6 function button into corresponding parameter menu.
 In sub menu(page), chick main item on the left side of displayer, can shift to
corresponding sub menu(page) quickly.
1. Set DMX Address
Click and select the "ADDR", can enter the page of DMX address setting, range from
1 to 512, the address code shouldn’t is not greater than (512- channels quantity),
otherwise the light will not been controlled. Following is the operation:
Enter the page of DMX address, as shown in Figure 7, click the blank area in right
side of display will pop-up diglog as in Fig. 4, modify value, then click ‘ENTER’ to
confirm and save DMX address code.

Figure 7 page of DMX Address
2. Set Light work mode
Enter the page of ‘WORK MOD’ as shown in Figure 8 and modify setting. Can set
light work mode, control lamp and DMX channel mode..
Light includes 3 work mode: DMX MODE, AUTO RUN and SOUND MODE,
Parameter definition as following:
 DMX Mode：Under this mode, the light receive data from the DMX controller
and move.
 AUTO RUN：Under this mode, light will run with inside code(data), ignore data
from DMX controller.
 SOUND Ctrl：Under this mode, light ignore data from DMX controller., When
there is a strong sound in stage, the light will run a scene, otherwise it will keep
the last scene.
 M/S Choose：’M/S Choose’ is available when light just in ‘AUTO RUN’ or
‘SOUND Ctrl’ mode. If this item is set as ‘OFF’, the light don’t send data to other
light via DMX Cable. When ‘ON’, the data will send to other slave light
immediately.
 Lamp control：Turn on lamp when this item is set ‘ON’, otherwise, turn off lamp.
The gap between operation is limited to 30 second.
 Channel mode：Light support 2 DMX Channel mode: sample or extend。
Figure 8 page of work mode

3. Set display
Light support 2 language, rotation display，Enter page as shown in Figure9 to set
parameter following:
 Language：Select display as simplified Chinese or English.
 Screen Saver：when panel is idle(these is no operation in 10 second), displayer
will enter saver status. When set as ‘mode 1’，saver status is close display, as
‘mode 2’ saver status will display DMX address code(DMX MODE) or display
LOGO(AUTO RUN or SOUND CTRL). As ‘OFF’, keep light up displayer and
show main menu。
 Screen Rotation：rotate displayer.
 Touch enable：Disable or enable touch function, when disable, use encoder to
operate light and set parameter.
 Touch adjust：adjust touch function, normally, not enter this item.
Figure9 page of display

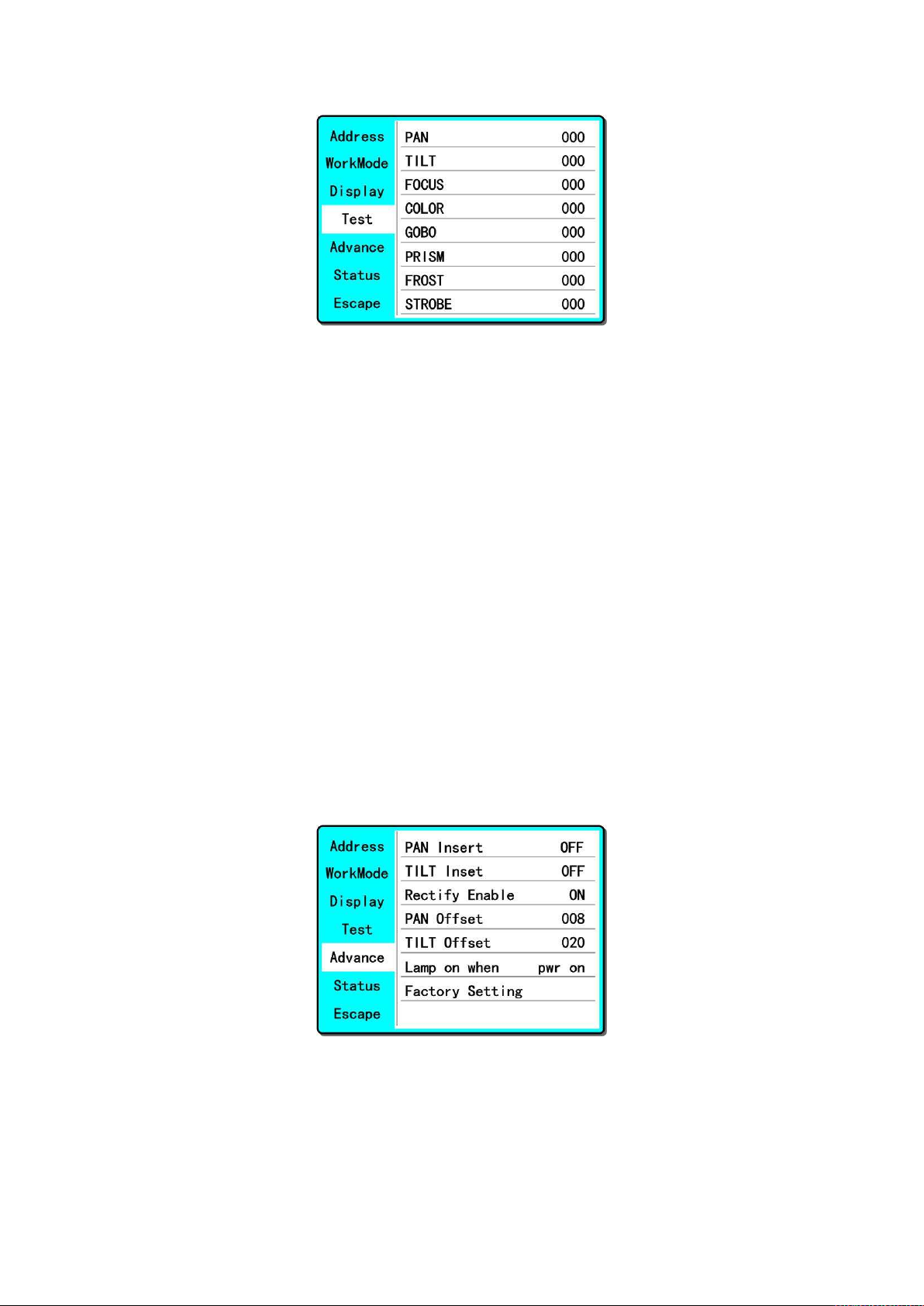

4. Test light
Enter the page as shown in Figure 10, Light will into test mode, in this mode, the light
does not receive the data for DMX controller.:
 PAN: range for 0 to 255;
 TILT: range for 0 to 255;
 FOCUS: range for 0 to 255;
 COLOR: range for 0 to 255;
 GOBO: range for 0 to 255;
 PRISM: range for 0 to 255;
 FROST: range for 0 to 255;；
 STROBE: range for 0 to 255;。

Figure 10 page of Test
5. Set light run parameter
Enter the page as shown in Figure 10, set the parameter of light:
 Pan Invert: Reverse PAN move.
 Tilt Invert: Reverse TILT mover.
 Rectify enable：set as ‘OFF’, PAN or TILT will disable position rectify function.
As ‘ON’, when PAN or TILT lose steps, light will rectify auto.
 Pan Offset: Set PAN original position.
 Tilt Offset: Set TILT original position.
 Lamp up when: Select lamp on mode, includes 3 mode: power on, after reset
done and manual；
 Factory setting: restore all parameter to factory setting.
Figure 11 page of run parameter
6. View status
Enter the page as shown in Figure 12:

 View light current status, version；
 DMXClr: Click to clear all DMX data to ‘0’.
 SysRst：Click to reset light.
Figure 12 page of status
Chapter 3 Channel description
1. Channel Function
Light support 2 DMX mode: 20ch (Standard) and16ch (sample):
Channel
1
Channel
2 Name Value Brief
1 1 PAN 0~255 Pan movement by 540
2 PAN Fine 0~255 Fine control of pan movement
3 2 TILT 0~255 Tilt movement by 270
4 TIL Fine 0~255 Fine control of tilt movement
5 3 XY Speed 0~255 Fast to slow
6 4 Strobe
0~31 Close
32~63 Open
64~95 Fade in strobe, Slow to fast
96~127 Open
128~159 Free strobe, Slow to fast
160~191 Open
192~250 Pulse strobe, Slow to fast
251~255 Open
7 5 Dimmer 0~255 0~100% Linear dimming
8 6 Color Wheel 0~4 White

5~9 Color 1
10~14 Color 2
15~19 Color 3
20~24 Color 4
25~29 Color 5
30~34 Color 6
35~39 Color 7
40~44 Color 8
45~49 Color 9
50~54 Color 10
55~59 Color 11
60~64 Color 12
65~69 Color 13
70~189 Linear Color Wheel
190~219
Forwards rainbow effect from fast
to slow
220~224 Stop
225~255
Backwards rainbow effect from
slow to fast
9 7 Static Gobo
Wheel
0~3 White
4~9 Gobo1
10~15 Gobo 2
16~21 Gobo 3
22~27 Gobo 4
28~33 Gobo 5
34~39 Gobo 6
40~45 Gobo 7
46~51 Gobo 8
52~57 Gobo 9
58~63 Gobo 10
64~69 Gobo 11
70~75 Gobo 12
76~81 Gobo 13
82~87 White
88~95 Gobo 1 shake, Slow to fast
96~103
Gobo 2 shake, Slow to fast
104~111
Gobo 3 shake, Slow to fast
112~119
Gobo 4 shake, Slow to fast

120~127
Gobo 5 shake, Slow to fast
128~135
Gobo 6 shake, Slow to fast
136~143
Gobo 7 shake, Slow to fast
144~151
Gobo 8 shake, Slow to fast
152~167
Gobo 9 shake, Slow to fast
168~175
Gobo 10 shake, Slow to fast
176~183
Gobo 11 shake, Slow to fast
184~191
Gobo 12 shake, Slow to fast
192~199
Gobo 13 shake, Slow to fast
200~201 White
202~227
Forwards rainbow effect from fast
to slow
228~229 Stop
230~255
Backwards rainbow effect from
slow to fast
10 8 Rotating
Gobo Wheel
0~9 White
10~19 Gobo1
20~29 Gobo 2
30~39 Gobo 3
40~49 Gobo 4
50~59 Gobo 5
60~69 Gobo 6
70~79 Gobo 7
80~89 Gobo 8
90~99 Gobo 9
100~110 Gobo 1 shake, Slow to fast
111~121
Gobo 2 shake, Slow to fast
122~132
Gobo 3 shake, Slow to fast
133~143
Gobo 4 shake, Slow to fast
144~154
Gobo 5 shake, Slow to fast
155~165
Gobo 6 shake, Slow to fast
166~176
Gobo 7 shake, Slow to fast
177~187
Gobo 8 shake, Slow to fast
188~199
Gobo 9 shake, Slow to fast
200~201 White
202~227
Forwards rainbow effect from fast
to slow
228~229 Stop

230~255
Backwards rainbow effect from
slow to fast
11 9 Rot. Gobo
0~127 0~400 angle
128~191
Forwards rainbow effect from fast
to slow
192~255
Backwards rainbow effect from
slow to fast
12 10 Prism 1 0~127 Open position (hole)
128~255 Insert prism1
13 11 Prism 2 0~127 Open position (hole)
128~255 Insert prism2
14 12 Prism Rot
0~127 0~400 angle
128~191
Forwards rainbow effect from fast
to slow
192~255
Backwards rainbow effect from
slow to fast
15 13 Frost 0~255 0~100% frost
16 14 Focus 0~255 Continuous adjustment from far
to near
17 Focus Fine 0~255 Fine Focus
18 15 Zoom 0~255 Zoom from max. to min.beam
angle
19 Zoom Fine 0~255 Fine Zoom
20 16 Function
30~50 Lamp ECO over 3 seconds
60~80 Lamp full power out over 3
seconds
100~105 Lamp Off (Over 3 seconds)
120~129
Blackout when color wheel
moving
130~139
Blackout when gobos wheel
moving
140~149 Blackout when prisms moving
150~159
Blackout when color, gobos,
prisms moving
200~205 Lamp on（Over 3 seconds）
240~255 Reset All (Over 3 seconds)
