Artistry ASA-30X User manual

cover

1
eng 2eng 1

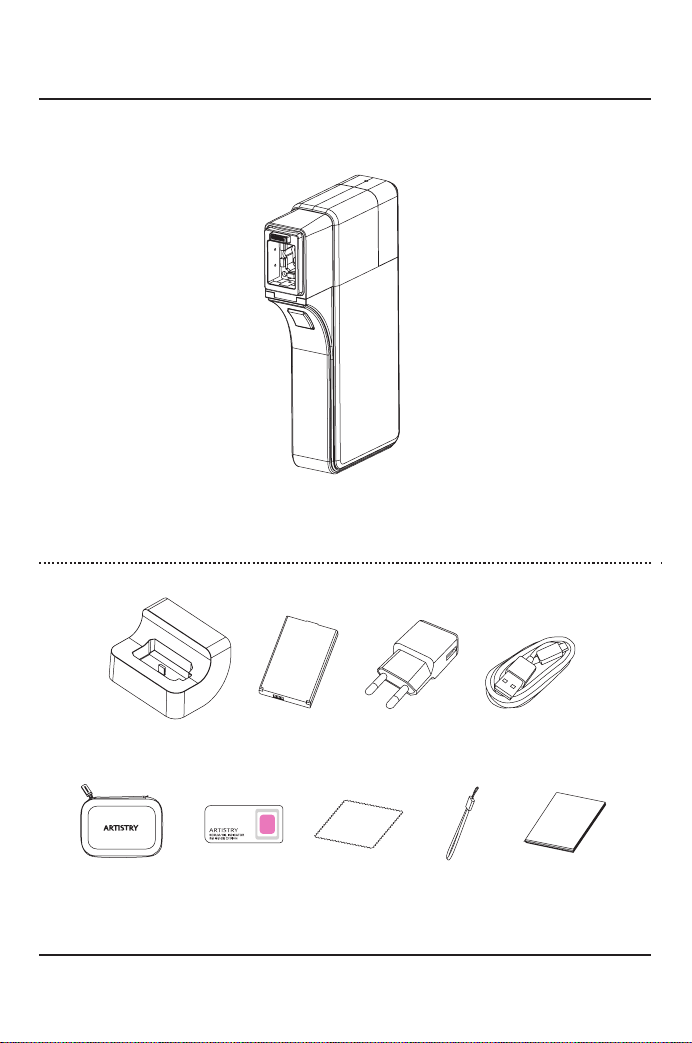

Components
A. Components
Main Body with Lens (ASA – ARTISTRY Skin Analyzer)
Rechargeable
cradle
Pouch Cleaning
cloth
Instruction
booklet
Hand strapSebum/Oil indicator
(50ea)
Battery Adaptor USB cable

2
eng 2eng 1
Device Hardware
Parts Description
B. Device Hardware - Parts Description
Wi-Fi Indicator
Charge Indicator
Blue: Fully charged / Red: Low battery
Capture Button
Start, Analysis, Result Button
Up Mode Button
Down Mode Button
Power On/Off
Hydration / Elasticity Sensor
Camera Optical Part
Lens Module Release Button
Battery Cover
USB & Charging Connector

3
eng 4eng 3
Device Hardware
Settings
B. Device Hardware - Settings
1
2
3
1
2
1
2
2
3
1
1
2

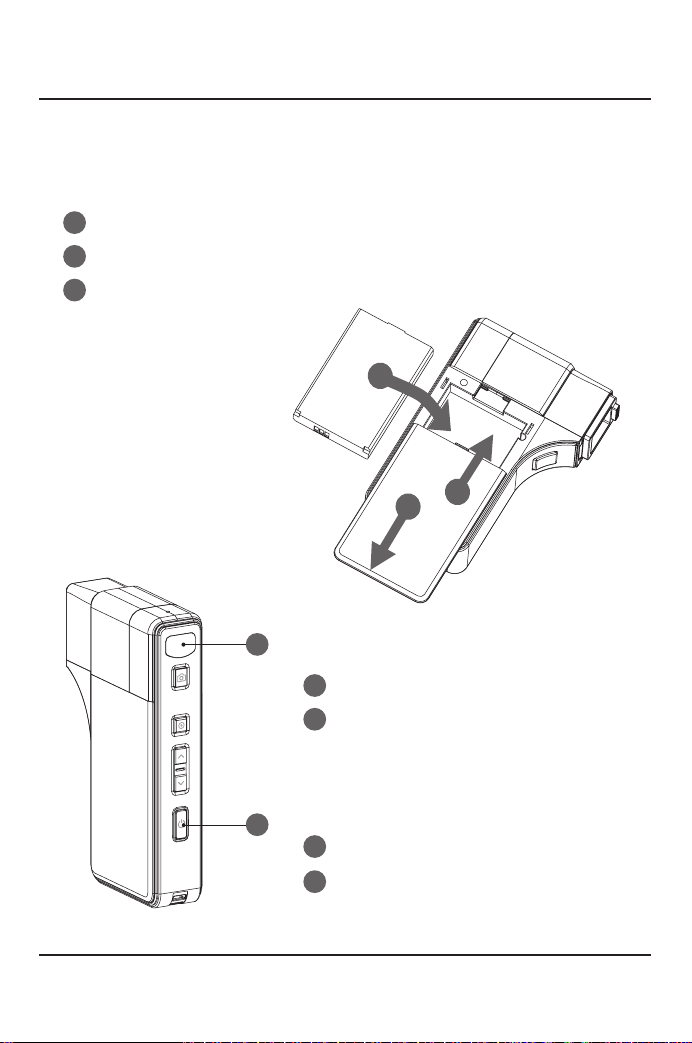

To Insert Battery
To Switch On Device
To Switch Off Device
To open the battery cover, press and slide the cover downwards.
Insert the battery and gently press the battery into place.
Close the cover.
Press and hold power button,
until the blue light on the charger
indicator comes on.
Press and hold power button,
until the charger indicator turns off.

4
eng 4eng 3
System Settings
Download & Install
How to connect device to software application
C. System Settings – Download & install / How to connect device to software application
1
PC User
The software application is available for download at Amway’s website.
(Knowledge > Product Resources > Beauty & Personal Care > Digital)
1
2
3
4
5
6
7

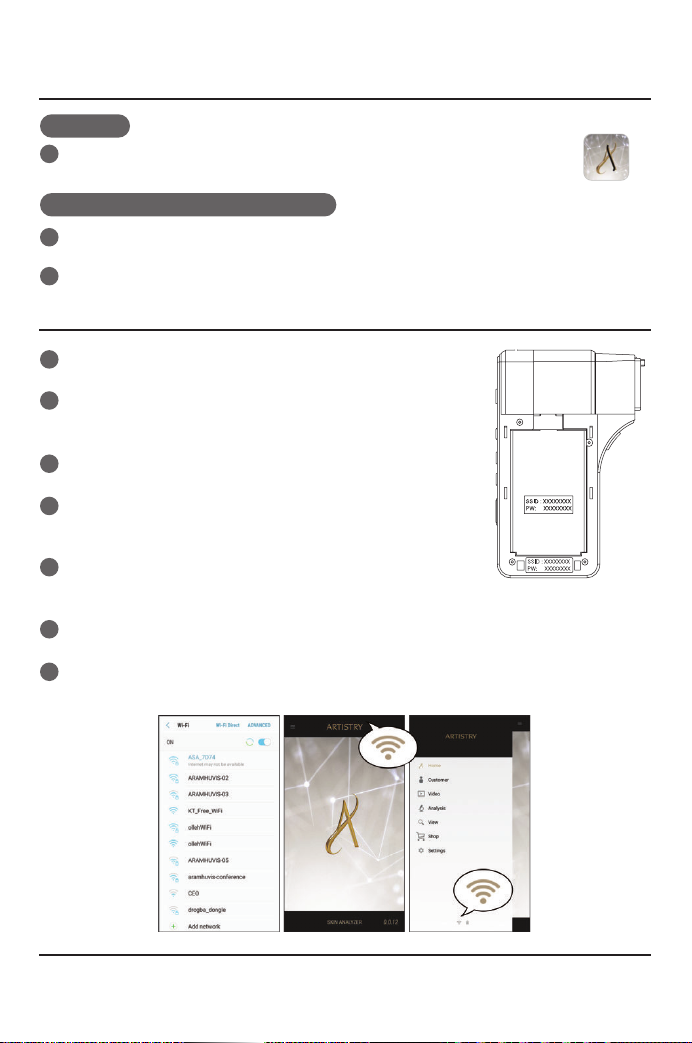

Turn on the ARTISTRY Skin Analyzer, and keep the
battery cover open.
Open the software application on your mobile device
(PC/Tablet/Smartphone). While the application is loading,
the device’s charge indicator will blink.
Once the charge indicator has stopped blinking, go to
“Settings” on the application.
Ensure that the Internet connection (mobile data,
Wi-Fi, etc.) for your mobile device (PC/Tablet/Smartphone)
is disconnected.
Then search and select device’s Wi-Fi name, as indicated
below the battery slot as shown in the picture.
(Device Wi-Fi name > SSID : ASL_XXXX).
Input the device’s network password, as indicated below the battery slot as shown
in the picture (Password > PW : XXXXXXXX).
When the connection is successful, the Wi-Fi icon on the application will change
from grey to gold as shown in the picture below.
iOS : Go to “App Store” and search for “2.0 Artistry Skin Analyzer” to download
the program.
Android : Go to “Google Play Store” and download “2.0 Artistry Skin Analyzer”.
1
2
Tablet device or smartphone user
2.0 Artistry
Skin Analyzer

5
Tap on the Wi-Fi button
on the Home menu.
Once you’re connected,
you will see this message.
Tap “OK”.
Open the cover of your
Skin Analyzer. You will
see the SSID and
password.
You will then be
redirected to the main
page and can now
proceed to use the app.
Enter the SSID and
password here.
While connecting, you
will see this message.
Tap “OK”.
1
5
2
6
3 4
System Settings
Download & Install
How to connect device to software application
Connecting Skin Analyzer to ASA 2.0 app on devices with iOS 13 and Above.
C. System Settings – Download & install / How to connect device to software application

6
C. Program Settings / Device Certification
Program Settings
General Settings
Change the language,
analysis mode, etc.
Please select English
(SEA), 简体中文 (SEA)
or Bahasa Malaysia.
Analysis Settings
Set up the skin type
and analysis parameter.
Device Activation
Get the device certification
to download the product
list from the server.
About
Check the current
version and version
update availability
when connected to
the Internet (mobile
data, Wi-Fi, etc.).
Once Device Certification is complete, please reconnect to the device’s Wi-Fi to start the skin analysis.
NOTE
1 2 3 4
Device Certification
On the main menu,
select “Settings”.
From the menu,
please select “Device
Activation”.
There is a device model
name with the serial
code. Please select
“Get Certification” to
register the device in
the program.
Device certification
is complete. Please
select the “OK” button
and proceed to
“Product Download” for
recommended products
in the program.
Device Certification is required when setting up the connection of the device to the software application/
program for the first time.
Device Certification and product recommendation download are only available when your mobile device
(PC/Tablet/Smartphone) is connected to the Internet (mobile data, Wi-Fi, etc.).
Please disconnect the ARTISTRY Skin Analyzer’s Wi-Fi and connect to the Internet (mobile data, Wi-Fi, etc.).
NOTE
1 2 3 4

7D. System Settings – Wi-Fi Combo
System Settings
Wi-Fi Combo

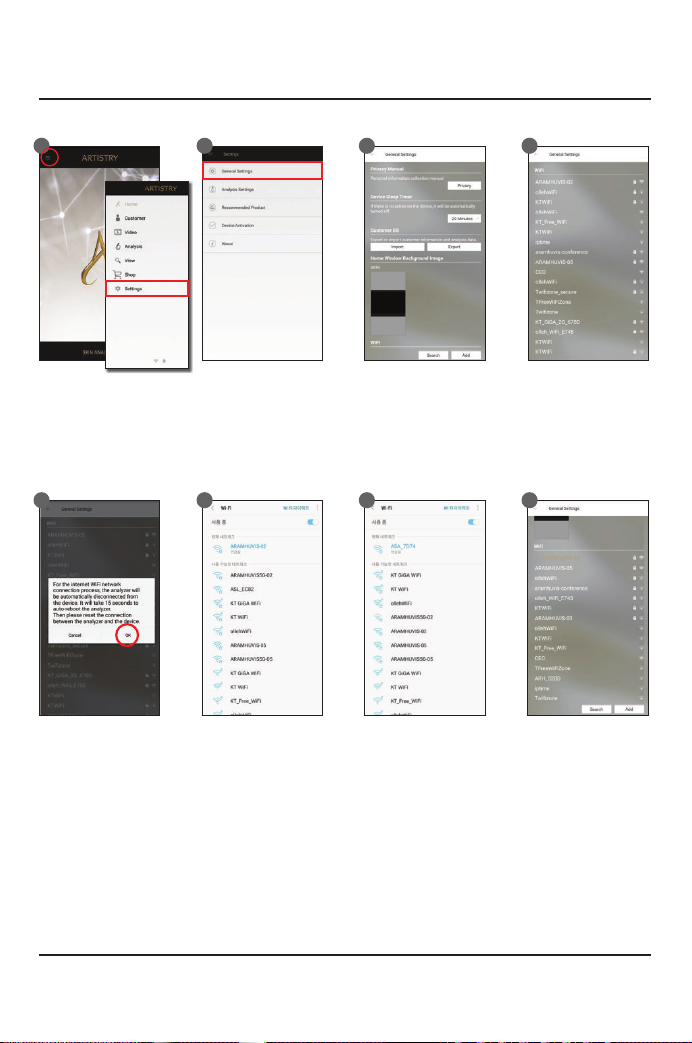

Select “Settings”. A list of available Wi-Fi
signals will appear.
Connect to the
strongest Wi-Fi signal
and key in the Wi-Fi
password.
During the connection
process, a message will
appear stating that the
ARTISTRY Skin Analyzer
will be automatically
disconnected and reboot.
Select the “OK” button.
Select “General Settings”.
Once you are connected
to the Wi-Fi, go to the
“Settings” page of your
mobile device (PC/
Tablet/Smartphone).
Disconnect the Wi-Fi
and connect with the
Skin Analyzer’s Wi-Fi
(ASL_XXXX).
Scroll down and select
“Scan/Search”.
Your mobile device is
now connected with
the Skin Analyzer’s
WI-FI.
Go back to ASA app,
select “Settings” page
and click on the “Scan”
button. You will see
the selected Wi-Fi
connection in gold
colour.
5
1 2 3 4
6 7 8

8
Application
Customer
Group
E. Application - Customer / Group

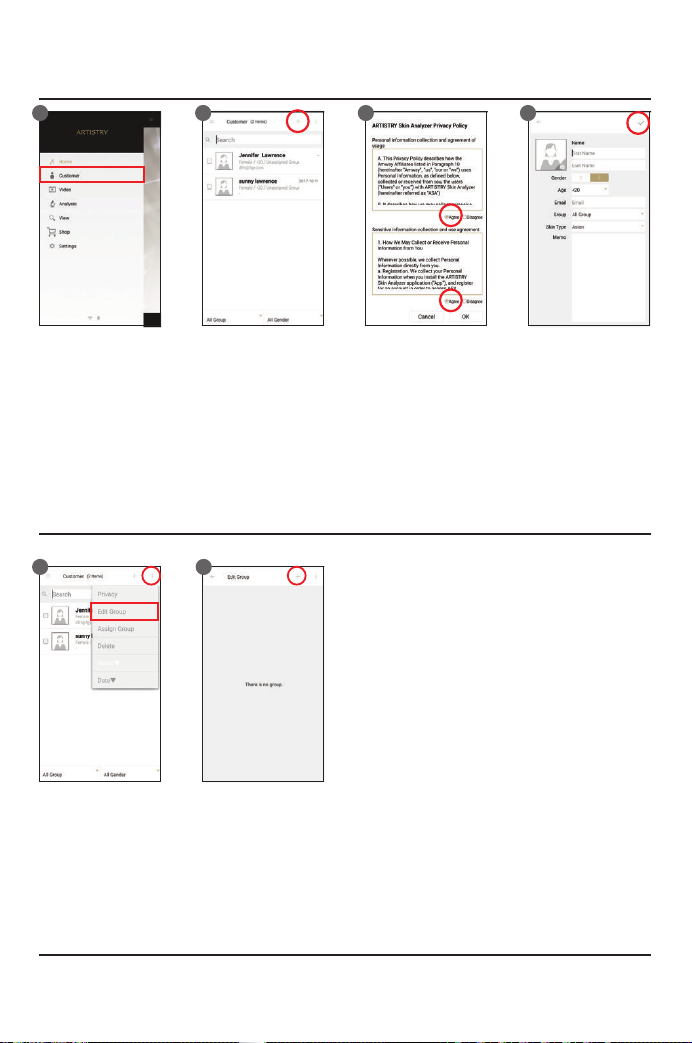

Before you start
to analyse, it is
recommended that
you create a customer
profile.
You can also organise
your customers by
groups. To create a new
“Group”, click on the
top right corner, then
select “Edit Group”.
To create a new “Group”,
please select the “+” icon
on the top right corner.
To create a new profile,
select the “+” icon on
the top right corner.
Select “Agree” on the
privacy policy.
Input the customer’s
details such as name,
age, gender, email,
skin type, memo, etc.
Once complete,
select “Save” (iOS)/
”√ ” (Android) on the
top right corner.
1
1 2 3 4
2

9
eng 10eng 9
Application
Video / Start Analysis / Lifestyle Survey
E. Application - Video / Start Analysis / Lifestyle Survey
1 2 3
Video
Introduction video on the ARTISTRY Skin
Analyzer.
Lifestyle Survey
At the beginning of
the analysis, there are
17 questions about the
customer’s lifestyle.
Please mark the
answer to complete
the questionnaire.
Start Analysis
Select “Analysis” to start.
or

10
eng 10eng 9
To start, press the
“Capture” button on the
device or application
screen. When you hear
the “beep” sound, place
the sensor onto the skin.
Place and press sebum
paper on the U-zone
(as indicated on the
screen) for 2-3 seconds.
Align sebum paper’s
pink area to the device’s
camera to capture the
image (U-zone).
Place and press the sebum
paper on the T-zone (as
indicated on the screen) for
2-3 seconds. Capture the
image of the sebum paper’s
pink area for the T-zone.
The result will appear
when the analysis is
complete. To proceed
with the next analysis,
press the following
button.
The result will appear
when the analysis is
complete. To proceed
with the next analysis,
press the following
button.
Analysing...
or
Skin Measurement
Hydration
E. Skin Measurement - Hydration / Sebum
Sebum
1
1 2 3 4
2 3
Hydration sensor
U-zone Sebum paper
T-zone Sebum paper
or

11
eng 12eng 11
Skin Measurement

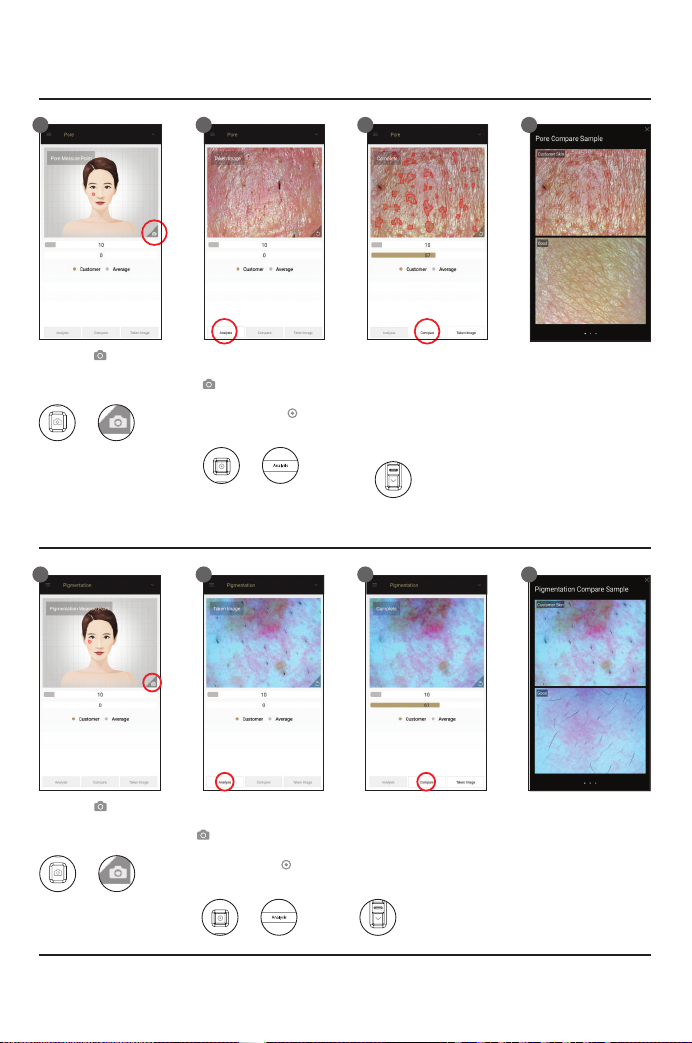

Pore
E. Skin Measurement - Pore / Pigmentation

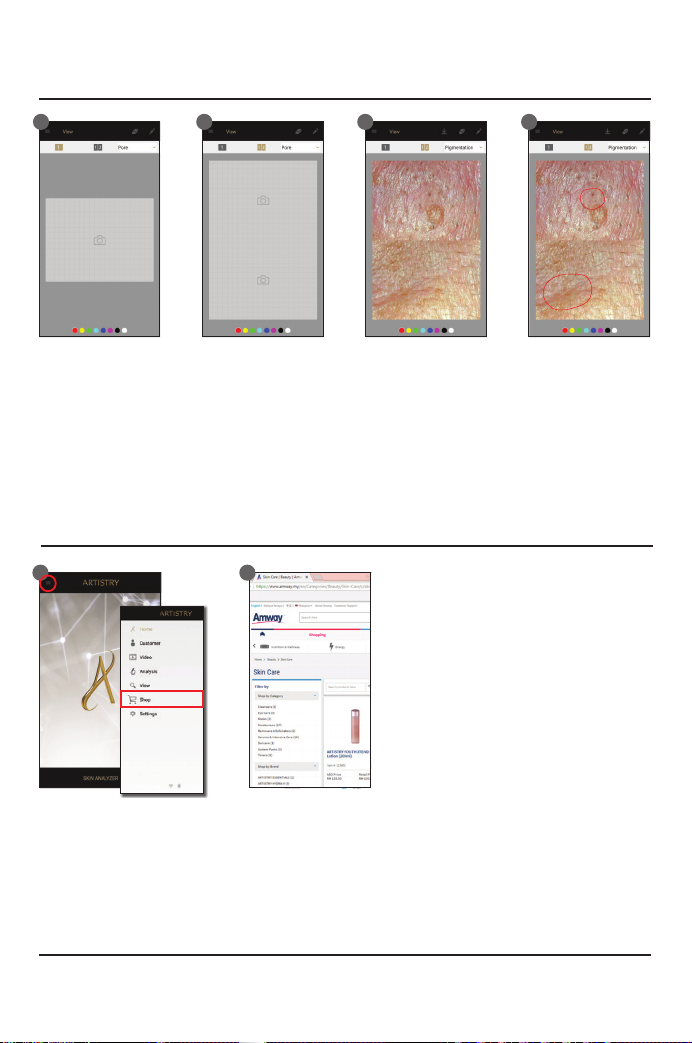

Pigmentation
Press the button to
activate the camera
mode.
Press the button to
activate the camera
mode.
Place the camera onto
the skin and press the
button to capture
the image.
Then press the button
to analyse.
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
The result will appear.
Select the “Compare”
button to check the
sample images as in <4>.
To proceed with the
next analysis, press
the following button.
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
or
or
Place the camera onto
the skin and press the
button to capture
the image.
Then press the button
to analyse.
1 2 3 4
1 2 3 4
or
or
The result will appear.
Select the “Compare”
button to check the sample
images as in <4>. To proceed
with the next analysis, press
the following button.

12
eng 12eng 11
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
Place the camera onto
the skin and select the
button to capture
the image.
Then select the
button to analyse.
Skin Measurement
Radiance
Elasticity
The result will appear when
the analysis is completed.
Select the “Compare”
button to compare the
sample images as in <4>.
To proceed with the next
analysis, select the
following button.
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
Select the button to
activate the camera mode.
Press the “Capture”
button. When you hear
the “beep” sound, place
the sensor onto your skin
and wait until you hear
the “beep” sound again.
The result will appear
when the analysis is
complete. To proceed
with the next analysis,
press the following
button.
Analysing ...
or
E. Skin Measurement - Radiance / Elasticity
Elasticity sensor
or
1 2 3 4
1 2 3

13
eng 14eng 13
or
or
or
or
Press the button to
activate the camera
mode.
Place the camera onto
the skin and press the
button to capture
the image.
Then press the button
to analyse.
The result will appear.
Select the “Compare”
button to check the
sample images as in <4>.
To proceed with the next
analysis, press the
following button.
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
Skin Measurement
Wrinkle
Porphyrin (Acne)
Press the button to
activate the camera mode.
Place the camera onto
the skin and press the
button to capture
the image.
Then press the button
to analyse it.
E. Skin Measurement - Wrinkle / Porphyrin (Acne)
The result will appear.
Select the “Compare” button
to check the sample images
as in <4>. To proceed with
the next analysis, press the
following button.
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
1 2 3 4
1 2 3 4

14
eng 14eng 13
Skin Measurement

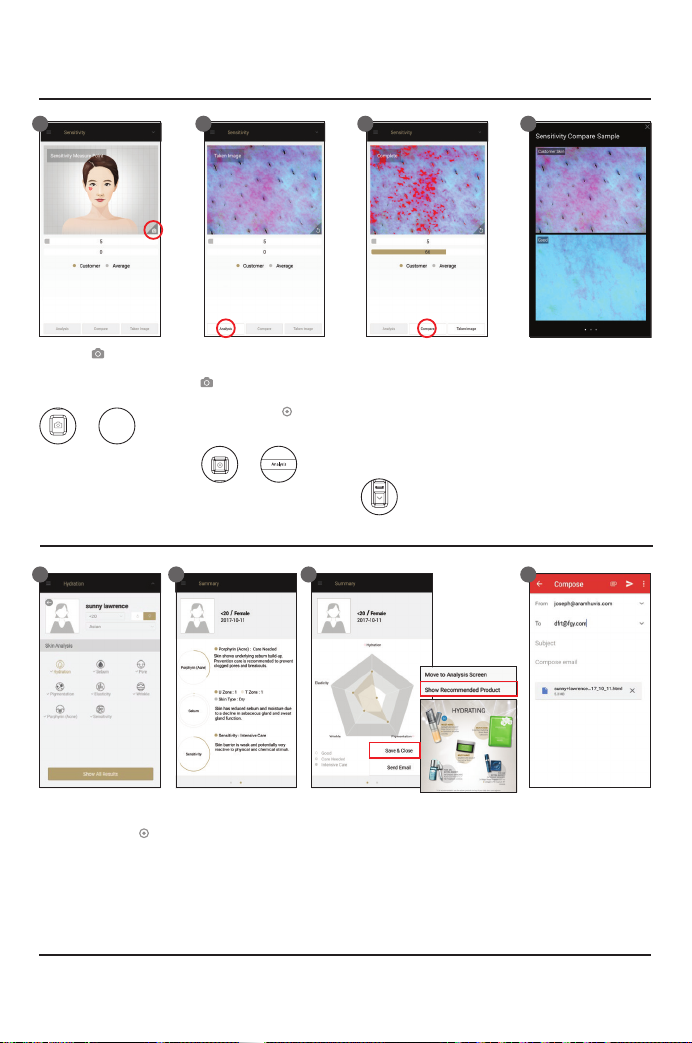

Sensitivity
Summary
1
1
2
2
3
3
4
4
Place the camera onto
the skin and press the
button to capture
the image.
Then press the button
to analyse it.
The result will appear when
the analysis is completed.
Select the “Compare”
button to compare the
sample images as in <4>.
To proceed with the next
analysis, select the
following button.
If you click the “Compare”
button, the customer’s
image and three sample
images can be compared.
- Good
- Normal
- Poor
Press the button to
activate the camera
mode.
Press the “√ ” button
on top, select “Show
All Results” or the
button to view the
summary.
Click on each
parameter for product
recommendation.
Product recommendation images
will appear. Select “Save & Close”
to finish the analysis.
You can click on the
“Send Email” button
to send a summary of
the results when you
are connected to the
Internet (mobile data,
Wi-Fi, etc.).
or
or
E. Skin Measurement - Sensitivity / Summary

15
eng 15 eng 16
Application
View Mode
E-Commerce
F. Application - View Mode / E-Commerce
Select the icon as
indicated in the red circle.
Select “Shop”.
You will be directed to the
Amway website.
21
In the view mode, the
device is able to take
pictures with the “Capture”
button multiple times.
The user can select the
analysis parameter to
take a picture.
In one screen, you
can see a maximum
of 2 different images.
The user can mark the
defect or concern on
the image with the
note function.
2 3 41

16
eng 15 eng 16
How to Import Data from ASA 1.0 to ASA 2.0
iOS Version
G. How to Import Data from ASA 1.0 to ASA 2.0 - iOS Version

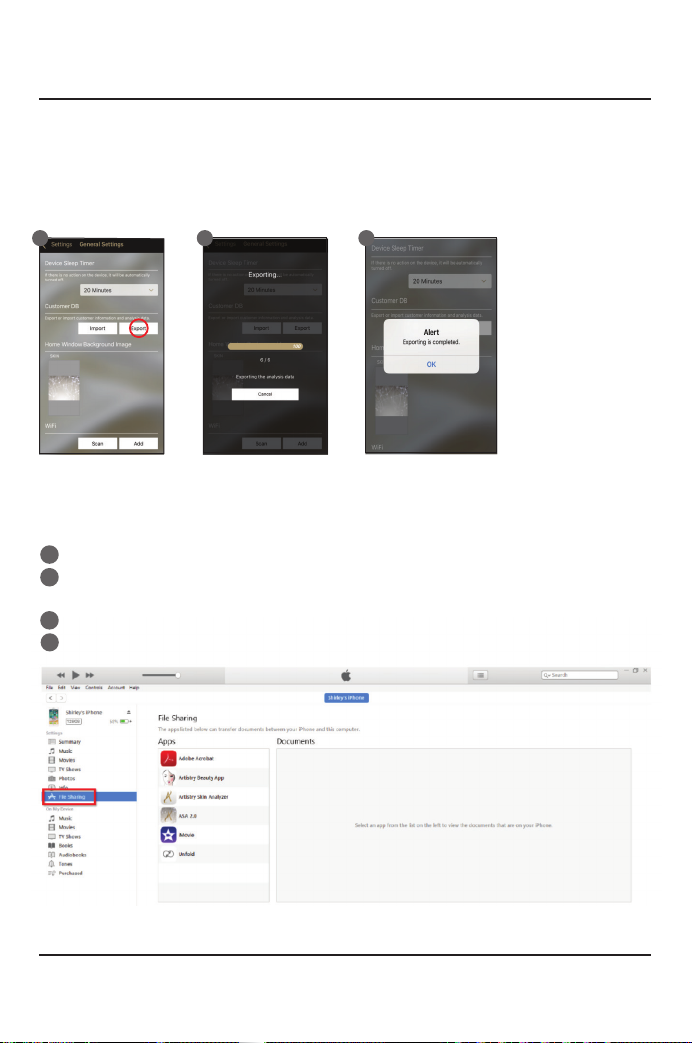

Go to the ASA 1.0 app
setting and select “General
Settings” > click “Export”.
Please wait for the
exporting process
to be completed.
Select the ‘OK’ button.
1 2 3
Open iTunes on your PC.
Connect your iPhone or iPad to your computer using the USB cable that
comes with your device.
Select your device in iTunes. Sign into iTunes with your Apple ID.
In the left sidebar, select “File Sharing”.
1
2
3
4
Exporting Data from ASA 1.0 app
Before you begin exporting/importing data, please ensure the following are available:
- The latest version of iTunes.
- The latest version of Windows 7 or later.
- An iPhone or iPad with the latest version of iOS.
After exporting completed, you may go to your PC follow below steps.

17
How to Import Data from ASA 1.0 to ASA 2.0
iOS Version
G. How to Import Data from ASA 1.0 to ASA 2.0 - iOS Version
Copying ASA 1.0 files from iOS app to your computer
In iTunes, select the “ARTISTRY Skin Analyzer” app from the list in the File
Sharing section.
Drag and drop files from the documents list to a folder or window on your computer
to copy them to your computer.
1
2

18
How to Import Data from ASA 1.0 to ASA 2.0
iOS Version
G. How to Import Data from ASA 1.0 to ASA 2.0 - iOS Version
Copying ASA 1.0 files from your computer to the ASA 2.0 iOS app
In iTunes, select the ASA 2.0 app. Drag the ASA 1.0 files that you saved on your
computer to the ASA 2.0 documents list.
After you have transferred your customers’ data through iTunes, you may go back
to your device.
Go to the ASA 2.0 app
> Select “Settings”
> Select “General Settings”
> Select “Import”.
Please wait for the
importing process
to be completed.
You can rename the
file accordingly and
select “OK”.
Select the “OK” button
when the importing
process has been completed.
Your customer data from
ASA 1.0 has been moved
to ASA 2.0.
1 2 3 4

19
How to Import Data from ASA 1.0 to ASA 2.0
Android Version
H. How to Import Data from ASA 1.0 to ASA 2.0 - Android Version
Exporting Data from the ASA 1.0 App
Go to your ASA 1.0 app, select “Settings” > Select “General Settings” > Select “Export”
You may rename the folder name and press “OK”. Your customers’ data has been
successfully transferred.
1
4
2
5
3
