Artize TIAARA User manual

OWNER'S MANUAL

Safety, Operation, Maintenance, and Warranty
SAFETY GUIDELINES
This manual contains information for YOUR SAFETY and will also help
in PREVENTING PROBLEMS. To help you recognise these items of
importance, this document uses the following symbols. PLEASE read
the manual and pay special attention to these sections.

02
SAVE THESE INSTRUCTIONS!
Urgent Safety Information
A Hazard That Will Cause Serious Injury
Important Safety Information
A Hazard That Might Cause Serious Injury
Information To Prevent
Damage To Equipment
Important Instructions and
References
DANGER !
WARNING
CAUTION
Model:
Serial/ Invoice No.:
Owner's Record
Date of Installation:
Name of Installer:
Telephone:
This information may be required for service and warranty.

03
IMPORTANT SAFETY INSTRUCTIONS
Basic precautions to be taken to prevent fire hazards, electrical shocks, personal injury or damage
when using your unit. READ AND FOLLOW ALL INSTRUCTIONS!
• Risk of lethal electric shock in Hydroelectric product. To reduce risk of electric shock, connect your product only to circuits protected
by a Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD)-sensitivity not more than 30 Milliamp (mA)
• CIRCUIT INTERRUPTER (GFCI). A GFCI should be provided by the entrepreneur electrician and should be routinely tested. To test the GFCI,
push the test button. The GFCI should interrupt power. Push the reset button. Power should be restored. If the GFCI fails to operate in this
manner, there is a ground fault, indicating the possibility of electrical shock. DO NOT USE THE UNIT. Disconnect the unit and have the
problem corrected by a qualified electrician before using
• Never operate electrically connected devices in or near the bath. Never drop or insert any object into any opening. Do not use electrical
appliances while in the tub
• To reduce the risk of injury, do not allow children to use this unit unless they are closely supervised at all times. Those requiring supervision
should never be allowed to use the units unattended
• Use the unit only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer
• Never drop any objects into any openings/holes within the product.
• Do not use the oxypool if the protective cover is not installed on the suction intake. Keep foreign objects, including hair, away from the
suction intake as they could block the intake or get caught in it. For comfort and safety, persons with long hair should tie their hair in a bun
to keep it out of the water and away from the suction fitting. Keep your head above water at all times
READ AND FOLLOW ALL INSTRUCTIONS
DANGER !

04
• Persons under a doctor's care, pregnant women, persons with high or low blood pressure, heart disease, diabetes, or any serious illness,
should not use this unit without prior consultation with their physician. Never use this unit while under the influence of any drug or alcohol.
• The maximum temperature of the water should never exceed 104°F (40°C).
IMPORTANT SAFETY INFORMATION
WARNING
• To reduce risk of injury, enter and exit the bath carefully.
• Do not fill the tub beyond the air volume controls or the overflow.
• Never operate the oxypool system if there is less than 2" (5 cm) of water over the highest whirlpool jet (except for the back jets) or if the
bathtub is empty.
• Do not bathe pets in your whirlpool. Their hair could clog the pump.
• Make sure the water temperature does not exceed 104°F (40°C). Damage and discoloration of the acrylic surface may occur.
• The whirlpool should be drained after each use.
• Oil-based additives must not be used, and cleaning instructions must be followed. Do not use harsh abrasives or solvents for cleaning
your whirlpool.
INFORMATION TO PREVENT DAMAGE TO EQUIPMENT
CAUTION
• SAVE THESE INSTRUCTIONS •

05
Dear Product Owner,
Thank you for choosing an Artize product. The minute you sit back and relax
in your new product you'll see and feel the difference. In your whirlpool, jets
are strategically placed to create a soothing, swirling flow of relaxing water.
It's the WHIRLPOOL action which you'll only experience in Artize products..
Now relax and enjoy your bath in your new ARTIZE WHIRLPOOL.
Sincerely,
Artize.

06
Whirlpool Specifications------------------------- 07
Tiaara Bathtub With MS Frame----------------- 08
Product Dimensions----------------------------- 09
Tiaara Bathtub With Ms Frame
Tiaara Bathtub 190 X 90
Tiaara Bathtub 190 X 90 With Superior Whirlpool
Installation Legend Diagram-------------------- 11
Pre-installation Requirements------------------- 12
Tools For Installation
Before You Start
Installation Procedure---------------------------- 14
Electrical Supply and Safety Devices
Components Identification
Artize Whirlpool Components-------------------- 18
Skirt With Removable Panel-Field Installed----- 19
Ecu Terminal Connection Diagram-------------- 20
Operating The Controls-------------------------- 21
After Blow Or Dry Out Function----------------- 23
How To Use Your Whirlpool---------------------- 24
User Maintenance Instructions------------------ 25
Cleaning The Tub Surface
Cleaning the Pump and Plumbing System
Troubleshooting----------------------------------- 26
Whirlpool System
Air System----------------------------------------- 27
CONTENT

07
WHIRLPOOL SPECIFICATION
TECHNICAL INFO
Size
Depth
Material
Reinforcement
Oxypool Jets
Slim and flat Water jets
Air jets
Back jets
Feet jets
Pump water
Air Blower
Chromotherapy
White Light
Heater
Headrest
Overflow Cum Filler
Remote
Power Rating
1900*900mm
520mm
Acrylic (coexced)
PU
6
Yes
16
4
2
1.47HP
1.10HP
Yes
No
1.5kw
Yes
Yes(automatic )
No
SAFETY
3 Tier Testing Yes
Steel Frame Yes
Sanitisation/
Cleaning System Yes
Food Grade Pipe Yes
Bow shape Pipes Yes
Level Sensor Yes
Self drainage system Yes
Digital Yes
Manual No
Cross No
Smart No
Body 5 years
Electrical 2 years
Jets 5 years
SENITIZATION
CONTROLLER
WARRANTY
Product Name ARTIZE TIAARA 190X90X52 SUPERIOR WHIRLPOOL
Item code (If any) NA

PRODUCT DIMENSIONS

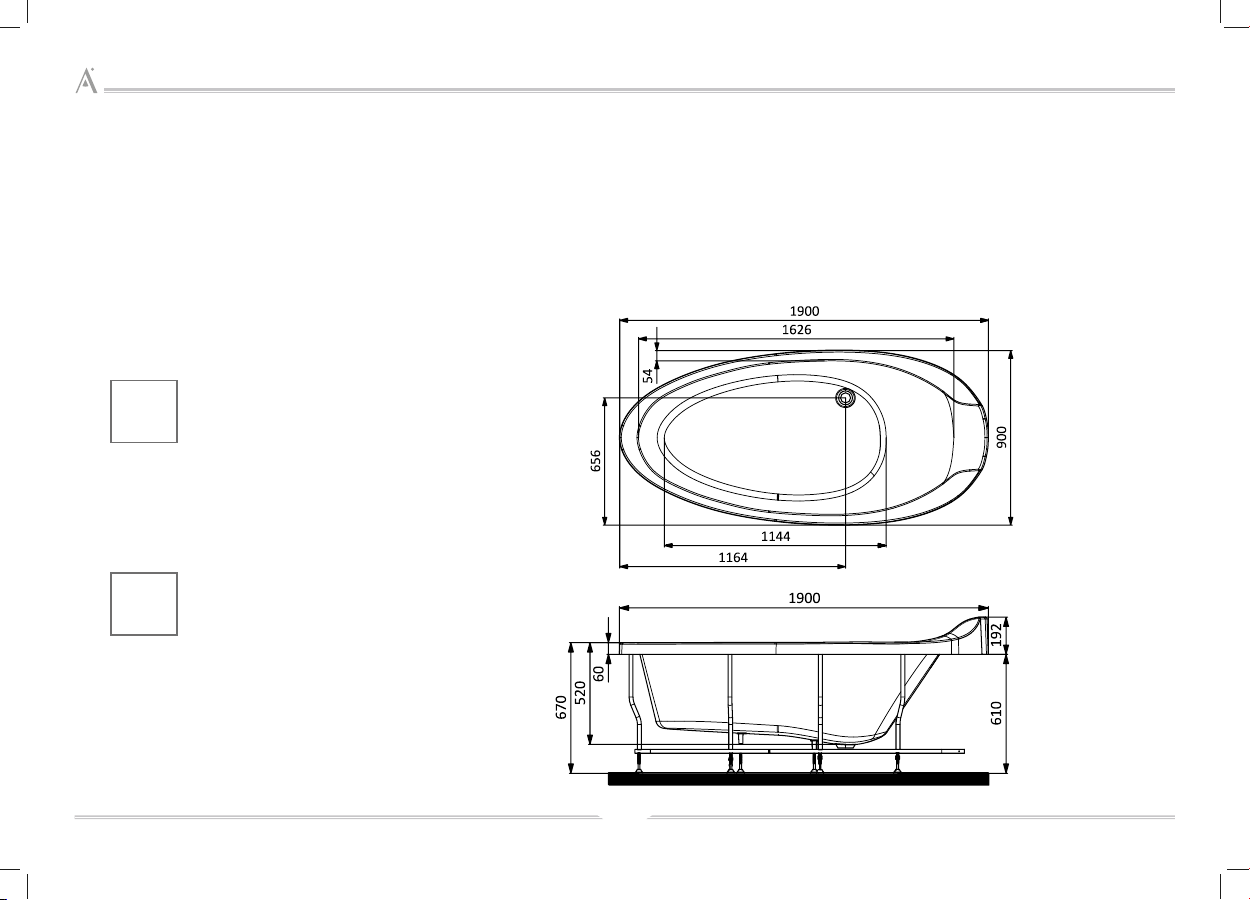

TIAARA BATHTUB WITH MS FRAME
ABT-WHT-TIAARA190FX : ARTIZE TIAARA 1900 x 900 X 530
BUILT-IN BATHTUB WITH POWDER COATED MS FRAME
Top View
A
Side View
B
08

09

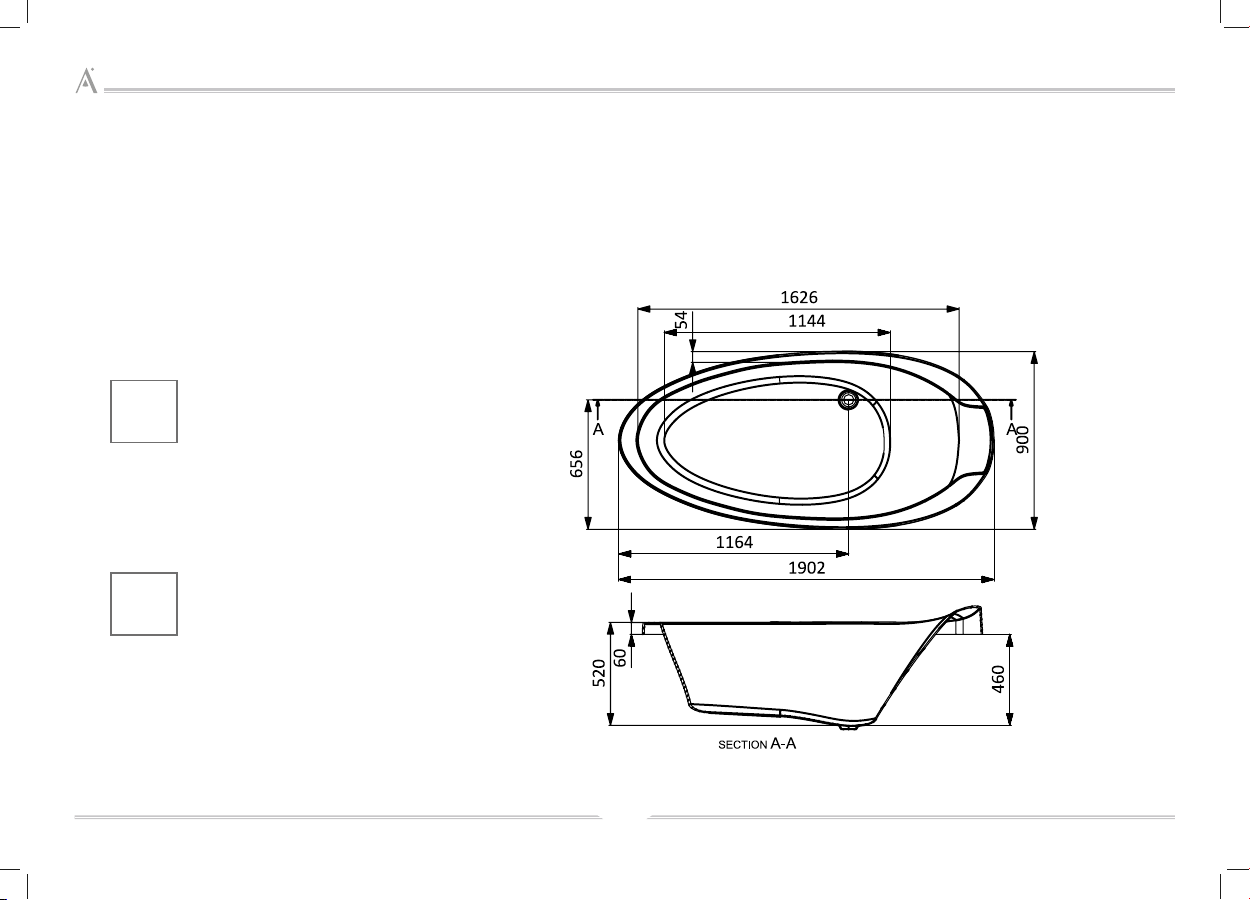

TIAARA BATHTUB 190 X 90
ABT-WHT-TIAARA190X: ARTIZE TIAARA 1900 x 900 X 520
BUILT-IN BATHTUB
Top View
A
Side View
B

10

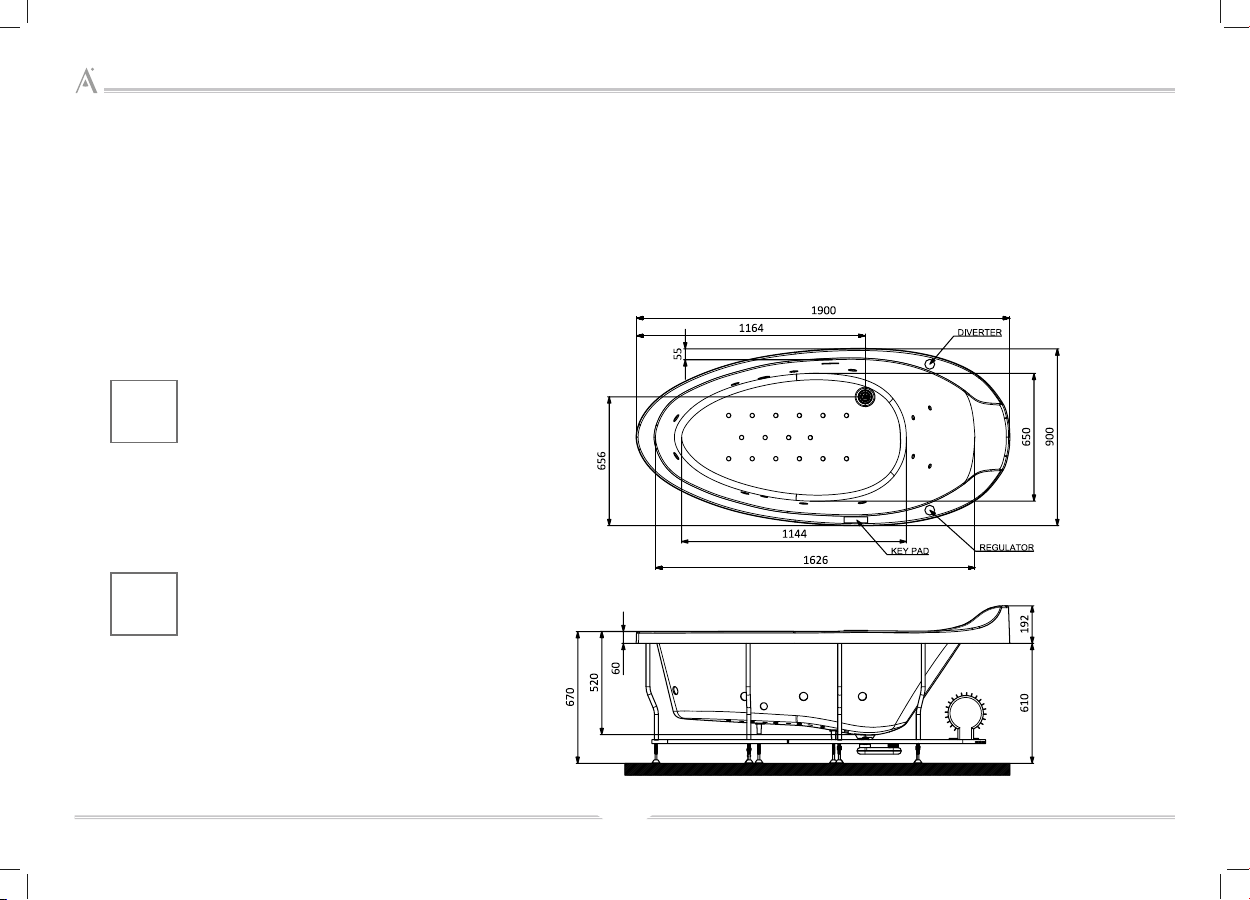

TIAARA BATHTUB 190 X 90 WITH SUPERIOR WHIRLPOOL
Product Dimensions
AWL-WHT-TIAARA190CX: ARTIZE TIAARA 1900 X 900 X 520
SUPERIOR WHIRLPOOL AND AIRPOOL COMBI SYSTEM
Top View
A
Side View
B

11
INSTALLATION LEGEND DIAGRAM
References for Installation
A : Outer dimensions
* Bathtub depth
** Dimensions relative to the panel.
B : Inner dimensions
C : Legend for installation or product placing
O1 : Area for drainage sunken in floor.
C1 : Area for hot water pipe outlet from the
house. Water mains in case ARTIZE taps
are installed on tub edge
F1 : Area for cold water pipe outlet from the
house.Water mains in case ARTIZE taps
are installed on tub edge.
C.V.: Suggested area for electrical input
wall outlet.
Refer to product drawing / installation legend for marked references.
WATER JET
AIR JET
WATER SUCTION
DRAIN KNOB
SENITIZER KNOB
WATER MOTOR
REGULATOR KNOB
ELECTRONIC BOX
KEY PAD
CHROMO LIGHT

12
PRE-INSTALLATION REQUIREMENTS
Tools for Installation
Safe use of tools:
• Wear safety glasses or a face shield (with
safety glasses or goggles) and well-fitting
gloves for safety.
• Ensure that users are properly trained in the
safe use of hand tools.
• Select the right tool for the job. Substitutes
increase the chance of having an accident.
• Replace cracked, splintered, or broken handles
on files, hammers, screwdrivers, or sledges.
• Ensure that the handles of tools like hammers
and axes fit tightly into the head of the tool.
• Use and maintain tools carefully. Keep them
dry and store them properly after each use.
Tools Required For Installation: (Not Included)
#10 x 1 " self –tapping
washer head screw
OR 1 " Galvanized roofing nail
Safety Glasses
3/16"
Drill Bit
Drill
Hammer
Level
Pencil
Phillips Screw Bit
Tape Measure

13
Before You Start
IMPORTANT: Observe all governing codes
and ordinances.
1. Proper installation is your responsibility. Ensure a
qualified/Jaquar technician installs your product.
2. An air vent and a service window must be
provided for product as basic requirement.
3. Electrical supply requirement: 220~240 volt (16 A)
Fluctuation may damage the product or its
component. Manufacturer recommends the use
of fluctuation free or stabilized power supply to
feed the product.
4. Water supply parameters like pH/hardness must
be maintained at below recommended level.
pH 7.5 – 8.5
TH 150 – 450 ppm.
Sanitizer 2- 4 ppm
Electrical Supply and safety devices.
a) The equipment must be connected to single phase
220 ~ 240 V and 50hz supply.
b) The equipment must be connected to the
equipotential/ differential switches of the room and
duly fastened to the specified clamp/terminals that
can be found on the product.
c) Connection to the power mains foresees installation
of a 30mA max. differential switch
(RCCB/ELCB/GFCI), with at least 3 mm contact
opening and suitable for a single phase supply.
d) Switches must be arranged near the device,
upstream of power boxes (only for product versions
equipped with power box).
e) The product’s supporting structure is made of metal,
therefore an efficient ground dispersal provision is
required, with regulations compliant sensitivity.
Earth Wire
The earth wire must be connected and fixed permanently
with a 3 mm dia. core conductor to the electrical system.

14
INSTALLATION PROCEDURE

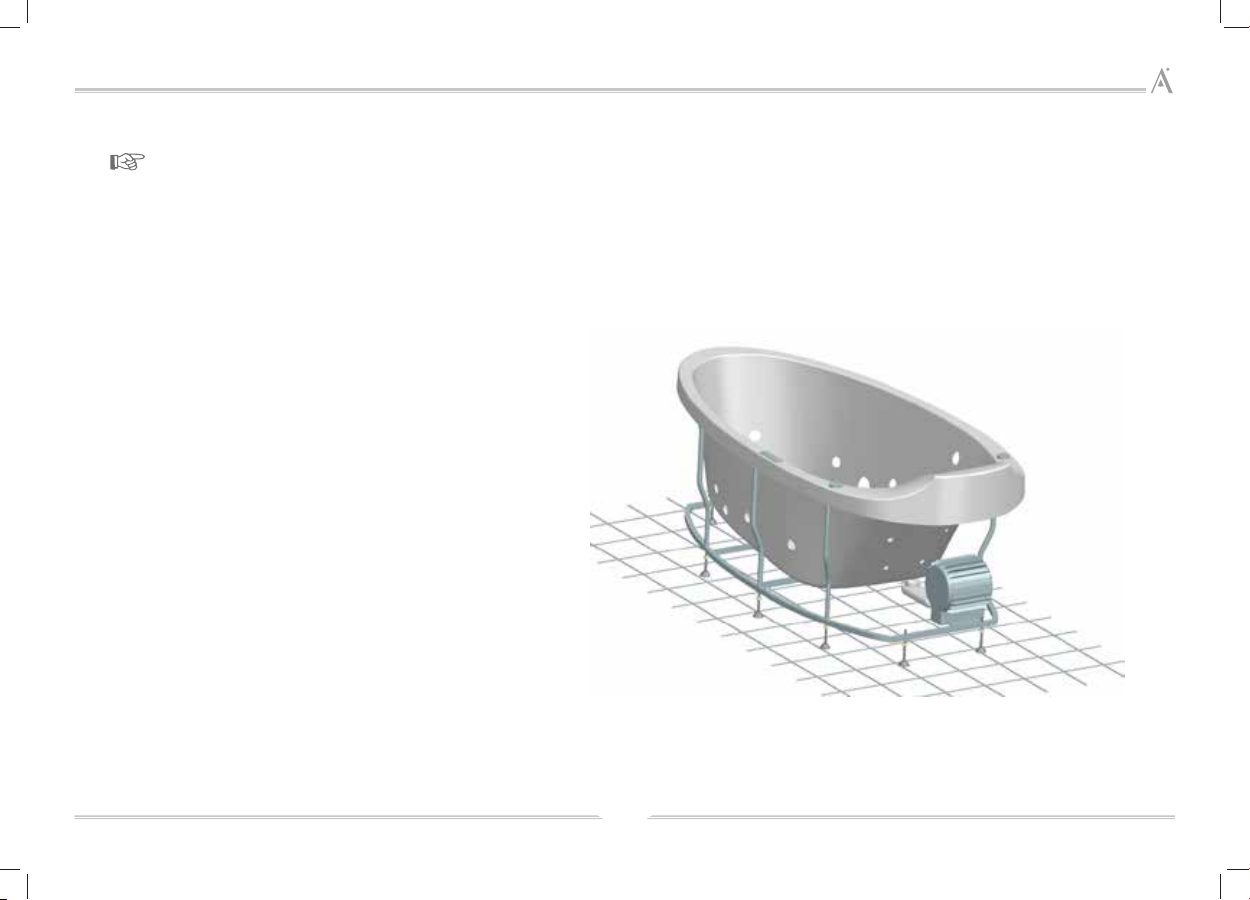

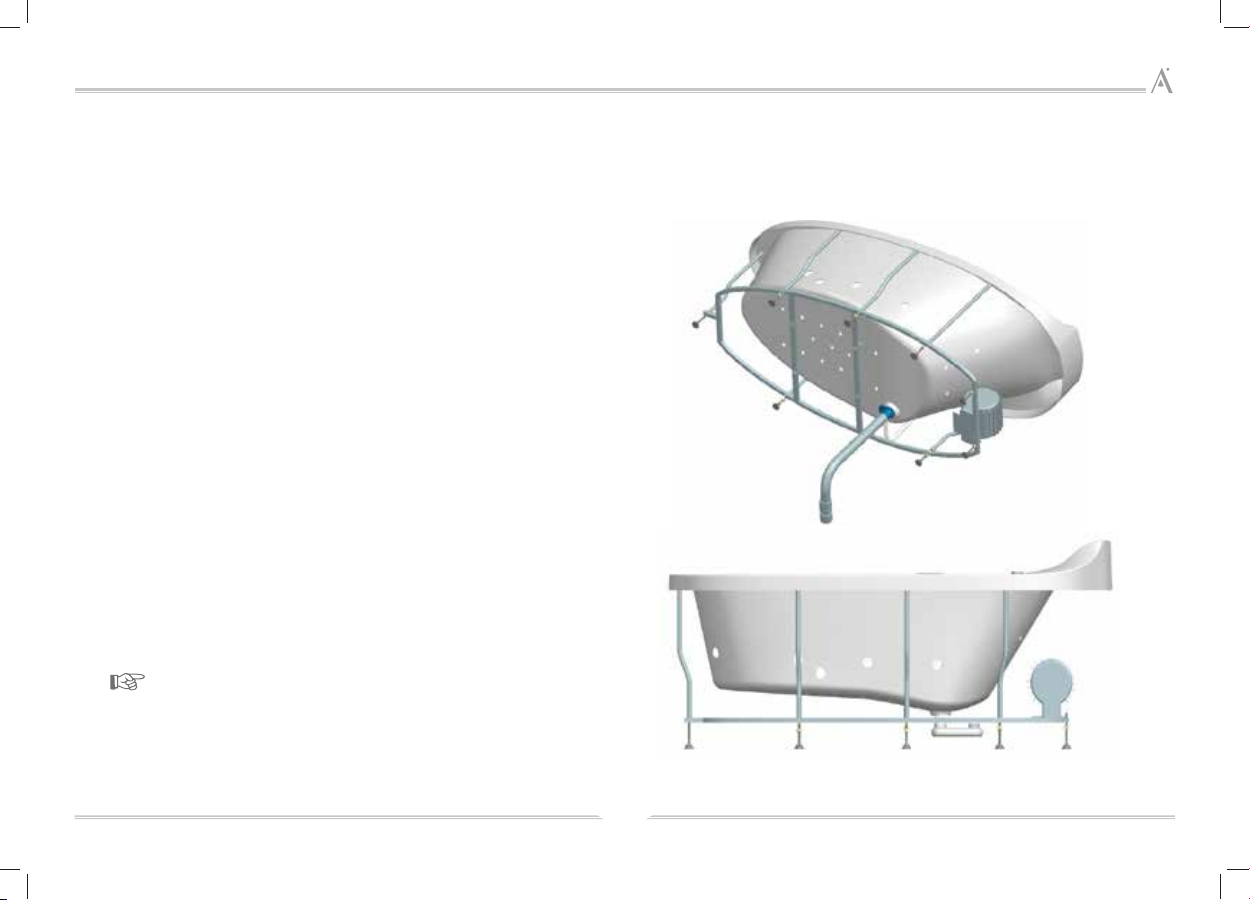

Place your whirlpool/bathtub on flat surface & check
level for water flow towards drain.
Water drain may be adjusted by leg adjustment
Pictures used above for reference only.
For product placement check dimensions
of required model.

15
Pictures used above for reference only.
For product placement check dimensions
of required model.
Fill a minimum 4 litres of water in the bathtub to
check proper drain flow

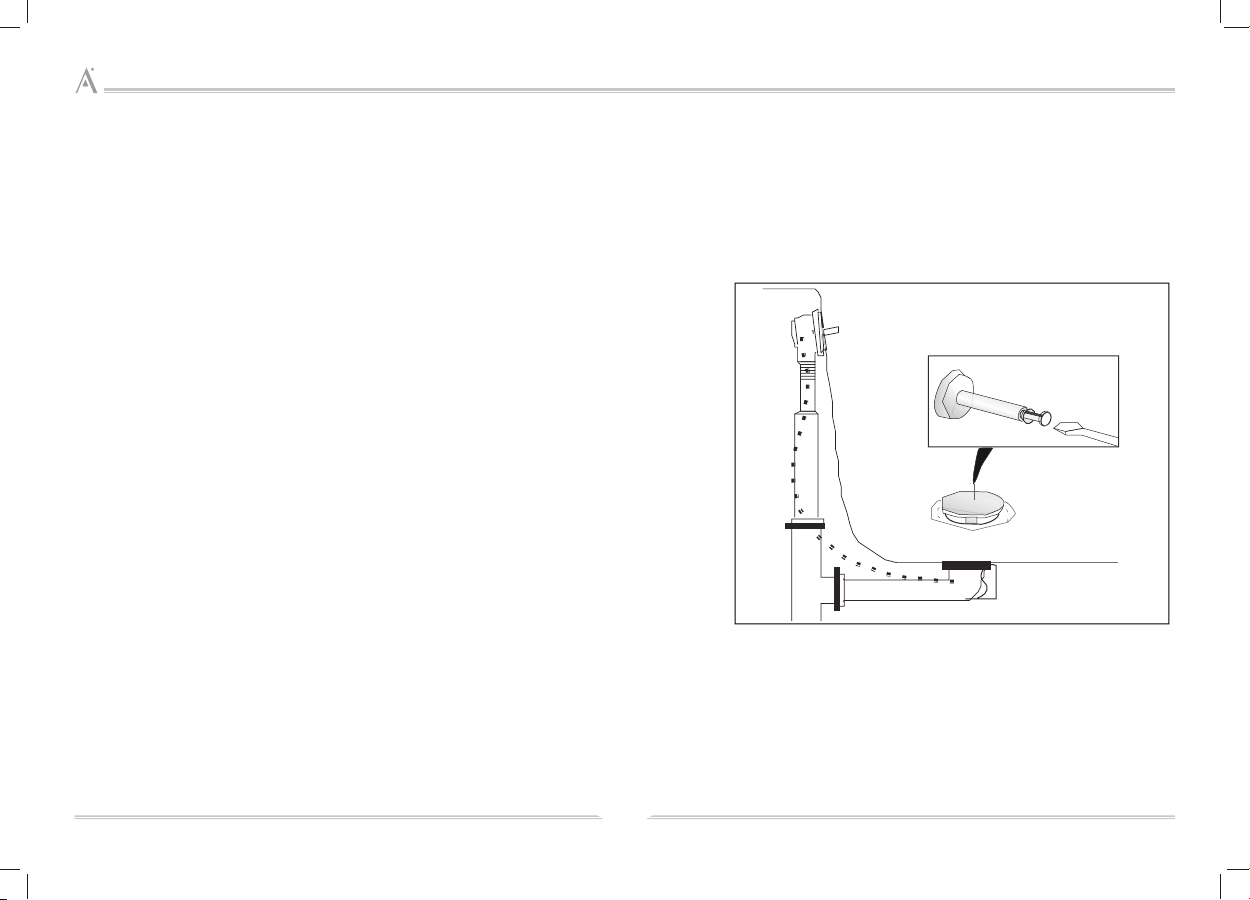

Connecting drain pipe : Use a flexible pipe of
diameter 40 mm - not supplied with the product.

16
Electrical supply and
safety devices
f) The equipment must be connected to single
phase 220 ~ 240 V and 50hz supply.
g) The equipment must be connected to the
equipotential/ differential switches of the room
and duly fastened to the specified clamp/
terminals that can be found on the product.
h) Connection to the power mains foresees
installation of a 30mA max. differential switch
(RCCB/ELCB/GFCI), with at least 3mm contact
opening and suitable for a single phase supply.
i) Switches must be arranged near the device,
upstream of power boxes (only for product
versions equipped with power box).
j) The product supporting structure is made of
metal, therefore an efficient ground dispersal
provision is required, with regulations compliant
sensitivity.15
It is recommended that the product be kept filled for 24 hours to
check for leakages in plumbing/drain connections.

17

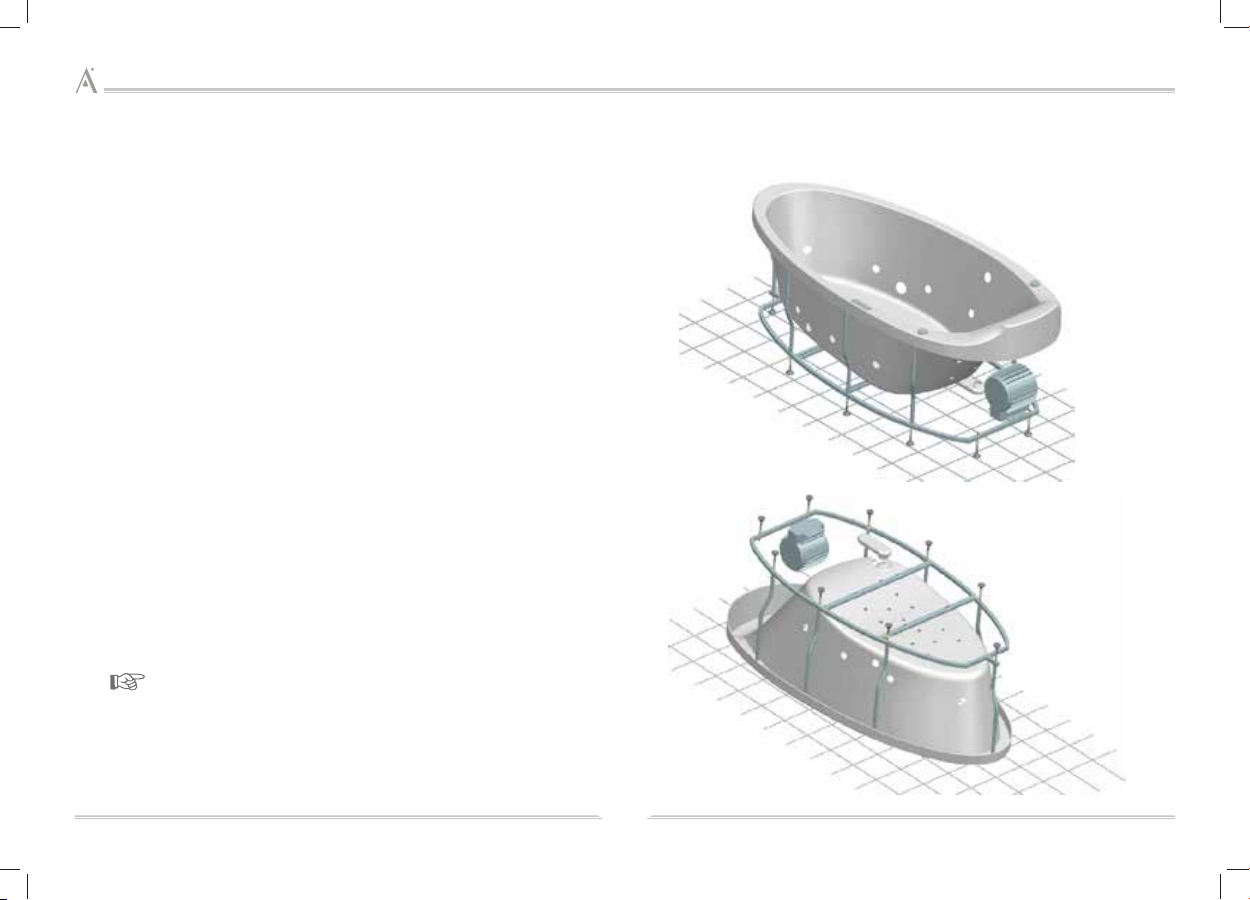

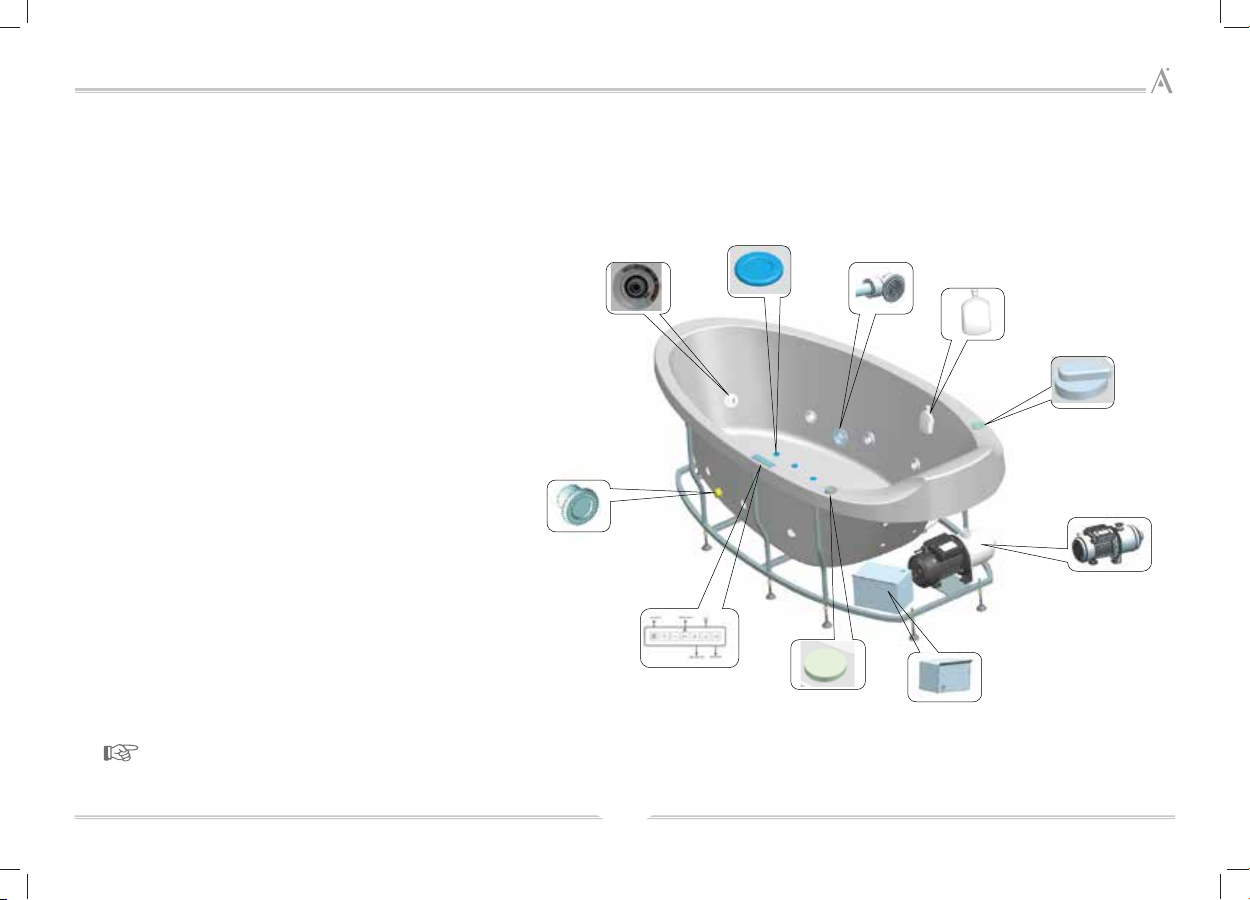

These drawings represent only the major components of the system; the position of the components
may vary depending on the bath model.
These pictures represent Combined Systems; Whirlpool Systems components are identified with
“Component Identification”.
Component Identification
WATER JET
AIR JET
WATER SUCTION
DRAIN KNOB
SENITIZER KNOB
WATER MOTOR
REGULATOR KNOB
ELECTRONIC BOX
KEY PAD
CHROMO LIGHT

18
WHIRLPOOL PUMP
Our commercial quality pump is the heart of your whirlpool system. The pump is
positioned on a specially designed cantilevered mounting base. It helps isolate
and dampen vibration and noise, adding to your comfort and pleasure.

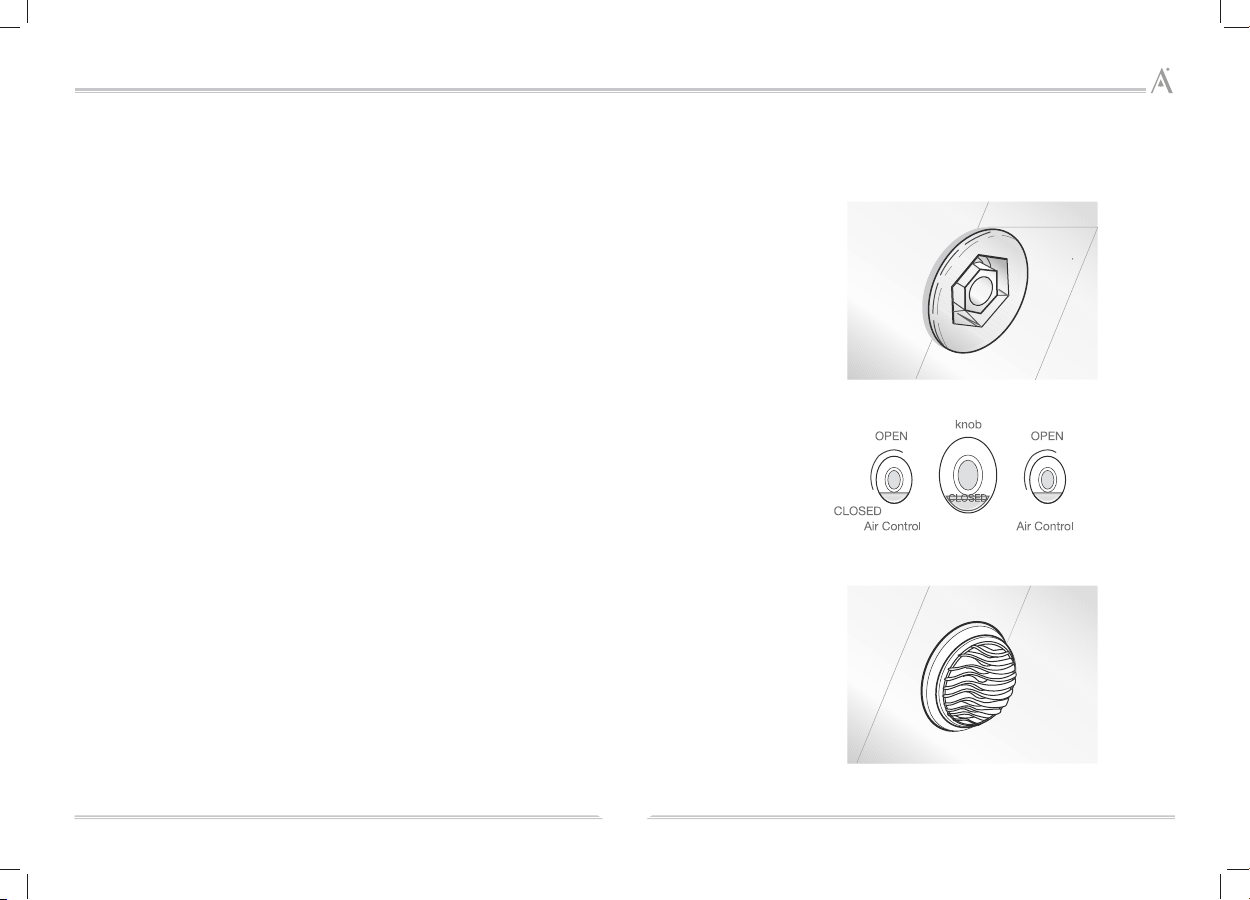

PATENTED WHIRLPOOL JETS
Artize Whirlpool Bathtubs are not ordinary jetted tubs. Jet location in our tubs is
designed to give you the very best in whirlpool bathing. The nozzle is directionally
adjustable and swivels over a 30° range.
AIR VOLUME CONTROLS
Each jet is moving approximately 20 litres of water per minute. The more air that
is introduced into the flow of water, the deeper the massage. The amount of air is
regulated by the air control knobs. Air controls, (as shown in fig.) are located on
the tub. Do not fill the tub above the overflow.
SAFETY SUCTION RETURN SYSTEM
This fitting allows water to return from the tub to the pump. The protective cover
prevents foreign objects from entering the pump. Do not use the whirlpool bath
if protective cover is missing. Do not remove the protective cover. Keep the
cover of the return fitting clean. An obstructed cover reduces the whirlpool action
and may cause damage to the pump. To clean, remove any hair or debris and wash
cover with a soft brush and soap. If blockage occurs, such as a polybag, cloth or
hand too close to the suction fitting, the pump instantly disengages and stops the
whirlpool action until the obstruction is removed. Please do not remove suction
cover. This is a safety feature designed for your protection.
ARTIZE WHIRLPOOL COMPONENTS

19
*For rectangular drop-in units.
The front skirt is installed permanently in place by the installer. The panel can be
pulled out to service the electrical/ electronics units and pumps.
SKIRT WITH REMOVABLE PANEL
The skirt and panel are not standard features on these models. Access panel must
be removable or openable, Use of suction cup or proper tool is recommended to
release one side of the panel at a time. Pull from the upper centre of the panel.
BATH WASTE
The drain plug has an adjustable screw and locking nut to vary the overall length
of the plug. If the bath waste drain does not seal, turn in the screw and retighten
the locking nut.
FILLER/ MIXER AND HAND SHOWER
Not standard package items.Designed for convenience and functionality and installed
by Artize on requirement. The shower is non-adjustable and set on full spray
stream. Turn knob of diverter to change from tub fill to handshower.
SKIRT WITH REMOVABLE PANEL - FIELD INSTALLED
