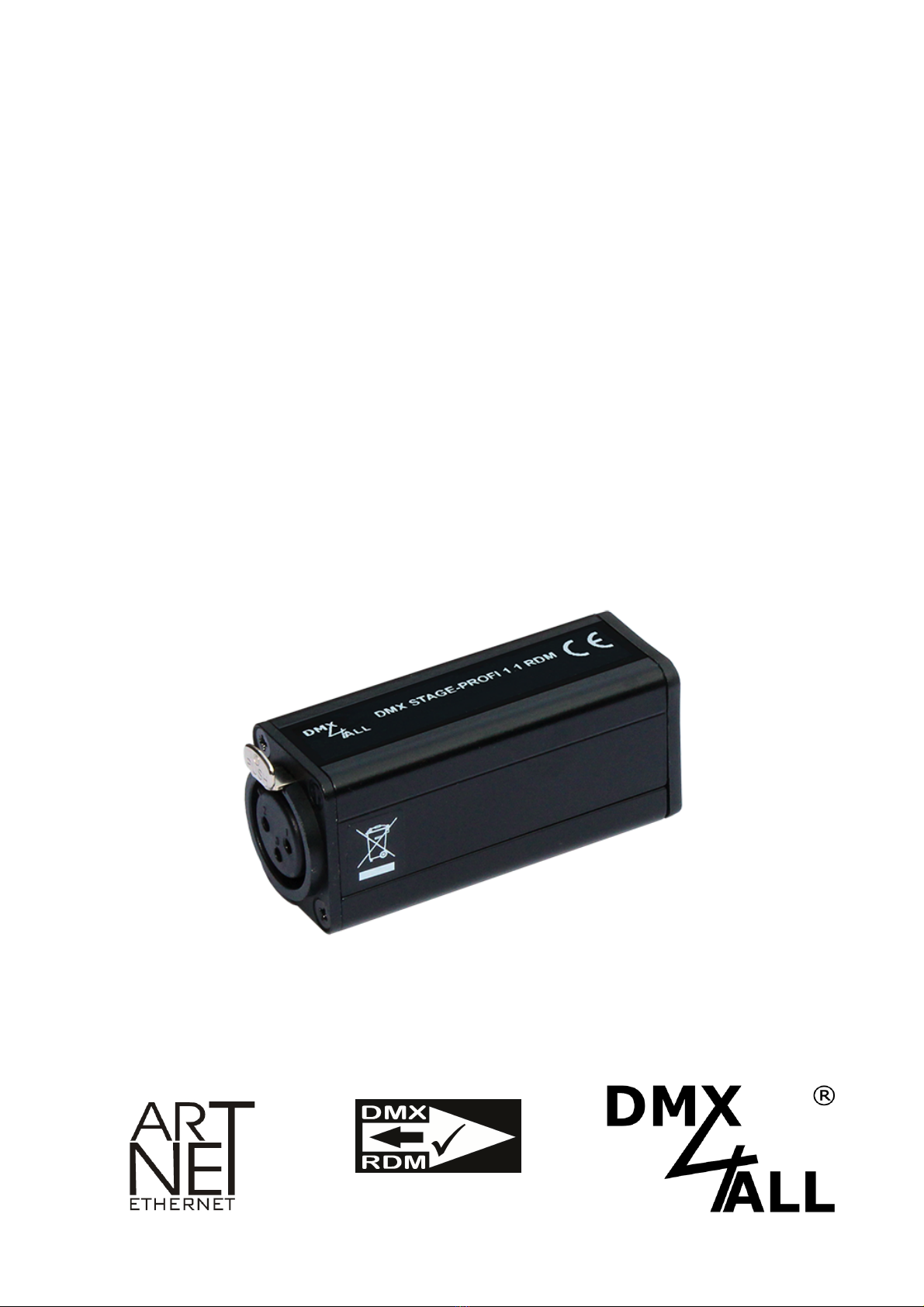

ArtNet-DMX STAGE-PROFI 1.1 User manual

DMX STAGE-PROFI
1.1 RDM
User manual
Art-Net™ Designed by and
Copyright Alderamin Group Ltd.

DMX STAGE-PROFI 1.1 RDM 2
For your own safety, please read this user manual and warnings
carefully before installation.
Description
The DMX STAGE-PROFI 1.1 RDM is a compact Ethernet Interface (DMX via
Ethernet), which can be used for Art-Net™ /TPM2/sACN to DMX/RDM or DMX to Art-
Net™. Via a standard RJ45 net work connection the connection to ethernet net work
occurs.
Switchable DMX direction
The DMX direction can be switched according to usage.
Settable DMX frame rate
In the DMX-OUTPUT mode the DMX frame rate is adjustable, so this interface is
compatible to "slow" DMX devices.
RDM via Art-Net™
Supports RDM via Art-Net™ and thus enables connected RDM devices to be
configured via Art-Net™ using corresponding software.
Disengageable LED display
The LED-Display at the DMX STAGE-PROFI 1.1 RDM is disengageable via Art-
Net™-Command (AcLedMute) or time controlled. This is very helpful to avoid
disturbing “light points” on stage.
Easy Configuration
A user friendly configuration via web browser allows a fast and uncomplicated setting
of all parameters. No special software is necessary, a standard web browser is
enough. So, the configuration is possible any time from PC, Smartphone or tablet.
For an easy setting of the IP we provide the IP-Configurator as PC-Tool or Android-
App for free. The net work settings can be leaved unchanged and the IP can be
configured without any problems.
High quality and Compact Design
The DMX STAGE-PROFI 1.1 RDM is designed with a 3-pin Neutrik-XLR-Connection
metal design and cased in an aluminium housing.
Art-Net™ Merge-Function
Two Art-Net™ sources are output by LTP (Latest) or HTP (Highest) combined to the
DMX output.
Combinable with WiFi components
In combination with a WLAN bridge the DMX STAGE-PROFI 1.1 RDM can also be
integrated into WLAN net works.
Firmware update function
To use future functions the DMX STAGE-PROFI 1.1 RDM offers a Firmware-Update-
Function. This can be started with any web browser, so no direct access to the
device is necessary!
DMX4ALL Communication-Interface
The DMX STAGE-PROFI 1.1 RDM has an additional communication interface using
the DMX4ALL-Commands via TCP or UDP packages.

DMX STAGE-PROFI 1.1 RDM 3
Data sheet
Power supply: 5V DC via attached external power supply
Connections: Ethernet: RJ45
USB / Power: MiniUSB
DMX: Neutrik XLR female 3 or 5 pin
(depending on version)
USB: USB1.1 / USB2.0
CDC-Driver (Virtual COM Port)
DMX: Settable:
- 512 channels OUT
- 512 channels IN
For DMX-IN an additional DMX adapter XLR male / XLR male 3(5) Pin is needed
DMX frame rate: settable (5 - 44 fps)
RDM: RDM via Art-Net™ on/off switchable
ArtDmx Fail (DMX-OUT) :HOLD last data
CLEAR all to 0%
SET all to 100%
NO OUTPUT
DEFAULT VALUES
INTERNAL PROGRAM
DMX Fail (DMX-IN) :NO DATA
HOLD last data
CLEAR all to 0%
SET all to 100%
Protocol: Art-Net™
TPM2
sACN (Unicast)
DMX4ALL Commands (as for LAN-DMX STAGE-PROFI)
Internal program: User configurable Stand-Alone Program
LED-Displays: Grün: Ethernet-Verbindung
Gelb: Datentransfer
Dimensions: 75mm x 26mm x 35 mm
Contents
1x DMX STAGE-PROFI 1.1 RDM
1x 1m RJ45 net work cable 1:1
1x USB 5V power supply
1x quick guide german and english

DMX STAGE-PROFI 1.1 RDM 4
Connection
LED-Display
LED green
The green LED flashes, if no Ethernet-Connection is available and lights
permanently, if an Ethernet-Connection is available.
LED yellow
The yellow LED lights up as soon as data are received.
DMX
-
In
/
output
1GND
2DMX-
3DMX+
3-pin
5-pin
USB / POWER 5V
Status-LED
Ethernet-Connection

DMX STAGE-PROFI 1.1 RDM 5
Konfiguration
The configuration of the DMX STAGE-PROFI 1.1 RDM occurs about a web interface
which can be called about any web browser.

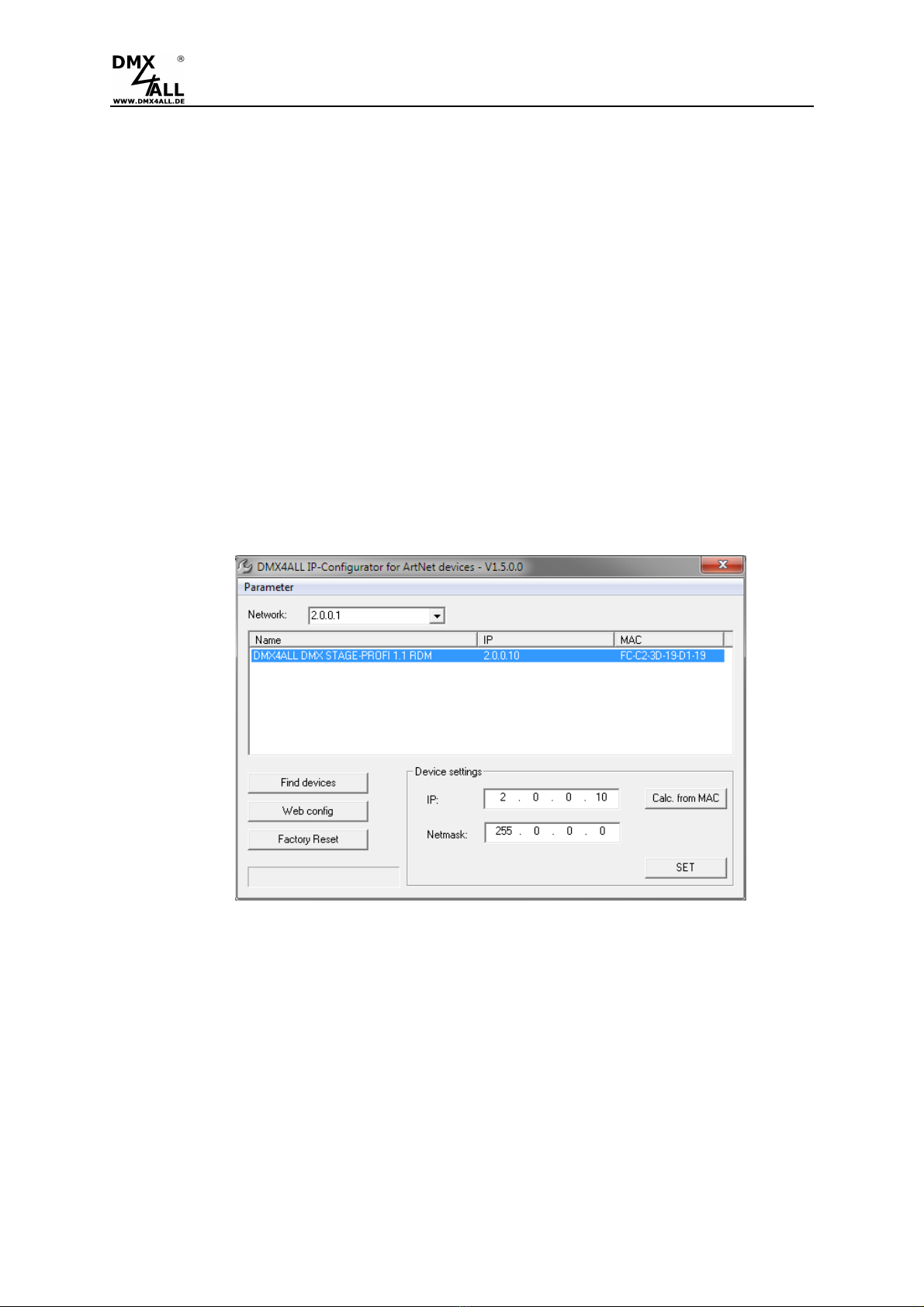

Set the IP with IP-Configurator
The IP-Configurator enables the IP-Address and the net mask setting even if the
PCs network setting is not within the IP range of the DMX STAGE-PROFI 1.1 RDM.
-Install the program IP-Configurator
-Connect the DMX STAGE-PROFI 1.1 RDM with net work and turn it on
-Start the program IP-Configurator
-The DMX STAGE-PROFI 1.1 RDM is shown in the list
-Select entry (click)
-Enter the news IP and net mask
-Click SET

DMX STAGE-PROFI 1.1 RDM 6
Set IP with web browser
During the delivery status the given IP-Address is 2.0.0.10, which can be used via
the web interface.
Set the net work card of the PC to this IP range to call the IP-Address 2.0.0.10 via the
web browser.
The net work settings of the PC must be set
to IP address 2.0.0.1 and
sub net mask to 255.0.0.0
Please take further details from
Art-Net™-Specifications.

DMX STAGE-PROFI 1.1 RDM 7

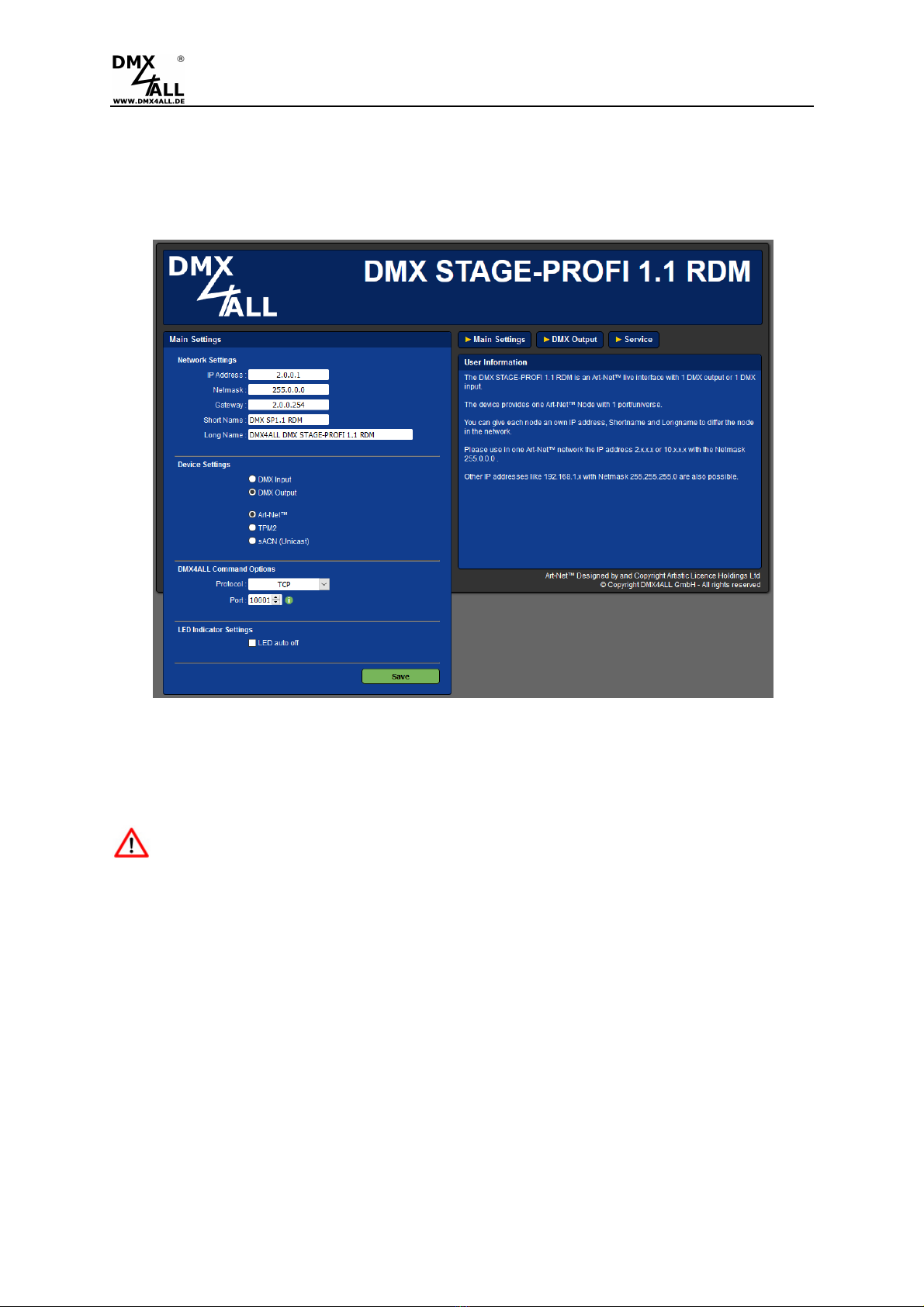

Device Configuration
Call the DMX STAGE-PROFI 1.1 RDM IP-Address in the web browser and address
bar (delivery status: 2.0.0.10) to get the following configuration site:
Network Settings
Each device (node) needs an own
IP
-
Address
, so the assignment in the net
work occurs clearly. According to the Art-Net™ specifications please use the
IP-Addresses 2.x.x.x or 10.x.x.x.
Each other IP addresses are also possible, for example 192.168.1.10.
Then the net mask must be changed to 255.255.255.0 !
For an easier identification you can assign each node with any names for better
distinction.
The Short-Name is limited to 18 marks and the Long-name is limited to 64 marks.
The Netmask is to leave according to the Art-Net™ specifications auf 255.0.0.0.

DMX STAGE-PROFI 1.1 RDM 8
Device Settings
The Device Settings define the DMX direction (DMX input / DMX output) and the
protocol used (Art-Net™ / TPM2 / sACN).
DMX4ALL Command Settings
Here the configuration of the Ethernet Ports for the DMX4ALL commands is done.
LED Indicator Settings
If the option LED indicator auto off is activated the LED display at the DMX STAGE-
PROFI 1.1 RDM are shut down after 5 minutes operation with permanent net work
connection.
SAVE stores the configuration.

DMX STAGE-PROFI 1.1 RDM 9
DMX-Output
For using the DMX STAGE-PROFI 1.1 RDM for DMX-Output please select the
Interface Mode DMX-Output in the Main-Settings.
By clicking DMX-Output you get the following configuration site:
ArtNet Parameter
The Art-Net™ parameter SubNet, Net and Universe (Port) must be set in
accordance of the Art-Net™ specifications and show the aim for the DMX data.
The Merge settings can be adjusted at LTP (Latest) or HTP (Highest).
RDM Settings
Enable RDM activates the RDM function of the DMX STAGE-PROFI 1.1 RDM.
In addition to the global search for RDM enabled devices, the IDs specified under
Search ESTA-IDs are also queried during discovery.
In standard operation, this field can remain empty.

DMX STAGE-PROFI 1.1 RDM 10
Advanced Options
DMX-Framerate set the maximum DMX frame rate in the output.
MAX is the maximum frame rate of ca. 44 fps (frames / second).
Fail Action sets the behavior in case of failure of the Art-Net™ data.
The following options are possible:
HOLD last data
CLEAR all to 0%
SET all to 100%
NO OUTPUT
DEFAULT VALUES
Art-Net™ / Madrix Sync synchronized the DMX output of several Art-Net™ devices
via ArtSync package or by using the software MADRIX
®
.
Save current DMX values as defaults stores the current DMX data and restores
these after turning on.
The option Enable DMX output after first data packet starts the DMX-Output not
until the first Art-Net™ data package is received after turn on.
SAVE stores the configuration.

DMX STAGE-PROFI 1.1 RDM 11
DMX-Input
For using the DMX STAGE-PROFI 1.1 RDM as DMX-Input-Interface please select
the interface mode DMX-Input in the main settings.
Use a 1:1 male-male-adapter, available as accessory, for the DMX connection.
By clicking DMX-Input you reach the following configuration site:
ArtNet Parameter
The Art-Net™ parameters SubNet, Net and Port must be set in accordance of Art-
Net™™ specifications and show the aim for the DMX data.
ArtNet Transmit Mode
Use Broadcast: The DMX data will be sent to all devices within the Art-Net™
Use Unicast: The DMX data will be sent to a specified device with the Unicast IP
within the net work.

DMX STAGE-PROFI 1.1 RDM 12
Advanced Options
Several actions are available for the DMX input in the case of a breakdown of the
DMX signal (FAIL Action).
NO DATA - via Art-Net™ ™ will be no DMX input received
HOLD last DMX data - the last data will be retained
CLEAR all DMX channels to 0% - all DMX channels will be set to 0
SET all DMX channels to 100% - all DMX channels will be set to 255
The DMX-Update-Rate with which the DMX input data are outputted, can be
switched in several times.
On change data transferred only the DMX input data if these changes, however
max. every 0.1 seconds.
DMX Framerate transfers the received DMX data as soon as the frame has finished.
So, the frame rate of the received DMX signal is used.
SAVE stores the configuration.

DMX STAGE-PROFI 1.1 RDM 13
USB
The DMX STAGE-PROFI 1.1 RDM has a Mini-USB connector which can be used for
power supply and DMX4ALL-Command data transfer via USB.
Install USB driver
The installation of the driver for the DMX STAGE PROFI 1.1 RDM is based on the
Windows® internal CDC driver. This is a RS232 emulation via USB from
Windows2000 on.
As soon as the DMX STAGE-PROFI 1.1 RDM is connected, a virtual COM port is
generated on the PC, which can be accessed by any Windows program just like a
real RS232 interface.
After plug in the DMX STAGE-PROFI 1.1 RDM please follow the hardware assistant
or execute the installation steps via the device manager.
Current driver are available as download on our homepage
www.dmx4all.de
The installation may differ depending on the operating system and driver
version used.
The energy-saving function must be deactivated in the computer's operating
system.
The RDM functions cannot be used via USB.
They are only available via Art-Net™.

DMX STAGE-PROFI 1.1 RDM 14
Create / use internal programm
The DMX STAGE-PROFI 1.1 RDM has a user programmable stand-alone function
which can play back an internal program.
The internal program is only available in DMX output mode and can be and executed
after the device has been switched on and if Art-Net™ data stays out (DMX Output
→Fail Action).
The internal program can be created with the software DMX-Configurator.
The program created in the software DMX-Configurator is then transferred to the
DMX STAGE-PROFI 1.1 RDM with Hardware→Write Memory.
After the transfer is completed, you can disconnect the PC and operate the DMX
STAGE-PROFI 1.1 RDM via the USB power supply. The stored lighting program is
played back until data is received.
To transfer the created program a connection via Art-Net™ or
USB is necessary!
Execute after turning on
Program 1 (New 1) is executed in case of ArtNet-Fail

DMX STAGE-PROFI 1.1 RDM 15
DMX4ALL-Command support
The DMX STAGE-PROFI 1.1 RDM has a further communication interface, using
DMX4ALL-Commands.
The following settings are available in the main settings for this communications
interface:
For the available DMX4ALL commands please refer to the separate DMX4ALL
command description.

DMX STAGE-PROFI 1.1 RDM 16
VCP- Control
For controlling via a COM-Port a TCP-VCP-program must be installed, which
provides a virtual Com Port (VCP).
We recommended the tool Serial to Ethernet Connection which we tested. You find
this tool as download in our support area.
During the installation you have to
enter a password (see opposite
figure).
After the installation please start the
tool „Centos SEC“, you find on your
desktop. Now, add a VCP with Add
and enter the parameters for this
VCP-Port as shown opposite.
Make sure, that the IP is used which
is adjusted via the web browser.
Finally, click into the main window to
Update all to activate the VCP.
Now, the status Available and the
COM-Port will be shown into the
device manager.

DMX STAGE-PROFI 1.1 RDM 17
Factory Reset
The DMX STAGE-PROFI 1.1 RDM can be reset into the delivery status.
Restore the delivery status via web browser:
-Open web browser and call the Service site
-Enter the Service-Code „7319“ within the input field
-Click Send
-Now, please wait minimum 10 seconds
If the Factory-Reset is done via the web site the IP-Address and the Subnet
Mask is reset. It is not always possible to return. Set the IP-Address again if
necessary (see Set the IP with IP-Configurator or Set the IP via web browser).
Restore the delivery status via DMX4ALL LAN-Updater:
-Turn off the device
-Start the software DMX4ALL LAN-Updater
-Generate net work connection to PC
-Turn on device
-The yellow LED lights for ca. 3 seconds
-Click FIND while yellow LED lights
-Select DMX STAGE-PROFI 1.1 RDM from list
-Click FACTORY RESET
-Now, the Reset will be executed
Restore the delivery status via DMX4ALL IP-Configurator:
-Turn on device
-Start the software DMX4ALL IP-Configurator
-Click FIND
-Select DMX STAGE-PROFI 1.1 RDM from list
-Click FACTORY RESET
-Now, the Reset will be executed

DMX STAGE-PROFI 1.1 RDM 18
Make Firmware Update
The DMX STAGE-PROFI 1.1 RDM has an Update-Function, which allows
transferring future firmware versions.
Please proceed as follows:
-Turn off device
-Start the update software DMX4ALL LAN-Updater
-Generate net work connection to PC
-Turn on device
-The yellow LED lights for ca. 3 seconds FIND
-Select DMX STAGE-PROFI 1.1 RDM from list
-Click Firmware-Update
-Select firmware file (.bin) and confirm
-Wait until the update has finished
If an error occurs during the update you can start again
at any time.
Alternatively the firmware update can be activated via web browser:
-Open web browser and call up the site Service
-Enter the service code „1379“ into the text box
-Click Send
-Start the update software DMX4ALL LAN-Updater
-Select the DMX STAGE-PROFI 1.1 RDM from list
-Click Firmware-Update
-Select and confirm firmware file (.bin)
-Wait until the update has finished
-Click Back within the web browser

DMX STAGE-PROFI 1.1 RDM 19
DMX via WLAN
The Art-Net™-DMX STAGE-PROFI 1.1 Interface can be used in connection with
WLAN components (WiFi) for wireless transmission of DMX universes.
In the following drawing the use for a DMX universe is shown:
In the same way several DMX universes can be used:
ArtNet-DMX
STAGE-PROFI 1.1
DMX
WiFi
Access
Point
WiFi
Adapter DMX
Configurated as DMX-Input
ArtNet: Net 0 / Port 1
ArtNet-DMX
STAGE-PROFI 1.1
Configurated as DMX-Output
ArtNet: Net 0 / Port 1
LAN connection
DMX connection
WLAN connection
ArtNet-DMX
STAGE-PROFI 1.1
DMX
UNIVERSE 1
ArtNet-DMX
STAGE-PROFI 1.1
DMX
UNIVERSE 2
WiFi
Adapter
WiFi
Adapter
WiFi
Adapter
ArtNet-DMX
STAGE-PROFI 1.1
DMX
UNIVERSE 1
WiFi
Access
Point
ArtNet-DMX
STAGE-PROFI 1.1
DMX
UNIVERSE 1
WiFi
Adapter
DMX
UNIVERSE 1
LAN
Switch
ArtNet-DMX
STAGE-PROFI 1.1
DMX
UNIVERSE 2
Configurated as DMX-Input
ArtNet: Net 0 / Port 1
Configurated as DMX-Input
ArtNet: Net 0 / Port 2
Configurated as DMX-Output
ArtNet: Net 0 / Port 1
Configurated as DMX-Output
ArtNet: Net 0 / Port 2
Configurated as DMX-Output
ArtNet: Net 0 / Port 1
ArtNet-DMX
STAGE-PROFI 1.1
Configurated as DMX-Output
ArtNet: Net 0 / Port 1
for example:
NETGEAR WNCE2001
LAN connection
DMX connection
WLAN connection

DMX STAGE-PROFI 1.1 RDM 20
Alternatively, an APP outputting Art-Net™ on a Smartphone or PC can be used as
data source:
WiFi
Access
Point
DMX
ArtNet-DMX
STAGE-PROFI 1.1
Configurated as DMX-Output
LAN connection
DMX connection
WLAN connection
APP
