GE Appliances EDW3000 Series User manual

GEAppliances.com
Safety Instructions ........ 2, 3
Operating Instructions
Care and Cleaning ........... l l
Control Panels ............... 4
Control Settings ............. 5
Flashing Display Lights ........ 6
Loading the
Dishwasher Racks .......... 8, 9
Loading Place Settings ....... 10
Optional Accessories ......... 19
Using the Dishwasher . ...... 6, 7
Troubleshooting Tips .... 13, 14
Consumer Support
Consumer Support . . . Back Co_er
Warranty .................. 15
EDW3000 Series
(;SD54O0 Series
(;SD55O0 Series
(;SD5600 Series
(;SD5700 Series
(;SD58O0 Series
GSD5900 Series
Write the model and serial
numbers here:
Model #
Serial #
Y_m can lind them on a label on the
nil) wall just inside the doo_;
165D4700P269 49-5943-1 11-02Jfl

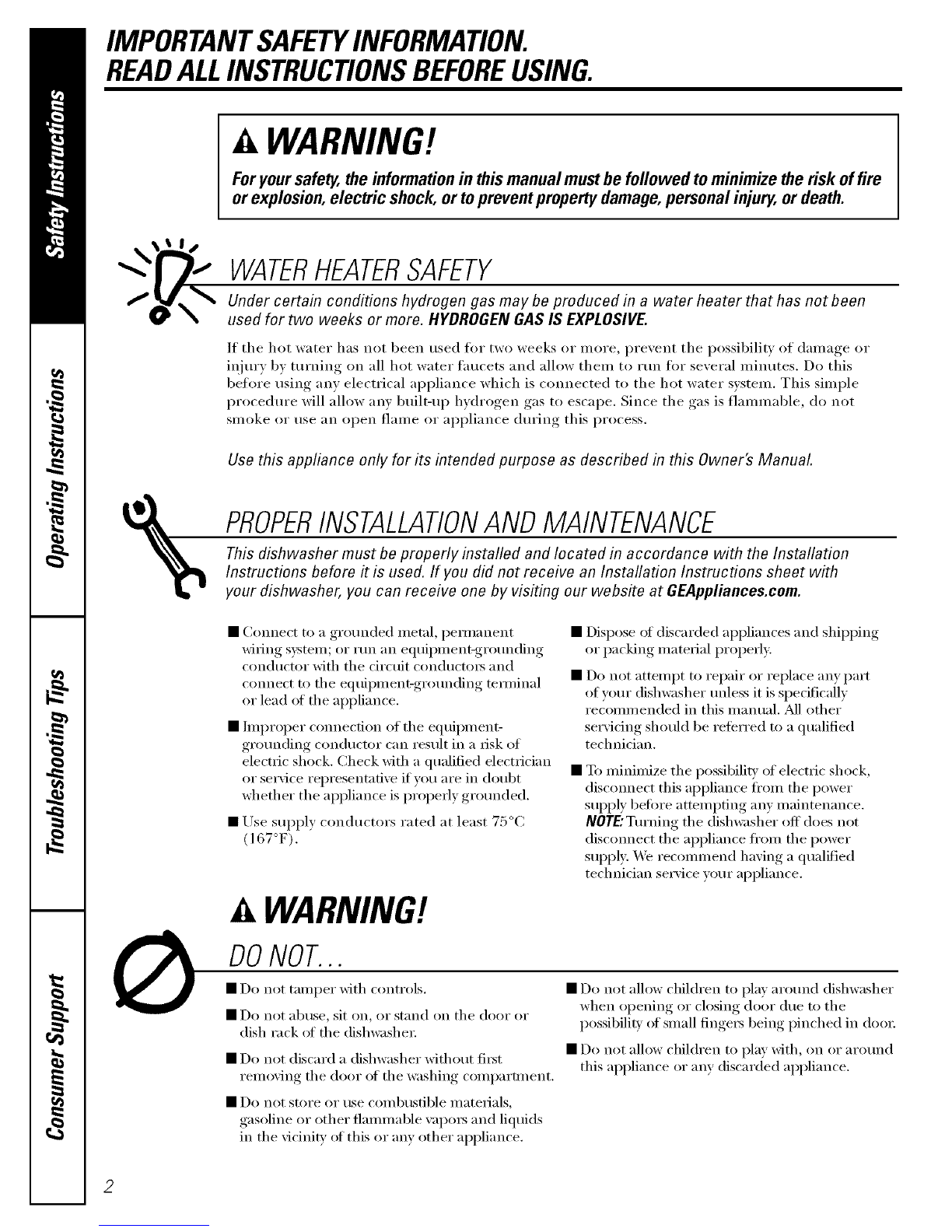

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
WARNING!
Foryoursafety,the informationin thismanual mustbe followed tominimize the risk offire
or explosion,electric shock,or toprevent propertydamage,personal injury,or death.
%
WATERHEATERSAFETY
Under certain conditions hydrogen gas may be produced in a water heater that has not been
used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water has not been used for two weeks or more, prevent the possibility of danmge or
ii_jury by turning on all hot water fimcets and allow them to xun fin" several minutes. Do this
before using anv electrical appliance whM/is connected to tile hot water system. This simple
procedure will allow any built-up hydrogen gas to escape. Since tile gas is flammable, do not
smoke or use an open flame or appliance during this process.
Use this appliance only for its intended purpose as described in this Owner's Manual.
PROPERINSTALLATIONANDMAINTENANCE
This dishwasher must be properly installed and located in accordance with the Installation
Instructions before it is used. If you did not receive an Installation Instructions sheet with
your dishwasher, you can receive one by visiting our website at GEAppliances.cem.
• Connect to a grounded metal, pemmnent
wiring system; or run an equipment-grounding
conductor with tile circuit conductoi_ and
connect to tile equipment-grounding mmfinal
or lead of tile appliance.
• hnproper com_ection of the equipment-
gro/mding conductor can result in a risk of
electric shock. Check with a qualified electrician
or se_Mce representative if you are in doubt
whether the appliance is propedy gro/mded.
• Use supply conductors rated at least 75°C
(167°F).
• Dispose of discarded appliances and shipping
or I_acking, material properl,_.
• Do not attempt to repair or replace any part
of yore" dishwasher mfless it is specifically
recommended in this manual. M] other
servicing should be referred to a qualified
technician,
• To minimize tile possibili_' of electric shock,
disconnect this appliance fl'om the power
supply befin'e attempting anv maintenance.
NOTE."Turning tile dishwasher off does not
disconnect the appliance ti'om the power
supply. _,\'e recommend having a qualNed
technician service your appliance.
WARNING!
DONOT...
• Do not tamper xftl/ controls.
• Do not abtlse, sit on, oY stand on tile door or
dish rack of tile dishwasher:
• Do not discard a dishwasher without fi_t
removing the door ot the washing compartment,
• Do not store or use Colnbustible inatelJals,
gasoline or other flammable vapm_ and liquids
in tile ;icinitv of this or any other appliance.
• Do not allow children to pla) aro/md dishwasher
when oi)ening, or closim,_ door due to tile
possibility, of small finge_, being, I)inched in door.
• Do not allow children to play x6th, on or aromM
this appliance or any discarded appliance.
2

GEAppliances.com

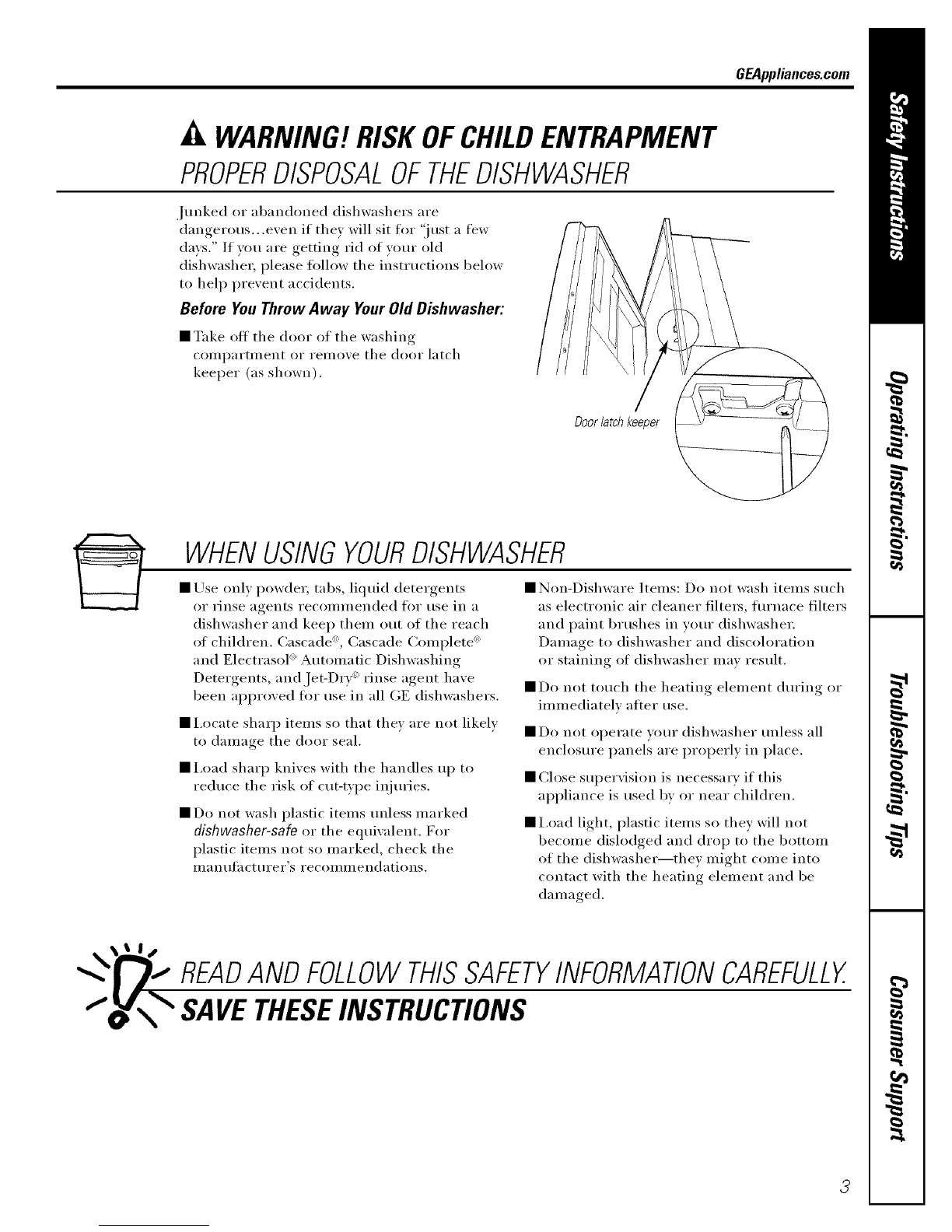

AWARNING!RISKOFCHILDENTRAPMENT
PROPERDISPOSALOFTHEDISHWASHER
Junked or abandoned dishwashers are
dangerous...even if they will sit for "just a few
days." If vou are getting rid of vour old
dishwasher, please follow the instructions below
to help prevent accidents.
Before You Throw Away Your Old Dishwasher:
• Take off tile door of tile washing
COll/partlllent or YelllOVe tile door latch
keeper (as shown).
Doorlatch keeper
WHENUSINGYOURDISHWASHER
• Use only powder; tabs, liquid detergents
or rinse agents recommended for use in a
dishwasher and kee I) them Otlt of tile reach
of children. Cascade':, Cascade Complete':
and Electrasol <':Automatic Dishwashing
Detergents, andJet-D_T _ rinse agent have
been approved t0r use in all GE dishwashers.
• i,ocate sharp items so that thev are not likely
to damage the door seal.
• i,oad sharp knives with the handles up to
reduce tile risk of cut-type injm'ies.
• Do not wash plastic items mfless marked
dishwasher-safe or tile equivalent. For
plastic items not so marked, check tile
Ilia n tl[;I cttlI'e I"S i'ecoil/ill e ndatio ns.
• Non-Dishware Items: Do not wash items such
as electronic air cleaner filtet_, fiu'nace filters
and paint brushes in vain" dishwasher.
Damage to dishwasher and discoloration
or staining of dishwasher may result.
• Do not touch the heating element dm'ing or
immediately atter use.
• Do not operate yam" dishwasher tmless all
enclosm'e panels are properly in place.
• Close supervision is necessary if this
appliance is used by or near children.
• I,oad light, plastic items so they will not
become dislodged and drop to the bottom
of tile dishwasher--they might cam e into
contact with tile heating element and be
damaged.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

Aboutthe dishwashercontrolpanel
You can locate your model number on the tub wall just inside the door. Throughout this manual, features
and appearance may vary from your model.
Model Series EDW3000
STATUS
| SENSING
| WASHING
0RINSING
| DRYING
| SANITIZES
LOAD SELECTIONS OPTIONS CLEAN
C/eanSensor I
['1['11'I['1I']['1['1t'I[' @
SANI POTS CHINA SPEED RINSE POWER SPEED LOCK
WASH & PANS NORMAL CRYSTAL WASH ONLY PRESOAK DRY (2TIMES)
Model Series GSD5500
STATUS
| SENSING
|WASHING
|RINSING
|DRYING
| SANITIZES
LOAD SELECTIONS OPTIONS CLEAN
CleanSensor |
['l['ll']['
SANI POTS CHINA LOCK DELAY
WASH &PANS NORMAL CRYSTAL (2TIMES) START
Model Series GSD5400, GSD5600, GSD5700
STATUS
0 SENSING
|WASHING
| RINSING
| DRYING
|SANITIZES
LOAD SELECTIONS OPTIONS CLEAN
CleanSensor 0
['l['ll']['
SANI POTS CHINA LOCK DELAY
WASH & PANS NORMAL CRYSTAL (2TIMES) START
Model Series GSD5800
STATUS
II SENSING
IWASHING
II RINSING
IDRYING
ISANITIZES
LOAD SELECTIONS OPTIONS CLEAN
CleanSensor i
['I[']['H'II']['I['I['][
SANI POTS CHINA LIGHT RINSE POWER HEATED LOCK
WASH & PANS NORMAL CRYSTAL WASH ONLY PRESOAK DRY (2TIMES)
Model Series GSD5900
STATUS
|SENSING
I WASHING
| RINSING
IDRYING
|SANITIZES
LOAD SELECTIONS OPTIONS CLEAN
CleanSensor II
IIIiIIlIi
__ NOR________SANI POTS NORNAL CHINA SPEED RINSE POWER SPEED (2LOCKTIMES)
4
Cycle Chart
Model
EDW3000,
GSD5400,
GSD5500,
GSD5600,
GSD5700,
GSD5800,
GSD5900
Cycle
SaniWash
Pots & Pans
Heavy
Medium
Light
Normal Wash
Heavy
Medium
Light
SpeedWash/Light Wash
ChinaCrystal
RinseOnly
Water Usage(gal.) Cycle"nine(rain.)
8.5 56 101
11.5
9.9
8.2
9.9
8.2
6.6
8.3
6.6
1.6
70_5
65
61
70
62
56
39
34
5

GEAppliances.com

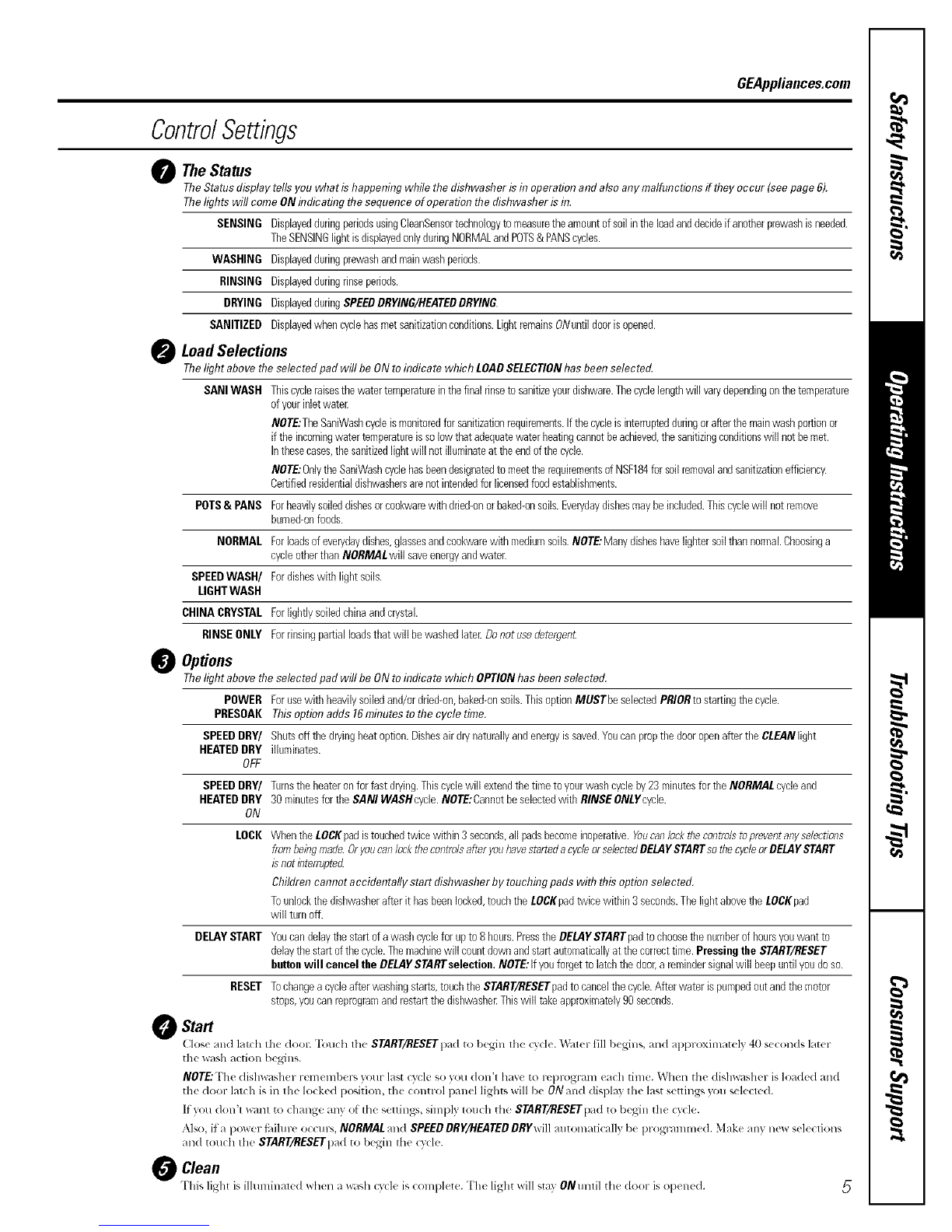

ControlSettings
TheStatus
TheStatus displaytells you what ishappening while thedishwasher is in operation and alsoany malfunctions if they occur (seepage6),
Thelights will come ONindicating the sequence of operationthe dishwasher is in,
SENSING DisplayedduringperiodsusingCleanSensortechnologytomeasuretheamountofsoilin theloadanddecideif anotherprewashisneeded.
TheSENSINGlightisdisplayedonlyduringNORMALandPOTS& PANScycles.
WASHING Displayedduringprewashandmainwashperiods.
RINSING Displayedduringrinseperiods.
DRYING DisplayedduringSPEEDDRYING/HEATEDDRYING.
SANITIZED Displayedwhencyclehasmetsanitizationconditions.LightremainsONuntildoorisopened.
POTS& PANS
NORMAL
SPEEDWASH/
LIGHTWASH
CHINACRYSTAL Forlightlysoiledcbinaandcrystal.
RINSEONLY Forrinsingpartialleadsthatwill bewashedlateEDonotusedetargen£
0LoadSelections
Thelight above theselected pad will be ONto indicate which LOADSELECTIONhas beenselected,
SANIWASH Thiscycleraisesthewatertemperatureinthefinalrinsetosanitizeyourdishware.Thecyclelengthwillvarydependingonthetemperature
ofyourinletwater
NOTE:TheSaniWashcycleismonitoredfor sanitizationrequirements.Ifthecycleis interruptedduringorafterthemainwashportionor
iftheincomingwatertemperatureissolowthatadequatewaterheatingcannotbeachieved,thesanitizingconditionswill notbemet.
Inthesecases,thesanitizedlightwillnotilluminateatthe endoftheo/cle.
NOTE:OnlytheSaniWashcyclehasbeendesignatedtomeettherequirementsofNSF184forsoilremovalandsanitizationefficiency.
Certifiedresidentialdishwashersarenotintendedforlicensedfoodestablishments.
Forheavilysoileddishesorcookwarewithdried-onorbaked-onsoils.Everydaydishesmaybeincluded.Thiscyclewill notremove
burned-onfoods.
Forloadsofeverydaydishes,glassesandcookwarewith mediumsoils.NOTE:Manydisheshavelightersoilthan normal.Choosinga
cycleotherthan NORMALwill saveenergyandwater.
Fordisheswith lightsoils.
0Options
Thelight above theselected padwill be ONto indicate which OPTIONhas been selected,
POWER Forusewith heavilysoiledand/ordried-on,baked-onsoils.ThisoptionMUSTbeselectedPRIORtostartingtile cycle.
PRESOAK Thisoptionadds 16minutesto thecycle time.
SPEEDDRY/ Shuts_thedryingheat_pti_n.Dishesairdrynatura_yandenergyis_aved.Y_ucanpr_pthed_r_penaftertheCLEAN_ight
HEATEDDRY illuminates.
OFF
SPEEDDRY/ Turnstheheateronfor fastdrying.Thiscyclewill extendthetimetoyourwashcycleby23reinutasfortheNORMALcycleand
HEATEDDRY 30minutesfortheSAM WASHcycie.NOTE:Cannotbeselectedwith RINSEONLYcycle
ON
LOCK WhentheLOCKpadistouchedtwicewithin3seconds,allpadsbecomeinoperative.Yoecaa/ockthecootro/etopreverltanyselectioae
frombeingmadeOryoucarllocktilecontrolsafteryeahavestartedacycleorselectedDELAYSTARTsotilecycleorDELAYSTART
isnotinterrupted
Childrencannot accidentally start dishwasher by touching pads with this option selected.
Tounlockthe dishwasherafterit hasbeenlocked,touclltheLOCKpadtwicewithin3seconds.Thelightabovethe LOCKpad
will turnoff.
DELAYSTART Youcandelaytile start ofawashcycleforupto 8hours.PresstheDELAYSTARTpadtochoosetile numberofhoursyouwantto
delaythestartofthecycle.Themachinewill countdownandstartautomaticallyatthecorrecttime.Pressingthe START/RESET
buttonwill cancelthe DELAYSTARTselection.NOTE:Ifyouforgetto latchtiledoor,a remindersignalwill beepuntilyoudoso.
RESET Tochangeacycleafterwashingstarts,touchtheSTART/RESETpadtocancelthecycle.Afterwaterispumpedoutandthemotor
stops,youcarlreprogramandrestartthedishwasheEThiswill takeapproximately90seconds.
Start
Clos_ and latch the dool_ Tou(h Ihe START/RESETpadto begin tim (v(l_. Wal(r till b(gins, and approximately 40 se(on(ls later
the ',;_sh attion begins.
NOTE..'The dishw;isher remember,, your last cycle so you don't have to rcprogram each time. When the dishwasher is loade(l an(l
the door lalch is in the locked position, the control panel lights will be ON and display the last setting;,, you selected.
If you don't wmm to change any of the settings, simply touch th(_ START/RESETpadto begin the cy,.le.
Also, ifa l)ox_ert,_ilur( oc(:u£_,NORMALand SPEEDDRY/HEATEDORYwill automati(ally b( l)rogralnm(d. Mak( any new s(l(clions
m_dtouch the START/RESETp;_dto begin the ()'(It.
0Clean
This light is illumin_m*d ',_,[l(_n_1',_,_lshcy,.l(_is complct,.*. The light ',,.illstay 0Nuntil th,.*(loor is opcm'd. 5

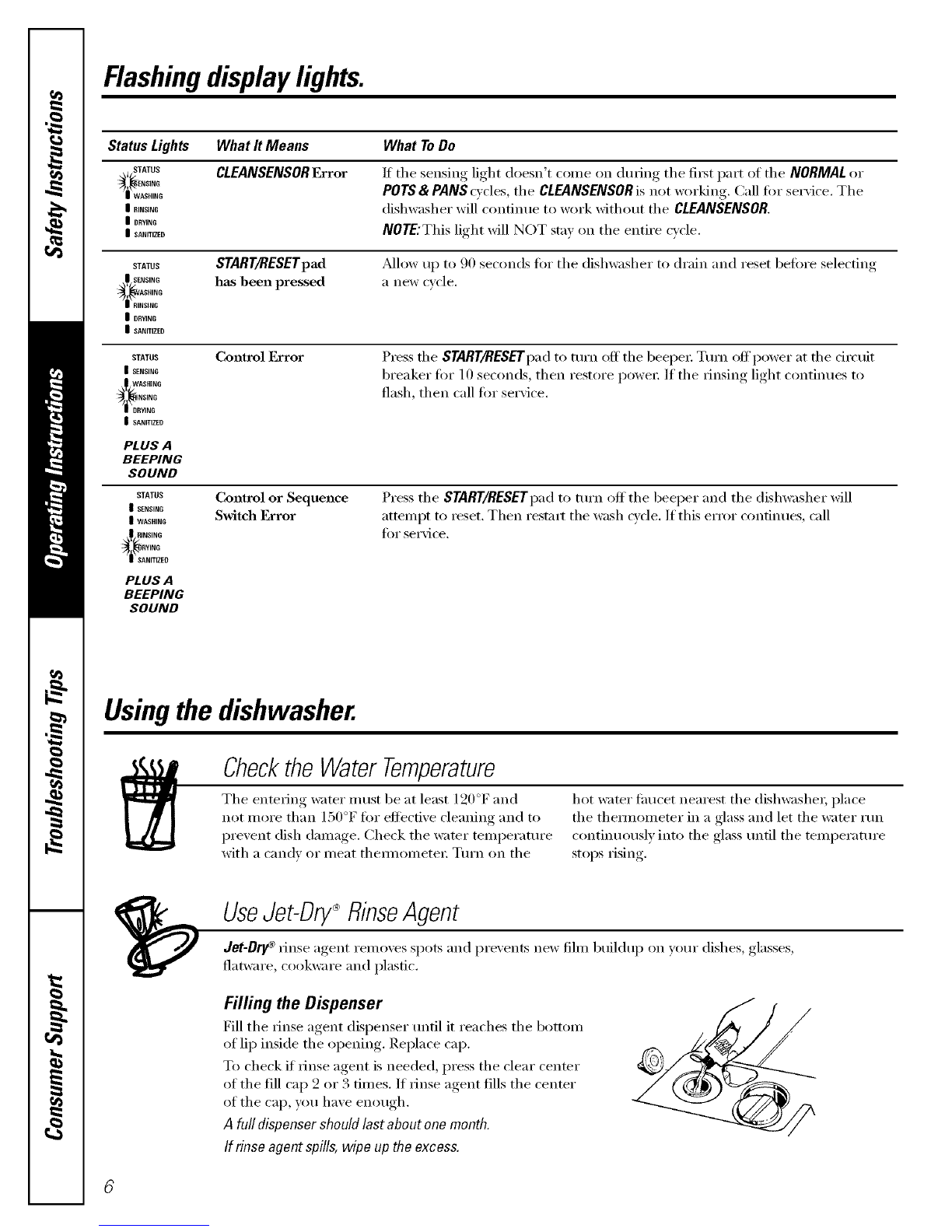

Flashingdisplaylights.
StatusLights WhatIt Means What ToDo
iSTATUS
_ _rNS_NG CLEANSENSOR Error If the sensing light doesn't (once on during the fix_t part ot the NORMAL or
| WAS.,NO POTS& PANS c) cles, the CLEANSENSOR is not working. Call fi)r ser'dce. The
IR,NS_NG dishwasher will continue to work without the CLEANSENSOR
|DRYING
ISANmZED NOTE: This light will NOT stay on the entire cx cle.
STATUS START/RESETpad _Mlow up to 90 seconds fiw the dishwasher to drain and reset befiwe selecting
_ SENSING
_ASH,NG has been pressed a new cycle.
|,,NS,NG
|DRYING
| SANITIZED
STATUS Control Error Press fl_e START/RESETpadto turn off the beepex: Turn off power ;it fl_e circtfit
!SENSING breaker for 10 seconds, then restore i)owe_: If the rinsing light continues to
_WASHING
_:_NStNG flash, then (';Ill for serxice.
• DRYING
ISANITIZED
PLUS A
BEEPING
SOUND
STATUS
ISENSING
IWASHING
_ RINSING
i SANITIZED
PL US A
BEEPING
SOUND
Control or Sequence
Switch Error Press the START/RESETpadto mrn off the beeper and the dishwasher will
attempt to reset. Then resta_ the wash cycle. If this error continues call
fi)r service.
Usingthedishwasher.
Checkthe WaterTemperature
The entering water must be ;it least 120 °F and
not more than 150°F fiw effective cleaning and to
prevent dish damage. Check the water temperattH'e
with a candy or meat thermometer: TtH'n on the
hot water Ihucet nearest the dishwasher; place
the thet)nometer in a glass and let the water rtm
contintlouslv into the glass tmtil the temperattu'e
stops rising.
UseJet-Dry RinseAgent
Jet-Dry _rinse agent, removes spots and prevents new fihn btfildt/l ) on votu" dishes ,glasses
flatware, cookware and plastic.
Filling the Dispenser
Fill the rinse agent dispenser tmtil it reaches the bottom
of lip inside the opening. Replace cap.
To check if rinse agent is needed, press the clear center
of the fill cap 2 or 3 times. If rinse agent fills the center
of the cap, you have enough.
A full dispensershould last about one month.
ff rinse agent spills, wipe up the excess.

GEAppl_nceacom

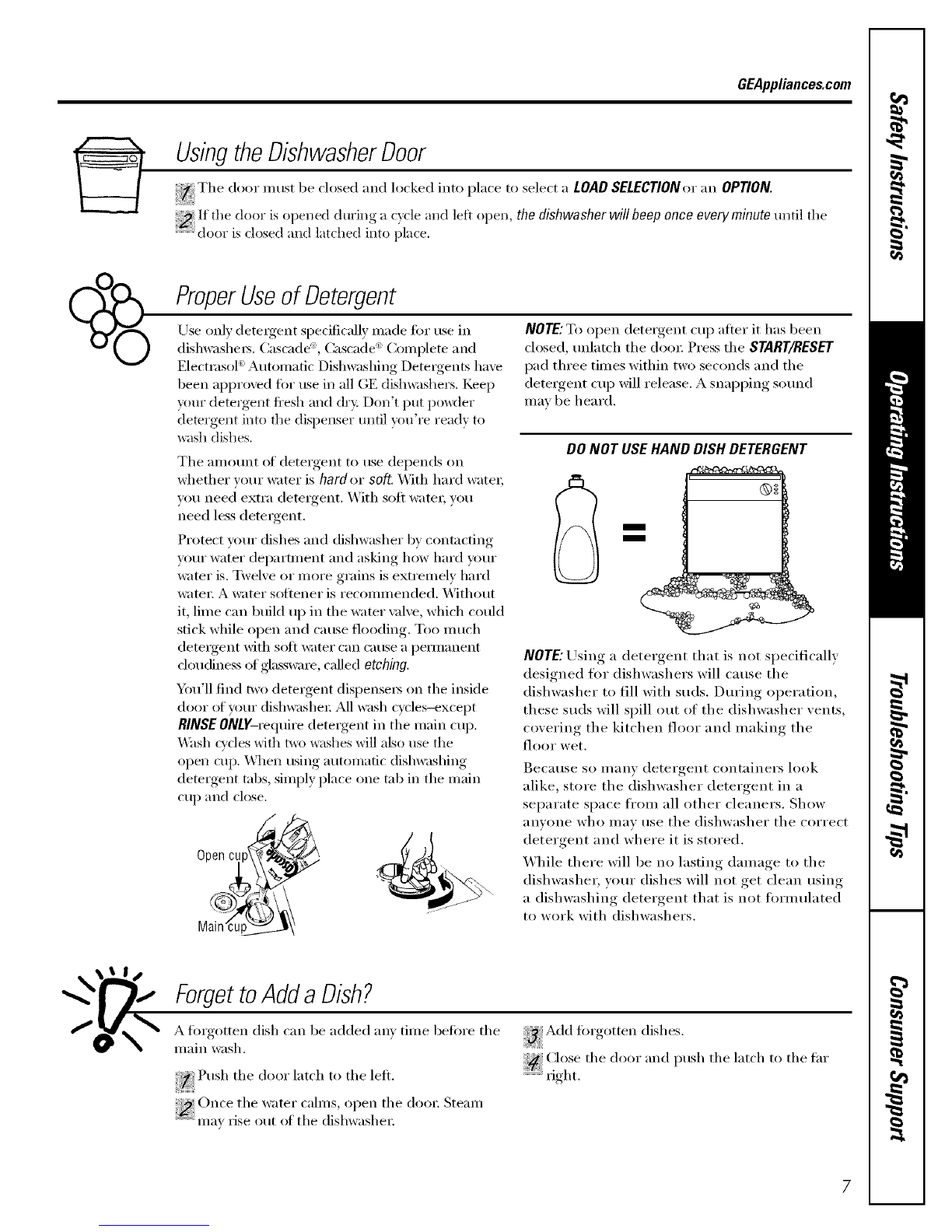

UsingtheDishwasherDoor
Tile door must be closed and locked into place to select a LOADSELECTIONor an OPTION.
It the door is opened during a cycle and left open, the dishwasher will beep once every minute until the
'_* door is closed and latched ii{to place.
ProperUseof Detergent
Use only detergent specifically made tot use in
dishwashers. Cascade:, Cascade': Comi)lete and
ElectmsoP _Automatic Dishwashing Detergents have
been apI)roved fin" use in all GE distm_Mlers. Keep
your detergent fl'esh and (h'_: Don't put powder
detergent into the dispenser until you're ready to
_st_ dishes.
The amount of detergent to use depends on
whether your water is hard or soft. With hard water;
you need extra detergent. _&]th soti water; you
need less detergent.
Promct your dishes and dishwasher by contacting
your water department and asking how hard umr
wamr is. Twelve or more grains is extremely hard
wam_:A water softener is recommended. _4'ithout
it, lime can build up in the water \:five, which could
stick while open and cause flooding. Too nluch
detergent with sott _ter can cause a pemmnent
doucfiness (ff glassware, called etching.
You'll find two detergent dispensers on the inside
door (ff your dishwasher: All wash cycles-except
RINSE ONLY-require detergent in the main cup.
_\hsh cycles with two _z_shes will also rise the
open cup. _\%en using automatic dishwashing
detergent robs, simply place one mb in the main
cup and close.
Opencup_
NOTE'. To open detergent cup atier it has been
closed, unlatch the do(n: Press the START/RESET
pad three times within two seconds and the
detergent cup will release. A snapping sound
may be heard.
DONOT USEHANDDISHDETERGENT
m
m
NOTE: Using a detergent that is not specifically
designed ti)r dishwashers will cause the
dishwasher to fill with suds. Dm'ing operation,
these suds will spill out of the dishwasher vents,
covering the kitchen floor and making the
floor wet.
Because so many detergent containers look
alike, store the dishwasher detergent in a
separate space from all other cleaners. Show
anyone who may use the dishwasher the correct
detergent and where it is stored.
While there will be no lasting damage to the
dishwasher; yore" dishes will not get clean using
a dishwashing detergent that is not tin'mulated
to work with dishwashers.
ForgettoAdd a Dish?
A fi)rgotten dish can be added am time befiwe the
main wash.
Push the door latch to the left.
Once the water cahns, open the do(n: Steam
'_ :_ina_ iJse out of the dishwasher:
Close the door and push the latch to the flu"
iJght.
7

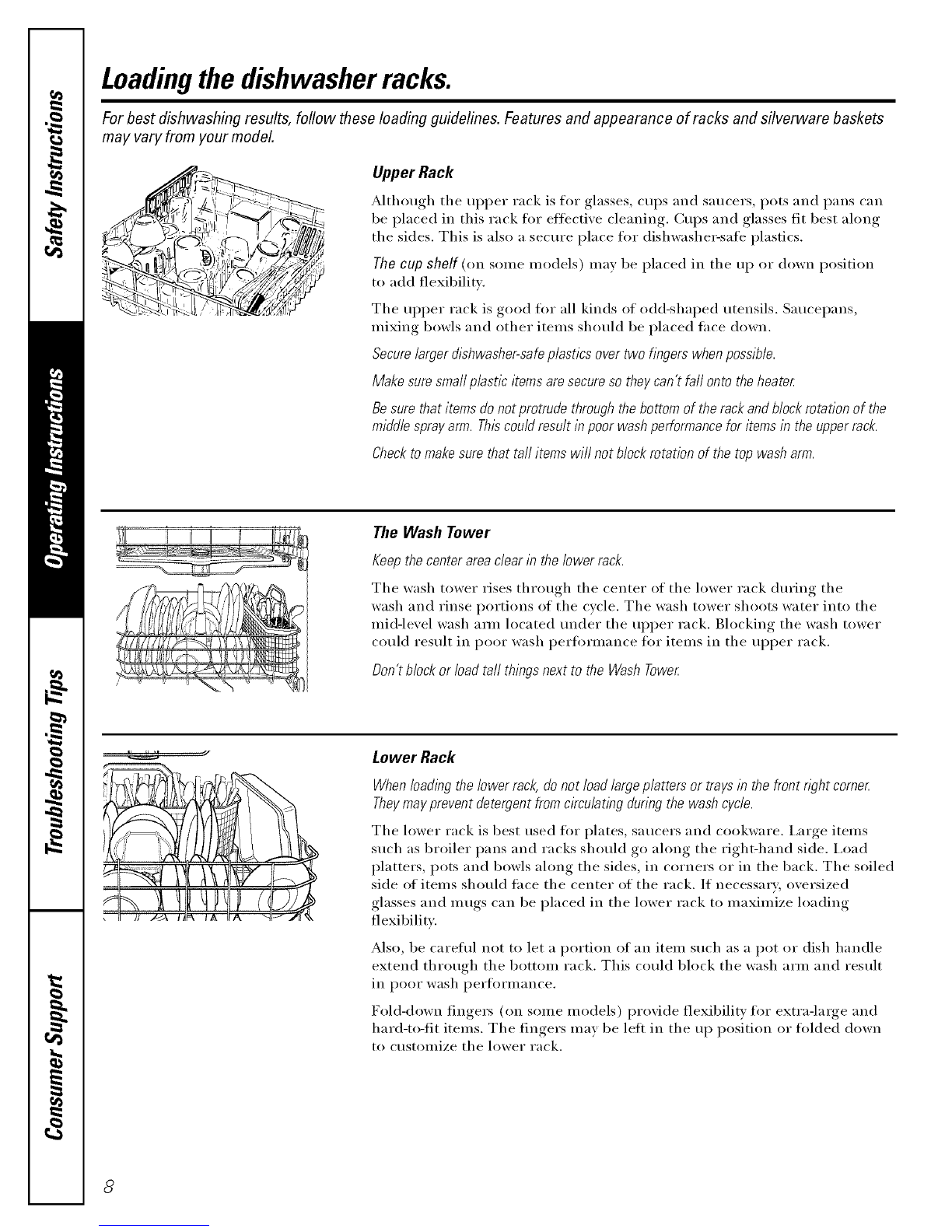

Loadingthedishwasherracks.
For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets
may vary from your model
Upper Rack
Although the upper rack is for glasses, cups and saucers, pots and pans can
be placed in this rack fin" eiI'ective cleaning. Cups and glasses fit best along
the sides. This is also a secm'e place for dishwashe_safe plastics.
The cup shelf (on some models) may be placed in the up or down position
to add flexibility.
The ui)per rack is good fl)r all kinds of odd-shaped utensils. Saucepans,
mixing bowls and other items should be placed tace down.
Securelarger dishwasher-safe plastics over two fingers when possible.
Make suresmall plastic items are secure so they can't fall onto the heater
Besure that items do not protrude through the bottom of the rack and block rotation of the
middle spray arm. Thiscould result in poor wash performance for items in the upper rack.
Checkto make sure that tall items will not block rotation of the top wash arm.
The Wash Tower
Keep the center area clear in the lower rack.
The wash tower rises through the center of the lower rack dm'ing the
wash and rinse portions of the cycle. The wash tower shoots water into the
mid-level wash am_ located trader the ui)per rack. Blocking the wash tower
cotfld restflt in poor wash peril)finance for items in tile ui)per rack.
Don't block or load tall things next to the Wash Tower
Lower Rack
When loading the lower rack, do not load large platters or trays in the front right corner
Theymay prevent detergent from circu/at/bg during the wash cycle.
Tile lower rack is best used fin" plates, saucers and cookware. I,arge items
such as broiler pans and racks should go along tile right-hand side. i,oad
platters, pots and bowls along tile sides, in corners or in tile back. Tile soiled
side of items shotfld face the center of the rack. If necessatT; oversized
glasses and mugs can be placed in tile lower rack to maximize loading
flexibility.
Also, be careflfl not to let aportion of an item such as a pot or dish handle
extend through the bottom rack. This could block the wash arm and res/flt
in poor W_lsh l)eI'J[OI'IIl_lIlCe,
Fold-down fingers (on some models) provide flexibili W for extra-large and
hard-to-fit items. Tile fingers may be left in tile up position or fl)lded down
to customize the lower rack,
8

GEAppliance&com
Oon't let any
item extend
through bottom

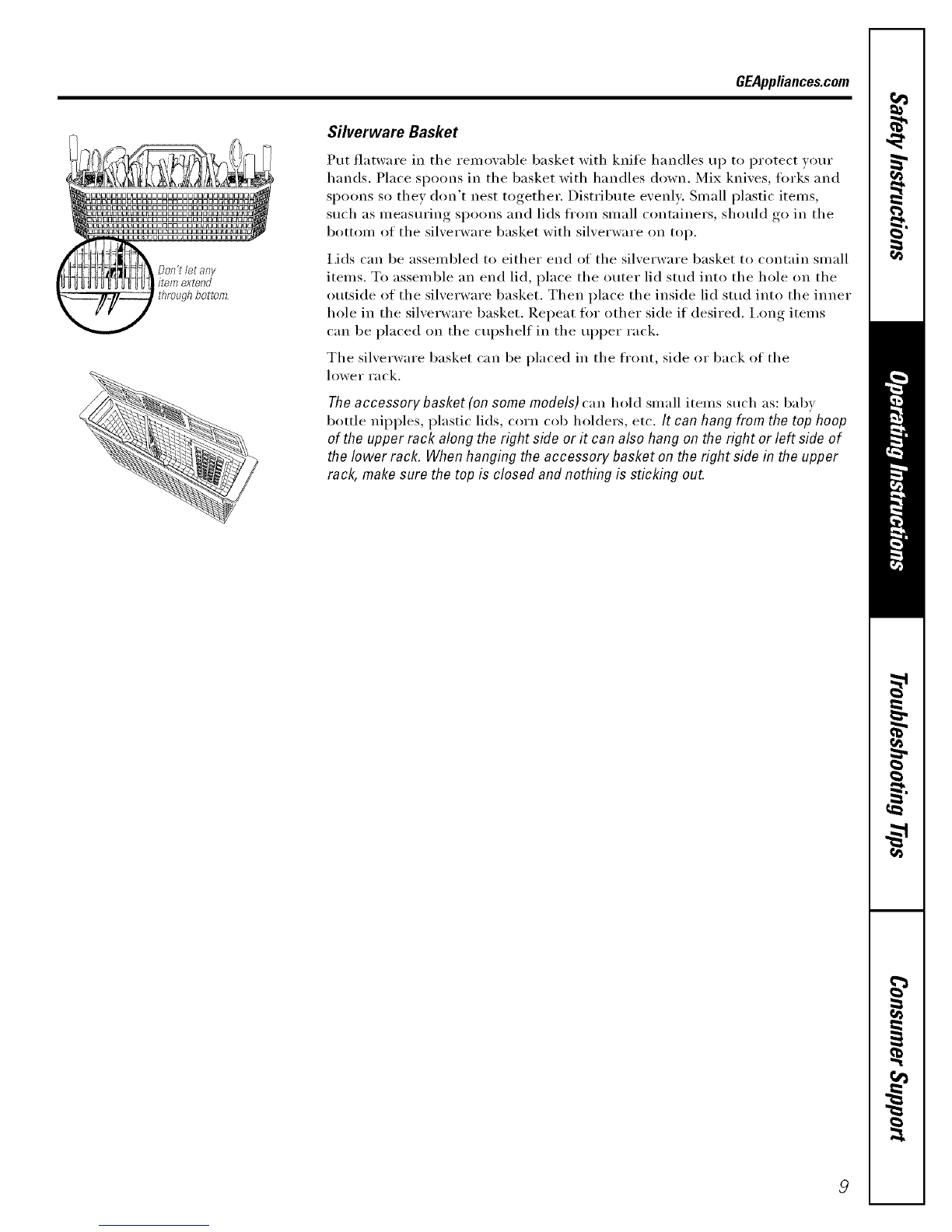

Silverware Basket
Put flatware in the remowfl)le basket with knife handles up to l)rotect your
hands. Place spoons in the basket with handles down. Mix knives, tk)rks and
spoons so they don't nest together. Distribute evenly. Small plastic items,
such as measuring spoons and lids fi'om small containers, should go in the
bottom of the silverware basket with silverware on top.
i,ids can be assembled to either end of the silverware basket to contain small
items. To assemble an end lid, place the outer lid stud into the hole on the
outside of the silverware basket. Then place the inside lid stud into the inner
hole in the silverware basket. Repeat fi)r other side if desired. I,ong items
can be placed on the cupshelf in the Ul_per rack.
The silverware basket can be placed in the fl'ont, side or back of the
lower rack,
The accessory basket (on some models) can hold small items such as: baby
bottle nipples, plastic lids, corn rob holders, etc. It can hang from the top hoop
of the upper rack along the right side or it can also hang on the right or left side of
the lower rack. When hanging the accessory basket on the right side in the upper
rack, make sure the top is closed and nothing is sticking out.
9

Loadingplace settings.
Follow these guidefines for loading 10place settings. Features and appearance of racks and silverware baskets
may vary from your model.
UpperRack--lOplace set#ngs Lower Rack--lO place settings
Foflow these guidefines for loading 12place settings. Features and appearance of racks and silverware baskets
may vary from your model
I '!
_,_----------_i ¸ .__
UpperRack--12p_ce set#ngs LowerRack--12p_ce setfngs
10

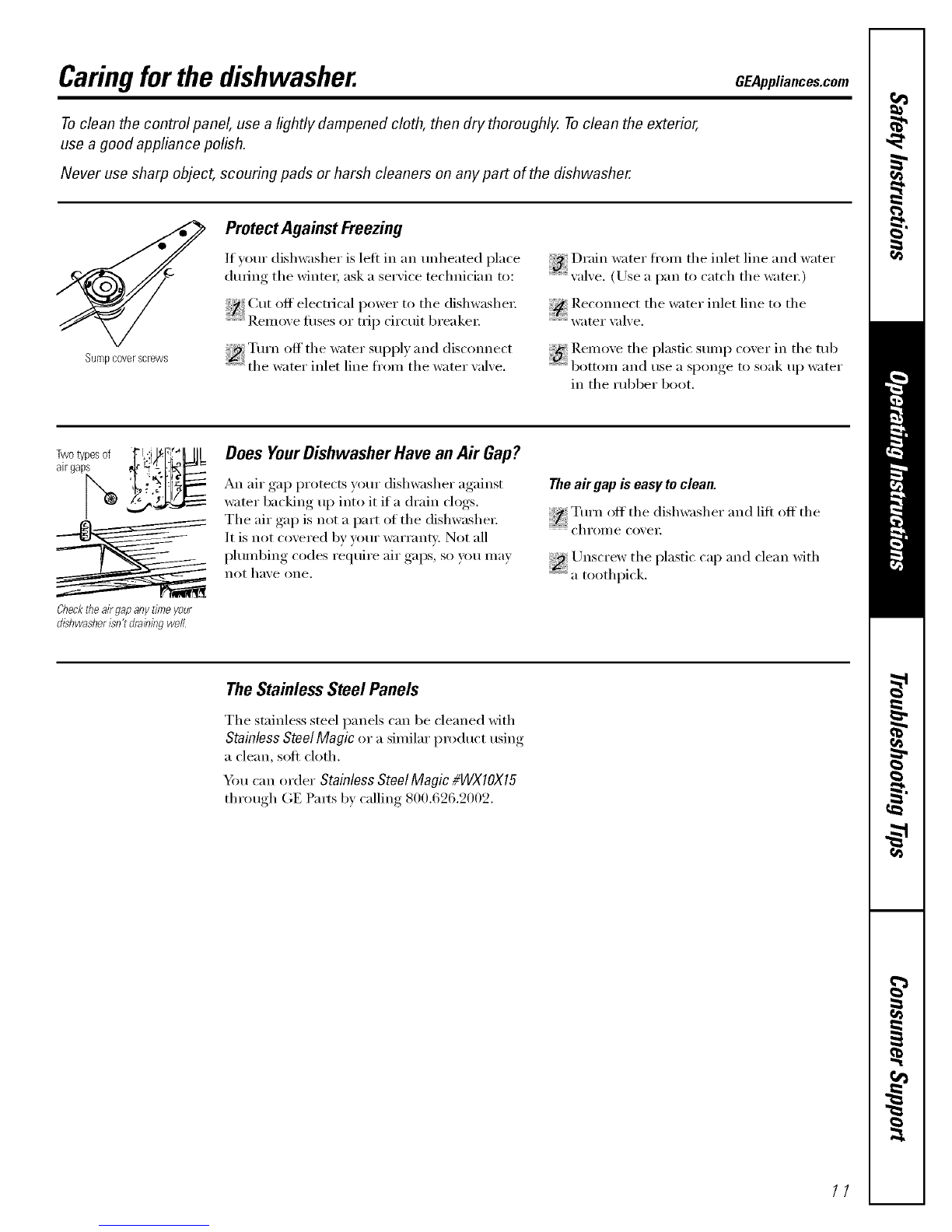

Caringforthe dishwasher. GEAppliances.com
Toclean the control panel, use a lightly dampened cloth, then dry thoroughly. Toclean the exterior,
use a good appliance polish.
Never use sharp object, scouring pads or harsh cleaners on any part of the dishwasher.
Sumpcoverscrews
Protect Against Freezing
If _our dishwasher is left in an unheated place
during the winter; ask a set\ice technician to:
Cut off electrical power to the dishwashei:
Reillo',e tilses or tIJp circtlit breakei:
Turn off the water sui)ply and discmmect
O
............................the water inlet line ti" m the water xalxe.
Drain water fl'om the inlet line and water
valxe. (Use a pan to catch the water:)
Reconnect the water inlet line to the
water x ilxe.
Remoxe the plastic sump coxer in the tub
bottoIl/ and rise a sponge to soak t/I) water
in the rubber boot.
Check the air gap any time your
dishwasher isn't draining well
Does YourDishwasher Have an Air Gap?
An air gap protects your dishwasher against
water backing up into it if a drain clogs.
The air gap is not a part of the dishwasher:
It is not covered by your warrant'. Not all
plumbing codes require air gaps, so pm may
not have one.
Thea# gap is easy to clean.
Turn ,,ff the dishwasher and lift off the
chroi//e covei:
Unscrew the plastic cap and clean with
OO
....................a t thpick.
TheStainless Steel Panels
The stainless steel panels can be cleaned with
Stainless Steel Magic or a similar product using
a clean, soft cloth.
Ymcan order Stainless Steel Magic #WXlOX15
through GE Pa_ts by calling 800.626.2002.
11

Aboutoptionalaccessories.
Youcan change the door and lower access
panel appearance of your dishwasher by
ordering one of these optional accessories:
_: 1/4" Wood Panel TrimKit
_>_3/4" Trimless Wood Panel Kit
These accessories are available at extra cost
(VISA,MasterCard or Discover cards accepted)
by calling 800.626.2002.
Specify accessory number when ordering.
Descriptionsof OptionalAccessories
Woodpanel trim kit-This accessor) contnins
trim andinstructionsfi)r you to supply and install
a 1/4" thick decorative wood door and lower
access panel:
!t,JGPF425A(Almond) !t,JGPF425C(Bisque)
::J_::GPF425B(Black) ::J_::GPF425W(White)
NOTE: The GPFIO0dishwasher door spring kit
II]tlst also be ordered and instnlled when the
door panel weighs four Ibs. or more.
Trimlesswood panel kit-This accessory contnins
parts andinstructionsfin you to SUl)l)lyand install
a 3/4" thick decorative wood door and lower
access panel:
_: GPF475
NOTE"The GPFIO0dishwasher door spring kit
will be included with the trimless wood panel kit
and IlltlSt be instnlled with it.
Aboutrack accessories.
For best results, the
Baby Bottle Holder
should be installed
on the upper rack
of the dishwashe_
BabyBottleBolder
PartNumber:140(69X200
_: Preventsmovementofbabybottlesduring the
dishwashercycle
!'!:_Snapseasilyontoanydishwasherupperrack
_: Eliminateshand washing
::J_::Fitsallbabybottles
Youcanorder a package of5BabyBottle Holders,
atextra cost, by calling800.626.2002,or throughthe
Internetat GEAppliances.com(Visa,MasterCardor
Discovercards accepted).
12

Before youcall forservice... GEAppliances.com
Troubleshooting -tips
Save time and money/. Review the charts on the following pages,
or visit GEAppliances.com. You may not need to call for service.
Problem Possible Causes What To Do
Control panel lights go Thne too long between •Each pad must be touched within 30 seconds of the othe_. To relight,
off when you're setting touclahlg of selected touch any pad again, or tmlock and relatch the dora:
controls pads • T_y resetting the START/RESETpad.
Control panel responded Door latch may not be • Call fin" se_Mce.
to inputs,but dishwasher properly seated
never filled with water
Dishwasher won'trun Fuse is blown, or the • Replace fllse or reset circuit breaker. Remove any other appliances
circuit breaker tripped fl'om the circuit.
• TUresetting the START/RESETpad.
Noise Some of the somads • Soft fi)od disposal shredding action.
you'll hear are normal • Drain valve opening to pump water out.
• Timer control as cycle progresses.
• Detergent cup opening.
• The motor stopping dm_ing the dr)Jng period.
•_4'amr draining out of the tub immediately after you touch the
START/RESETpad.
Utensils are not secure • Make sm'e eve_Tthing is secm'ed in dishwasher:
in the rack or something
sma]l has dropped into
the rack
Motor hmns • Dislm_sher has not been used on a regular basis. If you do not use
yore" dishwasher often, set it to fill and pmnp out once e\'ei Tweek.
This will hel I) kee I) the seal moist and the garbage disposer clean
Water standing in This is normal • A small aulount (ff clean water arotmd the outlet on the tub bottom
the bottom of the tub at the back of the tub keeps the water seal lubricated.
Water wen't pump Drain is dogged • If you have an air gap, clean it.
out of the tub • Check to see if yore" kitchen sink is draining well. If not, you may need
a I)lumbe_:
• If the dishwasher drains into a dispose_; run disposer clea_:
Suds in the tub Correct detergent • Use only automatic dishwasher detexgents to avoid sudsing.
wasn't used Cascade _'_,Cascade '_Complete and Electrasol '_Automatic Dishwashing
Z_ Deteroents have been approved for use in all (;E dishwashe_.
• To remoxe suds from the tub, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close and latch the
dishwasher: Pump out water by pressing the START/RESETpad; then
immediately press the START/RESETpadagain. Repeat if necessary:
Rinse agent
was spilled •Mways wipe up rinse agent spills immediateh:
Stained tub interior Detergent with
colorant was used • Some detergents contain colorant (pigment or dyes) that will discolor
the mb interior with extended use. Check the detergent cup fin" signs
of any discoloration. If cup is discolored, change to detergent without
any colorant. Cascade c_,Cascade <)Complete and Electrasol <')Automatic
Dishwashing Detelgents have been approved for tlse in all
GE dishwashe_.
Some tomato-hased • Use of the RINSE ONLYcvcle (on some models) after adding the dish
foods cml stain to the load can decrease' the level of staining.
Dishes don't dry Low inlet water • Make sure inlet water temperatm'e is correct.
temperature • Select SPEEDDRYer HEATEDDRY.
Rinse agent dispenser • Check the rinse agent dispense_:
is empty [

Beforeyoucall forservice...
Problem Possible Causes What ToDo
Dishesandflatware Inlet water temperatttre •]).;rise tile water heater temi)erature to 120 °F.
not clean is below 120°F •Use HI TEMPWASH.
Water pressure is • Turla on a fim(et. Is water coufing out lnore slowh, than usual?
temporm'ily low If so, wait until pressure is nomml befin'e using your dishwashei:
Air gap is dogged • Clean tile air gap.
Improper rack loading • Make sure large dishware does not block tile detelgent dispenser or
tile wash rams.
Spotsandfilming
onglassesand
flatware
Extremely hard water
Low hflet water
temperature
Overloadh_g the
dishwasher
Improper loading
Old or damp powder
detergent
Rinse agent dispenser
empty
Too little detergent
•Use Jet-Drl #fiuse ageut to rein(we spots and l)re;'eut uew fihn
build-ul).
• To reinove stubborn spots and pre-existing fihn fl'om glassware:
t Remove all metal utensils fi'om the dishwashei;
2Do not add detergent.
3Select the hmgest cycle,
4Start tile dishwasher and allow to run fin" 18 to 22 minutes.
Dishwasher will now be in the main wash.
5Open tile door and pour 9 cups (500 ml) ot white \_negar into file
bottom of tile dislm_sheI:
6Ch)se tile door and allow to coml)lete tile cycle. If vinegar rinse
doesn't work: Rei)eat as above, except use 1/4 cup (60 ml) of citric
acid crvstnls instead ot vinegar.
Cloudiness on Combhmfion of soft • This is called otchit79 and is i)exmaxaent. To prevexat this fl'oxn
glassware water and too much hapl)elfiug, use less detelNeut if you have soft _lteI: _._'ash glass_m'e in
detergent the shortest cycle that will get them clean.
Water temperature • Ix)wet tile water heater temperature.
entering the dishwasher
exceeds 150°F
Yellow orbrown film Tea or coffee stains • Remove tile stnin by hand, using a solution of 1/2 cup bleach and
on tub 3 cups _mm wateI;
Jk WARNING
Before clealfing interioi; _it at least 20 inilmtes after a cycle for tile
heating elemelat to cool down. Faihu'e to do so can result in burns.
An overall yellow or •A special filter in tile water supply line is tile only way to correct this
brown film caa_t be i)robleln. Contact a water softener coml)ai U.
caused by iron deposits
in water
White film on inside Hard water minerals • To clean tile interioi; apply dishwasher deteigent to a damp sponge.
surfaces Wear rubber gloves. Do not use any t)pe of cleanser other than
dishwasher detergent beca use it nlay ca use fi)aming or sudsing.
Cascade':, Cascade: Complete and ElectrasoF Dislm:ashing
Detelgents have been al)proved tor use ill all GE dislm_sheI_.
Detergentcuplid •Unlatch tile door. Press tile START/RESETpadthree times within two
latchedaccidentally seconds. Tile detergent cup will trip.
by user
Detergentleftin Dishes axe blocking the •Reposition tile dishes.
dispensercups detergent cups
Steam This is normal • Steam comes through tile vent by tile door latch during drying and
when water is being I)Uml)ed out.
Blackorgray Alumhmm utensils have • ]_elnove lnarks with a inild, abrasive cleanei:
marks on dishes rubbed agahlst dishes
/4

GEDishwasher Warranty.
Aft warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,
on-line, 24 hours a day, vis# us at GEAppliances.com, or carl
800.GE.CARES(800.432.2737).
Staple your receipt here.
Proofof the original purchase
date is needed to obtain service
under the warrant_
For The Period Of."
One Year
Fromthedate ofthe
onginalpurchase
Second Year
Fromthedate ofthe
onginalpurchase
Five Years
Fromthedate ofthe
onginalpurchase
TenYears
Fromthedate ofthe
onginalpurchase
GE Will Replace:
Anypart of the dishwasher whkh fifils due to a (letect in materials or workn_anshii_. During
this full one-year warranty, GE will also provide, free of charge, all labor and in-home service
to replace the defe(ti\'e part.
Anypart of tile Water DistributionSystem which flfils due to a (lefect in materials or
workmanship. _ssociated inlet and drain phunlfing parts are not covered by this wan'anty.
During this second-year limited warranty, you will be responsible fi)r any labor or in-home
service costs.
The electronic control module, if it should tifil due to a defect in materials or workmanship.
During this five-year limited warranty, you will be responsible fin" any labor oi" in-home
service costs,
The PermaTuf ®tub or door liner, if it tifils to contain water due to a (let_'ct in materials oi"
workmanship, During this full warranty, GE will also provide, free of charge, all labor and
in-home service to replace the defective part,
What Is Not Covered:
• Service trips to your home to teach you how to use
the product.
• hnproper hastallation.
• Failure of the product if it is abused, misused, or used for
other thm_ the intended purpose or used commercially.
• Replacement of house fuses or resetting of circuit
breakers.
• Dmnage to the product caused by accident, fire, floods
or acts of God.
• Incidental or consequential damage caused by possible
defects with this applimace.
• Clemahlg or servicing of the air gap device in the
d_aJn line.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not aflow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. Toknow what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General
Warrantor: General Electric Company.Louisville, KY 40225
15

ConsumerSupport.
qlgEAppliancesWebsite GEAppliances.com
Haxe a question or need assistance with your appliance? Try the GE Appliances _.Vebsite 24 hom_ a da};
'any day of the year! For greater comenience and faster service, you can now download Owner s Manuals,
, O • S I1_order parts, catalogs, or exert schedule set\ice on-line. You can also "_&sk Our Team f Expert._
,VO/II" qtlestions, and so IIl/Ich iiloi'e,,,
ScheduleService GEAppliances.com
Expert GE repair service is only one step awm from veto" doo_: Get on-line and schedule veto" service at
your, conxenience 24 hom_ am' day of the year! Or call 800.GE.(:AI_ES (800.432.2737) during nomml
business hom_.
RealLifeDesignStudio GEAppliances.com
GE supports the Universal Design concept-products, services and enviromnents that can be used by
people of all ages, sizes and capabilities. We recognize the need to design fin" a wide range _ff physical and
mental abilities and impaim/ents. For details of GE's Universal Design applications, including kitchen
design ideas fin" people with disabilities, check out ore" Website to&w: For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
ExtendedWarranties GEAppliances.com
Pro'chase a (;E extended warrant_ and learn about special discotmts that are axailable while )ore" warranty
is still in effect. You can imrchase it on-line an) time, or call 800.626.2224 dtwing nomml business hom_.
GE Consulner Heine Ser\ices will still be there after your warrant} expires.
PartsandAccessories GEAppliances.com
Individuals qualified to se_Mce their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hom_ eve_' day or by
phone at 800.626.2002 dtwing nomml business hom_.
Instructionscontainedin this manualcoverprocedurestobeperformedbyanyuser.Otherservicinggenerally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
ContactUs GEAppliances.com
Ifvou are not satisfied with the service you receive ti'om GE, contact us on our _Vebsite with all the details
including your phone numbe_; or write to: (;eneral Manage_; Customer Relations
GE Appliances, Appliance Park
I,ouisville, KY 40225
lRegisterYourAppl&nce GEAppliances.com
Register your new applim_ce on-lhle-at your convmfience! Timel) product registration will allow fin"
enhanced communication and prompt service trader the tem/s of)our warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material.
,_*"_ Printedin theUnitedStates
_PrintedonRecycledPaper
