arcelik 9464 STA User manual

Document Number :
Bulaşık Makinesi
Kullanma Kılavuzu
9464 STA
Dishwasher
User’s Manual
EN
1728766925_AA_Arcelik_9464 STA_E10_EN/ 26-08-19.(15:07)

Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or
useful hints about usage.
AWarning for hazardous
situations with regard to life
and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.

Document Number :
1728766925_AA_Arcelik_9464 STA_E10_EN/ 26-08-19.(15:07)
Document Number :
9464 STA
Dishwasher
User’s Manual
EN

Explanation of symbols
Throughout this User Manual the following symbols are used:
CImportant information or
useful hints about usage.
AWarning for hazardous
situations with regard to life
and property.
BWarning for electric shock.
Packaging materials of the
product are manufactured
from recyclable materials
in accordance with our
National Environment
Regulations.
Do not dispose of the packaging materials together with the domestic or other
wastes. Take them to the packaging material collection points designated by
the local authorities.
Please read this user manual first!
Dear Customer,
We hope that you get the best results from your product which has been
manufactured with high quality and state-of-the-art technology. Therefore,
please read this entire user manual and all other accompanying documents
carefully before using the product and keep it as a reference for future use.
If you handover the product to someone else, give the user manual as well.
Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models.
Differences between models will be identified in the manual.

CONTENTS
1 
 
General safety ....................................4
Intended use .......................................5
Children’s safety .................................5
Disposing of packaging material.........5
Transportation of the product .............5
Compliance with WEEE Directive and
Disposing of the Wa󰀬e Product .........6
Compliance with RoHS Directive........6
Package information ...........................6
2  

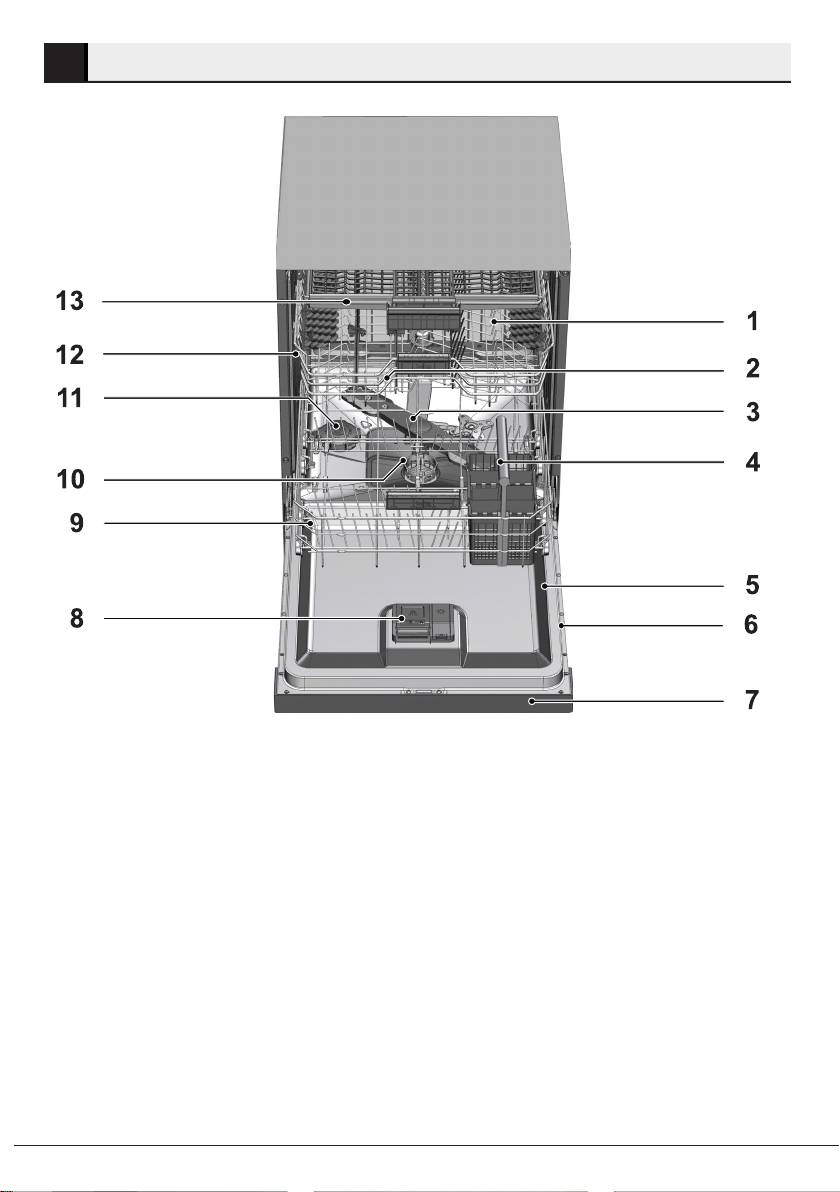

Overview.............................................7
Technical specifications ......................8
3  
Appropriate in󰀬allation location ..........9
Connecting water supply ..................10
Adju󰀬ing the feet ..............................11
Electrical connection......................... 11
Initial use .......................................... 11
 
Tips for energy saving ......................12
Water softening sy󰀬em ....................12
Adju󰀬ing the water softening sy󰀬em12
Adding salt ........................................14
Detergent ..........................................15
Tablet detergents ..............................17
Rinse aid...........................................17
Items not suitable for washing in the
dishwasher .......................................18
Placing the dishes into the
dishwasher .......................................19
Silverware basket piece....................21
Silverware basket .............................21
Cutlery basket ..................................22
Cutlery basket ..................................22
Collapsible lower basket wires (6
pieces) ..............................................23
Collapsible lower basket wires (4
pieces) ..............................................24
Collapsible lower basket wires (2
pieces) ..............................................24
Collapsible lower basket tines ..........25
Collapsible lower basket tines ..........26
Lower basket bottle wire ...................26
SoftTouch Accessory ........................27
Lower Basket Glass Holder ..............27
Tray Wash Supports .........................27
Lower basket multipurpose / height
adju󰀬able service rack .....................28
Upper basket height adju󰀬able rack 29
Upper basket drawer ........................29
Upper basket glass support piece ....29
Upper basket glass support piece ....30
Collapsable upper basket wires........30
Collapsible upper basket tines..........31
Collapsible upper basket tines..........31
Collapsible upper basket wires .........32
Adju󰀬ing the height of the upper
basket ...............................................33
Adju󰀬ing the height of loaded upper
basket ...............................................34
Height setting with empty basket ......35
Adju󰀬ing the height of the upper
basket ...............................................36
Ceiling cutlery basket .......................37
Ceiling cutlery basket .......................37
Upper cutlery basket.........................38

CONTENTS
5 

On/O󰀨 key ........................................40
Programme Selection / Programme
Cancel key ........................................40
Function Keys ...................................40
Preparing the machine .....................40
Programme selection........................40
Auxiliary functions.............................42
Programming the washing time ........43
Starting the programme ....................44
Cancelling the programme ...............44
Salt Indicator ( ) ...........................44
Adju󰀬ing the amount of rinse aid .....45
Rinse Aid Indicator ( ) ....................45
End of programme ............................45
Water Cut-o󰀨 Warning ......................46
Overowing Warning ........................46
6 
 
Cleaning the outer surface of the
product..............................................47
Cleaning the interior of the machine . 47
Cleaning the filters ............................47
Cleaning the hose filter .....................48
Cleaning the impellers ......................49
Lower impeller ..................................49
Upper impeller .................................49
 

4Dishwasher / User’s Manual/54 EN

1
This section contains safety
instructions that will help to
get protected from risk of
personal injury or property
damage. Failure to follow
these instructions shall void
all warranties.

•Never place the product
on a carpet-covered floor;
otherwise, lack of airflow
beneath the product will
cause electrical parts
to overheat. This will
cause problems with your
product.
•Do not operate the product
if the power cable / plug is
damaged! Call the
•Connect the product to a
grounded outlet protected
by a fuse complying
with the values in the
“Technical specifications”
table. Do not neglect
to have the grounding
installation made by a
qualified electrician. The
manufacturer shall not be
liable for any damages
that will arise when the
product is used without
grounding in accordance
with the local regulations.
•The water supply and
draining hoses must be
securely fastened and
remain undamaged.
•Unplug the product when
not in use.
•Never wash the product by
spreading or pouring water
onto it! There is the risk of
electric shock!
•Never touch the plug
with wet hands! Never
unplug by pulling on the
cable, always pull out by
grabbing the plug.
•The product must
be unplugged during
installation, maintenance,
cleaning and repairing
procedures.
•Always have the
installation and repairing
procedures carried out by
the Authorised Service
Agent. Manufacturer
shall not be held liable for
damages that may arise
from procedures carried
out by unauthorised
persons.
•Never use chemical
solvents in the product.
They bring forth the risk of
explosion.
•When you pull the upper
and lower baskets out
completely, the door of
the product will bear all
the weight of the baskets.
Do not put other loads on
the door; otherwise, the
product may tilt.
•Never leave the door
of the product open
apart from loading and
unloading procedures.
•Do not to open the door
of the product when it is
running unless necessary.
Be careful for the rush of
hot steam when you open

Dishwasher / User’s Manual 5 / 54 EN
instructions for safety and environment
the door.

•This product has been
designed for domestic
use.
•It must be used to do the
domestic type dishes only.
•This appliance is intended
to be used in household
and similar applications
such as:
- Staff kitchen areas in shops,
offices and other working
environments;
- Farm houses;
- By clients in hotels, motels
and other residential type
environments;
- Bed and breakfast type
environments
•Only dishwasher safe
detergents, rinse aids and
additives must be used.
•The manufacturer waives
any responsibility arisen
from incorrect usage or
transportation.
•This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical,sensory or
mental capabilities or
lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and
user maintenance shall
not be made by children
without supervision.

•Electrical products are
dangerous for the children.
Keep children away from
the product when it is in
use. Do not let them to
tamper with the product.
•Do not forget to close the
door of the product when
leaving the room where it
is located.
•Store all detergents and
additives in a safe place
away from the reach of the
children.


Packaging materials are
dangerous to children. Keep
packaging materials in a safe
place away from reach of the
children.
Packaging materials of the
product are manufactured
from recyclable materials.
Dispose of them properly
and sort in accordance with
recycled waste instructions.
Do not dispose of them with
normal domestic waste.


6Dishwasher / User’s Manual/54 EN
instructions for safety and environment

AIf you need to move
the product, do it
in upright position
and hold from the
rear side. Slanting
the product onto its
front side may cause
the electronic parts
in it get wet and
damaged.
1. Unplug the product before
transporting it.
2. Remove water drainage
and water supply
connections.
3. Drain the remaining water
in the product completely.


󰀬
This product complies
with EU WEEE Directive
(2012/19/EU). This
product bears a
classification symbol for
waste electrical and electronic
equipment (WEEE).This
product has been
manufactured with high
quality parts and materials
which can be reused and are
suitable for recycling. Do not
dispose of the waste product
with normal domestic and
other wastes at the end of its
service life. Take it to the
collection center for the
recycling of electrical and
electronic equipment. Please
consult your local authorities
to learn about these collection
centers.


The product you have
purchased complies with EU
RoHS Directive (2011/65/EU).
It does not contain harmful
and prohibited materials
specified in the Directive.

Packaging materials of the
product are manufactured
from recyclable materials in
accordance with our National
Environment Regulations. Do
not dispose of the packaging
materials together with the
domestic or other wastes.
Take them to the packaging
material collection points
designated by the local
authorities.

Dishwasher / User’s Manual 7 / 54 EN

2

1. Upper basket
2. Upper impeller
3. Lower impeller
4. Silverware basket
5. Door
6. Rating Label
7. Control panel
8. Detergent dispenser
9. Lower basket
10. Filters
11. Salt reservoir lid
12. Upper basket rail
13. Upper cutlery basket (depends on
model)

8Dishwasher / User’s Manual/54 EN
Dishwasher


This product complies with the following EU directives;
Development, production and sales stages of this product comply with the
safety rules included in all pertaining European Community regulations.
2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242
Power input 220-240 V, 50 Hz (see rating label)
Total power consumption 1800-2100 W (see rating label)
Heater power consumption 1800 W (see rating label)
Total current (depends on the model) 10 A (see rating label)
Drain pump power consumption 30 W (see rating label)
Water pressure 0.3 –10 bar (= 3 – 100 N/cm² = 0.01-
1.0 Mpa)
CTechnical specifications may be changed without prior notice to
improve the quality of the product.
CFigures in this manual are schematic and may not match the product
exactly.
CValues stated on the markings of the product or in the printed
documents accompanying the product are obtained in the laboratory
on basis of the relevant standards. Depending on operational and
environmental conditions of the product, these values may vary.

Data required for performance tests shall be provided upon request. Requests
can be e-mailed to the following address:

Do not forget to provide the code, stock and serial numbers of the product to be
tested in your request e-mail along with your contact information. Code, stock and
serial numbers of the product may be found on the type label attached to the side
wall of the door.

Dishwasher / User’s Manual 9 / 54 EN
3
Refer to the nearest Authorised
Service Agent for installation of your
product. To make the product ready
for use, make sure that the electricity,
tap water supply and water drainage
systems are appropriate before calling
the Authorised Service Agent. If they
are not, call a qualified technician
and plumber to have any necessary
arrangements carried out.
CPreparation of the location
and electrical, tap water and
waste water installations at
the place of installation is
the customer's responsibility.
BInstallation and electrical
connections must be carried
out by the Authorised
Service Agent. Manufacturer
shall not be held responsible
for damages arising from
processes carried out by
unauthorised persons.
APrior to installation, visually
check if the product has any
defects on it. If so, do not
have it installed. Damaged
products cause risks for
your safety.
CMake sure that the water
inlet and discharge hoses
are not folded, pinched or
crushed while pushing the
product into its place after
installation or cleaning
procedures.
When placing the product, pay
attention not to damage the floor, walls,
piping, etc. Do not hold the product by
its door or panel to move it.
󰀬

•Place the product on a solid and
flat floor that has sufficient load
carrying capacity! The product
must be installed on a flat surface
in order for the door to be closed
comfortably and securely.
•Do not install the product at places
where temperature may fall below
0ºC.
•Place the product at least 1 cm
away from the edges of other
furniture.
•Place the product on a rigid floor.
Do not place it on a long pile rug
or similar surfaces.
BDo not place the product on
the power cable.
•Make sure that you select a
location that will allow you to load
and unload the dishes in a fast
and comfortable manner.
•Install the product in a place close
to the tap and the drain hole.
Select the installation location
by considering that it will not be
changed after the connections are
made.

10 Dishwasher / User’s Manual/54 EN
Installation

CWe recommend attaching
a filter on the house/
apartment supply water
inlet to protect the machine
from damages that may
arise from impurities (sand,
dirt, rust, etc.) coming from
the urban water supply
system or from your own
water system as well as to
prevent complaints such
as yellowing or sludge
accumulation at the end of
washing.


•Do not use old or used water inlet
hose on the new product. Use the
new water inlet hose supplied with
the product.
•Connect the water inlet hose
directly to the water tap. Pressure
coming from the tap should be
minimum 0.3 and maximum
10 bars. If the water pressure
exceeds 10 bars, a pressure
relief valve should be installed in
between.
•Open the taps completely after
making the connections to check
for water leaks.
Tightly fix the water discharge hose to
the drainpipe in order to prevent any
dislocation of the water discharge hose
during operation of the product.
min 300
min 120
max 1000
min 500
CUse a screw-on hose
connector to connect the
water inlet hose to a water
tap with a ¾ inch external
thread. If required, use a
filter insert to filter deposits
from the pipes.
CDrainpipe must be
connected to the sewage
system and it should not be
connected to any surface
water.

Dishwasher / User’s Manual 11 / 54 EN
Installation
󰀬
If the door of the product cannot be
closed properly or if the product swings
when you push it slightly, then you
need to adjust the feet of the product.
Adjust the feet of the product as
illustrated in the installation manual
supplied with the product.
ADishwashers door must be
aligned properly otherwise
hot steam can escape!
Danger of serious burns,
other injury or may damage
furniture.

Connect the product to a grounded
outlet protected by a fuse complying
with the values in the “Technical
specifications” table. The manufacturer
shall not be liable for any damages
that will arise when the product is used
without grounding in accordance with
the local regulations.
•Connection must comply with
national regulations.
•Power cable plug must be within
easy reach after installation.
BUnplug the product after the
washing programme is over.
•The voltage and allowed fuse or
breaker protection are specified
in the “Technical specifications”
section. If the current value of
the fuse or breaker in the house
is less than 16 Amps, have a
qualified electrician install a 16
Amp fuse.
•The specified voltage must be
equal to your mains voltage.
•Do not make connections via
extension cables or multi-plugs.
BDamaged power cables
must be replaced by the
Authorised Service Agent.
BIf your dishwasher is
equipped with internal
illumination, lamp should
only be replaced by the
Authorised Service Agent
in case of failures that may
occur on the lamp.
BIf the product has a failure,
it should not be operated
unless it is repaired by the
Authorised Service Agent!
There is the risk of electric
shock!

Before starting to use the product,
make sure that all preparations
are made in accordance with the
instructions in sections “Important
safety instructions” and “Installation”.
•To prepare the product to do the
dishes, perform first operation
in the shortest programme with
detergent while the machine is
empty.
AThere might be a small
amount of water left in the
product after factory quality
control tests. This has no
harm on the product.

12 Dishwasher / User’s Manual/54 EN

4

Following information will help you
use the product in an ecological and
energy-efficient manner.
Wipe away any coarse food remnants
on the dishes before putting them in
the product.
Operate the product after filling it
completely.
When selecting a programme, consider
the table of "Programme data and
average consumption values".
Do not put more detergent than
suggested on the detergent package.
󰀬
The product is equipped with a water
softening system which reduces the
hardness of incoming water. This
system softens the supply water to a
level that will allow washing the dishes
with the required quality.
CThe mains water hardness
must be softened if it is over
7°dH. Otherwise, hardness
ions will accumulate
on the dishes that are
washed and may affect
the washing, rinsing and
drying performances of the
machine.
󰀬
󰀬
Cleaning, rinsing and drying
performance of your dishwasher will
increase when water softening system
is adjusted properly.
Adjust the new water hardness level
according to the Water hardness level
instruction in this booklet.
Use the test strip supplied with the
product according to the steps given
below to determine hardness level of
your supply water.

Dishwasher / User’s Manual 13 / 54 EN
Preparation
After determining hardness level of the supply water:
1. After turning on your machine, press and hold the Time Delay and Start / Pause
/ Cancel keys respectively.
2. Using the Time Delay key, turn on 9 and 3 LEDs.
3. Use the function keys to adjust the water hardness level.
4. Press On / Off key to save the setting.

Hardness Level English Water
Hardness °dE
German Water
Hardness °dH
French Water
Hardness °dF Water Hardness Level Indicator
Level 0 0-5 0-4 0-8 Press the 1st programme key to set the water
hardness setting to position 1.
Level 1 6-9 5-7 9-13
Level 2 10-15 8-12 14-22 Press the 2nd programme key to set the water
hardness setting to position 2.
Level 3 16-19 13-15 23-27 Press the 3rd programme key to set the water
hardness setting to position 3.
Level 4 20-24 16-19 28-34 Press the 4th programme key to set the water
hardness setting to position 4.
Level 5 25-62 20-50 35-90 Press the 5th programme key to set the water
hardness setting to position 5.
In order to protect your glassware against glass corrosion in an optimal way, you
have to perform the same hardness settings, which you have made in the control
panel, with the regeneration setting switch.
For example, if you have adjusted to “3rd level” in the control panel, also set the
regeneration adjustment switch to 3rd level.
Regeneration Adjustment Switch
0th Level 1st Level 2nd Level 3rd Level 4th Level 5th Level
1 1 2 3 4 5
If the hardness level of the supply water is above 90 °dF or if you are using well
water, then it is recommended to use water purification devices and special filters.
If the hardness level of the supply water is below 13°dF, there is no need to use
salt in your dishwasher. If this is the case, “No Salt Warning Indicator” (if any)
illuminates continuously on the panel of your machine.

14 Dishwasher / User’s Manual/54 EN
Preparation
CSalt reservoir will be filled
with water when you start
the product. For this reason,
add salt before operating the
machine.
1. Firstly, take the lower basket out to
add softening salt.
2. Turn the salt reservoir lid counter-
clockwise to open it (A).
3. Add 1 litre of water to salt reservoir
of your machine only in initial use.
4. Fill the salt reservoir with salt by
using the salt funnel (D). To speed
up dissolution rate of salt in water,
stir it with a spoon.
CYou can put about 2 kg of
softening salt into the salt
reservoir.
5. Replace the lid and tighten it when
the reservoir is full.

Water softening system needs to be
regenerated in order for the product
operates with the same performance
continuously. Dishwasher salt is used
for this purpose.
CUse only special softening
salts produced particularly
for the dishwashers in your
machine.
CIt is recommended to use
granule- or powder-formed
softening salts in the
water softening system.
Do not use salts that do
not completely dissolve in
water such as table salt or
rock salt. Otherwise the
performance of the system
may deteriorate in time.
If the water hardness level adjustment
is set to level 1, the “No salt warning
indicator” will illuminate continuously
although it is not necessary to use salt.
If you use salt under this condition,
salt will not be consumed and the Salt
indicator will not illuminate.
CIf you move your house,
it is necessary to readjust
water hardness level of your
machine by considering the
information given above
according to the hardness
level of the supply water
in your new location. Your
machine will display the
most recently adjusted water
hardness level.

Dishwasher / User’s Manual 15 / 54 EN
Preparation
CYou need to add salt right
before starting the machine.
Thus, the overflowing
salty water will be flushed
immediately, preventing
the risk of corrosion in
machine. In cases where
you would not start washing
immediately, run your
machine empty in the
shortest program.
CSince different salt brands
in the market have different
particle sizes and since the
water hardness may vary,
dissolution of the salt in
water may take a couple
of hours. Therefore, Salt
Indicator remains on for a
while after adding salt into
the machine.

You can use powder, liquid/gel or tablet
detergents in the machine.
AOnly use in the machine
the detergents produced
particularly for use
with dishwashers. We
recommend you not use
detergents that contain
chlorine and phosphate
as they are harmful for the
environment.

CPay attention to the
warnings on the detergent
packaging to get better
washing and drying results.
Contact the manufacturer
of the detergent for further
questions.
ADo not put solvents into the
detergent dispenser. There
is the risk of explosion!
Put the detergent into the detergent
dispenser just before operating the
machine as illustrated below.
1. Push the latch to right to open
the detergent dispenser lid (A).
(depends on model)
2. Put suggested amount of powder,
liquid/gel or tablet detergent in the
reservoir.

16 Dishwasher / User’s Manual/54 EN
Preparation
CInside the detergent
dispenser there are level
markings that help you
use appropriate amount of
powder detergent. When
brimful, detergent dispenser
will contain 45 cm³ of
detergent. Fill detergent up
to 15 cm³ or 25 cm³ level
marks in the detergent
dispenser according to
fullness of the machine and/
or soiling degree of the
dishes. One tablet is enough
if you are using detergent
tablets.
3. Push the lid of the detergent
dispenser to close it. A "click" will
be heard when the lid is closed.
1
2
3
CUse powder or liquid/
gel detergent in short
programmes without
prewash since the solubility
of the tablet detergent
changes depending on the
temperature and time.

Dishwasher / User’s Manual 17 / 54 EN
Preparation

In addition to the conventional
tablet detergents, there are also
commercially available detergent
tablets that show water softening salt
and/or rinse aid effect. Some types
of these detergents contain special-
purpose components such as glass
and stainless steel protectors. These
tablets show their effects up to a
certain water hardness level (21°dH).
Water softening salt and rinse aid
must also be used together with the
detergent if the water hardness level is
above the mentioned level.
CThe best washing
performance in dishwashers
is obtained by using
detergent, rinse aid and
water softening salt
individually.
CObserve the instructions of
the detergent manufacturer
on the package when using
tablet detergents.
CContact the detergent
manufacturer if your dishes
are wet and/or if you notice
limescale spots particularly
on your glasses after the
washing programme is
over when using a tablet
detergent.


1. Make sure that salt and rinse aid
reservoirs are full.
2. Set the water hardness to the
highest level and perform an empty
run.
3. After the empty washing cycle,
review the user manual and
readjust the water hardness level
so as to suit the water supply.
4. Make the appropriate rinse aid
settings.

CThe rinse aid used in
dishwashers is a special
combination that aims to
increase drying efficiency
and prevent water or lime
stains on the washed items.
For this reason, care must
be paid to have rinse aid in
the rinse aid reservoir and
to use rinse aids produced
specially for dishwashers
only.
