Artusi ABBQ1B User manual

APPLIANCES
FOR LIVING
BUILTINBARBECUEFORHOME
OUTDOOR & INDOORUSE
OPERATION MANUAL
MODELS
ABBQB ABBQB ABBQB ABBQMB ABBQMB
ABBQMB ABBQM ABBQM ABBQM

2
Rev.13052022
WELCOME TO THE ART OF LIVING
Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI and
welcome to the ARTUSI Family.
This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has
to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.
We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read this
section you will be able to choose the most appropriate settings for your appliance when cooking different types of food.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
REGISTER YOUR WARRANTY ONLINE NOW AT WWW.EUROLINX.SUPPORT
Note: This user manual is prepared for more than one model.
Some of the features specied in this Manual may not be available on your appliance.
All our appliances are only for domestic use, not for commercial use.
Products marked with (*) are optional.
“THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE
REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE.
READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE”
THIS APPLIANCE IS CONCEIVED FOR DOMESTIC USE ONLY. THE MANUFACTURER SHALL NOT IN ANY WAY BE
HELD RESPONSIBLE FOR WHATEVER INJURIES OR DAMAGES ARE CAUSED BY INCORRECT INSTALLATION OR
BY UNSUITABLE, WRONG OR ABSURD USE.
THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED
PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE UNLESS
THEY HAVE BEEN GIVEN , SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A
PERSON RESPONSIBLE FOR THEIR SAFETY . CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY
DO NOT PLAY WITH THE APPLIANCE .
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualied person in
order to avoid a hazard.
WHERE THIS APPLIANCE IS INSTALLED IN MARINE CRAFT OR IN CARAVANS, IT SHALL NOT BE USED AS A SPACE
HEATER. DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION. DO NOT USE OR
STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE. DO NOT MODIFY THIS APPLIANCE.
TO REGISTER
YOUR WARRANTY

3
Rev.13052022
Product description 5
Components 7
Important safety instructions 9
Assembling the barbecue 12
Gas Connection 17
Installation Procedure 19
Gas cylinder safety information 22
Installation instructions 27
Application of the thin cover or cooking hood 36
Usage instructions 38
Igniting the BBQ 40
Cleaning and care 42
Maintenance 44
Troubleshooting 45
Warranty 47
CONTENTS

4
Rev.13052022
IMPORTANT
This Artusi BBQ is certied for both outdoor and indoor installation under certicates #
GAS-105435-005 (outdoor certication to ASNZS5263.1.7-2016) and GAS-105435-004
(indoor certication to ASNZS5263.1.1-2020 ) issued by Global-Mark. Some differences
exist re-installation requirements for indoor and outdoor use:
1. Indoor installation requires a 1200mm clearance between BBQ
and rangehood whereas outdoor installation requires 600mm
2. Indoor installation does not require an interlock
3. Indoor installation is not approved for use with cooking hood
4. Indoor installation is not approved with internal gas bottle

5
Rev.13052022
PRODUCT DESCRIPTION
INTEGRATED BARBECUE WITH THIN COVER
1. Thin cover (Suitable for indoor and outdoor use)
2. Battery compartment cover
3. Gas connection point
4. Burner controls
5. Grill groups (2 sets)
6. Cooking plate
7. Removable oil collection drip plan located in front of the barbecue (not shown)
8. Flame diffusers (2 pcs.) located under the grills (not shown)
7
1
2
3
4
5
6

6
Rev.13052022

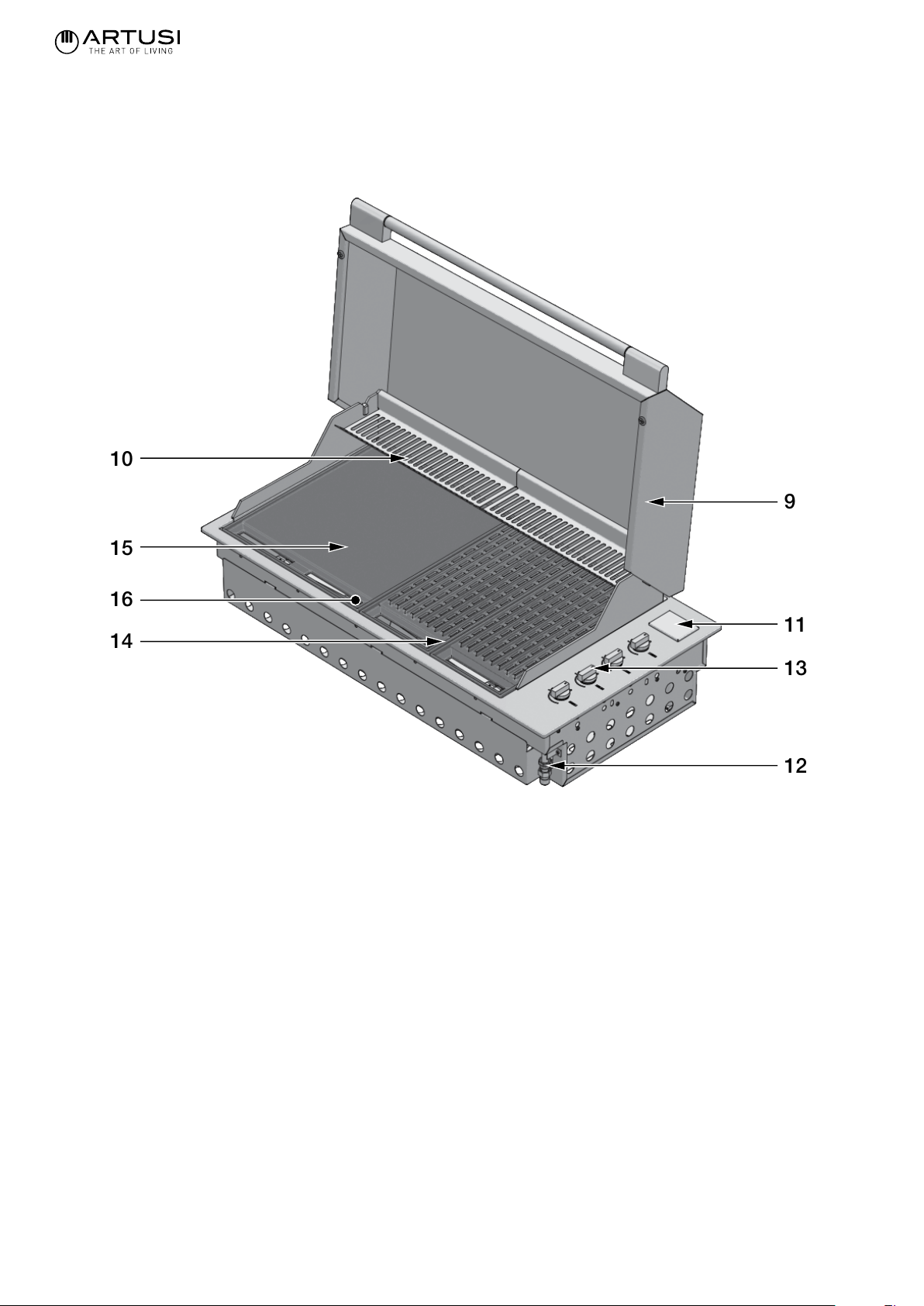

INTEGRATED BARBECUE HIGH COVER
9. High cover (Outdoor use only)
10.Heating racks
11.Battery compartment cover
12.Gas connection point
13.Burner controls
14.Grill group
15.Cooking plate
16.Removable oil collection drip plan located in front of the cooking surface (not shown)
17.Flame diffusers (2 pcs.) located under the grills (not shown)
16
9
11
12
13
14
15
10

7
Rev.13052022

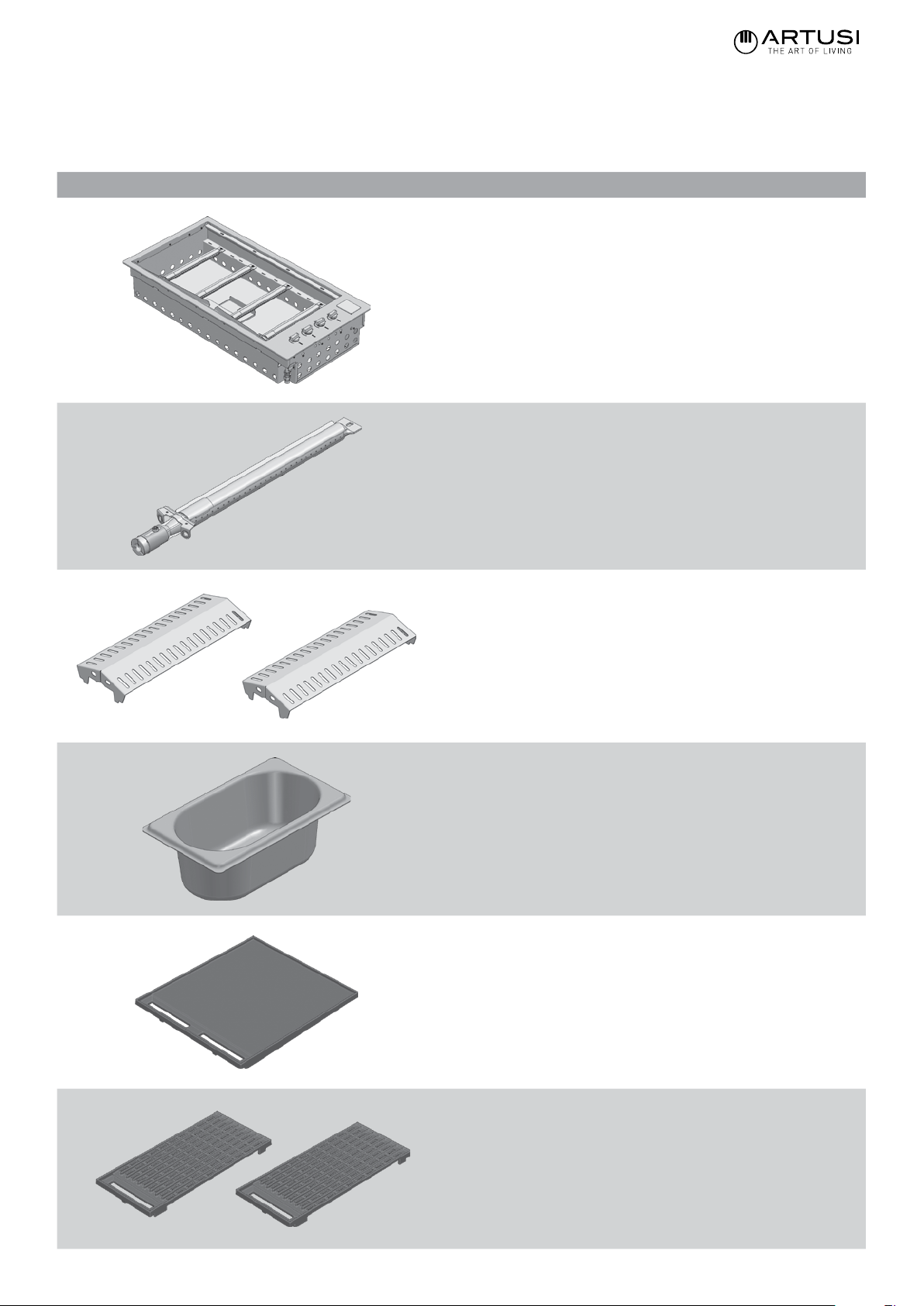

DESCRIPTION QTY
Burner box and external prole 1
Burners
2 for 60cm model
3 for 80cm model
4 for 100cm model
Flame diffusers
2 for 60cm model
3 for 80cm model
4 for 100cm model
Oil tray 1
Solid cooking plate
only for 80 and 100cm models. 1
Grill groups
2 for 60cm model
3 for 80cm model
4 for 100cm model
COMPONENTS

8
Rev.13052022
Universal LPG regulator and hose
(OUTDOOR USE ONLY) 1
Natural gas regulator and braided
hose if required
(INDOOR OR OUTDOOR USE)
HOSE NOT
SUPPLIED
CONFIGURATION 1
High cover for cooking
(OUTDOOR USE ONLY) 1
CONFIGURATION 2
Low cover
(INDOOR OR OUTDOOR USE) 1

9
Rev.13052022
FOR YOUR OWN SAFETY, YOU SHOULD READ THIS MANUAL BEFORE OPERATING THE BARBECUE.
USE
Carefully read the user manual and keep it in a handy place for future reference.
Below, we explain the meaning of the symbols used in this manual:
ATTENTION
This symbol indicates information relating to the user’s personal safety
WARNING
This symbol indicates information on how to prevent damage to the appliance
TIPS AND INFORMATION
This symbol indicates tips and information about the use of the appliance
SUGGESTION FOR THE ENVIRONMENT
This symbol indicates information for the economical and ecological use of the appliance
This symbol indicates a prohibited action
ATTENTION
The appliance MUST only be installed and serviced by qualied and authorized personnel.
Improper installation, modication, adjustment or maintenance can cause personal injury or property damage.
Contact your nearest Service Centre for further information.
NOTE FOR THE INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE OWNER FOR FUTURE REFERENCE
Only use a licensed gas tter to install this barbecue and other trades as applicable; electrician, carpenter, bricklayer.
IMPORTANT SAFETY INSTRUCTIONS

10
Rev.13052022
Do not lean over barbecue while lighting.
Do not leave the barbecue unattended when it is on.
Do not delay ignition once the gas is opened.
Do not store or use aerosol sprays near the barbecue.
Do not store inammable liquids near the barbecue.
Do not use abrasive or caustic detergents on the barbecue.
Do not operate the barbecue with the cover closed.
Do not attempt to disassemble or adjust the control valves.
Do not attempt to disassemble or adjust the cylinder regulator (not supplied) but, if necessary, replace with a new one.
Do not use an open ame to check for leaks.
Do not modify the structure of the appliance and do not modify the dimensions of the injector orice.
Do not obstruct the ventilation openings of the barbecue.
Do not allow children to operate the barbecue or play near it.
Keep any electrical wires and fuel hoses away from hot surfaces.
Never store a spare gas cylinder near the barbecue.
Do not use or store ammable materials near this appliance.
Do not spray aerosols in the vicinity of this appliance while it is in operation.
Do not use this appliance as a space heater.
Do not modify this appliance.
Do not place articles on or against this appliance.
This appliance reaches high temperatures. Be especially careful when children and elderly persons are present
Keep children under the age of eight years away, if not constantly supervised.
Never attempt to extinguish a ame/re with water: turn off the appliance and cover the ame with a cover or a re blanket.
Be careful when handling gas cylinders even if they appear empty, in compliance with current safety rules.
(For LPG installation only)

11
Rev.13052022
Do not use dented or rusty gas cylinders. (For LPG installation only)
Do not disconnect the gas cylinder from the appliance when it is on. Perform any service on the gas cylinder far away from
the appliance. (For LPG installation only)
Only turn the burners on with the cover lifted
If the knob becomes difcult to rotate, have the taps checked by an authorized service centre.
Lower the cover, accompanying it with your hand and make sure that nothing is obstructing its proper closure.
When cooking with the cover closed keep an eye on the thermometer: if the temperature exceeds 350 °C, lift the cover to
prevent dangerous overheating. (Applies to models with hooded lid - Outdoor use only)
Do not leave objects on the cooking surfaces.
Never use the appliance to heat the area.
Always close the inlet connection / manual shut off vale after use (for Natural Gas connections) or always close the valve of
the gas cylinder after use. (For LPG connections)
THE MANUFACTURER’S LIABILITY:
The manufacturer will not be liable for personal injury or property damage caused by:
• any use of the appliance other than anticipated;
• failure to follow the instructions of the user manual;
• tampering with any part of the appliance;
• use of other than original parts.

12
Rev.13052022
TOOLS NEEDED FOR ASSEMBLY:
- Phillips screwdriver
1. Remove all components from the box.

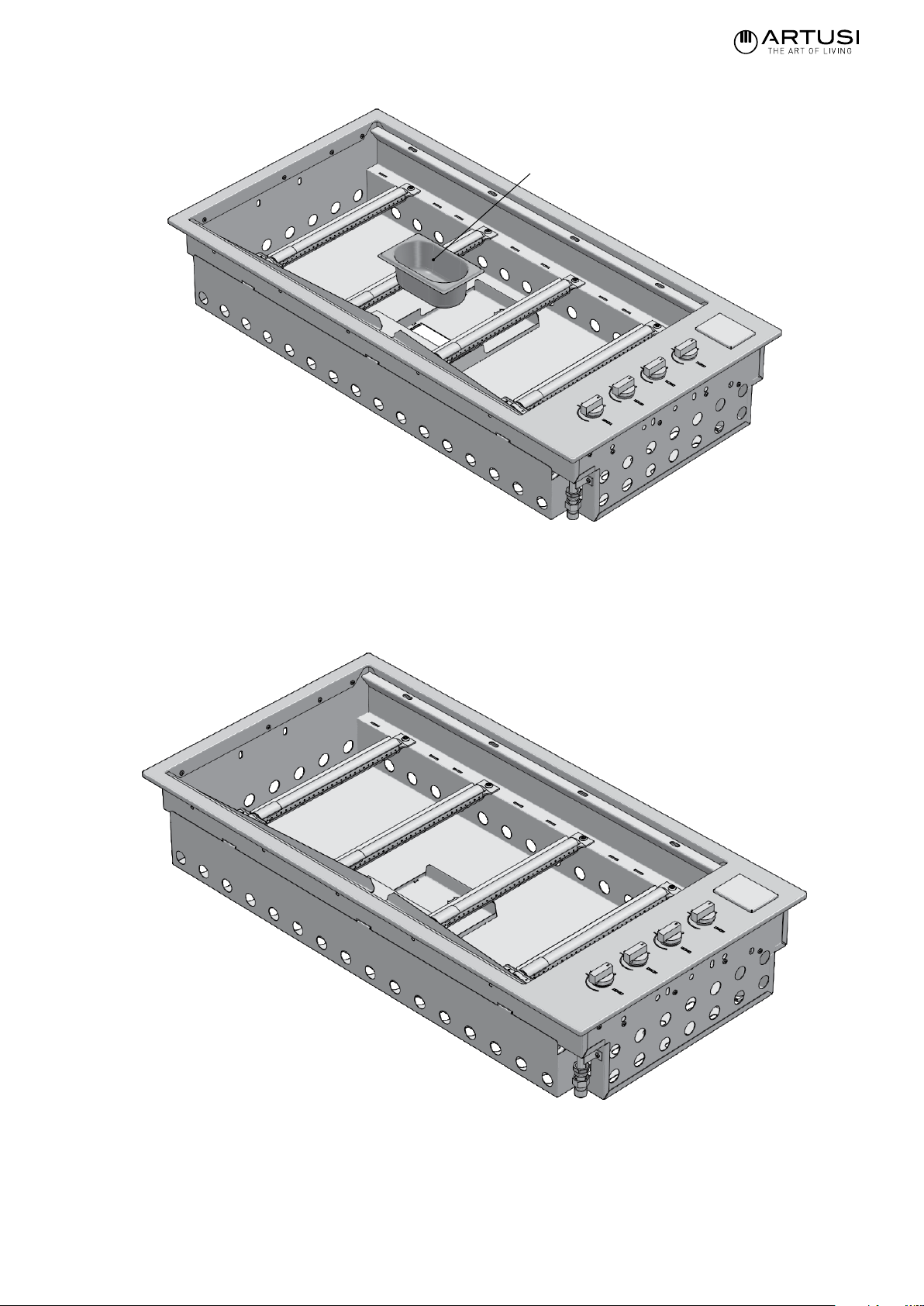

2. Place the ame diffusers in the desired positions (under the points (A) in which the grill sections will be placed) and attach
the rear edge of the ame diffuser to the rear of the body of the barbecue.
ASSEMBLING THE BARBECUE
BACK
BACK
FRONT
FRONT

13
Rev.13052022
3. Apply the oil drip pans to the front of the barbecue.
BACK
FRONT
FRONT
BACK
DRIP TRAY

14
Rev.13052022
4. Place the cooking plate and grill sections in the desired positions, making sure that the ame diffusers are under the grill
sections.
NOTE: Make sure that the grill groups are correctly oriented so that the surface of the grill is tilted forward to allow the oil
to drain into the drip pan.
5. After installation in the counter, connect the thin cover or cooking hood area as described in the chapter “Application of
the thin cover or cooking hood” in this manual.
BACK
FRONT

15
Rev.13052022
GAS TYPE (Applies to all models) NATURAL GAS UNIVERSAL LPG
Nominal heat input (MJ/h) / Per Burner 13 13
Injector diameter (1/100mm) 170 100
Number of injectors 1 1
Pressure (kPa 1 2,75
Primary air regulation (mm) 20mm 20mm
Adapting to different types of gas. Conversion to another gas type must be carried out by a authorised by a person.
If the appliance is congured for a different type of gas than that available, you have to replace the injectors with ones
corresponding to the type of gas to be used (see table above). The replacement will be made using an adequate 7 mm spanner
after having lowered the burners as in the following images. After replacing the injector, regulate the air to 20mm for natural gas
and to 20mm for LPG.
To adjust the minimum, after lighting the burner, remove the knob and the gasket below and rotate the screw of the tap (B - see
page 21), which should be totally closed for LPG and opened about 3/4 turn for natural gas, keeping in mind that a ame lower
than 3 mm may not even be “perceived” by the thermocouple of the tap. After regulating the minimums, replace the gaskets
and knobs.
1 - Unscrew the xing screws of the burner.
BACK
FRONT

16
Rev.13052022
2 - Lower the burner and replace the injector.
NOTES
• The appliance MUST only be installed and serviced by qualied and authorised personnel.
• The product is designed for indoor or outdoor use.
PLEASE FOLLOW THIS MANUAL DEPENDING ON YOUR INSTALLATION PREFERENCE
• The product must be installed according to the instructions, which require ventilation openings to allow the grill to work properly.
The lack of adequate ventilation to supply air to the appliance can lead to poor operation of the burners or excessive heat build-
up in the installation compartment.
BACK
FRONT
FRONT

17
Rev.13052022
GAS CONNECTION (OUTDOOR USE ONLY)
• The unit’s ventilation openings must not be covered during installation.
REFER TO AS/NZS 5601 (GAS INSTALLATIONS) AND FOLLOWING PAGE FOR FURTHER DETAILS
Connect the appliance to the cylinder or system according to the requirements of current law, making sure that the appliance is
congured for the type of gas available. If not, see: “Adapting to different types of gas”. Also check that the feed pressure falls
within the values shown in the table: “Gas specications”.
RIGID AND SEMI-RIGID METAL AND RUBBER HOSE CONNECTIONS MUST BE APPROVED TO AS/NZS 1869 FOR
HOSE ASSEMBLIES AND AS 4631 FOR SEMI-RIGID CONNECTORS FOR GAS.
Make the hook-up with metal ttings and pipes (even exible hoses) so as not to stress the components inside the appliance.
A rubber hose connection complies with current law only if the hose can be inspected along its entire length and easily replaced
near the expiration indicated on the hose.
NOTE: - After installation, use soapy water to check the perfect seal of the entire connection system.
DO NOT USE AN OPEN FLAME TO CHECK THE GAS SEAL.
I. For connection to 9Kg portable gas cylinders please refer to page 33
II. For connection to a xed LPG Supply: It is possible to connect this barbecue to a xed LPG reticulated piping system which
may supply gas to other appliances in the building. The installation must be carried out by a licenced gas tter in accordance
with AS/NZS 5601 and any relative Building Code/Statutory Regulations. The gas tter must check the appliance data label
to conrm the gas type prior to installation, ensure that the barbecue is operating correctly and show the customer how to
operate the barbecue on completion of installation
III. For connection to a xed natural gas supply: It is possible to connect this barbecue to a xed natural gas piping reticulated
system. The installation must be carried out by a licenced gas tter in accordance with this instruction manual, AS/NZS 5601
and any relative Building Codes/Statutory Regulations. The gas tter must check the appliance data label to conrm the gas
type prior to installation, ensure that the barbecue is operating correctly and show the customer how to operate the barbecue
on completion of the installation
IMPORTANT NOTES RELATING TO FIXED INSTALLATION BARBECUES
• For barbecues designed for built in xed installation: please ensure that the clearances referred to on pages 24, 26, 28 & 35
of this manual are observed and adhered to
• For barbecue designed for built in xed installation
I. Before each use remove any accumulated grease and other cooking residue
II. Check the hose & regulators, if they appear to be damaged in any way, have a licenced gas tter replace them
IMPORTANT NOTES RELATING TO CONNECTION VIA PORTABLE LPG CYLINDER
• For barbecues connected via 9Kg portable LPG cylinder: Should the cylinder be housed in a closed compartment under the
barbecue, minimum free ventilation at high and low level of 20,000mm squared is required as per AS/NZS 5601 Appendix J
Clause J3.4 (d) Please refer to pages 32-33 of this manual for assistance
• For barbecues connected via 9Kg portable LPG cylinder: The barbecue is supplied with a hose and regulator already
attached to the barbecue manifold
I. Attach the regulator end of the hose assembly to the LPG cylinder
II. Ensure that the valves on the barbecue are in the off position
III. Turn the cylinder valve on and apply a soapy water solution to all of the joints to ensure there are no gas leaks. If bubbles
form at any of the joints this indicates a gas leak and the cylinder valve should be turned off and the joints tightened.
IV. If the gas leak persists, turn the cylinder valve off and contact an authorised installer/dealer for assistance
V. Never look for gas leaks with a naked ame
VI. Check the hose & regulator assembly on a regular basis and if found to be damaged, have it replaced. It is recommended
that these components be replaced every ve years
VII. Inspect the gas cylinder routinely to ensure the test date is not overdue. Cylinder should be re-tested and certied every
10 years
VIII. Before each use remove any accumulated grease & any other cooking residue

18
Rev.13052022
GAS CONNECTION (INDOOR USE ONLY)
GAS CONNECTION
Connect the appliance to the piping system according to the requirements of current law, making sure that the appliance is
congured for the type of gas available. If not, see: “Adapting to different types of gas”. Also check that the feed pressure falls
within the values shown in the table: “Gas specications.
CONNECTION USING HOSE ASSEMBLIES OR SEMI-RIGID CONNECTORS FOR GAS
If installing this appliance with a semi rigid hose assembly connector for gas, the hose assembly must be certied to
AS/NZS 1869 Class B or D with a length of no more than 1.2 metres. The semi-rigid connector must be certied to AS 4631.
(Ref AS/NZS5601.1 (refer to Clause 6.6.1)
NOTE: - After installation, use soapy water to check the perfect seal of the entire connection system.
DO NOT USE AN OPEN FLAME TO CHECK THE GAS SEAL.
Refer to AS/NZS 5601.1 for (6.3) GAS APPLIANCE LOCATION, (6.4) AIR SUPPLY TO GAS APPLIANCES & (6.10.1.7)
Barbecues in residential premises; minimum vertical clearance to an overhead grease lter or overhead combustible surface is
1200mm.
Maximum height of the top of the grill with respect to the surface that supports the appliance is 10mm.

19
Rev.13052022
INSTALLATION PROCEDURE FOR ULPG
50 45490
AS/NZS 5601
Test point adaptor-
Ensure arrow is pointing
In the correct direction
Hose with tapered
thread (thread tape
required)

20
Rev.13052022
CONVERSION TO ANOTHER GAS TYPE MUST BE CARRIED OUT BY AN AUTHORISED SERVICE TECHNICIAN
CONVERSION PROCEDURE
NORMAL LPG TO NG
Regulator - ensure
arrow is pointing
the correct direction
Hose with tapered
thread - thread tape
required
• Disconnect and disassembled/remove plates, burners etc.
• Remove injectors and replace with correct sizes for each burner.
• Adjust aeration (X) per every burner
• Re-assemble burners.
• Turn gas on and test for leaks, repair if necessary.
• Light the burners and set the pressure to 1,00kPa.
• Turn burner “Low” setting and adjust setting accordingly.
• Check operation of ignition etc.
• Ensure data plate is changed with the new data plates supplied in the product.
For Natural Gas connection a bayonet connection point should be installed by a licensed gas tter prior to installing
the barbecue unit.
