AP-605CM12 CAT12 LTECellular Module | Installation Guide 1
AP-605CM12 CAT12 LTECellular Module
Installation Guide
The AP-605CM12 CAT12 LTEcellular module is designed to be used with AP-605R access point.
Package Contents
nAP-605CM12 LTE CAT12 Cellular Module x 1
Installation
1. Find the SIM ejector needle at the bottom of the cellular module. See Figure 1

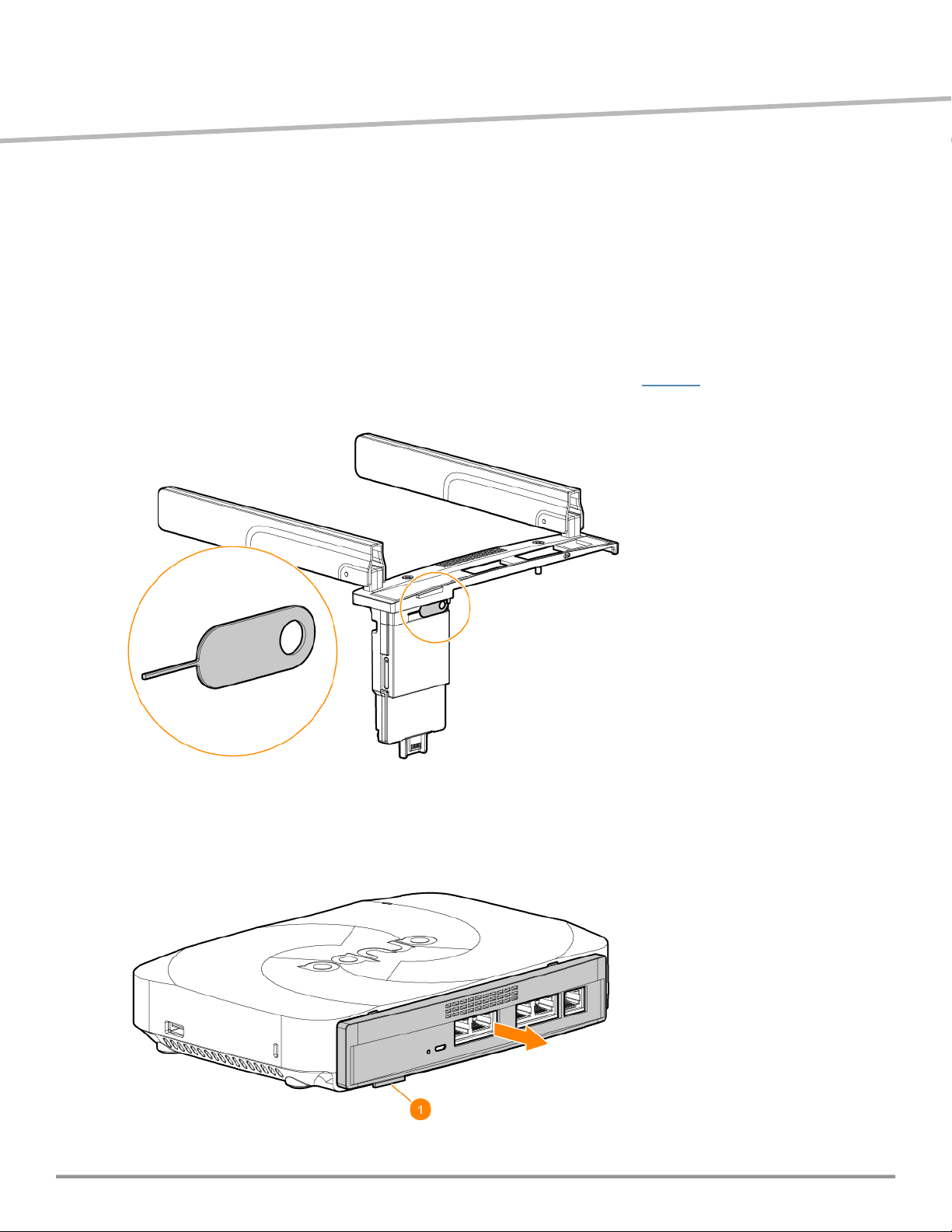

Figure 1 SIM Ejector Needle Location
2. Remove the back cover from the AP-605R access point by pulling the mounting tab outward. If
necessary, insert the round end of the SIM ejector needle between the mounting tab of the back cover
and the access point, and gently twist the SIM ejector needle to loosen the back cover and remove it.
Figure 2 Removing Back Cover from Access Point

2| 0512271-04|August 2023
1 Mounting tab

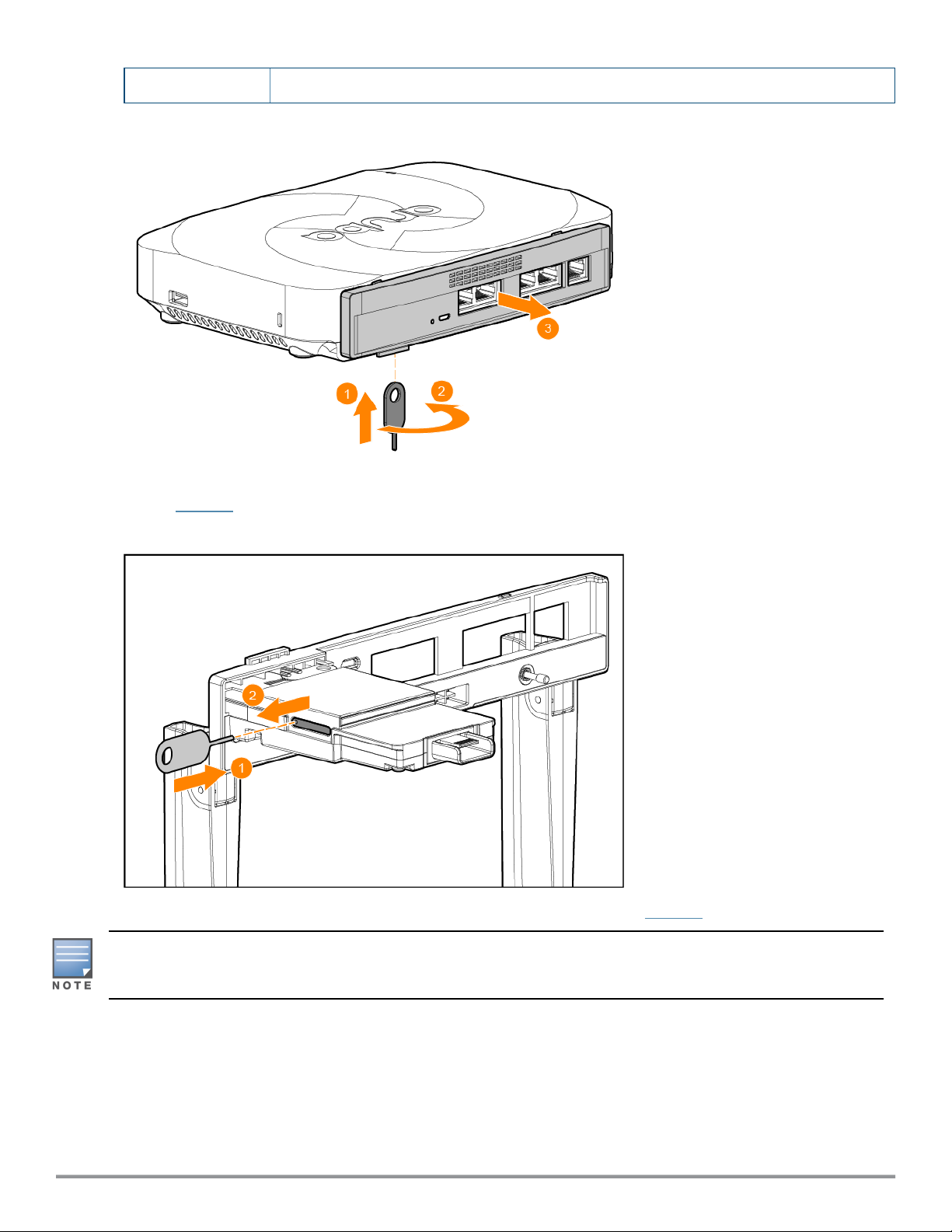

Figure 3 Removing Back cover by Using SIM Ejector Needle
3. Insert the SIM ejector needle into the small hole on the SIM card tray. The SIM card tray will pop open.
See Figure 4.
Figure 4 Opening the SIM Card Tray
4. Pull out the SIM card tray and insert a SIMcard into the SIM tray. See Figure 5
The SIM card tray has two SIMcard slots - SIM slot 1 and SIM slot 2. At any given time, only one SIM card is active and
functional, the SIM slot 1 and SIM slot 2 can not be used simultaneously. If you have only one SIM card, it is
recommended to insert your SIM card to the SIM slot 1.
5. Push the SIMcard tray back into the slot.

Figure 5 Inserting a SIM Card
6. Align the AP-605CM12 cellular module with the opening in the access point.
7. Insert the AP-605CM12 cellular module into the access point and tighten the two M3 captive screws
using a PH2 Phillips screwdriver or a slotted screwdriver. See Figure 6
Figure 6 Installing Cellular Module onto Access Point
Removing AP-605CM12 CAT12 LTECellular Module
1. Unfasten the two M3 captive screws using a PH2 Phillips screwdriver or a slotted screwdriver.
2. Press the mounting tab on the cellular module, and pull the cellular module out. See Figure 7.
0512271-04 | August 2023 | 3

4| 0512271-04|August 2023
Figure 7 Removing Cellular Module from the Access Point
1 Captive screws
2 Mounting tab
Regulatory Model Number
The following regulatory model number (RMN) for AP-605CM12
nAP-605CM12 RMN: APINCM12
Safety and Regulatory Compliance
United States
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Changes or modifications to this unit not expressly approved by HPE Aruba Networking, can void the user’s
authority to operate this equipment.
Canada
This Class B digital apparatus complies with Canadian ICES-003. This device contains licence-exempt
transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s
licence-exempt RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference that may cause undesired operation of
the device.

Canada
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L’émetteur/récepteur
exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et
Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:1) L’appareil ne doit pas produire de brouillage;2) L’appareil doit
accepter tout brouillage adioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
EU &UK Regulatory Conformity
The Declaration of Conformity made under Radio Equipment Directive 2014/53/EU as well as the United
Kingdom's Radio Equpment Regulations 2017/UKis available for viewing below. Select the document that
corresponds to your device’s model number as it is indicated on the product label.
nEU & UK Declaration of Conformity (http://www.hpe.com/eu/certificates)
Wireless Channel Restrictions
Radio Frequency Range MHz Max EIRP
WCDMA Band 1 1922.4 – 1977.6 29.50
WCDMA Band III 1712.4 – 1782.6 27.96
WCDMA Band V 826.4 – 846.6 25.88
WCDMA Band VIII 882.4 – 912.6 26.14
LTE Band 1 1922.5 – 1977.5 29.50
LTE Band 3 1710.7 – 1784.3 27.96
LTE Band 5 824.7 – 848.3 25.88
LTE Band 7 2502.5 – 2567.5 29.22
LTE Band 8 880.7 – 914.3 26.14
LTE Band 20 834.5 – 859.5 25.96
LTE Band 28 704.5 – 746.5 26.97
LTE Band 38 2572.5 – 2617.5 29.40
LTE Band 40 2302.5 – 2397.5 28.59
LTE Band 41 2498.5 – 2687.5 29.40
0512271-04 | August 2023 | 5

6| 0512271-04|August 2023

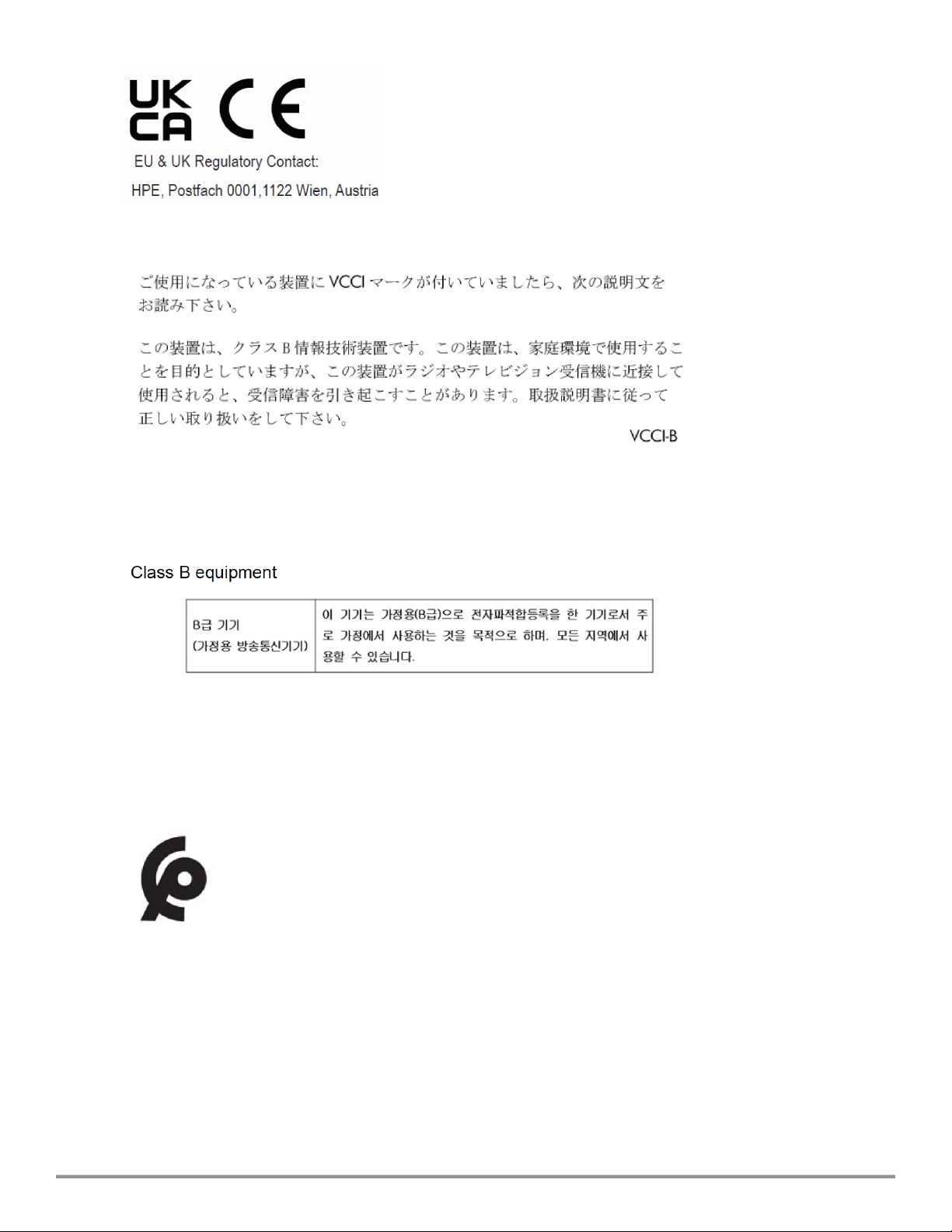

Japan
This is a Class B product. In a domestic environment this product may cause radio interference in which
case the user may be required to take corrective actions.
Korean
Taiwan
減少電磁波影響，請妥適使用
Morocco

Нормативные требования Евhразийского Экономического Союза
Russia
HPE Russia: ООО "Хьюлетт Паккард Энтерпрайз" Российская Федерация, 125171,
г. Москва, Ленинградское шоссе, 16А, стр.3, Телефон: [phone] Факс: +7
499 403 4677
'HPE Kazakhstan': TOO «Хьюлетт-Паккард (К)», Республика Казахстан, 050040, г.
Алматы, Бостандыкский район, проспект Аль-Фараби, 77/7, Телефон/факс: + 7
727 355 35 50
Kazakhstan
ЖШС "Хьюлетт Паккард Энтерпрайз" Ресей Федерациясы, 125171, Мәскеу, Ленинград тас жолы, 16A
блок 3, Телефон: [phone] Факс: [phone]
ЖШС «Хьюлетт-Паккард (К)», Қазақстан Республикасы, 050040, Алматы к., Бостандык ауданы, Әл-
Фараби даңғ ылы, 77/7, Телефон/факс: [phone]
Waste of Electrical and Electronic Equipment
HPE Aruba Networking products at end of life are subject to separate collection and treatment in the EU
Member States, Norway, and Switzerland and therefore are marked with the symbol shown below
(crossed-out wheelie bin). The treatment applied at end of life of these products in these countries shall
comply with the applicable national laws of countries implementing Directive 2012/19/EU on Waste of
Electrical and Electronic Equipment (WEEE).
India RoHS
This product complies with RoHS requirements as prescribed by E-Waste (Management & Handling) Rules,
governed by the Ministry of Environment & Forests, Government of India.
0512271-04 | August 2023 | 7

8| 0512271-04|August 2023
China RoHS
