SMA 485 User manual

485BRD-10-IA-en-12 | Version 1.2 ENGLISH
Installation Manual
485 Data Module Type B

Legal Provisions SMA Solar Technology AG
2 485BRD-10-IA-en-12 Installation Manual
Legal Provisions
The information contained in this document is the property of SMA Solar Technology AG. Publishing
its content, either partially or in full, requires the written permission of SMA Solar Technology AG.
Any internal company copying of the document for the purposes of evaluating the product or its
correct implementation is allowed and does not require permission.
SMA Warranty
You can download the current warranty conditions from the Internet at www.SMA-Solar.com.
Trademarks
All trademarks are recognized, even if not explicitly identified as such. A lack of identification does
not mean that a product or symbol is not trademarked.
The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
and any use of these marks by SMA Solar Technology AG is under license.
Modbus® is a registered trademark of Schneider Electric and is licensed by the Modbus
Organization, Inc.
QR Code is a registered trademark of DENSO WAVE INCORPORATED.
Phillips® and Pozidriv® are registered trademarks of Phillips Screw Company.
Torx® is a registered trademark of Acument Global Technologies, Inc.
SMA Solar Technology AG
Sonnenallee 1
34266 Niestetal
Germany
Tel. [phone]
Fax [phone]
www.SMA.de
E-mail: [email protected]
© 2004 to 2014 SMA Solar Technology AG. All rights reserved.

SMA Solar Technology AG Table of Contents
Installation Manual 485BRD-10-IA-en-12 3
Table of Contents
1 Information on this Document. . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Validity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Target Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Typography . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Appropriate Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Scope of Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Product Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 485 Data Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Type Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.1 Safety during Electrical Connection. . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.2 Mounting Position and Cable Routing . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3 Installing the 485 Data Module in the Inverter . . . . . . . . . . . . . . . . . 13
5.4 Preparing the Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.5 Preparing the Cable Gland on the Inverter . . . . . . . . . . . . . . . . . . . . 15
5.6 Connecting the Cables to the 485 Data Module . . . . . . . . . . . . . . . 17
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7 Decommissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1 Disassembling the 485 Data Module . . . . . . . . . . . . . . . . . . . . . . . . 20
7.2 Packaging the 485 Data Module for Shipping. . . . . . . . . . . . . . . . . 20
7.3 Disposing of the 485 Data Module . . . . . . . . . . . . . . . . . . . . . . . . . 20
8 Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
9 Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Table of Contents SMA Solar Technology AG
4 485BRD-10-IA-en-12 Installation Manual

SMA Solar Technology AG 1 Information on this Document
Installation Manual 485BRD-10-IA-en-12 5
1 Information on this Document
1.1 Validity
This document is valid for the device type "485BRD-10" (485 Data Module Type B).
1.2 Target Group
The tasks described in this document must be performed by qualified persons only. Qualified persons
must have the following skills:
• Training in how to deal with the dangers and risks associated with installing and using electrical
devices and plants
• Training in the installation and commissioning of electrical devices and plants
• Knowledge of all applicable standards and directives
• Knowledge of how an inverter works and is operated
• Knowledge of and compliance with this document and all the safety precautions
1.3 Additional Information
Links to additional information can be found at www.SMA-Solar.com:
1.4 Symbols
Document title Document type
RS485 Cabling Plan Technical description
Symbol Explanation
Indicates a hazardous situation which, if not avoided, will result in death
or serious injury
Indicates a hazardous situation which, if not avoided, could result in death
or serious injury
Indicates a hazardous situation which, if not avoided, could result in minor
or moderate injury
Indicates a situation which, if not avoided, could result in property damage
Information that is important for a specific topic or goal, but is not
safety-relevant
☐ Indicates an essential requirement for achieving a specific goal
☑ Desired result
✖ A problem that might occur

1 Information on this Document SMA Solar Technology AG
6 485BRD-10-IA-en-12 Installation Manual
1.5 Typography
1.6 Nomenclature
In this document, the "485 Data Module Type B" is referred to as "485 data module".
Typography Explanation Example
bold • Display texts
• Elements of a user interface
•Terminals
• Elements to be selected
• Elements to be entered
• The value can be read from the
Energy field.
• Select Settings.
•Enter the value 10 in the
Minutes field.
>• Connects several elements to
be selected • Select Settings > Date.
[Button/Key] • Button or key to be selected or
pressed • Select [Next].

SMA Solar Technology AG 2 Safety
Installation Manual 485BRD-10-IA-en-12 7
2 Safety
2.1 Appropriate Usage
The 485 data module enables you to setup cable-connected RS485 communication.
The 485 data module can be retrofitted, or installed in the inverter at the factory if specified in the
order.
The inverter still complies with the standard after the product has been installed.
The 485 data module is suitable for installation in the following SMA inverters:
Use this product only in accordance with the information provided in the enclosed documentation and
with the locally applicable standards and directives. Any other use may result in personal injury or
property damage.
For safety reasons, it is not permitted to modify the product or install components that are not explicitly
recommended or distributed by SMA Solar Technology AG for this product.
The enclosed documentation is an integral part of this product.
• Read and observe the documentation.
• Keep the documentation in a convenient place for future reference.
Sunny Tripower Windy Tripower
STP 5000TL-20
STP 6000TL-20
STP 7000TL-20
STP 8000TL-20
STP 9000TL-20
STP 10000TL-20
STP 12000TL-20
WTP 5000TL-20
WTP 6000TL-20
WTP 7000TL-20
WTP 8000TL-20
WTP 9000TL-20

2 Safety SMA Solar Technology AG
8 485BRD-10-IA-en-12 Installation Manual
2.2 Safety Precautions
This section contains safety precautions that must be observed at all times when working on or with
the product.
To prevent personal injury or property damage and to ensure long-term operation of the product,
read this section carefully and follow the safety precautions at all times.
Electric shock due to live voltage
High voltages that can cause fatal electric shocks are present in the live components of the inverter.
• Prior to performing any work on the inverter, always disconnect the inverter from any voltage
sources as described in the corresponding installation manual (see inverter installation
manual).
Risk of burns due to hot enclosure parts
Some parts of the inverter enclosure can get hot during operation.
• During operation, touch the inverter on the enclosure lid and the protective cover only.
Damage to the 485 data module or the inverter due to electrostatic discharge
Touching electronic components on the 485 data module or in the inverter can cause damage to
or destroy the 485 data module and the inverter through electrostatic discharge.
• Earth yourself before touching any components.
• Avoid any contact with components and plug contacts.

SMA Solar Technology AG 3 Scope of Delivery
Installation Manual 485BRD-10-IA-en-12 9
3 Scope of Delivery
Check the scope of delivery for completeness and any externally visible damage. Contact your
specialist dealer if the delivery is incomplete or damaged.
If the 485 data module has already been installed in the inverter at the factory, only those parts
necessary for electrical connection are included in the scope of delivery.
Figure1: Components included in the scope of delivery
Item Number Designation
A 1 485 data module
B 1 M4x10 screw
C2Plastic spacer
D1Metal spacer
E 1 M25 cable gland with sealing plug, cable support sleeve with
one hole and M25 counter nut
F 1 Cable support sleeve with two holes for M25 cable gland
G2 Copper foil
H 2 Spring-cage connector
I1Terminator
K 1 Installation manual, RS485 cabling plan
L 1 Expanding rivet
M 1 Plastic foil for isolating the communication connection from the
AC connection

4 Product Description SMA Solar Technology AG
10 485BRD-10-IA-en-12 Installation Manual
4 Product Description
4.1 485 Data Module
The 485 data module enables you to setup cable-connected RS485 communication.
4.2 Type Label
The type label clearly identifies the 485 data module. The type label is located on the front of the
485 data module.
Figure2: Layout of the type label (example)
You require the information on the type label for customer support from the SMA Service Line.
The type label must remain permanently attached to the 485 data module.
Item Designation
A Holes for attaching the data module using the plastic spacers
B Sockets to plug in the spring clamp terminals
C Hole for attaching the plastic foil
D Shield clamps
E Hole for attaching the data module using the metal spacer
FType label
Item Explanation
A Number of the production order
B Version of the 485 data module
C Device type
D Serial number

SMA Solar Technology AG 5 Electrical Connection
Installation Manual 485BRD-10-IA-en-12 11
5 Electrical Connection
5.1 Safety during Electrical Connection
Danger to life due to electric shock
High voltages that can cause fatal electric shocks are present in the live components of the inverter.
• Prior to performing any work on the inverter, always disconnect the inverter from any voltage
sources as described in the corresponding installation manual (see inverter installation
manual).
Damage of components due to electrostatic discharge
Touching electronic components on the module or in the inverter can cause damage to or destroy
the module and the inverter through electrostatic discharge.
• Earth yourself before touching any components.
• Avoid any contact with components and plug contacts.

5 Electrical Connection SMA Solar Technology AG
12 485BRD-10-IA-en-12 Installation Manual
5.2 Mounting Position and Cable Routing
Figure3: Mounting position and cable route in the inverter with the enclosure lid open
Item Designation
A Mounting position
BCable route
C Optional cable route
D Socket to plug in the 485 data module

SMA Solar Technology AG 5 Electrical Connection
Installation Manual 485BRD-10-IA-en-12 13
5.3 Installing the 485 Data Module in the Inverter
1. Disconnect the inverter from voltage sources on the AC and DC sides and open it
(see the inverter installation manual).
2. Attach all spacers in the inverter.
• Insert the plastic spacers into the holes.
• Screw the metal spacer into the screw
connection (torque: 3.5 Nm ± 0.3 Nm).
3. Insert the module in the inverter. Position the plug at
the bottom of the 485 data module in the socket
and lead the spacers through the holes in the 485
data module.
☑ The 485 data module audibly clicks into place.
4. Fasten the 485 data module using the screw
M4x10 and a Torx screwdriver (T 20)
(torque: 3.5 Nm ± 0.3 Nm).

5 Electrical Connection SMA Solar Technology AG
14 485BRD-10-IA-en-12 Installation Manual
5.4 Preparing the Cables
Requirement:
☐ The cable requirements are complied with (see Technical Description "RS485 Cabling Plan").
☐ Diameter of the cable when using the cable support sleeve with one hole: at maximum 17 mm
☐ Diameter of the cable when using the cable support sleeve with two holes: at maximum 6.5 mm
Depending on whether the inverter is located at the end or in the middle of the communication bus,
prepare one or two cables as described in the following:
1. Remove 40 mm of the cable sheath at the end of the cable to be connected to the
485 data module.
2. Shorten the cable shield to 15 mm.

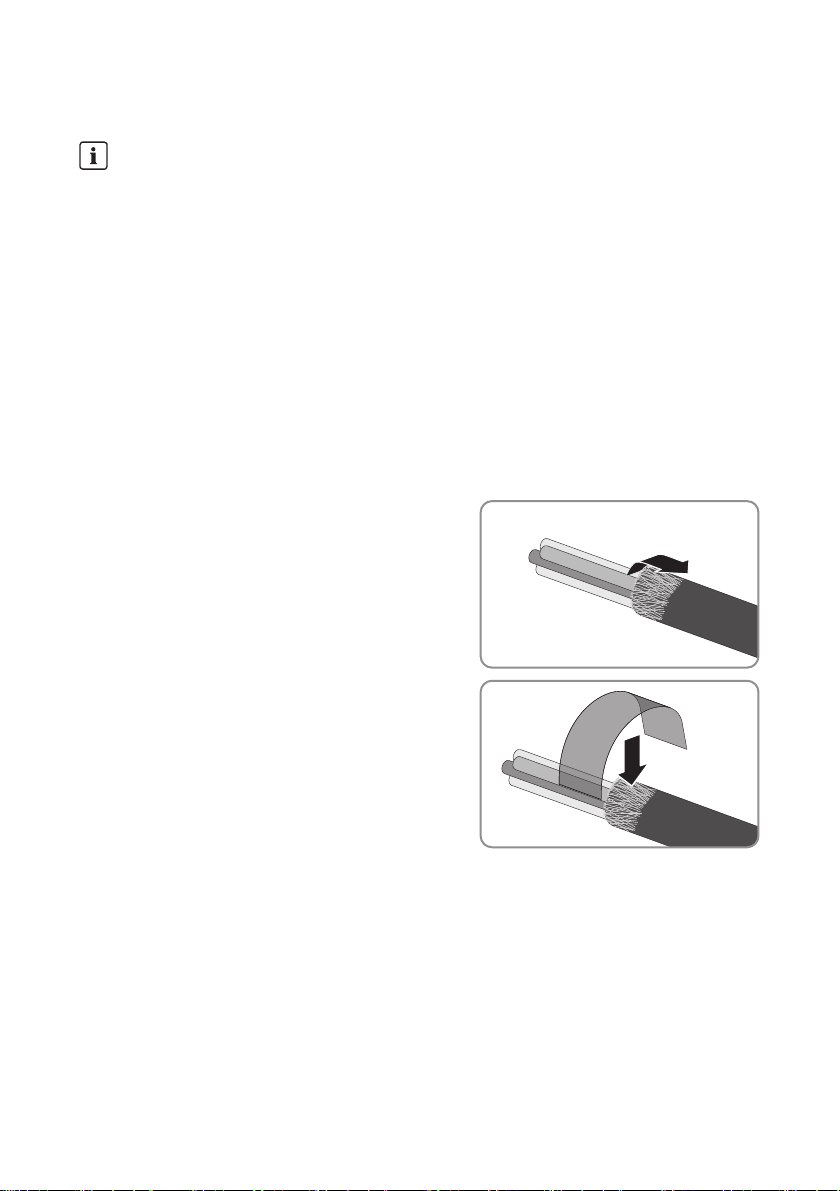

3. Fold the surplus cable shield back onto the cable
sheath.
4. Wrap the cable shield with copper foil.
5. Strip the insulation on the three wires each by 6 mm. Two wires for communication must be a
twisted pair.
6. Shorten all other wires flush with the cable sheath.
Disturbance of data transmission due to AC cables
During operation, AC cables generate an electromagnetic field which may induce interference
in plant communication.
• Do not lay the cables of the RS485 communication together with the AC cable.

SMA Solar Technology AG 5 Electrical Connection
Installation Manual 485BRD-10-IA-en-12 15
5.5 Preparing the Cable Gland on the Inverter
In order to prepare the cable gland on the inverter, you have to know whether one or two cables are
to be connected to the 485 data module and whether the multi-function relay in the inverter is to be
used immediately or at a later time.
If you wish to connect one or two cables to the 485 data module and do not want to use the
multi-function relay in the inverter neither immediately nor at a later time, prepare the M25 cable
gland on the inverter for one or two cables.
If you wish to connect two cables to the 485 data module and the multi-function relay in the inverter
is used immediately or at a later time, you must remove the Ethernet socket from the inverter and mount
another M25 cable gland on the inverter.
Preparing the Cable Gland on the Inverter for One or Two Cables
1. Unscrew the swivel nut from the M25 cable gland and push out the sealing plug.
2. If one cable is to be connected, remove the cable support sleeve with one hole from the
M25 cable gland and insert the cable into the one-hole cable support sleeve.
3. If two cables are to be connected, remove the
cable support sleeve with one hole from the M25
cable gland and insert the cables into the supplied
two-hole cable support sleeve.
4. Press the cable support sleeve into the cable gland and lead each cable all the way up to the
sockets on the 485 data module.
5. Screw the swivel nut onto the M25 cable gland.
6. Remove the protective cover of the multi-function relay from the inside of the inverter.
The protective cover is no longer required.

5 Electrical Connection SMA Solar Technology AG
16 485BRD-10-IA-en-12 Installation Manual
Mounting and Preparing the Supplied Cable Gland on the Inverter
1. Remove the plug from the Ethernet socket.
2. Unscrew the Ethernet socket from the enclosure
opening.
3. Insert the supplied M25 cable gland in the
enclosure opening and tighten it from the inside
using the counter nut (torque: 3.5 Nm ± 0.3 Nm).
4. Unscrew the swivel nut from the cable gland and remove the sealing plug from the cable gland.
5. Remove the cable support sleeve with one hole
from the M25 cable gland and insert the cables
into the supplied cable support sleeve with two
holes.
6. Press the cable support sleeve into the cable gland and lead each cable all the way up to the
sockets on the 485 data module.
7. Screw the swivel nut onto the M25 cable gland.
8. Remove the protective cover of the multi-function relay from the inside of the inverter.
The protective cover is no longer required.

SMA Solar Technology AG 5 Electrical Connection
Installation Manual 485BRD-10-IA-en-12 17
5.6 Connecting the Cables to the 485 Data Module
Figure4: Overview of the connection area
Connect each cable to the 485 data module according to the following procedure.
1. Plug one spring-cage connector into each of the
sockets on the 485 data module.
2. If one cable is to be connected, attach the terminator:
• Push the levers of the terminals 2 and 7 of one spring-cage connector upwards.
• Bend the ends of the terminator downwards
and plug the terminator into the open terminals.
• Push the levers back down.
3. Push the levers of the terminals 2, 5 and 7 of one
spring-cage connector upwards.

5 Electrical Connection SMA Solar Technology AG
18 485BRD-10-IA-en-12 Installation Manual
4. Connect the wire to the terminals of the spring clamp terminal and note down the colour of the
wires. The cables can be allocated to any spring-cage connector.
5. Close the spring clamp terminals.
6. Press each cable with the cable shield into the shield clamp.
8. Tighten the swivel nut of the cable gland.
9. Close and commission the inverter (see inverter installation manual).
10. Connect the cable end to the RS485 bus (for information on the terminal assignment and wiring
in the system, see the Technical Description "RS485 Cabling Plan").
Signal 485 data modules Insulated wire colour RS485 bus
GND 5 5
Data+ 2 2
Data- 7 7
7.
Electric shock due to live cables
If, during inverter operation, an insulated wire (L1, L2 or L3) should become detached from
the AC terminal, there is the risk that the cables of the RS485 communication become live.
Touching the cables can cause fatal electric shock.
• Attach the supplied plastic foil to the module
using the supplied expanding rivet. This
isolates the AC connection area in the
inverter from other terminals.

SMA Solar Technology AG 6 Troubleshooting
Installation Manual 485BRD-10-IA-en-12 19
6 Troubleshooting
Problem Cause and corrective measures
The emergency channel list "Emergncy"
or "EmgncyXX" is displayed in the
communication product
(e. g. Sunny WebBox, Sunny Explorer).
The inverter is displayed with the device
class "Other" in Sunny Portal.
The 485 data module has been installed in an inverter
without first disconnecting the inverter on the AC and
DC sides. This prevents the inverter from detecting the
new 485 Data Module.
Corrective measures:
• Prior to performing any work on the inverter,
disconnect the inverter from any voltage sources on
the AC and DC sides (see inverter installation
manual).
Several SMA communication products query data
simultaneously from the devices via Bluetooth
(e.g. Sunny Explorer, Sunny Beam with Bluetooth) and
RS485 communication (e.g. Sunny WebBox).
This can cause data congestion if a lot of data is
transmitted simultaneously. If this state lasts for more
than five minutes, the inverter carries out a reset of the
485 data module. Due to the data congestion, the
inverter cannot detect the 485 data module after the
reset.
Corrective measures:
• Wait until the inverter restarts the next morning,
then the inverter will detect the 485 data module.
or
Disconnect the inverter from voltage sources on the
AC and DC sides and recommission it
(see the inverter installation manual).

7 Decommissioning SMA Solar Technology AG
20 485BRD-10-IA-en-12 Installation Manual
7 Decommissioning
7.1 Disassembling the 485 Data Module
1. Disconnect the inverter from voltage sources on the AC and DC sides and open it
(see the inverter installation manual).
2. Open the spring clamp terminals of the plug at the 485 data module.
3. Remove the wires from the plug.
4. Slightly loosen the swivel nut of the cable gland and remove the cable support sleeve.
5. Remove each cable from the inverter and from the cable support sleeve.
6. Unscrew the screw M4x10 to which the
485 data module is attached to the inverter using a
Torx screwdriver (T 20).
7. Remove the 485 data module from the inverter.
The spacers remain in the inverter.
8. Insert the sealing plug into the cable gland. This ensures that the inverter complies with its degree
of protection.
9. Tighten the swivel nut of the cable gland.
10. Close and commission the inverter (see inverter installation manual).
7.2 Packaging the 485 Data Module for Shipping
• Pack the 485 data module. Use the original packaging or packaging that is suitable for the
weight and size of the 485 data module.
7.3 Disposing of the 485 Data Module
• Dispose of the 485 data module in accordance with the regulations for the disposal of
electronic waste applicable at the installation site.
