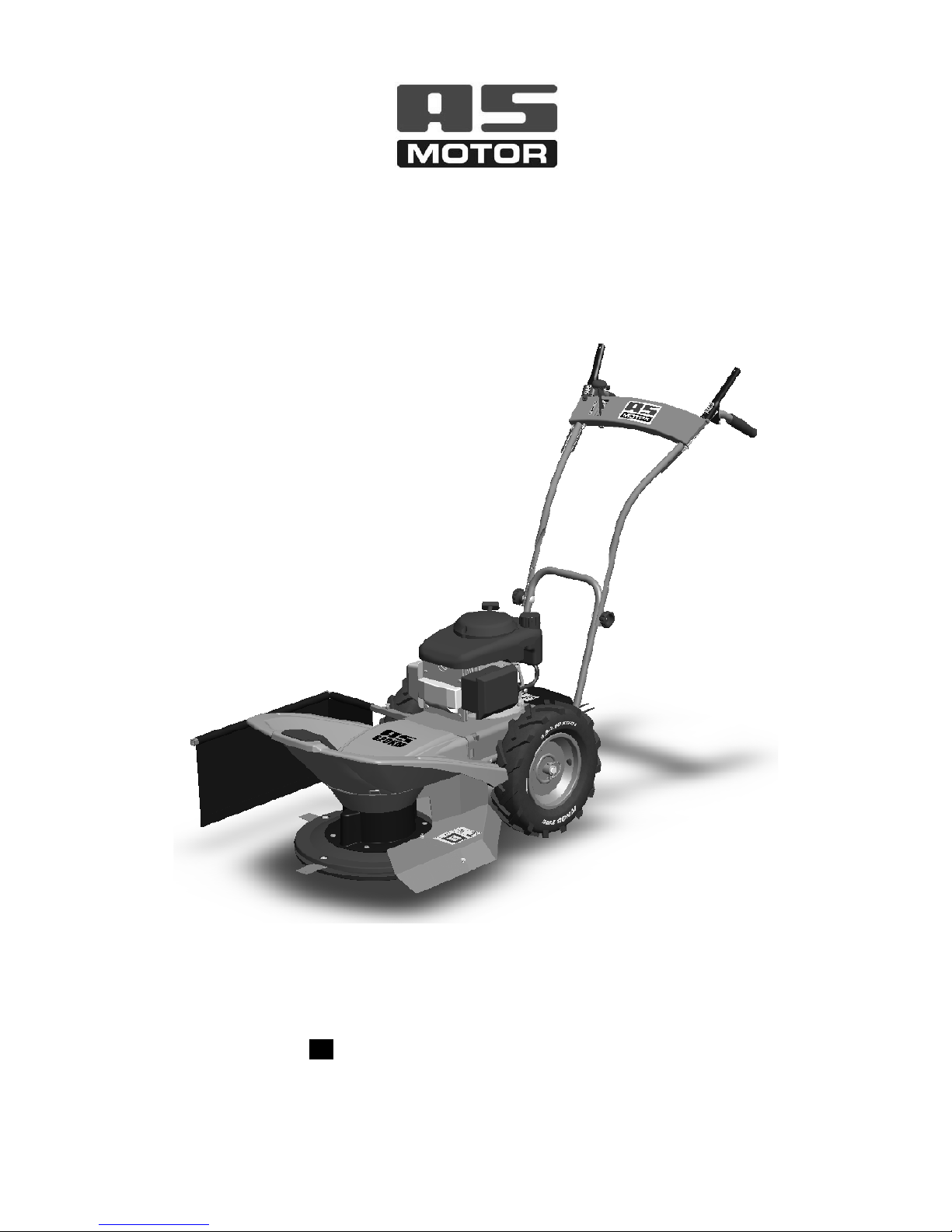

AS MOTOR 620KM User manual

User manual
Brush cutter
AS 620KM
From serial number:: 022209100001
EN – translation o the original instructions
D-74424 Bühlertann
Phone [phone]
www.as-motor.de

EN English
Contens
1 User manual 4
2 Pictures 14
3 EC declaration of conformity 19
Basic in ormation
As part of the pre-sale servicing ask your dealer to unwrap the machine and give you a brief training on how to use it!
Type AS 620KM
Engine type HONDA GCV-190
Serial number1
Delivery date - date of sale
Supplier (stamp)
●You are advised to make a copy of this page with filled in information about the machine’s purchase in case the original manual is lost.
1Fill in the plate number from the name plate or stick the indentification label.
3

AS 62 KM
1 User manual
Contens
1 User manual 4
1.1 Introduction.....................................................................................5
1.1.1 asic warning........................................................................5
1.2 Operation safety..............................................................................5
1.2.1 Safety regulations..................................................................5
1.2.2 Noise and vibration values....................................................6
1.2.3 Safety pictograms..................................................................6
1.3 asic information............................................................................6
1.3.1 Intended use...........................................................................6
1.3.1.1 Technical information..................................................7
1.3.1.2 Engine information .....................................................7
1.3.2 Description of the machine and its parts...............................7
1.4 User guide........................................................................................7
1.4.1 Assembling the machine........................................................7
1.4.1.1 Assembling procedure.................................................8
1.4.2 Putting into operation............................................................8
1.4.2.1 Starting up the cutting disc..........................................8
1.4.2.2 Putting the machine in motion....................................8
1.4.2.3 Machine stopping........................................................9
1.4.2.4 Travel speed selection.................................................9
1.4.3 Work with the machine..........................................................9
1.4.3.1 Cutting width...............................................................9
1.4.3.2 Methods of stand cutting.............................................9
1.4.3.2.1 Cutting problems...............................................9
1.5 Maintenance, servicing and storage..............................................10
1.5.1 Travelling wheels................................................................10
1.5.1.1 Tyre pressure.............................................................10
1.5.2 Machine lubrication.............................................................10
1.5.2.1 Engine oil exchange..................................................10
1.5.2.2 Lubricating points.....................................................10
1.5.3 Work blades service and exchange......................................10
1.5.4 elt transmission – automatic brake...................................11
1.5.4.1 Tightening pulleys adjustment...................................11
1.5.4.1.1 V-belt exchange...............................................11
1.5.4.2 rake function control and adjustment.....................11
1.5.5 Service intervals..................................................................12
1.5.6 Problems and solutions........................................................12
1.5.7 Storage.................................................................................13
1.5.7.1 Machine washing and cleaning.................................13
1.5.8 Packaging and machine disposal after its service life
termination.....................................................................................13
The manufacturer reserves the right for changes and innovations which do not influence the function and
safety of the machine. These changes do not have to be reflected in this user manual.
Misprints reserved.
4

EN English
1.1 Introduction
Dear customer
We congratulate you on your purchase decision. With the AS brush cutter you got a reliable and high-quality machine well-proven in practice for years. We
continue to improve our machines. Everywhere you want to cut grass of any height, weeds and shrubbery, no matter if on meadows, in orchards, on horse lots or on
municipal areas, you can count on the reliable help of your new AS brush cutter. It is a specialist for such tasks. It cuts large areas with dense and high grass stand in
the shortest time, it copes with uneven areas as well as slopes and embankments.
Familiarize yourself with the control of your brush cutter to be able to work with it safely. That’s why we prepared these instructions for you. It is necessary to
read the safety instructions in the next chapter! They protect your health. In the following chapters you will learn everything important about your AS brush cutter,
about its usage and care of it. ecause even the AS brush cutter can provide you with the best performance and work for many years only if you treat it correctly and
you follow the regulations about maintenance and care. Should you have any questions regarding your brush cutter, please contact your dealer or AS-Motor directly.
We are pleased to help you and we are also grateful for improvement suggestions.
And one more wish: take your neighbours into consideration and cut only in weekdays between 7.00 and 13.00 and between 15.00 and 19.00. According to a
regulation for protection against noise from 1.8.1987, it is forbidden to cut on Sundays, on feast days and out of the above-mentioned periods of time. In addition,
different regulations can be valid in different regions (noon rest). Now we wish you pleasant work with your AS brush cutter.
The right, left, front and rear sides are defined from the view and place of the operator in this manual. The operator always stands in the travel direction behind
the brush cutter handlebars.
1.1.1 Basic warning
The user must be familiar with this user guide and follow all machine operation instructions, so that there are no risks to health and property of the user, as well
as other persons.
Safety instructions published in this guide do not describe all possibilities, conditions and situations that can occur in reality. Safety factors, such as common
sense, carefulness and attention, are not included in this manual. However, every person handling or servicing the machine is presumed to have these.
Only mentally and physically healthy persons can work with this machine. In case the machine is used for professional application, the owner of the machine
must provide its attendants work safety training and carry out training about operating the machine. The owner must also keep records of these training sessions.
If you find any of the information in this guide incomprehensible, contact your dealer2 or the machine manufacturer3.
The user manuals with which this machine is equipped are an integral part of the machine. They have to be available at any time, safely deposited in an
accessible place where there is no risk of their destruction. If the machine is sold to another person, the user guides must be given to the new owner. The
manufacturer bares no responsibility for any risks, dangers, accidents and injuries that occur while the machine is operated, in case the conditions aforementioned
are not followed.
The manufacturer bears no responsibility for damages caused by unauthorised use, improper machine operation, and damages caused by any unauthorised
modification of the machine.
In order to prevent injury risks to yourself or other persons, or property damage, it is especially important to follow the safety instructions. These instructions
are marked by the following safety warning symbol:
If you see this symbol in the manual read the following information carefully!
This international safety symbol indicates important safety information. When you see this symbol
watch out for an injury possibility concerning yourself or other persons and read the following
information carefully.
Tab. 1: Symbols
1.2 Operation safety
The machine is designed to protect its attendant from parts flying off the cut area. Do not remove any passive nor active safety elements. y doing so
you expose yourself to risk of injury.
1.2.1 Safety regulations
Machine attendants have to be aged 18 or over. The attendant must be familiar with the machine user manual and have knowledge of general
work safety principles.
Before each machine use check all its parts (especially the operating mechanism and its covers) to see if they aren't loose or damaged.
Revealed defects parts must be rectified immediately. For repairs, use the original spare parts only.
Do not start the engine in closed spaces! Pay special attention when handling the machine. The engine exhaust muffler remains hot after the
engine is switched off. While adding the fuel, make sure it does not leak or spill over engine parts. If the fuel is spilled, dry the soiled parts or
wait for the fuel to evaporate.
Always switch off the engine and wait for the cutting disk to stop before starting any activity near the machine! Always switch the engine off
before leaving the machine!
Never leave the engine running at the maximum engine speed or running idle for a long time while the clutches of the cutting disk drive and
wheel drive are turned off. The machine drive parts could be damaged (V-belt, belt pulley, clutch pulley, etc.)!
Remove any solid parts form the stand before cutting (such as stones, wires, loose construction leftovers, etc.), as these could be thrown away
or damage the machine. If these parts cannot be removed, avoid them.
The machine is equipped with a rotating implement. Maximum circumferential speed is 64 m.s-1. It is therefore important to keep other persons
at a safe distance while the machine is operating (there is a possibility of the cut stand or solid objects chipping off)!
2Fill the dealer’s address into the table at the beginning of the manual (unless it is already filled in by the dealer).
3The machine manufacturer's address is gi en at the end of this manual.
5

AS 62 KM
When the machine is being operated, all other persons (especially children) and animals must stay out of the machine's workspace. The
machine attendant can only continue working after taking these into a safe4 distance.
Keep a safe distance form the machine given by its handlebars.
When operating the machine, use work aids approved by EN 166 or EN 1731 (tight clothes, firm shoes, work gloves and protective glasses).
Protect your ears with appropriate safety devices according to EN 352-1 (shell-shaped ear protectors) or EN 352-2 (plug ear protectors). Ask
your dealer for these safety devices.
Safe climbing ability of the machine is 10º. Maximum engine tilt while working is 20º for long and 30º for short periods5 .
Do not use the machine on wet grass. Always work on safe terrain. Walk - never run - when working. e careful, especially when changing
directions on slopes. Do not cut stands on steep slopes. If you fall, let the machine, go do not hold it.
It is forbidden to remove any protective devices and covers from the machine.
Any machine repairs, adjustments, greasing and cleaning is to be carried out when the machine is turned off and the spark plug is disconnected.
1.2.2 Noise and vibration values
➢Declared emission level of the acoustic pressure A at attendance point6 LpAd = (83 5+1 3) dB
➢Guaranteed sound power level A7 LWA G = 97 dB
➢Declared aggregate acceleration value of the vibrations transferred onto the hand-arm of the machine attendant8 ahvd = = (6 0+2 4) m.s-2

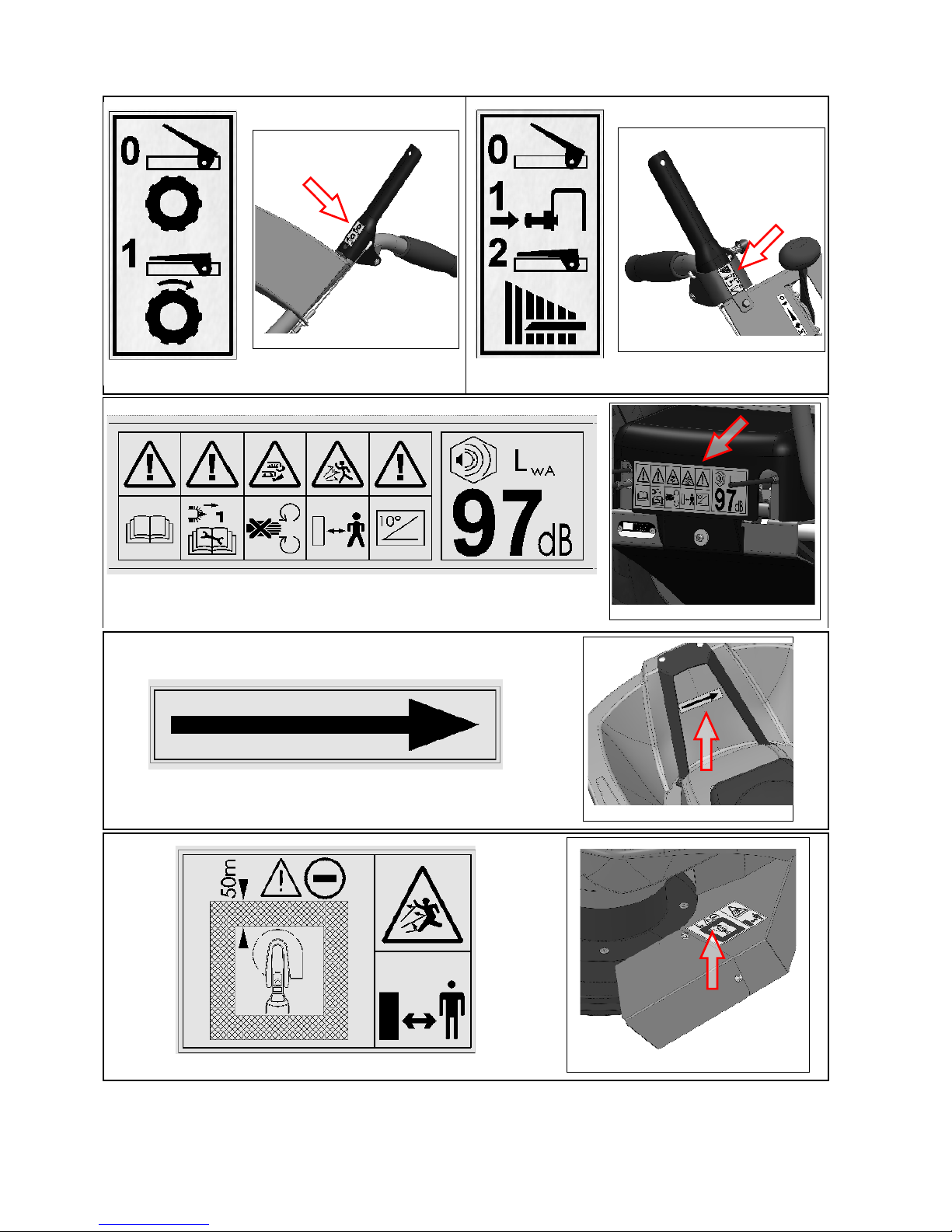

1.2.3 Safety pictograms
The user is required to keep the machine pictograms readable, and have them exchanged in case they are damaged.
Locations: Number: Description:
Combined sticker which is stuck
to the rear plastic cover. (Pict.22)
(1) Study the user manual before operating the machine.
(2) Spark plug cable must be disconnected during machine maintenance.
(3) Do not reach with your arm nor step with your leg into the cutting blade work space – risk of cutting.
(4) Risk of injury from chippings, cut-offs, flying objects, etc. Other persons and animals - keep safe distance
from the machine.
(5) Adhere to the machine’s maximum safety climbing ability when working.
(6) Guaranteed sound power level of the machine.
Separate sticker on the front
plastic cover. (Pict.23)- Tool turning direction arrow – to the right (clockwise)
Sticker (Pict.21) on the control
lever (1) on the right handle
(Pict.5).
-Starting the cutting disc drive: „ “ = the cutting disc is not rotating, „1“ = pushing the safety lock button,
„2“ = the cutting disc is rotating
Sticker (Pict.20) on the control
lever (2) on the left handle (Pict.5). - Turning on the machine wheel drive. „ “ = the machine is standing still, „1“ = the machine is moving
Sticker (Pict.24) placed on the
cutting disk cover on the left side
in the direction of movement.
-Area forbidden for other persons and animals. Minimum safe distance from the machine.
Tab. 2: Safety pictograms
1.3 Basic information
1.3.1 Intended use
The brush cutter AS 620KM is designed and manufactured based on the latest knowledge in the field of small garden and agricultural machinery. It excels in
easy control, quiet, powerful and fuel-saving HONDA engine and trouble free maintenance.
This brush cutter is intended for mowing of high thin-stalk grass stands and woody underbrush9 in a wood and on a meadow up to the maximum height of 80
cm on maintained10 areas.There must be no solid objects in the stands or extensive surface unevenness. The brush cutter is not designed for park grass stand care.
The use of this machine for purposes other than those it was designed for is then considered as unauthorised use!
The machine can work at all the tilted positions described by the engine manufacturer provided that the attendant is able to lead it safely for both him and his
surroundings.
Protective devices meet the requirements of EN 12733 standards. These standards focus primarily on the attending persons’ safety, as they cannot be hit by
stones and other subjects flying from the machine rotary system. Therefore, the attending person must always be in normal operating position, i.e. behind the
machine, holding the handlebars firmly with both hands.
It is forbidden to remove any protective devices and covers from the machines.
4EN 12733 norms go ern the specifications of the outer safety area A around the work area B. It is also necessary to use appropriate ban signs to pre ent entrance into this area. The
distance between indi idual of A and B areas must not be smaller than 50m. As soon as a person or an animal enters the area, the machine attendant must immediately release the
cutting disk dri e le er and postpone working until the area is clear again.
5Short period = up to 1 minute.
6According to EN 12733, Appendix B and EN ISO 11 201
7According to Directi e 2000/14/EC, Appendix No. 3, Part B, Point 33 and ISO 3744
8According to EN 12733, Appendix C and EN ISO 20643
9The brush cutter is not intended for cutting woody underbrush thicker than 5 mm! If you don't follow this principle, you damage the machine.
10 The stand on the area is cut and raked at least once a year!
6

EN English
1.3.1.1 Technical information
AS 620KM Unit Value
Length x Width (including the side screen) x Height mm 1730 x 823 x 1191
Weight 67
Maximum cutting width cm 62,2
Safe climbing ability ∠10°
Cutting disk revolutions11 min-1 1964
Maximum blade circumferential velocity m.s-1 64
Travelling speed km.h-1 2,0 - 2,7
Area capacity12 m2.h-1 1224 - 1680
Gearbox oil capacity l (litre) 0,025
Gearbox oil quality API / SAE GL-4 (GL-5) / 90 (80W-90)
Tab. 3: Technical information for AS 620KM
1.3.1.2 Engine information
Engine Unit Value
Type - HONDA GCV 190
Engine displacement cm3187
ore x stroke mm 69 x 50
Max. power/at rpm (HP)13 kW/min-1 (HP) 3,6/3200 (4,9)
Max. torque/at rpm14 N.m/min-1 11,3/2500
Maximum (set) engine rpm min-1 3200 ± 100
Fuel consumption l (litre) 1,3 at 3000 rpm
Maximum engine tilt (long period) ∠20°
Maximum engine tilt (short period15)∠30°
Fuel tank volume16 l (litre) 0,91
Fuel (unleaded) petrol ON 91-95
Engine oil filling l (litre) 0,55
Oil quality SAE 15W-40
Ignition plug - NKG PR6ES
Tab. 4: Engine technical information
1.3.2 Description of the machine and its parts
rush cutter AS 620KM (Pict.5) is built on a steel frame, to which all important parts of the machine are attached. All controls (1,2,4 and 18) are placed on the
handlebars. Handlebars are attached to the frame with a bolted connection (3) and their height is adjustable into 3 positions. Handles (12) secure a firm grip and
machine handling during work. On the left side of the handlebars, there is the wheel drive clutch lever (2) which controls the movement of the machine in forward
direction. On the right side, there is lever (1) of the disc drive clutch for turning the cutting disk drive on (off). oth control levers return to their original position
when the handlebars are released in a critical situation and disconnect the engine power transfer. The cutting disk is equipped with an automatic brake17 which stops
the disk. Engine speed is controlled with an accelerator lever (4). The wheel drive is controlled by worm-gear unit with a belt clutch which provides fluent power
transfer onto the wheels (15) (the machine does not start with a jump). The gearbox and clutch are covered by a plastic gearbox cover (16). There is the cutting
disk (7) with four steel blades (8) in the front part. The attendant is protected against flying parts of the cut stand by plastic cover (10) and cutting disc steel
cover (9) which meet the EN 12 733 standard. A detachable side screen (6), which is attached with a bolted connection (5), controls the line spacing.
1.4 User guide
1.4.1 Assembling the machine
As part of the pre-sale servicing ask your dealer to unwrap the machine and give you a brief training on how to use it!
Places for holding the cutter while removing it from the box (see Pict.5): by the cutting disc in the front (4), by the machine frame tube in the
back (1).
11 Actual rpm. of the disc when not cutting, including belt transmission losses.
12 Area capacity of the machine depends on the type of the stand.
13 Measured according to new Society of Automotive Engineers (SAE) J134 standard
14 Measured according to new Society of Automotive Engineers (SAE) J134 standard
15 Short period – up to 1 minute.
16 Measured according to new Society of Automotive Engineers (SAE) J134 standard
17 The automatic break is an acti e protecti e feature that supports the machine’s safety.
7

AS 62 KM
Never attempt to lift the assembled machine by its front plastic cover. The cover will not support the machine’s weight.
1.4.1.1 Assem ling procedure
Use the following procedure for assembling the machine: (It is ad ised to assemble the machine with a second person’s assistance)
1) According Pict.1 - take the disc cover (3), bag (6), screen holder (7), both parts of the side screen (2), left and right disk cover (8) out of the
box. Pick the machine up by its lift points in front (4) and back (1) and take it out of the box.
2) According Pict.5 - dismount the bolted connection (3) on both sides of the frame, take off the handlebars, turn them around and put them on
the frame as shown in the picture (choose one of the 3 holes in the handlebars to set their height). Re-tighten the bolted connection firmly with
your hand. Control lever cables must not be crossed - this shortens their lifetime!
3) Take the draw bands out of the bag and tighten brake cables to the handlebars where the upper bending of the handlebars tube ends. Two
pieces of draw bands are sufficient for cable tightening.
4) According Pict.2 and Pict.3 – mount the left and right covers of the cutting disk by the help of M6x14 bolts (2 pcs), M6 nuts (4 pcs) and
washers (4 pcs).
5) According Pict.4 – set the disc cover on the machine so that the holes fit in the screws in the frame, and the narrowed part of the cover is
pushed in under the engine plate. Put the handle on the cover. Screw the handle to the disk cover in its upper part with two M6x16 bolts with
square end, with washer and self-locking nuts M6. Put the washers and M5 nuts on the screws in the frame and tighten them.
6) Put the rear (shorter, with cut-out) screen part and the side (longer) screen part on the screen holder. Put the clamp bands (2 pcs, they are in the
bag with parts) through the holes in the screen holder and draw both bands to fix both screen parts.
7) According Pict.5 - unscrew the fastening bolt (5) so that the side screen (2) can be easily pushed into the frame opening. Tighten the fastening
bolt and check that the side screen does not fall out spontaneously.
1.4.2 Putting into operation
The cutter may be delivered without the engine operating fluids (according to various national rules)!
First read the engine user manual18 carefully! This way you may avoid possible damage.
1. Check the engine oil level; fill the engine with prescribed type and amount of oil if necessary. Fill the tank with prescribed amount and type of
petrol.
2. Shift the accelerator lever into ‘CHOKE’ position. The accelerator lever positions are described in picture Pict.6. All four described main
positions are locked by a simple stamp-projection system in the lever body.
3. Start the engine by pulling the rope of the recoil starter19.
4. First let the new or cold engine run for about 30 sec with a choke (accelerator lever in ‘CHOKE’ position) and then shift the accelerator lever
into ‘MAX’ position. Let the engine run in this position for about 30 sec.
Do not go away from the machine!
When starting the engine both control levers (1 and 2 in Pict.5) must be in the position turned off (they must not be pushed to the
handlebars)!
1.4.2.1 Starting up the cutting disc
Make sure that all persons animals and children are at a safe distance from the machine! If they are not do not continue in your
activity!
1. Start the engine20. Use the accelerator lever to set the maximum engine speed. In case the engine is cold, warm it up at maximum speed for about 1
minute.
2. Hold the left handlebars handle with your left hand. Move the right control lever (18 in. Pict.5) to the upper position until it slides in the stirrup
with wires and with the safety lock (17 in Pict.5).
3. Push the button of the safety lock (17 in Pict.5) on the stirrup. Hold the button until the control lever starts to move with stirrup with the wires.
4. Then push the control lever on the right handle with a smooth slow movement of your right hand.
Slowly press the lever up to about two thirds throttle to start up the cutting disc and prevent the engine form turning off.
5. After starting up the cutting disc, press the lever to the handle and hold firmly.
The cutting disc start-up is accompanied by V-belt creeping and its side effects (chattering whistling). These effects usually
disappear when the V-belt is run-in.
Note: During the first starts of the cutting disc, a new or cold engine might stall. This tendency disappears after warming up the engine. In case the
cutting disc drive cannot be runned up, check if there is a defect according to Table 7.
1.4.2.2 Putting the machine in motion
To put the machine in motion use lever (2 in Pict.5) on the left handle. Press the lever all the way to the handle, and the machine moves ahead
immediately. Adjust the speed of your walk to machine speed as soon as you press the lever and the machine moves.
The wheel drive has a belt clutch; you can press the lever slowly and the machine starts off fluently, not with a jump.
Always press the clutch lever all the way down to the handlebars. If the lever is not pressed properly it causes damage to the V-
belt.
The wheel drive clutch lever does not adjust travelling speed!
Never reverse with the wheel drive clutch pressed!
18 Multilingual manual are part of the cutter.
19 Engine starting instructions are described in detail in engine user manual.
20 Engine starting instructions are described in detail in engine user manual.
8

EN English
1.4.2.3 Machine stopping
If you wish to stop the machine, release the left handlebar lever. The machine stops moving, but the cutting disk spins. The cutting disc drive is turned
off by releasing the right handlebar lever. The cutting disc is stopped by an automatic brake. Shift the accelerator lever into 'MIN’ or ‘STOP’ position.
Always switch off the engine and wait for the cutting disk to stop before starting any activity near the machine! Always switch the
engine off before leaving the machine!
Never leave the engine running at the maximum engine speed for a long time or running idle while the clutch of the cutting blade
drive and wheel drive are turned off! The machine drive parts could be damaged (V-belt belt pulley clutch pulley etc.)!
1.4.2.4 Travel speed selection
The machine drive is equipped with two speeds. The slower one (turtle) for dense, wet or high stands, the faster one (hare) for sparse, dry or low
stands.
Always adjust the travel speed to the stand type!
The speed change is made by moving the V-belt on the belt pulleys between the gearbox and the wheel axle (see Pict. 17 and 18). There is a sticker
with a picture showing the positions of the V-belt in the belt pulleys on the gearbox and the axle on the upper gearbox cover (see Pict. 16).
Always change the speeds when the engine is off and the accelerator lever is in the STOP position!
1. Dismount the plastic nut and the upper gearbox cover. Put the lower gearbox cover foot out of the bolt in the frame and leave it lying on a pad.
2. Put the V-belt completely out of the gearbox pulley to the right into the groove in the frame between the belt pulley and the machine frame tube.
3. Move the V-belt forward for approx. 1,5 cm and then move it into the V-belt groove in the belt pulley on the wheel axle, corresponding to the
selected speed. Check with your sight and hand whether the V-belt is correctly seated in the groove of the selected belt pulley.
4. Put the V-belt into the gearbox pulley groove, corresponding to the selected speed. Check with your sight whether the V-belt is seated straight in
correct belt pulleys corresponding to the selected speed (see Pict. 17 and 18). The V-belt can’t be crossed!
5. Mount both covers back.
1.4.3 Work with the machine
1.4.3.1 Cutting width
Always adjust the cutting width to the stand density!
It is not recommended to use the maximum cutting width (Table 3) given by the disc construction. In a terrain, the user cannot operate the cutter
straight, and precisely enough to cut the stand in complete cutting width. We recommend to lead the cutter in the cut stand approximately 5-10 cm from
the edge of the plastic front cover (as shown in Pict.7 from the user’s point of view).
1.4.3.2 Methods of stand cutting
Remove any solid parts form the stand before cutting (such as stones wires loose construction leftovers etc.) as these could be thrown
away or damage the machine. If these cannot be removed avoid them.
It is necessary to keep the lower disc sliding across the land without bouncing off when cutting in uneven terrain. Disc bouncing causes low quality
stand cutting and uneven stubble.
Let the engine and cutting disc spin in their maximum rpm, and start moving against the stand you wish to cut. The cutting disc throws cut stand onto
the right side, where it is windrowed by the side screen.
➢Always keep the uncut stand on the left side form the machine when cutting (Pict.7).
➢When cutting on slopes it is best to move along the slope contour line. Keep the safe climbing ability (Table 3)!
In case the cut stand is too dense, inter grown, rotten, or flattened, it is necessary to reduce the machine cutting width, so that the cutting disc rpm
would not be too low, and thus causing low cutting quality.
1.4.3.2.1 Cutting problems
Be especially careful when lifting and reversing the machine!
Always turn the engine off when cleaning the space under the top cover!
Always tip the machine backwards on its handlebars only. Always be especially careful when moving in the space under a lifted
machine. Secure the cutter from spontaneous movement!
Always be especially careful when cleaning the space under the top cover. The cutting blades are sharp. Use work gloves or other
convenient objects e.g. a piece of branch for cleaning the machine.
Before continuing any activity on the machine or its surroundings always wait until the cutting disc stops.
1. The cutting disc and the engine rpm are both slowing down but the engine does not stall.
➢Stop the machine travel immediately, reverse slightly while lifting the front of the machine a bit (by pressing the handlebars down).
The space under the top cover partially cleans itself from extensive amounts of grass mass. Start moving against the stand again.
2. Cutting disk stopped spinning the engine staled.
➢Release both handlebars levers and lift the cutter by pressing the handlebars. Move the cutter slightly backwards. Clean the space
under the top cover, and spread the cut grass across the surface. Start the engine, turn the cutting disc drive on, and start moving against
the stand again.
9

AS 62 KM
1.5 Maintenance, servicing and storage
The weight of the cutter requires two persons for carrying out its maintenance and adjustment.
In order to be happy with our product in the long-term, it is necessary to give it adequate maintenance and servicing care. Regular maintenance
reduces deterioration and ensures proper functioning.
Follow all instructions concerning maintenance and adjustment schedule. It is recommended that you keep a record of the amount of its working time
and conditions (for service needs). It is recommended to let one of our authorised service centres take care of the after-season maintenance, as well as
regular maintenance if you are not sure about your technical skills.
Check the nuts tightening the upper disc blades and nuts tightening the lower disc to the flange before each cutter use.
1.5.1 Travelling wheels
Travelling wheels create an important part of the cutter. Wheels carry the whole weight of the cutter, transfer engine power, and push the cutter into
mesh. Wheels have tyre tubes.
1.5.1.1 Tyre pressure
Tyre pressure has to be controlled in order to secure proper functioning and long life of the wheels, especially the tyres. Check the pressure before you
start using the cutter. Fill the pressure to MAX before putting the cutter out of service for a longer period of time. Keep equal pressure in right and left
wheels - it helps the cutter to keep a straight track.
Do not exceed the maximum tyre pressure – you risk a tyre explosion!
➢MAXimum (recommended) tyre pressure: 23 PSI (160 kPa or 1 6 bar or 1 57 atm or 0 16 MPa)
➢MINimum21 allowed tyre pressure: 18 PSI (124 1 kPa or 1 24 bar or 1 22 atm or 0 124 MPa)
In case of permanent tyre pressure release, check and repair possible inner tube defect.
Seek authorised service in case you lack appropriate manual skills.
1.5.2 Machine lubrication
Follow basic hygienic rules and environmental laws when working with lubricants.
Seek authorised service in case you lack appropriate manual skills.
Smooth and easy movement of all mechanical parts requires adequate lubrication. Several drops of oil are usually sufficient (e.g. icycle oil). The
gearbox is filled with sufficient amount of oil during manufacturing and it does not require filling during the whole machine life.
1.5.2.1 Engine oil exchange
Follow the engine user manual instructions. If you use the cutter in a dusty environment, shorten the exchange period by half. When pouring the oil
out of the engine tilt the cutter on its filler and oil dipstick side or dismantle the whole engine.
Seek authorised service in case you lack appropriate manual skills.
1.5.2.2 Lu ricating points
There is no need to dismount any covers from the machine when lubricating the cables on the handlebars. You can reach other lubricating points after
dismounting the plastic covers. You can use any kind of engine, transmission or spray oil. Any kind of lubricant grease for water pumps is fully sufficient.
For its application, however, it is usually necessary to dismantle the appropriate sliding sealing.
Note: When using graphite grease, the seasonal lubrication intervals can be extended up to 25 hours.
Lubricating point – description Seasonal interval After the season Lubricant Picture Note
owden cables and safety lock button min 2x (5 drops) yes oil Pict.12 Cable entrance into cable housing and pin
Disc drive pulley casing every 10 hours (2 drops) yes oil/grease Pict.11 After nut and washer dismounting.
Wheel drive clutch pulley every 10 hours (2 drops) yes oil/grease Pict.9 Contact area with frame.
Cam every 10 hours (1 drop) yes oil Pict.10
olted connections - yes grease - Handlebars and side screen attachment
Tab. 5: Lubricating inter als
1.5.3 Work blades service and exchange
Seek authorised service in case you lack appropriate manual skills.
If the work blades are deteriorated or damaged and causing cutter vibrations, it is necessary to renew or exchange the blades22.
Note: The manufacturer bears no responsibility for damages caused by/on the cutter in case of a botched-up blades repair or when original parts are
not used. A sign identifying the manufacturer is imprinted in the blade and it is used as a proof of a genuine part.
The cutter must be secured from unexpected spontaneous movement and stand on a safe pad to allow adequate access to the blade.
Pay special attention when dismounting the blades. The cutting blades are sharp. Protect your hands with work gloves.
The engine must be off and the end of the spark plug cable must be taken off!
21 Tyre pressure lower than minimum damages the tyre construction and shortens its life.
22 The blades are double-sided; they can be turned around if necessary. The blades must ne er be damaged.
1
