Asada H-75 User manual

■HOW TO OPERATE
◆Ｈ－７５
①Loosen Knob and pull out Wire. (Do not pull out Wire any more if you find “red mark”on Wire.)
②Insert Wire to the pipe slowly and when Head reaches the blockage or Head cannot be inserted due to an
acute bend of the pipe, tighten Knob to hold Wire.
③Holding Grip by left hand, rotate Handle clockwise to clean the pipe.
④In case of heavy blockage, repeat to move Wire forward and backward with rotating Handle clockwise and
counter-clockwise.
⑤After cleaning the pipe, wash the Wire with water, apply anticorrosive oil and pull back wire into the Wire Case.
◆Ｈ－１５０
①Loosen Knob, pull up Chuck Handle to release Wire and pull out Wire. (Do not pull out Wire any more if you
find “red mark”on wire.)
②Insert Wire to the pipe slowly and when Head reaches the blockage or Head cannot be inserted due to an
acute bend of the pipe, push down Chuck Handle to hold Wire. Tighten also Knob if Wire cannot be held
by Chuck Handle.
③In case of heavy blockage, repeat to move Wire forward and backward with rotating Handle clockwise and
counter-clockwise.
④After cleaning the pipe, wash the Wire with water, apply anti corrosive oil and pull back Wire into
the Wire Case.
(Optional Accessory : Rowonal R72142)
Do not operate the Chuck Handle while holding Wire with the Knob. The Chuck Jaws will be damaged.
■HOW TO OPEN WIRE CASE
Wire Case can be opened to clean the inside of Wire Case or fix Wire entanglement.
◆How to open
Loosen 4 pcs. of Stop Bolt A (Fig.1) and loosen 4 pcs. of Stop Bolt fixing Wire Case.
(Wire Case for H-75 is fixed with 3 pcs. of Stop Bolt.)
■HOW TO FIX HANDLE （Ｈ－１５０）
Insert Handle and tighten Stop Bolt with the attached
Allen Wrench.
Allen Wrench can be used to open Wire Case.
INSTRUCTION MANUAL
DRAIN CLEANER Ｈ－７５ DRAIN CLEANER Ｈ－１５０
①Wire Case ①Wire Case
②Knob ②Knob
③Wire ③Head
④Grip ④Chuck Handle
⑤Handle ⑤Handle
CLASSIFICATION OF CAUTIONS
WARNING
：Indicates a potentially hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
：Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate
injury or damage to the machine.
①
②
③
④
⑤
①
②
③
④
⑤
Fig.1
Stop Bolt
Handle
Ａ
CAUTION
Ver.02 IM0541 A

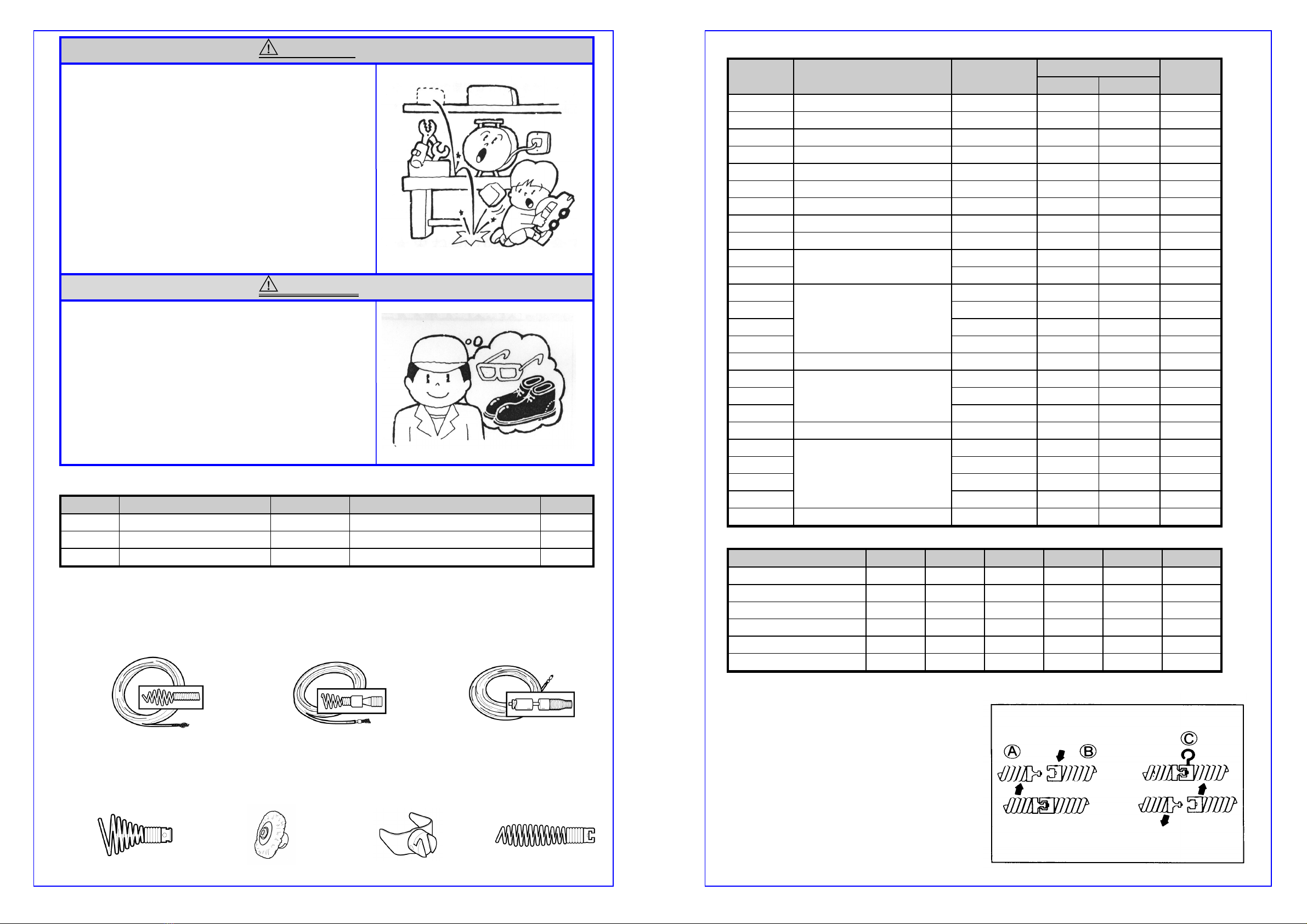

WARNING
①All visitors should be kept a safe distance from work area.
Keep children away.
②When not in use, machines should be stored in dry and
locked-up place - out of reach of children.
③Wires and Heads should be handled carefully to avoid
accidents and injury.
④During operation, keep your face away from the moving
parts. You may be caught in the moving parts, causing
injury.
⑤If you have dropped or hit the machine accidentally,
carefully check for damage, crack or deformation.
⑥If you have noticed abnormal state of the machine, ask for
inspection or repair.
CAUTION
①Wear proper apparel.
Wear safety shoes and glasses according to the environment.
②Connect Wire and Head properly. Head may be dropped in
pipe if not connected properly.
③Do not pull out Wire any more if you find “red mark”on
Wire. It shows the end of Wire.
④Do not rotate Wire before tightening chuck to hold Wire.
Wire will be twisted and it may cause accident and injury.
⑤Use Safety Glove exclusive for drain cleaning. Unsuitable
gloves may be caught by rotating parts leading to accidents.
■
SPECIFICATIONS
Code No. Item Capacity Length of Wire Weight
ＤＨ７５Ｂ Drain Cleaner H-75 Bulb ２０～７５ｍｍ φ８ｍｍ×８ｍ（Bulb Head）２．８ｋｇ
ＤＨ７５Ｄ Drain Cleaner H-75 Drop ２０～７５ｍｍ φ８ｍｍ×８ｍ（Drop Head）２．８ｋｇ
ＤＨ１５０ Drain Cleaner H-150 ２０～１００ｍｍ φ１０ｍｍ×１５．５ｍ（Universal）） １０．２ｋｇ
■
WIRE
●
Bulb Head Wire
A barrel type Head is suitable for small
pipes.
●
Drop Head Wire
Suitable for small winding pipes
●
Universal Wire
4 types of Head can be changed depending on
the condition.
■
HEAD
●
Funnel Head
Suitable to remove vegetables, ra
gs, papers, hairs, etc.
●
Wire Brush
Suitable to remove sands, rust, sc
ales, etc.
●
Grease Cutter
Suitable to remove grease,
Lard, etc.
●
Bulb Head
Suitable for small pipes
■STANDARD ACCESSORIES（●） AND OPTIONAL ACCESSORIES（○）
Code No. Item Size H-75 Ｈ－１５０
Bulb Drop
ＤＨ３０１ Bulb Head Wire φ８×８ｍ ●○
ＤＨ３０９ Bulb Head Wire φ８×１５．５ｍ ○
ＤＨ３１０ Bulb Head Wire φ８×２０ｍ ○
ＤＨ３０２ Drop Head Wire φ８×８ｍ ●
ＤＨ３１７ Drop Head Wire φ８×１５．５ｍ ○
ＤＨ３１８ Drop Head Wire φ８×２０ｍ ○
ＤＨ３０４ Universal Wire φ１０×８ｍ ○
ＤＨ３０３ Universal Wire φ１０×１５．５ｍ ●
ＤＨ３２１ Universal Wire φ１０×２０ｍ ○
４８６０８ Drop Head φ１５ｍｍ ○
４８６０６ φ２４ｍｍ ○
４８６０９
Funnel Head
φ２４ｍｍ ○
４８６１０ φ３２ｍｍ ●
４８６１１ φ３８ｍｍ ○
４８６１２ φ６０ｍｍ ●
４８６０１ Bulb Head φ２４ｍｍ ○
４８６１３
Grease Cutter
φ２２ｍｍ ○
４８６１６ φ３６ｍｍ ○
４８６１７ φ６２ｍｍ ○
４８６０２ Double Grease Cutter φ４０ｍｍ ○
４８６１８
Wire Brush
φ２０ｍｍ ○
４９６１９ φ３０ｍｍ ○
４８６２６ φ４０ｍｍ ○
４８６２０ φ５０ｍｍ ○
７０１３５ Wire Key ●
■SUITABLE SIZE OF HEAD （Ｈ－１５０） ＊For reference only
Head 1
”
～1.1/4
”
～1.1/2
”
～2
”
～2.1/2
”
～3
”
～
Funnel Head φ２４ｍｍ φ３２ｍｍ φ３８ｍｍ φ６０ｍｍ
Bulb Head φ２４ｍｍ
Grease Cutter φ２２ｍｍ φ３６ｍｍ φ６２ｍｍ
Double Grease Cutter φ４０ｍｍ
Drop Head φ１５ｍｍ φ２４ｍｍ
Wire Brush φ２０ｍｍ φ３０ｍｍ φ４０ｍｍ φ５０ｍｍ
■HOW TO CHANGE HEAD （Ｈ－１５０）
①To connect Head and Wire, simply slide male
・to female・.
They are locked with male pin.
②To disconnect, insert Wire Key・and slide
apart male and female.
③Wires are male and Heads are female.
Pipe size
