ASBER ACTC-55 Simple manual

TAPA CASE REFIGERATORS
Manual Instructions
ACTC–55 ACTC–69
ACTC–55 SL ACTC–69 SL
DOCUMENT CODE: 602305M0050
Manual instructions
Installation and Operation
Manuel talimatları
Kurulum ve Çalıştırma
Manual de instrucciones
Uso y mantenimiento
Manuel d’instructions
Installation et fonctionnement
Bedienungshinweise
Installation und Betrieb
Manual do instruções
Instalação e Operação
Ręczny
Obsługa i konserwacja
ES
EN
D
T
F
P
P
AS OF NOVEMBER 1, 2015

ii
asberprofessional.com
INDEX
ENGLISH
SPECIFICATION CHART/ TABLA DE ESPECIFICACIONES ...........................................................................................1
MACHINE INTRODUCTION.......................................................................................................................................1
1.1 Introduction to machine & models .........................................................................................................1
1.2 Important safety information..................................................................................................................1
INSTALLATION..........................................................................................................................................................2
2.1 General information ................................................................................................................................2
2.2 Transport, handling, unpacking, location ................................................................................................2
2.3 Intended use and restrictions..................................................................................................................3
2.4 Manufacturer’s identification label description......................................................................................3
2.5 Installation and assembly ........................................................................................................................4
2.6 Connections .............................................................................................................................................4
OPERATION..............................................................................................................................................................4
3.1 General information ................................................................................................................................4
3.2 Control panel description ........................................................................................................................4
3.2.1 Electronic Control ............................................................................................................................4
3.3 Machine settings and programs ..............................................................................................................5
MAINTENANCE ........................................................................................................................................................6
4.1 General safety rules.................................................................................................................................6
4.2 Machine cleaning and maintenance routine...........................................................................................6
4.2.1 Cleaning the Condenser Coil............................................................................................................6
4.2.2 Draining the Unit .............................................................................................................................7
4.3 Machine disposal.....................................................................................................................................7
TROUBLESHOOTING CHART ....................................................................................................................................7
5.1 Troubleshooting.......................................................................................................................................7
WARRANTY ..............................................................................................................................................................8
6.1 Limited Warranty.....................................................................................................................................8

1asberprofessional.com
asberprofessional.com
SPECIFICATION CHART/ TABLA DE ESPECIFICACIONES
MACHINE INTRODUCTION
1.1 Introduction to machine & models
ASBER Display Cases bring the perfect combination of quality materials and modern design.
Polished stainless steel, elegant curved glass and anodized aluminium work together under
a bright LED blue light for an attractive product display.
These self contained units keep a constant airflow, maintaining all the flavor and texture of
your fresh dishes.
Details make this line unique .
•Factory balanced refrigeration system, environmentally friendly R-134a.
•Stainless steel construction with anodized aluminum side panel.
•Front curved glass design.
•Service side glass sliding door.
•Standard flourescent light.
•Comes standard with 1/3 gastronorm pans - 1.5” deep.
•Compressor mount on right side.
•Cold plate design underneath the pans to keep products fresher and maintain products at 36°-
46°F temperature in food pans..
1.2 Important safety information
DANGER: Power must be turned off and disconnected from the power
source whenever performing maintenance, repair or cleaning the condensing
unit. If machine still running when power is off, disconnect power at the circuit
breaker before unplugging the machine.
WARNING: Machine and compressor warranties are void if failure is due
to improper electrical installation.
Do not introduce hot foods, chemical or corrosive products, drugs, or open
beverage bottles.
MODEL
HP
DIMENSIONS
(in) mm
VOLTAGE
(V)
AMP.
(A)
REFRIG.
CHARGE
REFRIG.
TYPE
BTUS/
HR
ACTC 55
1/6
(55 x 16 x 9 ¾)
139 x 406 x 247
120
2.3
7.4 Oz
R-134a
850
220
1.9
ACTC 69
1/6
(69 x 16 x 9 ¾)
175 x 406 x 247
120
2.3
7.4 Oz
R-134a
850
220
1.9
ACTC 55 SL
1/6
(55 x 16 x 9 ¾)
139 x 406 x 247
120
2.3
8.8 Oz
R-134a
850
ACTC 69 SL
1/6
(69 x 16 x 9 ¾)
175 x 406 x 247
120
2.3
8.8 Oz
R-134a
850

2asberprofessional.com
asberprofessional.com
INSTALLATION
2.1 General information
2.2 Transport, handling, unpacking, location.
2.3 Intended use and restrictions.
2.4 Manufacturer’s identification label description.
2.5 Installation and assembly.
2.6 Connections (electric, gas, water)
2.1 General information

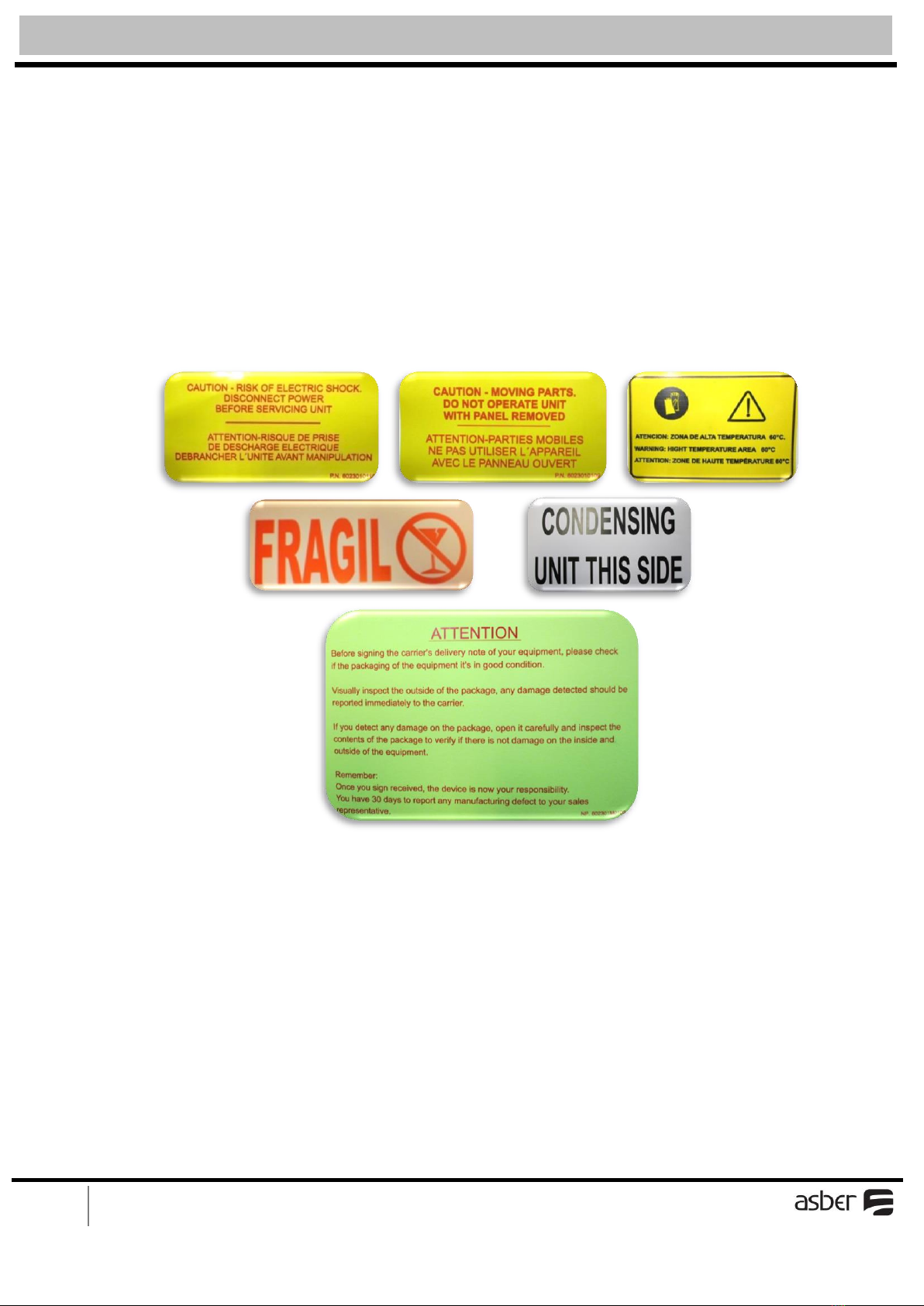

You can find in you equipment the following symbols, or stickers to identify some type of warnings or
useful information about your equipment.
2.2 Transport, handling, unpacking, location
Upon receiving your new ASBER Display Case, check the package and the machine for any damages
that may have occurred during transportation. Visually inspect the exterior of the package, if damaged,
open and inspect the contents with the carrier. Any damage should be noted and reported on the
delivering carrier’s receipt.
In the event that the exterior is not damaged, yet upon opening, there is concealed damage to the
equipment notify the carrier immediately. Notification should be made verbally as well as in written form.
Request an inspection by the shipping company of the damaged equipment.
Retain all crating material until inspection has been made. Contact the dealer through which you
purchased the unit.
Check the compressor compartment housing and visually inspect the refrigeration package. Be sure
lines are secure and base is still intact.

3asberprofessional.com
asberprofessional.com
2.3 Intended use and restrictions
ASBER equipment is not designed for personal, family, or household purposes, and its sale for such
purposes is not intended. In the event the equipment is so used, this warranty shall be null and void,
and the equipment is so used, this warranty shall be null and void, and the equipment shall be deemed
to have been sold “as is-where is” without any warranty of any kind, including without limitation any
warranty of title, non-infringement, merchant-ability or fitness for a particular purpose.
The equipment’s are conforms to UL and NSF- 7 standards.
If you want know more about other restrictions about your equipment see the warranty that is located in
the final part of your manual.
2.4 Manufacturer’s identification label description
The data plate is located inside the cabinet, near the top front, left corner. Under no circumstances
should the data plate be removed from the unit. The data plate is essential to identify the particular
features of your machine and it is of great benefit to installers, operators, and maintenance personnel. It
is recommended that, in the event the data plate is removed, you copy down the essential information in
this manual for reference before installation. Removal of data plate will void the warranty.

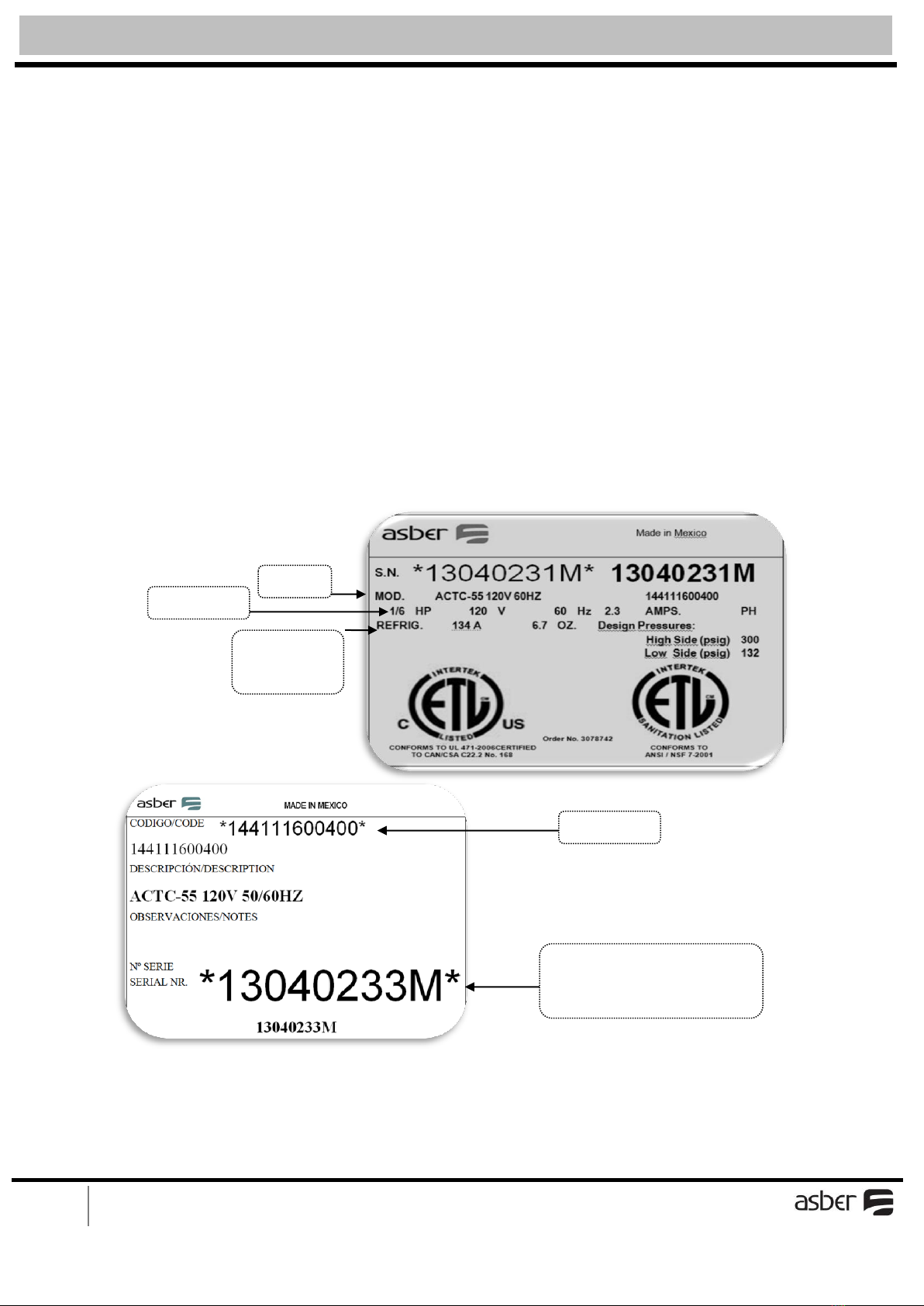

Model
Refrigerant
Type
Electricals
Serial Number
(8 digits and ends in “M”)
Code

4asberprofessional.com
asberprofessional.com
2.5 Installation and assembly
Units represented in this manual are intended for indoor use only. Be sure the location chosen has a
floor strong enough to support the total weight of the unit and contents. For the most efficient operation,
be sure to provide good air circulation inside and outside of the unit.
INSIDE CABINET
The first cleaning must be made when you unpack the unit and before switching it on. Clean it
with water and a mild detergent. When it is clean and dry, insert the accessories in the
appropriate places, for the best use of the user.
OUTSIDE CABINET
Be sure the unit has good air circulation around it. Avoid hot corners and locations near stoves
and ovens. It is recommended the unit be installed no closer than 2” from any wall. The place
where the refrigerator is placed must be open and clean, avoiding that de fan of the condensing
unit absorbs materials which are deposited then into the condenser blades and coil, which can
produce failures.
The unit should not be installed under ambient temperatures higher than 100 °F.
If the relative humidity is higher than 60 %, the door frames may sweat water. This is not a
malfunctioning of the unit.
2.6 Connections
Refer to the amperage data in this manual or on data plate and your local code or the National Electrical
Code to be sure unit is connected to the proper power source. Verify correct incoming voltage according
to the Data Plate information.
The data plate in located inside the unit, near the top front left corner. Under any circumstances should
the data plate be removed from the unit.
The data plate is essential to identify the particular features of your unit and is of great benefit to
installers, operators and maintenance personnel. It is recommended that, in the event the data plate is
removed, you copy down the essential information in this manual for reference before installation.
OPERATION
3.1 General information.
3.2 Control panel description.
3.3 Machine settings and programs.
3.1 General information
Good air flow inside the cabinet is critical. Do not block air flow to the fans. Allow three inches of space
along the front, back, and sides.
3.2 Control panel description
3.2.1 Electronic Control
After connecting your unit, turn ON rocker switch located next to the controller. The display will
light up showing the temperature inside the unit. Also, the compressor and fan icons will flash
for a period of three minutes. After this delay the unit will start cooling.
Verify you don't have any alarms on the temperature controller. If after you turn ON the
equipment the controller shows the alarm icon or an error code, call for technical service. They
will help you fix the problem.

5asberprofessional.com
asberprofessional.com
3.3 Machine settings and programs
Changing the Set Point of the temperature on the controller
The unit comes with a factory default set point ( 32°F Refrigerators). These set values will make the unit
perform at its maximum capacity. Therefore, it is not recommended to change the set point. If set point
needs to be changed, follow the next steps.
1. Push the SET button for one second. You should see a flashing number. Release the
button.
2. Press the up and down arrows to increase or decrease the set temperature. Then press the
set button to save the new set point.
Note:
The maximum value you can set in the controller is: For refrigerators: 5°C (40°F)
3. If you wish decrease the value of the set point for a new temperature, press the button
DOWN arrow (see the picture below). Press this button to reach the desired value. Release
the button and then press the SET button to keep, and save, the new value.
Note:
The minimum value you can set in the controller is: For refrigerators: -1°C (30°F)
Manual Defrost
To select manual defrost, hold the button DOWN arrow for 5 seconds. The snow flake icon will appear
on the display. When this icon is solid it indicates that the equipment is in Defrost mode.
To exit manual defrost, hold the DOWN button arrow for 5 seconds. The snow flake icon will turn off.
Wait 2 minutes for the compressor to start
FIGURE 1
Compressor Icon
Evaporator Fan Icon
Temperature inside the cabinet
To increase Set Point of Temperature
To turn the unit ON/OFF without unplugging the
equipment
To Change the set point
To access programming mode
To decrease Set Point of Temperature
To set a manual defrost

6asberprofessional.com
asberprofessional.com
MAINTENANCE
4.1 General safety rules.
4.2 Machine cleaning and maintenance routine.
4.3 Machine disposal.
4.1 General safety rules
Neglecting the condenser coil cleaning procedures WILL VOID YOUR WARRANTY associated with the
compressor or cost to replace the compressor!
Proper cleaning of stainless steel requires soft cloths or plastic souring pads. Never use steel pads, wire
brushes or scrapers!
4.2 Machine cleaning and maintenance routine
Cleaning solutions need to be alkaline or non-chloride cleaners. Any cleaner containing chlorides will
damage the protective film of the stainless steel. Chlorides are also commonly found in hard water,
salts, and household and industrial cleaners. If cleaner containing chlorides are used be sure to rinse
repeatedly and dry thoroughly upon completion.
Routine cleaning of stainless steel can be done with soap and water. Extreme stains or grease should
be cleaned with a non-abrasive cleaner and plastic scrub pad. There are also stainless steel cleaners
available which can restore and preserve the finish of the steels protective layer.
Never use and acid based cleaning solution! Many food products have an acidic content which can
deteriorate the finish. Be sure to clean the ALL food products from any stainless steel surface. Common
items include peppers, tomatoes and other vegetables.
4.2.1 Cleaning the Condenser Coil
Disconnect machine. Remove front bottom panel and carefully slide out the condensing unit.
The condenser coil requires regular cleaning; recommended every 30-60 days, depending of
the accumulation of dust and grease. If the buildup on the coil consists of only light dust and
debris the condenser coil can be cleaned with a simple brush. Heavier dust build up may
require a vacuum or even compressed air to blow though the condenser coil. If heavy grease is
present there are de-greasing agents available for refrigeration use and specifically for the
condenser coils. The condenser coil may require a spray with the de-greasing agent and then
blown through with compressed air.
Be sure all electrical and mechanical parts are dry before turning on the power.
Never use a high pressure water wash for this cleaning procedure as water can damage the
electrical components located near or at the condenser coil. Do not place filter material in front
of condenser coil. This material blocks air-flow to the coil similar to having a dirty coil!
If you keep the Condenser clean you will minimize your service expense and lower your
electrical costs. Failure to maintain a clean condenser coil can initially cause high temperatures
and excessive run times. Continuous operation with dirty or clogged condenser coils can result
in compressor failures.
To put back the condensing unit in its place, slide in the unit carefully. BE SURE DRAIN PIPE
IS LOCATED OVER THE PAN. Replace front bottom panel

7asberprofessional.com
asberprofessional.com
4.2.2 Draining the Unit
Each unit has a drain located inside the unit which removes the condensation from the
evaporator coil and evaporates it at an external condensate evaporator pan. Each drain can
become loose or disconnected from moving or bumping the drain.
IF YOU NOTICE EXCESSIVE WATER ACCUMULATION ON THE INSIDE OF THE UNIT be
sure the drain tube is connected
IF WATER IS COLLECTED UNDERNEATH THE UNIT you may want to check the leveling of
the unit, because it is important by the properly drain, if your floor is not level this can also
cause drain problems. Be sure all drain lines are free of obstructions; typically food product is
found blocking drain lines causing water to back up and overflow the drain pans.
4.3 Machine disposal
The product’s life-cycle is around 7 to 10 year from the use an operation date.
Asber equipment is manufactured without dangerous or toxic materials. Some parts of the equipments
are biodegradable.
The disposing after the product’s life-cycle shall be determined according to the rules and laws
established in the city or State of residence.
REMEMBER TO TAKE CARE OF THE ENVIRONMENT.
TROUBLESHOOTING CHART
5.1 Troubleshooting guide chart
5.1 Troubleshooting
Follow the next steps before requesting warranty service. Failure to do so, may result in service charges
for you and may void your warranty:
1) Refrigerator doesn’t work:
a. Check that the machine is still connected.
b. Check that the ON/OFF button is in the ON position.
2) Refrigerator doesn’t reach temperature :
a. Verify unit is not on saving mode
b. Check that control is not in OFF position.
c. Check that the machine is not in the defrost cycle.
d. Ensure Equipment is in a ventilated place and removed minimum of 2
inches from any other appliance and away from any heat source.
e. The environment maximum temperature must be 38 °C/ 100°F.
f. To insure proper air flow, product must not be placed higher than the
maximum level mark located on the internal wall of the unit.
g. Check that the fan is moving.
h. Don’t put any food inside until the unit has reached the proper temperature.
i. Be sure castors or legs were installed.
3) There is water inside the refrigerator:
a. Check that there is not food clogging the drain line.
4) There is water under the refrigerator:
a. Check that the cabinet is level.
Warning: To insure proper operation of equipment, it is recommended that the unit is
on for 24 hours prior to the introduction of perishables.

8asberprofessional.com
asberprofessional.com
WARRANTY
6.1 Limited Warranty
One Year Parts & Labor Warranty: Asber Commercial,
Inc. (“Asber”) Warrants to the fist-end-user purchaser (the
“User) that the Asber brand equipment sold hereunder,
except for parts and accessories which carry the warranty
of a supplier (the “Equipment”) will be free from defects in
material and factory workmanship under normal
conditions of use and maintenance for a period of one (1)
years from the date of installation (Warranty
commencement date), but in no event to exceed eighteen
(18) months from the date of shipment from the factory.
Warranty is Not Transferable.
Warranty Coverage: If there is a defect in material or
factory workmanship covered by this Warranty reported
to Asber during the period the applicable Warranty is in
force and effect, Asber will repair or replace, at Asber’s
option, that part (ground shipping only) of the Equipment
that has become defective and will cover labor cost
(straight time only) within the corresponding warranty
period of time Asber shall bear all labor costs (straight
time only) in connection with the installation of these
replacement parts, provided that, the installation is
conducted by Asber or its authorized representative.
Charges for warranty travel time round trip, total two (2)
hours or up to 100 miles total. Any charges exceeding
those stated herein must have prior authorization by
Asber. Travel outside of the two (2) hours or 100 miles,
and any work performed at overtime or weekend rates,
would be the responsibility of the owner/user. In the case
Asber deems the equipment non-repairable, said
equipment will be replaced and the replacement unit(s)
will carry the same warranty period from the original unit’s
installation date (original Warranty Commencement
Date).
Additional Three Year Compressor Part Warranty: In
addition to the warranty set above, Asber warrants the
sealed compressor (part only) for an additional four (4)
years based on the installation date. This warranty is for
defects, both in workmanship and material, under the
normal and proper use and maintenance service. The
four (4) year extended warranty only applies to sealed
parts of the compressor and does not apply to any other
part or component, including, but not limited to cabinet,
temperature control, refrigerant, motor starting
equipment, fan assembly, or any other electrical or
mechanical component.
Exclusions from and Conditions to Warranty
Coverage: This Warranty does not cover parts or
accessories, which (a) carry the warranty of a supplier or
(b) are abused. Application of this Warranty is further
conditioned upon the following:
Installation: The Equipment must be properly installed in
accordance with Asber’s installation procedures and by a
professional technician.
No Alteration: The Equipment must not have been
modified or altered from its condition at the date of
original installation.
Use: ASBER EQUIPMENT IS NOT DESIGNED FOR
PERSONAL, FAMILY, OR HOUSEHOLD PURPOSES,
AND ITS SALE FOR SUCH PURPOSES IS NOT
INTENDED. IN THE EVENT THE EQUIPMENT IS SO
USED, THIS WARRANTY SHALL BE NULL AND VOID,
AND THE EQUIPMENT SHALL BE DEEMED TO HAVE
BEEN SOLD “AS IS-WHERE IS” WITHOUT ANY
WARRANTY OF ANY KIND, INCLUDING WITHOUT
LIMITATION ANY WARRANTY OF TITLE, NON-
INFRINGEMENT, MERCHANT-ABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
Proper Maintenance and Operation: The Equipment
must be properly maintained and operated in accordance
with Asber’s maintenance and operating procedures. All
service, labor and parts must be acquired from Asber or
its authorized service representative for the User’s area.
This warranty is void if failure is a direct result of handling
and/or transportation, fire, water, accident, misuse, acts
of god(s), attempted repair by unauthorized persons,
improper installation, if serial number has been removed
or altered, or if unit is used for purpose other than it was
originally intended.
Failure to comply with any of these conditions will void
this Warranty. In addition, this Warranty does not cover
defects due to apparent abuse, misuse or accident.
Parts Warranty Coverage: Asber warrants all new
machine parts produced or authorized by Asber to be free
from defects in material and workmanship for a period of
90 days from the Warranty Commencement Date. If any
defect in material and workmanship is found to exist
within the warranty period, Asber will replace the
defective part without charge. Defective parts become the
property of Asber.

9asberprofessional.com
asberprofessional.com
Asber will have no responsibility to honor claims received
after the date the applicable Warranty expires.
Notwithstanding the foregoing , any claim with reference
to the Equipment or any parts therefore for any cause
shall be deemed waived unless submitted by the User to
Asber within (30) days after the date the User discovered,
or should have discovered, the claim. In connection with
all claims under this Warranty, Asber will have the right,
at its own expense, to have its representatives inspect
the Equipment at the User’s premises and to request all
of the User’s records pertaining to the Equipment to
determine whether a defect exists, whether the conditions
set forth in this Warranty have been satisfied, and
whether or not the applicable Warranty is in effect.
THE FOREGOING WARRANTY IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES NOT
EXPRESSLY SET FORTH HEREIN, WHETHER
EXPRESS OR IMPLIED BY OPERATION OF LAW OR
OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY
REPRESENTATION OF PERFORMANCE AND ANY
IMPLED WARRANTIES OF TITLE, NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICLULAR PURPOSE. NO OTHER
WARRANTIES ARE AUTHORIZED ON BEHALF OF
ASBER UNLESS SPECIFICALLY ISSUED BY ASBER.
Asber shall have no liability for incidental or
consequential losses, damages including without
limitation or expenses, loss of sales, spoiled food, profits
or goodwill, claims whether or not on account of
refrigeration failure or punitive or exemplary damages
directly or indirectly arising from the sale, handling or use
of the Equipment or from any other cause relating
thereto, whether arising in contract, tort, warranty, strict
liability or otherwise. Asber’s liability hereunder in any
case is expressly limited, at Asber’s election, to repair or
replacement of Equipment or parts therefore or to the
repayment of, or crediting the user with, an amount equal
to the purchase price of such goods.
Prices & Specifications: Asber reserves the right to
change the prices and specifications of the equipment
and/or material without notice. Prices are FOB Asber
warehouses. All orders are subject to acceptance by
Asber Commercial, Inc.
Terms: All orders are subject to credit approval. All
Invoices not paid within the specified terms will be subject
to a 1.5% per month delinquency charge. Buyer agrees to
pay all costs of collection including such attorney’s fees
as may be allowed by law.
Taxes: This price list does not include any Federal, State,
City or Local taxes, which may apply and are subject
thereto.
Shipment: Requested carrier will be used upon request.
Asber has the right to ship via any responsible carrier if
requested carrier is unavailable. Shipping charges are
payable by consignee and any claims arising as such
charges shall be resolved between the carrier and the
consignee. Shipping dates are approximates. Asber is not
responsible for any delays in deliveries that are beyond
our control.
Damaged Merchandise: Inspect shipment for any
damage, before accepting it. If damaged, open and
inspect the contents with the carrier. Any damage should
be noted and reported on the delivering carrier’s receipts.
Asber does not assume nor responsibility for damages
while in transit.
Concealed Damage: If there is concealed damage to the
equipment, notify the carrier immediately. Notification
should be made verbally as well as in written form.
Request an inspection by the shipping company of the
damaged equipment. Retain all crating material until
inspection has been made.
Cancellations & Returns: Cancelled orders and
returned merchandise are subject to a 25% restocking
and handling charge. Written authorization is required for
a return of any equipment. All equipment returned must
be in its original factory crate; freight prepaid and must be
in the same condition as originally shipped by Asber.
Returns will only be authorized within 30 days of invoice
date.
