ASEA AC36VHES-1 User manual

Operations Manual
for the ASEA Power Systems
Models AC36VHES-1, AC36VHES-3, AC45VHES-1,
AC45VHES-3, AC54HES-1, and AC54VHES-3
Single and Three Phase, Water-Cooled
Shore Power Converters
P/N 604056
Issued 12/13/2013

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....2
CERTIFICATION
ASEA Power Systems certifies that this product was thoroughly tested and inspected and found to meet
or exceed its published specifications when shipped from the factory.
WARRANTY
ASEA Power Systems warrants each unit to be free from defects in material and workmanship. For a
period of 18 months after purchase or 12 months after installation (whichever is shorter), ASEA Power
Systems will repair or replace any defective module provided the unit has been installed and operated in a
manner according to this manual. A thorough inventory of spare parts & modules is maintained at our
factory. Our world-wide sales/support facilities also inventory a complement of spare parts and modules.
ASEA Power Systems is not responsible for consequential damage arising from the use of its equipment.
It does not apply to extensively modified or non-standard systems. Debit memos for returned units are
not accepted, and will cause return of the system without repair.
LIFE SUPPORT POLICY
ASEA Power Systems does not authorize the use of any of its products or systems for use an AC voltage
supply (source) for life support systems. Life support systems are devices which support or sustain life,
and whose failure to perform, when properly used in accordance with this Operations Manual, can be
reasonably expected to result in significant injury to the user.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....3
1 USING THIS MANUAL
This manual has been written as an Operations Manual. Installation, operations, and
preventative maintenance are covered in detail. This manual will cover the following models:
AC36VHES-1 36kVA 1 Phase Shore Power Converter
AC36VHES-3 36kVA 3 Phase Shore Power Converter
AC45VHES-1 45kVA 1 Phase Shore Power Converter
AC45VHES-3 45kVA 3 Phase Shore Power Converter
AC54VHES-1 54kVA 1 Phase Shore Power Converter
AC54VHES-3 54kVA 3 Phase Shore Power Converter
Please note that each converter is capable of being paralleled for higher power applications.
The Model AC36VHES can be paralleled to produce the following models:
AC75VHES-1/2 75kVA 1 Phase Shore Power Converter
AC75VHES-3/2 75kVA 3 Phase Shore Power Converter
The Model AC45VHES can be paralleled to produce the following models:
AC90VHES-1/2 90kVA 1 Phase Shore Power Converter
AC90VHES-3/2 90kVA 3 Phase Shore Power Converter
The Model AC54VHES can be paralleled to produce the following models:
AC105VHES-1/2 108kVA 1 Phase Shore Power Converter
AC105VHES-3/2 108kVA 3 Phase Shore Power Converter
It is important that the operator reads this manual prior to installing and operating the converter.
A thorough understanding of the information covered in this manual is required for proper
installation and operation. If any questions arise while reading this manual, the user is
encouraged to call ASEA Power Systems. ASEA Power Systems is located at:
ASEA Power Systems
15602 Commerce Lane
Huntington Beach, CA. 92649
Phone [phone]
FAX [phone]
Web http://www.aseapower.com

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....4
TABLE OF CONTENTS
CERTIFICATION ...........................................................................................................................2
WARRANTY ..................................................................................................................................2
1 USING THIS MANUAL.....................................................................................................3
2 SAFETY NOTICES.............................................................................................................6
3 INTRODUCTION TO THE AC36/45/54VHES.................................................................8
4 SPECIFICATIONS............................................................................................................10
4.1 ELECTRICAL SPECIFICATIONS ......................................................................10
4.1.1 Input Service..............................................................................................10
4.1.2 Output Service ...........................................................................................10
4.1.3 Control, Metering, and Status....................................................................12
4.1.4 Output Derating: Coolant Temperature.....................................................12
4.2 PHYSICAL SPECIFICATIONS ...........................................................................12
4.2.1 Mechanical ............................................................................................13
4.2.2 Environmental............................................................................................13
4.2.3 Coolant Requirements................................................................................13
5 INSTALLATION ..............................................................................................................14
5.1 MECHANICAL INSTALLATION.......................................................................14
5.1.1 General.......................................................................................................15
5.1.2 Clearances..................................................................................................15
5.1.3 Chilled Water Loop Requirements ............................................................17
5.2 ELECTRICAL INSTALLATION.........................................................................19
5.2.1 Input Power Connections...........................................................................20
5.2.2 Output Power Connections........................................................................20
5.2.3 Grounding..................................................................................................23
5.2.4 Multi-Cabinet Connections........................................................................24
5.2.5 Seamless Transfer Connections.................................................................25
5.2.6 Other Optional Connections ......................................................................26
6 OPERATION.....................................................................................................................27
6.1 POWER TURN-ON PROCEDURE......................................................................27
6.1.1 Systems Not Equipped With The Seamless Transfer Option....................29
6.1.2 Systems Equipped With The Seamless Transfer Option...........................30
6.2 MULTI-CABINET OPERATION.........................................................................32
6.3 AUTO-RESTART FEATURE ..............................................................................33
6.3.1 Operation....................................................................................................34
6.4 TURN-OFF PROCEDURE...................................................................................35
6.4.1 Systems Not Equipped With The Seamless Transfer Option....................35
6.4.2 Systems Equipped With The Seamless Transfer Option...........................36
6.5 REMOTE COMMUNICATION...........................................................................37
6.5.1 RS-232C/SCPI...........................................................................................38
6.5.2 RS-485/Modbus.........................................................................................39

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....5
7 SOFTWARE FEATURES.................................................................................................41
7.1 GENERAL.............................................................................................................41
7.2 LOAD MANAGEMENT.......................................................................................41
7.3 LOAD MANAGEMENT OPERATION...............................................................43
7.3.1 Shore Cord Alarm, Single, Master, and Slave converters .........................43
7.3.2 Shore Cord Setup, Single, Master, or Slave Converters............................44
7.3.3 Load Sharing, Slave converters with Shore Cord Management Option....45
7.3.4 Voltage Droop, Single or Master Converters ............................................47
7.3.5 Automatic Transfer to Generator, Single or Master Converters (Seamless
Transfer installed)......................................................................................48
7.3.6 Quick Setup of Shore Cord Alarm, Single, Master, or Slave Converters..49
7.3.7 Expert Load Sharing Use, Paralleled Converters ......................................50
7.4 GENERATOR FREQUENCY ANALYSIS .........................................................51
7.5 CONVERTER OUTPUT IMPEDANCE CONTROL...........................................51
7.6 AGC CONTROL...................................................................................................52
7.7 kW-HOUR METER AND MAXIMUM POWER LEVEL DISPLAY.................53
7.8 CONVERTER OUTPUT VOLTAGE CONTROL...............................................54
7.9 EVENT LOG.........................................................................................................55
8 TROUBLE-SHOOTING AND DIAGNOSTICS..............................................................57
8.1 COMMON PROBLEMS.......................................................................................57
8.2 FAILURE AND WARNING MESSAGES...........................................................58
8.3 INFO DISPLAY ....................................................................................................58
8.4 STATUS WORDS.................................................................................................59
8.5 GATHERING DATA............................................................................................59
8.6 SOFTWARE TOOLS............................................................................................59
9 CALIBRATION ................................................................................................................61
10 MAINTENANCE..............................................................................................................63
11 INTERNATIONAL POWER FORM REFERENCE........................................................64
FIGURES
1 SYSTEM BLOCK DIAGRAM...........................................................................................8
2 OUTPUT DERATING: COOLANT TEMPERATURE...................................................12
3 MECHANICAL OUTLINE...............................................................................................16
4 DECK MOUNTING PATTERN.......................................................................................17
5 INPUT AND OUTPUT CONNECTIONS........................................................................22
6 FRONT PANEL CONTROLS ..........................................................................................27
7 RS-232C PINOUT.............................................................................................................38
8 RS-485 CONNECTIONS..................................................................................................39
9 STATUS WORD BIT DEFINITIONS..............................................................................60
INDEX ........................................................................................................................................71

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....6
2 SAFETY NOTICES
Each shore power converter is capable of transferring large amounts of electrical energy very
quickly. This quality is fundamental to a high performance power converter. International
symbols are used throughout this manual to stress important information. Read the text below
each symbol carefully and use professional skills and prudent care when performing the actions
described by the text.
THE CAUTION SYMBOL (TRIANGLE ENCLOSING AN EXCLAMATION POINT)
INDICATES A CONDITION THAT COULD SERIOUSLY DAMAGE EQUIPMENT
AND POSSIBLY INJURE PERSONNEL. CAUTIONS WILL BE PRESENTED IN THIS
FORM. ALL CAUTIONS SHOULD BE RIGOROUSLY OBSERVED.
THE WARNING SYMBOL (TRIANGLE WITH A LIGHTNING BOLT) IS USED TO
SIGNAL THE PRESENCE OF A POSSIBLE SERIOUS, LIFE THREATENING
CONDITION. A CONDITION THAT IS HAZARDOUS TO BOTH PERSONNEL AND
EQUIPMENT WILL BE ISSUED AS A WARNING. ALL WARNINGS WILL BE
PRESENTED IN THIS FORM.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....7
THIS EQUIPMENT CONTAINS HIGH ENERGY, LOW IMPEDANCE
CIRCUITS! LETHAL POTENTIALS ARE CONTAINED WITHIN THE
SYSTEM EVEN WHEN IT APPEARS NON-OPERATIONAL.
CARE MUST BE EXERCISED WHEN SERVICING THIS EQUIPMENT IN
ORDER TO PREVENT SERIOUS OPERATOR INJURY OR EQUIPMENT
DAMAGE.
DO NOT WORK ON OR OPERATE THIS EQUIPMENT UNLESS YOU ARE
FULLY QUALIFIED TO DO SO. NEVER WORK ALONE.
THE EQUIPMENT IS NOT IGNITION RATED; IT MUST NOT BE OPERATED
IN AREAS WHERE COMBUSTIBLE GASES MAY ACCUMULATE.
DO NOT REMOVE THE SHORE CORD FROM THE DOCK PEDESTAL
WITHOUT FIRST OPENING THE DOCK OR YACHT BREAKER. FAILURE
TO DO SO MAY RESULT IN DAMAGE TO THE CONVERTER AND
PEDESTAL.
OBSERVE THE FOLLOWING WHEN SERVICE AND MAINTENANCE ARE
REQUIRED:
REMOVE ALL JEWELRY FROM ARMS AND NECK WHEN SERVICING
THIS EQUIPMENT. THIS PREVENTS THE POSSIBILITY OF SHORTING
THROUGH THE JEWELRY, OR ELECTROCUTION OF THE OPERATOR.
WEAR SAFETY GLASSES WHEN SERVICING THIS EQUIPMENT TO
PREVENT EYE INJURY DUE TO FLYING PARTICLES CAUSED BY
ACCIDENTAL SHORT CIRCUIT CONDITIONS.
DO NOT REMOVE ANY PANELS OR COVERS WITHOUT FIRST OPENING
ALL SHORE POWER AND SWITCHGEAR CIRCUIT BREAKERS
DISTRIBUTING POWER TO AND FROM THE CONVERTER, AND THEN
REMOVING THE INPUT SERVICE.
SERVICE SHOULD BE REFERRED TO PERSONNEL AUTHORIZED BY THE
FACTORY TO SERVICE THIS EQUIPMENT.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....8
3 INTRODUCTION TO THE AC36/45/54VHES
The AC36VHES, AC45VHES, and AC54VHES are high performance Shore Power Converters
utilizing dual-conversion technology. These converters will accept any single or three phase
input service with a frequency between 40-70Hertz, and a voltage between 170-520VAC; the
converter will auto-configure for the applied power form. The output power form has been
programmed at the factory for the power form (single or three phase), voltage and frequency,
required by your yacht.
FIGURE 1 SYSTEM BLOCK DIAGRAM
Dual-conversion technology is the preferred technique for AC power conversion, and was
chosen for the system design. In this technology, the shore power service is isolated by
transformers and then converted to DC power by the Power Factor Correction (PFC) power
supplies. The output inverters then convert the DC power back to the AC form required (both
voltage and frequency) by the yacht.
These models are a dust-sealed variation of the standard “V” converter series and are cooled via
an integrated liquid-to-air heat exchanger when plumbed to the yacht’s chilled water loop.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....9
The converter is designed to have the heat it introduces into its internal atmosphere cooled via
this back -mounted, air-to-liquid heat exchanger. The heat-exchanger is designed for use with
chilled water or coolant (not seawater).
Being a converter designed from the ground up specifically for the yachting industry, all efforts
have been made to produce a system capable of withstanding the marine environment. All
system components are packaged in one drip-proof, dust-resistant stainless steel enclosure.
Major components are internally modular, allowing a simple exchange in the unlikely event of
failure. Complete maintenance and service can be provided with only front access to the system.
Three lightweight power modules can be removed and replaced through the front panel for repair
or power level upgrade.
System operation is managed through two basic operators:
A safety disconnect on the front of the enclosure is used for securing input service during periods
of disuse, when maintenance and/or service is in-process, or when an emergency shutdown is
needed.
Three membrane switch groups in the control console—SHORE POWER, CONVERTER
POWER, and SHIP’S POWER—provide normal operation of the system. Each switch group
contains an ON and OFF switch with associated LED indicators.
In addition to the basic function of power conversion, each converter provides the user with a
sophisticated power analysis and monitoring capacity. All parameters for input and output
power, along with operations and status information, are available on the front panel display
console. Various displays are selected through a long life, sealed membrane switch panel.
For additional information on controls and indicators, please refer to Section 6.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....10
4 SPECIFICATIONS
4.1 ELECTRICAL SPECIFICATIONS
Parameter AC36VHES-1, -3 AC45VHES-1, -3 AC54VHES-1, -3
4.1.1 Input Service
Input Power Form Single of Three Phase Single or Three Phase Single or Three Phase
Input Voltage Range 170-520VAC 170-520VAC 170-520VAC
Input Frequency Range 40-70 Hertz 40-70 Hertz 40-70 Hertz
Input Current, Max. Single Phase 150 ARMS 187 ARMS 225 ARMS
or, Max. Three Phase 100 ARMS 125 ARMS 150 ARMS
Input Current, Soft Start, Max. 42 ARM 42 ARMS 42 ARMS
Input Current Distortion <8% THD @ rated load <8% THD @ rated load <8% THD @ rated load
Input Power Factor >0.98 @ rated load >0.98 @ rated load >0.98 @ rated load
4.1.2 Output Service
Output Power Rating 36kVA @ 0.85 p.f. 45kVA @ 0.85 p.f. 54VA @ 0.80 p.f.
Output Power Form Single-Phase 220VAC, 230VAC, 240VAC, and Two-Phase 120/240VAC
or, Three-Phase 120/208VAC, 127/220VAC, 220/380VAC, 230/400VAC, 240/416VAC,
and 254/440VAC
Output Frequency 50 or 60 Hertz 50 or 60 Hertz 50 or 60 Hertz
Output Frequency Accuracy 0.01% 0.01% 0.01%
Output Voltage Distortion < 1% THD < 1% THD < 1% THD
Output Voltage Line Regulation 0.50% 0.50% 0.50%
Output Voltage Load Regulation 1.0% 1.0% 1.0%
Output Voltage Response Time 0.20 msec. 0.20 msec. 0.20 msec.
Output Current, Continuous Refer to Table 1 on the following page for basic ratings.
Output Current, Peak 400% of cont. rating 380% of cont. rating 320% of cont. rating
Output Current, Surge 340% of cont. rating 270% of cont. rating 230% of cont. rating
Conversion Efficiency 91% @ rated load 91% @ rated load 91% @ rated load

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....11
4 SPECIFICATIONS
4.1 ELECTRICAL SPECIFICATIONS,cont.
4.1.2 Output Service, cont.
Table 1 - Output Current, Rated Continuous RMS
Output Form
AC36VHES-1
AC45VHES-1
AC54VHES-1
1Ø, 220VRMS
164ARMS/Ø
205ARMS/Ø
245ARMS/Ø
1Ø, 230VRMS
156ARMS/Ø
196ARMS/Ø
235ARMS/Ø
1Ø, 240VRMS
150ARMS/Ø
187ARMS/Ø
225ARMS/Ø
2Ø, 120/240VRMS
150ARMS/Ø
187ARMS/Ø
225ARMS/Ø
Output Form
AC36VHES-3
AC45VHES-3
AC54VHES-3
3Ø, 254/440VRMS
47ARMS/Ø
59ARMS/Ø
71ARMS/Ø
3Ø, 240/416VRMS
50ARMS/Ø
63ARMS/Ø
75ARMS/Ø
3Ø, 230/400VRMS
52ARMS/Ø
65ARMS/Ø
78ARMS/Ø
3Ø, 220/380VRMS
55ARMS/Ø
68ARMS/Ø
82ARMS/Ø
3Ø, 127/220VRMS
94ARMS/Ø
118ARMS/Ø
142ARMS/Ø
3Ø, 120/208VRMS
100ARMS/Ø
125ARMS/Ø
150ARMS/Ø

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....12
4 SPECIFICATIONS, cont.
4.1 ELECTRICAL SPECIFICATIONS, cont.
4.1.3 Control, Metering, and Status
Input Power Control Input Service Disconnect Switch, 2 pos.
Shore Power Control Membrane Switch, Input ON/OFF Control
Converter Power Control Membrane Switch, Output ON/OFF Control,
Ship’s Power Control Membrane Switch, Generator/Shore Transfer Control
Shore Power Metering Voltage, Current, Frequency, kVA, kW, %Load
Converter Power Metering Voltage, Current, Frequency, kVA, kW, %Load
Generator Power Metering Generator 1 & 2 Voltage, Frequency,
(Optional) Current, kVA, kW, %Load
System Status Operational status, Diagnostics, Software Calibration
4.1.4 Output Derating: Coolant Temperature

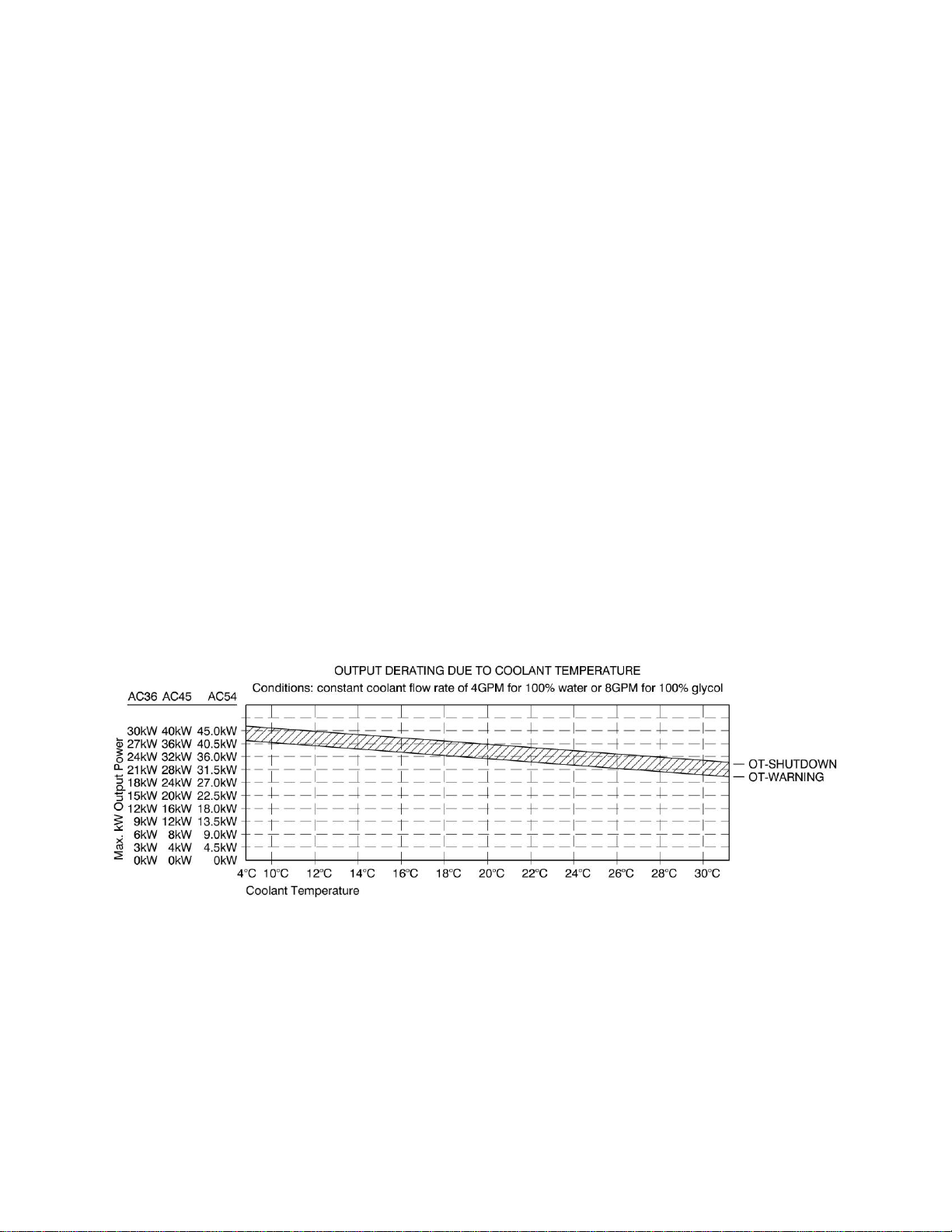

FIGURE 2 OUTPUT DERATING: COOLANT TEMPERATURE

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....13
4 SPECIFICATIONS, cont.
4.2 PHYSICAL SPECIFICATIONS
Parameter AC36VHES-1, -3 AC45VHES-1, -3 AC54VHES-1, -3
4.2.1 Mechanical
Height 56.13"/142.6cm 56.13"/142.6cm 56.13"/142.6cm
Width, Enclosure 32.66"/83.0cm 32.66"/83.0cm 32.66"/83.0cm
Depth 21.81"/55.4cm 21.81"/55.4cm 21.81"/55.4cm
Weight 836lbs/379kg 836lbs/379kg 840lbs/381kg
4.2.2 Environmental
Ambient Temperature Range 0-50C non-condensing
Internal Air Exchange Rate 900CFM (ft3/min) / 1,530 m3/hour
4.2.3 Coolant Requirements
Water Flow Rate 4-10 GPM range (minimum and maximum, respectively)
Coolant Flow Rate 8-16 GPM range (minimum and maximum, respectively)
Water/Coolant Flow Min. Rate 4 + (4 * Percent Coolant)
e.g. 100% coolant mix, 4 + (4 *1.00) = 8 GPM
50% coolant mix, 4 + (4 *0.50) = 6 GPM
Water/Coolant Temperature 4-10°C for full output power capability. See derating chart
on the previous page for operation at other temperatures.
Water/Coolant Pressure 150 psi / 10.3 bar maximum
Pressure Drop at 4GPM 0.4 bar per heat exchanger (two)

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....14
5 INSTALLATION
The installation section is divided into two parts. The first will cover mechanical installation, the
second, electrical installation.
Read this manual thoroughly prior to attempting the installation. Improper installation is the
most significant cause of system start-up problems and service issues over the product’s life.
Upon receipt of the equipment, perform an external visual inspection. Verify that nameplate
information is consistent with the ship’s power requirements (required form, voltage, and
frequency).
Proper planning will speed up installation, location, and connection of the equipment. Follow
the suggested minimum clearances provided in Table 2. The thermal load presented by the
converter to the chilled water loop will be substantial and approximately 10,500BTU/Hr at
maximum continuous load for the AC36VHES; 13,060BTU/Hr for the AC45VHES; and
15,670BTU/Hr for the AC54VHES.
THE CONVERTERS ARE HEAVY, WEIGHING UP TO 840lbs
DEPENDING UPON MODEL AND INSTALLED OPTIONS. EXTREME
CAUTION MUST BE EXERCISED IN HANDLING AND INSTALLATION
TO AVOID EQUIPMENT DAMAGE OR INJURY TO PERSONNEL. AN
ADEQUATE MATERIAL HANDLING DEVICE SHOULD BE USED FOR
UNLOADING, MOVING, AND POSITIONING THE SYSTEM.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....15
5.1 MECHANICAL INSTALLATION
5.1.1 General
The converters were designed for deck mount installations and as such are provided with six
mounting holes, three per side. Mounting holes have been provided with 1/2” (12.7mm)
diameters; stainless steel hardware in the range of 3/8” to 7/16” (10-11mm) diameter is required.
The mounting surface should be flat and dimensionally stable to within 1/16” (1.5mm) to prevent
torsional stresses being applied to the structure of the converter. Spacers (shim stock) may be
added between the mounting surface and the converter mounting flanges to adjust the mounting
plane. If the system is to be mounted in a high vibration/shock environment, then the factory
must be consulted concerning the application. Drawings for approved shock mounting
assemblies will be supplied.
5.1.2 Clearances
The following recommended clearances must be considered during installation for proper
operation:
TABLE 2 FOR PROPER:
Operation Service
Front 18" (Operator Area) 24" min
Sides 0" 0"
Top 0" 0"
Rear 0" 0"
Please contact factory engineers for review of the installation plan if unsure on any specification
or requirement.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....16
5.1 MECHANICAL INSTALLATION, cont.

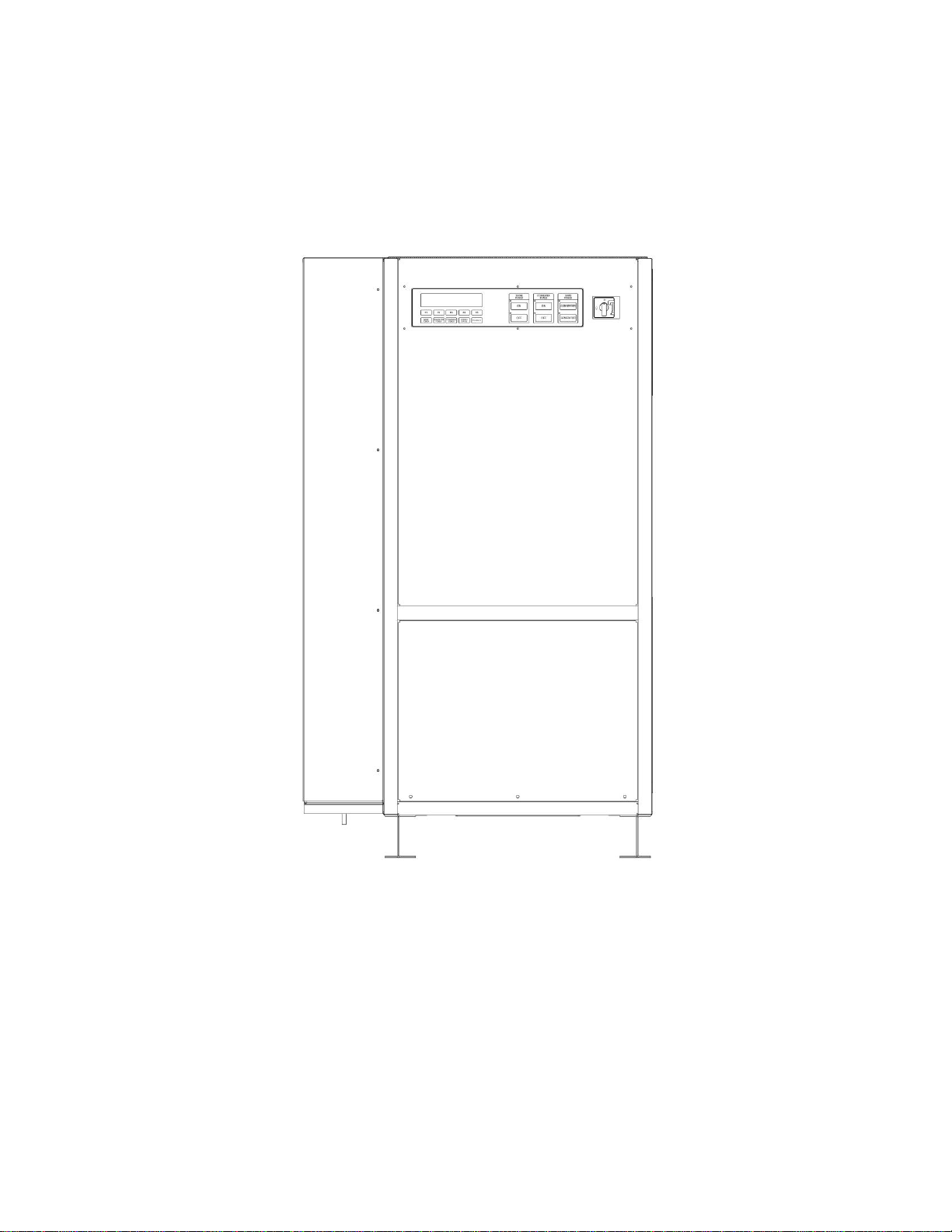

FIGURE 3 MECHANICAL OUTLINE

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....17
5.1 MECHANICAL INSTALLATION, cont.
FIGURE 4 DECK MOUNTING PATTERN

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....18
5.1 MECHANICAL INSTALLATION
5.1.3 Chilled Water Loop Requirements
1. Coolant lines
a. The four coolant line connections are to 1/2" diameter copper pipes.
b. Use Teflon sealant to ensure that no leakage will occur.
2. Coolant line valves
a. Manual isolation valves must be installed locally so that shutoff can occur in the event
maintenance or a leak.
b. A flow control solenoid must be installed to halt coolant flow when the converters are
not in use. Without such, condensation can be created within the converter.
c. A flow control solenoid may be controlled by wiring its coil through a NO auxiliary
switch added to the converter’s K2 contactor. This way, flow will only be present when
the converter is switched to SHORE POWER ON.
3. Rear-bottom condensation drip line
a. The rear-bottom condensation drip line connection is made to a 3/8" diameter painted
steel pipe.
b. Use Teflon sealant to ensure that no leakage will occur.
4. Maintenance
a. No maintenance need be performed on the heat exchange unit when it is used in a
chilled, fresh water or ethylene glycol system.
5. Flow
a. A coolant flow rate greater than 16 GPM (Gallons Per Minute) is wasteful and can
accelerate water erosion of the heat exchange unit’s copper piping and sweated junctions.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....19
5.2 ELECTRICAL INSTALLATION
This procedure assumes the physical installation of the converter has been completed.
It is the installer’s responsibility to provide input service over-current protection and disconnect
means.
It is recommended that connection be made to the distribution bus through a manually operated
disconnect device such as a molded case switch or circuit breaker (rated for the total system
amperage) to ease disconnection and provide a safe servicing environment in the event of
converter failure.
Follow the table below when considering shore power input cabling.
MAXIMUM CURRENTS UNDER LOW-LINE CONDITIONS:
Model AC36VHES AC45VHES AC54VHES
Input Current Single Phase, 170-290VAC 190A 233A 288A
Single Phase, 330-520VAC 95A 116A 144A
Three Phase, 170-290VAC 110A 135A 166A
Three Phase, 330-520VAC 55A 67A 84A
MAXIMUM OUTPUT CURRENTS: Refer to Table 1, page 11
All power wiring requires the removal of the front panel. The front cover is secured with 3 ea
#10 stainless steel screws.

AC36VHES-1, -3 / AC45VHES-1, -3 / AC54VHES-1, -3 Operations Manual....20
5.2 ELECTRICAL INSTALLATION, cont.
INPUT WIRING MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN
FAMILIAR WITH STANDARD SAFEGUARDS AND PROCEDURES REQUIRED BY
THE INSTALLATION OF THIS TYPE OF EQUIPMENT. POWER MUST BE
REMOVED FROM THE INPUT DISTRIBUTION SYSTEMS SUPPLYING POWER TO
THE CONVERTER PRIOR TO THE START OF THE FOLLOWING STEPS. INPUT
POWER MUST BE SECURED (LOCKED) IN THE OFF (DE-ENERGIZED) STATE
UNTIL INSTRUCTED OTHERWISE BY THIS DOCUMENT. ALSO SECURE IN THE
OFF STATE ANY CIRCUIT BREAKER(S) IN THE SWITCHGEAR PANEL THAT
MAY BE SUPPLYING SHIP’S BUS POWER TO THE CONVERTER OUTPUT
TERMINAL BLOCK. FAILURE TO FOLLOW THESE PROCEDURES CAN RESULT
IN DAMAGE TO THE EQUIPMENT, AND CAN PRESENT THE RISK OF INJURY OR
DEATH TO THE INSTALLER OR THE OPERATOR.
5.2.1 Input Power Connections
The converter is supplied with compression type terminal blocks for input power connections.
These terminal blocks accept wires in the range of 250MCM to 6AWG (approximately 120mm2
to 16mm2). Refer to the applicable standards for selection of required wire gauge and type. If
single phase shore power is to be used, it must be applied between the SHORE POWER Phase A
ad Phase B terminal block positions. In two or more cabinet systems, one shore cord is
connected to each converter shore power terminal block. Please refer to Figure 5 on page 22 for
more details.
5.2.2 Output Power Connections
The converter is supplied with compression type terminal blocks for output power connections.
These terminal blocks accept wires in the range of 250MCM to 6AWG (approximately 120mm2
to 16mm2). Refer to the applicable standard for selection of the required wire gauge and type.
The output ground wire must be connected to a 3/8-16 UNC stud. Please refer to Figure 5 on
page 22 for more details.
