Ashley Signature EF19-42A User manual

Fireplace User Guide
®
MODEL#: EF19-42A
SAVE THESE INSTRUCTIONS
THIS PRODUCT WAS MANUFACTURED BY PAITE FOR ASHLEY FURNITURE INDUSTRIES, INC. All Rights Reserved. Page 1 of 14

Table Of Contents
Table of Contents..................................................................................................................................2
IMPORTANT SAFETY INFORMATION .............................................................................3-4
PREPARATION ..........................................................................................................................................5
GROUNDING INSTRUCTIONS ............................................................................................... 5
SITE PREPARATION........................................................................................................................6
Locating Your fireplace..............................................................................................................6
Specifications .................................................................................................................................... 6
FCC STATEMENT............................................................................................................................. 7
OPERATIONS AND FEATURES....................................................................................................8
Using the Remote Control..................................................................................................... 8
Using the Fireplace Control Panel ...................................................................................9
Using the Wireless Control Panel................................................................................10
The Fireplace remote control.......................................................................................... 11
CARE AND MAINTENANCE........................................................................................................12
Light Emitting Diode................................................................................................................ 12
Cleaning............................................................................................................................................... 12
CIRCUIT DIAGRAM……………………………………………………………………………………………………………………………………13
Accessory…………………………………………………………………………………………………………………………………………………13
TROUBLE SHOOTING GUIDE................................................................................................... 14
Warranty & Return Policies..................................................................................................... 14
MODEL#: EF19-42A Page 2 of 14

IMPORTANT SAFETY INFORMATION
PLEASE READ AND CAREFULLY FOLLOW ALL OF THE INFORMATION AND
INSTRUCTIONS IN THIS USER GUIDE, INCLUDING ALL SAFETY, OPERATING, AND
MAINTENANCE INFORMATION.
IF THE INFORMATION IN THIS USER GUIDE IS NOT FOLLOWED EXACTLY, FIRE,
ELECTRIC SHOCK, BURN, DEATH OR OTHER SERIOUS INJURY AND/OR PROPERTY
DAMAGE MAY RESULT.
You electric fireplace is fully assembled from the factory. No assembly is
required to begin using the fireplace. There are no user serviceable parts inside the
fireplace. If the unit appears to malfunction, turn the unit off and unplug the unit from the
wall immediately. Please contact the Customer Service. Alteration of the fireplace will void
its warranty and may cause the fireplace to malfunction resulting in electrical shock, fire,
death or serious bodily injury or property damage.
WHILE IN USE AND FOR SEVERAL MINUTES THEREAFTER, THE
FIREPLACE UNIT CAN GET HOT INCLUDING, BUT NOT LIMITED TO, THE TOP
CENTER OF THE FIREPLACE. KEEP CHILDREN AWAY FROM THE FIREPLACE AT
ALL TIMES TO AVOID BURN, SHOCK OR SERIOUS INJURY OR DEATH. Always
supervise children to ensure they do not play with or touch the fireplace. Do
not place any cloth, decorations or other combustible material over the
fireplace outlet of the fireplace, or otherwise obstruct the fireplace outlet of
the fireplace, as this may cause a fire and serious injury or death may result.
If you have any questions regarding the use of this unit, or find that your
fireplace unit needs service, please contact Ashley Furniture Industries at the
below number.
1 [phone] Customer Service
MODEL#: EF19-42A Page 3 of 14

IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this fireplace.
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock,
injury or death and property damage. Such precautions include, but are not limited to, the following:
1. This fireplace is hot when in use and for several minutes after use. To avoid burns, do not touch hot surfaces of the
fireplace such as the heated venting areas of the fireplace. DO NOT ATTEMPT TO MOVE THE FIREPLACE WHILE IT
IS PLUGGED IN OR IN OPERATION OR FOR SEVERAL MINUTES AFTER OPERATION. If provided, use handles when
moving this fireplace. Keep all combustible materials including, but not limited to, furniture, pillows, bedding,
papers, clothes and curtains at least 3 feet(0.9 meters) from the entire fireplace unit
2. Always keep children away from the fireplace and be sure to supervise children when they are around
the fireplace.
3. Always unplug fireplace when not in use.
4. To avoid the risk of electrical shock, fire, death or serious bodily injury and property damage, do not operate
the fireplace if it has a damaged cord or plug or if the fireplace malfunctions, has been dropped or damaged in
any manner. Please call the Customer Service.
5. DO NOT USE THE FIREPLACE OUTDOORS as this may result in electrical shock, fire, death or serious bodily injury
or property damage.
6. This fireplace is not intended for, and must not be used in bathrooms, laundry areas or any other location in,
around, or near water or that may become wet. Never locate fireplace where it may fall into a bathtub or other
water source. Failure to follow this instruction may result in electrical shock, fire, and serious bodily injury, death
or property damage.
7. Do not run power cord under carpeting. Do not cover power cord with throw rugs, runners, or the like.
Arrange power cord away from traffic area and where it will not be tripped over or damaged.
8. To disconnect fireplace, turn controls to off, then remove plug from outlet.
9. Connect to properly grounded outlets only.
10. Do not insert or allow foreign objects to enter any ventilation or exhaust openings as this may cause an
electric shock or fire, or damage the fireplace.
11. To prevent a possible fire, do not block fireplace air intakes or exhaust in any manner. Do not operate
fireplace on soft surfaces, like a bed, where opening may become blocked.
12. A fireplace has hot and arching or sparking parts inside. Do not use in areas where gasoline, paint, or
other flammable liquids or fumes are used or stored.
13. There is a thermostat limiter inside the fireplace. When the inner temperature becomes equal or over the set
thermostat level or abnormal heating occurs, the thermostat protective device will cut off power supply to
avoid the fireplace damaged or risk of fire.
14. Use this fireplace only as described in this user guide. Failure to do so or using the fireplace in a manner
not listed herein may cause fire, electrical shock, death or serious bodily injury or property damage.
15. Always plug fireplace directly into a grounded wall outlet/receptacle. Never use with an extension cord or
power strip.
SAVE THESE INSTRUCTIONS
MODEL#: EF19-42A Page 4 of 14

PREPARATION
GROUNDING INSTRUCTIONS
This product must be grounded. This product is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all local codes and ordinances.
This fireplace is for use on 120 volts circuit and has a grounded plug that looks like the one illustrated

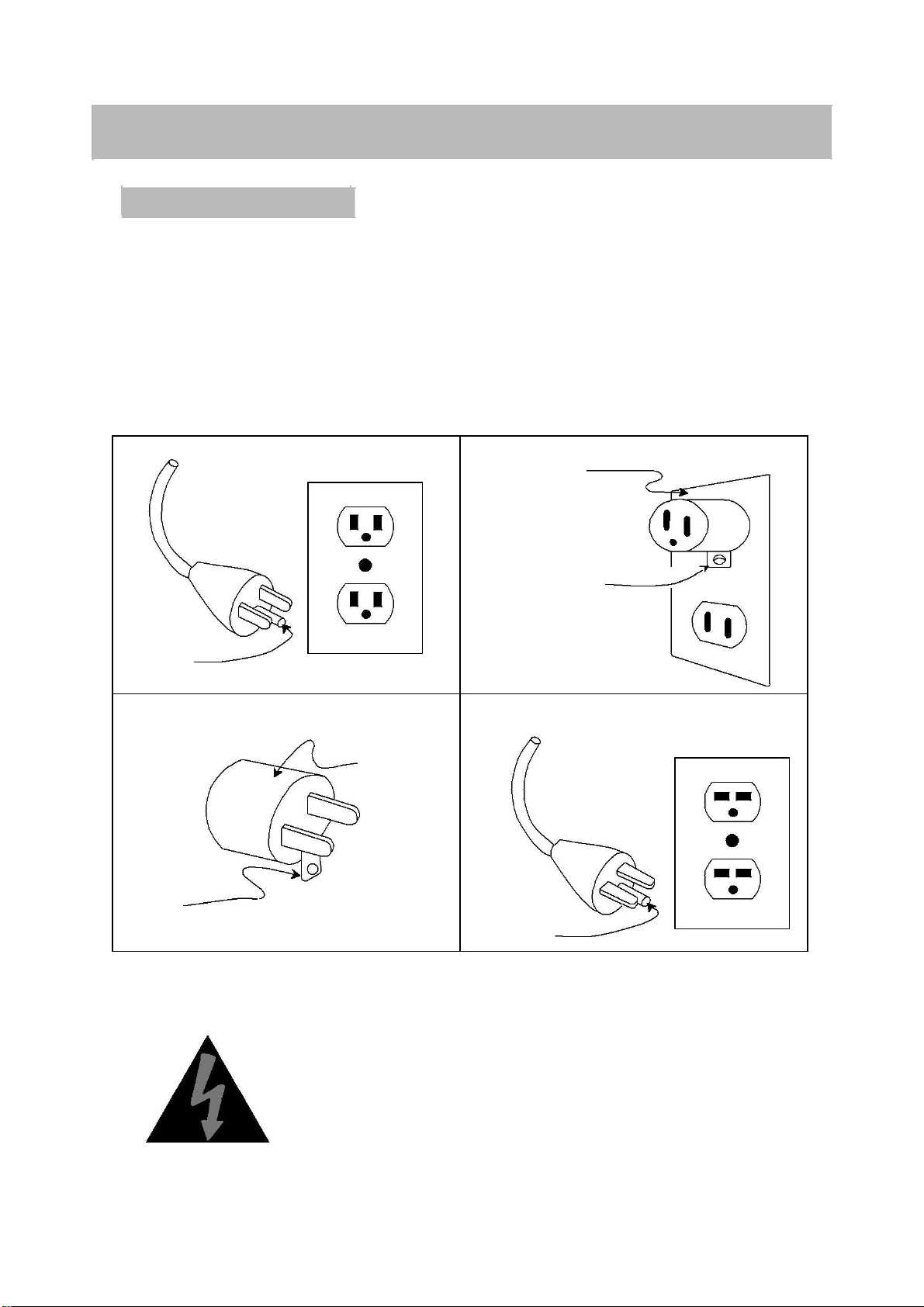

on Figure 1. See Figure 1 for grounding instruction. An adapter as shown at C is available for connecting
three-blade grounding type plugs to two-slot receptacles. The green grounding plug extending from the
adapter must be connected to a permanent ground such as a properly grounded outlet box. The
adapter should not be used if a three-slot grounded receptacle is available.
Figure 1
A
B
Cover of Grounded
Outlet Box
Metal Screw
Grounding Pin
CD
Adapter
Grounding
Means
Grounding Pin
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with qualified electrician or service person if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet; have a proper outlet installed by
qualified electrician.
Note:
A 15amp, 120 volt circuit is required. A dedicated circuit is preferred but not essential in
all cases. A dedicated circuit will be required if, after installation, the circuit breaker trips
or a fuse blows on a regular basis when the fireplace is operating. Additional appliances
on the same circuit may exceed the current rating of the circuit breaker.
MODEL#: EF19-42A Page 5 of 14

SITE PREPARATION
Ensure the power cord is not installed so that it is pinched or against a sharp edge and
ensure that the power cord is stored and secured to avoid tripping or snagging to reduce
the risk of fire, eletric shock,property damage, serious injury or death.
Locating Your Fireplace
Read and follow the important safety instruction in this user guide. Failure to do so may
result in serious bodily injury, death, or property damage.
Failure to provide a minimum of a 1-1/2 inch gap as instructed could result in a fire, bodily
Injury, death or property damage.
Specification
Fireplace insert dimension(W*D*H)
1092*210*425mm
Gross Weight
26.5KGs/58.42LBS
Voltage
120V
Frequency
60Hz
Watts/Amps
1500W
Heater Rating
1350-1575W
BTU/h
4608-5386 BTU/h
MODEL#: EF19-42A Page 6 of 14

FCC STATEMENT
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1: Reorient or relocate the receiving antenna.
2: Increase the separation between the equipment and the receiver.
3: Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
4: Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions.
1): This device may not cause harmful interference and
2): This device must accept any interference received, including
interference that may cause undesired operation.
Modifications not approved by the party responsible for compliance
could void user's authority to operate the equipment.
MODEL#: EF19-42A Page 7 of 14

OPERATIONS AND FEATURES
Using the Remote Control
Power
This will turn the unit ON and OFF. When it is turn OFF, the fan will continue to continue to run after turning off the heating
function to cool and protect heating function to cool and protect period of 3 minutes .When the unit is turned back ON, the
system will recall the last heat setting used. Store flame and heating setting.
Adjust Brightness
This allows you to raise or lower the level of flame brightness.
Adjust Speed
This allows you to raise or lower of flame speed with 6 levels. Note: the speed from ┍3--┌4--┌5--┌6--┌1--┌2--┌3.
Timer
This allows you to set the fireplace to automatically shut OFF after the amount of time displayed on the screen, the timer can be
set from 10 minutes to 9 hours, the display shows 10, 20, 30, 40, 50, 1H, 2H, 3H, 4H, 5H, 6H, 7H, 8H, 9H. Do not operate
fireplace while unattended.
Ambient Light
This will turn the ambient logs ON/OFF.
Adjust Temperature
This allows programming of the thermostat. The fireplace can be used without the heater if desired. Simply cycle through
the function until seconds to switch temperature readout from ℉(Fahrenheit) and ℃(Celsius) and back. Must be in Heat
mode.
Wireless Connection Power
This will turn the wireless connection power ON and OFF.
Previous
This allows you to select previous track during Wirelesss Connection play or USB.
Next
This allows you to select next track during Wirelesss Connection play or USB.
Pause
This allows you to pause the Wirelesss Connection play or USB.
Volume Down/Up
This allows you to adjust the volume.
MODEL#: EF19-42A Page 8 of 14
Page 7 of 1

Using the Fireplace Touch Control Panel
Thermostat
℉and ℃will be displayed along
with the temperature on the
main display. The fireplace can
be used without the heater if
desired, simply cycle through the
function until no temperature is
displayed.
Main Display
Adjust Temperature
This allows programming
of the thermostat. The
fireplace can be used
without the heater if
desired. Simply cycle
through the function until
no temperature is
displayed. Press and hold
the button for five seconds
to switch temperature
readout from
℉(Fahrenheit) and ℃
(Celsius) and back.
Timer
This will allow you
to set the auto
shutoff on the
fireplace. From
10-20-30-40-50-
1H-2H-3H-4H-5H-
6H-7H-8H-9H-OFF
4
Adjust Brightness
Power
This function will cycle
This will turn the unit ON
and OFF. When the unit is
through the five
turned back ON, the system
different levels of flame
will load default factory
brightness.
settings.
Adjust Speed Ambient light
This function will allow This will turn the ambient
you to adjust the flame light ON/OFF.
speed, with 6 levels from
┍3--┌4--┌5--┌6--┌1--┌2--┌3
┌1 to ┌6 the speed from slow
to fast.
MODEL#: EF19-42A Page 9 Of 14

Using the Wireless Touch Control Panel
Power
This will turn the Wireless Connection ON and OFF.
Volume +
This allows you to turn up the volume.
Volume －
This allows you to turn down the volume.
Pause
This allows you to pause the player. Note: Hold the button for 3 seconds you can enter AUX, USB, wireless selection mode,
then select the right mode for playing..
Next
This allows you to select next track.
Previous
This allows you to select previous track.
AUX Indicator
This indicator lights up means enter the AUX mode.
Wireless Connection Indicator
This indicator lights up means enter to the Wireless Connection mode.
MODEL#: EF19-42A Page 10 Of 14
NOTE
The fireplace with wireless connection feature, and the device name “Wireless Connection”.

The Fireplace Remote Control
The remote combines all the functions of the front panel controls for flexibility and convenience when
changing desired settings.
The first thing to do with the remote control is to remove the plastic sheet insulated the battery. (The
battery is supplied with the remote control.) Replacement batteries can be purchase at any electronics
store. The part number for the battery is CR2025. Please follow the sequence below to replace the
battery.

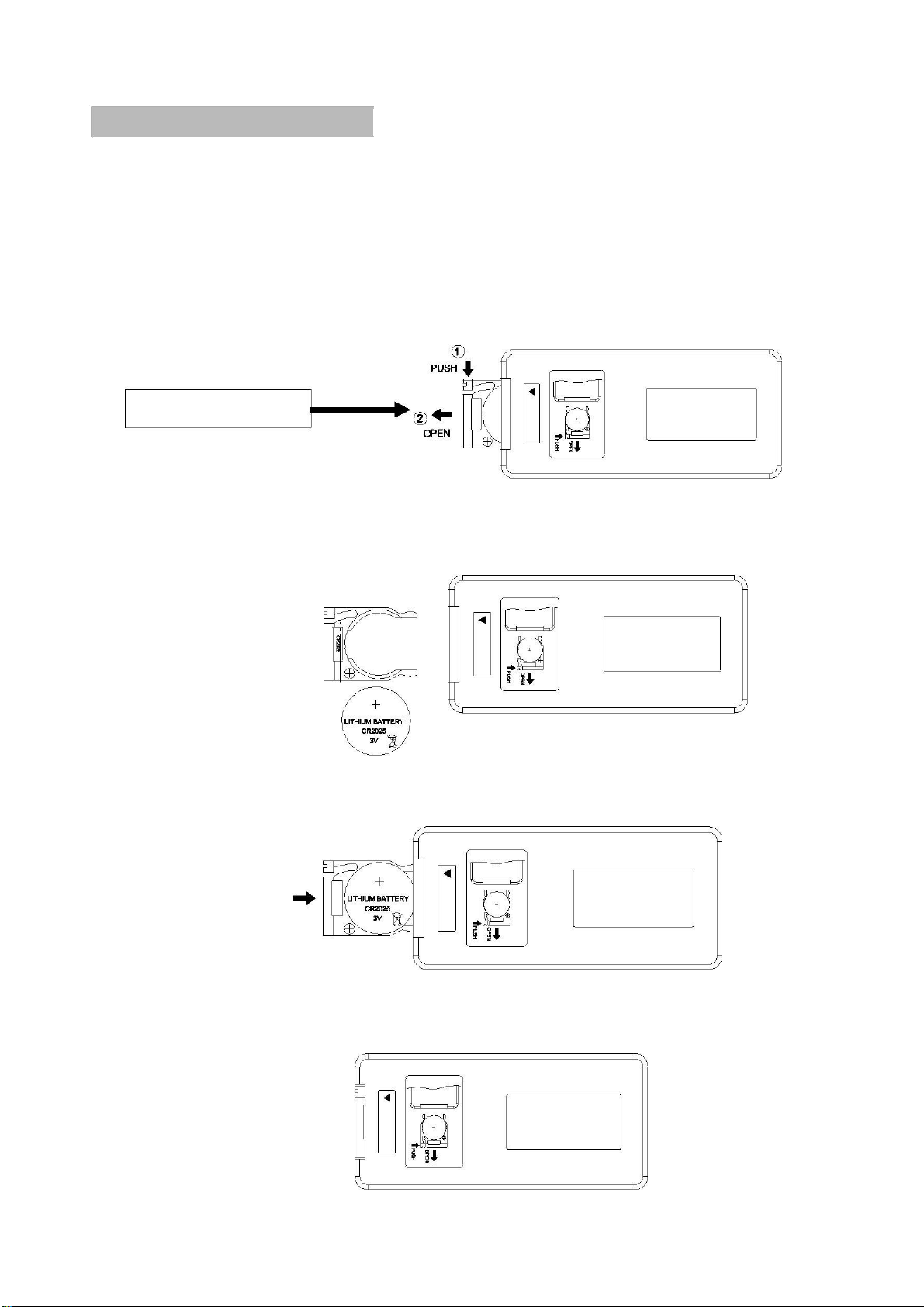

1. Take out battery bracket, and locate the battery bracket (Figure 1)
Battery bracket
Figure 1
2. The battery number is CR2025. The battery has two sides, one with a button feature, and the
other is flat. (Figure 2)
Figure 2
3. Insert the battery with the button side into the battery bracket, making sure the battery is firmly
seated. (figure 3)
Figure3
4. Press the battery bracket into the remote control, making sure it snaps into position. (Figure 4)
Figure 4
MODEL#: EF19-42A Page 11 of 14

CARE AND MAINTENANCE
Light Emitting Diode
This fireplace is fitted with LED (Light Emitting Diode) bulbs in place of conventional
bulbs. These generate the same light levels as convention bulbs, but use a fraction
of the energy. These LED bulbs are maintenance free and should not require
replacing during the life of the product.
Cleaning
WHILE IN USE AND FOR SEVERAL MINUTES AFTER USE, THE FIREPLACE UNIT CAN
GET HOT INCLUDING, BUT NOT LIMITED TO, THE TOP CENTER OF THE FIREPLACE.
Use caution before attempting any maintenance or cleaning to reduce the risk of fire,
electric shock, injury or death.
When transporting or storing the unit and cord, make certain unit is unplugged and has had
time to cool down. The fireplace and cord should be kept in a dry place, free from excessive
vibration or dust and stored so as to avoid damage.
Before cleaning the fireplace, make sure it has been shut off, unplugged and it has
had time to cool down to avoid the risk of burns, fire, shock, serious injury or death.
Dust the unit using a clean dry cloth. Use warm water and a clean cloth to wipe off all
painted surfaces. Do not use abrasive cleaners.
Use a standard non-flammable glass cleaner for the glass panel of the unit.
IN NO EVENT WILL ASHLEY FURNITURE INDUSTRIES, INC. OR ITS SUBSIDIARIES,
AFFILIATES, DIRECTORS, OFFICERS, OR AGENTS (COLLECTIVELY “AFI”), BE LIABLE TO THE
PURCHASER OR ANY THIRD PARTY, WHETHER IN CONTRACT, IN TORT, OR ON ANY
OTHER BASIS, FOR ANY INDIRECT, SPECIAL, PUNITIVE, EXEMPLARY, CONSEQUENTIAL,
OR INCIDENTAL LOSS, COST, OR DAMAGE ARISING OUT OF OR IN CONNECTION WITH
THE SALE, MAINTENANCE, USE, OR INABILITY TO USE THE FIREPLACE, EVEN IF AFI OR
ITS DIRECTORS, OFFICERS, OR AGENTS HAVE BEEN ADVISED OF THE POSSIBILITY OF
SUCH LOSSES, COSTS OR DAMAGES, OR IF SUCH LOSSES, COSTS, OR DAMAGES ARE
FORESEEABLE. IN NO EVENT WILL AFI BE LIABLE FOR ANY DIRECT LOSSES, COSTS, OR
DAMAGES THAT EXCEED THE PURCHASE PRICE OF THE PRODUCT.
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO THE PURCHASER.
MODEL#: EF19-42A Page 12 of 14

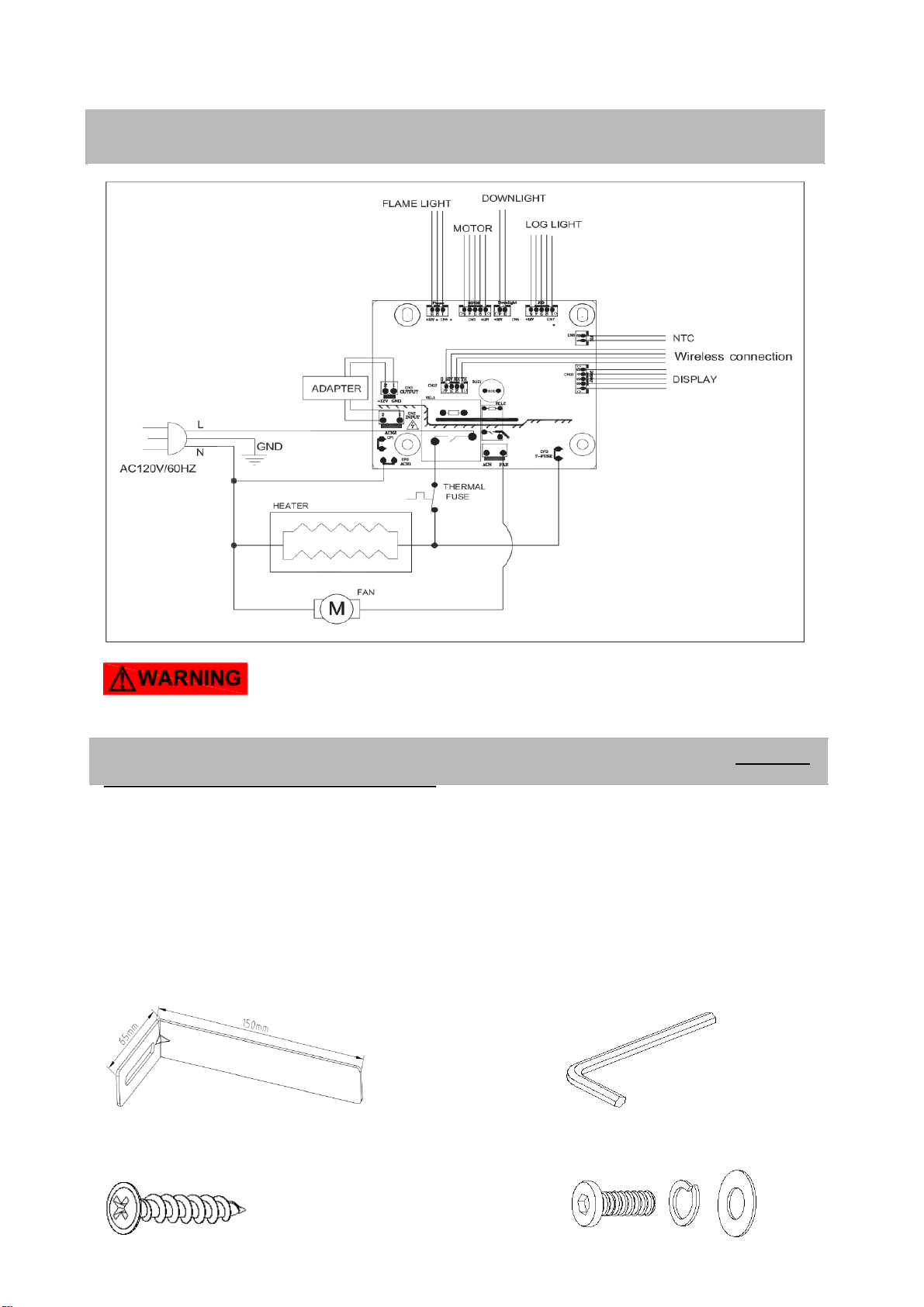

CIRCUIT DIAGRAM
If the fireplace appears to malfunction, turn the unit off and unplug the fireplace from the
wall immediately. Please contact the store that this was purchased from with the original
purchase receipt or call 1 [phone] for service related questions or concerns. Please do
not attempt to repair the electric fireplace.
HARDWARE
The fireplace includes brackets to fix the insert in place inside the furniture. For additional
details for installation please check the furniture assembly instructions.
Hardware included: (2) adjustable brackets, (1) Allen key (M4), (2) Phillips screws and (2)
bolts with (1) 1/4”Flat Washer, (1) 1/4”Lock Washer.
ADJUSTABLE BRACKETS ALLEN KEY (M4)
PHILLIPS SCREW BOLT WITH LOCK WASHER AND FLAT WASHER
MODEL#: EF19-42A Page 13 of 14

TROUBLE SHOOTING GUIDE
There are no user serviceable parts inside the fireplace. If the unit appears to
malfunction, turn the unit off and unplug the unit from the wall immediately.
Please contact the store that this was purchase from with the original purchase
receipt or call 1 [phone] for service related questions or concerns.
Alteration of the fireplace will void its warranty and may cause the fireplace to
malfunction resulting in electrical shock, fire, death or serious bodily injury or
property damage.
PROBLEM
SOLUTION
1: No power or function
1.1: Check that unit is plugged into a standard
120V outlet.
1.2: Press power button on the control panel
2.1: Confirm temperature setting exceeds
2: Have flame effect, but fireplace
room temperature.
does not blow warm air
2.2: Try to turn on/off fireplace button several
times to make sure it's in the “ON” position.
3: Fireplace does not work, but Power
3.1: Turn all switches to the “OFF” position
and Fireplace switches are in the “ON”
and unplug the unit from the wall outlet for
5-10 minutes. After 5-10 minutes plug the
position and thermostat is set on “99”
unit back into wall outlet, and operate as
normal.
4: The display unit on the control
4.1: Unplug the unit from the wall outlet for
panel shows “
” and the function
5-10 minutes. After 5-10 minutes plug the
indicator is quick flashing indicating it
unit back into wall outlet, and operate as
is in alarm mode.
normal.
5: Only the flame icon is present and
5.1: Press and hold the flame button for 5
does not display the flame levels
seconds. Once the unit “beeps” the flame
(ie.L1,L2…) when the flame button is
levels should appear.
pressed.
Warranty & Return Policies
Please refer to the included warranty card. Be sure to keep this manual and
warranty card for possible future use.
Manufactured by Guangdong Paite Electrical Technology Co. LTD for
Ashley Furniture Industries, Inc.
MODEL#: EF19-42A Page 14 of 14

FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated
with a minimum distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
