Outdoor Lifestyles TWILIGHT-II-MOD User manual

1Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
• DO NOT storeorusegasolineorotherflam-
mablevaporsandliquidsin thevicinityof this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas suppli-
er’s instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
bya qualifiedinstaller,service agency, or the
gas supplier.
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury, or death.
Owner’s Manual
Installation and Operation
DO NOT DISCARD THIS MANUAL
NOTICE
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer’s instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
Installation and service of this appliance should be
performed by qualified personnel. Hearth & Home
Technologies suggests NFI certified or factory trained
professionals, or technicians supervised by an NFI
certified professional.
• Leave this manual with
party responsible for use
and operation.
DO NOT
DISCARD
WARNING
• Important operating
and maintenance
instructions included.
• Read,understandandfollow
these instructions for safe
installation and operation.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fitter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassand other surfacesarehot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other flammable
materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
Model:
TWILIGHT-II-MOD

2Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
Listing Label Information/Location
Model Name:___________________________________________ Date purchased/installed:__________________
Serial Number:__________________________________________ Location on fireplace:_____________________
Dealership purchased from: _______________________________ Dealer Phone: __________________________
Notes: _______________________________________________________________________________________
_____________________________________________________________________________________________
A. Congratulations
Congratulations on selecting an Outdoor LifeStyles gas
fireplace,an elegantandclean alternativetowood burning
fireplaces. The Outdoor LifeStyles gas fireplace you have
selected is designed to provide the utmost in safety,
reliability, and efficiency.
As the owner of a new fireplace, you’ll want to read and
carefully follow all of the instructions contained in this
owner’s manual. Pay special attention to all cautions and
warnings.
This owner’s manual should be retained for future
reference. We suggest that you keep it with your other
important documents and product manuals.
The information contained in this owner’s manual, unless
noted otherwise, applies to all models and gas control
systems.
Your new Outdoor LifeStyles gas fireplace will give you
yearsof durableuseandtrouble-freeenjoyment. Welcome
to the Hearth & Home Technologies family of fireplace
products!
We recommend that you record the following pertinent
information about your fireplace.
Gas and Electric
Information
Serial Number
Type of Gas
The model information regarding your specific fireplace can be found on
the rating plate usually located in the control area of the fireplace.
Homeowner Reference Information
Model Number
doit
NotNot forfor useuse withwith solidsolid fuel.fuel.
((NeNe doit paspas entreentre utiliseutilise avecavec unun combustiblecombustible solide).solide).
ThisThis applianceappliance mustmust bebe installedinstalled ininaccordanceaccordance withwith locallocal codes,codes, ifif any;any;ififnot,not, followfollow ANSIANSI Z223.1Z223.1
ininthetheUSAUSAororCAN/CGACAN/CGAB149B149installationinstallationcodes.codes.(Installer(Installerl’appareill’appareilselonselonleslescodescodesououreglementsreglements
locauxlocaux ou,ou, enen l’absencel’absence dede telstels reglements,reglements, selonselon lesles codescodes d’installationd’installation CAN/CGA-B149.)CAN/CGA-B149.)
TypeType ofof GasGas (Sorte(Sorte DeDe Gaz)Gaz)::
NNAATURALTURAL GASGAS
MADEMADE ININ USAUSA
MinimumMinimum PermissiblePermissible GasGas SupplySupply forfor PurposesPurposes ofof InputInput Adjustment.Adjustment.
ApprovedApprovedMinimumMinimum(De(DeGaz)Gaz)AcceptableAcceptable 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
MaximumMaximumPressurePressure(Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
MaximumMaximumManifoldManifoldPressurePressure(Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
MinimumMinimumManifoldManifold PressurePressure(Pression)(Pression) 0.00.0 inin w.c.w.c. (Po.(Po.Col.Col.d’eau)d’eau)
Model:Model:
(Modele):(Modele):
SerialSerial
(Serie):(Serie):
ANSIANSI Z21XX-XXXXZ21XX-XXXX ·· CSACSA 2.XX-MXX2.XX-MXX ·· UL307BUL307B
XXXXXXXXXXXXXXXX
ININCANADACANADA
ALTITUDE:ALTITUDE: 0-00000-0000 FT.FT. 0000-0000FT.0000-0000FT.
MAX.MAX.INPUTINPUTBTUH:BTUH: 00,00000,000 00,00000,000
MIN.MIN.INPUTINPUT BTUH:BTUH: 00,00000,000 00,00000,000
ORIFICEORIFICESIZE:SIZE: #XXXXX#XXXXX #XXXXX#XXXXX XXXXXXXXXXXXXXXX
TotalTotal ElectricalElectrical Requirements:Requirements: 000Vac,000Vac, 00Hz.,00Hz., lessless thanthan 0000 AmperesAmperes
Heat & Glo, a brand of Hearth & Home Technologies, Inc.
7571 215th Street West, Lakeville, MN 55044
Read this manual before installing or operating this appliance.
Please retain this owner’s manual for future reference.

3Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Used to address practices not related to personal injury.
Table of Contents
A. Congratulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . 4
1 Listing and Code Approvals
A. Appliance Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
B. Glass Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
C. Thermal Performance Data . . . . . . . . . . . . . . . . . . . . . . . . 6
D. Air Infiltration, Water Resistance and Structural Tests . . . 6
E. BTU Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
F. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . . 7
G. Non-Combustible Materials Specification. . . . . . . . . . . . . . 7
H. Combustible Materials Specification . . . . . . . . . . . . . . . . . 7
I. Electrical Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
J. Requirements for the Commonwealth of Massachusetts. . 8
User Guide
2 Operating Instructions
A. Gas Fireplace Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
B. Your Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C. Fan Kit (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
D. Clear Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
E. Decorative Doors and Fronts . . . . . . . . . . . . . . . . . . . . . . 10
F. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
G. Remote Controls, Wall Controls and Wall Switches. . . . . 10
H. Before Lighting Fireplace . . . . . . . . . . . . . . . . . . . . . . . . . 10
I. Lighting Instructions (IPI) . . . . . . . . . . . . . . . . . . . . . . . . . 11
J. After Fireplace is Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
K. Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . 12
3 Maintenance and Service
A. Maintenance Tasks-Homeowner . . . . . . . . . . . . . . . . . . . 13
B. Maintenance Tasks-Qualified Service Technician . . . . . . 14
Installer Guide
4 Getting Started
A. Design and Installation Considerations . . . . . . . . . . . . . . 15
B. Tools and Supplies Needed . . . . . . . . . . . . . . . . . . . . . . . 15
C. Inspect Appliance and Components. . . . . . . . . . . . . . . . . 15
5 Framing and Clearances
A. Selecting Appliance Location. . . . . . . . . . . . . . . . . . . . . . 16
B. Clearances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
C. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 18
6 Termination Locations
A. Appliance Opening Minimum Clearances . . . . . . . . . . . . 19
7 Appliance Preparation
A. Removing Non-combustible Facing Material Assembly. . 20
B. Securing and Leveling the Appliance. . . . . . . . . . . . . . . . 20
C. Installing Non-combustible Facing Material
(Outdoor Side) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8 Gas Information
A. Fuel Conversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
B. Gas Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
C. Gas Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
D. High Altitude Installations. . . . . . . . . . . . . . . . . . . . . . . . . 24
9 Electrical Information
A. Wiring Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
B. Connecting to the Appliance. . . . . . . . . . . . . . . . . . . . . . . 25
C. Intellifire Ignition System Wiring. . . . . . . . . . . . . . . . . . . . 26
D. Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
E. Junction Box Installation. . . . . . . . . . . . . . . . . . . . . . . . . . 28
F. Wall Switch Installation for Fan (Optional) . . . . . . . . . . . . 28
10 Finishing
A. Mantel and Wall Projections. . . . . . . . . . . . . . . . . . . . . . . 29
B. Facing Material. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Appliance Setup
A. Remove Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . 32
B. Remove the Shipping Materials . . . . . . . . . . . . . . . . . . . . 32
C. Clean the Appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
D. Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
E. Glass Refractory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
F. Glass Rock Media Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
G. Fixed Glass Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
H. Install Trim and/or Surround. . . . . . . . . . . . . . . . . . . . . . . 34
I. Air Shutter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
12 Troubleshooting
A. Intellifire Ignition System . . . . . . . . . . . . . . . . . . . . . . . . . 35
13 Reference Materials
A. Appliance Dimension Diagram. . . . . . . . . . . . . . . . . . . . . 37
B. Service Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
C. Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
= Contains updated information.



4Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
B. Limited Lifetime Warranty
Outdoor Lifestyles by Hearth & Home Technologies, Inc.™
Limited Warranty
Hearth & Home Technologies, Inc. (“HHT”) extends the following warranty for all Outdoor Lifestyles by
HHT™ brand products (“Products”) that are purchased from an HHT authorized dealer.
WARRANTY COVERAGE:
HHT warrants to the original owner of the Product at the site of installation, and to any transferee taking
ownership of the Product at the site of installation within one year following the date of original purchase,
that the Product will be free from defects in materials and workmanship at the time of manufacture. After
installation, if covered components manufactured by HHT are found to be defective in materials or
workmanship during the applicable warranty period, HHT will, at its option, repair or replace the covered
components. This warranty is subject to conditions, exclusions and limitations as described below.
WARRANTY PERIOD:
The warranty period runs for one year, beginning on the earlier of: (i) the date of invoice for the Product;
(ii) in the case of new home construction, the date of first occupancy of the residence or six months after
the date of sale of the Product by an HHT authorized dealer, whichever occurs first; or (iii) the date 24
months following the date of Product shipment from HHT, regardless of the invoice or occupancy date.
WARRANTY CONDITIONS:
• This warranty only covers Products that are purchased through an HHT authorized dealer or
distributor. A list of HHT authorized dealers is available on the HHT branded websites.
• This warranty is only valid while the Product remains at the site of original installation.
• Contact your installing dealer for warranty service. If the installing dealer is unable to provide
necessary parts, contact the nearest HHT authorized dealer or supplier.Additional service fees
may apply if you are seeking warranty service from a dealer other than the dealer from whom
you originally purchased the Product.
• Check with your dealer in advance for any costs to you when arranging a warranty call. Travel
and shipping charges for parts are not covered by this warranty.
WARRANTY EXCLUSIONS:
This warranty does not cover the following:
• Changes in surface finishes as a result of normal use. As a heating appliance, some changes in
color of interior and exterior surface finishes may occur; this is not a flaw and not covered under
warranty.
• Damage to printed, plated, or enameled surfaces caused by fingerprints, accidents, misuse,
scratches, melted items, or other external sources and residues left on surfaces from the use of
abrasive cleaners or polishes.
• Repair or replacement of parts that are subject to normal wear and tear during the warranty
period. These parts include: paint, firebricks, grates, flame guides and the discoloration of glass.
• Minor expansion, contraction, or movement of certain parts causing noise. These conditions are
normal and complaints related to this noise are not covered by this warranty.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 1

5Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
• Damages resulting from: (1) failure to install, operate, or maintain the Product in accordance with
the installation instructions, operating instructions, and listing agent identification label furnished
with the Product; (2) failure to install the Product in accordance with local building codes; (3)
shipping or improper handling; (4) improper operation, abuse, misuse, continued operation with
damaged, corroded or failed components, accident, or incorrectly performed repairs; (5) inad-
equate ventilation, negative pressure or environmental conditions, including, without limitation:
hail, snow, ice, fallen branches, flooding, water damage and fading of color; (6) use of fuels other
than those specified in the operating instructions; (7) installation or use of components not
supplied with the Product or any other components not expressly authorized and approved by
HHT; (8) modification of the Product not expressly authorized and approved by HHT in writing;
and/or (9) interruptions or fluctuations of electrical power supply to the Product.
• Non-HHT venting components, hearth components or other accessories used in conjunction with
the Product.
• Any part of a pre-existing fireplace system in which an insert or a decorative gas appliance is
installed.
• The Product’s capability to heat the desired space. Information is provided to assist the consumer
and the dealer in selecting the proper appliance for the application. Consideration must be given
to the Product’s location and configuration and environmental conditions.
This warranty is void if:
• The Product has been over-fired or operated in atmospheres contaminated by chlorine, fluorine,
or other damaging chemicals. Over-firing can be identified by, but not limited to, warped plates or
tubes, rust colored cast iron, bubbling, cracking and discoloration of steel or enamel finishes and
cracking or spalling of refractory or cementitious materials.
• The Product is subjected to prolonged periods of dampness, condensation, ice or snow.
• There is any damage to the Product or other components due to water or weather damage which
is the result of, but not limited to, improper chimney or venting installation.
LIMITATIONS OF LIABILITY:
Repair or replacement in accordance with the provisions of this warranty will be the owner’s exclusive
remedy for and will constitute HHT’s sole obligation under this warranty, under any other warranty
(express or implied), or in contract, tort or otherwise; provided, however, that if HHT is unable to provide
repair or replacement in an expedient and cost effective manner, HHT may discharge all such obligations
by refunding the purchase price of the Product. No employee, agent, dealer, or other person is authorized
to give any warranty on behalf of HHT. TO THE EXTENTALLOWED BY LAW, HHT MAKES NO OTHER
WARRANTY, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. HHT WILL NOT BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGESARISING OUT OF DEFECTS IN OR USE OF THE PRODUCTS. Some
states do not allow exclusions or limitation of incidental or consequential damages, so these limitations
may not apply to you. This warranty gives you specific rights; you also may have other rights, which vary
from state to state. The duration of any implied warranty is limited to the duration of the warranty period
specified herein.
Outdoor Lifestyles Warranty - 2108-975A - 10/05/09 - page 2
B. Limited Lifetime Warranty (continued)

6Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
B. Glass Specifications
Tempered Glass (Interior Glass)
Hearth & Home Technologies appliances manufactured
with tempered glass may be installed in hazardous lo-
cations such as bathtub enclosures as defined by the
Consumer Product Safety Commission (CPSC). The
tempered glass has been tested and certified to the re-
quirements of ANSI Z97.1 and CPSC 16 CFR 1202
(Safety Glazing Certification Council SGCC# 1595 and
1597. Architectural Testing, Inc. Reports 02-31919.01
and 02-31917.01).
This statement is in compliance with CPSC 16 CFR Sec-
tion 1201.5 “Certification and labeling requirements”
which refers to 15 U.S. Code (USC) 2063 stating “…Such
certificate shall accompany the product or shall otherwise
be furnished to any distributor or retailer to whom the
product is delivered.”
Some local building codes require the use of tempered
glass with permanent marking in such locations. Glass
meeting this requirement is available from the factory.
Please contact your dealer or distributor to order.
Ceramic Glass (Exterior Glass)
This appliance is equipped with 5 mm ceramic glass. Re-
place glass only with 5 mm ceramic glass. Please contact
your dealer for replacement glass.
This product is listed to ANSI standards for “Vented Gas
Appliance Heaters” and applicable sections of “Gas Burn-
ing Heating Appliances for Manufactured Homes and
Recreational Vehicles”, and “Gas Fired Appliances for
Use at High Altitudes”.
A. Appliance Certification
NOT INTENDED FOR USE AS A PRIMARY HEAT SOURCE.
This appliance is tested and approved as either supplemen-
tal room heat or as a decorative appliance. It should not be
factored as primary heat in residential heating calculations.
NOTICE: This installation must conform with local codes.
In the absence of local codes you must comply with the
National Fuel Gas Code, ANSI Z223.1-latest edition in
the U.S.A. and the CAN/CGA B149 Installation Codes in
Canada.
1
1 Listing and Code Approvals
E. BTU Specifications
MODEL: TWILIGHT-II-MOD
LABORATORY: Underwriters Laboratories, Inc. (UL)
TYPE: Direct Vent Gas Appliance
STANDARD: ANSI Z21.50-2007/CSA 2.22-2007, Addenda
ANSI Z21.50a-2008/CSA 2.22a-2008, and
Addenda ANSI Z21.50b-2009/CSA 2.22b-2009 D. Air Infiltration, Water Resistance and
Structural Tests
The Hearth & Home Technologies TWILIGHT-II-MOD In-
door/Outdoor Appliance unit was tested to the following
ASTM standards at the Stork Twin City Testing labora-
tory.
Airinfiltrationtest ASTM:E283-(04).The samplewastest-
ed at 1.57 psf (equivalent to a 25-mph windload). Water
resistance test ASTM:E331-00. The test specimen was
tested at the requested test pressures of 8.0 & 25.0 psf.
Structural test ASTM:E330-02. The unit was tested to a
design pressure of 50-psf, a test pressure of 75-psf.
Test Results
C. Thermal Performance Data
Model: TWILIGHT-II-MOD
Sound Transmission
Class (STC) Thermal Resistance (R Value) Thermal Conductivity (K Value)
27 0.8hr-sq ft-ºF/BTU 1.25 BTU-in/hr-sq ft-ºF
Model
U.S. (0-2000 FT) or
Canada (2000-4500 FT)
Input
BTU/h Orifice Size (DMS)
TWILIGHT-II-MOD
(NG) US 38,000 32
CAN 34,200 33
TWILIGHT-II-MOD
(LP) US 36,000 50
CAN 33,300 51
Model Air Infiltration
(ASTM E283) Water Resistance (ASTM E331) Structural Load (ASTM E330)
TWILIGHT-II-
MOD
Indoor/Outdoor 0.07CFM/ft2 No leakage
@ 8psf & 25psf No Blowout @ 75psf

7Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
F. High Altitude Installations
NOTICE: Iftheheating valueof thegashas beenreduced,
these rules do not apply. Check with your local gas utility
or authorities having jurisdiction.
When installing above 2000 feet elevation:
• In the USA: Reduce input rate 4% for each 1000 feet
above 2000 feet.
• In CANADA: Reduce input rate 10% for elevations
between 2000 feet and 4500 feet. Above 4500 feet,
consult local gas utility.
Check with your local gas utility to determine proper
orifice size.
G. Non-Combustible Materials Specification
Material which will not ignite and burn. Such materials are
those consisting entirely of steel, iron, brick, tile, concrete,
slate, glass or plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 ºC and UL763 shall be
considered non-combustible materials.
H. Combustible Materials Specification
Materials made of or surfaced with wood, compressed pa-
per, plant fibers, plastics, or other material that can ignite
and burn, whether flame proofed or not, or plastered or
unplastered shall be considered combustible materials.
I. Electrical Codes
NOTICE: This appliance must be electrically wired and
groundedin accordancewith localcodes or,intheabsence
of local codes, with National Electric Code ANSI/NFPA
70-latest edition or the Canadian Electric Code CSA
C22.1.
• A 110-120 VAC circuit for this product must be protected
withground-faultcircuit-interrupterprotection,incompliance
with the applicable electrical codes, when it is installed in
locations such as in bathrooms or near sinks.

8Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
J. Requirements for the Commonwealth of
Massachusetts
For all side wall horizontally vented gas fueled equipment
installed in every dwelling, building or structure used in
whole or in part for residential purposes, including those
owned or operated by the Commonwealth and where the
side wall exhaust vent termination is less than seven (7)
feet above finished grade in the area of the venting, in-
cluding but not limited to decks and porches, the following
requirements shall be satisfied:
Installation of Carbon Monoxide Detectors
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas fitter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the floor
level where the gas equipment is to be installed. In addi-
tion, the installing plumber or gas fitter shall observe that
a battery operated or hard wired carbon monoxide detec-
tor with an alarm is installed on each additional level of
the dwelling, building or structure served by the side wall
horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualified licensed professionals for the installation of
hard wired carbon monoxide detectors.
In the event that the side wall horizontally vented gas fu-
eled equipment is installed in a crawl space or an attic,
the hard wired carbon monoxide detector with alarm and
battery back-up may be installed on the next adjacent
floor level.
In the event that the requirements of this subdivision can
not be met at the time of completion of installation, the
owner shall have a period of thirty (30) days to comply
with the above requirements; provided, however, that dur-
ing said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
Approved Carbon Monoxide Detectors
Each carbon monoxide detector as required in accor-
dance with the above provisions shall comply with NFPA
720 and be ANSI/UL 2034 listed and IAS certified.
Signage
A metal or plastic identification plate shall be permanent-
ly mounted to the exterior of the building at a minimum
height of eight (8) feet above grade directly in line with the
exhaust vent terminal for the horizontally vented gas fu-
eled heating appliance or equipment. The sign shall read,
in print size no less than one-half (1/2) in. in size, “GAS
VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB-
STRUCTIONS”.
Inspection
The state or local gas inspector of the side wall horizon-
tally vented gas fueled equipment shall not approve the
installation unless, upon inspection, the inspector ob-
serves carbon monoxide detectors and signage installed
in accordance with the provisions of 248 CMR 5.08(2)(a)1
through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a)1 through 4:
• The equipment listed in Chapter 10 entitled “Equipment
Not Required To Be Vented” in the most current edition
of NFPA54 as adopted by the Board; and
• Product Approved side wall horizontally vented gas fu-
eled equipment installed in a room or structure separate
from the dwelling, building or structure used in whole or
in part for residential purposes.
MANUFACTURER REQUIREMENTS
Gas Equipment Venting System Provided
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer
for installation of the equipment and the venting system
shall include:
• Detailed instructions for the installation of the venting
system design or the venting system components; and
• A complete parts list for the venting system design or
venting system.
Gas Equipment Venting System NOT Provided
When the manufacturer of a Product Approved side wall
horizontally vented gas fueled equipment does not pro-
vide the parts for venting the flue gases, but identifies
“special venting systems”, the following requirements
shall be satisfied by the manufacturer:
• The referenced “special venting system” instructions
shall be included with the appliance or equipment in-
stallation instructions; and
• The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that sys-
tem shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Ap-
proved side wall horizontally vented gas fueled equip-
ment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion
of the installation.
See Gas Connection section for additional Common-
wealth of Massachusetts requirements.
Note: The following requirements reference various
Massachusetts and national codes not contained in this
document.

9Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
Figure 2.1 Generic Operating Parts
B. Your Fireplace
WARNING! DO NOT operate fireplace before read-
ing and understanding operating instructions. Failure
to operate fireplace according to operating instructions
could cause fire or injury.
DECORATIVE DOORS
(NOT SHOWN)
SECTION 2.E.
FIXED GLASS ASSEMBLY
(NOT SHOWN)
SECTION 11.F.
MANTEL
SECTION 5.C.
HEARTH EXTENSION
(not required)
Interior or Exterior
FAN KIT
SECTION 2.C.
CLEAR SPACE
SECTION 2.D.
NOTE: INTERIOR VIEW
If you expect that small children or vulnerable adults may
come into contact with this fireplace, the following precau-
tions are recommended:
• Install a physical barrier such as:
- A decorative firescreen.
- Adjustable safety gate.
A. Gas Fireplace Safety
WARNING
This appliance has been supplied with an integral barrier
to prevent direct contact with the fixed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
HOT SURFACES!
Glassandothersurfacesarehotduring
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fireplace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
• Neverleave children alone near a hot fireplace,whether
operating or cooling down.
• Teach children to NEVER touch the fireplace.
• Consider not using the fireplace when children will be
present.
Contact your dealer for more information, or visit: www.
hpba.org/safety-information.
To prevent unintended operation when not using your fire-
place for an extended period of time (summer months,
vacations, trips, etc):
• Remove batteries from remote controls.
• Turn off wall controls.
• Unplug 3 volt adapter plug and remove batteries on IPI
models.
2
2 Operating Instructions
User Guide
WARNING! Choking Hazard! Keep glass rock media
out of reach of children.

10 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
D. Clear Space
WARNING! DO NOT place combustible objects in front
of the fireplace or block louvers. High temperatures may
start a fire. See Figure 2.2.
Avoid placing candles and other heat-sensitive objects on
mantel or hearth. Heat may damage these objects.

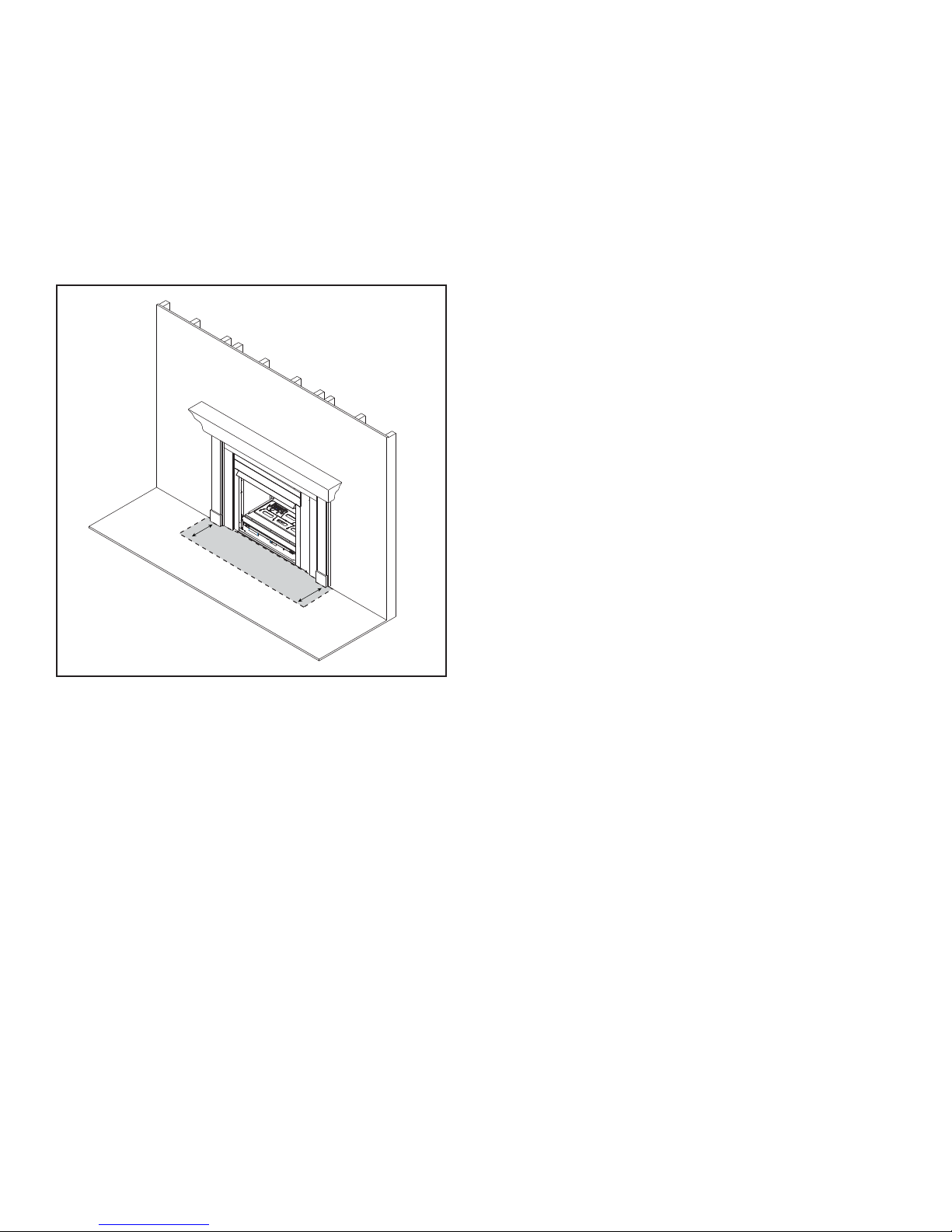

Figure 2.2 Clear Space
C. Fan Kit (optional)
If desired, a fan kit may be added. Contact your dealer to
order the correct fan kit.
F. Fixed Glass Assembly
See Section 11.F.
E. Decorative Doors and Fronts
WARNING! Risk of Fire! Install ONLY doors or fronts
approved by Hearth & Home Technologies. Unapproved
doors or fronts may cause fireplace to overheat.
This fireplace has been supplied with an integral
barrier to prevent direct contact with the fixed glass
panel. DO NOT operate the fireplace with the barrier
removed.
Contact your dealer or Hearth & Home Technologies if
the barrier is not present or help is needed to properly
install one.
Formoreinformation refertothe instructionssuppliedwith
your decorative door or front.
G. Remote Controls, Wall Controls and Wall
Switches
Follow the instructions supplied with the control installed
to operate your fireplace:
For safety:
• Install a switch lock or a wall/remote control with child
protection lockout feature.
• Keep remote controls out of reach of children.
See your dealer if you have questions.
CLEAR SPACE
3 FT. IN FRONT OF FIREPLACE
EXTERIOR AND INTERIOR
NOTE: INTERIOR VIEW H. Before Lighting Fireplace
Before operating this fireplace for the first time, have a
qualified service technician:
• Verify all shipping materials have been removed from
inside and/or underneath the firebox.
• Reviewproperplacement oflogs, embermaterialand/or
other decorative materials.
• Check the wiring.
• Check the air shutter adjustment.
• Ensure that there are no gas leaks.
• Ensurethatthe glassis sealedandin theproper position
and that the integral barrier is in place.
WARNING! Risk of Fire or Asphyxiation! DO NOT op-
erate fireplace with fixed glass assembly removed.

11Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
I. Lighting Instructions (IPI)
The IPI system may be operated with two D-cell batteries. When using batteries, unplug the transformer.To prolong battery
life, remove them when using the transformer.
1. This appliance is equipped with an ignition
device which automatically lights the burner.
DO NOT try to light the burner by hand.
2. Wait five (5) minutes to clear out any gas.
Then smell for gas, including near the floor. If
you smell gas, STOP! Follow “B” in the Safety
Information located on the left side of this la-
bel. If you do not smell gas, go to next step.
3. To light the burner:
Equipped with wall switch: Turn ON/OFF switch
to ON.
Equipped with remote or wall control: Press
ON or FLAME button.
Equipped with thermostat: Set temperature to
desired setting.
4. If the appliance does not light after three tries,
call your service technician or gas supplier.
LIGHTING
INSTRUCTIONS (IPI)
TO TURN OFF
GAS TO APPLIANCE
1. Equipped with wall switch: Turn ON/OFF switch
to OFF.
Equipped with remote or wall control: Press
OFF button.
Equipped with thermostat: Set temperature to
lowest setting.
2. Service technician should turn off electric
power to the control when performing service.
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyoudonot followthese instructionsexactly, a fire orexplosion
may result causing property damage, personal injury or loss of life.
CAUTION:
NOT FOR USE
WITH SOLID FUEL
WARNING:
593-913G
GAS
VALVE
For additional information on operating your
Hearth & Home Technologies fireplace, please refer to www.fireplaces.com.
A. This appliance is equipped with an
intermittent pilot ignition (IPI) device
which automatically lights the burn-
er. DO NOT try to light the burner by
hand.
B. BEFORELIGHTING,smellallaround
the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.
WHAT TO DO IF YOU SMELL GAS
• DO NOT try to light any appliance.
• DO NOT touch any electric switch; do
not use any phone in your building.
DO NOT CONNECT LINE VOLT-
AGE (110/120 VAC OR 220/240
VAC) TO THE CONTROL VALVE.
Improper installation, adjustment, al-
teration, service or maintenance can
cause injury or property damage. Re-
fer to the owner’s information manual
provided with this appliance.
This appliance needs fresh air for
safe operation and must be installed
so there are provisions for adequate
combustion and ventilation air.
If not installed, operated, and main-
tained in accordance with the manufac-
turer’s instructions, this product could
expose you to substances in fuel or
fuel combustion which are known to the
StateofCaliforniatocause cancer, birth
defects, or other reproductive harm.
Keep burner and control compartment
clean. See installation and operating
instructions accompanying appliance.
Hot while in operation. DO NOT touch.
Keepchildren,clothing,furniture,gaso-
lineandother liquids having flammable
vapors away.
DO NOT operate the appliance with
fixedglassassemblyremoved,cracked
or broken. Replacement of the fixed
glass assembly should be done by a
licensed or qualified service person.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas sup-
plier, call the fire department.
C. DO NOT use this appliance if any
part has been under water. Imme-
diately call a qualified service tech-
nician to inspect the appliance and
to replace any part of the control
system and any gas control which
has been under water.
For use with natural gas and propane.
A conversion kit, as supplied by the
manufacturer, shall be used to convert
this appliance to the alternate fuel.
Also Certified for Installation in a
Bedroom or a Bedsitting Room.
For assistance or additional informa-
tion, consult a qualified installer, ser-
vice agency or the gas supplier.
Final inspection by

12 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
Initial Break-in Procedure
• The fireplace should be run three to four hours continu-
ously on high.
• Turn the fireplace off and allow it to completely cool.
• Remove fixed glass assembly. See Section 11.F.
• Clean fixed glass assembly. See Section 3.
• Replace the fixed glass assembly and run continuously
on high an additional 12 hours.
This cures the materials used to manufacture the fire-
place.
NOTICE! Open windows for air circulation during fire-
place break-in.
• Some people may be sensitive to smoke and odors.
• Smoke detectors may activate.
J. After Fireplace is Lit
K. Frequently Asked Questions
ISSUE SOLUTIONS
Condensation on the glass This is a result of gas combustion and temperature variations. As the fireplace warms, this
condensation will disappear.
Blue flames This is a result of normal operation and the flames will begin to yellow as the fireplace is al-
lowed to burn for 20 to 40 minutes.
Odor from fireplace
When first operated, this fireplace may release an odor for the first several hours. This is
caused by the curing of materials from manufacturing. Odor may also be released from finish-
ing materials and adhesives used near the fireplace. These circumstances may require ad-
ditional curing related to the installation environment.
Film on the glass This is a normal result of the curing process of the paint. Glass should be cleaned within 3 to
4 hours of initial burning.A non-abrasive cleaner such as gas appliance glass cleaner may be
necessary. See your dealer.
Metallic noise Noise is caused by metal expanding and contracting as it heats up and cools down, similar to the sound produced by a furnace or heating duct. This noise does not affect the operation or
longevity of the fireplace.
Glass Rock Media Kit
There may be some “cracking” noise coming from the fireplace during the first few heating
and cooling cycles. This noise is associated with settling rock and some minor cracking of
larger pieces of rock. This will lessen over time as the glass rock is conditioned to the heat-
ing and cooling temperature changes.
It is expected that a few small pieces (approximately 10 pieces) of rock may fall through the
base pan and come to rest on the fireplace bottom. This has no affect on fireplace perfor-
mance.
Glass Rock Media Color Change It is normal for the glass rock media to change color slightly over the lifetime of the
appliance.
Is it normal to see the pilot flame burn
continually?
In an intermittent pilot ignition system (IPI), the pilot flame should turn off when appliance is
turned off. Some optional control systems available with IPI models may allow pilot flame to
remain lit.

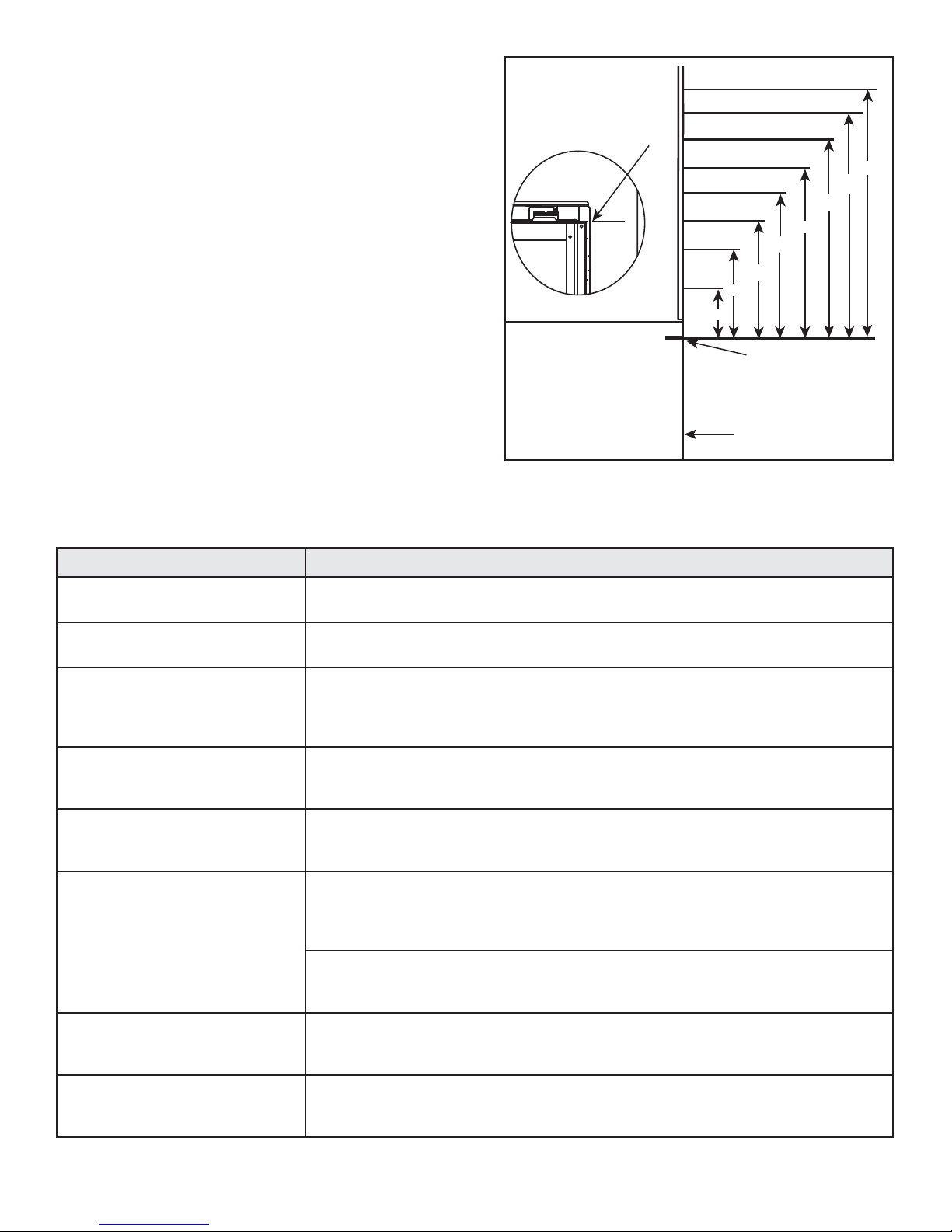

MEASUREMENTS FROM
TOP EDGE OF THE OPENING
6 in.
18 in.
24 in.
30 in.
36 in.
48 in.
TO CEILING
42 in.
12 in.
200°F
APPLIANCE FRONT
FIREPLACE
OPENING
180°F
160°F
150°F
140°F
130°F
120°F

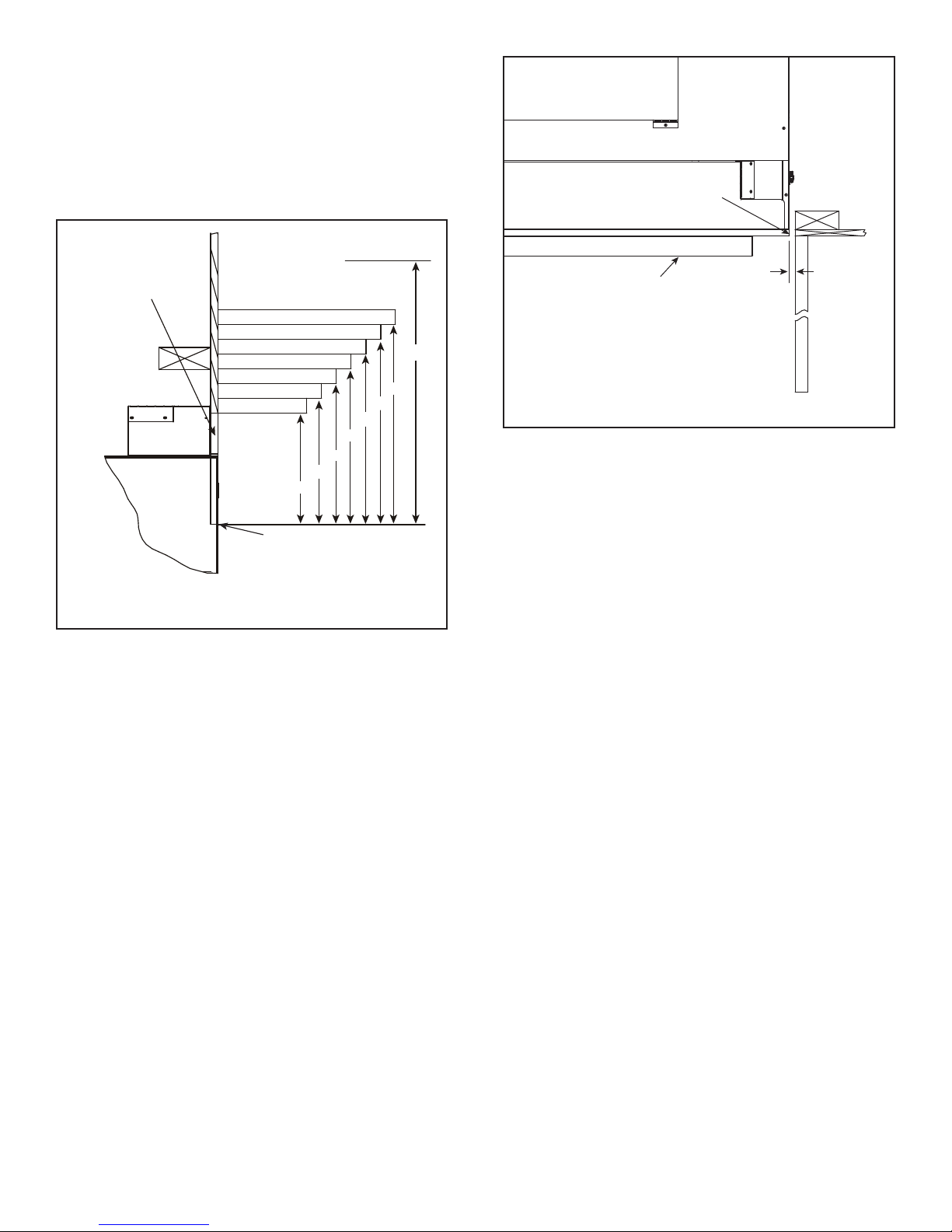

Figure 2.3. Maximum Interior Wall Surface Temperatures Above
Appliance

13Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
Glass Cleaning
Frequency: Seasonally
By: Homeowner
Tools Needed: Protective gloves, glass cleaner, drop
cloth and a stable work surface.
CAUTION! Handle fixed glass assembly with care.
Glass is breakable.
• Avoid striking, scratching or slamming glass
• Avoid abrasive cleaners
• DO NOT clean glass while it is hot
•Preparea workarea largeenough toaccommodate fixed
glass assembly and door frame by placing a drop cloth
on a flat, stable surface.
Note: Fixed glass assembly and gasketing may have res-
idue that can stain carpeting or floor surfaces.
•Remove door or decorative front from fireplace and set
aside on work surface.
• See Section 11.F for instructions to remove fixed glass
assembly.
• Clean glass with a non-abrasive commercially available
cleaner.
- Light deposits: Use a soft cloth with soap and water
- Heavy deposits: Use commercial fireplace glass
cleaner (consult with your dealer)
• Carefully set fixed glass assembly in place on fireplace.
Hold glass in place with one hand and secure glass
latches with the other hand.
• Reinstall mesh and/or decorative front.
3
3 Maintenance and Service
A. Maintenance Tasks-Homeowner
The following tasks may be performed annually by the
homeowner. If you are uncomfortable performing any of
the listed tasks, please call your dealer for a service ap-
pointment.
More frequent cleaning may be required due to lint from
carpeting or other factors. Control compartment, burner
and circulating air passageway of the fireplace must be
kept clean.
CAUTION!Risk ofBurns! Thefireplace shouldbeturned
off and cooled before servicing.
When properly maintained, your fireplace will give you
many years of trouble-free service. We recommend an-
nual service by a qualified service technician.
Doors, Surrounds, Fronts
Frequency: Annually
By: Homeowner
Tools needed: Protective gloves, stable work surface
• Assess condition of screen and replace as necessary.
• Inspect for scratches, dents or other damage and repair
as necessary.
•Check that louvers are not blocked.
•Vacuum and dust surfaces.
Remote Control
Frequency: Seasonally
By: Homeowner
Tools needed: Replacement batteries and remote con-
trol instructions.
• Locate remote control transmitter and receiver.
• Verify operation of remote. Refer to remote control
operation instructions for proper calibration and setup
procedure.
• Place batteries as needed in remote transmitters and
battery-powered receivers.
• Place remote control out of reach of children.
If not using your fireplace for an extended period of time
(summer months, vacations/trips, etc), to prevent unin-
tended operation:
• Remove batteries from remote controls.
• Unplug 3 volt adapter plug on IPI models.
Exhaust Termination
Frequency: Seasonally
By: Homeowner
Tools needed: Protective gloves and safety glasses.
• Inspect exhaust termination for blockage or obstruction
such plants, bird nests, leaves, snow, debris, etc.
• Verifyexhausttermination clearanceto subsequentcon-
struction (building additions, decks, fences, or sheds).
See Section 6.
Any safety screen or guard removed for servicing must be
replaced prior to operating the fireplace.
Installation and repair should be done by a qualified service
technician only. The fireplace should be inspected before
use and at least annually by a professional service person.

14 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
B. Maintenance Tasks-Qualified Service
Technician
The following tasks must be performed by a qualified ser-
vice technician.
Gasket Seal and Glass Assembly Inspection
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, drop cloth and a stable
work surface.
• Inspect gasket seal and its condition.
• Inspectfixed glassassembly forscratches andnicksthat
can lead to breakage when exposed to heat.
• Confirm there is no damage to glass or glass frame.
Replace as necessary.
• Verify that fixed glass assembly is properly retained and
attachment components are intact and not damaged.
Replace as necessary.
Firebox
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, sandpaper, steel wool,
cloths, mineral spirits, primer and touch-up paint.
• Inspect for paint condition, warped surfaces, corrosion
or perforation. Sand and repaint as necessary.
• Replace fireplace if firebox has been perforated.
Control Compartment and Firebox Top
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, dust
cloths
• Vacuum and wipe out dust, cobwebs, debris or pet hair.
Usecautionwhen cleaning these areas. Screwtipsthat
have penetrated the sheet metal are sharp and should
be avoided.
• Remove all foreign objects.
• Verify unobstructed air circulation.
Glass Rock Media Maintenance
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, container, mild dish
soap, cloth or rag
• The glass rock media will loose its luster over time.This
is normal wear for this application. The appearance
of the media can be restored by periodic cleaning. It
is recommended that the glass rock media be rinsed
thoroughly with water to remove dust and debris. An
easymethod tocleantheglassrockmediais toplace the
contentsof thebag intoacontainerofwaterandmild dish
soap. Rinse thoroughly with clean water. Drain water
from container and allow the glass rock media to dry
thoroughly before installing into the fireplace. Reinstall
glass rock media into appliance using the instructions in
Section 11.
Burner Ignition and Operation
Frequency: Annually
By: Qualified Service Technician
Tools needed: Protective gloves, vacuum cleaner, whisk
broom, flashlight, voltmeter, indexed drill bit set, and a
manometer.
• Verify burner is properly secured and aligned with pilot
or igniter.
• Cleanoff burnertop,inspect forpluggedports, corrosion
or deterioration. Replace burner if necessary.
• Verifybatterieshavebeenremovedfrombatteryback-up
IPI systems to prevent premature battery failure or
leaking.
• Check for smooth lighting and ignition carryover to all
ports. Verify that there is no ignition delay.
• Inspect for lifting or other flame problems.
• Verify air shutter setting is correct. See Section 11.F for
required air shutter setting. Verify air shutter is clear of
dust and debris.
• Inspect orifice for soot, dirt and corrosion. Verify orifice
size is correct. See Service Parts List for proper orifice
sizing.
• Verify manifold and inlet pressures. Adjust regulator as
required.
• Inspect pilot flame pattern and strength. See Figure 3.1
for proper pilot flame pattern. Clean or replace orifice
spud as necessary.
• Inspect IPI flame sensing rod for soot, corrosion and
deterioration. Polish with fine steel wool or replace as
required.
• Verify that there is not a short in flame sense circuit by
checkingcontinuitybetween pilothoodand flame sense
rod. Replace pilot as necessary.
Figure 3.1 IPI Pilot Flame Pattern

15Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
A. Design and Installation Considerations
Hearth & Home Technologies direct vent gas appliances
are designed to operate with all combustion air siphoned
from outside of the building and all exhaust gases ex-
pelled to the outside. No additional outside air source is
required.
The TWILIGHT-II-MOD has been carefully engineered to
provide a unique fireplace experience. Since it is different
than any other product on the market, care must be taken
when installing this appliance so that our customer does
not experience undesirable performance or conditions.
1. Install the appliance according to this Owner’s Guide
paying particular attention to flashing and sealing in-
structions.
2. In the cold northern climates pay attention to expo-
sures and prevailing wind conditions when locating the
appliance, the same as you would for locating exterior
windows and doors.
The TWILIGHT-II-MOD has the thermal characteristics of a
high quality window system. Temperatures near the appli-
ance will be cooler than what is realized with a fully insulated
wall.
Operation of the appliance will eliminate any cool drafts
and will provide the room with a comfortable ambiance.
Installation MUST comply with local, regional, state and
national codes and regulations. Consult insurance carrier,
local building inspector, fire officials or authorities having
jurisdiction over restrictions, installation inspection and
permits.
Before installing, determine the following:
• Where the appliance is to be installed.
• Gas supply piping requirements.
• Electrical wiring requirements.
• Framing and finishing details.
• Whether optional accessories—devices such as a fan,
wall switch, or remote control—are desired.
C. Inspect Appliance and Components
• Carefully remove the appliance and components from
the packaging.
• The decorative doors and fronts may be shipped in
separate packages.
• Report to your dealer any parts damaged in shipment,
particularly the condition of the glass.
•Read all of the instructions before starting the instal-
lation. Follow these instructions carefully during the
installation to ensure maximum safety and benefit.
WARNING! Risk of Fire or Explosion! Damaged parts
could impair safe operation. DO NOT install damaged, in-
complete or substitute components. Keep appliance dry.
B. Tools and Supplies Needed
Before beginning the installation be sure that the following
tools and building supplies are available.
Tape measure Framing material
Pliers High temperature caulking material
Hammer Phillips screwdriver
Gloves Framing square
Voltmeter Electric drill and bits (1/4 in.)
Plumb line Safety glasses
Level Reciprocating saw
Manometer Flat blade screwdriver
Non-corrosive leak check solution
1/2 - 3/4 in. length, #6 or #8 Self-drilling screws
One 1/4 in. female connection (for optional fan).
Hearth&HomeTechnologies disclaims any responsibilityfor,
and the warranty will be voided by, the following actions:
• Installation and use of any damaged appliance or vent
system component.
• Modification of the appliance or vent system.
• Installation other than as instructed by Hearth & Home
Technologies.
• Improper positioning of the gas logs or the glass door.
• Installationand/oruseofanycomponentpartnotapproved
by Hearth & Home Technologies.
Any such action may cause a fire hazard.
WARNING! Risk of Fire, Explosion or Electric Shock!
DO NOT use this appliance if any part has been under
water. Call a qualified service technician to inspect the
appliance and to replace any part of the control system
and/or gas control which has been under water.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. For
assistance or additional information, consult a qualified
service technician, service agency or your dealer.
4
4 Getting Started
Installer Guide

16 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
5
5 Framing and Clearances
A. Selecting Appliance Location
When selecting alocation for the applianceit is importantto
consider the required clearances to walls (see Figure 5.1).
WARNING! Risk of Fire or Burns! Provide adequate
clearance around air openings and for service access.
Due to high temperatures, the appliance should be locat-
ed out of traffic and away from furniture and draperies.
NOTICE: Illustrations reflect typical installations and are
FOR DESIGN PURPOSES ONLY. Illustrations/diagrams
are not drawn to scale.Actual installation may vary due to
individual design preference.
WARNING! Risk of Fire! The exterior side of the
TWILIGHT-II-MOD CANNOT be recessed into the
framing.
Figure 5.1 Appliance Locations
GLASS EXTERIOR INSULATED ENVELOPE
GLASS
A
B
B
D
C* = 24 INCH (MAX.)
B
GLASS FLUSH TO EXTERIOR INSULATED ENVELOPE
GLASS
E
C*
NOTE: Appliance may be installed flush on exterior, interior
or anywhere in between. Any projection of the appliance
interior or exterior must have a properly constructed chase
surrounding the appliance. The exterior must have proper
insulating, flashing and finishing to ensure an insulated
envelope.
FLUSH TO INTERIOR
PROJECTION
C* = 0 INCH (MIN.)
WARNING! Risk of Fire! The exterior side of the TWILIGHT-II-MOD
CANNOT be recessed into the framing.
AB C* DE
Minimum Minimum Minimum Maximum Minimum -
Inches 43 1/2 0 24 36 43
Millimeters 1092 13 0 610 914 1092
* = C dimension may be any length from 0 to 24 inches.

17Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12

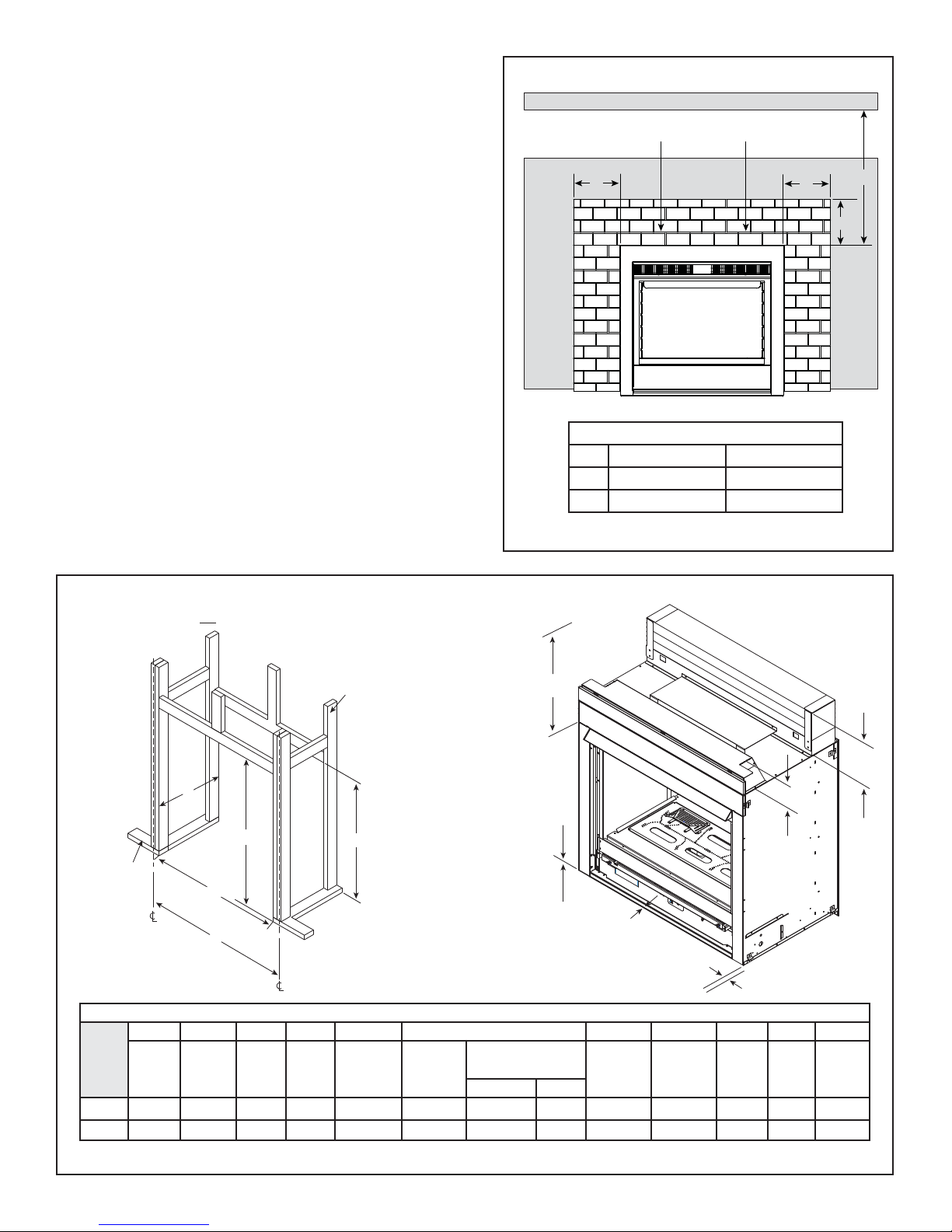

H
K
G
FJ
I
Figure 5.3 Clearances to Combustibles
Note: Framingdimensionsassumeuseof
1/2 inch thick wall covering materials on
exteriorofframingonly, and NO sheetrock
on interior of framing.
From top of hood to
ceiling (interior) or
overhang (exterior).
Figure 5.2 Exterior View - Finishing Material Clearances
MINIMUM CLEARANCES
Vinyl Non-vinyl
A36 in. 12 in.
B64-5/16 in. 35-5/16 in.
OVERHANG
A
A
B
SIDING SIDING
SIDING
FINISHING MATERIALS
A
INTERIOR
FRAMING
EXTERIOR
FRAMING
E
D
C
AB
B. Clearances
NOTICE: Installapplianceon hardmetal or woodsurfaces
extending full width and depth. DO NOT install directly
on carpeting, vinyl, tile or any combustible material other
than wood.
WARNING! Risk of Fire! Do not install appliance against
vapor barriers or exposed insulation. Prevent contact with
sagging or loose insulation.
• Locateandinstall appliancetoallclearance specifications
in manual.
• The chase must be properly blocked to prevent blown
insulation or other combustibles from entering and
making contact with fireplace.
• Failuretomaintain airspacemaycause overheatingand
a fire.
CLEARANCES TO COMBUSTIBLES:
ABCD E F G H IJK
Exterior
Rough
Opening
(Height)
Interior
Rough
Opening
(Height)
Rough
Opening
(Depth)
Rough
Opening
(Width)
Framing
for non-
combustible
material
Clearance
to Ceiling
(INTERIOR)
Clearance to Overhang
(EXTERIOR) Combustible
Floor Combustible Flooring
Standoff
Height
Inside
Standoff
Height
Outside
Sides of
Appliance
Non-Vinyl Vinyl
Inches 47-5/8 41-1/4 23 44 46-1/8 35-3/4 35-5/16 64-5/16 0 0 3-3/8 9-1/2 1/2
mm 1210 1048 584 1118 1172 908 897 1634 0 0 86 241 13
Finishing Material Clearances

18 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
C. Mantel and Wall Projections
WARNING! Risk of Fire! Comply with all minimum clear-
ances as specified. Framing or finishing material closer than
theminimumslistedmustbeconstructedentirelyofnoncom-
bustible materials (i.e., steel studs, concrete board, etc).
Combustible and Non-combustible
Mantels- Indoor only
Figure 5.4 Clearances to a Combustible and/or Non-combustible
Indoor Mantel
Figure 5.5 Clearances to a Combustible and/or Non-combustible
Indoor Mantel or Mantel Leg
12
11
10
9
8
7
6
13-5/8
12-5/8
11-5/8
10-5/8
9-5/8
8-5/8
7-5/8
HOOD
NON-COMBUSTIBLE BOARD
(SUPPLIED ON APPLIANCE)
INDOOR SIDE ONLY
CEILING
35-3/4
MEASUREMENTS FROM
TOP EDGE OF THE OPENING
MEASURED
FROM CORNER
TOP VIEW
FIREPLACE
HOOD
1/2 IN.
Note: Measurements are in inches.

19Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
6

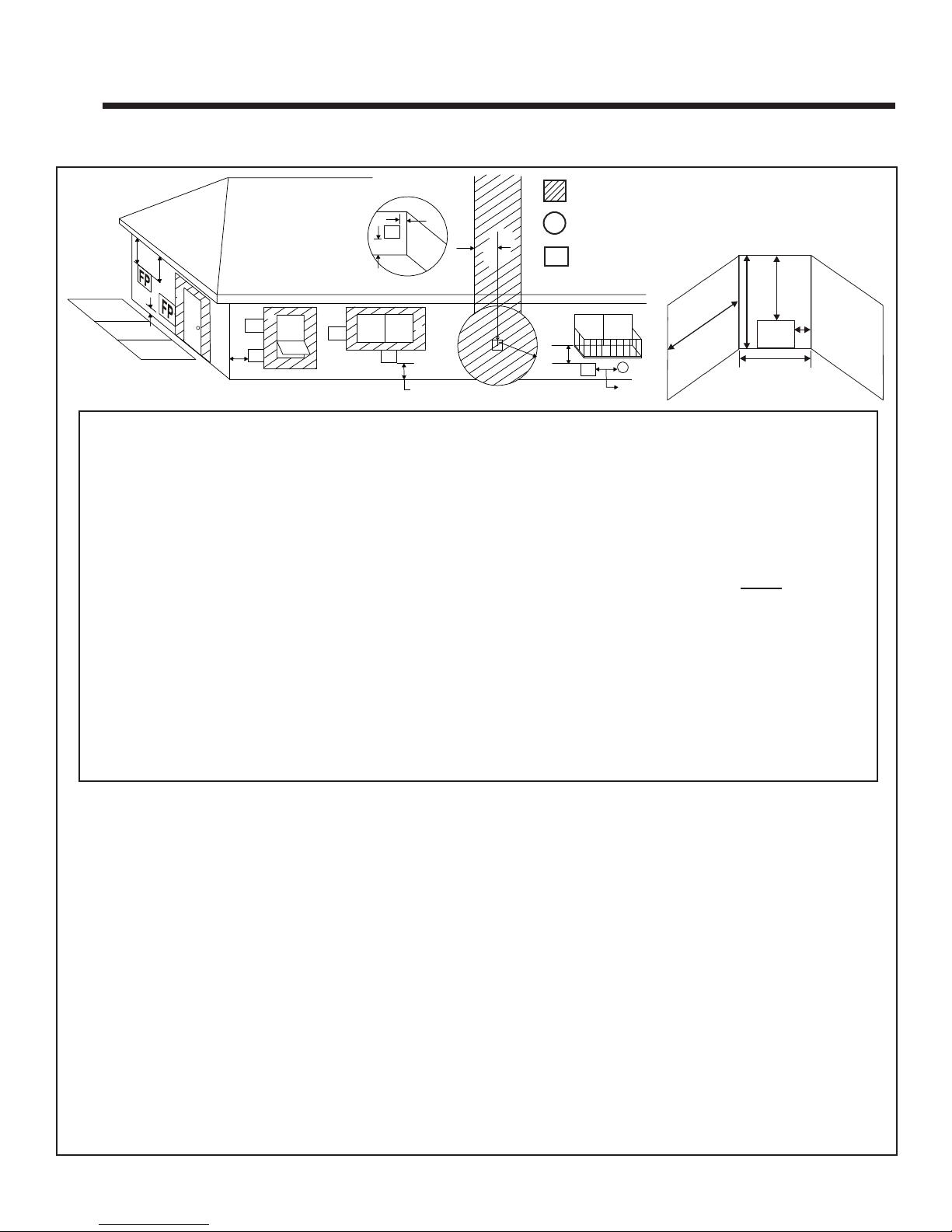

6 Termination Locations
DE
L
FP
AH
M
X
J or K
I
A
G
F
FP
FP
FP FP
FP
B
B
B
FP = APPLIANCE OPENING
X= AIR SUPPLY INLET
= AREA WHERE APPLIANCE IS NOT PERMITTED
J = 9 in. (U.S.A.)
12 in. (Canada).......clearance to non-mechani-
cal air supply inlet to building
or the combustion air inlet to
any other appliance
K = 3 ft. (U.S.A.)
6 ft. (Canada)...........clearance to a mechanical
air supply inlet
L** = 54 in........................clearance above paved side-
walk or a paved driveway lo-
cated on public property
M***= 35-5/16 in................clearance under veranda,
porch, deck, balcony or over-
hang
64-5/16 in. ..............vinyl
N = 12 in. ......................non-vinyl siding
36 in. ......................vinyl siding
P = 8 ft.
(See Note 1)
(See Note 1)
(See Note 2)
* 36 in. minimum for vinyl windows or vinyl siding.
** a appliance shall not open directly above a sidewalk or paved
driveway which is located between two single family dwellings
and serves both dwellings.
*** only permitted if veranda, porch, deck or balcony is fully open
on a minimum of 2 sides beneath the floor, or if the screened
porch guidelines are followed.
NOTE 1: Local codes or regulations may require different clear-
ances.
NOTE 2: Termination in an alcove space (spaces open only on
one side and with an overhang) are permitted with the dimensions
specified for vinyl or non-vinyl siding and soffits. 1. There must be 3
feet minimum between terminations or between the appliance and
termination. 2. All mechanical air intakes within 10 feet of a termi-
nation must be a minimum of 3 feet below the appliance hood. 3.
All gravity air intakes within 3 feet of the appliance hood must be a
minimum of 1 foot below the termination.
This appliance is approved for installation onto screened porches
with the following guidelines:
Figure 6.1 Minimum Clearances for Appliance Opening
NOTE: There may be some odor and small amounts of
soot associated with venting the TWILIGHT-II-MOD onto a
screened porch. Ensuring good cross draft ventilation and
routine maintenance of the appliance will maximize comfort
and cleanliness.
Minimum porch area: 96 square feet
Minimum ceiling height: 92 inches
Minimum two walls must be screened
Minimum top of screen height, side walls: 6 ft. 8 in.
Minimum screen area: 64 square feet
A. Appliance Opening Minimum Clearances
M
N
P
R
Q
FP
A = 0 in ........................clearances above grade, veran-
da, porch, deck or balcony
B* = 12 in. .....................clearances to window or door
that may be opened, or to per-
manently closed window.
D = 35-5/16 in. (non-vinyl)
64-5/16 in. (vinyl)......vertical clearance to ventilated
soffit located above the hood
within a horizontal distance of 2
feet (60 cm) from the center-line
of the hood
E = 35-5/16 in.
(non-vinyl)
64-5/16 in. (vinyl)......clearance to unventilated soffit
F = 9 in. ......................clearance to outside corner
G* = 12 in ......................clearance to inside corner
H = 3 ft. (Canada)........not to be installed above a gas
meter/regulator assembly within
3 feet (90 cm) horizontally from
the center-line of the regulator
I = 3 ft.........................clearance to service regulator
vent outlet and electric service

20 Outdoor Lifestyles by Hearth & Home Technologies, Inc. • TWILIGHT-II-MOD • 2290-900 Rev. C • 7/12
Fire Risk.
• Prevent contact with sagging, loose
insulation.
• Do NOT install against vapor barriers or
exposed insulation.
B. Securing and Leveling the Appliance
7
7 Appliance Preparation
Placing Metal Hearth Strip
Themetal hearthstrip (approximately46 inchesx4inches)
is used to provide added protection where appliance and
outer structure meet.
• Place a generous bead of silicone caulk into the corner
of the protective hearth strip.
• Place the metal strip onto the structure where the outer
edge of the appliance will sit (see Figure 7.1). It should
overlap building paper to prevent water infiltration.
Figure 7.1 Positioning the Metal Hearth Strip
METAL HEARTH STRIP
UNDER EDGE OF
APPLIANCE
APPLY HIGH TEMPERATURE SEALANT
(300° F/149° C min.)
BOTH SIDES
APPLIANCE
EXTERIOR
A. Removing Non-combustible Facing Ma-
terial Assembly
The non-combustible assembly is located on right-hand
side of appliance (when looking from outdoor side of
appliance).
• Hold non-combustible pieces in place.
• Remove and save two screws from upper bracket.
• Remove non-combustible pieces.
• Remove and save three screws from lower bracket.
• Discard brackets.
• Replace screws in holes where brackets were attached
to appliance.
Handle with care.
• Non-combustible material may be damaged if dropped.
CAUTION
Handle with care.
• Avoid damaging protruding edges on outdoor side of ap-
pliance.
CAUTION
WARNING
