ASIA TECHNOLOGY TR-60 User manual

TILLING ROTARY & ROTARY TILLER
OPERATING MANUAL & PARTS LIST
TR -60 / RT -60
ASIA

Contents
1. Rotary tiller ----------------------------------------- 3
2. Tilling Rorary -------------------------------------- 4
Contents
TR-60,RT-60 1

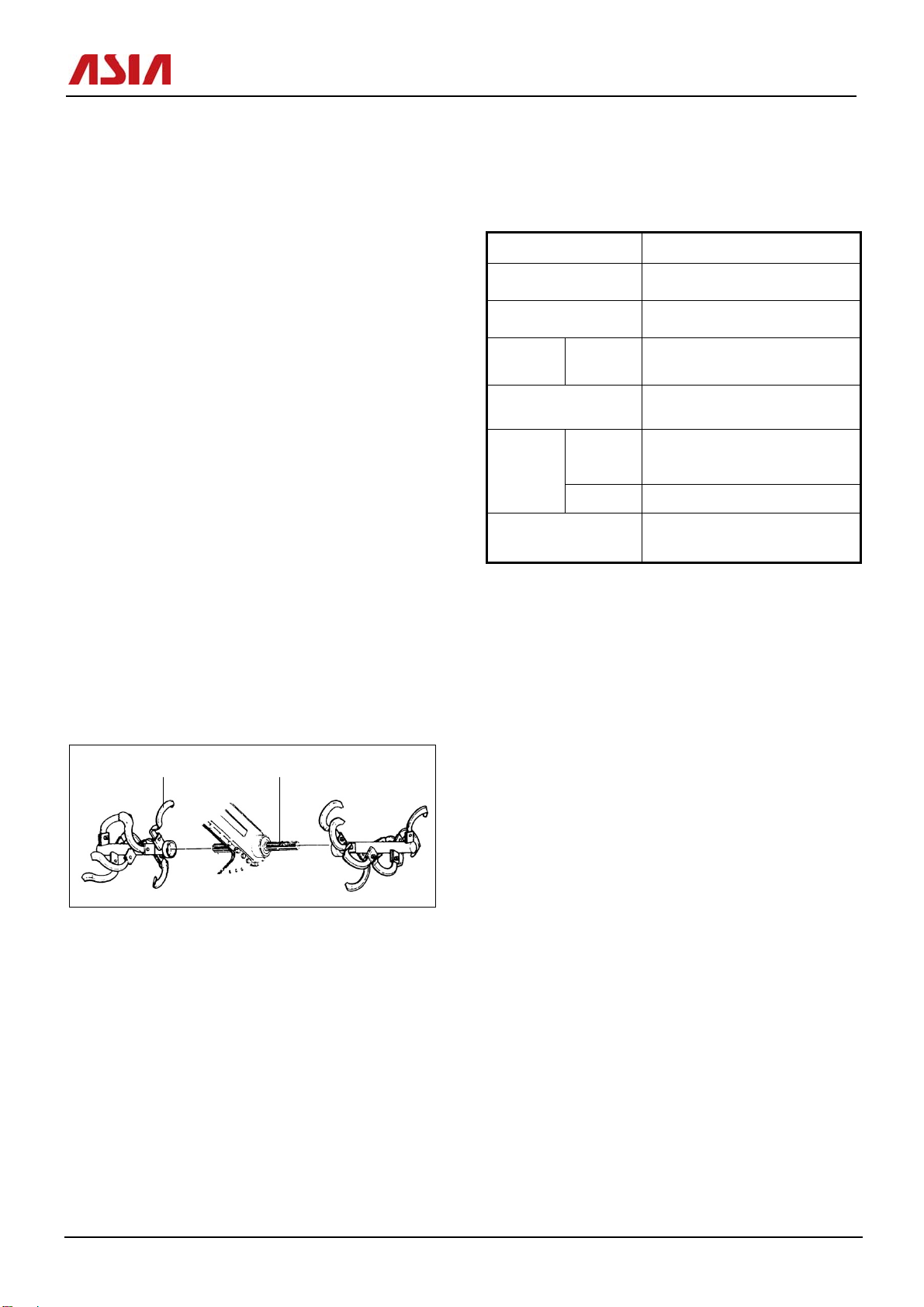

1. Rotary tiller(option)
1) Specification
2) Working use
①Cultivating and Levelling
②Weed cutting of mid-tilling
③Surface application
3) The method of attachment of rotary tiller on
the cultivator
①Attach the rotary tiller with dividing of left
and right in the location of engine like [Fig.1].
4) The working point of rotary tiller
①Working at rotary, please prevent the
approaching of the person in front of machine.
②After work at rotary, the leveling works in
[Reverse 1st]
Type RT-60
Working width
(mm) 625
Working depth
(mm) 50∼150
Blade General Left, right each 8 units
Rotation diameter
(mm) 390
Working
range Traveling Forward 1,2 range
(low speed condition of main
clutch)
Rotary finely : 1range
Working efficiency
(ha/day) 0.5∼1
Fig.9-1
Rotary Tiller Cultivating shaft
Tilling Rotary & Rotary Tiller
TR-60,RT-60 3

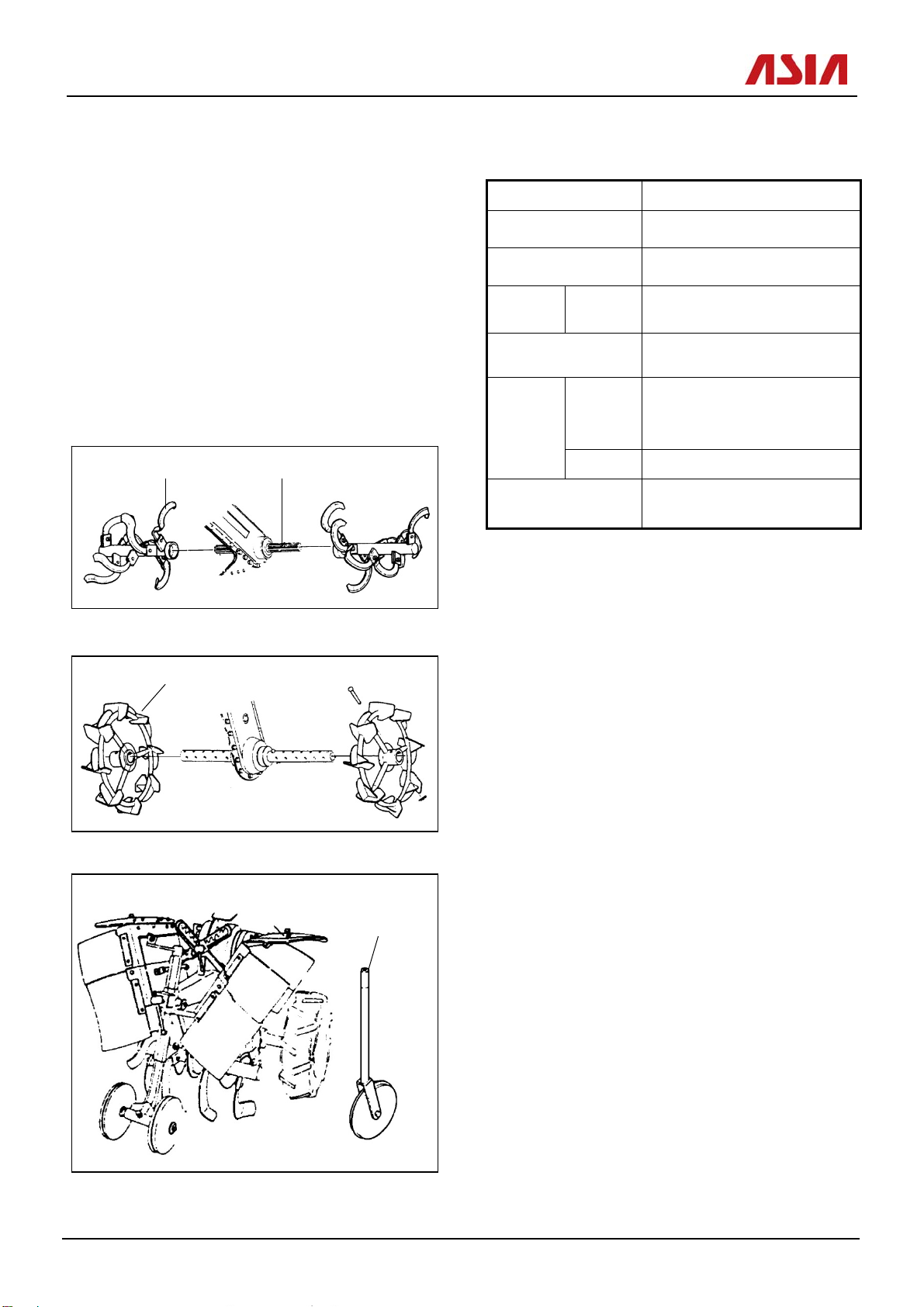

2. Tilling rotor(option)
1) Specification
2) Working use
①Cultivating and Levelling
②Weed cutting of mid-tilling
③Surface application
④Rotary and leveling in the wet paddy
3) The method of attachment of tilling rotary on
the cultivator
①Field tilling rotor
Attach the tilling rotor with dividing of left
and right in the location of rotary like [Fig.2].
②Wet paddy tilling rotor(option)
Remove the wheel(rubber), and exchange the
steel wheel like [Fig.3].
Disassemble the tail wheel adjust handle and
assemble revolving tail wheel ass’y as shown in
[Fig.4].
Type TR-60
Working width
(mm) 625
Working depth
(mm) 50∼150
Blade General Left, right each 8 units
Rotation diameter
(mm) 390
Working
range Traveling
Forward 1,2 range
Reverse 1,2 range
(low speed condition of main
clutch)
Rotary thickly : 1range, finely : 1range
Working efficiency
(ha/day) 0.5∼1
Fig.9-2
Tilling rotor Cultivating shaft
Steel wheel
Fig.9-3
Fig.9-4
Revolving
wheel
support
Tilling Rotary & Rotary Tiller
4 TR-60,RT-60

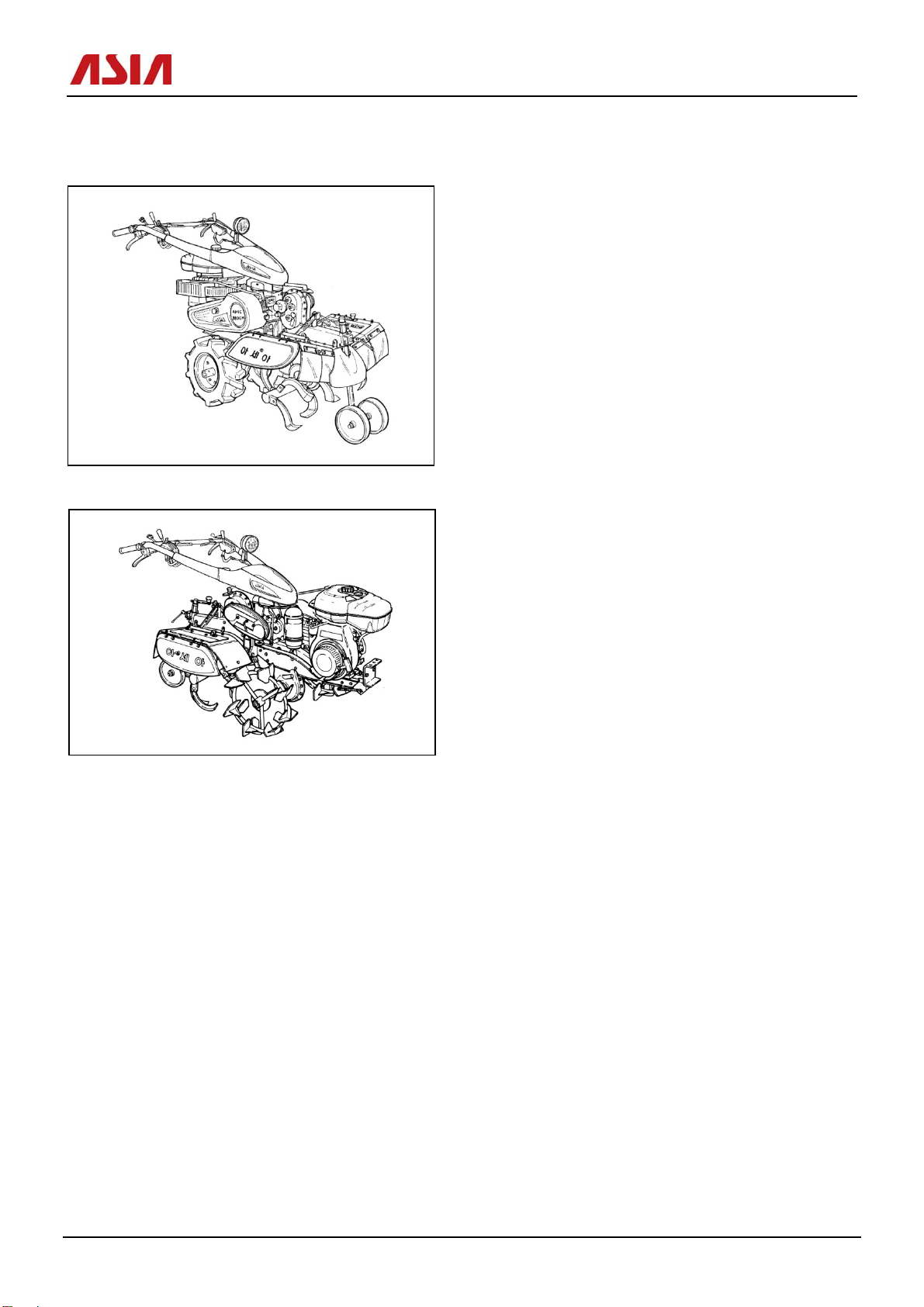

4) The working point of tilling rotor
①Field tilling rotor work
- Leveling and cultivation conform with
rotary operation method
- Working at rotary, please prevent the
approaching of the person in front of
machine.
- After work at rotary, the leveling works in
[Reverse 1st]
②Wet paddy tilling rotor
- Turn on the opposite side of the gandle,
as shown in [Fig. 6], please fix the rotary
side.
- Please assemble in [thickly] direction the
link chain case.
- Lower the cover of the rotary, muddy
water does not scatter to the operator.
- Please work setting is forward 1 range,
rotary 1 range.
-Turn the tail wheel adjust handle to adjust
to the depth of the rotary.
Important
■ As the rotary working, lift the handle
when the wheel of machine is slipped and
press the handle when the machine goes to
forward lightly, following to the soil
condition and working depth.
Fig.9-5
Fig.9-6
Tilling Rotary & Rotary Tiller
TR-60,RT-60 5

Caution
■ Protect the approach of the person
around the machine when the rotary
working.
6) Working use
Operation
Type Operating method Implement Handling method
Field
tilling
rotor
work
1) If you do after another work
① Change the implement
② Assemble in [finely] direction
the link chain case.
2) Adjust 10 ~ 20cm depth work, the
upper cover is firmly fixed in the
clamp bolt to be horizontal.
3) After fertilization work in spring
fertilizing season, summer
fertilizing season, fall fertilizing
season, cultivating and leveling at
the same time you can get the
dual effect.
4) The leveling has to reverse work
because there is no trace of the
wheels on the surface.
1) Tilling rotor left ,
right
2) Rubber wheel set
3) Assemble the
rubber wheel, it
must be narrower
then tilling rotor
width
- Traveling speed is
forward low
speed 1 range
- Rotary speed is
finely 1 range
- It is possible
depending of the
soil, and also do
the forward 2
range
Wet
paddy
tilling
rotor
work
1) Purchase wet paddy inplement
and assemble.
2) Turn to reverse the handle, work
to tilling rotor in the same way.
3) Rotary work in wet paddy, refer to
[Fig.6].
1) Tilling rotor left,
right
2) Steel wheel set
3) Revolving tail
wheel set
- The following is
the same as the
above.
(Turn to reverse
the handle)
Tilling Rotary & Rotary Tiller
6 TR-60,RT-60

THE ASIA PARTS LIST
Never use other than GENUINE ASIA PARTS
they are standardized, tested and proved.
Using genuine parts saves your time and money above all.
Ensures that your machine will always be ready for immediate work.

CONTENTS
No. Group Description Page
01 AB010 Tilling Rotor (TR-60) 8
02 AB070 Rotary Tiller (RT-60) 10

16
12
13
17
02
09
01
10
11
14
15
05
1
10
11
11
0
9
08
03
07
09
0
9
25
08
07
02
2
3
24
22
04
09
1
0
09
21
3
0
6
10
0
11
11
2
18
A
B
01
6
11
10
0
9
19
0
TR-
6
B
01
0
9
6
0
0

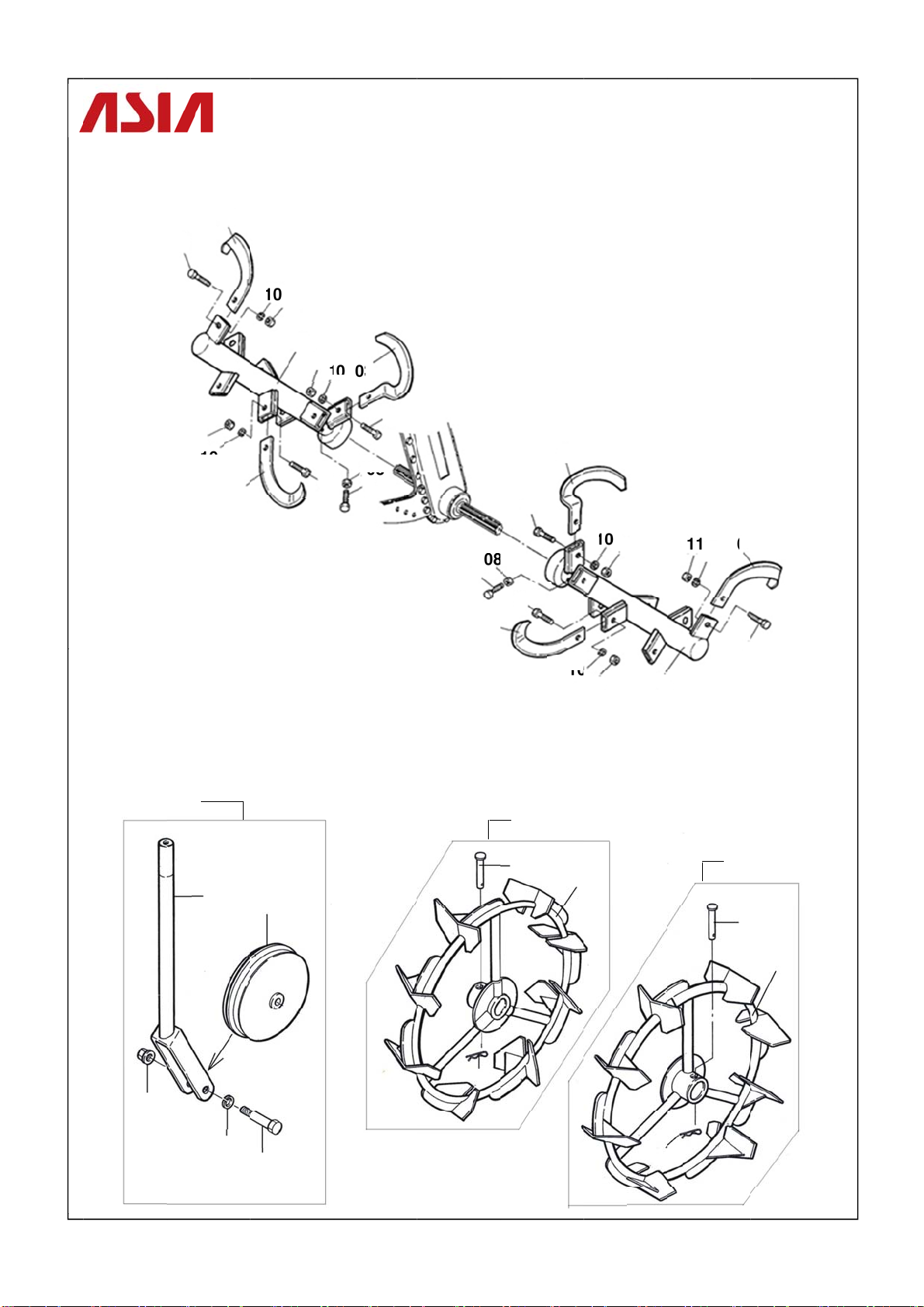

No. Parts No. Size Parts Name Q’ty Remarks
01 TR-1001 Blade(L), Rotary 7
02 TR-1002 Blade(R), Rotary 7
03 TR-1003 Special Blade(L), Rotary 1
04 TR-1004 Special Blade(R), Rotary 1
05
A
B010-10051-01 Tube(L), Rotary 1
06
A
B010-10061-01 Tube(R), Rotary 1
07 DT-0708 Setting bolt 2
08
A
163-10Z M10P1.5 Nut 2
09 DT-0720 Bolt, Blade setting 16
10
A
204-10Z M10 Spring Washer 16
11 DT-0721 Nut 16
12 TR-1015 Tail Wheel Ass’y (1) 20~24
13 TR-1016 Support, tail wheel 1
14 DT-0682B Tail wheel 1
15 TR-1018 Support bolt, Tail wheel 1
16
A
160-12Z M12P1.25 Nut 1
17
A
204-12Z M12 Spring Washer 1
18
A
B010-10191 Steel Wheel Ass’y(L) (1) 26~28
19 TR-1009 Steel wheel(L) 1
20 DT-0507A Pin(B), Axle 1
21
A
321-14Z JASO A 14 Snap Pin 1
22
A
B010-10201 Steel Wheel Ass’y(R) (1) 30~32
23 TR-1010 Steel wheel(R) 1
24 DT-0507A Pin(B), Axle 1
25
A
321-14Z JASO A 14 Snap Pin 1
ASIA PARTS LIST
2017.10. AB010 Tilling Rotor (TR-60)

0
02
0
9
01
10
11
05
1
0
10
11
11
09
08
03
07
09
0
08
07
02
04
09
10
1
09
06
10
1
11
A
B
01 11
10
09
RT-
6
B
07
0
6
0
0

No. Parts No. Size Parts Name Q’ty Remarks
01 TR-1001 Blade(L), Rotary 7
02 TR-1002 Blade(R), Rotary 7
03 TR-1003 Special Blade(L), Rotary 1
04 TR-1004 Special Blade(R), Rotary 1
05
A
B010-10051-01 Tube(L), Rotary 1
06
A
B010-10061-01 Tube(R), Rotary 1
07 DT-0708 Setting bolt 2
08
A
163-10Z M10P1.5 Nut 2
09 DT-0720 Bolt, Blade setting 16
10
A
204-10Z M10 Spring Washer 16
11 DT-0721 Nut 16
ASIA PARTS LIST
2017.10. AB070 Rotary Tiller (RT-60)

Mailing Add. :
R.M.701, SHIN TAE YANG BLDG. 736-8, BANPO-DONG, SEOCHO-GU, SEOUL,
KOREA 137-810
http://www.asiakor.com
TEL : [phone]
FAX : [phone]
NO.1710
ASIA TILLING ROTOR & R OTARY TILLER
TR-60 / RT-60
