Asko T884XL User manual
Operating Instructions
Tumble dryer
T884XL
WARNING: Read the instructions before using the machine.
Dear Customer,
Thank you for choosing this quality product from ASKO. We hope it will
Scandinavian design combines clean lines, everyday functionality and high
quality. These are key characteristics of all our products and the reason
they are greatly appreciated throughout the world.
To get the most out of your new machine, we recommend that you read the
operating instructions before using the machine.The operating instructions
also include information on how you can help protect the environment.
2
Customer Care Center, 1-800-898-1879, www.askona.com
Original instruction
CONTENTS
BEFORE USING YOUR MACHINE FOR THE
FIRST TIME 3
Language selection 3
Laundry labels 3
SAFETY INSTRUCTIONS 4
Grounding instructions 4
Installation 5
Packing material 5
Disposal 5
KidSafe™ Child-safe 5
KidSafe™ child-safe start 5
Activating/deactivating KidSafe™ child-safe 5
To deactivate KidSafe™ child-safe start temporarily 5
DESCRIPTION OF THE TUMBLE DRYER 6
DRY 7
Have the clothes been spun? 7
Materials that can be tumble-dried 7
Materials that must not be tumble-dried 7
Static electricity 7
TUMBLE DRYING 8
Sort your fabrics 8
Select the programme 8
Selecting Options 9
Press the start button 9
Programme chart 10
SETTINGS 11
You can alter the following settings: 11
Language 11
KidSafe™ Child-safe 11
CARE AND CLEANING 12
Cleaning the outside of the machine 12
TROUBLESHOOTING 13
The machine will not start 13
The machine loses all power during a program 13
Drying takes too long 13
Error messages 13
TECHNICAL INFORAMTION 14
SERVICE AND GUARANTEE 15
Limited Warranty – Residential Appliances 15
INSTALLATION 17
Positioning the tumble dryer 17

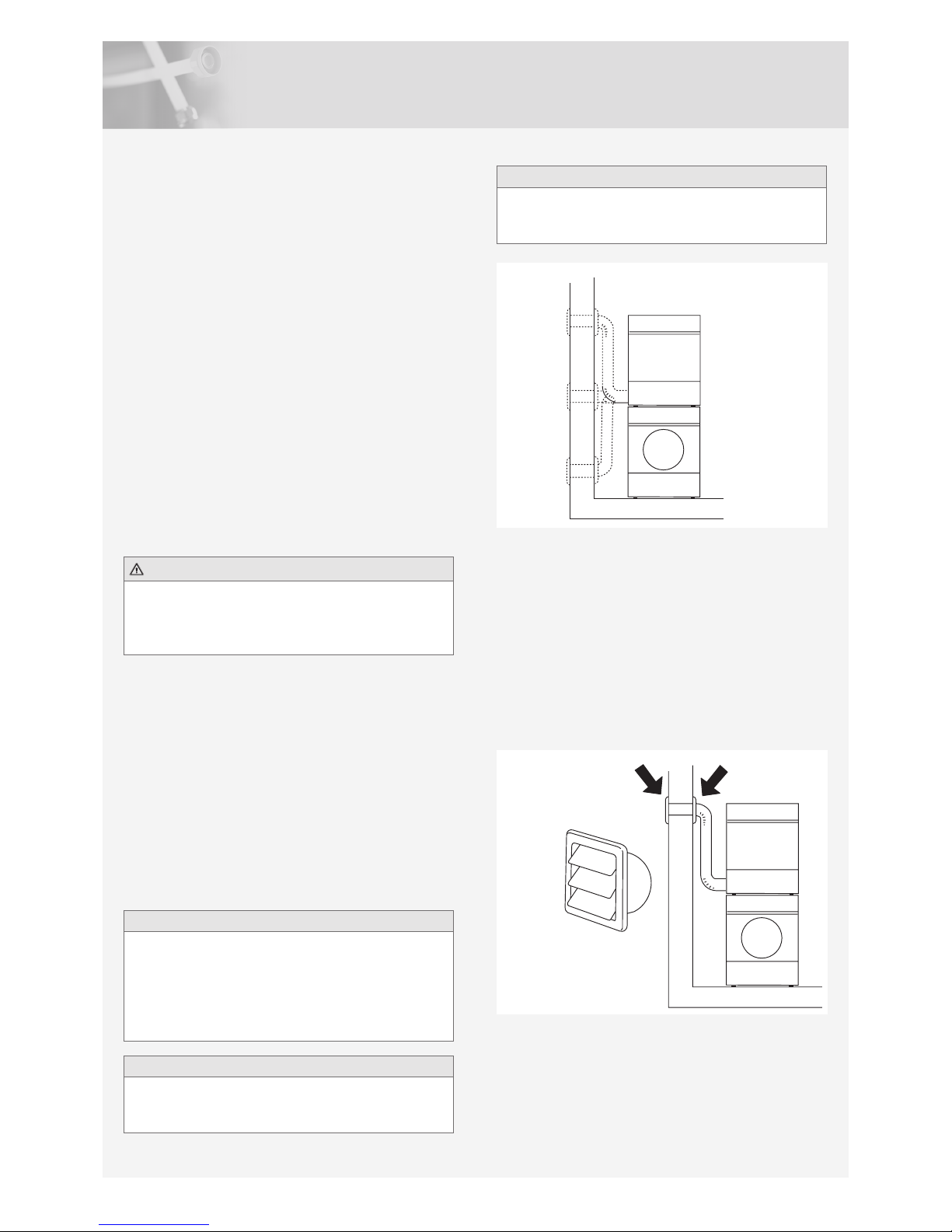

Air exhaust 18
Electrical installation 20
Electrical installation 22
Connection on delivery 22
Switch-over 22
REVERSING THE DOOR 23
QUICK GUIDE 28
3
Customer Care Center, 1-800-898-1879, www.askona.com
Do you need this Use&Care Guide in Spanish? Log on to
www.askona.com/customer-care to download.
¿Necesita esta Instrucciones de uso y cuidado en
español? Entre en www.askona.com/customer-care y
descárguesela.
LANGUAGE SELECTION
You will be prompted to select the display language when
time. Do as follows:
1. Turn the program selector to choose from: US English,
English, Svenska, Dansk, Norsk, Suomi, Français,
2. Press Start once to save the setting.
LAUNDRY LABELS
Certain materials are not suitable for tumble-drying.
Always check and follow the instructions on each item’s
and tips before you tumble-dry chapter.
NOTE
after a long period without use, you may notice a slight
thumping noise.This noise is completely normal and
will disappear after a few loads.
BEFORE USING YOUR MACHINE FOR THE FIRST TIME
4
Customer Care Center, 1-800-898-1879, www.askona.com
SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
WARNING!
or injury to persons when using your appliance, follow
basic precautions, including the following:
Read all instructions before using the appliance.
Do not wash or dry articles that have been previously
cleaned in, washed in, soaked in, or spotted with gaso-
-
that could ignite or explode.
Do not allow children to play on or in the appliance.
Children should be closely supervised when near the
appliance.
Before the appliance is removed from service or dis-
carded, remove the door to the drying compartment.
Do not reach into the appliance if the drum is moving.
Do not install or store this appliance where it will be
exposed to the weather.
Do not tamper with controls.
Do not attempt to repair or replace any part of the
recommended in this guide.
Do not use fabric softeners or dryer sheets unless the
manufacturer gives written assurance that the product
will not damage a tumble dryer.
Do not heat dry items containing vinyl, plastic, foam
-
glass, or wool unless the label
Keep the area around the exhaust opening and adja-
cent surrounding areas free from the accumulation of
lint, dust and dirt.
The interior of the machine should be cleaned periodi-
cally by an authorized ASKO service agent.
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may con-
tribute to a chemical reaction that could cause a load
Electrical installation, if required, must be done by a
licensed electrician.
Do not operate appliance while away from the home.
Do not heat dry items that have been dry-cleaned.
The dryer is made and marked to facilitate recycling.
When it is no longer useful, contact your local refuse
collection service for advice on how to properly dis-
pose of the dryer for purposes of recycling.
Damaged power cables should only be replaced by a
fuels can be drawn into the room.
CAUTION! HOT SURFACE!
During the program, the back of the dryer will get very
hot. Let the machine cool completely before touching
the back.
WARNING!
This appliance must be properly grounded.
GROUNDING INSTRUCTIONS
A) Grounding instructions for a grounded, cord-
connected appliance
In the event of malfunction or breakdown, grounding
will reduce the risk of electric shock by providing a path
of least resistance for electric current. This appliance
(Canadian market only) is equipped with a cord having an
equipment-grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet that
is properly installed and grounded in accordance with all
local codes and ordinances.
WARNING!
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
or personnel if you are in doubt as to whether the
appliance is properly grounded. Do not modify the plug
provided with the appliance (Canadian market only). If
exhausted outdoors or the equivalent. Do not exhaust
into a chimney, wall, ceiling or concealed space in a
building.
B) Grounding instructions for a permanently
connected appliance:
This appliance must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead
on the appliance.
NOTE!
This manual does not cover every possible condition
and situation that may occur. Use common sense and
caution when installing, operating, and maintaining any
appliance.
5
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
See the section Installation instructions.
PACKING MATERIAL
Please sort waste materials in accordance with local
guidelines..
DISPOSAL
This machine is manufactured and labelled for recycling.
In order to prevent personal injury, the machine must be
made inoperable after deciding to take it out of service.
Contact your local authority for information about where
and how your machine should be correctly recycled.
WARNING!
DO NOT ALLOW CHILDREN TO PLAY
WITH THE TUMBLE DRYER.
If the door is opened when a programme is running
the garments may be very hot, with a risk of burn
injuries.
The tumble dryer does not start automatically when
the door is closed (if a child pulls the door shut from
the inside, for example).
By activating the child-safe start function you can prevent
children from starting the tumble dryer or changing the current
programme.
ACTIVATING/DEACTIVATING KIDSAFE™
1. Turn off the machine using the main power switch.
2. Press and hold the + button and the temperature selection
button and turn on the main power switch.
3. Turn the programme selector and choose ”Child-safe start
off” or ”Child-safe start on”.
4. Press the Start button to save.
SAFE START TEMPORARILY
You can temporarily deactivate Child-safe start for three minutes
by pressing the temperature button and the minus button under
Delayed Start at the same time.
SAFETY INSTRUCTIONS
6
Customer Care Center, 1-800-898-1879, www.askona.com
DESCRIPTION OF THE TUMBLE DRYER
1. Main power switch
2. Panel

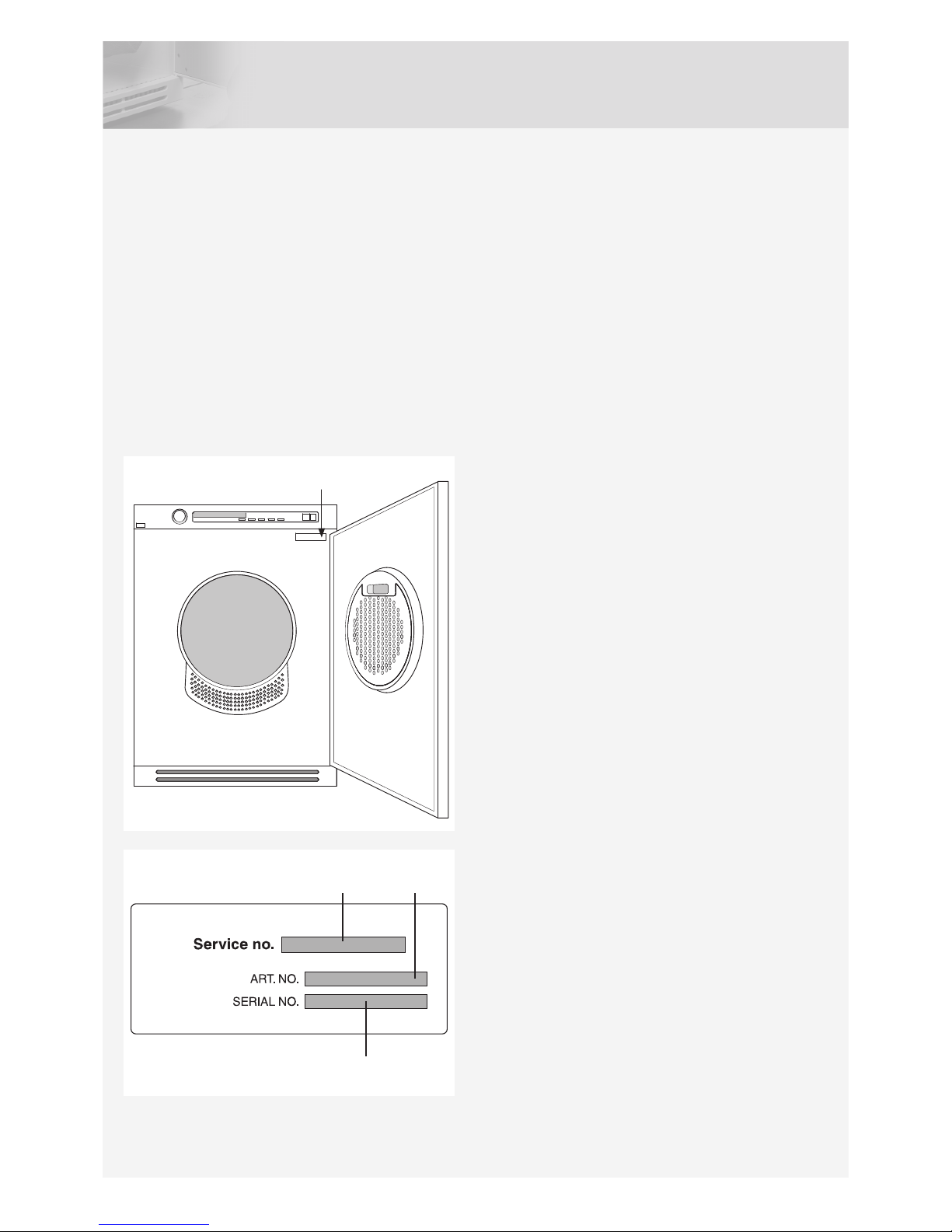

3. Serial number tag and rating plate
4.
5. Outer door
1 2 3 54
7
Customer Care Center, 1-800-898-1879, www.askona.com
Here are some tips that may help you before you begin
tumble-drying.
HAVE THE CLOTHES BEEN SPUN?
Items to be tumble-dried should be spun at 1000 rpm or
faster. Higher spin speeds save energy and reduce drying
time.
DRIED
This symbol means that the material is suitable for
tumble-drying. Fabrics best suited to tumble-drying are
will be softer and lighter when tumbled than when hung
out to dry.
NOTE!
used.
MATERIALS THAT MUST NOT BE
This symbol means that the material is not suitable
for tumble-drying. Certain materials may melt or become
shape or shrink.
And do not tumble-dry:
materials labelled ”Do not dry near heat”.
garments that have been dry-cleaned at home.
plastic foam.
wool must not be tumble-dried because of the risk of
felting.
STATIC ELECTRICITY
To reduce the risk of static electricity in the laundry after
tumble drying you can:
Use fabric softener when washing.
opening the door and removing the laundry from the
dryer.
NOTE!
You can stop the tumble dryer by pressing the Stop
button for three seconds or by opening the door. In both
cases the programme is stopped and starts from the
beginning if restarted. If you do not want to restart the
programme then immediately remove all laundry and
spread it out to allow the heat to dissipate.
8
Customer Care Center, 1-800-898-1879, www.askona.com

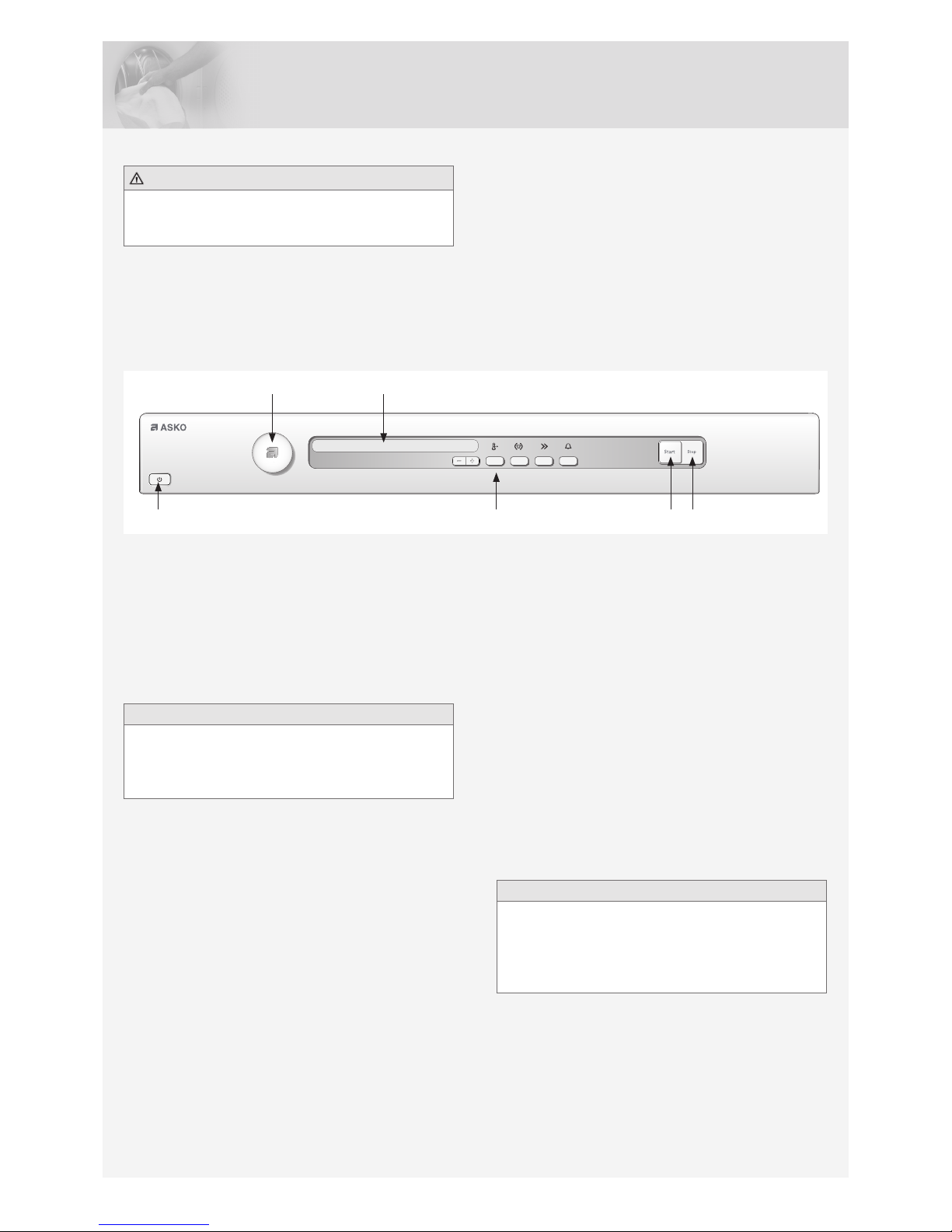

TUMBLE DRYING
WARNING!
To reduce the risk of electric shock or injury to persons,
read the”Important Safety Instructions” section before
operating this appliance.
Below are step-by-step instructions to help you achieve
the best possible tumble-drying results.
Auto Heavy
Program with the maximum temperature.This program is for
NOTE!
Knitted fabrics in particular are prone to shrinkage.
Use the Auto Normal, Auto Delicate, or Auto Iron Dry
programs for these items. Stretch clothes back into
shape immediately after drying.
Auto Normal and Auto Delicate
These programs end automatically when the load is dry.The
Auto Normal program leaves the laundry slightly more dry
than Auto Delicate.
Auto Iron Dry
enough for ironing or pressing.
Jeans
Program for jeans and clothing with very thick seams.
Synthetic
Gentle program for synthetics.
Terry cloth
Program intended for large and small loads of thick terry
cloth, such as towels and bathrobes.
Down
Gentle program that dries down items completely. Can be
used to dry up to three pillows or one quilt.
Timed Dry
The most suitable program time depends on what you
intend to do with the items after tumble drying them. Use
Timed Dry to tumble dry a load of mixed fabrics, some of
the garments may remain damp. Tumble dry any damp
garments for a further 30 minutes or so using the Timed Dry
program. Select the program time by pressing the + and -
buttons. A program time between 30 minutes and 3 hours
can be selected and each button press changes the time by
15 minutes.
NOTE!
When using the Timed Dry program with a program
time that is too long, the garments can become “over-
dry”. This can cause items to shrink or wrinkle and
feel rough to the touch. Synthetic materials can also
become charged with static electricity.
Air Flu
air out, or soften up items.
Select the program time by pressing the + and - buttons.
A program time between 15 minutes and 3 hours can be
selected and each button press changes the time by 15
minutes.
Select a programme by turning the programme selector. The selected programme is shown in the display window. Use the
option buttons to select any options.
SORT YOUR FABRICS
You will achieve the most uniform drying results if the
items are made of the same type of material. Do up zips
and buttons, fasten belts, sort the items and adjust the
load and temperature.
Press the main power switch until the display lights. Open
the door, load the items and then close the door.
SELECT THE PROGRAMME
Programme selector Display window
Main power switch Start StopOptions buttons
9
Customer Care Center, 1-800-898-1879, www.askona.com
TUMBLE DRYING
SELECTING OPTIONS
By selecting options, you can tailor a drying program to
suit your requirements.The available options depend
on the selected program. Once you have started the
program, the options you selected are saved for the
next time you use the same program. The exception is
Delayed Start, which is not saved for the next time.
Temperature Low
You can select Temperature Low with all programs except
Select Temperature Low by pressing the button under
the symbol.
The symbol lights when Temperature Low is selected.
Buzzer Volume
You can choose to have the machine notify you when a
Select Buzzer Volume by pressing the button under the
symbol.
The symbol lights when Buzzer Volume is selected.
Time saver
You can select Time saver with all programs except Air
Press the button under the symbol.
The symbol lights when Time Saver is selected.
Anti Wrinkle
This option means that the drum will rotate for three
seconds every minute for two hours after the drying
option prevents the garments from remaining in the same
position and becoming wrinkled. Cannot be selected
has also been activated, an audible signal will sound
each time the drum rotates as a reminder that the drying
Select Anti Wrinkle by pressing the button under the
symbol.
The symbol lights when Anti Wrinkle is selected.
Delayed Start
First select which program you want to use and then
select Delayed Start by pressing the + button. The display
shows Delayed Start in whole hours. Press the + / - button
to select a delayed start of 1 to 24 hours.The symbol for
Delayed Start lights next to the number of hours. Press
the Start button and the machine will count down 1 hour
at a time and start after the selected delay. This option
PRESS THE START BUTTON
Remaining drying time
An estimate of the remaining drying time will be shown on
the display a few minutes after the drying program starts.
1:35 means that it will take approximately 1 hour and 35
minutes for the load to dry. If the Anti Wrinkle option has
been selected, the drum will rotate for three seconds
The actual remaining time may be longer than the
estimated time shown on the display. The remaining time
If you selected Time saver, the display will show 0:05
instead.
You can stop the tumble dryer by pressing the Stop
button or by opening the door. In both cases the program
is stopped and starts from the beginning if restarted.
NOTE!
program selector after the program has started.
DRYING PROGRAMME FINISHED
The text End appears on the display when the program is
drum will rotate for three seconds every minute for two
Backlighting
backlighting on the display and option buttons enters
energy saving mode.
NOTE!
See the Care and maintenance instructions chapter.
WARNING!
automatic overheating cut-out may be triggered. Clean
starting it. If it still does not start: Call the Customer
Care Center.
Once drying has nished
close the door to prevent small children from climbing into
the machine.
10
Customer Care Center, 1-800-898-1879, www.askona.com
TUMBLE DRYING
PROGRAMME CHART
variations in the power supply and selected options.
For the consumption values given below, the requirements are as follows:
Temperature of intake air: 73 °F (23°C)
Moisture content of intake air: 55%
Drying temperature: Normal
Heater output: 3000W
Programme Material Load Spin speed
(rpm)
Energy consumption
approx. (kWh)
Programme time
approx.
(min)
Auto Heavy Cotton, linen 1/1 600 9,9 248
1000 9,4 240
1200 8,2 213
1400 7,0 184
Auto Normal Cotton, linen 1/1 600 8,1 171
1000 7,6 165
1200 6,6 145
1400 5,6 123
Easy care,
polyester/cotton
1/2 1000 1,8 38
Auto Delicate Cotton, linen 1/1 600 7,8 161
1000* 7,0 148
1200 6,1 131
1400 5,2 113
Cotton, linen 1/2 1000* 3,4 69
Easy care,
polyester/cotton
1/2 600 2,5 50
Auto Iron dry Cotton, linen 1/1 600 4,6 129
1000 4,0 113
1200 3,7 92
1400 3,4 71
*Test program according to EN61121. The machine shall be tested at 16A and option “Time save” shall be active.
11
Customer Care Center, 1-800-898-1879, www.askona.com
SETTINGS
YOU CAN ALTER THE FOLLOWING
SETTINGS:
Language
KidSafe™ Child-safe
LANGUAGE
Follow these instructions:
2. Press and hold the Start button and then press the
main power switch.
3. Turn the program selector to choose from: US English,
English, Svenska, Dansk, Norsk, Suomi, Français,
4. Press the Start button to save.
Activating/deactivating Child-safe Start
2. Press and hold the + button and the Temperature Low
button and turn on the main power switch.
3. Turn the program selector and choose Child-safe On
4. Press the Start button to save.
You can temporarily deactivate Child-safe Start for three
minutes by pressing the Temperature Low button and the
minus button under Delayed Start at the same time.
12
Customer Care Center, 1-800-898-1879, www.askona.com
CARE AND CLEANING

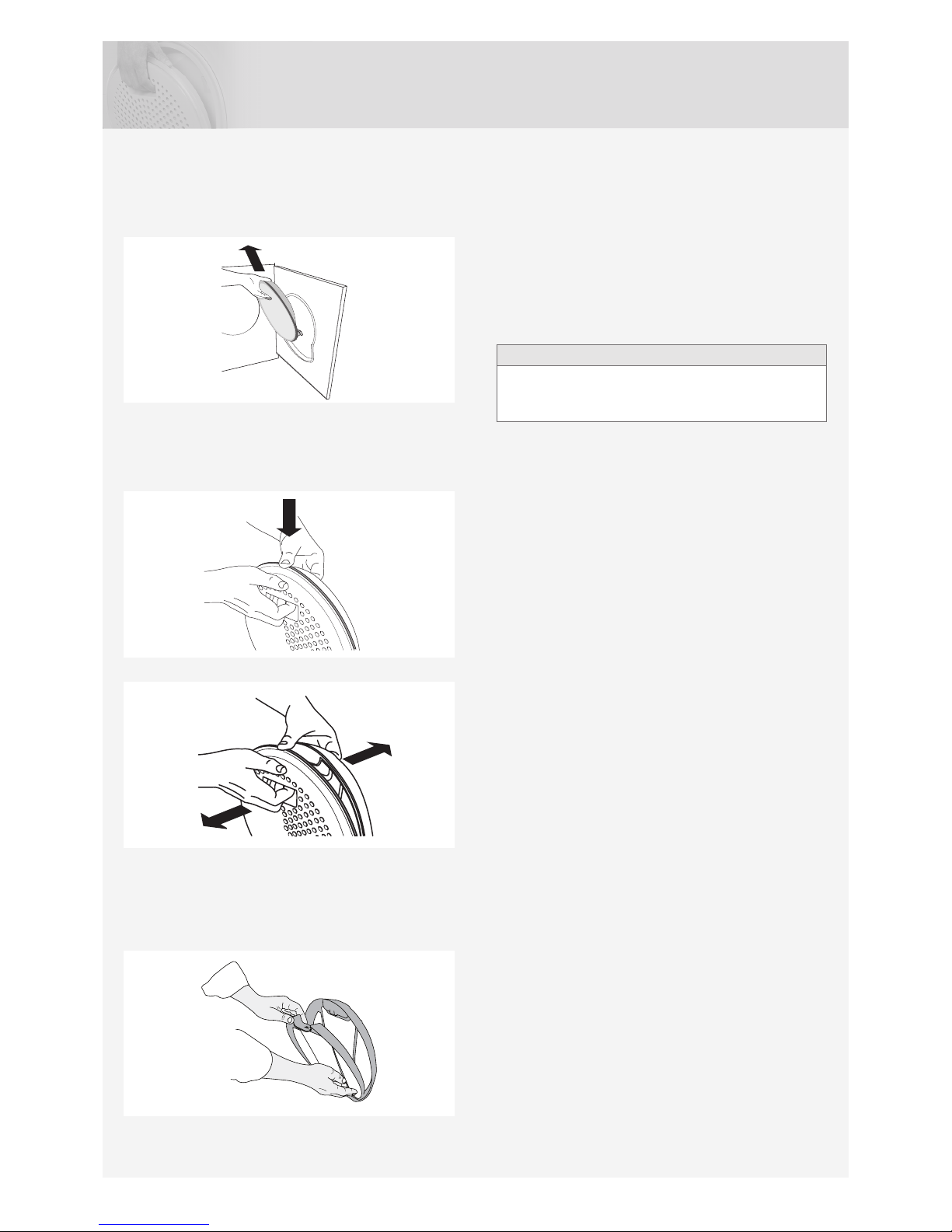

CLEANING THE LINT FILTER
illustrated and pull it out.
3. Use your hand or a soft cloth to remove the lint from
and a small amount of washing-up liquid to remove
CLEANING THE OUTSIDE OF THE
MACHINE
Clean the outside of the machine and the program panel
with a mild cleaner. Do not use solvents, as these can
damage the machine. Do not hose down or spray the
machine with water.
NOTE!
Do not allow dust to accumulate around the machine.
Keep the area around the tumble dryer clean and cool;
dust, heat, and moisture prolong drying times.
13
Customer Care Center, 1-800-898-1879, www.askona.com
TROUBLESHOOTING
NOTE!
after a long period without use, you may notice a slight
thumping noise.This noise is completely normal and
will disappear after a few loads.
THE MACHINE WILL NOT START
Check:
that the door is properly closed.
that the main power switch is on.
that the Delayed Start option has not been selected. To
cancel Delayed Start, press the Stop button for three
seconds.
that the plug is connected.
that the main fuses have not blown.
that the overheating cut-out has not been triggered.
WARNING!
automatic overheating cut-out may be triggered
because of to high temperature. The heaters in the
to spin to cool down the machine.
Call the service division if:
Heating fault appears on the display.
Max program time is shown frequently in the display
and the laundry does not get dry. (Overheating pro-
tection may have been tripped.)
THE MACHINE LOSES ALL POWER
DURING A PROGRAM
temperature is too high, e.g. because dust is clogging the
Wait until the machine has cooled then try starting it. If
it still does not start: Call the service division.
DRYING TAKES TOO LONG
and cleaning chapter).
ERROR MESSAGES
Read Drying takes too long in this chapter if Max pro-
gram time appears on the display.
If Clean Lint Filter appears on the display, clean the lint
Call the service division if Thermistor fault appears on
the display.
Press the Stop button to close any error messages.
14
Customer Care Center, 1-800-898-1879, www.askona.com
TECHNICAL INFORAMTION
Height: 33 1/2” (850 mm)
Width: 23 1/2” (595 mm)
Depth: 29 1/3” (745 mm)
Weight (net): 99 lb (45 kg)
Cylinder volume: 38,3gal (145 l)
Max. drying capacity: 24 lb (11 kg)
Speed: 50-55 rpm
Sound pressure level: The sound pressure level is below 66 dB(A)
Rated power: See type plate.
Drum material: Stainless steel
Outer casing material: Powder-coated and hot-galvanized sheet steel or stainless steel
Setup: Stacking or freestanding
15
Customer Care Center, 1-800-898-1879, www.askona.com
SERVICE AND GUARANTEE
APPLIANCES
ASKO Distribution North America, LLC. (“ASKO”)
warrants to the original purchaser (the “ASKO Customer”)
of the ASKO product (the “ASKO Product”), who
purchased the ASKO Product from a distributor, dealer,
manufacturer’s representative or other seller who has
been authorized by ASKO, that this ASKO Product
is free of defects in materials and/or workmanship,
subject to the terms and conditions set forth herein.
This Limited Warranty covers parts and labor, except
as set forth in this Limited Warranty. Service must be
provided by an authorized ASKO service company.
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR
AS PROVIDED HEREIN. This Limited Warranty is valid
only when the ASKO Product is used in the country in
which it was purchased. Proof of original purchase date is
required to obtain service under this Limited Warranty.
Residential ASKO Products Used Exclusively
for Household/Personal Purposes:
Two (2) Years limited Warranty – Any warranty service
ASKO within two (2) years from date of purchase. Service
will be provided during normal business hours.
Residential ASKO Products Not Used
Exclusively for Household/Personal Purposes
or used Commercially or used in Marine,
Mobile or Aeronautical Applications:
One (1) Year limited Warranty – Any warranty service
claims for ASKO Products not used exclusively for
household and personal use, or used commercially or
used in marine, mobile, or aeronautical applications
of purchase. Service will be provided during normal
business hours.
ITEMS EXCLUDED FROM WARRANTY
This limited warranty does not cover:
1 Replacement parts or repair labor if the ASKO
Product is used in a manner that is inconsistent
with published user or operator instructions and/or
installation instructions.
2 Service calls to correct the installation of the ASKO
Product, to instruct you on how to use the ASKO
Product, to replace or repair house fuses, or to
correct house wiring or plumbing.
4 Damage resulting from accident, alteration,
improper use, improper installation, installation not
in accordance with electrical or plumbing codes, or
use of products not approved by ASKO, as well as
any attempted repair by other than authorized ASKO
service companies.
5 Cosmetic damage, including scratches, dents, chips
unless such damage results from defects in materials
or workmanship and is reported to ASKO within 5
days from date of purchase.
6 Pickup and delivery. The ASKO Product is intended
to be repaired in your home.
7 Repairs to parts or systems resulting from
Product.
8 Expenses for travel and transportation for product
service if the ASKO Product is located in a remote
area where service by an authorized ASKO service
company is not available.
9 The removal and reinstallation of the ASKO Product
if it is installed in an inaccessible location or is not
installed in accordance with ASKO’s published
installation instructions.
10 Replacement parts or repair labor on ASKO Products
with original model/serial numbers that have been
removed, altered or cannot be easily determined.
DISCLAIMER
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS
LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS
PROVIDED HEREIN. EXPRESSLY DISCLAIMED ARE
ALL OTHER EXPRESS AND IMPLIED WARRANTIES,
INCLUDING ANY IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Some jurisdictions do not
allow exclusion or limitations regarding warranty rights.
you may have other rights that vary from jurisdiction to
jurisdiction. Attempted repair by any person other than an
authorized ASKO service company will void this Limited
Warranty.
LIMITATION OF LIABILITY
IN NO EVENT SHALL ASKO OR THE MANUFACTURER
AND THEIR RESPECTIVE PARENTS, SUBSIDIARIES
AND AFFILIATES BE LIABLE FOR CONSEQUENTIAL,
INCIDENTAL, EXEMPLARY, PUNITIVE OR SPECIAL
DAMAGES. IN NO EVENT SHALL ASKO OR THE
MANUFACTURER AND THEIR RESPECTIVE PARENTS,
SUBSIDIARIES AND AFFILIATES BE LIABLE FOR
DAMAGES OTHER THAN ACTUAL DAMAGES AND
IN NO EVENT FOR DAMAGES IN EXCESS OF THE
PRICE PAID FOR THE ASKO PRODUCT AS TO WHICH
A CLAIM IS MADE. Some jurisdictions do not allow the
exclusion or limitation of incidental, consequential or
16
Customer Care Center, 1-800-898-1879, www.askona.com
SERVICE AND GUARANTEE
other damages, so these limitations and exclusions may
legal rights.You also may have other rights that vary from
jurisdiction to jurisdiction.
TROUBLESHOOTING & ASKO CUSTOMER
CARE
“Troubleshooting” section of the Use & Care Guide. If
you are unable to resolve the problem after checking
“Troubleshooting,” then additional help can be obtained
by calling ASKO Customer Care at 1-800-898-1879.
Read the “Troubleshooting” chapter before contacting the
Customer Care Center. Make a note of the (1) service
number, (2) item number and (3) serial number.
1
12
3
SERVICE AFTER EXPIRATION OF LIMITED
WARRANTY
For information about obtaining parts and labor after
expiration of this Limited Warranty or arising outside the
scope of this Limited Warranty, please contact ASKO
Customer Care at 1-800-898-1879. After your purchase
your ASKO Product with ASKO by utilizing the address
information below. Should you need further assistance as
well, contact us at the address information below:
ASKO Distribution North America, LLC
Customer Care Center
PO Box 44848
MADISON WI 53744
1-800- 898-1879
www.askona.com
17
Customer Care Center, 1-800-898-1879, www.askona.com
WARNING !
Risk of re.
Install the clothes dryer according to the manufacturer’s
instructions and local codes.
the applience manufacturer that is UL approved for
use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint.
To reduce the risk of of severe injury or death, follow all
installation instructions.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE.
POSITIONING THE TUMBLE DRYER
The tumble dryer can be freestanding or stacked.
Remember that the tumble dryer produces heat and
should therefore not be located in a room that is too small.
If the room is very small, drying will take longer due to the
limited quantity of air.
WARNING !
Clothes dryer installation must be performed by a
For proper ventilation, the machine should not be
installed behind a door.
The tumble dryer’s toe kick ventilation must not be
blocked by a rug or the like.
NOTE!
If the unit must be installed behind a door, the door
should be louvered. (please see door ventilation
requirements in the Built-in chapter).To improve
ventilation, the door where the tumble dryer is located
should be left open when the dryer is in use.
Freestanding
The tumble dryer can be positioned beside the washing
machine.
Stacking
The tumble dryer can be placed on top of a ASKO
washing machine. In this case you use the stacking
attachments (foot cups and anti-tilt devices) that come
with the machine.Two rubber feet and two anti-tipping
brackets are supplied in the bag found in the drum of the
dryer.
How to assemble the stack:
1. Undo the screw on the back of the ASKO washing
2. Secure the anti-tilt device using the screws as shown
in the picture.
3. Take the other anti-tipping bracket from the bag and
attach it on the dryer with two screws as shown in the
4. Place the two rubber feet on the front feet of the dryer.
INSTALLATION
18
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
5. Fasten or undo the rear feet of the appliance until
machine.
6. Slide the dryer backward until it reaches the anti-
tipping bracket. Make sure the front of the appliance is
raised by 50 to 150 mm as you slide it back.
ADJUSTING THE FEET
Screw the feet in or out so that the tumble dryer is steady
AIR EXHAUST
Connecting the exhaust duct to the dryer
NOTE!
You will need to purchase a UL-CSA-approved 4”
ridged metal exhaust duct.The dryer is delivered
with the stub pipe attached to the rear exhaust outlet,
though the exhaust duct can be attached to either the
left or the right exhaust outlet.
Vent
T-tube
Rear Exhaust
Outlet
Side Exhaost
Outlet Duct
Clamp
(not supplied)
Stub
Asko dryers have a "T-style"
exhaust vent that allows you to
connect the duct on the rear, on
the left, or on the right side
The duct must not be assembled with screws or other
fasteners that extend into the duct and catch lint.
To connect the exhaust duct to the rear outlet
To connect the exhaust duct to the rear outlet, follow the
steps below:.
1. Push the duct onto the stub pipe and secure it with a
clamp
2. With the duct attached, insert the stub pipe into the
hole. It should snap into place.
3. After you push the dryer into place, check for kinks in
the duct.
NOTE!
Excessive duct length and too many bends can impede
any excess exhaust duct and run the duct with as few
bends as possible. Make any necessary bends as
gentle as possible.
NOTE!
Maximum duct length of 60 feet. A maximum of 4
elbows may be used, but 4 feet of duct must subtracted
from the total vent length for every 90° elbow used.
19
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
CONNECTING THE EXHAUST DUCT TO
THE LEFT OR RIGHT SIDE OUTLET
To connect the exhaust duct to the left or right side outlet,
follow the steps below:
cover you plan to use to the right or left to align the
tabs holding the cover in place.
2. Remove the exhaust outlet cover.
3. Remove the stub pipe from the rear exhaust outlet
and place it in the outlet you plan to use.
4. Push the duct onto the stub pipe and secure it with a
clamp.
5. With the duct attached, insert the stub pipe into the
hole. It should snap into place.
6. After you push the dryer into place, check for kinks in
the duct.
7. Use the exhaust outlet cover you removed from the to
cover the rear exhaust outlet.
WARNING !
exhausted OUTDOORS or the equivalent. Never cover
the end of the dryer stub or exhaust duct with anything
to catch lint, except for UL approved vent basket.
Connexion à une gaine de ventilation Utilisez une gaine
d’évacuation en métal spiralé de 4 pouces (10 cm),
conformément aux normes UL-CSA. En cas d’utilisation
Directive « Outline for Clothes Dryer Transition Duct ».
Sujet 2158A, avec une longueur maximale de 2,4 m (8
pieds).
CONNECTING TO A VENTILATION DUCT
You will need a UL-CSA-approved, 4-inch ridged metal
with the Outline for Clothes Dryer Transition Duct. Subject
2158A and maximum length of 2.4 m (8 feet).
NOTE!
The more bends and the longer the duct, the less air
will circulate through the machine, which will impede
any excess exhaust duct and run the duct with as few
bends as possible. And make any necessary bends as
gentle as possible.
NOTE!
Maximum duct length of 60 feet. A maximum of 4
elbows may be used, but 4 feet of duct must subtracted
from the total vent length for every 90° elbow used.
NOTE!
When installing in warm climates (77° F and above)
with high humidity levels, do not route the air exhaust
duct upwards.
subtract 4 feet for
every 90°elbow
Examples of
installations
TO CONNECT THE EXHAUST DUCT TO
A VENTILATION OUTLET, FOLLOW THE
STEPS BELOW:
1. Connect the exhaust duct to a ventilation exhaust
2. Secure the duct joint to the outlet stub on the
machine.
3. Run the duct with as few bends as possible to the
point of discharge.
subtract 4 feet for
every 90°elbow
20
Customer Care Center, 1-800-898-1879, www.askona.com
INSTALLATION
WARNING !
This appliance shall not be exhausted into a chimney,
a wall, a ceiling, an attic, a crawl space or a concealed
shall be used for exhausting. Only a metal ventilation
grill shall be used. If the duct is taken to a wall outlet, a
cold air. Fit the ventilation grill to the outside of the wall.
ELECTRICAL INSTALLATION
WARNING !
The receptacle on the rear of the machine is designed
to accommodate ASKO washers ONLY (rated 208–240
V.) To use this receptacle, you must use the ready-
equivalent.
ASKO washers rated 208–240 V have two internal
fuses of 15 A each.
The machine should only be connected to a grounded
wall socket.
WARNING !
This appliance must be properly grounded. Refer
to the “Important Safety Instructions” for grounding
instructions.
The power supply cord must be grounded. If the
machine is to be used in a wet area, the supply must be
protected by a residual current device.
Only a power-supply cord kit rated 125/250 V min,
30 A, and marked for use with clothes dryers shall be
used.
Connection to a permanently wired supply point must
Single-phase, 230 V, 60 Hz, 3000W heater rating 30 A
circuit required - only a power-supply cord kit rated 230
V min, 30 A, and marked for use with clothes dryers
shall be used.
Remove cover to access
teminal box. (Requires- Torx
screwdriver.)
Electrical Connections!
WARNING !
Read the Electrical requirements and grounding
instructions before connecting the tumble dryer.
Electric models of the dryer are manufactured for a
3-wire connection system. The dryer frame is grounded
by a link to the neutral conductor on the dryer terminal
block. If local codes do not permit grounding through the
neutral, the grounding link from the terminal block must
be removed and a separate ground wire must be used.
Only a 4-conductor cord shall be used when the
appliance is installed in a location where grounding
through the neutral conductor is prohibited. Grounding
through the neutral conductor is prohibited for new
branch-circuit installations, mobile homes, recreational
vehicles, and areas where local codes prohibit grounding
through the neutral conductors. The grounding link on the
dryer must be removed for all 4-wire installations.
These Electrical Connection instructions provide for
installing the dryer in the following situations:
3-wire connection where local codes permit grounding
through the neutral. 3-wire connection plus separate
grounding connector where local codes do not permit
grounding through the neutral.
4-wire connection.
Each of the above connections can be made with an
approved power supply cord or by direct wiring. Each
Supply Cord and covers requirements for direct wiring.
NOTE!
four-prong plug intended for connection to a single-
phase supply.
Other manuals for T884XL
1
Table of contents
Other Asko Dryer manuals
Asko
Asko TDC111V User manual
Asko
Asko TD75.13XX User manual
Asko
Asko TD75.B2 Series User manual
Asko
Asko T712C User manual
Asko
Asko T208V.W.U User manual
Asko
Asko T408HD W Series User manual
Asko
Asko T712C User manual
Asko
Asko T700 Series User manual
Asko
Asko Classic T208H Guide
Asko
Asko TL751 XXLW User manual
Asko
Asko TD60 User manual
Asko
Asko TL751G XXL User manual
Asko
Asko TDC Assembly instructions
Asko
Asko PROFESSIONAL TDC145VS User manual
Asko
Asko T731 User manual
Asko
Asko DC 7171 User manual
Asko
Asko T211HD User manual
Asko
Asko T208H.W.AU User manual
Asko
Asko TD75.C37X User manual
Asko
Asko T411HSW User manual
