Asko TD85.C18X User manual

User Manual
Tumble dryer
TD85.C18X
PEL D80 EE
WARNING! Carefully read the instructions for use before using the dryer.

Contents
3Introduction .............................................................................................................................
4Safety precautions ..................................................................................................................
4..................................................................................................................................................
11Dryer description ....................................................................................................................
11..................................................................................................................................................
12Before using the appliance for the first time ........................................................................
12..................................................................................................................................................
13Installation and connection ....................................................................................................
13..................................................................................................................................................
25Advices before drying .............................................................................................................
25..................................................................................................................................................
28Drying process, step by step .................................................................................................
28..................................................................................................................................................
33Settings ....................................................................................................................................
33..................................................................................................................................................
35Cleaning and maintenance ....................................................................................................
35..................................................................................................................................................
38Errors –what to do? ...............................................................................................................
38..................................................................................................................................................
41Service .....................................................................................................................................
41..................................................................................................................................................
42Technical information .............................................................................................................
42..................................................................................................................................................
43Program chart .........................................................................................................................
43..................................................................................................................................................
45Disposal ...................................................................................................................................
45..................................................................................................................................................
46Quick guide ..............................................................................................................................
46..................................................................................................................................................
2

Introduction
Dear Customer,
we thank you for purchasing this quality product.
We hope it meets all your expectations. Scandinavian design combines pure lines, everyday
functionality, and high quality. These are the key characteristics of all our products, and the reason
why they are highly appreciated across the globe.
We kindly recommend you to read these instructions before using the appliance for the first time. The
instruction manual also includes information on how you can help protect the environment.
The following symbols are used throughout the manual and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning –general danger
ELECTRIC SHOCK!
Warning –danger of electric shock
HOT SURFACE!
Warning –danger of hot surface
DANGER OF FIRE!
Warning –danger of fire
Original instructions
See Quick guide on the last page.
3

Safety precautions
General
Please read the instruction manual and save it for future
reference.
•Please do not use the tumble dryer if you have not read
and understood these instructions or use first.
•Failure to observe the instructions for use or inappropriate
use of the tumble dryer may result in damage to the laundry
or appliance, or injury to the user.
•Appliance is intended to be used in an area open to the
public.
•Before connecting the dryer to the power mains, please read
carefully the instructions for use that describe the dryer and
its correct and safe use. The instructions apply to several
appliance types or models; thus, settings or equipment may
be described herein which is not available in your dryer.
•Leave any repairs and similar tasks on the dryer to an expert.
Unprofessional repair may result in an accident or major
malfunction.
•After installation, the dryer should stand still for two hours
before it is connected to the power mains.
4

•At least two persons are required to install the tumble dryer
on top of a washing machine.
•The dryer shall not be connected to the power mains using
an extension cord.
•Do not connect the tumble dryer to an electrical outlet
intended for an electric shaver or hair dryer.
WARNING!
If the power cord is damaged, it has to be replaced by
the manufacturer, an authorized service technician, or a
similarly qualified person, in order to avoid any hazards.
•WARNING!
The appliance shall not be supplied through an external
switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by a utility.
•After the drying process, unplug the dryer power cord
from the power outlet.
If you have a tumble dryer with a 3-phase connection, do
not pull the plug out of the power outlet.
•The appliance shall be disconnected from the power source
during servicing and replacement of parts. Removal of the
plug has to be such, that an operator can check, from any
of the points to which he has access that the plug remains
removed.
•In case of incorrect appliance connection, incorrect use, or
servicing by an unauthorized person, the user shall bear the
cost of any damage.
5

•Air in the dryer environment should not contain dust particles.
The air where the dryer is installed should be thoroughly
ventilated to prevent reverse flow of gases released from the
gas appliances with open fire (e.g. fireplaces).
•Do not evacuate the air from the dryer through channels used
for appliances or devices that use natural gas or other fuels
for their operation (only applies to the evacuation dryer).
•Clean the door net filter after each drying cycle.
•Do not dry unwashed laundry in the dryer.
•Laundry stained with oil, acetone, alcohol, oil derivatives,
stain removers, turpentine, wax, and wax removers should
be washed in a washing machine with hot water and
detergent before it is dried in the dryer.
•Clothing that includes latex, rubber parts, shower and bathing
caps, and laundry or covers with rubber foam shall not be
dried in the dryer.
•Use laundry conditioners or similar products in compliance
with manufacturer's instructions.
•Do not use any solvents, abrasive cleaners, glass cleaners,
or all-purpose cleaners.
•Do not place the dryer behind lockable or sliding door, or
door with a hinge on the opposite side of the dryer door
hinge. Install the dryer in such way that the door can always
be freely opened.
•Never block the air vents.
6

•Do not place the dryer on a carpet with long fibres as this
may impede air circulation.
•The air in the room where the dryer is installed may not
contain dust particles.
•Make sure the fibres do not accumulate around the dryer.
•DANGER OF FIRE!
Remove all objects such as lighters and matches from
the pockets.
•After installation, wait for 24 hours before using the appliance.
If the dryer has to be laid down on one of the sides during
transport or servicing, place it with its left side, viewing from
the appliance front, downwards (only applies to dryers with
a heat pump).
•The appliance shall not be in contact with a wall or adjacent
furniture.
•If the dryer is connected to an air exhaust system already
used for another appliance, a non-return valve must be
installed. Reverse flow into the dryer could damage the
appliance, and the non-return valve prevents such reverse
flow (only applies to the evacuation dryer).
•A float will switch off the appliance if the condensed water
pipe is clogged or if there is a risk of overflowing of the
condensed water accumulated in the condensed water tank
(only applies to the evacuation dryer).
7

•If you wish to move the dryer or store it in a non-heated room
during winter, it is essential that you first empty the
condensed water tank (only applies to the condenser dryers
and dryers with a heat pump).
•Maximum drying capacity in kg is indicated on the rating
plate.
Safety
•DANGER OF FIRE!
Only use the dryer to dry laundry that was washed with
water. Do not dry any laundry that was washed or cleaned
with flammable cleaners or substances (such as gasoline,
trichloroethylene etc.) as this may result in an explosion.
•If you have cleaned your clothes with industrial cleaners or
chemical substances, do not dry them in the dryer.
•If the air exhaust hose is connected to an opening in the wall,
influx of cool air may be prevented by installing a ventilation
grille. (Only applies to evacuation dryer.) .
•The air exhaust hose shall not be connected to an active
chimney used to evacuate smoke or waste gases; into a
shaft intended for ventilating rooms with combustion
equipment; or into a chimney used by third parties. If smoke
or waste gases return to the room where the dryer is installed,
there is a danger of poisoning (only applies to evacuation
dryer).
•The dryer is protected with an automatic switch-off system
in case of overheating. The system switches off the heater
if the temperature is too high (only applies to evacuation and
condenser dryer).
8

•If the net filter is clogged, the automatic heater switch-off
device can be triggered. See chapter "CLEANING AND
MAINTENANCE" (only applies to evacuation and condenser
dryer).
•HOT SURFACE!
WARNING! The back of the dryer may get very hot
during operation. Wait for the dryer to cool down
completely before touching its back side. (Observe
the instructions in the chapter "INSTALLATION AND
CONNECTION")
•HOT SURFACE!
Never stop a drying cycle or do not open the door before
the end of the program. If you do so for any reason, be
careful when taking the laundry from the drum as it can
still be very hot and there is a risk of burning.
Quickly remove the laundry from the drum and spread it
to allow it to cool down as quickly as possible.
Child safety
•Do not allow the children to play with the dryer.
•Prevent your children and pets from entering the dryer drum.
•Before closing the dryer door and running the program, make
sure there is nothing except laundry in the drum (e.g. if a
child climbed into the dryer drum and closed the door from
the inside).
•Activate the child lock. See chapter: SETTINGS
9

•Do not let children younger than three years to come
near the dryer, unless they are under constant
supervision.
•The dryer is made in compliance with all relevant safety
standards. This dryer may be used by children aged 8 years
and above and by persons with reduced physical, sensory
or mental capabilities or lack of experience and knowledge,
but only if they are supervised during the use of the
appliance, if they have been provided relevant instructions
regarding safe use of the dryer, and if they understand the
hazards of inappropriate use. Make sure children do not play
with the appliance. Make sure the children do not clean the
dryer or perform any maintenance tasks without supervision.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
10

Dryer description
1. Main switch (ON/OFF)
2. Program selector knob
3. Display
4. Program selector buttons
5. Button (start/pause)
6. Rating plate with information about the dryer
(on the inside of the drying machine door)
7. QR and AUID code (on the inside of the dry-
ing machine door)
8. Dryer door
9. Door net filter
10. Air exhaust hose opening
11

Before using the appliance for the first time
Packaging
Remove all packaging.
Please sort the materials in compliance with local recommendations (see chapter "Disposal").
Cleaning
Disconnect the dryer from the power mains and open the door towards you. Before using the dryer
for the first time, clean the dryer drum using a soft damp cotton cloth and water.
In the case of a 3 phase connection of the appliance, switch off the main socket switch.
INFORMATION!
No program can be started while the door is open.
Choosing the language
When the dryer is connected (see chapter "Installation and connection") and switched on for the first
time, choose the preferred language.
For further drying process, see chapter "DRYING PROCESS, STEP BY STEP".
INFORMATION!
When you run the dryer for the first time, or if the dryer has been out of use for a long time, slight
hitting noise may appear. This is normal and it will disappear after a few drying cycles.
12

Installation and connection
Dryer placement
The dryer can be either free standing or installed on top of a washing machine.
INFORMATION!
At least two persons are required to install the tumble dryer on top of a washing machine.
The dryer emits heat. Therefore, do not place it in a very small room, as the drying process may be
longer due to limited amount of ambient air.
INFORMATION!
Do not place the dryer in a room where temperature can drop below 0 °C, as the machine may
not operate correctly at such low temperatures, or freeze, which in turn can result in damage to
the machine.
For optimum dryer operation, install it in a room with adequate ventilation and a temperature
between 15 °C and 25 °C.
WARNING!
Do not place the dryer behind lockable or sliding door, or door with a hinge on the opposite side
of the dryer door hinge. Install the dryer in such way that the door can always be freely opened.
INFORMATION!
Never block the air vents.
WARNING!
Do not place the dryer on a carpet with long fibres as this may impede air circulation.

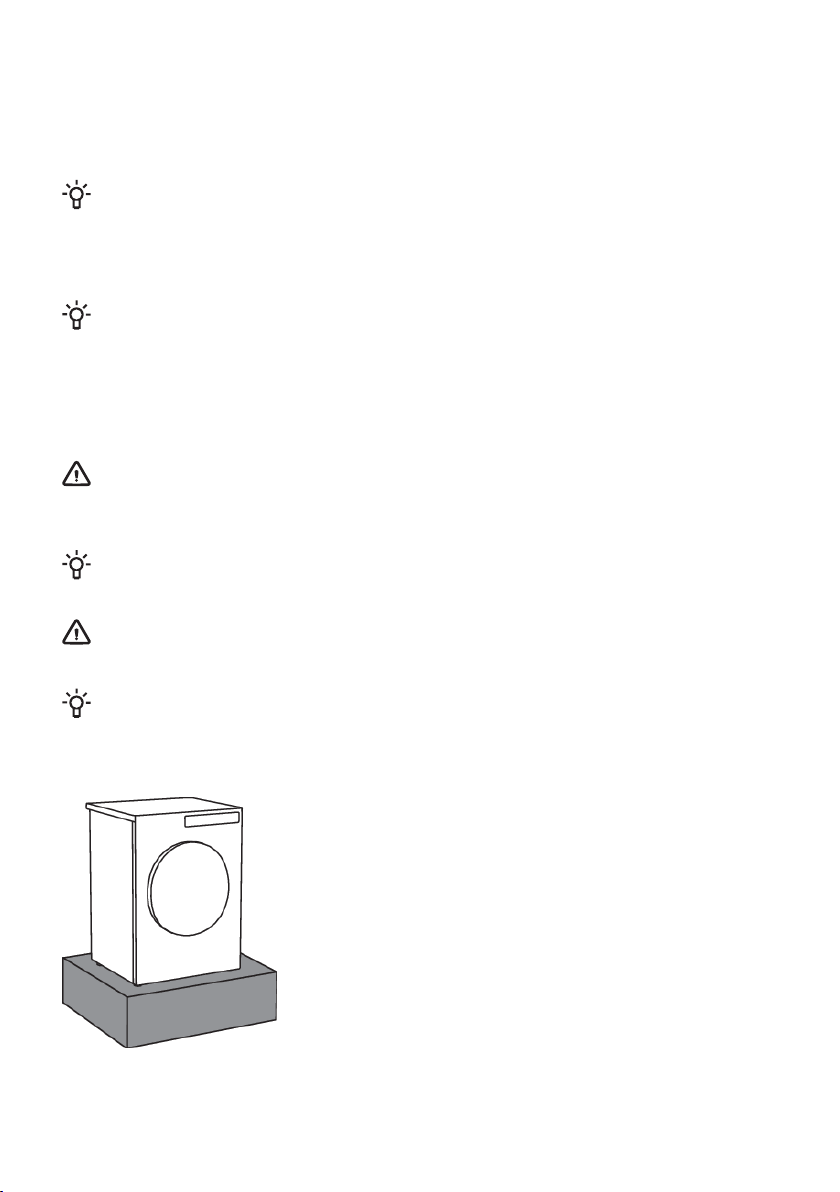

INFORMATION!
If the appliance is installed on a plinth or a similar structure, then the appliance must be fixed to
it, to avoid the risk of falling. Original accessories are available for this purpose, complete with
fixing instructions.
13

Free-standing appliance
The dryer may be placed adjacent to a washing
machine.
If the friction between the dryer feet and the floor
is not sufficient, the dryer may move during oper-
ation. To prevent sliding, use a non-slide mat or
install the supplied vacuum feet onto both front
feet.
Place the dryer so that it is stable. Use a spirit
level to level the dryer in longitudinal and traverse
direction by rotating the adjustable feet using a
No. 22 spanner (max. 15 mm). Then, firmly tighten
the jam nuts (counter nuts) by rotating them to-
wards the appliance bottom using a No. 17
spanner .
Clearance around the dryer for optimum operation
INFORMATION!
The appliance shall not be in contact with
a wall or adjacent furniture. For optimum
dryer operation, observe the clearance from
the wall as shown in Fig.
14

Opening the dryer door (top view)
Stacking on top of a washing machine
To stack the dryer on top of a washing machine, use the extra vacuum feet and the tipping guard
(A+B), supplied in the cardboard box in the dryer drum. Tipping guard part B is designed to fit on
washing machines and it may be hard or impossible to mount on appliances of other brands. If the
washing machine and dryer are not of matching dimensions or if you have installed a hidden helper
between the two appliances, then binding plates are available as optional accessories at the service
center (…available only for HH (acessory Hidden Helpers) and TD75 stacked on top of WM80 or
WM85; not intended for any other combinations).
15

INFORMATION!
Washing machine on which you wish to install the dryer must be able to bear the weight of the
dryer (see washing machine’s rating plate or technical information).
16

How to stack a dryer onto the washing machine:
There is a cardboard box in the dryer drum, containing the vacuum feet and the tipping guard.
1
The tipping guard consists of two
metal parts (A + B).
Use two screws to attach the A part to
the back of the dryer.
2
Undo the screw on the back side of
the washing machine.
3
Use the screw to attach the tipping
guard (B part) to the back of the
washing machine.
4
Level the washing machine so that it
is stable.
1. Level the washing machine in lon-
gitudinal and traverse direction by
rotating the adjustable feet using
a No. 32 spanner. The feet allow
levelling by +/- 1 cm.
2. After adjusting the height of the
feet, firmly tighten the jam nuts
(counter nuts) using a spanner No
17, by turning them towards the
bottom of the washing machine .
3. Tighten the jam nuts (counter nuts).
17

Table continued from last page
5

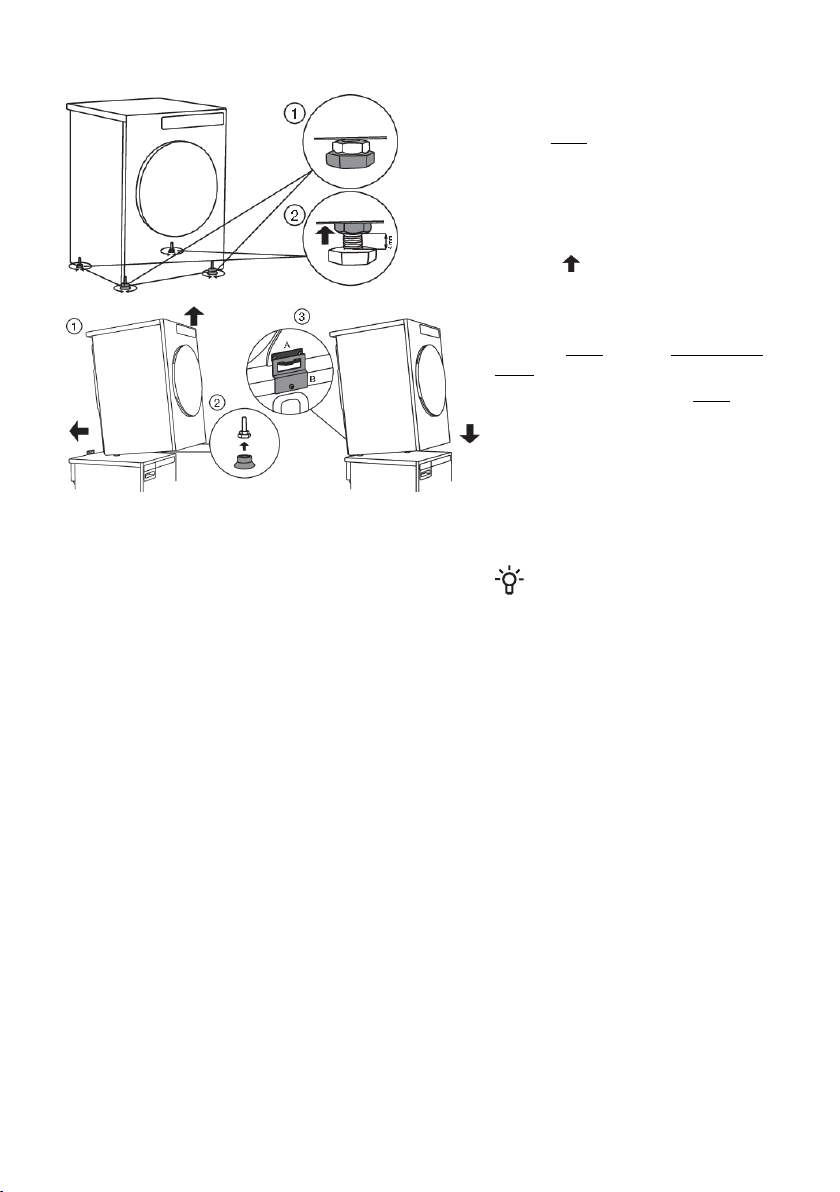

Set the dryer feet:
1. Tighten the front two feet all the
way in.
2. Undo the back feet by 3.5 turns or
5 mm; then, fasten the jam nuts
towards the bottom of the appli-
ance .
6
Place the dryer onto the washing ma-
chine:
1. Lift the front part of the dryer by 5
to 10 cm.
2. Attach the vacuum feet onto the
front feet of the dryer.
3. Push the dryer into the tipping
guard (so that the B part is inserted
into the A part) and release it (See
figure on previous page).
INFORMATION!
Make sure the tipping guard is
"locked"!
18

Changing the door opening direction
To change the direction of door opening, proceed as follows:

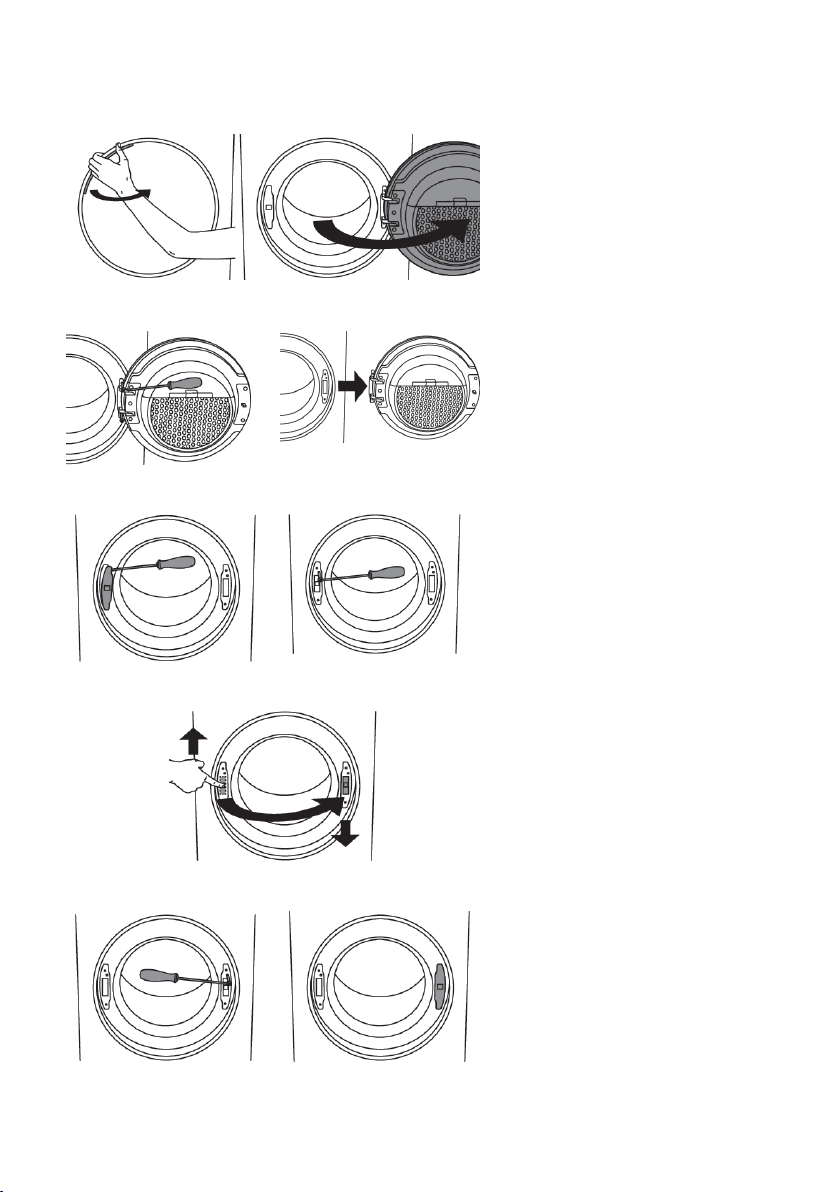

1
Open the door fully.
2
Undo the screws and remove the door.
3
Use a screwdriver to remove the door
lock cover and undo the screw on the
door lock.
4
Push the door lock upwards and re-
move it. Move it to the other side and
push it downwards.
5
Fasten the screw on the door lock.
Replace the door lock cover.
19

6
Undo the door hinge assembly (left)
and the door latch assembly (right),
switch their positions, and replace the
screws (door hinge assembly to the
right-hand side, door latch assembly
to the left-hand side).
INFORMATION!
Use a screwdriver to remove the
plastic part more easily.
7

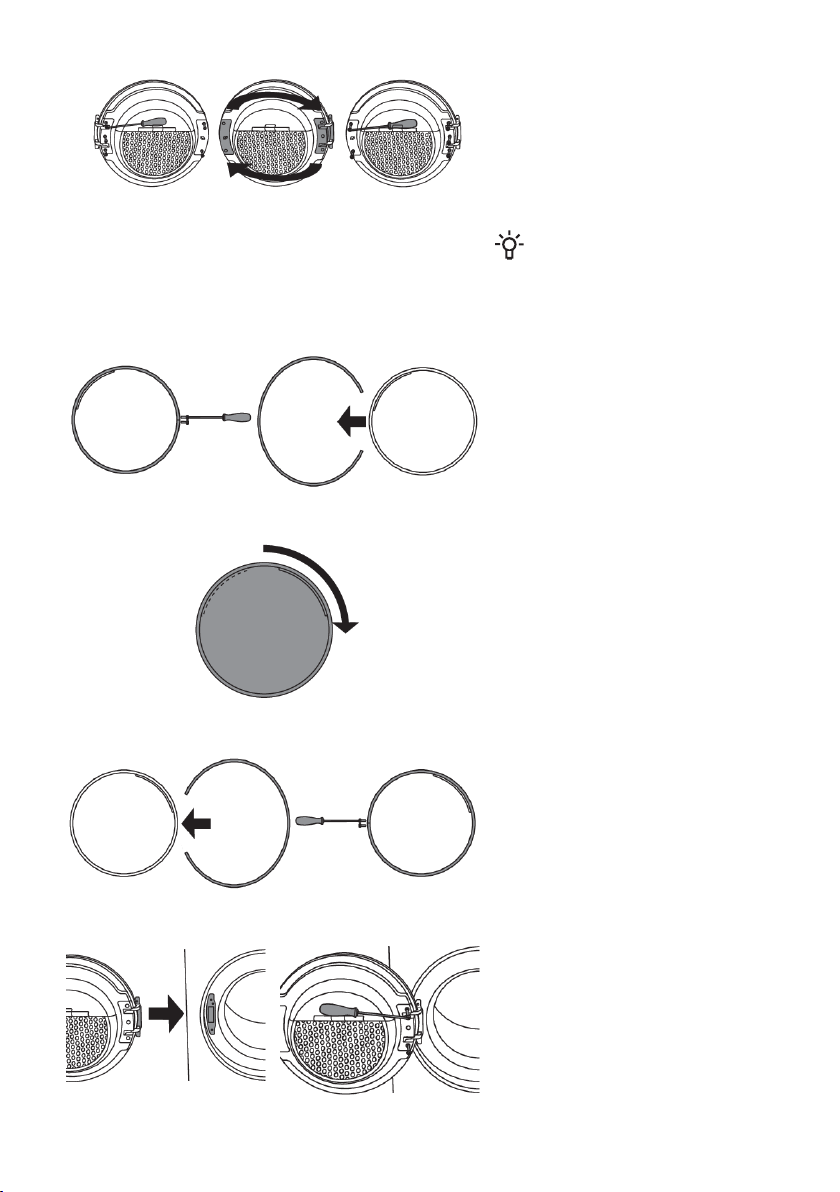

Undo the door ring and remove it tem-
porarily.
8
Rotate the door cover by 90°so that
the sign indicating the opening of the
door is on the other side.
9
Rotate the door ring by 180°, install it
onto the door, and fasten it with
screws.
10
Install the door to the front and screw
the door.
20
