Asko ODW8128G User manual

INSTRUCTIONS FOR USE
Warming drawer
EN
ODW8128G
ODW8128GG

3Pictograms used ........................................
4Safety regulations ......................................
6Use ..............................................................
6Description of the appliance ........................
7Control panel ...............................................
7Operation of the touch-sensitive buttons .....
8Opening and closing the drawer .................
8Loading capacity .........................................
9Applications .................................................
11Slow cooking ................................................
13Operation ....................................................
13Operating the warming drawer ....................
14Delayed start mode .....................................
14Sabbath mode .............................................
15Operating modes .........................................
20Maintenance ...............................................
20Cleaning the exterior ....................................
20Cleaning the interior .....................................
21Troubleshooting .........................................
21Troubleshooting table ..................................
22Environmental aspects ..............................
22Disposal of the appliance and packaging ....
23Installation ..................................................
23Safety ...........................................................
26Preparation ..................................................
27Appliance dimensions .................................
27Built-in dimensions .......................................
28Built-in ..........................................................
30Your notes ..................................................
Contents

The following symbols are used throughout the manual, and they have the following meanings:
INFORMATION!
Information, advice, tip, or recommendation
WARNING!
Warning –general danger
ELECTRIC SHOCK!
Warning –danger of electric shock
HOT SURFACE!
Warning –danger of hot surface
DANGER OF FIRE!
Warning –danger of fire
It is important that you carefully read the instructions.
3
Pictograms used

WARNING!
READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE!
EU
WARNING!
This appliance and the accessible parts will become hot during
use. Do not touch hot parts. Keep children younger than 8 away
from the appliance unless they are under continuous supervision.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
•Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
AU/NZS
WARNING!
Accessible parts may become hot during use. Young children
should be kept away.
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
•Children should be supervised to ensure that they do not play
with the appliance.
4
Safety regulations

General
ELECTRIC SHOCK!
WARNING: If the surface is cracked, switch off the appliance to
avoid the possibility of electric shock.
•Never use a steam cleaner for cleaning the appliance.
Only clean the appliance when switched off. The steam of a steam
cleaner could reach the conducting parts and cause an electrical
short.
•Always disconnect the appliance from the supply if it is left
unattended and before assembling, disassembling or cleaning.
•A defective appliance may cause electric shock. Never switch
on a defective appliance. Disconnect it and contact customer
service.
•Improper installation and maintenance work or repairs are
dangerous. Do not touch any conducting connections and do not
change the electrical and mechanical design of the appliance.
These may only be performed by authorized and trained
technicians. If the appliance has a defect, please disconnect it
and contact customer service.
•Do not operate the appliance with wet hands or in contact with
water.
•This appliance is intended to be used in household only.
•The appliance must not be installed behind a decorative door in
order to avoid overheating.
•The appliance and its accessible parts become hot during use.
Care should be taken to avoid touching heating elements.
NOTE!
If you decide to discontinue using the appliance because of a
fault, we recommend you cut off the cable after removing the plug
from the plug socket. Take the appliance to your municipality’s
waste disposal site.
5
Safety regulations

Description of the appliance
The warming drawer can be used to warm dishes and keep food warm.
1. Operating panel ▸Touch the on/off-key to switch on the warming drawer.
2. Drawer front ▸Gently push the drawer front to open and close the drawer (push/pull system).
3. Control lamp ▸Illuminates when in operation, and the drawer is closed.
4. Warming plate ▸Gets hot when the drawer is in operation.
5. Fan plate ▸Outlet openings for heated air.
6. Interior illumination ▸Illuminates when the drawer is open.
7. Identification plate ▸Technical data.
6
Use

Control panel
1. On/off-touch key with indication ▸Touch to switch on the warming drawer. The on/off indicator
light illuminates.
•Standby mode ▸ on/off light illuminates dimmed.
•Active mode ▸ on/off light illuminates.
2. - (minus) temperature key ▸Touch to decrease the temperature setting.
3. Temperature indicator ▸The current temperature setting is displayed.
4. + (plus) temperature key ▸Touch to increase the temperature setting.
5. - (minus) time key ▸Touch to decrease the time duration setting.
6. Time duration indicator ▸The current time duration is displayed.
7. + (plus) time key ▸Touch to increase the time duration setting.

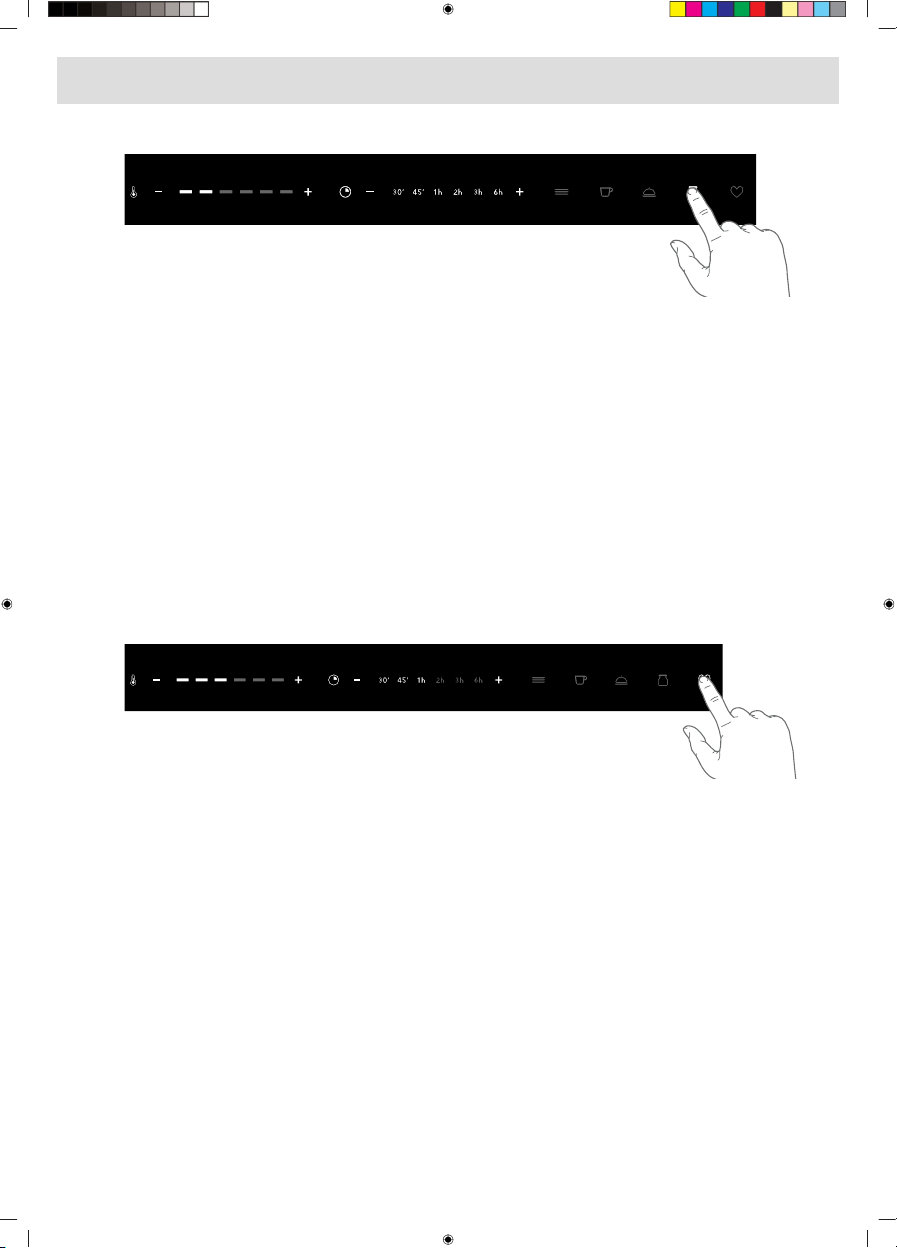

8. Operating modes
9. Heating serving and tableware ▸Touch the key to start. The indicator lights up.
10. Heating cups ▸Touch the key to start. The indicator lights up.
11. Keeping food warm ▸Touch the key to start. The indicator lights up.
12. Making yoghurt ▸Touch the key to start. The indicator lights up.
13. Favourite ▸Touch the key to start. The indicator lights up.
NOTE!
•The temperature setting refers to the warming plate's surface when the appliance is empty.
Own measurements can be imprecise and are not suitable for checking the accuracy of the
temperature
•The warming drawer only starts to heat when it is properly closed.
•The warming drawer is equipped with a safety shut-off that switches the drawer to standby
mode after a max. of 12 hours of continuous operation.
Operation of the touch-sensitive buttons
Place the tip of your finger flat on the control to achieve the best results. You do not have to apply
any pressure.
The touch sensors have been set in such a way that they only react to the pressure and size of
fingertips. The appliance can’t be operated with other objects and won’t, for instance, be switched
on if your pet walks over the hob.
7
Use

Opening and closing the drawer
1. Push in the middle of the drawer front to open or close the drawer.
WARNING!
Never force the drawer to open. It could damage the closing mechanism (push/pull system).
Loading capacity
The maximum load depends on the dimensions and weight of your dishes.
Full place settings and serving
dishes
TablewareDishes
•8 plates Ø 27 cm (A)•10 plates Ø 27 cm (A)•20 plates Ø 27 cm (A)
•• 8 soup plates Ø 23 cm (B)10 soup plates Ø 23 cm (B)
• •10 cups Ø 9 cm (C) 8 cups Ø 9 cm (C)
•1 serving dish 17 cm (D)
•1 serving dish 19 cm (E)
•1 platter (F)
8
Use

WARNING!
The maximum load of the warming drawer is 25 kg. Damage to the appliance can occur if this
load weight is exceeded.
Applications
The table lists various uses for the warming drawer.
•Select the to be heated food/crockery from the table.
•Set the temperature setting and duration for the food/crockery to be heated.
Temperature setting Time
NotesEstimated durationSetting
temperature
Food/crockery
30 minutes to a max. of
45 minutes
1Proofing yeast dough. •Use suitable
cookware.
•Cover with damp
cloth.
30 minutes to a max. of
1 hour
1Defrosting delicate
deep-frozen food, e.g. cream
•Leave in the
packaging.
cakes, butter, sausages, or
cheese.
6 hours and extend as
required with max.
3 hours
2Making yoghurt. •Possible to place in
several small or one
large receptacle.
•Do not cover the
yoghurt.
9
Use

NotesEstimated durationSetting
temperature
Food/crockery
30 minutes till 1 hour2Keeping eggs warm, e.g.
hard-boiled eggs or scrambled
eggs.
•Preheat tableware.
•Cover up the eggs.
30 minutes2Defrosting delicate
deep-frozen food.
•Leave in the
packaging.
30 minutes3Preheating drinking vessels,
e.g. espresso cups.
•Only use suitable
tableware.
30 minutes3Melting chocolate. •Use suitable
cookware.
•Leave chocolate
uncovered.
30 minutes3Dissolving gelatine. •Use suitable
cookware.
•Leave gelatine
uncovered.
30 minutes to a max. of
1 hour
3Keeping delicate foods warm,
e.g. meat cooked at a low
temperature.
•Preheat tableware.
•Cover food.
30 minutes to a max. of
1 hour
4Heating up food or keeping it
warm, e.g. omelettes, crêpes,
•Preheat tableware.
•Cover food.
pancakes, tacos, tortil-las or
fajitas.
30 minutes to a max. of
1 hour
4Keeping food warm, e.g.
roasts or sauces.
•Preheat tableware.
•Cover food.
30 minutes to a max. of
1 hour
4Keeping beverages warm. •Preheat tableware
as required.
30 minutes4Keeping bread warm, e.g.
toast or bread rolls.
•Place food directly
on warming plate.
•Leave the bread
uncovered.
30 minutes4Warming sponge cake, e.g.
crumble cake or muffins.
•Preheat tableware
as required.
45 minutes till max.
1 hour
5Preheating serving dishes,
e.g. soup plates, plates, bowls,
platters or sauce boats.
•Spread tableware
out flat for shorter
heating times.
Table continued from last page
10
Use

NotesEstimated durationSetting
temperature
Food/crockery
30 minutes to a max. of
1 hour
5Keeping beverages hot. •Preheat tableware.
•Cover up the
beverages.
6 hours and extend as
required, with max.
6 hours
5Drying fruit. •Prepare and chop
up the fruit.
•Turn the fruit as
needed.
30 minutes to a max. of
1 hour
6Slow cooking. •Preheat tableware.
45 minutes till max.
1 hour
4 till 6Warm, moist cloths for
wellness applications.
•Moisten
cloths/towels, fold
or roll and then
place directly on
the warming plate.
Only use
cloths/towels made
from natural fibres
–no synthetic
fibres!
Slow cooking
Temperature setting 6 is suitable for slow cooking to complete seared, minor to medium-sized,
high-quality cuts of meat (beef, lamb, pork, veal) no thicker than 6 cm. We recommend cooking
more significant pieces of meat in an oven or combi-steam oven. Cooking meat at a low temperature
for longer makes it tender and succulent.
Preparations
First, sear the meat and then let it cook in the warming drawer at low temperature.
•Use suitable glass, porcelain or ceramic cookware.
•Preheat the drawer containing the cookware at setting level 6.
•Heat a little fat in a pan and sear the meat.
•Place the meat in the preheated cookware in the drawer to cook to completion.
The searing times below refer to the sealing of meat in hot fat.
Yarn in the warming
drawer
Searing on the hobType of meat
Small pieces of meat.
2–3 minutes on all sidesSmall escalopes. •Temperature
setting 6
Table continued from last page
11
Use

Yarn in the warming
drawer
Searing on the hobType of meat
•Time duration:
30 minutes till
1 hour
1–2 minutes per sideSteak medallions. •Temperature
setting 6
•Time duration:
30 minutes till
1 hour
Medium-sized pieces of meat.
2–3 minutes per sideLoin of lamb (about 150-300g). •Temperature
setting 6
•Time duration:
1 hour
4–6 minutes on all sidesFillet of pork (400-600g). •Temperature
setting 6
•Time duration: 2 till
3 hours
12–15 minutes on all
sides
Fillet of beef/veal, loin of pork, (up to 900 g). •Temperature
setting 6
•Time duration: 3 till
6 hours
NOTE!
Meat that has been low temperature cooked is not as hot as conventionally cooked meat. Sauces
should be served very hot. Put the plates in the warming drawer during the last 45–60 minutes
of cooking.
To keep meat prepared at a low temperature warm, turn the temperature down to position 4.
Small pieces of meat can be kept warm for up to 45 minutes and large pieces for up to 2 hours.
Table continued from last page
12
Use

Operating the warming drawer
WARNING!
The operating panel must be kept clean and dry. Wash and dry your hands before use. The keys
will otherwise not react or can come on accidentally.
1. Touch the on/off-key to switch on the drawer.
2. Touch the + (plus) or - (minus) key to set the desired temperature and time duration or select
one of the preset operating modes.
3. Close the drawer.
•The control lamp will light up.
•The warming drawer starts heating.
4. Opening the drawer interrupts operation.
•The control lamp flashes if the drawer is open.
•Close the drawer to continue the programme.
•When the set time duration is up, an acoustic signal is emitted. The drawer stops heating.
•
NOTE!
After operation ends or the on/off-key is touched, the interior illumination of the opened warming
drawer goes out automatically after 5 minutes. The interior illumination is activated again by
touching the on/off-key or by closing and again opening the warming drawer.
5. Switch off the appliance before time if necessary by touch and hold the on/off-key for 1 second.
•The appliance switches off when the key is released.
•The on/off-key is dimmed in the standby mode.
•The display for temperature, time duration and/or operating mode go out.
13
Operation

WARNING!
Do not leave the warming drawer unattended for more extended periods when using continuous
operation. Keeping food warm overly long can dry it out and even cause it to catch fire.
This warming drawer is provided with a safety device that switches the drawer to standby mode
after 12 hours of continuous operation.

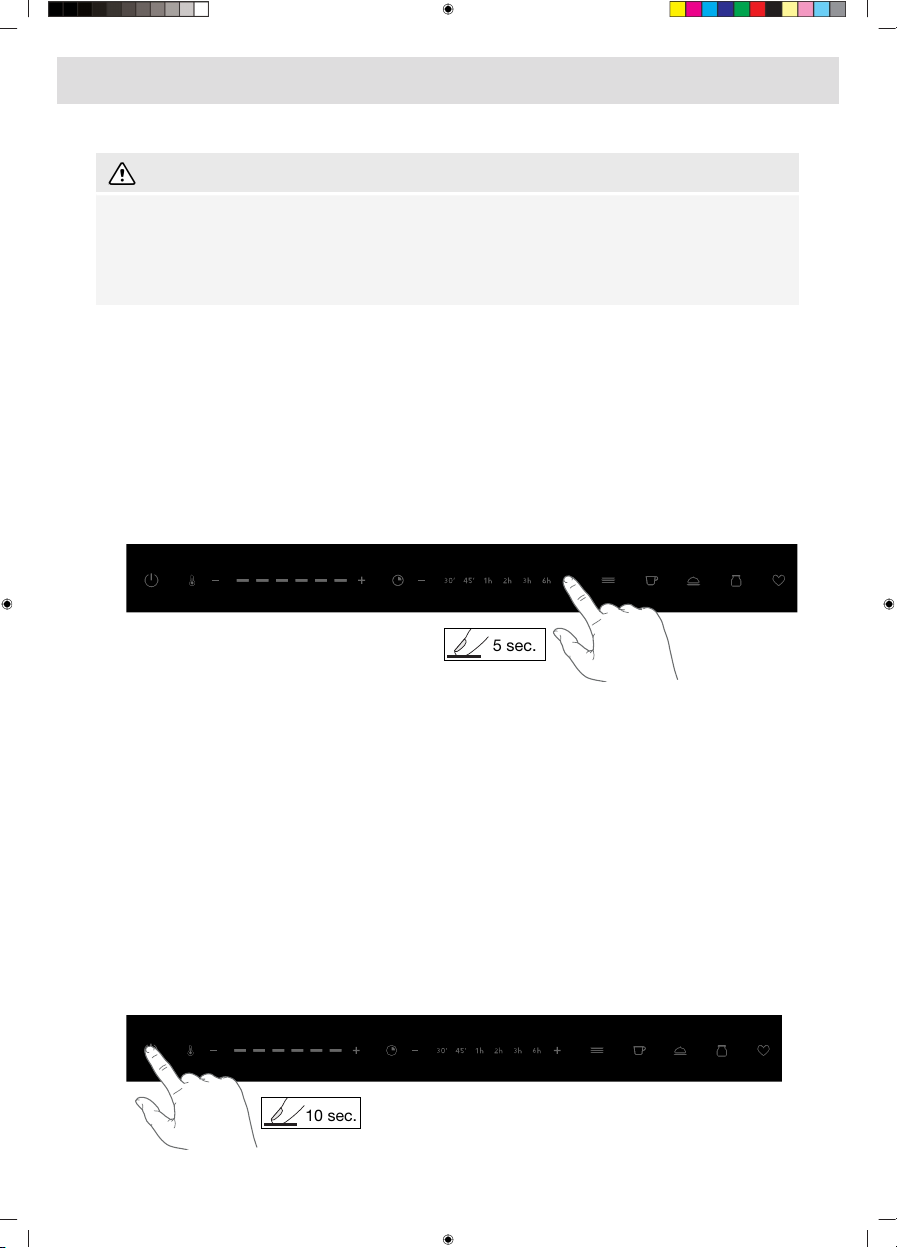

Delayed start mode
The delayed start is activated if both an operating time and a delayed start duration are set for the
operating mode selected. The appliance switches on when the delayed start is up and switches off
again when the operating time finishes.
1. Place the tableware in the warming drawer.
2. Touch the key for the desired operating mode.
3. If necessary, set a temperature setting and a period of time.
4. Touch the + (plus) time key for 5 seconds.
5 sec.
•The 30-minute indicator flashes.
5. Touch the + (plus) or - (minus) key to set the desired delayed start.
•The delayed start selected flashes.
6. Close the drawer.
•If a delayed start has been set, the control lamp flashes until the operation starts. The control
lamp illuminates after an automatic start.
Sabbath mode
The Sabbath mode enables an operating duration of up to 72 hours. After the Sabbath mode is
activated, the safety shut-off and illumination are deactivated except in the case of a malfunction.
The food is heated up and kept warm in the warming drawer without operating the appliance.
1. Touch the on/off-key for 10 seconds.
10 sec.
14
Operation

•The function is activated when the key is released.
•The duration and temperature displays illuminate briefly 3x.
•The Sabbath mode is activated.
2. Touch the on/off-key for 10 seconds to switch off the sabbath mode.
•The function is activated when the key is released.
•The duration and temperature displays illuminate briefly 3x.
•The Sabbath mode is deactivated.
Operating modes
Heating tableware
Spread tableware across the entire warming plate. The heating duration depends on the material
and thickness of the dishes and their quantity, height and arrangement. Stacked plates take longer
to heat up than individual items. Do not place any large platters on their end in front of the ventilation
slits. They block the outlet openings for the heated air, and as a result, the dishes are not heated
evenly.
1. Place the tableware in the warming drawer.
2. Touch the 'Tableware' operating mode key.
•The recommended temperature setting and time duration illuminate.
3. Close the drawer.
•The control lamp will light up.
•The warming drawer starts heating.
NOTE!
•It takes approximately 45 minutes to heat place settings for 6 persons.
•As heated dishes cool down quickly, take them out of the warming drawer just before you
need them.
4. Open the drawer when the operating mode finishes.
5. Touch the on/off-key to switch off the appliance.
6. Take the dish out of the drawer.
15
Operation

HOT SURFACE!
Risk of burns! The surface of the warming plate is hot. Items around the outside of the drawer
get hotter than those in the middle. Always use protective gloves or oven cloths to remove
the dishes.
Heating cups and glasses
The heating duration depends on the material and thickness of the dishes and their quantity, height
and arrangement. Tall stacks of cups and glasses take longer to heat up than individual cups and
glasses. Do not place any dishes in front of the ventilation slits. They block the outlet openings for
the heated air, and as a result, the dishes are not heated evenly.
HOT SURFACE!
Risk of burns! Only use this operating mode for heating cups and glasses to prevent burns.
1. Place the cups and/or glasses in the warming drawer.
2. Touch the 'Cups' operating mode key.
•The recommended temperature setting and time duration illuminate.
3. Close the drawer.
•The control lamp will light up.
•The warming drawer starts heating.
NOTE!
It takes approximately 30 minutes to heat cups for 6 persons.
4. Open the drawer when the operating mode finishes.
5. Touch the on/off-key to switch off the appliance.
6. Take the cups or glasses out of the drawer.
HOT SURFACE!
Risk of burns! The surface of the warming plate is hot. Items around the outside of the drawer
get hotter than those in the middle. Always use protective gloves or oven cloths to remove
the dishes.
16
Operation

Keeping food warm
WARNING!
Use this operating mode to keep food warm straight after being cooked. Do not use it for reheating
refrigerated food. Never place hot saucepans or frying pans straight to the warming plate from
the hob. This can damage the warming plate.
1. Put the dishes in the drawer.
2. Touch the 'keeping food warm' operating mode key and preheat for 15 minutes.
3. Place the food in the drawer in the preheated dishes.
•
NOTE!
- Do not overfill plates, dishes, cups, etc., to avoid spilling.
-Cover food with a heat-resistant lid or aluminium foil. The surface of the food that is not covered
will dry out. Do not keep food warm for longer than one hour.
4. Close the drawer.
•The control lamp will light up.
•The warming drawer starts heating.
5. Open the drawer when the operating mode finishes.
6. Touch the on/off-key to switch off the appliance.
7. Take the dish out of the drawer.
HOT SURFACE!
Risk of burns! The surface of the warming plate is hot. Items around the outside of the drawer
get hotter than those in the middle. Always use protective gloves or oven cloths to remove
the dishes.
Making yoghurt
1. Put the prepared milk with the yoghurt in jars or dishes in the warming drawer.
2. Touch the 'Making youghurt' operating mode key.
17
Operation

•The recommended temperature setting and time duration illuminate.
3. Close the drawer.
•The control lamp will light up.
•The warming drawer heats up.
4. Open the drawer when the operating mode finishes.
5. Touch the on/off-key to switch off the appliance.
6. Leave the yoghurt to cool down in the drawer for several hours, then store in a refrigerator.
Favourite
If a particular temperature and time duration setting is frequently used, these settings can be saved
as a favourite.
Creating favourites
1. Touch the 'Favourite' operating mode key.
•The recommended temperature setting and time duration illuminate.
2. Touch the + (plus) or - (minus) key to set the desired temperature and time duration.
3. Touch the 'Favourite' operating mode key for 5 seconds.
•The settings are saved.
Starting favourites
1. Touch the "Favourite" key.
•The set temperature and time duration values illuminate.
2. Close the drawer.
•The control lamp will light up.
•The warming drawer heats up.
3. Open the drawer when the operating mode finishes.
4. Touch the on/off-key to switch off the appliance.
18
Operation

HOT SURFACE!
Risk of burns! The surface of the warming plate is hot. Items around the outside of the drawer
get hotter than those in the middle. Always use protective gloves or oven cloths to remove
the dishes.
19
Operation

WARNING!
Put the drawer in standby mode before starting cleaning.
•Do not clean the appliance with a steam cleaner.
•Do not use abrasive products, alcohol or solvents as they may damage the device.
•The front is made of stainless steel or glass and is prone to scratches. Use a special non-abrasive
cleaning agent for stainless steel.
Cleaning the exterior
•Remove dirt or cleaning agent residues immediately.
•Clean all surfaces only with a damp cloth and soapy water. Then dry with a soft cloth.
Cleaning the interior
•Remove any soiling from the warming drawer while still hand warm.
•Clean the warming plate, ventilation grille and operating panel with a soft cloth dampened with
water and a little washing-up liquid and dry with a soft cloth.
20
Maintenance
