Asko ODW8127A/HZWE140 User manual

Instructions for use
Warming drawer
ODW8123S / HZWE140
ODW8127A / HZWE140
ODW8127B / HZWE140
ODW8127S / HZWE140
ODW8128G / HZWE140
ODW8327A / HZWE290
ODW8327S / HZWE290
ODW8328G / HZWE290

EN Manual EN 3 - EN 12
Pictograms used
Important information
Tip

EN 3
CONTENTS
Description of the appliance 4
Safety instructions 5
Using the warming drawer
General 6
Operating elements 6
Operating principle 6
Selecting the temperature 6
Warming time 7
Installation 8
Maintenance and cleaning 11
Environmental protection 12

EN 4
DESCRIPTION OF THE APPLIANCE
123

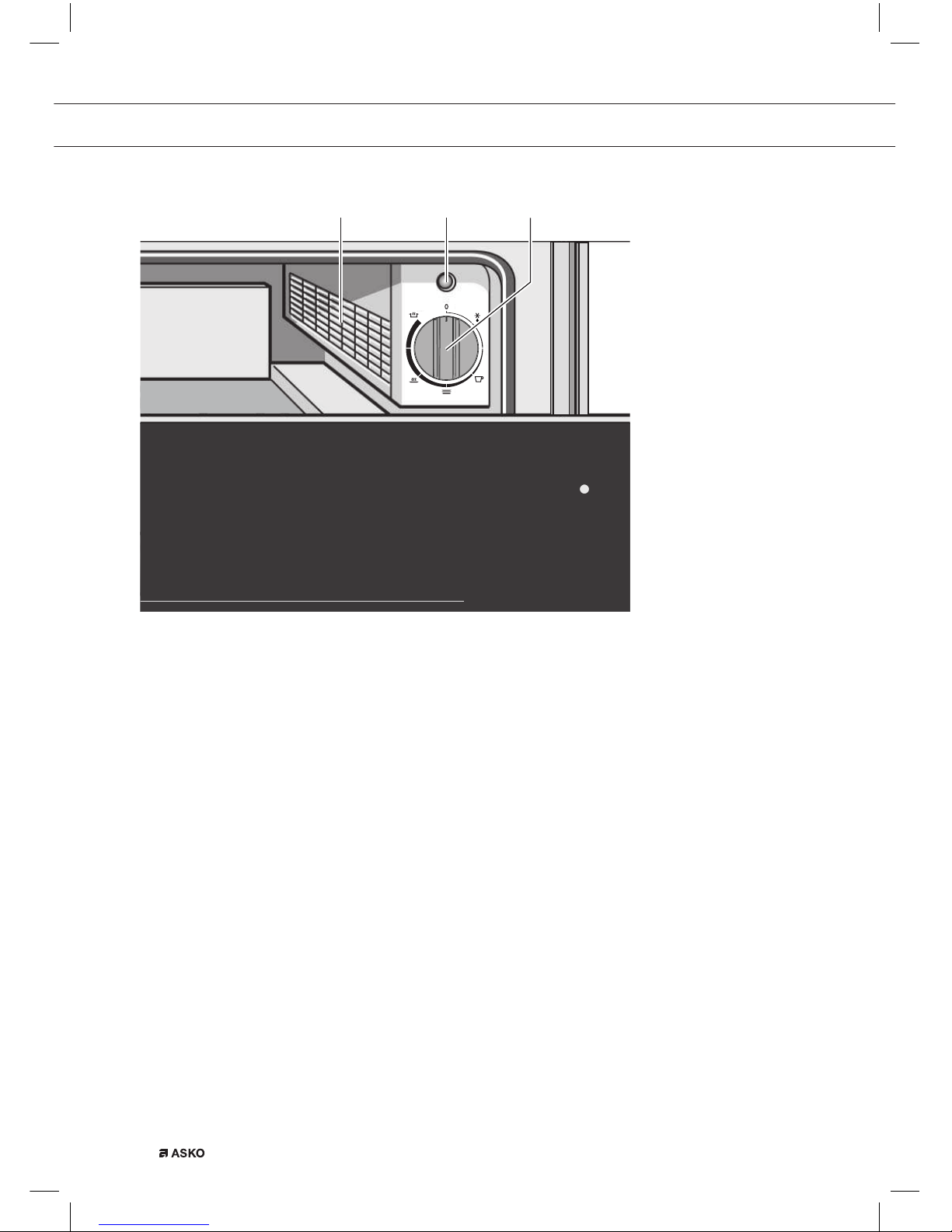

1. Fan and heating
2. Indicator light
• Flashes if the appliance is switched on.
• Lights up if the appliance is switched on and the drawer is
closed.
3. Dial for setting the temperature
The temperature set is the temperature of the hot plate at the bottom
of the drawer when the drawer is empty. Measurements using an
external thermometer can vary and are not suitable for checking the
temperature precisely.
The appliance will only heat up when the drawer is closed.

EN 5
SAFETY REGULATIONS
Read the separate safety instructions before
using the device!
Keep this manual with your appliance. Ensure that you include the
manual with the appliance if you sell or give it to someone else.
Please read the recommendations before installing and using the
warming drawer. These have been compiled for your safety and
that of others.
This warming drawer is designed for use by individuals in their home.
It is only intended for pre-warming tableware, keeping food warm and
slow cooking. Any other use is prohibited and may be dangerous.
The manufacturer disclaims liability in the event of improper use.
Under certain conditions, the outside of the warming drawer may reach
70 °C (depending on the selected temperature and length of use).
Always use oven mitts or gloves to remove the warmed tableware from
the drawer.
Keeping food warm
Never place items such as pans in the drawer directly from naked flame
or from the oven as this may damage the hot plate.
The drawer may be loaded to a maximum 25 kg. Overloading can
damage the appliance.
Do not climb or sit on the open drawer as this may damage the
appliance.
Do not store or place plastic products or flammable objects in the
appliance. These could melt or catch fire during use.

EN 6
USING THE WARMING DRAWER
General
A protective grille prevents contact with the elements and the fan.
Operating elements
There is an ON/OFF and temperature regulation dial. This dial is only
visible when the drawer is open.
When the drawer is closed, the indicator light on the front shows
whether the appliance is switched on.
Operating principle
• Place the crockery or plates with food in the drawer.
• Set the desired temperature.
The ‘appliance on’ indicator will flash.
• Close the drawer.
The ‘appliance on’ indicator will light up.
Selecting the temperature

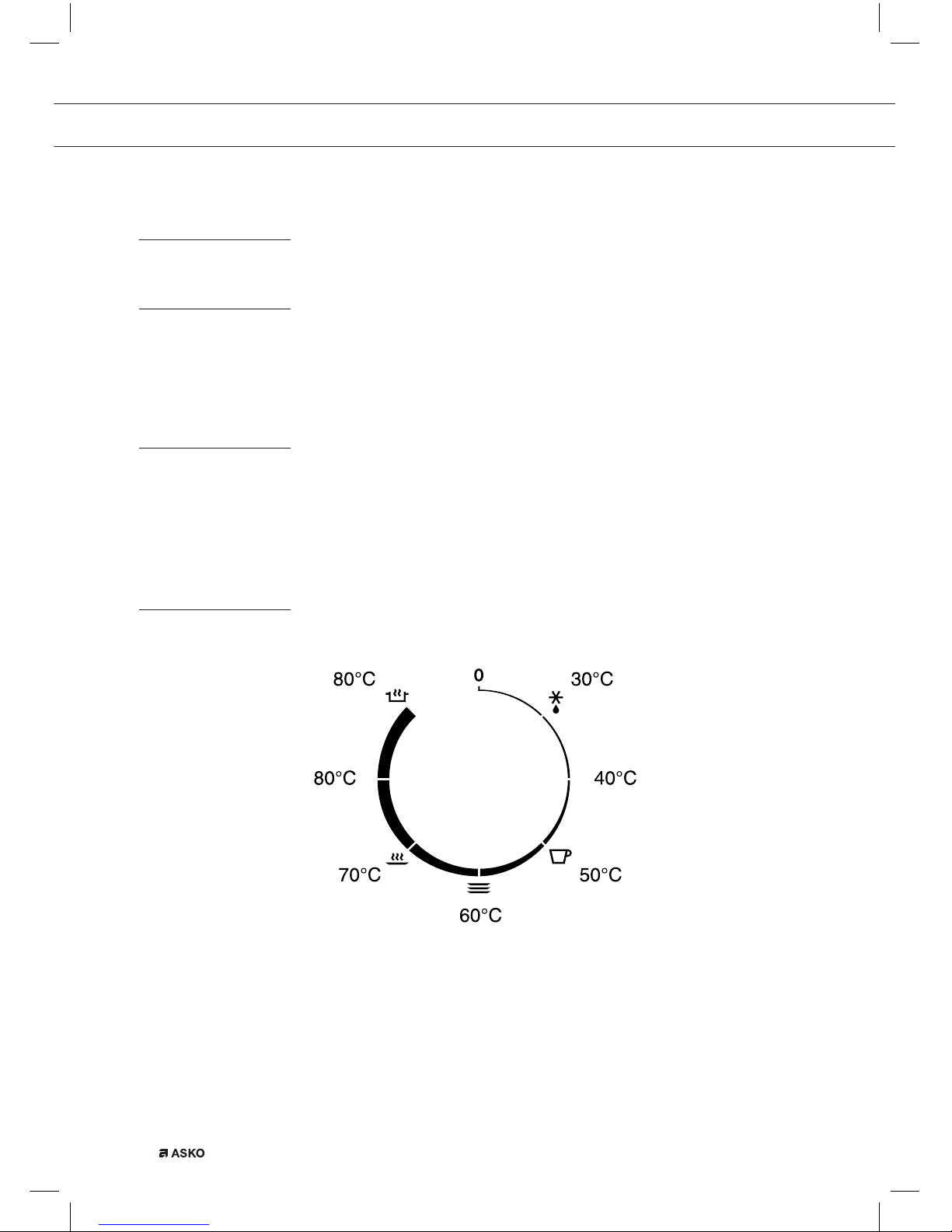

Use the temperature knob to set a temperature between 30 and 80 °C.

EN 7
USING THE WARMING DRAWER
Icon Temperature Function Application
0 0 Off -
30 °C Defrosting For defrosting food.
Allowing dough to rise.
- 40 °C Defrosting
50 °C Warming cups and glasses Warming coffee cups.
60 °C Warming crockery Warming plates and dishes.
Keeping food warm (eggs,
bread).
70 °C Keeping food warm Keeping food warm
(meat, fish, vegetables).
- 80 °C Keeping food warm
and reheating
Keeping food warm and
reheating food.
80 °C with fan Slow cooking After browning place
the pan or dish in the
drawer. Allow the dish
to cook slowly for the
recommended time.
Warming time
The warming time for tableware depends on several factors:
• material and thickness of the tableware;
• fill level;
• distribution of the load;
• temperature control.
This means that it is not possible to give precise data in advance.
A few recommendations:
Even warming at a temperature of 60 °C will take:
• approximately 30 mins for crockery for a meal for six people
• approximately 40 mins for crockery for a meal for twelve people
You will learn from experience which timing suits your crockery best.

EN 8
INSTALLATION
Prior to connecting the drawer to mains power, ensure that all
cables in your home’s electrical system are of sufficient diameter
to supply the appliance properly. Your system should be protected
by a 10-amp fuse.
Built-in
Slide the appliance in the kitchen cupboard aperture. Check whether the
casing fits correctly. Open the drawer and secure the appliance to the
cupboard using the 4 screws supplied.
ODW8123S
590
595
545
390
131
140
556
min. 550
450
560-568
ODW8127A - ODW8127B - ODW8128G
590
597
545
390
140
140
556
min. 550
450
560-568

EN 9
INSTALLATION
ODW8327A - ODW8328G
590
597
545
390
290
290
556
min. 550
300
560-568
ODW8327S
590
595
545
390
285
285
556
min. 550
300
560-568

EN 10
INSTALLATION

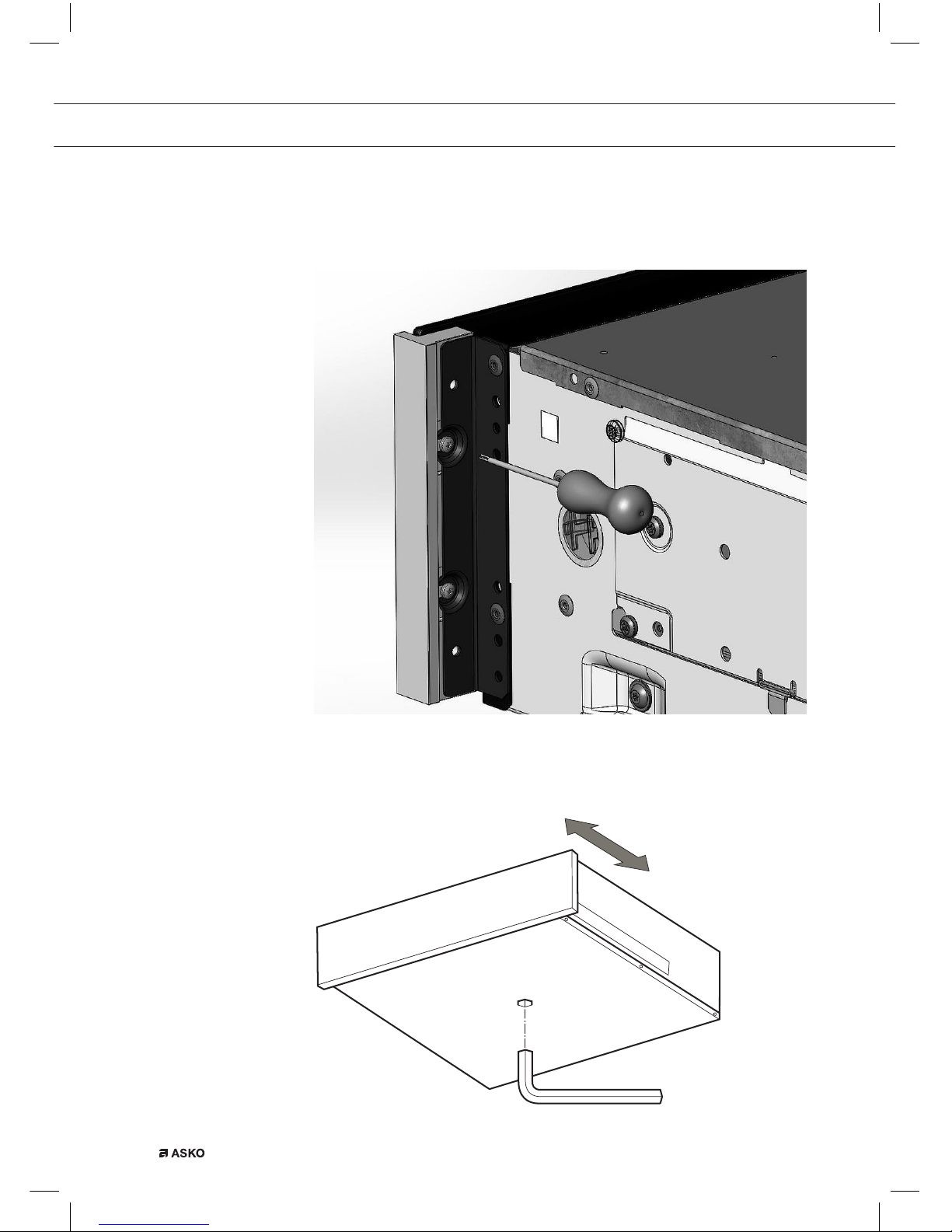

The aluminium profiles can be adjusted +/- 1 mm on the ODW8128G
and ODW8328G.
The front can be adjusted by a few millimetres for alignment with other
appliances. Use the Allen key at the bottom of the appliance for this.

EN 11
MAINTENANCE AND CLEANING
Switch off the appliance and allow it to cool before carrying out
maintenance.
All surfaces should be cleaned only with a damp cloth and some soapy
water. Then dry with a soft cloth.
Do not use a steam cleaner to clean the appliance.
Using abrasive products, alcohol or solvents is not recommended;
these can damage the appliance.
The front is stainless steel or glass and is susceptible to scratching.
Use special non-abrasive cleaning products suitable for stainless steel.
The glass bottom can be cleaned with warm water and washing-up
liquid. It should only be replaced in the drawer once it is perfectly dry.

EN 12
YOUR APPLIANCE AND THE ENVIRONMENT
Disposal of the appliance and packaging
This product is made from sustainable materials. However, the
appliance must be disposed of responsibly at the end of its useful life.
The government can provide you with information about this.
The appliance packaging is recyclable. The following materials have
been used:
• cardboard
• polyethylene wrapping (PE)
• CFC-free polystyrene (hard PS foam)
Dispose of these materials responsibly in accordance with legal
provisions.
The product has a pictogram of a crossed-out waste container. This
indicates that household appliances must be disposed of separately.
This means that the appliance may not be processed via the regular
waste flow at the end of its useful life. You should take it to a special
municipal waste depot or a sales outlet that offers to do this for you.
Collecting household equipment separately prevents harm to the
environment and public health. The materials used in manufacturing
this appliance can be recycled, which provides considerable savings in
energy and raw materials.
Declaration of conformity
We hereby declare that our products comply with the relevant European
directives, standards and regulations as well as all requirements
referred to in the standards.

EN 13

EN 14

EN 15

The appliance rating label is located on the inside of the appliance.
When contacting the service department,
have the complete type number to hand.
You will find the addresses and phone numbers of the service organisation on the
guarantee card.
