Asoka Plugline PL7667-ETH User manual

PlugLine Smart Energy AV Ethernet
66-0366-01Rev.003
User’s Guide
PL7667-ETH

Asoka® User Guide
PlugLink PL7667-ETH
Page 2 of 33
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE
SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESSED OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY
FOR THEIR APPLICATION OF ANY PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET
FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED
WARRANTY, CONTACT YOUR ASOKA REPRESENTATIVE FOR A COPY.
The following information is for FCC compliance of Class A devices: This equipment has been
tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio-frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case users will be required to correct the interference at their own
expense.
Modifying the equipment without Asoka’s written authorization may result in the equipment no
longer complying with FCC requirements for Class A digital devices. In that event, your right to
use the equipment may be limited by FCC regulations, and you may be required to correct any
interference or radio or television communications at your own expense.
You can determine whether your equipment is causing interference by turning it off. If the
interference stops, it was probably caused by the Asoka equipment or one of its peripheral
devices. If the equipment causes interference to radio or television reception, try to correct the
interference by using one or more of the following measures:
Turn the television or radio antenna until the interference stops.
Move the equipment to one side or the other of the television or radio.
Move the equipment farther away from the television or radio.
Plug the equipment into an outlet that is on a different circuit from the television or radio.
(That is, make certain the equipment and the television or radio is on circuits controlled by
difference circuit breakers or fuses.)
Modifications to this product not authorized by Asoka could void the FCC approval and negate
your authority to operate the product.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF
THESE SUPPLIERS ARE PROVIDED “AS IS” WITH ALL FAULTS. ASOKA DISCLAIM ALL WARRANTIES,
EXPRESSED OR IMPLED, INCLUDING, WITHOUT LIMITATION, THOSE OR MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING,
USAGE OR TRADE PRACTICE.

Asoka® User Guide
PlugLink PL7667-ETH
Page 3 of 33
IN THE EVENT SHALL ASOKA BE LIABLE FOR ANY INDIRECT, SPECIAL, CONSEQUENTIAL OR
INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO
DATA ARISING OUT OF THE USE OF INABILITY TO USE THIS MANUAL, EVEN IF ASOKA HAVE BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Revision Date Description
66-0366-01Rev.003 Sep.2013 Release

Table of Contents
Chapter Title Page
1 Introduction
5
2 Important Safety Instructions for the PlugLink 7
3 Overview 8
4 Installation 11
5 Getting Started with the PlugLink 15
6 Basic PL7667-MST Configuration 19
7 PL7667-MST Administration 22
8
Reset and network of PLC 26
Appendix A Quick Guide to the PlugLink Default Settings 29

Asoka® User Guide
PlugLink PL7667-ETH
Page 5 of 33
Chapter 1
Audience
This guide is designed as a reference for the networking or computer technician responsible for
installing a PlugLink PL7667-ETH, hereafter referred to as the gateway. It is assumed that you are
familiar with and have a working knowledge of the concepts and terminology associated with
Ethernet and local area networking.
Purpose
This guide describes the hardware and software features of the PlugLink PL7667-ETH. It describes
the physical and performance characteristics of the PL 7667-ETH, explains how to install and
configure the PL7667-ETH, and provides troubleshooting information and specifications.
Conventions
This guide employs the conventions described below to convey instructions and information.
Command descriptions use the following conventions:
Commands and keywords are in italic text.
Arguments for which you supply values are in bold.
Square brackets ([ ]) indicate optional elements.
Braces ({ }) group require choices and vertical bars (|) separate the alternative elements.
Braces and vertical bars within square brackets ([{|}]) indicate a required choice within an
optional element.
Interactive examples use the following conventions:
Terminal sessions and system displays are in normal screen font.
Information to be entered in is in bold text.
Notes, cautions and tips use these conventions and symbols:
Means reader take note. Notes contain helpful suggestions or
references to materials not contained in this manual.
Means reader be careful. In this situation, you might do something that
could result in equipment damage or loss of data.
Means the following will help you solve a problem. The tips information
might not be troubleshooting or even an action, but could be useful
information.
Obtaining Documentation

Asoka® User Guide
PlugLink PL7667-ETH
Page 6 of 33
You can access the most current PlugLink™ documentation on the Asoka website at this URL:
http://www.asokausa.com
Document Feedback
You can submit comments via email to [e-mail]
You can also submit your comments via regular mail by writing to the following address:
Asoka USA Corporation
Attn: Customer Service,
2620 Augustine Drive Suite 230
Santa Clara, CA 95054 USA
USA
We appreciate your comments.

Asoka® User Guide
PlugLink PL7667-ETH
Page 7 of 33
Chapter 2
Important Safety Instruction for the PlugLink PL7667-ETH
The following precautions should be taken when using this product:
Read all instructions before installing and operating this product.
Do not open the cover on this product and/or alter this product in any way.
Follow common household electrical safety practices.
If you have any questions or concerns regarding these safety measures, please contact
Technical Support at [phone] or email at [email protected] Monday through
Friday from 9:00 am to 5:00 pm PST (excluding holidays.)

Asoka® User Guide
PlugLink PL7667-ETH
Page 8 of 33
Chapter 3
Overview
This chapter provides information about the following topics:
Features
Package Contains
Front Panel Description
Rear Panel Description
Features
PlugLink 7667–ETH features:
Utilizes the existing electrical wiring to distribute data services
IEEE 802.3, 802.3u, 802.3x, 802.3z/ab, 802.1q
One auto-negotiating 10/100BASE-T Ethernet port
Status LEDs showing Ethernet activity and link status
Up to 200Mbps of data transmission
Energy control
Package Contains
Open the package and check that you have all the following items:
1. PlugLink PL7667-ETH
2. 6’ Ethernet cable
3. Warranty and Support Information Card
If any of the parts are incorrect, missing, or damaged, please contact the retailer where you
made your purchase. Keep the carton, including the original packing materials, in case you
need to return the unit for repair.
The Top Panel
The top panel of the PL7667 contains one power switch. See Figure 3-1.

Asoka® User Guide
PlugLink PL7667-ETH
Page 9 of 33
Figure 3-1: PL7667-ETH Top Panel
The Front Panel
The front panel of the PL7667 contains the one Power Outlet.
Figure 3-2: PL7667-ETH Front Panel

Asoka® User Guide
PlugLink PL7667-ETH
Page 10 of 33
Side Panel
You can use the status lights to verify connections. Viewed from top to bottom, the table bellow
describes the lights on the side panel of the unit.
Table 3-1: Status Light Descriptons
Power On
Off Device is powered on Device has no power
PLC Activity Blinking Red
Blinking Yellow
Blinking Green
Off
Low Connection
Good Connection
Excellent Connection
No Connection
ETH Link On
Blinking
Off
Ethernet Connectivity
Ethernet Traffic
No Ethernet Connectivity

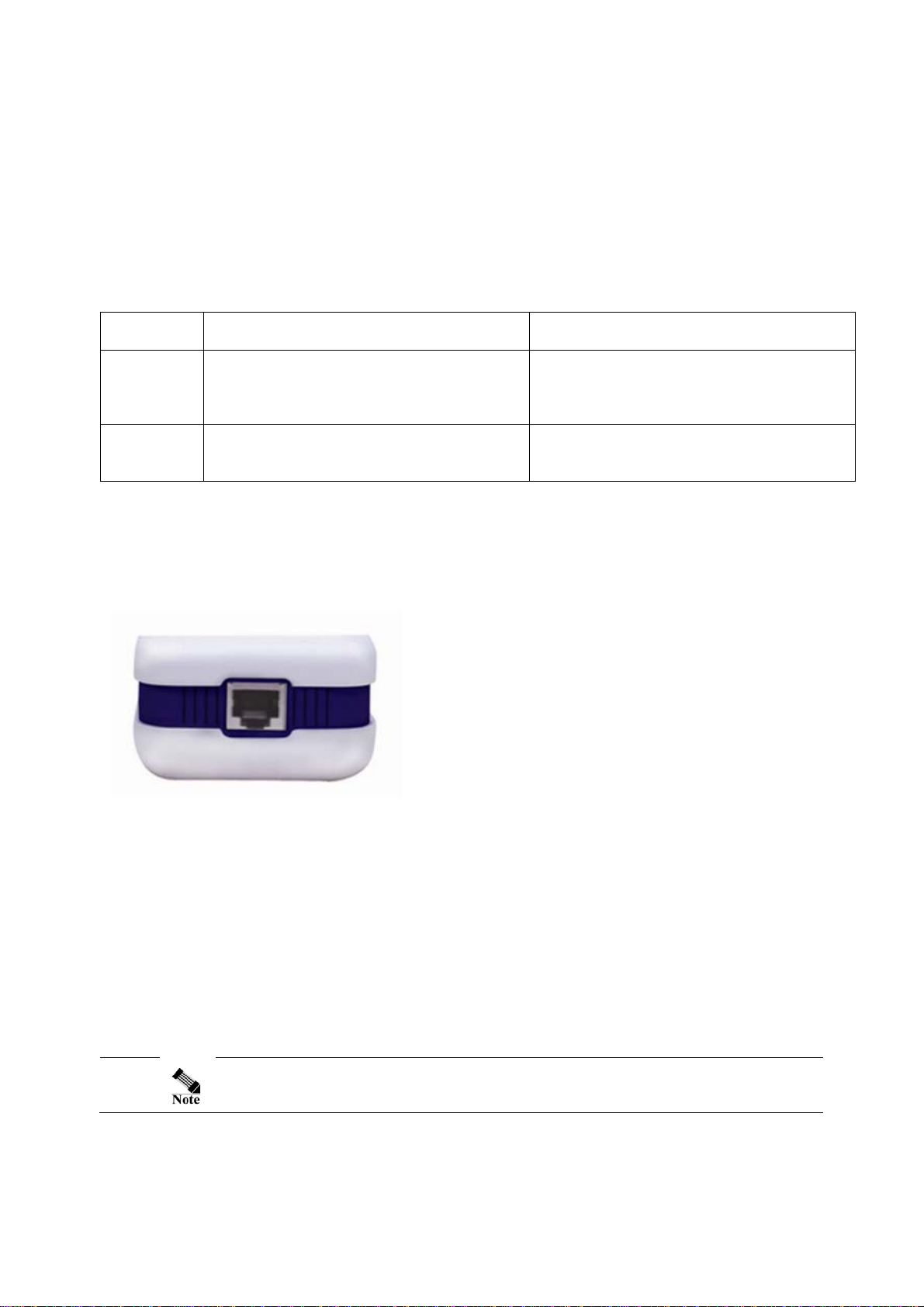

The Bottom Panel
The bottom panel of the PL7667-ETH contains one (1) Ethernet ports as shown below.
Figure 3-2: PL7667-ETH Bottom Panel
The Rear Panel
The rear panel is where the product label is located. The product label contains the items listed
below.
Model number
Unique device password(PLC DAK)
Powerline MAC Address(PLC MAC)
Ethernet MAC Address
Serial number
For future convenience, please write this information down in your
Warranty Support Information card.

Asoka® User Guide
PlugLink PL7667-ETH
Page 11 of 33
Operating System and Browser Support
You can access the web-based interface by using the operating systems and browsers listed in
Table 3-2.
OS Minimum
Service Pack
or Patch
Microsoft
Internet
Explorer
Mozilla Firefox Netscape
Communicator Other
Windows 98SE Second
Edition 5.5 or above 1.x or above 7.x + Opera 7 +
Windows ME 5.5 or above 1.x or above 7.x + Opera 7 +
Windows 2000 5.5 or above 1.x or above 7.x + Opera 7 +
Windows XP 5.5 or above 1.x or above 7.x + Opera 7 +
Windows 2003 Server 5.5 or above 1.x or above 7.x + Opera 7 +
Windows NT 4.0 5.5 or above 1.x or above 7.x + Opera 7 +
RedHat 6.2 1.0 7.x + Opera 6
Konqueror 3+
RedHat 7.2 1.0 7.x + Opera 6
Konqueror 3+
Fedora Core 2.0 1.0 7.x + Opera 6
Konqueror 3+
Fedora Core 3.0 1.0 7.x + Opera 6
Konqueror 3+
Fedora Core 4.0 1.0 7.x + Opera 6
Konqueror 3+
Mandriva 10 1.0 7.x + Opera 6
Konqueror 3+
Unix 1.0 7.x + Opera 6
Konqueror 3+
Mac OS X 5.2 1.x 7.x + Opera 7
Safari 1.x +
Mac OS X 1.3x 5.2 1.x 7.x + Opera 7
Safari 1.x +
Mac OS X 10.4.x 5.2 1.x 7.x + Opera 7
Safari 1.x +
Table 3-2: Supported operating systems and browsers

Asoka® User Guide
PlugLink PL7667-ETH
Page 12 of 33
Ensure that your Internet browser popup blocker is disabled. To disable
the popup blocker, follow these steps:
Under Internet Explorer
1. Open a web browser.
2. Under the Tools menu, select Turn off Popup Blocker.
Under Firefox or Netscape
1. Open a web browser.
2. Under the Tools menu, select Options.
3. Choose the Content icon.
4. Uncheck the box next to Block Popup Windows.
5. Click OK

Asoka® User Guide
PlugLink PL7667-ETH
Page 13 of 33
Chapter 4
Installation
This chapter describes how to install your CPE device and how to interpret the LEDs to ensure
proper operation. Read the topics, and perform the procedures in the following order:
Preparing for Installation
Warnings
Safety Instructions
Installing the CPE
Connecting to a 10/100 Port
Wall mounting the CPE
Preparing for Installation
If you mount the CPE to a power outlet, use the screws supplied with the
CPE.
There are no serviceable parts inside the unit. Removing the screws,
cover, or otherwise dismantling the unit voids the warranty.
Warnings
Only trained and qualified personnel should be allowed to install or replace this equipment.
Read the installation instructions before you connect the system to its power source.
Before working on the equipment that is connected to power lines, remove all jewelry
(including rings, necklaces, and watches). Metal objects will heat up when connected to
power and ground and can cause serious burns or weld the metal object to the terminals.
The plug-socket combination must be accessible at all times because it serves as the main
disconnecting device.
To prevent the system from overheating, do not operate it in an area that exceeds the
maximum recommended ambient temperature of 104ºF (40ªC).

Asoka® User Guide
PlugLink PL7667-ETH
Page 14 of 33
This product relies on the building’s installation for short-circuit (over current) protection.
Ensure that a fuse or circuit breaker no larger than 120 VAC, 15A U.S. (240 VAC, 10A
International) is used on the phase conductors (all current-carrying conductors).
A voltage mismatch can cause equipment damage and may pose a fire hazard. If the
voltage indicated on the label is different from the power outlet voltage, do not connect the
device to that receptacle.
Do not work on the system or connect or disconnect cables during periods of lightning
activity.
Ultimate disposal of this product should be handled according to all national laws and
regulations.
Safety Instructions
Read these safety instructions carefully.
Read all cautions and warnings on the equipment.
Plug this equipment directly into a power outlet. No power strips and no extension cords.
Make sure the equipment is connected to the right voltage.
For pluggable equipment, the socket-outlet must be installed near the equipment and must
be accessible.
Place the Ethernet cord where people cannot step on it. Do not place anything over the
Ethernet cord.
Disconnect this equipment from the power outlet before cleaning it. Do not use liquid or
sprayed detergent for cleaning. Use moisture sheet or cloth for cleaning.
Keep this equipment from excessive humidity.
The openings on the enclosure are for air convection and protect the equipment from
overheating. Do not cover the openings.
If the equipment will not be used for a long period of time, disconnect the equipment from
the power outlet to avoid any damage from transient over-voltage.
Do not pour any liquid into opening. This could cause fire or electrical shock.
Do not open the equipment casing. For safety reasons, the equipment should only be
opened by qualified service personnel.
Have the equipment checked by a service professional if one of the following situations
arises:
•The plug is damaged.
•Liquid has entered the equipment.
•The equipment has been exposed to moisture.
•The equipment does not work properly, or you cannot get it to work according to
user’s manual.
•The equipment has been dropped or damaged.
•The equipment has obvious signs of breakage.
•Do not leave this equipment in an unconditioned environment. Temperatures above
45ªC (113ªF) can damage the equipment.
•Keep this guide for later reference.
Installing the CPE

Asoka® User Guide
PlugLink PL7667-ETH
Page 15 of 33
You can install the CPE simply by plugging directly into a power outlet or by physically mounting
onto a power outlet. Before you begin the installation, decide how you want to install the CPE
by reviewing the illustrations in these sections:
Installing the CPE directly to a power outlet (without mounting screws and brackets)
Installing the CPE directly to a power outlet (without mounting screws and brackets)
The CPE can be simply plugged in directly to a power outlet. If you do not wish to physically
mount the CPE onto the power outlet, follow these steps:
Take out what you need by removing the items shown in Figure 1-1 from the shipping
container:
1 PlugLink PL 7667-ETH
2 6’ Ethernet Cable
1⇒
2⇒
Figure 4-1: PlugLink PL 7667-ETH, Ethernet Cable
Connect the CPE into a nearby wall outlet
Connect the enclosed Ethernet cable to the Ethernet port of the unit
Connect the opposite end of the cable to an Ethernet port on the PC or laptop

Asoka® User Guide
PlugLink PL7667-ETH
Page 16 of 33
Chapter 5
Getting Started with the PL7667-ETH
This chapter provides a quick step-by-step installation and setup procedure guide for a
standalone PL 7667-ETH.
For detailed installation procedures for mounting your CPE, see Chapter 4, “Installation.” For
product overview information, see Chapter 3, “Overview.”
Connecting to a PC
To perform the initial configuration, follow these steps:
1. Connect a Category-5 straight-through cable to the 10/100 ports on the PL7667.
2. Connect the other end of the cable to an Ethernet (RJ-45) port on the workstation, PC, or
server.
3. Plug the PL7667 directly into an outlet.
1 PlugLink PL 7667-ETH
2 Ethernet cable
3 Power outlet
Figure 5-1: Connecting to a LAN port.

Asoka® User Guide
PlugLink PL7667-ETH
Page 17 of 33
Assigning your PC to the same network as the CPE
The –PL 7667 has an IP address: 192.168.1.254.
For network access, you must manually assign your PC an IP address of 192.168.1.x, where “x” is
a number between 1 and 254(excluding 253.)
Accessing the CPE from your Browser
1. Open an Internet browser (i.e. Internet Explorer or Mozilla Firefox).
2. In the address field, type 192.168.1.254 and press Enter.
Figure 5-2: Address field.
3. In the User ID field, type admin.
4. In the Password field, type welcome.
5. Click Login.
Figure 5-3: Login screen

Asoka® User Guide
PlugLink PL7667-ETH
Page 18 of 33
The username and password are case sensitive.
For security, you should set a unique system password after initial login.
For instructions on how to set a unique system password, see Chapter 7.
Understanding the PL7667-ETH Web Interface
When you access the web-based user interface (UI), the System Details page is the first page
you will see. The System Details page shows you a quick view of the adapter’s status and settings.
All setup pages can be reached from this page.
The System Details page is also the Home Page of the adapter’s web
interface.
Figure 5-4: System Details Page (Home page)
1. Quick Main Navigation Links

Asoka® User Guide
PlugLink PL7667-ETH
Page 19 of 33
The UI is divided into five main logical sections and you can be directed to any of the five
sections by clicking on their corresponding links.
2. Quick Sub Navigation Links
In each of the five main logical sections, sub navigation links on the right will appear,
providing you with logical links for each specific category.
3. Quick Buttons
1) The Home button is available in every page of the UI. Pressing this button will take you
back to the home page, which is the System Details page.
2) The Glossary button is available in every page of the UI. Pressing this button will take you
to a glossary page that defines many of the technical terms used in this UI.
3) The Help button is available in every page of the UI. Pressing this button will take you to a
help page that provides detailed explanations and steps on configuring your gateway.
4) The Logout button is available in every page of the UI. Pressing this button will enable you
to log out of the gateway.
4. Detail Information
Displays detailed information about the gateway that includes: model number, firmware
version number, hardware version, serial number, Local Area Network (LAN) settings
5. Page Name
The page you are on is identified by its Page Name.

Asoka® User Guide
PlugLink PL7667-ETH
Page 20 of 33
Chapter 6
Basic PL7667–ETH Configuration
This chapter presents procedures for configuring the basic parameters of your PL7667 interface,
including IP, Subnet Mask and DNS settings.
This chapter contains the following sections:
LAN Settings
Configuring your LAN Settings
To configure the CPE’s LAN settings, click IP ADDRESS on the Main menu. The IP ADDRESS
Configuration Page is the first page under the IP ADDRESS section.
Figure 6-1: IP ADDRESS Configuration Screen
