Asoni CAM615 User manual

12M-IR H.264
3-Axis CCD Network Vandal Dome
CAM615 / CAM615-PoE
User’s Manual
Date: 7/20/2012
Firmware Version: V1.0.32

1
Content
Content .......................................................................................................................................1
1. Preface.................................................................................................................................3
2. Product Specifications.......................................................................................................3
3. Product Installation ............................................................................................................6
A. Hardware Installation......................................................................................................6
Cable Connections................................................................................................................6
Analog Video/Audio Connections..........................................................................................7
I/O Connections....................................................................................................................8
3-Axis Gimbals Adjustment.................................................................................................10
B. Monitor Setting..............................................................................................................11
C. IP Assignment................................................................................................................12

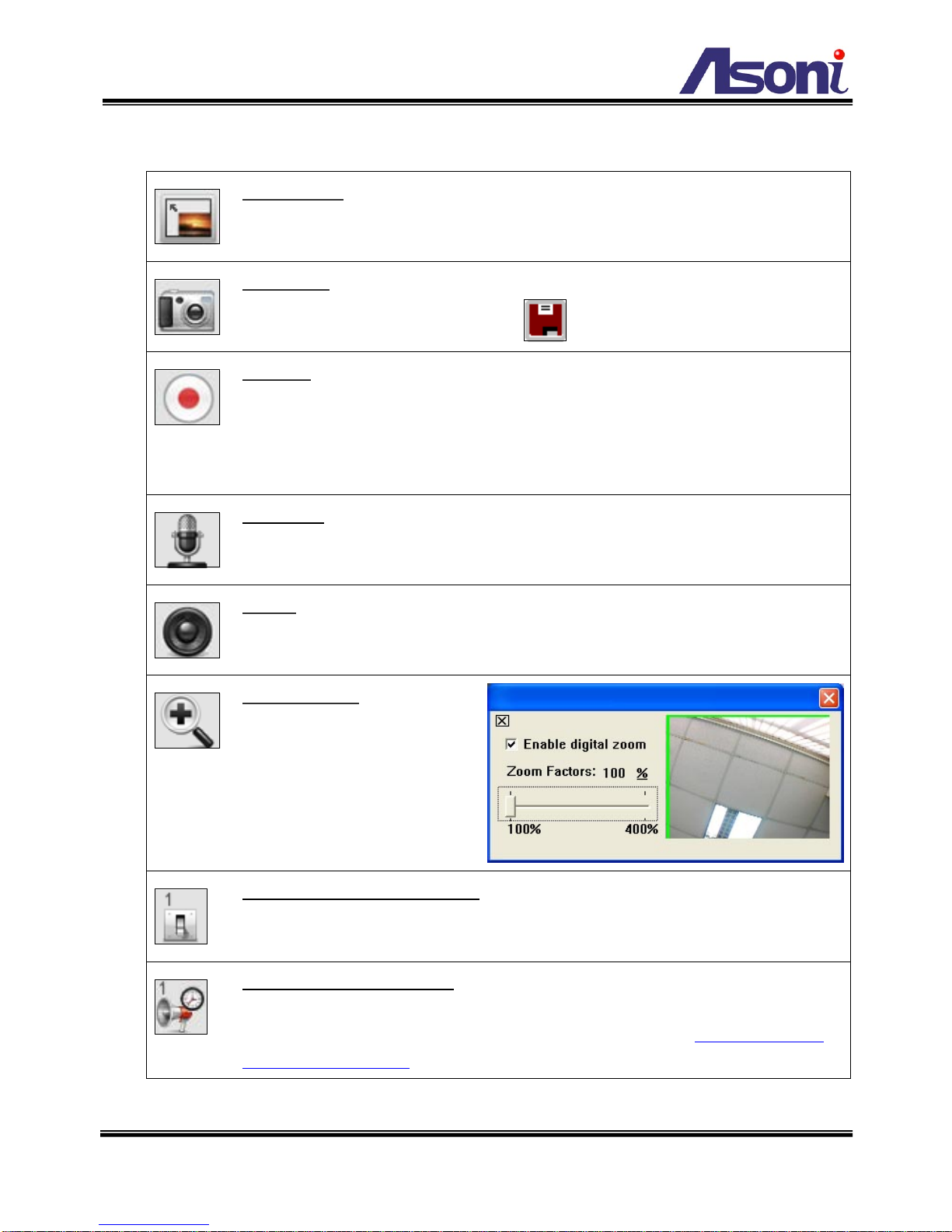

4. Live Video..........................................................................................................................14
5. Configuration ....................................................................................................................18
A. System ...........................................................................................................................18
System Information.............................................................................................................18
User Management..............................................................................................................22
System Upgrade.................................................................................................................24
System Logs.......................................................................................................................25
B. Video/Audio Setting ......................................................................................................26
Video Format ......................................................................................................................26
Image Setting......................................................................................................................29
Audio Setting ......................................................................................................................32
C. Network Setting.............................................................................................................33
Network Setting ..................................................................................................................33
Mail / FTP / Samba Setting.................................................................................................37
PPPoE Setting....................................................................................................................40
DDNS Setting .....................................................................................................................41
D. Event Handling..............................................................................................................43
Event Setting ......................................................................................................................43
I/O Setting...........................................................................................................................49
Schedule.............................................................................................................................51

2
Micro-SD Card....................................................................................................................53
6. Network Configuration.....................................................................................................56
A. Intranet Only..................................................................................................................56
Connects to PC Directly......................................................................................................56
Connects to an Exist LAN...................................................................................................57
B. Internet Only..................................................................................................................58
Connects toADSL with Fixed Public IPAddress.................................................................58
Connects toADSL with Floating Public IPAddress (PPPoE)..............................................59
C. Intranet + Internet..........................................................................................................61
Connects to Internet with Fixed Public IPAddress..............................................................61
Connects to Internet with Floating Public IPAddress..........................................................63
7. Factory Default..................................................................................................................64
Compatible List of SD Card.....................................................................................................65

3
1. Preface
This camera is a professional CCD network camera which builds in web server. User
views real-time video via IE browser. It supports H.264, JPEG and MPEG4 (3GPP Only)
video compression which provides smooth and high quality video. The event video can be
stored in the SD card, and can be playback remotely.
This camera equips infrared illuminator to provide good image quality, even in darkness.
The PoE model built-in support for Power over Ethernet allows the camera to receive both
data and power over a single Ethernet cable.
This camera is an easy-to-use IP camera which is designed for security application.
2. Product Specifications
H.264 / MJPEG / MPEG4 (3GPP Only) compression formats. Supports resolution up
to 30/25 fps @ Full D1 (720x480 / 720x576)
H.264 / MJPEG / MPEG4 (3GPP Only) triple streaming.
Self-Contained HTTP Web Server providing Internet capability for remote access
3-Axis gimbals adjustment
Day & Night functionality for 24-hours surveillance, auto activate IR illuminator in low
illumination
Infrared radiant distance up to 12 meters
Unbreakable housing, support IP66 water proof standard
Built-in PoE splitter, support for Power over Ethernet (PoE model)
Supports Micro-SD card for local event recording
2-way audio
Online firmware upgrade
Recorded files compatible with Microsoft Windows Media Player
Hardware
CPU / RAM / ROM ARM 9, 32 bit RISC / 256MB / 16MB
Image Sensor 1/3” CCD, 540 TV lines
Lens 1/3”, Vari-focal 3.7~12mm
IR Distance 12 Meters

4
IR LED Built-in 18 IR LEDs
Illumination Normal: 0.1 lux IR On: 0 lux
Day / Night Mechanism IR Cut Filter (ICR)
Video Out Internal terminal block provides 1 Analog video out
Audio In Internal terminal block for connecting external passive-type of microphone
Audio Out Internal terminal block for connecting external amplified speaker
Digital I/O Internal terminal block provides 1 Digital in / 1 Relay out
3-Axis Gimbals
Adjustment
Rotation: 300o
Pan: 360o
Tilt: 75o
Water Proof IP-66 standard
Power Supply Normal model: DC 12V, 1A
PoE model (built-in PoE Splitter):
Use PoE: PoE Injector (IEEE 802.3af)
Or, use Power Adaptor: DC 12V, 1A
Power Consumption Max. 8 Watt
Dimensions Φ134 x H108 mm
Network
Ethernet 10/ 100 Base-T
Network Protocol HTTP, TCP/IP, RTP/RTSP, 3GPP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP
System
Video Resolution NTSC: 720x480, 704x480, 352x240, 176x120
PAL: 720x576, 704x576, 352x288, 176x144
Compression Format H.264 / MJPEG / MPEG-4 (3GPP only)
Frame Rate Up to 30 FPS
Triple Streaming Yes (2 for live view, 1 for 3GPP)
3GPP Yes, Live view with 3G mobile phone
Video Bitrate Adjustment CBR, VBR
Video Adjustment Brightness, Contrast, Hue, Saturation, Sharpness, Auto/Manual electronic
shutter, Iris level, BLC, Day/Night mode, 3D DNR, WDR, Video orientation
Image Snapshot Yes
Privacy Mask Yes, 3 different areas
Motion Detection Yes, 3 different areas
Event Trigger Motion Detection, Digital In
Triggered Action Send Email, Send to FTP, Save to SD Card, Relay Out
Pre/ Post Alarm Yes, configurable
Security Password protection

5
Firmware Upgrade HTTP mode, can be upgraded remotely
Connection Up to 10 clients simultaneously
Audio Yes, 2-way
SD card management
Recording Trigger Motion Detection, Digital In, IP Check, Network Disconnect
Schedule Snapshot with schedule
Video Format Video (AVI), Snapshot (JPEG)
Video Playback Yes
Web browsing requirement
OS Windows 2000, XP, Vista, Windows 7
Web Browser Microsoft IE V7.0 (32-bit) or above, Mozilla Firefox V6.0 or above, Opera
V11.5 or above, Safari V5.1 or above, Google Chrome V13.0 or above
Suggested Hardware Intel Core 2 Duo 1.66GHz, RAM: 1GB
Graphic card: 128MB onboard RAM
* Specifications are subject to change without notice

6
3. Product Installation
A. Hardware Installation
Cable Connections
Power Jack:
To connect the DC 12V power adapter.
Network Connector:
The RJ-45 connector allows connect to the Ethernet network.
Micro-SD Card Slot
(inside of the camera):
Insert a Micro-SD card if you want to do the event recording in
the camera.

Terminal Block (inside
of the camera):
The terminal block provides the following functionalities:
Video Output: Allows connect to the analog display to
output analog video for locally monitoring.
MIC Input: Allows connect to a passive-type of microphone,
the connected audio will be heard at the remote site.
Audio Output: Allows connect to an amplified speaker, you
can hear the voice of the remote site from the speaker.
Digital I/O:Digital In and Relay Out.
1. Refer to the next sections to connect the cable of Digital I/O, Video output,Audio
output and MIC input if you want to use these functionalities.
2. Connect Ethernet cable for network connection.
3. Connect power adapter to turn on the camera.



Power Jack (DC 12V)
Terminal Block (Inside of camera)
Network Connector

SD Card Slot (Inside of camera)

7
4. If the camera is PoE model, the power adapter is not necessary. The camera will get
the power from the PoE injector or PoE switch.
PoE (Power over Ethernet) is a technology that integrates power into a standard LAN
infrastructure. It enables power to be provided to the network device, such as an IP
phone or a network camera, using the same cable as that used for network connection.
It eliminates the need for power outlets at the camera locations. Please follow the
below figure for the connection.
5. Set up the network configurations according to the network environment. For further
explanation, please refer to Network Configuration chapter.
Analog Video/Audio Connections
The terminal block inside of the camera provides analog video and audio functionalities.
You can connect the wires of connector to this terminal block to output these signals.
Analog Video Output
PoE Switch or PoE Injector
Ethernet Cable
Data only
Ethernet Cable
Mixed data and power
PoE Network Camera
To Network
Connects to an
analog monitor

8
Microphone Input
Audio Output
I/O Connections
The terminal block inside of the camera also Digital Input and Relay Output. You can
connect the wires of connector to this terminal block to output these signals. The I/O
connector used in application, for e.g., motion detection, event triggering, alarm
notifications. It provides the interface to:
1 set of Digital Input (Alarm + GND) – The digital inputs for connecting devices
that can toggle between an open and closed circuit, such as PIRs, door/window
contacts, glass break detectors, etc. When a signal is received the status changes
and the input becomes active.
1 set of Relay Output (N.O. + COM or N.C + COM) – The output to Relay switch of
the alarm device such as LEDs, Sirens, etc.
Connects to a
passive-type of
microphone
Connects to an
amplified speaker

9
Digital Input (Alarm Input)
GND (Ground): Initial status is LOW.
Alarm: Max. 50mA, 3.3VDC.
Relay Output
COM: Common pin.
N.O. (Normally Open): Max. 1A/ 24VDC or 0.5A/ 125VAC.
N.C. (Normally Close): Max. 1A/ 24VDC or 0.5A/ 125VAC.
Door/Window
Contacts

10
Screw 3 and 4
Screw 1
Screw 2
Rotation
Gimbals
Pan
Gimbals
Tilt
Gimbals
3-Axis Gimbals Adjustment
The gimbals adjustment offers the convenience method to install on the ceiling or wall.
You can open the case, and adjust the lens to the direction as wished. The pan, tilt and
rotation adjustments are provided in this model. You can adjust the gimbals with Pan 360o,
Tilt 75o, and Rotation 300orespectively.
Rotation Adjustment
1. Loosen “Screw 1”.
2.Adjust “Rotation Gimbals” as wished.
3. Fasten “Screw 1” to fix the gimbals.
Pan Adjustment
1. Loosen “Screw 2”.
2.Adjust “Pan Gimbals” as wished.
3. Fasten “Screw 2” to fix the gimbals.
Tilt Adjustment
1. Loosen “Screw 3” and “Screw 4”.
2.Adjust “Tilt Gimbals” as wished.
3. Fasten “Screw 3” and “Screw 4” to fix
the gimbals.
300
o
360
o
75o

11
B. Monitor Setting
1. Right-Click on the desktop. Select “Properties”
2. Change color quality to “Highest (32bit)”.

12
C. IP Assignment
Always consult your network administrator before assigning an IP address to your
camera in order to avoid using a previously assigned IP address.
MAC Address: Each network camera has a unique Ethernet address (MAC address)
shown on the sticker of the device.

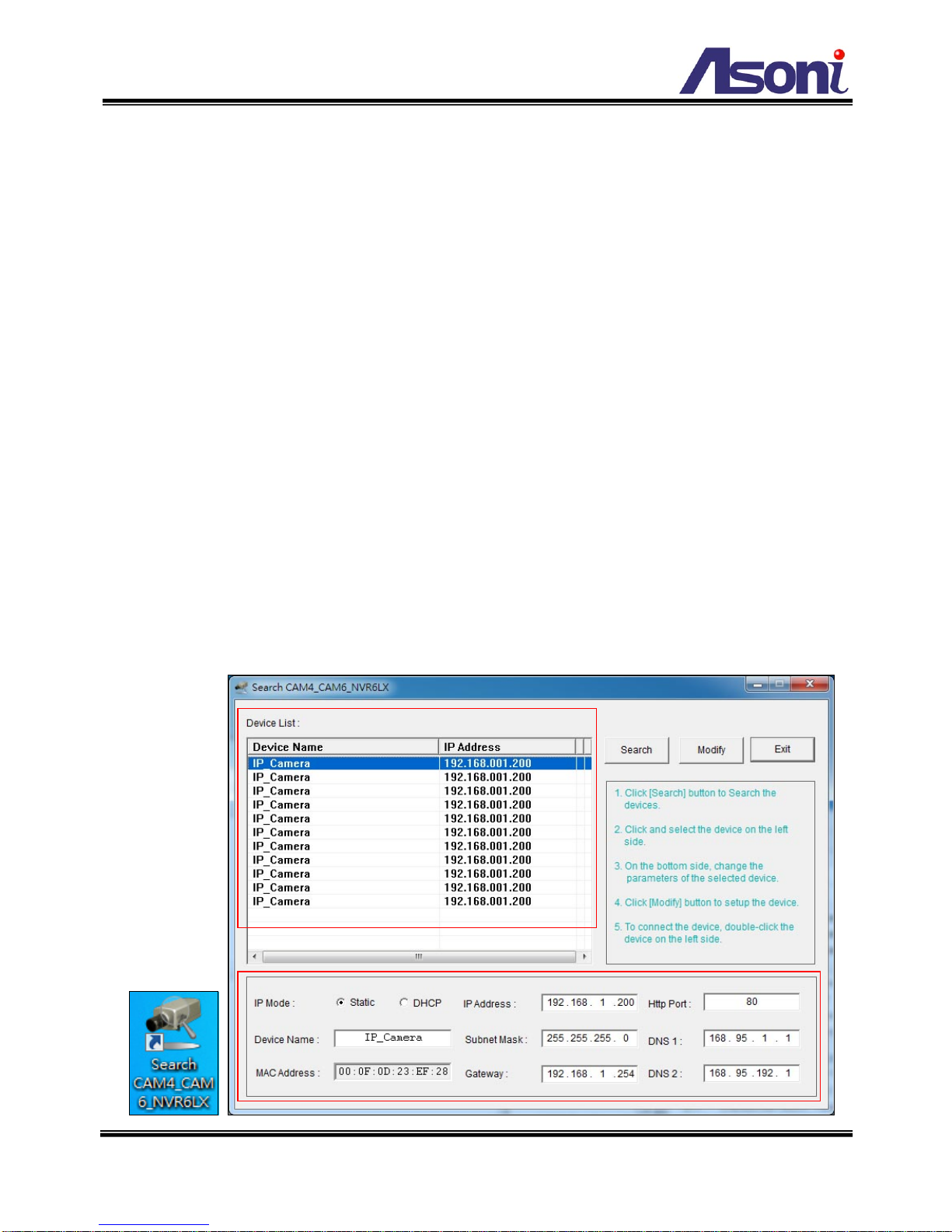

One final note, although the IP Search is able to find and configure any network
device on the LAN except those that are behind a router, it is a good idea to set the
host PC to the same subnet. In order to connect to the Web-based user interface of
the network camera, the host PC must be in the same subnet. For more information
about subnets, please consult your network administrator.
“Asoni IP Search” is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the network camera in Local Network (LAN).
The software can be installed from the attached software CD.
1. Once “Asoni IP Search” has been successfully installed on the computer, double
click the “Search CAM4_CAM6_NVR6LX” icon on the desktop.






13
2. IP Search searches all the network devices which connect to the intranet and lists
on the window. Click [Search] button to search again.
3. From the list, click and select the device with the MACAddress that corresponds to
the device that is to be configured.
4. The network configuration of the selected device will show on the bottom, filling in
the Device Name, IP Address, Subnet Mask, Gateway and the others.
5. Click [Modify]button to save the settings into the device.
6. Wait for few seconds to let the device update the settings, and then click [Search]
button again to re-search the network devices.
7. Double-click the network device listed on the window, It will open an IE browser and
connect to this device directly.

14
4. Live Video
Start the IE browser, type the IP address of the
network camera in the address field:
http://<IP of camera>
If the “HTTP Port” has been changed from “80”,
type the URL as:
http://<IP of camera>:<HTTP Port>

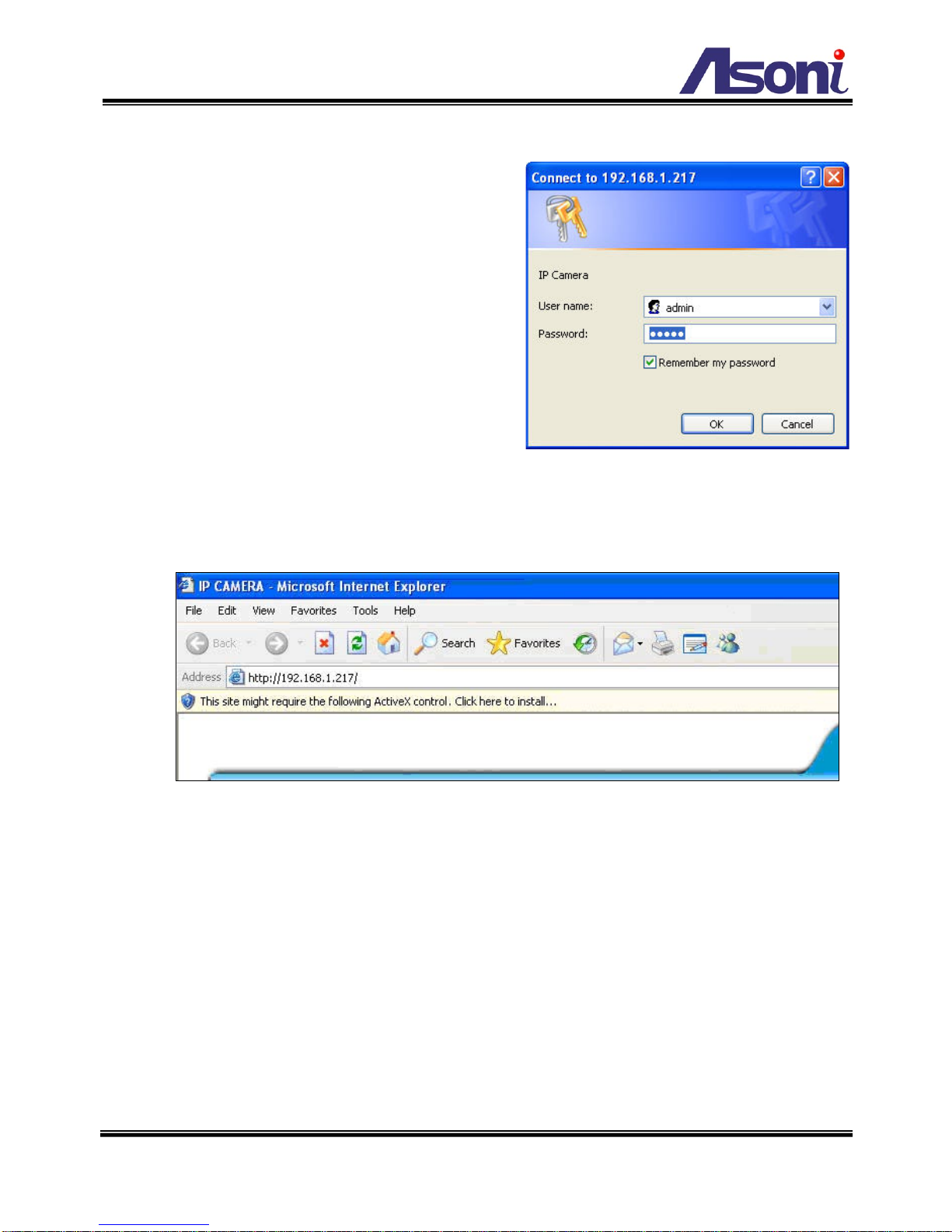

After link to the camera, it will show a dialogue
box. Key-in the user name and password to
log-in and open the web page of camera.
The default user name and password are “admin” and “admin”.
For the first time to view the camera video via IE, it will ask you to install theActiveX
component.
If the installation failed, please check the security setting for the IE browser.
1. In IE, click on [Tools] [Internet Options…]
2. Click on [Security] Tab [Custom Level…]
3. In Security Settings, under [Download unsigned ActiveX controls], select
“Enable” or “Prompt”.
4. In Security Settings, under [Initialize and script ActiveX controls not marked as
safe], select “Enable” or “Prompt”.
5. When pop-up window with warning message, click [Yes] to save the settings.

15
1
2
3
4
5
When popup the following dialogue box, click [Yes].

16
The web page of the device shows as following.
If you are using IE 8.0 or above, please click “Compatibility View” icon to make this web
page works properly:
Streaming : Select the streaming 1 or 2 from the pull-down list to display.
Language : Change the display language temporarily.
Note: The display language is changed temporarily for current connection, and it
doesn’t change the default language. To change the default language, please
go to Configuration System Information page.
Configuration : Go into the configuration page to set the parameters if necessary.
Status Bar : Shows system date/time, video resolution and video refresh rate (FPS).
Online Visitor : Shows how many users connect to this network camera.
⑥
⑤
③
②
①
④

17
Function Buttons : Click these buttons will perform the following functions.
Full Screen : Click this button or double-click the video, the video will change
to full screen mode.
Press [Esc] key or double-click the video again, it will back to normal mode.
Snapshot : Click this button to take snapshot of the video. The image will be
displayed in a pop-up window, click to save as a jpg picture.
Record : Click this button to record the video into the local PC. It will ask you
where to save the video. To stop recording, click this button again.
The saved video format isAVI. The recorded file can be played by Microsoft
Media Player. Note, H.264
decoder must be installed to play the recorded file.
You can install “FFdshow” from the included CD for the decoder.
Chatting : The camera supports 2-way audio. Click this button, then you can
use microphone which connected to the PC to talk to the camera side.
Voice : Click this button to turn on the audio from camera. Click again to turn
off it.
Digital Zoom : Click this
button, a pop-up window
appears. You can enable /
disable the digital zoom, and
adjust the ratio.
Relay Out (ON/OFF Switch) : Click the button to manually turn on / off the
Relay via the built-in Digital Out.
Relay Out (Time Switch) : Click the button to manually turn on the Relay via
the built-in Digital Out, after the interval time is passed, the Relay will be
turned off automatically. The interval time can be set up in Configuration 
Event Handling I/O.

18
5. Configuration
Click [Configuration] button to get into the configuration page. Click [Live View]
button to back to the Live-View page.
A. System
System Information
Set up the camera name, select language, and set up the camera time.
System Information

19
Server Information
MAC Address:The MAC address of the Ethernet network card in the device.
Server Name:You can type a name into this field to identify this device.
Show on Status Bar:Determine whether show the server name on the Status Bar.
LED Indicator:Determine whether light-on or turn-off the network and power status
LEDs on the device.
Default Language:Select the default language for the user interface.
OSD Setting
Time Stamp:Enable this option will display the date and time on the video.
Position:Select the display position of Time stamp.
Text:Enable this option will display the OSD string on the video.
Text Edit:Click this button to open “Text Edit” dialog window. You can change the
OSD string and adjust the size and alpha of
the text. After editing, click [Upgrade]
button.
