Aspira ASPIRCOMFORT CLASS 620V WI-FI Service manual

INSTALLATION, USE AND MAINTENANCE MANUAL ASPIRCOMFORT CLASS 620V WI-FI

2
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
1. GENERAL
1.1 INTRODUCTION
This manual was prepared with the aim of making the installation and management of your system as simple as
possible.
By reading and applying the suggestions of this manual, you can achieve the best performance of the purchased
product.
We would like to thank you for choosing to purchase one of our products.
Read this file carefully before performing any operation on the unit.
The unit must not be installed, nor must any operation be performed on it, without firstly reading and understanding
the entirety of this manual. In particular, all the precautions listed in the manual must be taken.
The documentation provided with the unit must be delivered to the system manager for safe keeping (at least 10
years) for future assistance, maintenance and repairs.
Unit installation must take into account the strictly technical needs for good operation, as well as any local
legislation in force and specific requirements.
Make sure that when the unit is delivered there are no evident signs of damage caused by transport. If there is,
state this on the delivery note.
This manual reflects the state of the art at the time the machine was placed on the market and cannot be regarded
as inadequate in the event of subsequent updates on the basis of new experience. The manufacturer reserves the
right to update production and manuals, without the obligation to update the previous ones, except in exceptional
cases.
Please contact the manufacturer's sales department for further information or updates to the technical
documentation and for any proposals to improve this manual. All reports received will be rigorously screened.
1.2 FUNDAMENTAL SAFETY RULES
Remember that the use of products that use electrical energy and water requires certain fundamental
safety rules to be followed:
• Unable and unassisted persons are forbidden from using the device.
• It is forbidden to touch the device in bare feet and with wet or damp parts of the body.
• Any cleaning activity is forbidden without firstly disconnecting the device from the electrical power mains by
placing the system’s main switch on ‘off’.
• It is forbidden to modify the safety or regulation devices without the authorisation and indications of the
device manufacturer.

3
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
• It is forbidden to pull, detach, twist the electrical cables coming out of the device, even if it is disconnected
from the electrical power mains.
• It is forbidden to insert objects and substances through the air intake and supply grids.
• It is forbidden to open the access doors to the inside of the device, without firstly placing the system’s main
switch on ‘off’.
• It is forbidden to release and leave packaging material within the reach of children as it is a potential source
of danger.
• Comply with the safety distances between the machine and other devices or structures to guarantee enough
access space to the unit for maintenance and assistance operations as stated herein.
• The unit’s power supply must be provided with electrical cables duly sized for the power of the unit. The
voltage and frequency values must match those stated for the respective machines; all machines must be
earthed according to the regulations in force in the various countries.
1.3 SYMBOLS
The symbols used in the following file quickly provide information necessary for the correct use of the unit.
Safety-related symbols
ATTENTION
Authorised personnel only. This means that the stated operations are important to safe machine
operation.
DANGER
Risk of electric shock. This means that failure to comply with the warnings poses the risk of
electric shock.
DANGER
This means that failure to comply with the warnings poses the risk of injury to the exposed
persons.
WARNING
This means that failure to comply with the warnings poses the risk of damage to the unit or
system.
DANGER
This means that there are moving parts and poses the risk of harm to exposed persons.

4
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
1.4 WARNINGS
The unit must be installed by qualified and authorised personnel according to the rules in force in the
various countries.
If installation is not carried out, this could lead to a situation of danger.
Avoid installing the unit in very damp rooms or where there are large sources of heat.
On the electric side, to prevent any risk of electrocution, it is essential to disconnect the main switch before
setting up the electrical connections and performing any maintenance operation.
If there are any water leaks from inside the unit, place the system’s main switch on ‘Off’, close the water
valves and contact the technical service.
Always use a dedicated power supply circuit; never use a power supply shared with other devices.
Always install an earth leakage circuit-breaker; failure to install this device could cause electric shock.
For the connection, use a sufficiently long cable to cover the entire distance without any connection; do not
use extensions and do not apply other loads on the power supply, rather, always use a dedicated power
supply circuit.
When the electrical cables are connected, make sure that the cables are arranged so that they do not press
excessively on covers or electrical panels; any incomplete connection of the covers may cause overheating
of the terminals.
Make sure that the earthing connection is set up; do not earth the device on distribution pipes.
Momentary high intensity overcurrents may damage the unit.
Installations made outside of the warnings set forth herein or use outside of the operating limits will
instantly void the warranty.
Make sure that commissioning is carried out by personnel authorised by the company (see commissioning
request form)

5
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
1.5 CONFORMITY
The CE marking (applied on each machine) certifies compliance with the following Community standards:
• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility Directive 2014/30/EC
• Ecodesign 2009/125/EC
• RoHS2 2011/65/EU
• WEEE 2012/19/EC
1.6 RANGE
Code Total Flow Rate/renewal air flow
rate
Type of installation
AP20047W up to 620 m3/h Vertical
1.7 IDENTIFICATION
• The unit can be identified by the rating plate attached to the front bottom panel.
• On the packaging there is another identification rating plate with the unit model and the shipping references.
• The rating plate on the packaging is not valid for tracking the product over the years after sale.
The removal, deterioration and illegibility of the rating plate attached to the unit makes machine identification and
ordering spare parts very difficult, and therefore all future maintenance.

6
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
1.8 CONSTRUCTION FEATURES
ASPIRCOMFORT CLASS 620V WI-FI is a fan unit complete with heat recovery unit dedicated to air renewal without
wasting energy.
The unit is particularly suitable for single rooms where ducted systems are not possible.
FRAME
Self-supporting sheet metal frame with polyethylene insulated interior.
HEAT EXCHANGER
Polypropylene high efficiency cross flow counter current exchanger.
Low freezing temperatures and operation down to -25°.
Very high exchange efficiency.
FANS
Brushless forward curved centrifugal fans with electronic motor and modulating control.
Very high efficiency and low noise levels.
FILTERS
ePM1 70% filters with low head loss.
Easily removable by removing the lower outer panels;
FREE COOLING
Free cooling inside the unit with generous air flow and damper with motorised actuator.
ELECTRICAL PANEL
Electric panel complete with control board for 4 fan speeds, antifreeze, automatic bypass, temperature probes,
post-heat coils and automatic dirty filter signal.
Control panel mandatory for unit operation with capacitive touch for installation on 503 box or wall;
EFFICIENCY
Thanks to its construction features and components, it is able to reach recovery efficiency of more than 90%.
In the winter and summer seasons there is considerable energy recovery of the renewal air introduced into the
room.

7
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
1.9 DESCRIPTION OF OPERATION
The unit is a decentralised fan system with heat recovery, with the following characteristics and special features:
• it promotes healthy ventilation in offices, schools, businesses, allowing correct air renewal of the rooms and
extracting excess humidity and unpleasant odours;
• it provides considerable energy savings for heating thanks to the efficiency of the heat recovery unit of more
than 90%;
• the epm1 class filters, with low head loss, guarantee outdoor air filtering which is crucial for people with
allergies;
• electronic speed control motors guarantee low electrical energy consumption;
• thermal and acoustic insulation;
• easy access for inspection and maintenance through panel with closures;
• antifreeze protection;
• control unit with display;
• set-up for easy connection to the mains and remote control.
1.10 STATE OF SUPPLY
The supply includes:
• recovery unit complete with fans installed inside the unit;
• polypropylene counter current exchanger pre-inserted inside the unit;
• ePm1 class filters pre-inserted inside the unit;
• electrical box with set-up for connecting terminal board;
• brackets for ceiling / wall installation;
• labels/stickers (safety pictograms, air connection identification, CE marking...) already on the unit;
• installation, use and maintenance manual.

8
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
1.11 REQUIREMENTS FOR START-UP
Before start-up make sure there are no foreign bodies inside the unit.
Check the fastenings of the closing panels and inspection doors.
Check the electrical power supply and the earthing of the unit.
1.12 DISASSEMBLY AND DISPOSAL
Do not take down or dispose of the product on your own. Disassembly, demolition
and disposal of the product must be carried out by authorised personnel in
accordance with local regulations.
The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from
household waste at the end of its useful life.
The user must, therefore, either return the end-of-life equipment to the appropriate separate collection centres for
electronic and electrotechnical waste or return it to the dealer when purchasing new equipment of an equivalent type,
on a one-for-one basis. Appropriate separate collection for subsequent recycling, treatment and environmentally sound
disposal of discarded equipment helps to avoid possible negative effects on the environment and health and promotes the
recycling of materials from which the equipment is made. Illegal disposal of the product by the user entails application of
the administrative sanctions set out in Legislative Decree No 22/1997” (Article 50 et seq. of Legislative Decree No 22/1997).
ATTENTION:
Important information for the environmentally sound disposal of the device.

9
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
2. INSTALLATION
2.1 INSTALLATION CONDITIONS
The unit must be installed based on national and local regulations governing the use of electrical devices
and based on the following indications:
• install the unit inside residential buildings with room temperature between 0°C and 45°C;
• avoid areas near sources of heat, steam, inflammable and/or explosive gases and particularly dusty areas;
• install the unit in a place that is not subject to frost (the condensation water must be discharged not frozen, at
a certain slope, using a trap);
• do not install the unit in zones with a high relative humidity rate (such as bathroom or toilet) to avoid
condensation on the external surface;
• choose a place of installation where there is enough room around the unit for the connections of the air ducts
and to perform maintenance activities;
• the consistency of the ceiling/wall/floor where the unit will be installed must be suitable for the weight of the
unit and not cause vibrations.
The room chosen for installation must have:
- outdoor air duct connections;
- 230V single-phase electrical connection;
- connection for the condensation discharge.

10
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI

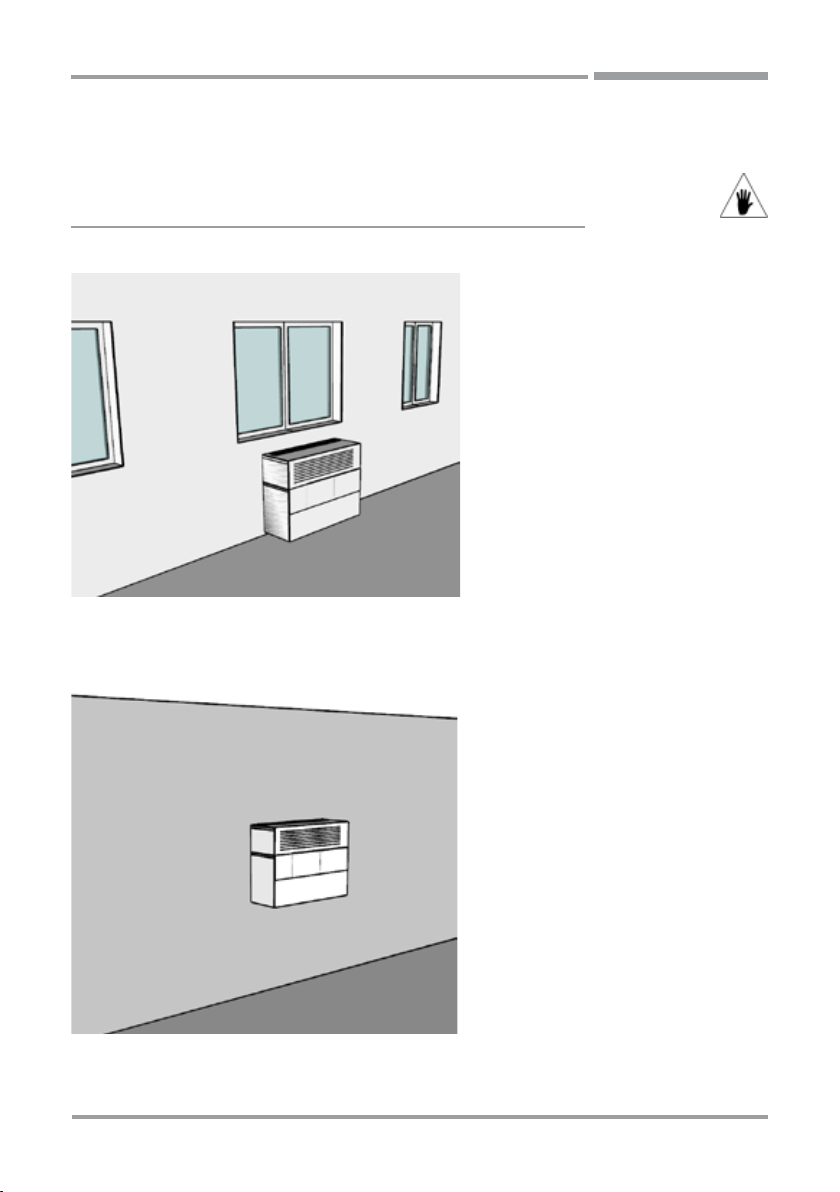

2.2 UNIT POSITIONING
The unit can be installed close to the wall with the pipes directly to the outside, or away from the wall with a
minimum of ducting to get the pipes to the outside;
For installation, the unit does not have ducting but is installed directly adjacent to the wall with direct holes to
the outside;
The rear seals on the back of the unit will ensure a seal between the holes and the installation wall.

11
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI

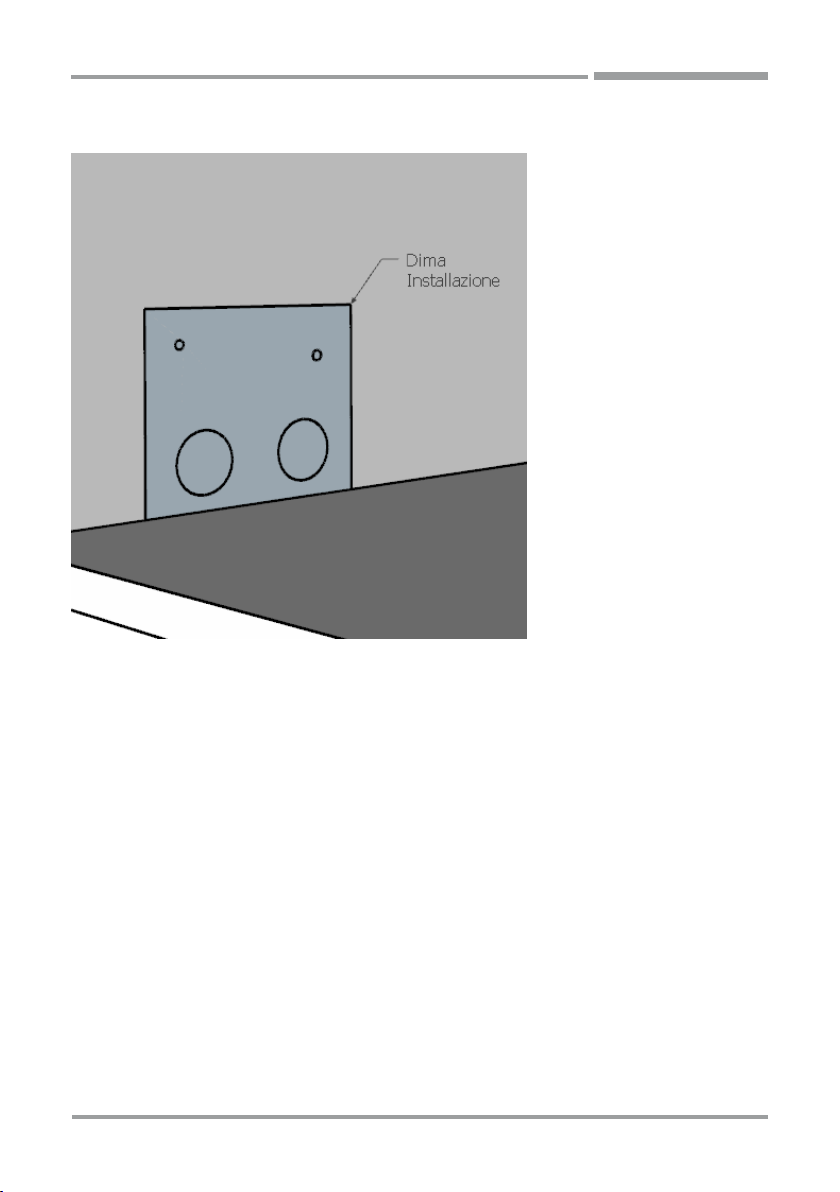

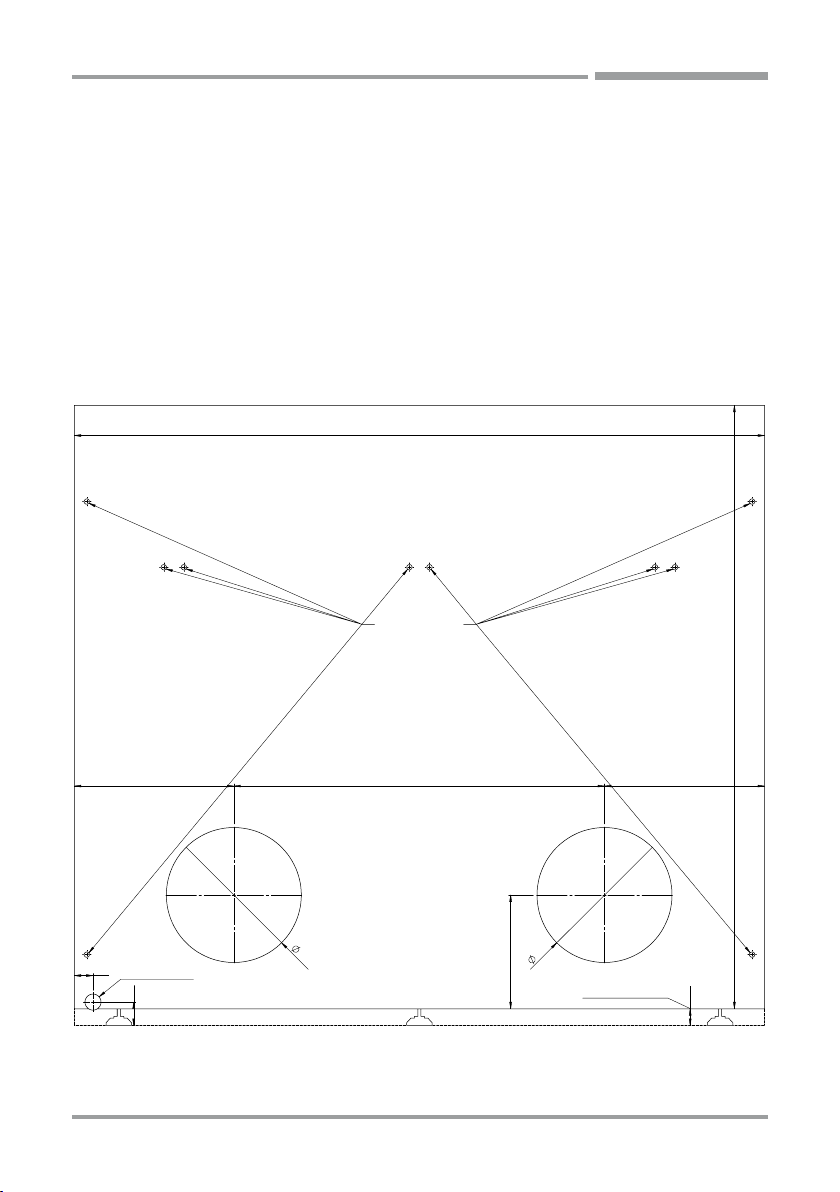

TEMPLATE FOR WALL HOLES
A template is provided for easy drilling of the unit's wall holes;
• Position the wall installation template;
• Mark and drill two holes in the wall for outdoor air and indoor air outlet;

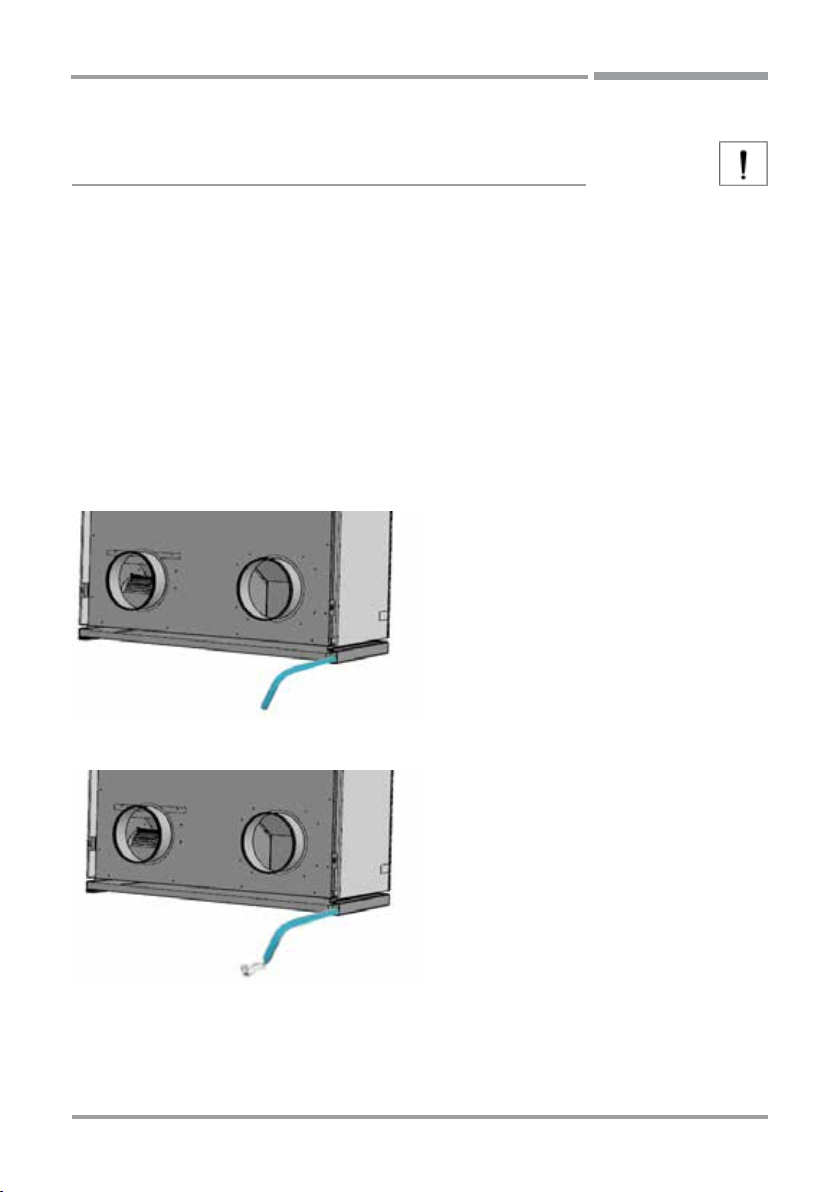

• Prepare the condensate discharge if it is conveyed directly to the outside with the air passage holes;
• Provide enough space to perform maintenance activities: it must be possible to open the cover of the unit (from
below).
• Prepare the fixing holes for the unit.
Do not mount the unit with the sides in direct contact with walls to avoid possible contact noise.
1033
903
25
239 555 239
202
202
28
170
35
PRESA ARIA ESTERNA
ESPULSIONE
lato inferiore unità
lato superiore unità
SCARICO CONDENSA Ø24
piedino regolabile piedino regolabile
Quota regolabile MAX 30 mm
Fori per tasselli Ø8 mm /
Ø8 mm holes for anchors
N420792B

12
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
EXTERNAL GRILLE ASSEMBLY (ACCESSORY)

13
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
To position the external grilles, proceed as follows:
• attach the chains to the end of the springs;
• fold the external dampers back on themselves;
• insert the arm into the hole until the damper protrudes completely outwards, holding the end of the chains with
the other hand to prevent accidental falls;
• re-open the damper outside the hole;
• turn the damper so that the flap is in a vertical position C, checking that the closing mechanism works;
• pull the chains by tensioning the springs;
• cut off the excess chain links with a wire cutter;
• fasten the chain hook to wall B.
Use only the grilles supplied or grilles with the same characteristics.

14
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
The dampers must be positioned with the flap vertical.
The dampers are different. A distinction must be made between the one to be placed on the intake and the one to
be placed on the outlet, depending on the direction in which the flaps open.
Once the installation of the grilles is complete, check their opening (towards the inside of the duct for the intake
grille "IN" and towards the outside of the duct for the exhaust grille "OUT"). Please note that the grilles open when
the outside air flow is activated to allow the cooling or heating function. For their testing, it is therefore essential
to operate the air conditioning to cool or to heat.
WALL MOUNTING UNIT

15
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
The unit is supplied with a bracket for wall mounting.
To fix the unit on the wall:
• Remove the 3 front panels of the unit;
• Remove the upper grille by prying it loose from its seats;
• Remove the sides of the unit through the screws on the top of the unit and bring the side upwards.

16
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
• Drill and dowel the bracket to the wall using the references on the mounting template.
• Level the bracket, preferably with a slight inclination towards the condensate drain on the left side.
• Place the unit on the bracket by tilting it with the top towards the wall so that it engages the bracket and let the
unit rotate towards the wall so that there is adhesion between the wall and the rear insulation.
• Fasten at least two of the four brackets behind the sides of the units to secure the unit and prevent the unit from
slipping on the bracket.
• Provide enough space to perform maintenance activities: it must be possible to open the cover of the unit on the
front.
• Do not mount the unit with the sides in direct contact with walls to avoid possible contact noise.

17
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI

18
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI
2.3 CONDENSATE DISCHARGE CONNECTION
Because of the heat recovery system (the exhaust air is cooled by the air supplied into the heat exchanger), the
humidity contained in the internal air condenses inside the unit.
For correct operation of the heat recovery unit, it is necessary to connect one condensate discharge to the hydraulic
system or disposable drain to the outside. Also, in order for the condensation water to correctly flow out and avoid
air from being sucked in, the condensation discharge must always feature a special trap installed by the installer;
For installation of the condensation discharge, follow these rules:
• set up a slope of at least 2% to the discharge pipe;
• allow the possibility of disconnecting the discharge pipe for any maintenance (especially with ceiling
installation);
• make sure that the discharge end of the pipe is at least below the level of the trap water;
• make sure that the trap is always full of water and at a sufficient height (at least 30-40mm).
On the machine, the drain is located on the left-hand side;
A Dn20 silicone tube is supplied inside the side panel, with a length of 80 mm to facilitate exit from the machine
and connection to the condensate discharge system;
Install a backflow and odour trap to prevent odours and water stagnation in the unit.
ATTENTIONATTENTION TO HORIZONTAL SECTIONS FOR CONDENSATE DISCHARGE WITH DIRECT INSTALLATION TO THE
OUTSIDE; IF WATER STAGNATES AND OUTSIDE TEMPERATURES ARE BELOW 0°, THERE IS A DANGER OF THE
DISCHARGE FREEZING AND THEREFORE POSSIBLE INTERNAL WATER LEAKAGE.

19
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI

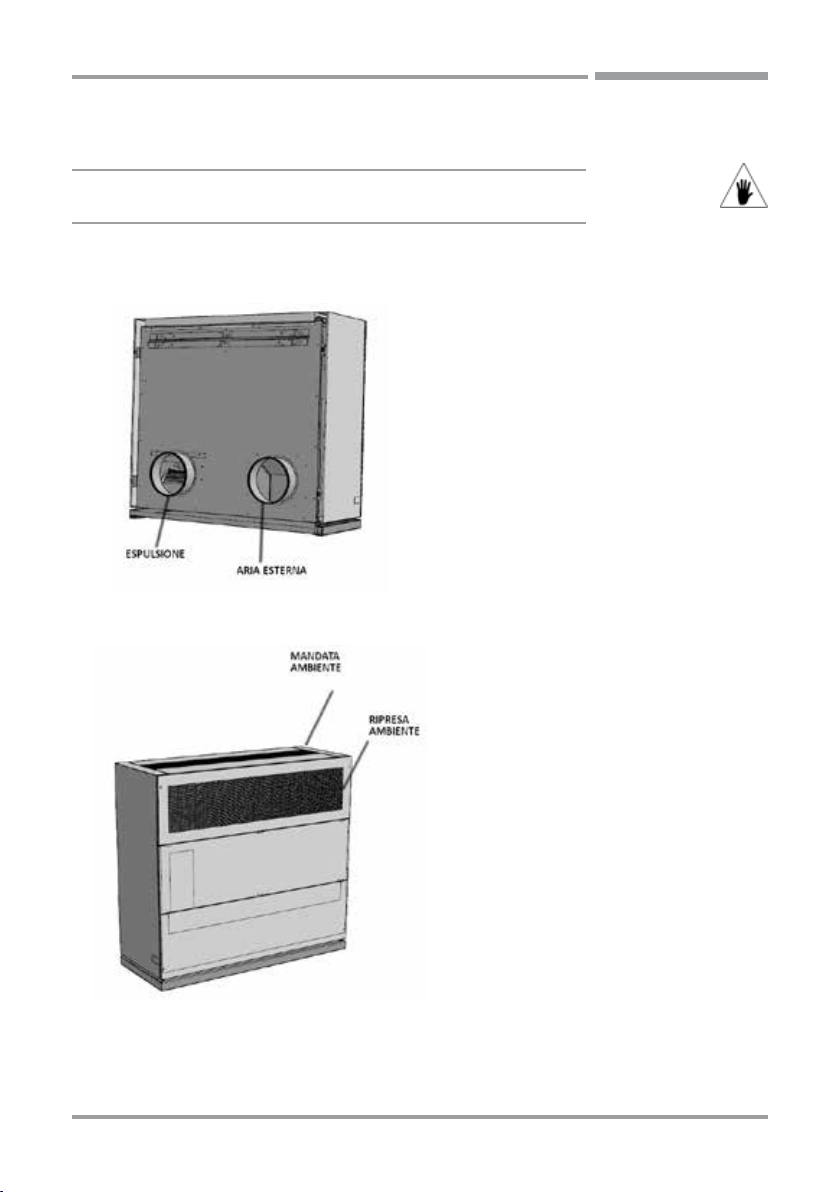

3 AERAULIC CONNECTIONS
3.1 AERAULIC ORIENTATIONS
The unit is equipped with 2 circular male connections Ø 200mm for outdoor air and expulsion to the outside.
EXTERNAL SIDE
INTERNAL SIDE

20
ENGLISH
ASPIRCOMFORT CLASS 620V WI-FI

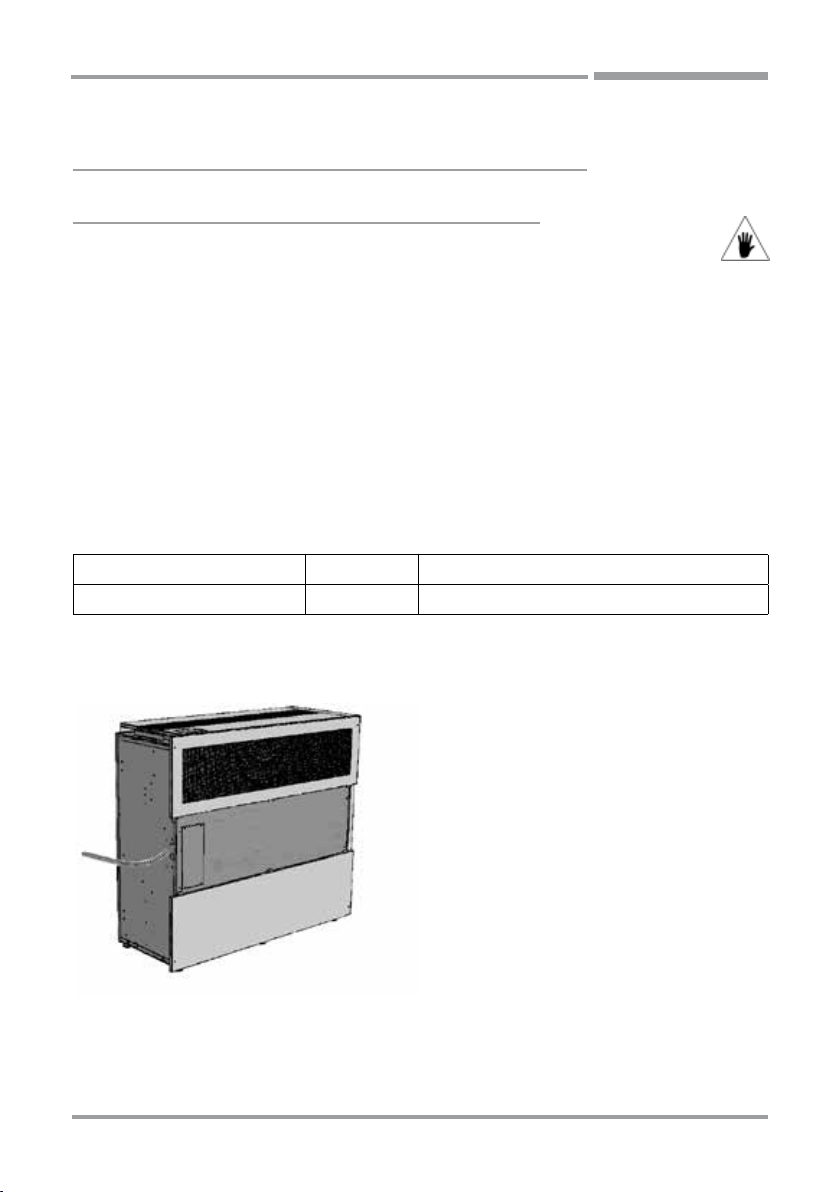

4 ELECTRICAL CONNECTIONS
4.1 GENERAL
- Before starting any operation to perform the electrical connection make sure that the unit is not
electrically powered.
- Perform the necessary electrical connections referring exclusively to the wiring diagram attached to this
manual.
- Install a suitable cut-off and breaker device exclusively serving the unit.
- It is essential for the unit to be efficiently earthed. The manufacturer will not be held liable whatsoever for the
failure to comply.
- Check that the electrical components chosen for installation (main switch, breakers, cable size and terminals)
are suitable for the electrical power of the installed unit and that they take into account the start-up currents of
the compressor in addition to the maximum achievable load. The relative data is stated on the attached wiring
diagram and on the unit’s rating plate.
- It is forbidden to enter the unit with electrical cables except where specified in this file.
- Use duly-sized electrical cables and conductors that comply with the regulations in force in the various
countries.
- Strictly avoid feeding through the electrical cables so that they are directly touching pipes or parts inside the unit.
- After the first moments of operation, check the tightness of the power supply terminal screws.
Table for power supply line sizing.
Power supply V/Ph/Hz 230/1/50
Max absorbed current A 3.5
On the machine, the electrical connections are located on the left-hand side;
A 3x1.5mm power cable is supplied;
The outlet for electrical connections is located on the rear side of the unit
There is a second cable inlet for any remote panel connections or auxiliary connections;
