Salda AMBERAIR COMPACT CXP Guide

AMBERAIR COMPACT CXP
EN MOUNTING AND INSTALLATION INSTRUCTION

2 | EN AMBERAIR COMPACT CXP v2024.2
1. CONTENT
1. CONTENT 2
2. SYMBOLS AND MARKING 3
3. SAFETY INSTRUCTIONS AND PRECAUTIONS 4
4. INFORMATION ABOUT THE PRODUCT 5
4.1. DESCRIPTION 5
4.2. DIMENSIONS AND WEIGHT 5
4.3. TECHNICAL DATA 9
4.4. OPERATING CONDITIONS 10
4.5. STANDARD PACKAGE OF COMPONENTS 10
4.6. DESCRIPTION OF COMPONENTS 10
5. INSTALLATION 11
5.1. RECEPTION OF GOODS 11
5.2. TRANSPORTATION AND STORAGE 11
5.3. UNPACKING 12
5.4. PIPING AND INSTRUMENTATION DIAGRAM 13
5.5. MOUNTING 14
5.6. UNIT PLACING AND MOUNTING POSITIONING REQUIREMENTS 15
5.7. CEILING-MOUNTING OF THE UNIT 15
5.7.1. THE INSTALLATION OF THE SUPPORTING LEGS FOR THE FLOOR-MOUNTED VERSION 16
5.7.2. DRAINAGE 16
5.8. CONNECTION OF THE AIR DUCT 17
5.9. CONNECTION OF THE UNIT TO THE ELECTRIC NETWORK 17
5.10. START-UP RECOMMENDATIONS 18
5.10.1.SYSTEM PROTECTION 18
5.10.2.PRE START-UP RECOMMENDATIONS OF THE UNIT (IN THE PRESENCE OF THE END-USER) 18
6. MAINTENANCE 19
6.1. SAFETY INSTRUCTION 19
6.2. GENERAL RECOMMENDATIONS FOR THE MAINTENANCE OF VENTILATION SYSTEM 19
6.3. COVER OPENING 19
6.4. FILTERS MAINTENANCE 21
6.5. FANS MAINTENANCE 21
6.6. HEAT EXCHANGER MAINTENANCE 22
6.7. ELECTRIC, WATER HEATER MAINTENANCE 23
6.8. CONTROL BOARD MAINTENANCE 24
7. CONTROL 25
7.1. DEVICE CONTROL 25
7.2. DEVICE FUNCTIONS 25
8. CONNECTION OF ACCESSORIES 26
8.1. FIRE AND FIREPLACE PROTECTION 26
8.2. EXTERNAL CO2/RH SENSORS 26
8.3. ROOM CO2 TRANSMITTER INSTALLATION RECOMMENDATION 26
8.4. CO2CONCENTRATION ACCORDING TO PETTENKOFER LIMIT 26
8.5. CONNECTION OF SUPPLY AND EXHAUST AIR DAMPERS 27
8.6. CONNECTION OF REMOTE CONTROL PANEL OR MODBUS 27
8.7. WATER HEATER CIRCULATION PUMP AND VALVE ACTUATOR 27
8.8. PREHEATER AND COOLER 28
8.9. ELECTRICAL DIAGRAMS AND ABBREVIATION IN ELECTRICAL CIRCUIT DIAGRAMS 28
9. POSSIBLE FAULTS AND TROUBLESHOOTING 33
10.ECODESIGN DATA TABLE 33
11.DECLARATION OF CONFORMITY 34
12.WARRANTY 35
12.1. LIMITED WARRANTY COUPON 35

EN | 3AMBERAIR COMPACT CXP v2024.2

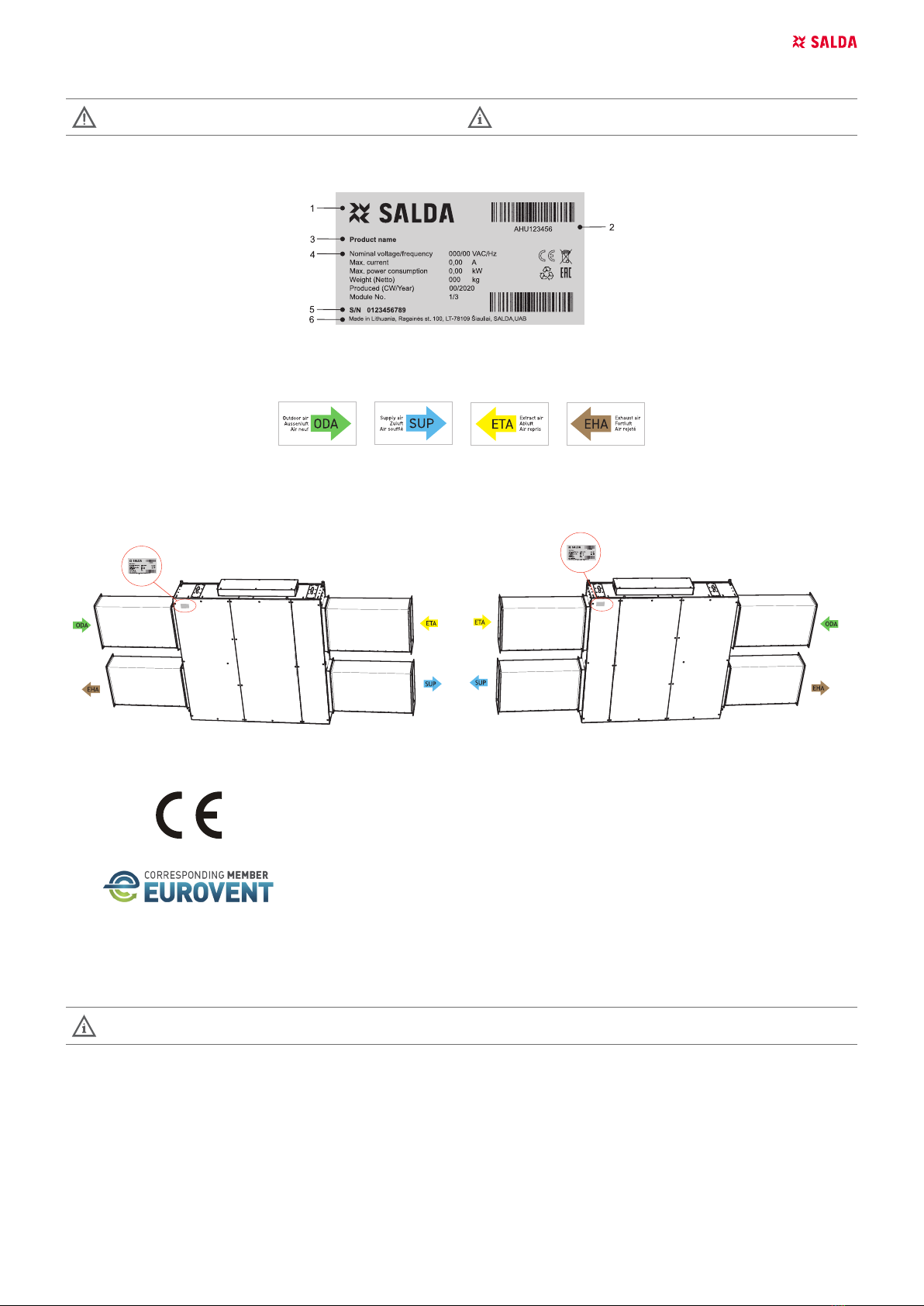

2. SYMBOLS AND MARKING
Warning – pay attention Additional information
Apply the technical label on the unit (in an easily accessible location) or on the dashed location of the technical manual to keep the important
information about the unit.
Figure 2.1. Technical label
1 - Logo; 2 - Product code (SKU); 3 - Product name; 4 - Technical data; 5 - Serial number; 6 - Production place.
Figure 2.2. Indication for duct connection.
ODA - outdoor air; SUP - supply air; ETA - extract air; EHA - exhaust air.
Figure 2.3. Technical label location and air duct indication (right
side)
Figure 2.4. Technical label location and air duct indication (left side)
Units tested and produced according to EC directives
SALDA – associated member of the Eurovent association (Europe’s Industry Association for
Indoor Climate (HVAC), Process Cooling, and Food Cold Chain Technologies)
VDI 6022 AmberAir Compact SD50+ units designed of the VDI 6022 Part 1 guideline (Hygiene require-
ments for ventilation and air-conditioning systems and units)
NOTE. Ducts are not parts of the unit.

4 | EN AMBERAIR COMPACT CXP v2024.2
3. SAFETY INSTRUCTIONS AND PRECAUTIONS
Read these instructions very carefully before installing and using this equipment. Installation, connection and maintenance should be carried out
by a qualied technician and in accordance with local regulations and legislation.
The company shall take no responsibility for the injuries or damaged property if the safety requirements are not followed, or the device is modied
without the permission of the manufacturer.
Main safety rules
Danger
• Before carrying out any electrical or maintenance works, make sure that the device is disconnected from the mains and that all moving
parts of the device have stopped.
• Make sure that the fans are not accessible through air ducts or branch openings.
• If any liquids on electric parts or connections that bear voltage are noticed, stop the operation of the device.
• Do not plug the device into the mains that di󰀨er from the one indicated on the label or on the housing.
• Voltage of the mains should comply with the electrotechnical parameters indicated on the label.
• The device should be earthed in accordance with the regulations on the installation of electric devices. Turning on and using an un-
earthed device is not allowed. Follow the requirements specied on the device’s labels that indicate danger.
Warnings
• Connection of electricity and maintenance of the device should be performed by qualied personnel only and in accordance with the
manufacturer’s instructions and safety requirements.
• In order to reduce the risk during installation and maintenance, suitable protective clothing must be worn.
• Beware of sharp angles while carrying out installation and maintenance works.
• Do not touch heating elements until they haven’t cooled down.
• Some devices are heavy, you should be very careful while transporting and installing them. Use suitable lifting equipment.
• When connecting electricity to the mains, a circuit breaker of suitable size must be used.
Warning!
• If the device is installed in a cold environment, make sure that all connections and tubes are properly isolated. Intake and discharge air
ducts should be isolated in all cases.
• Openings of the ducts should be covered during transportation and installation.
• Make sure not to damage the heater when connecting the piping of the water heater. For tightening up, use a wrench/spanner.
Before starting up the device
• Make sure, that there are no strange objects inside the device;
• Manually check fans to make sure they are not stuck or blocked;
• If rotary heat exchanger is installed in the device, make sure that it is not stuck or blocked;
• Check the earthling;
• Make sure that all components and accessories are connected in accordance with the wiring diagram or provided instructions.
Danger: Fumes
Salda Antifrost system uses dis-balancing of an airow and it may cause negative pressure in premises. Care must be taken when using
the device in the premises together with another heating appliance that depends on the air in the premises. Such appliances include
gas, oil, wood or coal-red boilers and heaters, replaces, continuous ow or other water heaters, gas hobs, cookers or ovens that draw
the air in from the room and the duct-exhaust gases out through chimney or extraction ducting. The heating appliance can be starved of
oxygen, impairing combustion. In exceptional cases, harmful gases could be drawn out of the chimney or extraction ducting back into
the room. In such case we strictly recommend to turn o󰀨 Salda Antifrost and use an external preheater for heat exchanger anti-frost
protection (see Salda Antifrost function in the Remote Controller Operation Manual).

EN | 5AMBERAIR COMPACT CXP v2024.2
4. INFORMATION ABOUT THE PRODUCT
4.1. DESCRIPTION
AmberAir Compact CX P includes the following model options:
Model: 1-4 CX P
Model box: CD50.
Heating electric coil: EL1 (low power), EL2 (medium power), EL3 (high power).
Heating water coil: HW1 (low power), HW2 (medium power), HW3 (high power, only for vertical), HW4 (extra high power only for vertical).
Right or left models: R (Right) L (Left). The side where the supply air is located when viewed from the access side.
Fan (plastic/metal impellers): F1 (low power).
Cooling water coil: HW1 (low power), HW2 (medium power). More power capacity available with accessories.
Control type: C1 MCB, C2 Pre-wiring.
Not suitable for operation in pools, saunas and other similar premises.
4.2. DIMENSIONS AND WEIGHT

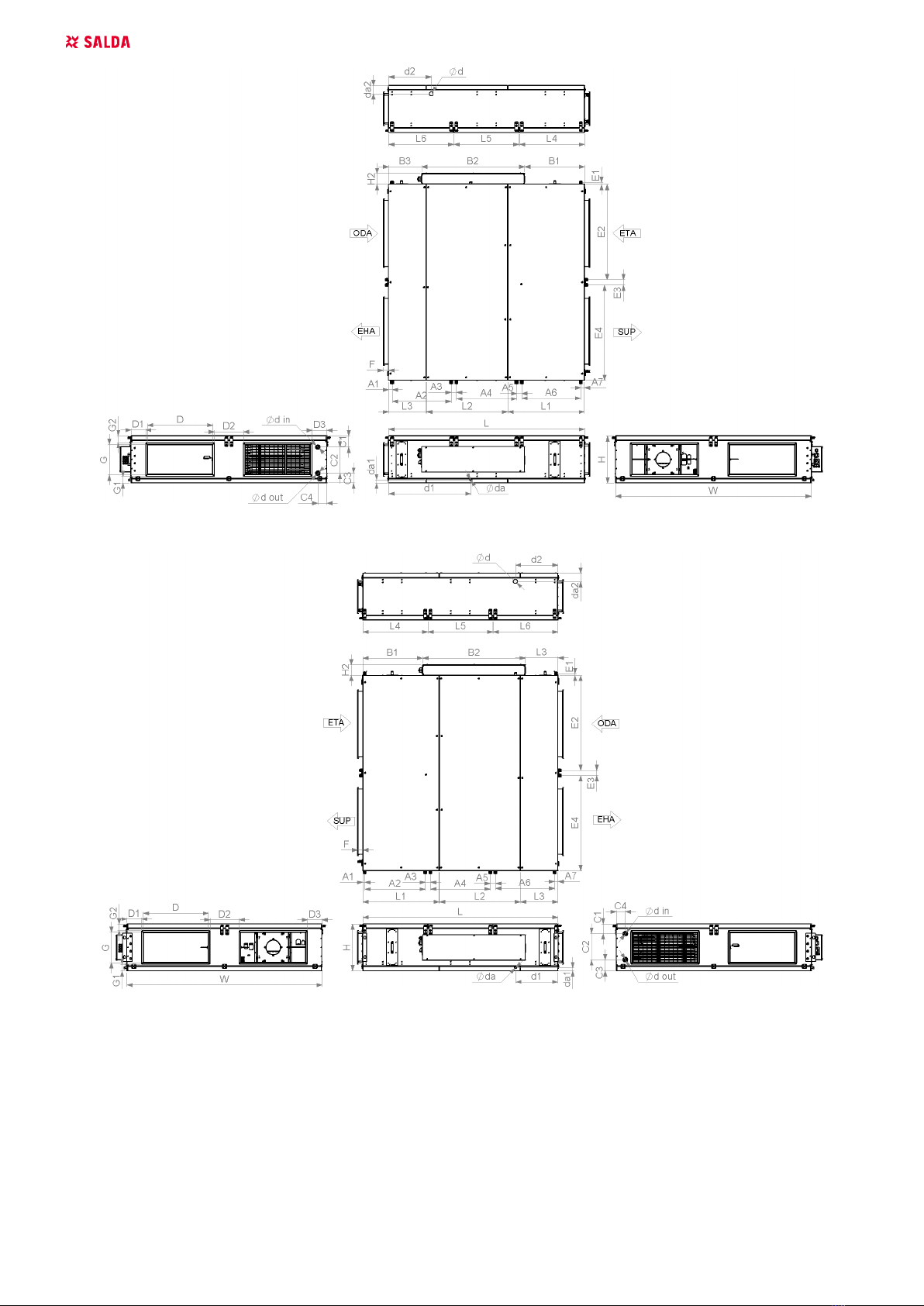

Figure 4.2.1. AmberAir Compact 1 CX P R
Figure 4.2.2. AmberAir Compact 1 CX P L

6 | EN AMBERAIR COMPACT CXP v2024.2
Figure 4.2.3. AmberAir Compact 2-4 CX P R
Figure 4.2.4. AmberAir Compact 2-4 CX P L

EN | 7AMBERAIR COMPACT CXP v2024.2
AMBERAIR COMPACT 1 CX P E R 1 CX P W R 1 CX P E L 1 CX P W L 2 CX P E R 2 CX P W R 2 CX P E L 2 CX P W L
L[mm] 1750 1900
W[mm] 1397 1850
H[mm] 386/426 400/440
D[mm] 500 700
G[mm] 250 300
L1 [mm] 874 715
L2 [mm] 874 812
L3 [mm] - 368
L4 [mm] - 704
L5 [mm] - 595
L6 [mm] - 595
dn 1/2"
dna 1/2"
F[mm] 50 60
H2 [mm] 138 123
A1 [mm] 72 61
A2 [mm] 195 375 363
A3 [mm] 1215 1038
A4 [mm] 195 363 375
A5 [mm] 72 61
B1 [mm] 498 506 522
B2 [mm] 835 928
B3 [mm] 418 464 449
C1 [mm] - 101 - 101 - 94 - 94
C2 [mm] - 167 - 167 - 233 - 233
C3 [mm] - 118 -118 -112 -112
C4 [mm] - 78 - 79 - 87 - 87
D1 [mm] 77 124
D2 [mm] 111 121
D3 [mm] 127 124
da1 [mm] 16/36 16/36
da2 [mm] 95/115 75/95 63/83
d in - 1/2" - 1/2" - 1/2" - 1/2"
d out - 1/2" - 1/2" - 1/2" - 1/2"
E1 [mm] 21
G1 [mm] 47/67 30/50 30/50
G2 [mm] 47/67 30/50 30/50
d1 [mm] 698 817 423
d2 [mm] 1104 1473 1461
AMBERAIR COMPACT 1-CXP-
I30
1-CXP-
I50
1-CXP-
E1-I30
1-CXP-
E1-I50
1-CXP-
E2-I30
1-CXP-E2
I50
1-CXP-
W1-I30
1-CXP-
W1-I50
1-CXP-
W2-I30
1-CXP-
W2-I50
1-CXP-
W3-I50
Weight [kg] 188 197 192 197 193 198 194 199 196 201 203
AMBERAIR COMPACT 2-CXP-
I30
2-CXP-
I50
2-CXP-
E1-I30
2-CXP-
E1-I50
2-CXP-
E2-I30
2-CXP-E2
I50
2-CXP-
W1-I30
2-CXP-
W1-I50
2-CXP-
W2-I30
2-CXP-
W2-I50
2-CXP-
W3-I50
Weight [kg] 273 262 280 288 282 290 280 288 281 289 290

8 | EN AMBERAIR COMPACT CXP v2024.2
AMBERAIR COMPACT 3 CX P E R 3 CX P W R 3 CX P E L 3 CX P W L 4 CX P E R 4 CX P W R 4 CX P E L 4 CX P W L
L[mm] 1950 2250
W[mm] 2060 2250
H[mm] 400/440 500/540
D[mm] 750
G[mm] 300 350
L1 [mm] 765 879
L2 [mm] 813 932
L3 [mm] 367 433
L4 [mm] 729 748
L5 [mm] 608 748
L6 [mm] 608 748
Ød 1/2" -
Øda 1/2" -
Ød [mm] - 21
Øda [mm] - 21
F[mm] 60 60
H2 [mm] 125 122
A1 [mm] 61 41 21
A2 [mm] 367 678 699
A3 [mm] 1092 60
A4 [mm] 367 691
A5 [mm] 61 60
A6 [mm] - 678 682
A7 [mm] - 38 40/41 38
B1 [mm] 571 688
B2 [mm] 928 1185
B3 [mm] 449 377
C1 [mm] - 75/95 - 75/95 - 128 - 112
C2 [mm] - 233 - 233 - 300 - 300
C3 [mm] - 91/111 - 91/111 - 110 - 127
C4 [mm] - 88 - 88 - 104 - 104
D1 [mm] 140 169
D2 [mm] 200 333
D3 [mm] 140 169
da1 [mm] 16/36 36
da2 [mm] 64/84 96
Ød in - 22 - 22 - 22 - 22
Ød out - 22 - 22 - 22 - 22
E1 [mm] 21
E2 [mm] - 1095
E3 [mm] - 60
E4 [mm] - 1095
G1 [mm] 30/50 75
G2 [mm] 30/50 75
d1 [mm] 838 423 945 490
d2 [mm] 427 490 490
AMBERAIR COMPACT 3-CXP-
I30
3-CXP-
I50
3-CXP-
E1-I30
3-CXP-
E1-I50
3-CXP-
E2-I30
3-CXP-E2
I50
3-CXP-
W1-I30
3-CXP-
W1-I50
3-CXP-
W2-I30
3-CXP-
W2-I50
3-CXP-
W3-I50
Weight [kg] 305 315 377 387 380 390 377 387 378 388 389
AMBERAIR COMPACT 4-CXP-
I30
4-CXP-
I50
4-CXP-
E1-I30
4-CXP-
E1-I50
4-CXP-
E2-I30
4-CXP-E2
I50
4-CXP-
W1-I30
4-CXP-
W1-I50
4-CXP-
W2-I30
4-CXP-
W2-I50
4-CXP-
W3-I50
Weight [kg] 437 433 440 451 444 455 439 450 440 451 452

EN | 9AMBERAIR COMPACT CXP v2024.2
4.3. TECHNICAL DATA
CX P units can be integrated with various selected components.
AMBERAIR COMPACT 1 CX P 2 CX P
Exhaust air fan F1 F1
phase/voltage [50 Hz/VAC] 1/230 1/230
power/current [kW/A] 0,38/2,5 0,39/1,7
speed [min-1] 3370 3530
control input [VDC] 0-10 0-10
protection class IP54 IP54
Supply air fan F1 F1
phase/voltage [50 Hz/VAC] 1/230 1/230
power/current [kW/A] 0,38/2,5 0,39/1,7
speed [min-1] 3370 3530
control input [VDC] 0-10 0-10
protection class IP54 IP54
Electrical heater E1 E2 E3 E4 E1 E2 E3 E4
Power [kW] 2 3,6 2 3,6 3 6 3 6
Insulation of walls [mm] 30/50 30/50
Exhaust air lter
(class, dimensions LxWxH) [mm] ePM1-70, 645x256x90 ePM10-55, 894x279x46
Supply air lter
(class, dimensions LxWxH) [mm] ePM1-70, 645x256x90 ePM1-70, 894x279x46
AMBERAIR COMPACT 3 CX P 4 CX P
Exhaust air fan F1 F1
phase/voltage [50 Hz/VAC] 3/400 3/400
power/current [kW/A] 1,05/1,6 1,8/2,8
speed [min-1] 3400 3410
control input [VDC] 0-10 0-10
protection class IP55 IP54
Supply air fan F1 F1
phase/voltage [50 Hz/VAC] 3/400 3/400
power/current [kW/A] 1,05/1,6 1,8/2,8
speed [min-1] 3400 3410
control input [VDC] 0-10 0-10
protection class IP55 IP54
Electrical heater E1 E2 E3 E4 E1 E2 E3 E4
Power [kW] 4,5 9 3,6 9 6 12 6 9
Insulation of walls [mm] 30/50 30/50
Exhaust air lter
(class, dimensions LxWxH) [mm] ePM1-70, 1000x279x46 ePM1-70, 1113x379x46
Supply air lter
(class, dimensions LxWxH) [mm] ePM10-55, 1000x279x46 ePM10-55, 1113x379x46
According to EN 13141-7.
Acoustic data: check the product page on www.salda.lt
Control board with complete set of MCB controllers is integrated in all CX P units.
List of possible fans and electrical heaters of the unit is present above. More details of the unit and each unit's component can
be found on the "VentMaster" selection app.
Not suitable for installation in living rooms: additional noise insulation required.

10 | EN AMBERAIR COMPACT CXP v2024.2
4.4. OPERATING CONDITIONS
AMBERAIR COMPACT 1 CX P 2 CX P 3 CX P 4 CX P
Minimum outdoor air temperature -23 oC -23 oC -23 oC -23 oC
Maximum outdoor air temperature 40 oC 40 oC 40 oC 40 oC
Minimum extracted air temperature 15 oC 15 oC 15 oC 15 oC
Maximum extracted air temperature 40 oC 40 oC 40 oC 40 oC
Maximum extracted air relative humidity 60 % 60 % 60 % 60 %
Minimum ambient air temperature -23 oC* -23 oC* -23 oC* -23 oC*
Maximum ambient air temperature 40 oC 40 oC 40 oC 40 oC
Installation indoor/outdoor indoor/outdoor indoor/outdoor indoor/outdoor
* - with 50 mm insulation.
4.5. STANDARD PACKAGE OF COMPONENTS
AMBERAIR COMPACT 1 CX P 2 CX P 3 CX P 4 CX P
Key 1 1 1 1
Supply air temperature sensor TJ 1 1 1 1
Water temperature sensor for water heater TV1 (water version
only) 1 1 1 1
Hanging bracket 8 8 8 16
Anti-vibration rubber 8 8 8 16
Legs for ground version 2 3 3 3
Legs for vertical version 2 3 3 3
4.6. DESCRIPTION OF COMPONENTS
Figure 4.1. AmberAir Compact 1 CXP Figure 4.2. AmberAir Compact 2-4 CXP
1 - Plate heat exchanger; 2 - Supply fan; 3 - Exhaust fan; 4 - By-pass damper; 5 - Heating coil (depends on the model); 6 - Control board;
7 - Extract air lters (panel); 8 - Supply air lter (panel).

EN | 11AMBERAIR COMPACT CXP v2024.2
5. INSTALLATION
5.1. RECEPTION OF GOODS
Each device is carefully checked before transportation. When receiving the goods, checking the devices for any damage made during transporta-
tion is recommended. If any damage to the unit is observed, immediately contact the representatives of a transport company. Please inform the
representative of the manufacturer, if any deviation of the device is noticed.
5.2. TRANSPORTATION AND STORAGE
• All units are factory-packaged to withstand normal conditions of transportation.
• When unpacking, check the unit for any damage made during transportation. Installing the damaged units is not allowed!
• The packaging is used for protection purposes only!
• When unloading and storing the units, use suitable lifting equipment to avoid damage and injuries. Do not lift units by holding on power supply
cables, connection boxes, air extract or exhaust anges. Avoid hits and shock overloads. Before installation, the units must be stored in a dry
room with relative air humidity not exceeding 70 % (at +20 °C) and with an average ambient temperature ranging between +5 °C and +30 °C.
The storage place must be protected against dirt and water.
• The units must be transported to the storage place or installation site using forklifts.
• The recommended storage i period should not be longer than one year. In case of storing the units for a period longer than one year, checking
if the fan bearings and motor rotate without di󰀩culty (turning the impeller by hand) and if the electric circuit insulation is not damaged or the
moisture has not accumulated must be performed before the installation of the unit.
The product is heavy. Exercise caution when transporting and installing.
H
L
W
AMBERAIR COMPACT H W L
[mm] [mm] [mm]
1 CX P 1707 1000 1900
2 CX P 2166 1200 2050
3 CX P 2398 1200 2164
4 CX P 2578 1200 2464
L1 L2
L1>L2

12 | EN AMBERAIR COMPACT CXP v2024.2
L1 L2
L1>L2

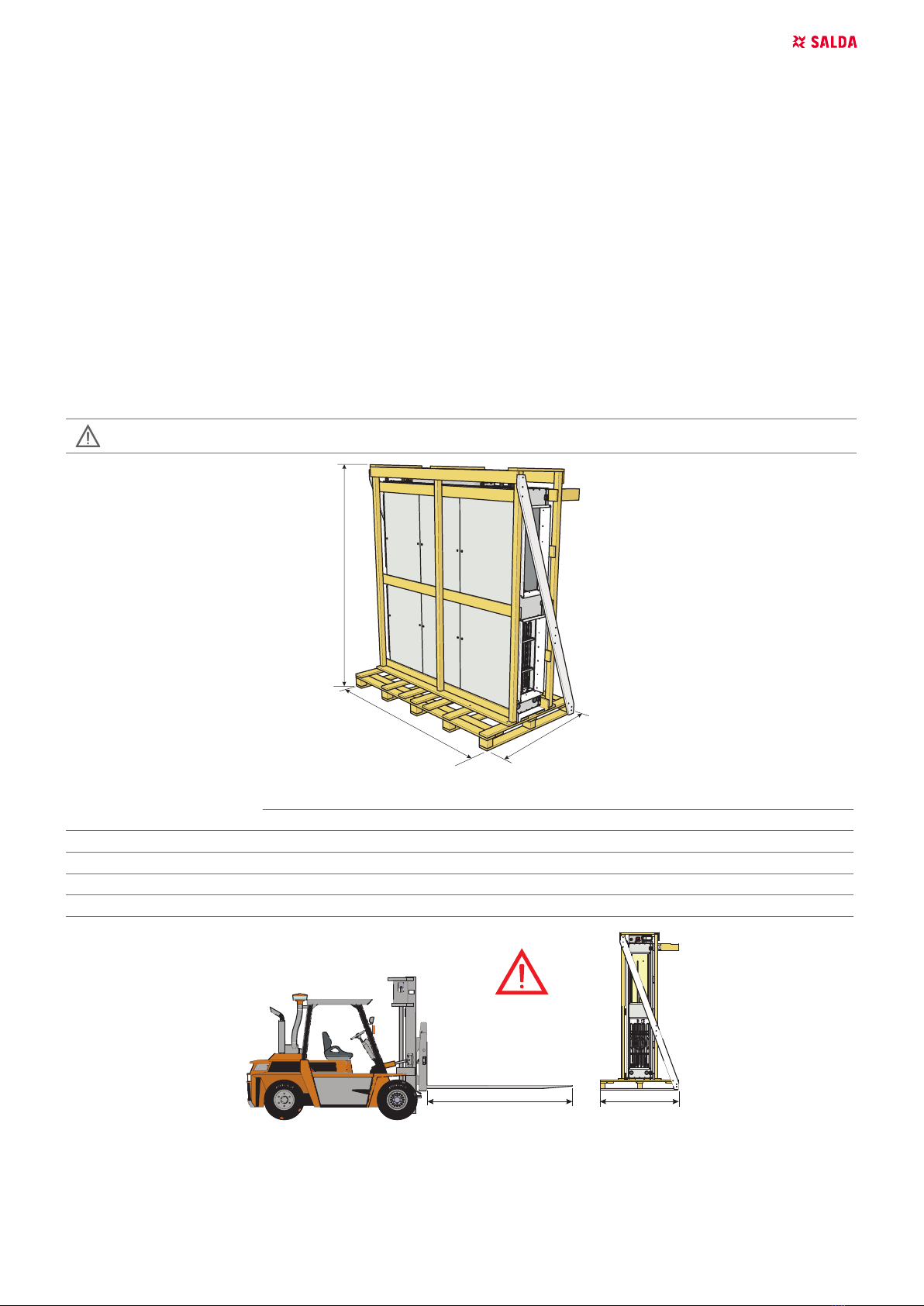

Figure 5.2.1. AmberAir Compact CX P lifting with a forklift
Figure 5.2.2. AmberAir Compact CX P lifting with slings
In order to prevent damage to the casing, only a product placed on a pallet should be lifted.
5.3. UNPACKING
Accessories may be packed together with the product. Prior to transporting the unit, the accessories should be unpacked rst.
AmberAir Compact CX P are very heavy, so exercise caution when handling them. Follow safety requirements established in
your country.
• Remove the lm from the unit.
• Remove the bracing packaging tape that keeps the protective proles in place.
• Remove the protective proles.
• After unpacking the unit, examine it to make sure that no damage was made during transportation. Installation of damaged units is not allowed!
• Before commencing the installation of the unit, please check if all ordered equipment has been delivered. Any deviation from the ordered equip-
ment list must be reported to the product supplier.
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
After unpacking AmberAir Compact 4 CX P, open the side covers and unscrew the supporting legs, which are used for trans-
portation, from the fans.

EN | 13AMBERAIR COMPACT CXP v2024.2
5.4. PIPING AND INSTRUMENTATION DIAGRAM
Figure 5.4.1. Electrical version
Figure 5.4.2. Water version
Figure 5.4.3. Without integrated coil version
* The electric and water pre-heaters may not be used at the same time.
LIST OF COMPONENTS
CPlate heat exchanger PV Supply air fan
IF Extract air lter PF Supply air lter
IV Exhaust fan TE Exhaust air temperature sensor
TJ Supply air temperature sensor DTJ Extract air temperature and humidity sensor
CO2CO2sensor PC Computer
KE1 Electric heater PE1 Electric pre-heater
M1 By-pass damper actuator M2 Outdoor air damper actuator
M3 Exhaust air damper actuator A1 Fire alarm damper actuator I
A2 Fire alarm damper actuator II U3 Supply air fan pressure sensor
U4 Exhaust air fan pressure sensor TL Outdoor air temperature sensor

14 | EN AMBERAIR COMPACT CXP v2024.2
LIST OF COMPONENTS
M
CO2
Ventilated premises MB-Gateway Network module
NET Network RC Stouch or ST-SA-Control remote control panel
DX DX cooler KV1 Water heater
KV2 Water pre-heater KV3 Water cooler
T1 Water heater thermostat T2 Cooler switching thermostat
M4 Water heater circulation pump M16 Water pre-heater circulation pump
M14 Water cooler circulation pump M5 Water cooler valve motor
M12 Water pre-heater valve motor M15 DX cooler valve motor
M6 Water heater valve motor TV1 Water heater temperature sensor
TV2 Water preheater temperature sensor TV3 Water cooler temperature sensor
PS1 Supply air lter di󰀨erential pressure sensor PS2 Extract air lter di󰀨erential pressure sensor
PS3 Heat exchanger di󰀨erential pressure sensor
POSSIBLE PCB INPUTS/OUTPUTS
FA Fire alarm FPP Fireplace protection
H1 Working indication output H2 Alarm indication output
System mode switch (START/STOP) Fans speed switch (BOOST)
5.5. MOUNTING
• Installation works should be carried out by qualied and trained sta󰀨 only.
• When connecting air ducts, consider the labels on the casing of the unit.
• Before connecting to the air duct system, the connection openings of the ventilation unit should be closed.
• When connecting the ducts, the air-ow direction indicated on the device housing should be observed.
• Do not connect the bends close to the connection anges of the unit. The minimum distance of the straight air duct between the unit and the rst
branch of the air duct in the supply and exhaust air ducts must be 3xD, where D is the diameter of the air duct.
• It is recommended to use brackets (accessories). This will reduce the vibration transmitted by the unit to the air duct system and environment.
• Su󰀩cient space must be provided for opening of the manhole and lter covers.
• If the ventilation unit is a wall-mounted device, it may transmit noise vibrations to the premises. Though the level of noise generated by the fans is
admissible, we recommend mounting the unit at a distance of 400 mm from the nearest wall. Where this is not possible, we recommend mounting
the unit on the wall of the room where the level of noise is not signicant.
• Ducts are connected to the unit in such a way that they could be easily disassembled,and the coil could be removed from the unit when carrying
out maintenance, service and/or repair works.
The protective lm is used to protect the unit during transportation. It is recommended to remove the lm; otherwise, oxidation
signs may occur.
The condensate tube must be lled with water as indicated during the rst start-up before every heating season!
W
α
W
α
α
Figure 5.5.1. Ceiling-mounting positions (α>1o)
The product can be installed under the ceiling or on the oor.
Installation under the ceiling
• When installing under the ceiling, the product is screwed up to the supporting legs with shock-absorbing gaskets.
• The method of raising the product is shown in the section "TRANSPORTATION AND STORAGE".
• AmberAir Compact 1 CX P is installed straight using a level. AmberAir Compact 2-4 CX P should be turned by 0.5-1o.
Installation on the oor
• When installing on the oor, the second supporting legs attached by the manufacturer should be used.
• The installation of the base is shown on page 16.
• AmberAir Compact 1 CX P is installed after alignment using a level.
• AmberAir Compact 2-4 CX P is installed with its end raised by 0.5-1o.

EN | 15AMBERAIR COMPACT CXP v2024.2
0,5 - 1o
Figure 5.5.2. AmberAir Compact CX P mounting
5.6. UNIT PLACING AND MOUNTING POSITIONING REQUIREMENTS
L
1,5xL
L
1,5xL
H
H

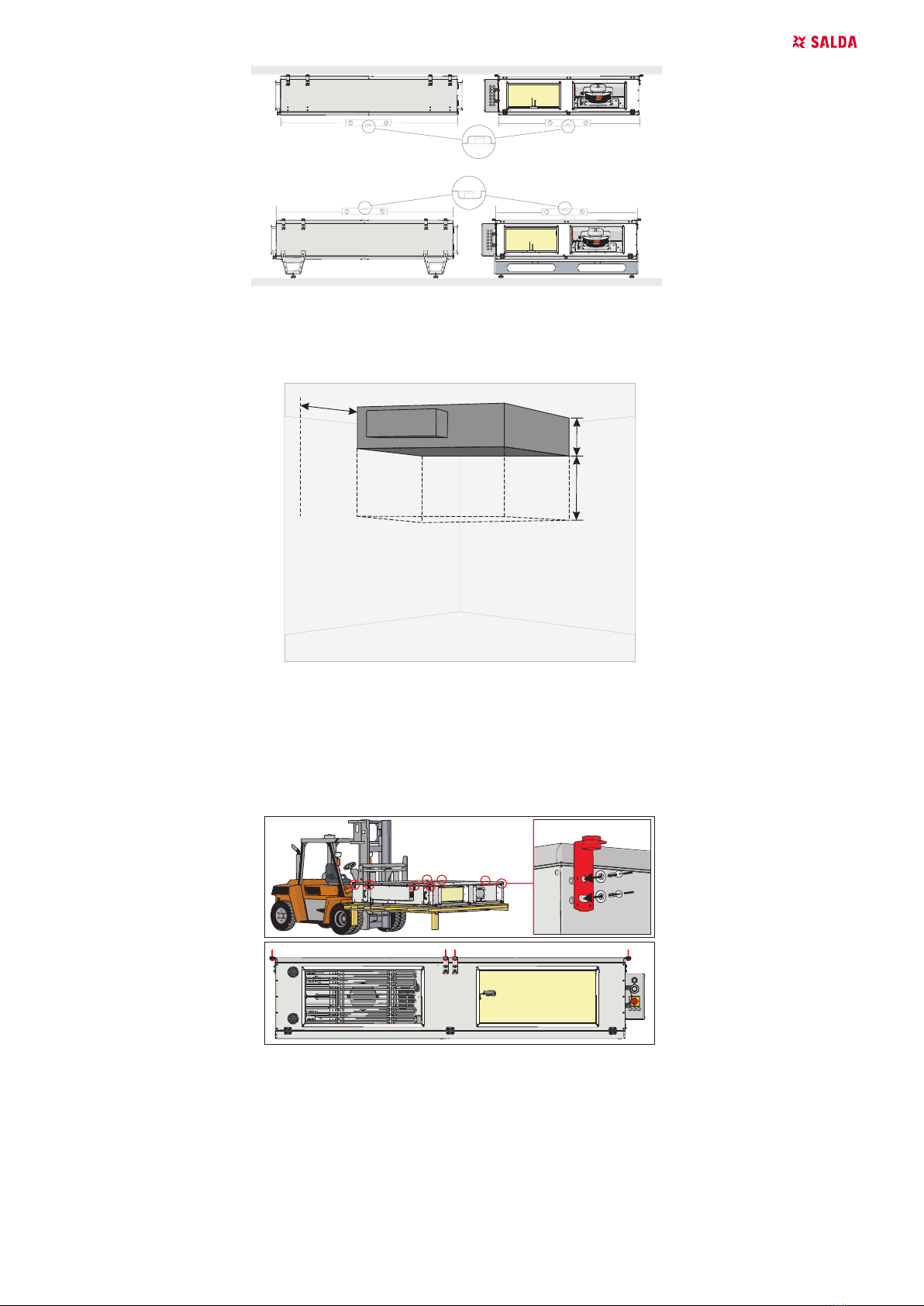

Figure 5.6.1. Min. distance to open the door - 1,5xL; Min. distance to open the control box door - H > 400 mm.
5.7. CEILING-MOUNTING OF THE UNIT
• Before starting installation work, rst unpack the product as shown in the section "UNPACKING".
• After screwing up the suspension brackets, the product with the whole remaining pallet is raised to the ceiling using a forklift.
• After mounting the product to the wall, the forklift with the remaining pallet is withdrawn.
max. 50 cm
30 mm
50 mm
30 mm 50 mm

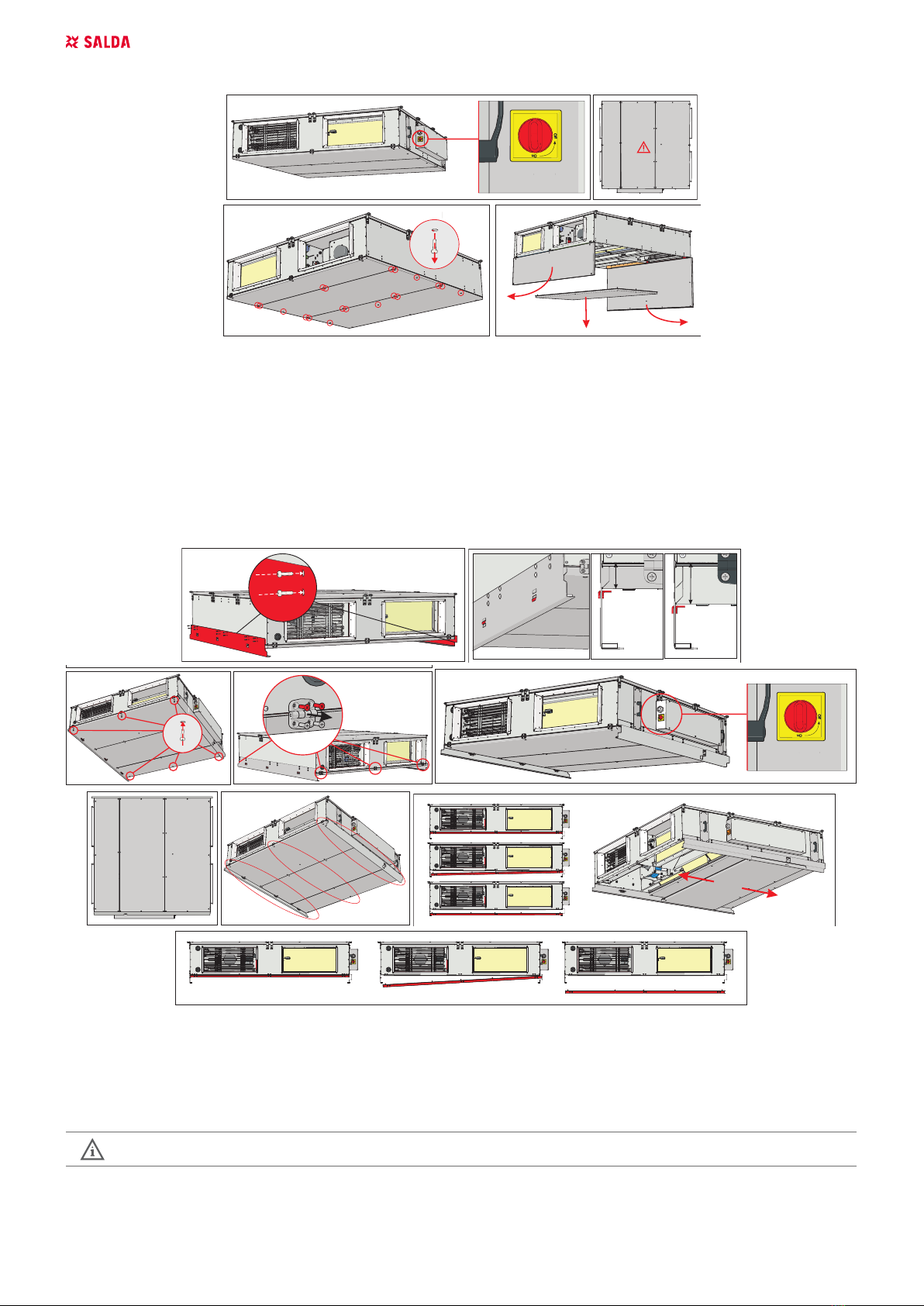

• Rails are o󰀨ered as an accessory to be screwed up to the suspended product after installing the cover holders to the appropriate position.
• If the thickness of the cover is 30 mm, insert the holder into the upper hole. If the thickness of the cover is 50 mm, insert the holder into the lower
hole.
• To screw up the rails, washers and screws are used.
• When using the rails, the hinges should be unscrewed from the cover after screwing up its ends. The accessories bag contains screws for fas-
tening the end of the cover that was previously held by the hinges.

16 | EN AMBERAIR COMPACT CXP v2024.2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
3
3
2
2
1
1
I
II
III
30 mm
50 mm
30 mm
50 mm
1
1
3
3
2
2
1
1
32
2
5.7.1. THE INSTALLATION OF THE SUPPORTING LEGS FOR THE FLOOR-MOUNTED VERSION
• Before starting installation work, rst unpack the product as shown in the section "UNPACKING".
• After screwing up 4 lifting brackets to the product, fasten the lifting slings to the brackets (use washers and screws for screwing up).
• Using a crane, lift the product by not more than 50 cm (as high as su󰀩cient to put the supporting legs under the product).
• The legs are screwed up taking into account the cover thickness (30 mm or 50 mm).
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
max. 50 cm
30 mm
50 mm
30 mm 50 mm
5.7.2. DRAINAGE
• After installing the air unit, the condensate drainage system should be connected: screw up the hose (3) with the attached fastener (2) to the
condensate trap (1) of the heat recovery unit, insert the hose into the siphon (4) (shown at the bottom of the picture).
• The siphon (4) is connected with the sewage system via a pipe (5).
• It should have a gradient of at least 3° (a meter of the pipe should descend by min 55 mm)!
• Prior to starting the recovery unit, the system should be lled with 00.5 litre or more water (the siphon (4) should always be lled up) and make
sure that water goes to the sewage system)!
• Otherwise, the room may be ooded when operating the recovery unit!
• The condensate drainage system should be operated on the premises with an ambient temperature above 0 °C to prevent freezing!
• Otherwise, the drainage system must be insulated and must be provided with a heating cable and thermostat!
• The siphon (4) should not necessarily be downstream the recovery unit but below it.

EN | 17AMBERAIR COMPACT CXP v2024.2
AmberAir Compact 1 CX P AmberAir Compact 2-4 CX P
1
2
3
4
5
The condensate tube must be lled with water as indicated during the rst start-up before every heating season!
5.8. CONNECTION OF THE AIR DUCT
• The connected air ducts must not be bent and must be xed separately.
• Make sure that the fans may not be accessed through air duct heads. Otherwise, a protective grid should be installed. You may choose the grid
from the range of products provided on our website https://select.salda.lt.
• Do not reduce the diameter of the piping near the air inlet or exhaust ducts. If you want to reduce the airow speed in the system, also to reduce
pressure and noise level, you can increase the diameter.
• In order to reduce the level of noise in the air supply system, install silencers (see the chapter on air supply system installation).
• In order to reduce air loss in the system, the air ducts and prole components should be of class C or higher. The catalogue of the above-men-
tioned items can be found on our website https://select.salda.lt.
• External air and exhaust system piping should be isolated in order to prevent heat loss and condensation.
• We recommend to maintain a distance of up to 8 meters between air intake and air exhaust ducts. The air intake point should be installed away
from potential air pollution sources.
• When installing air ducts next to the ventilation equipment, brackets must be used. They suppress vibration and assure secure installation of the
various system parts. The necessary brackets can be found in our catalogue or on our website https://select.salda.lt.
• Air ducts are often mistakenly connected in an inappropriate location. The ventilation units bear the labels indicating the correct air duct connec-
tion layout. Before starting up the system, carefully check if all related works have been performed properly.
For ange diameters see chapter "DIMENSIONS AND WEIGHT".

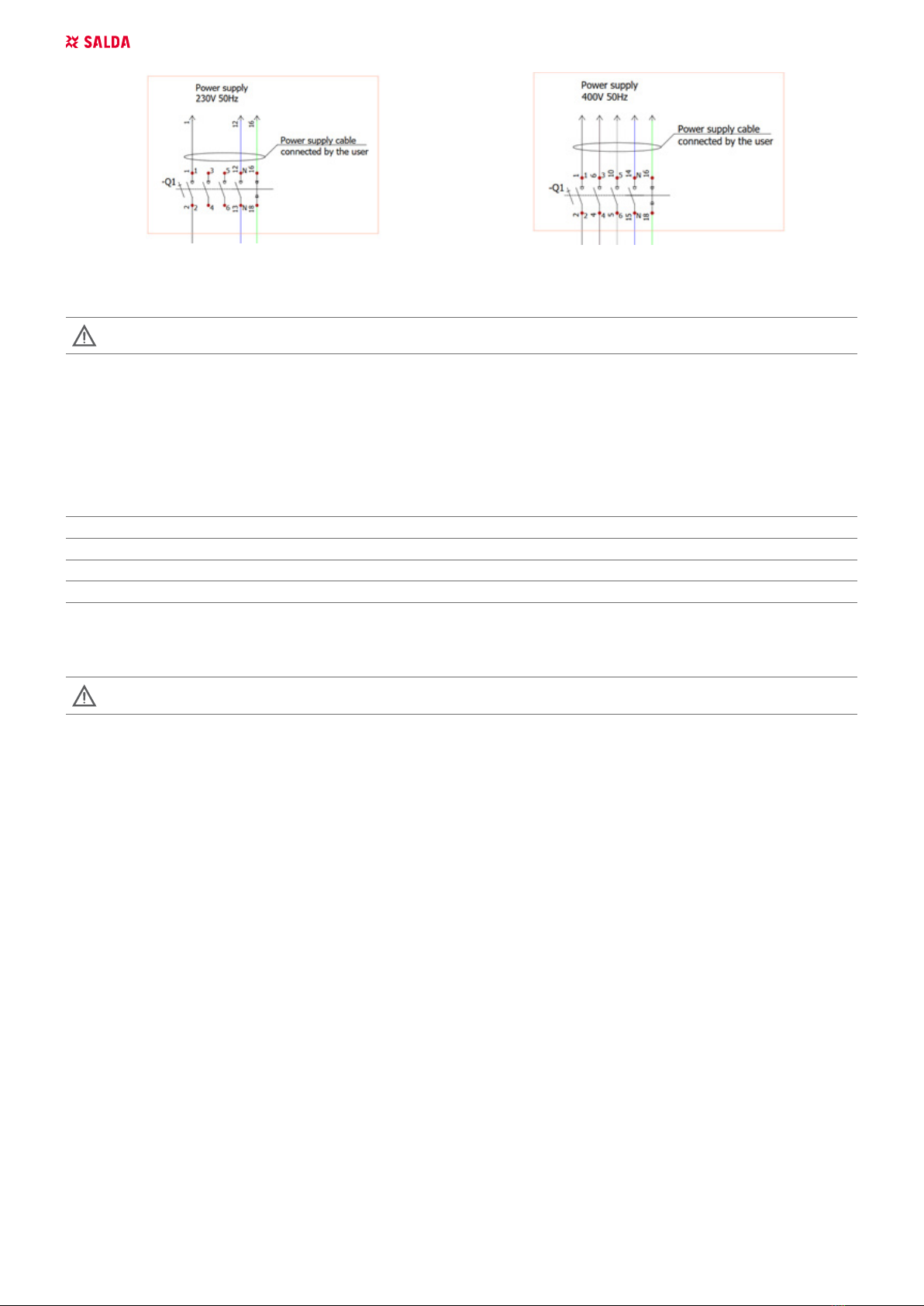

5.9. CONNECTION OF THE UNIT TO THE ELECTRIC NETWORK
• Supply voltage to the unit must be connected by a qualied specialist following the manufacturer’s instructions and applicable safety guidelines.
• The unit’s power network voltage must correspond to the electro-technical specications of the unit indicated in the technical decal.
• The unit’s voltage, power and other technical specications are provided in the unit’s technical decal (on the unit casing). The unit must be con-
nected to the grounded power network in accordance with the applicable requirements.
• The unit must be earthed according to electrical equipment installation regulations.
• Using extension wires (cables) and power network plug socket distribution devices is not allowed.
• Prior to carrying out any ventilation unit installation and connection works (before the unit is commissioned), the unit must be disconnected from
the power network.
• After installation of the ventilation unit, the power network plug socket must be accessible at any time and disconnection from the power network
must be performed through the circuit breaker (by disconnecting phase poles and neutral).
• Before it is connected to the power network, the unit must be carefully checked for any damage (operation, control, and measurement nodes)
made during transportation.
• The power cable can be replaced only by a qualied technician, having evaluated the rated power and current.
• First connect power cable to the unit, then connect to the power source.
Connecting cable to the unit:
• Unscrew and remove the control box cover (see gure in "CONTROL BOARD MAINTENANCE" section).
• Route power cable from the outside of the unit to the inside of the control box through the plastic cable gland near the main switch.
• Connect securely power cable wires to the main switch Q1 inside of the control box. Connection depends on the electro-technical specications
of the exact unit.

18 | EN AMBERAIR COMPACT CXP v2024.2
Figure 5.9.1. Units with 1N~ 230VAC power supply Figure 5.9.2. Units with 3N~ 400VAC power supply
• Install back control box cover.
The manufacturer does not assume any liability for personal injuries and property damage due to non-conformance with the
provided instructions.
5.10. START-UP RECOMMENDATIONS
5.10.1. SYSTEM PROTECTION
The controller boards of the unit is equipped with integrated protection devices (fuses). Most of the fuses are default (max.) value. These values
can be found on MCB technical manual. However, for some units MCB EX2 controller board fuses are lower than default (max.) value:
UNIT TYPE
MCB EX2 Fuse All 4-CX-P units 3-CX-P with electric heater 2-CX-P with electric heater
F1 2A 0,5A 2A
F2 - - 2A
F4 - 0,5A -
It is recommended to use the unit with an external electrical protection device. Protection device must be selected and installed by qualied spe-
cialist. Nominal values of the device depends on exact unit. For protection device selection follow unit's technical information on technical label or
"VentMaster" selection app.
To ensure safe maintenance of the unit, it is necessary to turn o󰀨 the main switch and/or external protection device.
5.10.2. PRE START-UP RECOMMENDATIONS OF THE UNIT (IN THE PRESENCE OF THE END-USER)
Prior to start-up the system must be thoroughly cleaned. Check whether:
• Operation systems and unit elements as well as automation and automation devices were not damaged during installation,
• All electrical devices are connected to power supply and t for service,
• All necessary automation elements are installed and connected to power supply and MCB, EX1, EX2 terminal blocks,
• Cable/wire connection to MCB, EX1, EX2 terminal blocks comply with the existing power connection diagrams,
• All electrical equipment protection elements are properly connected (if they are additionally used),
• Cables and wires correspond to all applicable safety and functional requirements, diameters, etc.,
• Earthing and protection systems are properly installed,
• Condition of all seals and sealing surfaces is correct.

EN | 19AMBERAIR COMPACT CXP v2024.2
6. MAINTENANCE
6.1. SAFETY INSTRUCTION
Unplug the unit from the mains before opening the door (disconnect the power plug from the outlet, or in case an automatic
circuit breaker is installed, disconnect it as well. Make sure that it cannot be turned on by the third parties) and wait until the
fans completely stop (for about 2 min.).
6.2. GENERAL RECOMMENDATIONS FOR THE MAINTENANCE OF VENTILATION SYSTEM
In order to ensure the proper functioning of the system, maintenance requirements and its periods should be observed. Otherwise, the warranty
shall be void. Some recommendations are provided in the table below, but they are just advisory, as the need for system maintenance depends
on the location of the unit installation, the pollution of the atmosphere, population, working hours, etc.
COMPONENT DURING START-UP AT LEAST EVERY 6 MONTHS
Filters Check the cleanliness of the lters
Replace lters every 3 to 4 months or according to the console
indications.
Make sure that the pressure relay/transmitter is clean and clean it if
necessary.
Check for any damaged lter fastening parts.
Fans Check the connections and the
direction of rotation
Check cleanliness. Clean, if necessary.
Make sure that the impellers are not unbalanced.
Make sure that the impellers do not cause noise when rotated by
hand.
Make sure that the fastening screws are not loose and free of
mechanical damage.
Check electrical connections and make sure that these are secured
properly and are free of signs of corrosion.
Plate Heat exchanger Check the cleanliness of the heat
exchanger Check cleanliness and clean, if necessary.
Control panel Check the connections Check the connections.
Electric heater Check the connections Clean o󰀨 dust, and check the electrical components and connections
of the heater.
Water heater Check the tightness Check cleanliness and clean, if necessary.
Check the tightness and seal the connections, if necessary.
Condensate discharge trap Clean.
Pressure sensor Check electrical connections Check the operation.
Temperature sensor Check electrical connections Check the operation and tune up, if necessary.
Air intake and discharge system Check the connections Clean.
Air duct system Check the tightness Clean.
Dampers, di󰀨users, grid Check the tightness of connections Clean.
Switching unit (contactor)
Every 3 to 4 months, visually assess the functioning of the switching
unit (contactor), i.e., make sure that its casing has no signs of melting
or is not thermally damaged and does not produce any unusual
sounds. All the contactors in the product or in its accessories must
be checked.
Condensate discharge assembly
Check the condensate discharge
assembly and make sure that water
runs from the bath properly.
Clean.
6.3. COVER OPENING
It’s necessary to stop the unit before opening it’s doors. Disconnect the main switch and open doors after fans stop com-
pletely (approximately 2 min.). It necessary to assure, that the main switch cannot be turned on by the third parties.
Three opening/removal methods are possible:
1. The ordinary opening of doors using hinges;
2. The removal of doors using a rails system;
3. The removal of the doors of the oor-mounted version.
To unscrew the covers, you can use the key attached as an accessory.
AmberAir Compact 1 CX P has only two covers, while Compact 2-4 CX P has three.

20 | EN AMBERAIR COMPACT CXP v2024.2
The opening of the doors of the ceiling-mounted version using hinges
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1
1
32
2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
The removal of covers using rails
Unscrewing the covers
• First unscrew the screws holding the covers at the side of the holders. Thus gradually turn all the screws up to the other side of the cover.
• One edge of the cover should be placed on a holder. Screw all the covers in the same manner. The cover with the condensate bath may only be
removed after disconnecting it from the drainage pipe.
The preparation of the cover for use
• After all the screws are unscrewed, the cover is free. It is moved aside and back and is so removed from the holder and placed onto the rails.
Method of use
• The covers can be directly removed from the rails themselves or pushed to the other side of the product.
3
3
2
2
1
1
I
II
III
30 mm
50 mm
30 mm
50 mm
1
1
3
3
2
2
1
1
32
2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
3
3
2
2
1
1
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
332211
I
II
III
30 mm
50 mm
30 mm
50 mm
113322
1132 2
The removal of the cover of the oor-mounted version
• When using supporting bases, the ground-mounted product is maintained from above. Open the covers by unscrewing the screws using a
hexagonal key.
• Unscrew the screws 1 and 2 of the side covers of AmberAir Compact 2-3 CXP. Carefully open the covers. Unscrew and carefully remove the
middle cover No 3.
The door must be screwed on after maintenance. Recommended tightening is 2,7 N-m.
