Aspira ASPIRCOMFORT PRO X 460 H User manual

INSTALLATION, USE AND MAINTENANCE MANUAL ASPIRCOMFORT PRO X 460H

2
ENGLISH
ASPIRCOMFORT PRO X 460H
1. GENERAL
1.1 INTRODUCTION
This manual was prepared with the aim of making the installation and management of your system as simple as
possible.
By reading and applying the suggestions of this manual, you can achieve the best performance of the purchased
product.
We would like to thank you for choosing to purchase one of our products.
Read this file carefully before performing any operation on the unit.
The unit must not be installed, nor must any operation be performed on it, without firstly reading and understanding
the entirety of this manual. In particular it is necessary to adopt all of the precautions listed in the manual.
The documentation provided with the unit must be delivered to the system manager for safe keeping (at least 10
years) for future assistance, maintenance and repairs.
Unit installation must take into account the strictly technical needs for good operation, as well as any local
legislation in force and specific requirements.
Make sure that when the unit is delivered there are no evident signs of damage caused by transport. If there is,
state this on the delivery note.
This manual reflects the state of the technical standards at the time of sale and cannot be considered inadequate
if updated at a later date based on new experiences. The Manufacturer reserves the right to update production and
the manuals without being required to update previous ones, except in exceptional cases.
Contact the Manufacturer’s Sales Office to receive further information or updates on/to the technical documentation
and for any suggestions for improvement to this manual. All suggestions shall be strictly vetted.
1.2 FUNDAMENTAL SAFETY RULES
Remember that the use of products that use electrical energy and water requires certain fundamental
safety rules to be followed:
• Unable and unassisted persons are forbidden from using the device.
• It is forbidden to touch the device in bare feet and with wet or damp parts of the body.
• Any cleaning activity is forbidden without firstly disconnecting the device from the electrical power mains by
placing the system’s main switch on ‘off’.
• It is forbidden to modify the safety or regulation devices without the authorisation and indications of the
device manufacturer.
• It is forbidden to pull, detach, twist the electrical cables coming out of the device, even if it is disconnected
from the electrical power mains.

3
ENGLISH
ASPIRCOMFORT PRO X 460H
• It is forbidden to insert objects and substances through the air intake and supply grids.
• It is forbidden to open the access doors to the inside of the device, without firstly placing the system’s main
switch on ‘off’.
• It is forbidden to release and leave packaging material within the reach of children as it is a potential source
of danger.
• Comply with the safety distances between the machine and other devices or structures to guarantee enough
access space to the unit for maintenance and assistance operations as stated herein.
• The unit’s Power supply must be provided with electrical cables duly sized for the power of the unit. The
voltage and frequency values must match those stated for the respective machines; all machines must be
earthed according to the regulations in force in the various countries.
• Do not release R410Anell into the atmosphere: R410A is a fluorinated greenhouse gas, referred to in the
Kyoto protocol, with a global warming potential (GWP) of =1975.
1.3 SYMBOLS
The symbols used in the following file quickly provide information necessary for the correct use of the unit.
Safety symbols
ATTENTION
Authorised personnel only. This means that the stated operations are important to safe machine
operation.
DANGER
Risk of electric shock. This means that failure to comply with the warnings poses the risk of
electric shock.
DANGER
This means that failure to comply with the warnings poses the risk of injury to the exposed
persons.
WARNING
This means that failure to comply with the warnings poses the risk of damage to the unit or
system.
DANGER
This means that there are moving parts and poses the risk of harm to exposed persons.

4
ENGLISH
ASPIRCOMFORT PRO X 460H
1.4 WARNINGS
The unit must be installed by qualified and authorised personnel according to the rules in force in the
various countries.
If installation is not carried out, this could lead to a situation of danger.
Avoid installing the unit in very damp rooms or where there are large sources of heat.
On the electric side, to prevent any risk of electrocution, it is essential to disconnect the main switch before
setting up the electrical connections and performing any maintenance operation.
If there are any water leaks from inside the unit, place the system’s main switch on ‘Off’, close the water
valves and contact the technical service.
Always use a dedicated power supply circuit; never use a power supply shared with other devices.
Always install an earth leakage circuit-breaker; failure to install this device could cause electric shock.
For the connection, use a sufficiently long cable to cover the entire distance without any connection; do not
use extensions and do not apply other loads on the power supply, rather, always use a dedicated power
supply circuit.
When the electrical cables are connected, make sure that the cables are arranged so that they do not press
excessively on covers or electrical panels; any incomplete connection of the covers may cause overheating
of the terminals.
Make sure that the earthing connection is set up; do not earth the device on distribution pipes.
Momentary high intensity overcurrents may damage the unit.
Installations made outside of the warnings set forth herein or use outside of the operating limits will
instantly void the warranty.
Make sure that commissioning is carried out by personnel authorised by the company (see commissioning
request form).

5
ENGLISH
ASPIRCOMFORT PRO X 460H
1.5 CONFORMITY
The CE marking (applied on each machine) certifies compliance with the following Community standards:
• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility Directive 2014/30/EC
• RoHS2 2011/65/UE
• WEEE 2012/19/EC
1.6 RANGE
Code Total Flow Rate/renewal air flow
rate
Type of installation
AP20068 up to 460 m3/h Horizontal
1.7 IDENTIFICATION
- The unit can be identified by the rating plate attached to the front bottom panel.
- On the packaging there is another identification rating plate with the unit model and the shipping
references.
The rating plate on the packaging is not valid for tracking the product over the years after sale.
The removal, deterioration and illegibility of the rating plate attached to the unit makes machine identification and
ordering spare parts very difficult, and therefore all future maintenance.
1.8 CONSTRUCTION FEATURES
The ASPIRCOMFORT PRO X 460H units are designed for room air renewal. The easy installation through two holes
diam.160 mm and the high flow rate of fresh air, allows the application in situations such as residential buildings,
schools, clinics, offices and all contexts where it is necessary to change the air; The thermodynamic recovery
allows to have an integration with respect to the environmental climatic conditions, helping the air conditioning
system to meet the internal comfort; In addition, the air introduced is always at a temperature close to or better
than the environment, thus ensuring a higher perceived comfort; The unit consists of a monoblock including all
components for proper operation: fans, cooling circuit with high-efficiency compressors, air filtration sections and
high-efficiency countercurrent heat recovery unit.

6
ENGLISH
ASPIRCOMFORT PRO X 460H
ALL IN ONE
Complete unit capable of exchanging air and integrating the cooling thermal demands of the served rooms. The
unit is complete with all components for its operation and ready to use.
UVC LAMP (AP20384 ACCESSORY) AND VOC SENSOR
The unit is equipped with a UVC lamp (AP20384 accessory), which enables a germicidal action to be carried out
on the air introduced from outside through the effect of UVC; the lamp is activated automatically according to the
quality of the room air.
VENTILATION
Fans with directly coupled brushless motor; the fans operate in various modes controlled mainly by the air quality
sensor located inside the unit.
ACTIVE THERMODYNAMIC RECOVERY
The unit allows active recovery of energy from the exhaust air. The thermodynamic recovery allows, thanks to its
cooling circuit, to supply energy to the environment in a higher quantity than that taken away by the ventilation for
90% of the unit's operation.
FILTRATION
There are 2 ePM1 filters on the extract air and the supply air; the filter on the supply air is placed after the coil to
completely filter out any impurities in the supply air, On the outdoor air there is a Coarse pre-filter that protects
the cleanliness of the unit.
STRUCTURE
Self-supporting sheet metal frame.
Self-supporting sheet metal structure, externally painted (in the visible versions), with polyethylene and EPDM
thermal and acoustic insulation in between.
COOLING CIRCUIT
Built with braze welded copper, complete with: High efficiency BLDC compressor, Filter dryer, finned coils,
electronic expansion valve, reversing valve and safety devices.
ADJUSTMENT
Electric panel on-board the unit with microprocessor and dedicated regulation. Fan management, temperature
display and setpoint, timed dirty filter management. Management of defrosting algorithm optimised for
operation at low external temperatures; Panel with graphic interface on board the machine and remote
control included in the visible versions.

7
ENGLISH
ASPIRCOMFORT PRO X 460H

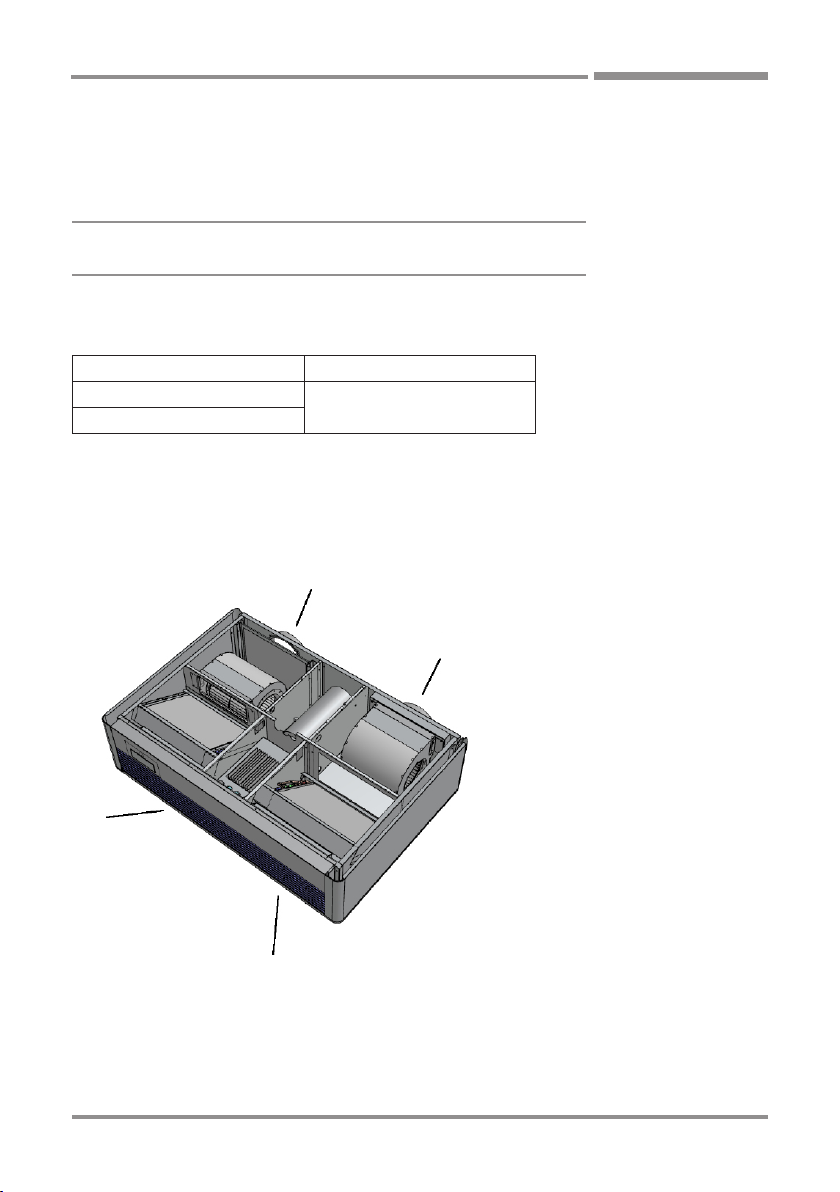

1.9 MAIN COMPONENTS OF THE UNIT
1. Compressor
2. Intake fan
3. Exhaust fan
4. Input coil
5. Exhaust coil
6. Electrical panel
7. Display
8. Outdoor air prefilter
9. Epm1 filters
10. UVC lamp (AP20384 accessory)

8
ENGLISH
ASPIRCOMFORT PRO X 460H
1.10 PACKAGING AND TRANSPORT
The units are prepared for transport secured to a wooden pallet and placed inside cardboard boxes. To facilitate
relocation, the units have a wooden pallet and hooks on the base so it can be lifted and positioned in the place of
installation. The unit can be stored in a room protected against the weather at temperatures of no less than 0°C
up to a maximum of 40°C.
1.11 RECEIVING, CHECKING AND HANDLING
The unit is shipped fully loaded with refrigerant gas in the circuits and non-freezing oil in the compressors.
In no case can there be water in the hydraulic circuits, since the unit is carefully emptied after final
testing. Upon arrival the customer is required to inspect the unit, including the inside, to ensure that no
damage occurred during transport; the unit left the factory in perfect conditions. If damage is found the customer
must immediately report this to the courier by providing details on the extent of the damage on the delivery note,
providing photographic evidence of the alleged damage and notifying the shipping company of any alleged damage
by registered mail with return receipt.
The manufacturer will not be held liable for damage caused by transport even if he himself did the shipping. It
is necessary to be very careful when handling the unit during unloading and positioning on site so as to avoid
damage to the enclosure and the more delicate inside parts such as compressors, exchangers, etc. in any case
keep the unit upright without tilting it. All of the indications on what precautions to take to prevent damage to the
unit and the indications of its weight, are provided on the packaging. The packaging can be composed of various
materials such as wood, cardboard or polyethylene (plastic). It is good practice to send them for disposal or
recycling through specialised companies to reduce the impact on the environment.
1.12 DISASSEMBLY AND DISPOSAL
Do not take down or dispose of the product on your own. The product must
be disassembled, demolished, disposed of by authorised personnel in
compliance with local regulations.

9
ENGLISH
ASPIRCOMFORT PRO X 460H
2. INSTALLATION
2.1 INSTALLATION CONDITIONS
The unit must be installed based on national and local regulations governing the use of electrical devices
and based on the following indications:
• install the unit inside residential buildings with room temperature between 0°C and 45°C;
• avoid areas near sources of heat, steam, inflammable and/or explosive gases and particularly dusty areas;
• install the unit in a place that is not subject to frost (the condensation water must be discharged not frozen, at
a certain slope, using a trap);
• do not install the unit in zones with a high relative humidity rate (such as bathroom or toilet) to avoid
condensation on the external surface;
• choose a place of installation where there is enough room around the unit for the connections of the air ducts
and to perform maintenance activities;
• the consistency of the ceiling/wall/floor where the unit will be installed must be suitable for the weight of the
unit and not cause vibrations.
The room chosen for installation must have:
- air duct connections;
- 230V single-phase electrical connection;
- connection for the condensation discharge.

10
ENGLISH
ASPIRCOMFORT PRO X 460H
2.2 UNIT POSITIONING

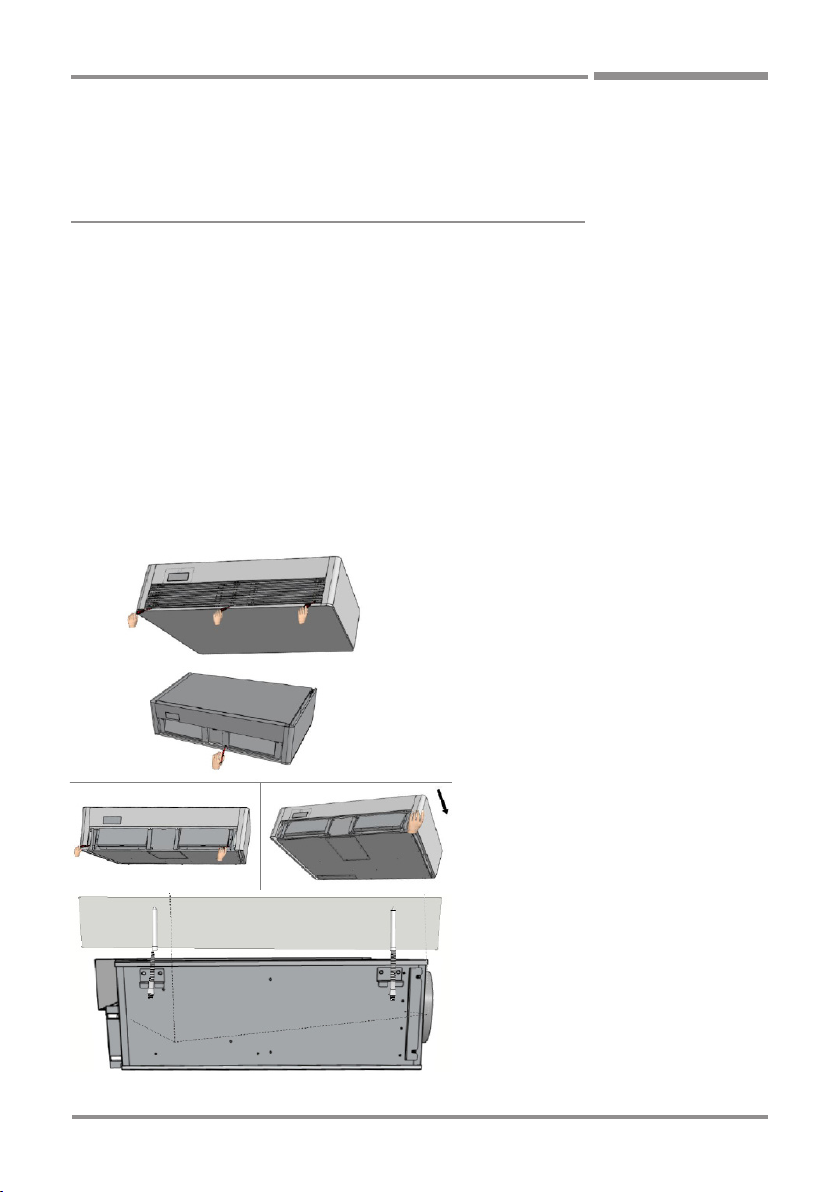

CEILING INSTALLATION
To mount the unit on the ceiling, it is necessary to:
• Remove the front grille by prying it upwards and pulling it out towards the bottom first;
• Remove the bottom panel through the front screws and out of the rear seats;
• Remove the screws on the side panels by removing the 4 screws on the front;
• Push the side out of the rear seats and remove it;
• Secure the unit to the ceiling, by the brackets, using suitable anchoring systems (plugs, chains...) and use
a level to make sure it is level;
• Keep the unit at least 10mm away from the ceiling;
• Do not install the unit with the sides directly touching the walls to avoid possible noise from contact, insert
rubber or neoprene strips in that case.
Provide enough space to perform maintenance activities: it must be possible to open the cover of the unit (from
below).

11
ENGLISH
ASPIRCOMFORT PRO X 460H
2.3 CONDENSATE DISCHARGE CONNECTION
Due to the thermodynamic heat recovery system of the dehumidification coils, the humidity contained in the
indoor air condenses inside the unit.
For the correct operation of the heat recovery unit, it is therefore necessary to connect the condensate discharge
to the hydraulic system (drain); furthermore, in order to allow the correct flow of the condensate water and to
avoid air suction, the condensate discharges must be equipped with a special siphon to be supplied and installed
by the installer;

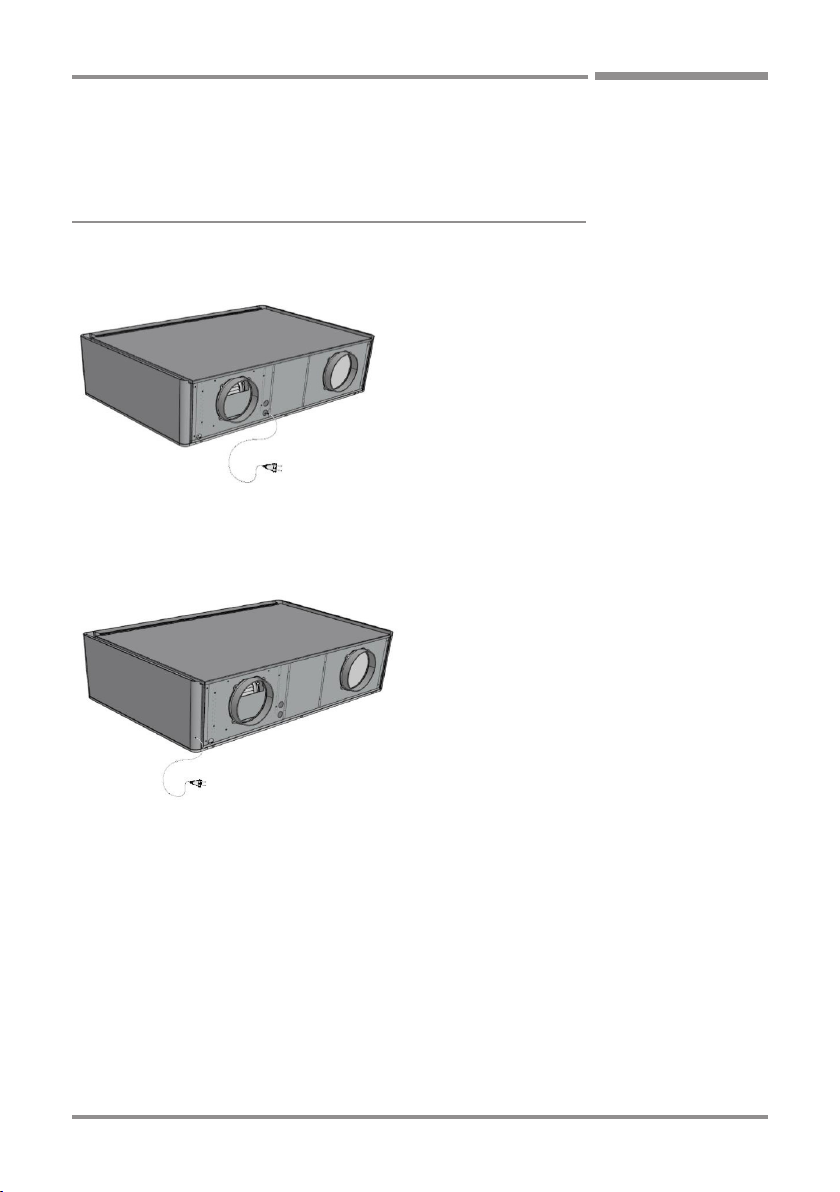

Condensate discharge exits as standard to the rear of the unit where there should be a hole in the wall as shown
opposite;
If it is not possible to take the condensate discharge outside, it is possible to exit on the right side of the unit using
the pre-cut hole on the side;
For installation of the condensation discharge, follow these rules:
• set up a slope of at least 2% to the discharge pipe;
• allow the possibility of disconnecting the discharge pipe for any
maintenance (especially with ceiling installation);
• make sure that the discharge end of the pipe is at least below the level of
the trap water;
• make sure that the trap is always full of water;
• the H dimension as shown in the attached image must be at least H=50mm;

12
ENGLISH
ASPIRCOMFORT PRO X 460H
3 AERAULIC CONNECTIONS
3.1 AERAULIC ORIENTATIONS
The unit has 4 male circular rear fittings of different Ø and one rectangular front opening based on the size;
To correctly connect the air ducts, refer to the following diagram and stickers on the unit.
Table of unit aeraulic connection diameters
Codes AP20068
Ø Outdoor air mm 160 mm
Ø Exhaust mm
It is advisable to install at least 500 mm of hose to avoid transmitting vibration and bothersome noises caused by
the installation.
AIRFLOW CONFIGURATIONS
Once the holes have been drilled, the plastic sheets
supplied must be inserted into them.
Roll up the sheet and insert it into the hole, paying
attention to the seam line A, which must always
be positioned upwards.
OUTDOOR AIR
EXHAUST
EXTRACTION
SUPPLY

3.2 INSTALLATION OF EXTERNAL GRILLES
Cut off any excess part of the tube using a standard cutter.
To position the external grilles, proceed as follows:
- attach the chains to the end of the springs;
- fold the external dampers back on themselves;
- insert the arm into the hole until the damper protrudes completely
outwards, holding the end of the chains with the other hand to
prevent accidental falls;
- re-open the damper on the outside of the hole;
- turn the damper so that the flap is in the vertical position C and
check that the closing mechanism works;
- pull the chains by tensioning the springs;
- use a wire cutter to cut off the excess chain links;
- fix the chain hook to the wall B.
Use only the grills supplied or grills with the same characteristics.
The dampers must be positioned with the flap vertical.
The dampers are different. A distinction must be made between the
one on the inlet and the one on the outlet, depending on the direction
of opening of the flaps.
Once the installation of the grilles is complete, check their opening
(towards the inside of the duct for the intake grill "IN" and towards
the outside of the duct for the exhaust grill "OUT"). Please note that
the grilles open when the flow of outside air is activated to allow the
cooling or heating function. For their testing, it is therefore essential
to operate the air conditioning system for cooling or heating.
ENGLISH
ASPIRCOMFORT PRO X 460H

14
ENGLISH
ASPIRCOMFORT PRO X 460H
4 ELECTRICAL CONNECTIONS
4.1 GENERAL
- Before starting any operation to perform the electrical connection make sure that the unit is not electrically
powered.
- Perform the necessary electrical connections referring exclusively to the wiring diagram attached to this
manual.
- Install a suitable cut-off and breaker device exclusively serving the unit.
- It is essential for the unit to be earthed.
- Check that the electrical components chosen for installation (main switch, breakers, cable size and terminals)
are suitable for the electrical power of the installed unit and that they take into account the start-up currents of
the compressor in addition to the maximum achievable load. The relative data is stated on the attached wiring
diagram and on the unit’s rating plate.
- It is forbidden to enter the unit with electrical cables except where specified in this file.
- Use duly-sized electrical cables and conductors that comply with the regulations in force in the various
countries.
- Strictly avoid feeding through the electrical cables so that they are directly touching pipes or parts inside the
unit.
- After the first moments of operation, check the tightness of the power supply terminal screws.
Table for power supply line sizing.
Power supply V/Ph/Hz 230/1/50
Max absorbed current A 6.1

15
ENGLISH
ASPIRCOMFORT PRO X 460H
4.2 POSITIONING AND PROCEDURES OF THE CONNECTIONS
The unit is supplied with all electrical connections prepared and with a schuko plug for connection to the mains;
The electrical cable entry is located at the rear of the unit where two dn 16mm passages are provided;
If it is not possible to carry the wiring from the rear of the unit, it is possible to exit to the right side of the unit using
the pre-cut hole on the side;
In addition, in the lower part, the electrical panel can be reached through a dedicated door.
Condensate discharge connection

16
ENGLISH
ASPIRCOMFORT PRO X 460H

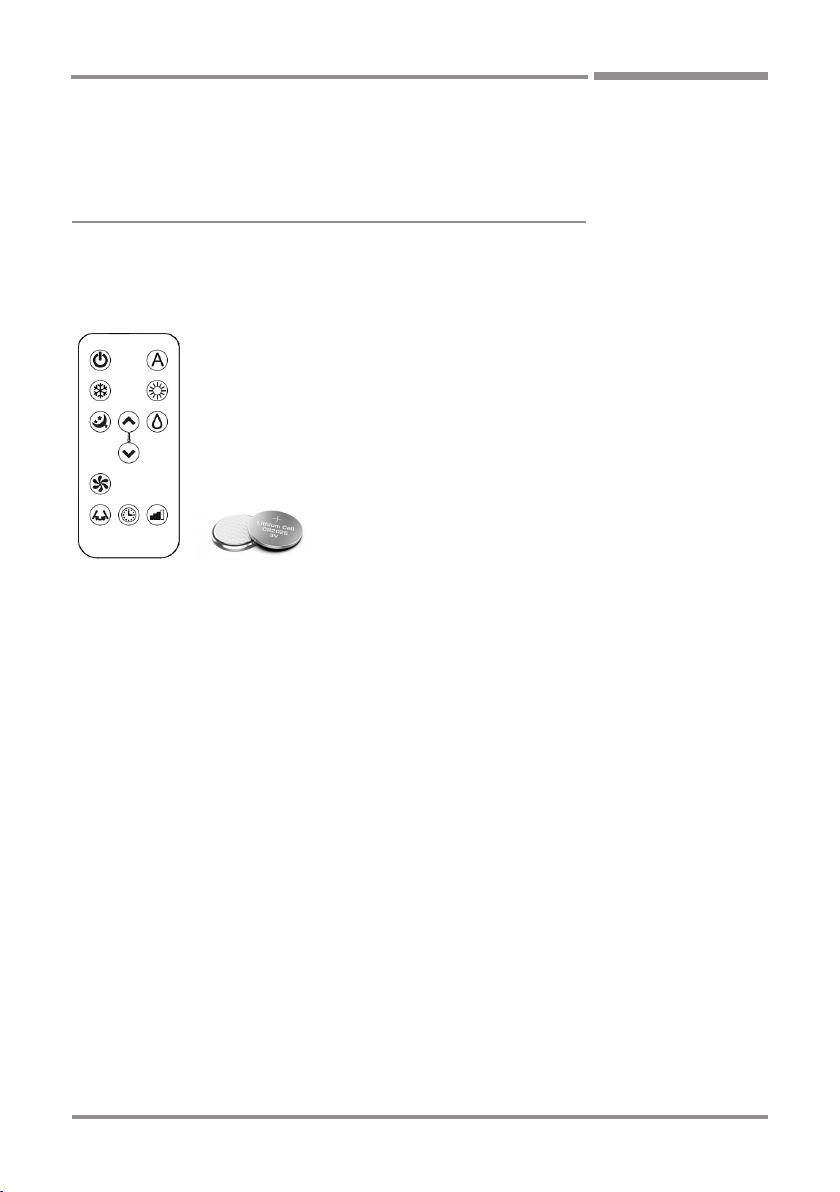

4.3 INSERTION OF REMOTE CONTROL BATTERIES
Only a CR2025 3 V dry lithium battery (included in the scope of supply) may be used for the remote control.
Spent batteries may only be disposed of at collection points set up by Local Authorities for this type of waste.
To insert the battery, open the snap-on battery door at the bottom of the remote control.
The battery must be inserted carefully observing polarity. Close the snap-on door once the battery is inserted.

17
ENGLISH
ASPIRCOMFORT PRO X 460H

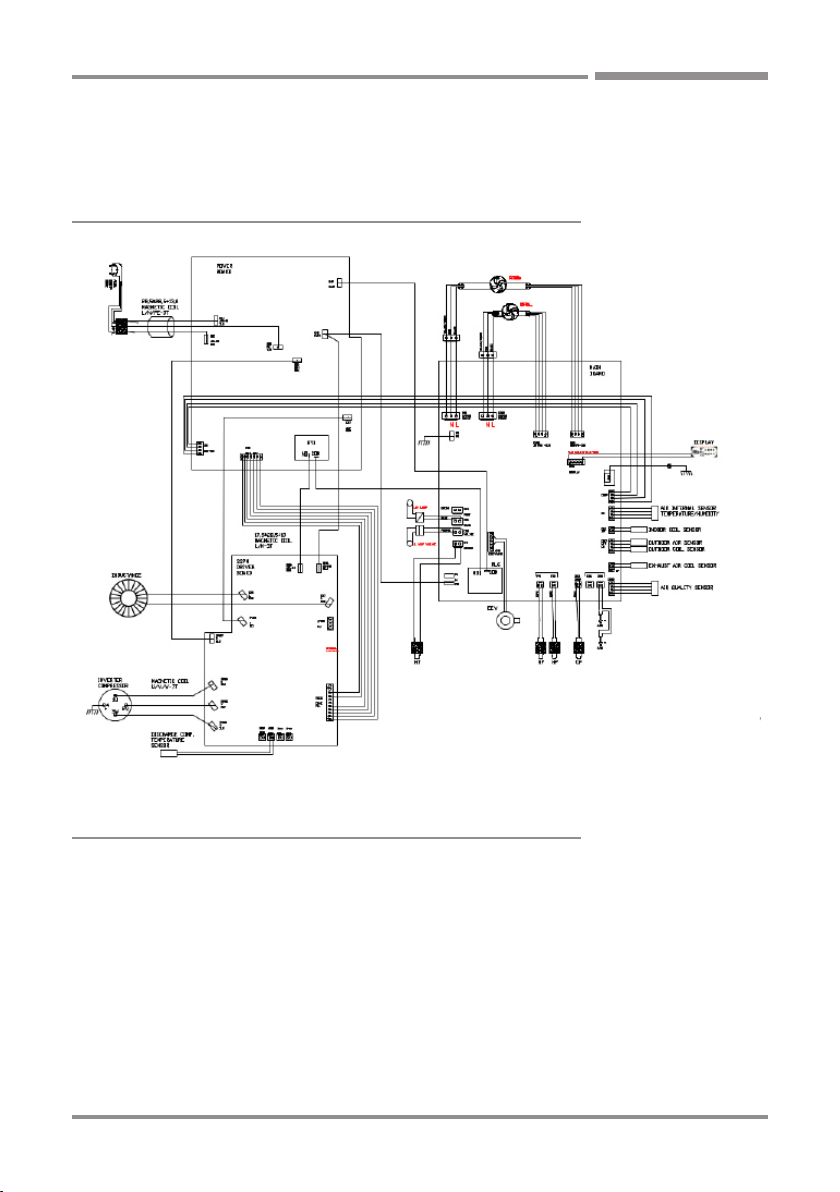

4.4 WIRING DIAGRAM
4.5 CONNECTIONS
N-L-PE – POWER SUPPLY
The unit is supplied with a power supply socket connected to terminals N , L , PE ;
HT- EXTERNAL HEATER
It provides for the connection of the additional electrical resistance (Accessory) to be inserted on the air supply
duct
CP- ON OFF REMOTE
Provides an external connection to enable the unit as a presence or window contact; Comes with a bridge supplied;

18
ENGLISH
ASPIRCOMFORT PRO X 460H
5 COMMISSIONING AND METHOD OF USE
5.1 OPERATION OF ON-BOARD WIFI CONTROL PANEL AND REMOTE CONTROL
The unit is controlled either via the on-board wifi panel or via the supplied infrared remote control.
You can also download the app and control the main functions from IOS or ANDROID systems;
The display normally shows the operating status (see paragraph Description of operation) and any alarms (see
paragraph Display alarms). In addition, the various functions can be selected by pressing the various symbols.
By pressing the keys it is possible to set the various functions (see paragraph Description of operation) The remote
control supplied with the appliance has been designed to be extremely sturdy and functional, but must be handled
with care.
Avoid:
- leaving it exposed to rain, spill liquids on its keyboard or drop it in water;
- subjecting it to heavy impacts or dropping it on hard surfaces;
- leaving it exposed to sunlight;
Wifi machine panel
Remote control
Remote control button
Touch-screen display button
KEY / DISPLAY
Setpoint
Up button
Down button
On/Off button
Cooling-only operation button
Dehumidification-only operation button
Ventilation-only operation button
Heating-only operation button (1)
Heating-only operation button (2)
Night wellness button
Fan speed control button
Timer function setting button (1)
Timer function setting button (2)
Brightness sensor
Digital thermometer;
1-7 red bars in winter, blue in summer
Wellness button
(economic automatic operation)

19
ENGLISH
ASPIRCOMFORT PRO X 460H
SWITCHING THE UNIT ON AND OFF
In order to operate the appliance using the remote control or the touch screen display, it is
necessary to either switch on the main switch which has been provided on the power supply line
(the technician who installed the appliance will be able to be more precise about its position),
or insert the appliance's power plug into the system's socket. Once the described operations
have been carried out, by prolonged pressure (3 seconds) on the symbols on the touch screen
display, or with the remote control, it is possible to manage the system. In order to transmit
commands to the indoor unit, the front of the remote control must be turned towards the
display of the indoor unit. Receipt of the command is confirmed by the buzzer sounding a note
and being shown on the display. The maximum distance at which commands can be received
is approximately 8 metres.
Using the stand-by button, you can switch the appliance off or on. The appliance's control
system has a memory, which means that all settings will not be lost either when the appliance
is switched off or in the event of a power failure. This button is used to activate and deactivate
the device for short periods.
In the event of prolonged standstill of the appliance, it must be switched off by disconnecting
the main switch or removing the plug from the socket.
TEMPERATURE SET MODIFICATION
On the display there are buttons for selecting the desired temperature of the unit;
Whenever the set temperature is changed, the display will also show the change in set point
required.
FAN SPEED MODIFICATION
By pressing this button sequentially, the power supplied by the appliance can be set to 5
settings: Minimum, Medium, Maximum, Dual Power and Automatic.
The higher the power setting, the greater the output of the appliance, but the quieter it is.
The Dual Power function (visible by the flashing of the 3 speed bars on the display and the
scrolling of the 7 bars, red or blue, on the digital thermometer), available only in heating and
cooling mode, provides an overboost for 30 minutes.
The controller then inhibits the function and switches to automatic operation.
By setting the Automatic choice (visible through the scrolling of the 3 speed bars on the display)
the on-board microprocessor automatically adjusts the power, keeping it higher the greater
the difference between the room temperature and the set temperature. In dehumidification
only and night wellness mode, power control is not possible as the appliance can only be
operated at minimum power.
AUTOMATIC FUNCTION
By setting this function, the appliance sets itself up so as to achieve optimal comfort in the
air-conditioned room. Depending on the set temperature, the air conditioner automatically
selects the operating mode (cooling, or heating), and the ventilation speed according to the
room temperature and the detected air quality.

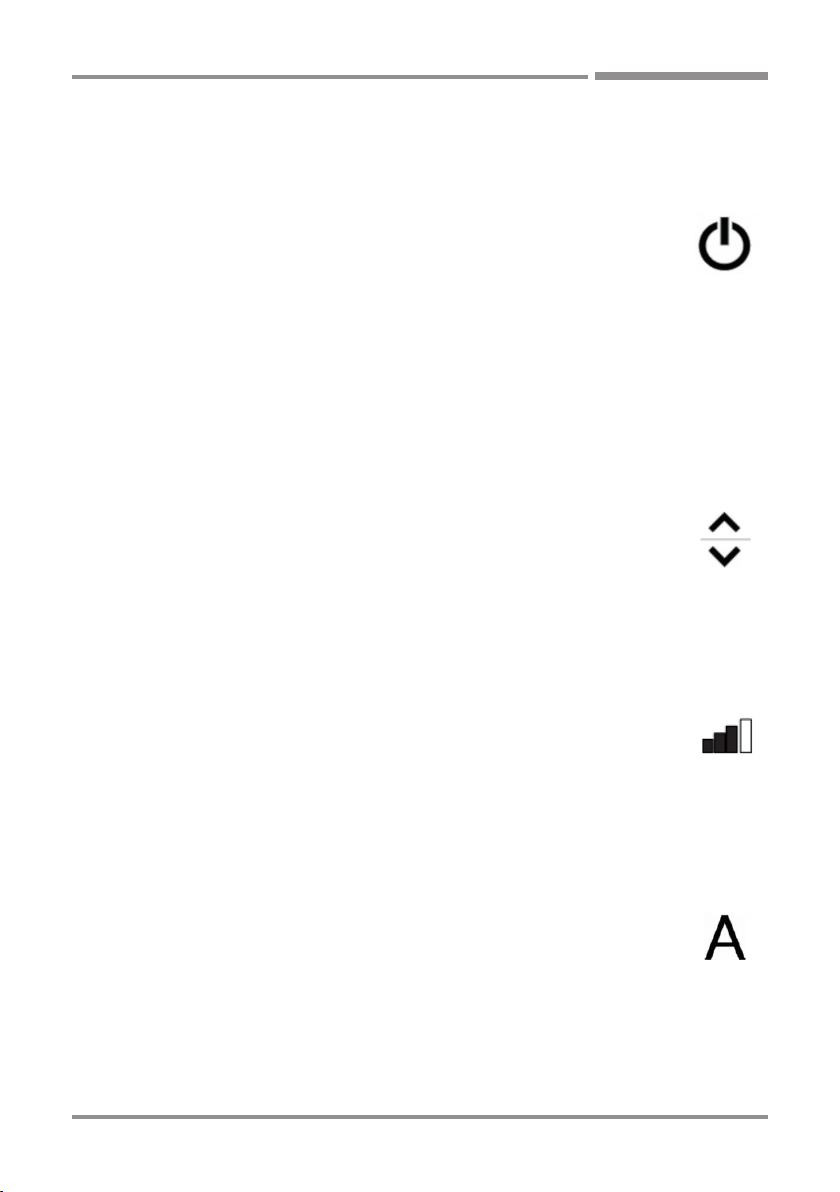

Unit On / Off
Temperature
set modification
Fan speed
management
AUTO function

20
ENGLISH
ASPIRCOMFORT PRO X 460H
VENTILATION-ONLY FUNCTION
When this function is activated, the compressor is never switched on and the appliance has no
effect on either the temperature or the humidity of the air in the room. It is possible to select
the fan speed.
NIGHT WELLNESS FUNCTION
With the appliance switched on and the cooling or heating mode selected, pressing the button
allows multiple functions to be performed to maximise the quietness of the appliance, save
electricity and regulate night wellness.
In this mode, fan operation is set to minimum speed.
This function should be activated immediately before falling asleep.
• In cooling mode, the set temperature set is increased by 1 °C after one hour and by a further
1 °C after 2 hours. After the second hour, the temperature set is not altered any further and
after a further 6 hours the appliance is placed in stand-by.
• In heating mode, the set temperature is reduced by 1 °C after one hour and by a further 1
°C after 2 hours.
After the second hour, the temperature set is not altered any further and after a further 6
hours the appliance is placed in stand-by.
This function is not available for dehumidification-only, ventilation-only and economic
automatic operation and can be overridden at any time (ideally when waking up) by pressing
the button again.
If the timer function is set at the same time, the device will switch off after the set time has
elapsed.
DEHUMIDIFICATION FUNCTION
Using this mode, the appliance dehumidifies the room. Activating this function is therefore
particularly useful in the mid-seasons, i.e. on days (such as rainy days) when the temperature
is pleasant, but the excessive humidity makes you feel a certain sense of discomfort. In this
mode, both the room temperature setting and the fan speed setting are ignored and always
correspond to the minimum. In this mode it is normal for the appliance to operate intermittently.
CHANGE OF SEASON
The change of season must be carried out from the keyboard;
Press and hold the season change button for at least 3 seconds to change the season status;
This operation must be carried out in order to activate the correct logics.
Symbol logic: SUN = WINTER SNOWFLAKE = SUMMER
Ventilation only
Night wellness
Dehumidification
Change of Season
