ASROCK Rack C2550D4I User manual

Version 1.0
Published November 2014
Copyright©2014 ASRock Rack Inc. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Rack Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished
for informational use only and subject to change without notice, and should not
be constructed as a commitment by ASRock Rack. ASRock Rack assumes no
responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock Rack does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock Rack, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRock Rack has been advised of the possibility of such damages
arising from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Rack’s Website: www.ASRockRack.com

Contact Information
If you need to contact ASRock Rack or want to know more about ASRock Rack,
you’re welcome to visit ASRock Rack’s website at www.ASRockRack.com; or you
may contact your dealer for further information.
ASRock Rack Incorporation
6F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Unique Features 5
1.4 Motherboard Layout 6
1.5 I/O Panel 10
1.6 Block Diagram 12
Chapter 2 Installation 13
2.1 Screw Holes 13
2.2 Pre-installation Precautions 13
2.3 Installation of Memory Modules (DIMM) 14
2.4 Expansion Slots (PCI Express Slots) 16
2.5 Jumper Setup 17
2.6 Onboard Headers and Connectors 18
2.7 Unit Identication purpose LED/Switch 23
2.8 Driver Installation Guide 23
Chapter 3 UEFI Setup Utility 24
3.1 Introduction 24
3.1.1 UEFI Menu Bar 24
3.1.2 Navigation Keys 25
3.2 Main Screen 26
3.3 Advanced Screen 27
3.3.1 Easy Raid Installer 28

3.3.2 Storage Conguration 29
3.3.3 ACPI Conguration 30
3.3.4 Super IO Conguration 31
3.4 H/W Monitor Screen (Hardware Health Event Monitoring) 36
3.5 IntelRCSetup 38
3.5.1 Processor Conguration 39
3.5.2 North Bridge Conguration 41
3.5.3 South Bridge Chipset Conguration 42
3.5.4 System Event Log 44
3.6 Server Management 45
3.7 Event Logs 48
3.8 Security Screen 49
3.9 Boot Screen 50
3.10 Exit Screen 52
Chapter 4 Software Support 53
4.1 Install Operating System 53
4.2 Support CD Information 53
4.2.1 Running The Support CD 53
4.2.2 Drivers Menu 53
4.2.3 Utilities Menu 53
4.2.4 Contact Information 53
Chapter 5 Troubleshooting 54
5.1 Troubleshooting Procedures 54
5.2 Technical Support Procedures 56

5.3 Returning Merchandise for Service 56
Chapter 6: Net Framework Installation Guide 57
6.1 Installing .Net Framework 3.5.1 (For Server 2008 R2) 57

C2X50D4I Series
1
English
Chapter 1 Introduction
ank you for purchasing ASRock Rack C2X50D4I Series motherboard, a reliable
motherboard produced under ASRock Rack’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock Rack’s
commitment to quality and endurance.
In this manual, chapter 1 and 2 contains introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contains the conguration
guide to BIOS setup and information of the Support CD.
1.1 Package Contents
•ASRock Rack C2550D4I / C2750D4I / C2750D4I+ Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
•Support CD
•User Manual
•6 x Serial ATA (SATA) Cables (Optional)
•1 x I/O Shield
If any items are missing or appear damaged, contact your authorized dealer.
Because the motherboard specications and the BIOS soware might be updated, the con-
tent of this manual will be subject to change without notice. In case any modications of
this manual occur, the updated version will be available on ASRock Rack website without
further notice. You may nd the latest memory and CPU support lists on ASRock Rack
website as well. ASRock Rack’s Website: www.ASRockRack.com
If you require technical support related to this motherboard, please visit our website for
specic information about the model you are using.
http://www.asrockrack.com/support/

2
English
1.2 Specications
C2550D4I / C2750D4I / C2750D4I+
MB Physical Status
Form Factor Mini-ITX
Dimension 6.7'' x 6.7'' (17.0 cm x 17.0 cm)
Processor System
CPU C2750D4I / C2750D4I+:
Intel® Octa Core Avoton C2750 Processor
C2550D4I:
Intel® Octa Core Avoton C2550 Processor
Socket FCBGA1283 SOC
System Memory
Max. Capacity 64GB DDR3 ECC UDIMM
Socket - 4 x 240-pin DDR3 DIMM slots
- Support up to 64GB DDR3 ECC and UDIMM
Type - Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC and UDIMM
Voltage 1.5V, 1.35V
Expansion Slot
PCIe 2.0 x 8
1 slot (x8 mode)
Storage
SATA Controller
C2750D4I / C2750D4I+:
Intel® C2750 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s
C2550D4I:
Intel® C2550 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0 Gb/s
Additional SATA
Controller
- Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1
- Marvell SE9230: 4 x SATA3 6.0 Gb/s, support RAID 0, 1, 10
Ethernet
Interface Gigabit LAN 10/100/1000 Mb/s
LAN Controller - 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Ecient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
Management
BMC Controller ASPEED AST2300 : IPMI (Intelligent Platform Management
Interface) 2.0 with iKVM support
IPMI Dedicated
GLAN 1 x Realtek RTL8211E for dedicated management GLAN
Features - Watch Dog
- NMI

C2X50D4I Series
3
English
Gracphics
Controller ASPEED AST2300
VRAM DDR3 16MB
Output Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Rear Panel I/O
VGA Port 1 x D-Sub
USB 2.0 Port 2
LAN Port
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port 1 (COM1)
UID Button/UID
LED 1
Internal Connector
Auxiliary Panel
Header 1 (includes location button & LED, front LAN LED)
IPMB Header 1
Fan Header 6 x 4-pin
ATX Power 1 (24-pin)
USB 2.0 Header 1 (support 1 via headers or 2 via headers controlled by USB_
SEL1 and USB_SEL2 jumper)
Front Panel 1
System BIOS
BIOS Type 64Mb AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Rack Instant Flash
Hardware Monitor
Temperature - CPU Temperature Sensing
- Motherboard Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU
Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
+1.1V, +1.0V, +BAT, 3VSB, 5VSB

4
English
Support OS
OS Microso® Windows®
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
Linux®
- CentOS 6.4/5.10 (x32 and x64) (only support AHCI mode)
- SUSE Enterprise Linux Server 11 SP1 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora Core 19 (64 bit)
- Ubuntu 12.04/12.10 (64 bit)
Virtual:
- VMWare ESXi 5.5
Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation
temperature: -40°C ~ 70°C
*For C2750D4I / C2550D4I motherboard, please install a CPU fan when the
airow throught the heat sink is below 2 CFM(Cubic Feet per Minute) for bet-
ter ventilation.
Since Intel® Edisonville platform does not support RSTe feature, it is decided by OS inbox
driver behavior. e Avoton processor integrated I/O’s SATA2/3 driver is used inbox not
Intel®. So according to Windows® 2008 R2 OS operation behaviors, it needs to take about
~60sec refresh timer when users unplug SATA device. You have to go in manually to detect
the drive and recognize it. In other words, the operation system will quickly response the
SATA plug in/out status about ~10sec when users install the RSTe driver if the platform
supports it.
* For detailed product information, please visit our website: http://www.asrockrack.com

C2X50D4I Series
5
English
1.3 Unique Features
ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM. is conve-
nient BIOS update tool allows you to update system BIOS without entering operating
systems rst like MS-DOS or Windows®. With this utility, you can press the <F6> key
during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock
Rack Instant Flash. Just launch this tool and save the new BIOS le to your USB ash
drive, oppy disk or hard drive, then you can update your BIOS only in a few clicks
without preparing an additional oppy diskette or other complicated ash utility.
Please be noted that the USB ash drive or hard drive must use FAT32/16/12 le
system.

6
English

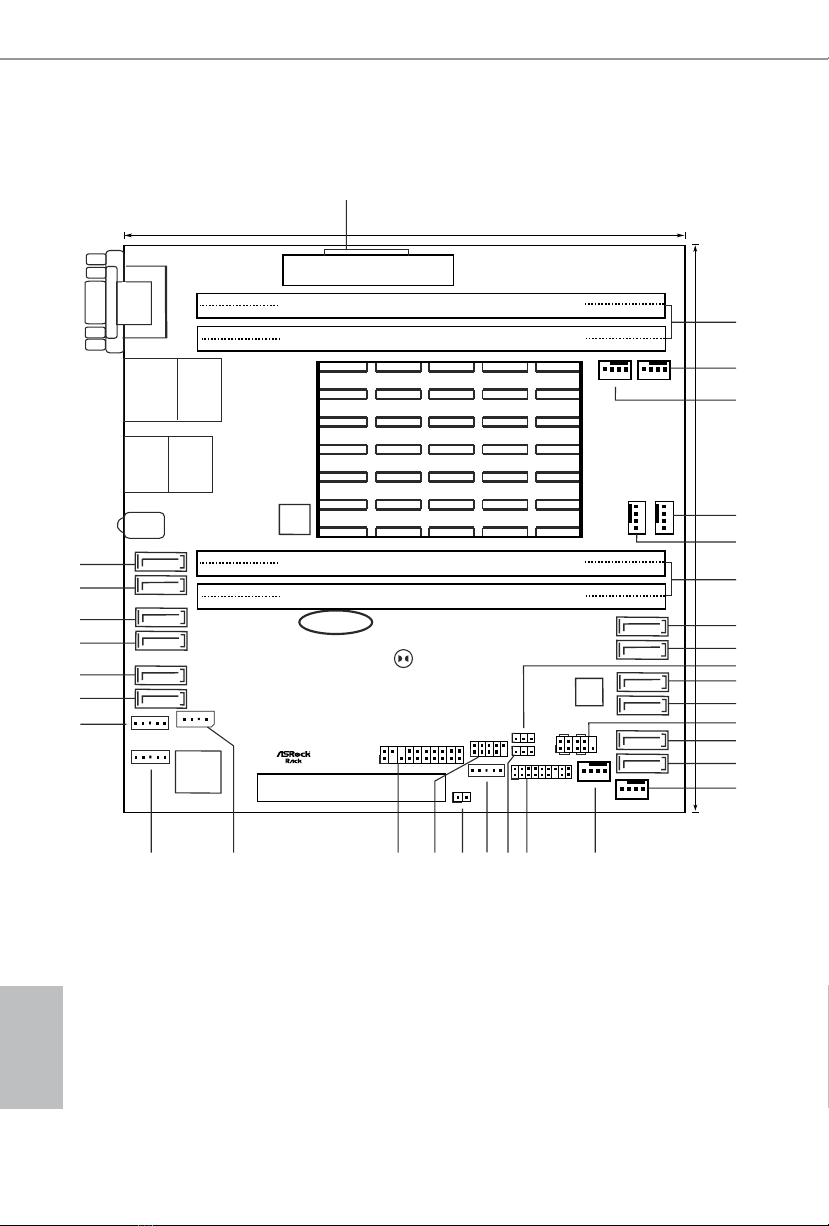

1.4 Motherboard Layout
C2750D4I
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
PCIE1
64Mb
BIOS
17.0cm (6.7 in)
17.0cm (6.7 in)
ATXPWR1
CMOS
Battery
REAR_FAN2
COM1
VGA1
1
2
3
4
5
6
11
12
10
8
9
14
13
15
16
17
18
RoHS
19
BMC
ROM
REAR_FAN1
UID_SW_LED1
LAN1
LAN2
Top:
IPMI
LAN
USB 2.0
T: USB_0
B: USB_1
NMI_BTN1
1
IPMB_1
1
USB_2-3
1
TPMS1
1
1
AUX_PANEL1
CPU_FAN2
SATA_0
7
20
2122
25 23
24
C2750D4I
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
CPU_FAN1
SATA_1
SATA_2
SATA_3
SATA_4
SATA_5
BMC_SMB_2
1
BMC_SMB_1
1
BMC_SMB_3
1
USB_SEL1
1
USB_SEL2
1
HDLED RESET
PLED PWRBTN
PANEL1
1
FRNT_FAN1
FRNT_FAN2
SATA3_M0
SATA3_M1
SATAIII_M0
SATAIII_M1
SATAIII_M2
SATAIII_M3
Super
I/O
26
32
31
29
30
28
27
CLRCMOS1

C2X50D4I Series
7
English
C2750D4I+
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
PCIE1
64Mb
BIOS
17.0cm (6.7 in)
17.0cm (6.7 in)
ATXPWR1
CMOS
Battery
REAR_FAN2
COM1
VGA1
1
2
3
4
5
6
11
12
10
8
9
14
13
15
16
17
18
RoHS
19
BMC
ROM
REAR_FAN1
UID_SW_LED1
LAN1
LAN2
Top:
IPMI
LAN
USB 2.0
T: USB_0
B: USB_1
NMI_BTN1
1
IPMB_1
1
USB_2-3
1
TPMS1
1
1
AUX_PANEL1
CPU_FAN2
SATA_0
7
20
2122
25 23
24
C2750D4I+
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
CPU_FAN1
SATA_1
SATA_2
SATA_3
SATA_4
SATA_5
BMC_SMB_2
1
BMC_SMB_1
1
BMC_SMB_3
1
USB_SEL1
1
USB_SEL2
1
HDLED RESET
PLED PWRBTN
PANEL1
1
FRNT_FAN1
FRNT_FAN2
SATA3_M0
SATA3_M1
SATAIII_M0
SATAIII_M1
SATAIII_M2
SATAIII_M3
Super
I/O
26
32
31
29
30
28
27
CLRCMOS1

8
English
C2550D4I
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
PCIE1
64Mb
BIOS
17.0cm (6.7 in)
17.0cm (6.7 in)
ATXPWR1
CMOS
Battery
COM1
VGA1
1
2
3
4
5
6
11
12
10
8
9
14
13
15
16
RoHS
BMC
ROM
UID_SW_LED1
LAN1
LAN2
Top:
IPMI
LAN
USB 2.0
T: USB_0
B: USB_1
NMI_BTN1
1
IPMB_1
1
USB_2-3
1
TPMS1
1
1
AUX_PANEL1
SATA_0
7
C2550D4I
DDR3_B1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
SATA_1
SATA_2
SATA_3
SATA_4
SATA_5
BMC_SMB_2
1
BMC_SMB_1
1
BMC_SMB_3
1
USB_SEL1
1
USB_SEL2
1
HDLED RESET
PLED PWRBTN
PANEL1
1
FRNT_FAN1
FRNT_FAN2
SATA3_M0
SATA3_M1
SATAIII_M0
SATAIII_M1
SATAIII_M2
SATAIII_M3
Super
I/O
CLRCMOS1
17
18
19
20
2122
25 23
24
26
32
31
29
30
28
27
REAR_FAN2 REAR_FAN1
CPU_FAN2 CPU_FAN1

C2X50D4I Series
9
English
No. Description
1ATX Power Connector (ATXPWR1)
22 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_A2)
3Rear Fan Connector (REAR_FAN1)
4Rear Fan Connector (REAR_FAN2)
5CPU Fan Connector (CPU_FAN1)
6CPU Fan Connector (CPU_FAN2)
72 x 240-pin DDR3 DIMM Slots (DDR3_B1, DDR3_B2)
8SATA3 Connector (SATA3_M0, White)
9SATA3 Connector (SATA3_M1, White)
10 USB Selection Jumper (USB_SEL1)
11 SATA3 Connector (SATAIII_M0, White)
12 SATA3 Connector (SATAIII_M1, White)
13 System Panel Header (PANEL1)
14 SATA3 Connector (SATAIII_M2, White)
15 SATA3 Connector (SATAIII_M3, White)
16 Front Fan Connector (FRNT_FAN2)
17 Front Fan Connector (FRNT_FAN1)
18 TPM Header (TPMS1)
19 USB Selection Jumper (USB_SEL2)
20 BMC SMB Header (BMC_SMB3)
21 Non Maskable Interrupt Button (NMI_BTN1)
22 USB 2.0 Header (USB_2-3)
23 Auxiliary Panel Header (AUX_PANEL1)
24 Intelligent Platform Management Bus header (IPMB_1)
25 BMC SMB Header (BMC_SMB2)
26 BMC SMB Header (BMC_SMB1)
27 SATA2 Connector (SATA_5, Blue)
28 SATA2 Connector (SATA_4, Blue)
29 SATA2 Connector (SATA_3, Blue)
30 SATA2 Connector (SATA_2, Blue)
31 SATA3 Connector (SATA_1, White)
32 SATA3 Connector (SATA_0, White)

10
English
1.5 I/O Panel
C2550D4I / C2750D4I / C2750D4I+
26
4
3 5
1
7
No. Description No. Description
1 Serial Port (COM1) 5 LAN RJ-45 Port (LAN1)**
2 D-Sub Port (VGA1) 6 LAN RJ-45 Port (LAN2)**
3 Dedicated IPMI LAN Port* 7 UID Switch/LED (UID_SW_LED1)
4 USB 2.0 Ports (USB_0-1)
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On 100Mbps connection Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

C2X50D4I Series
11
English

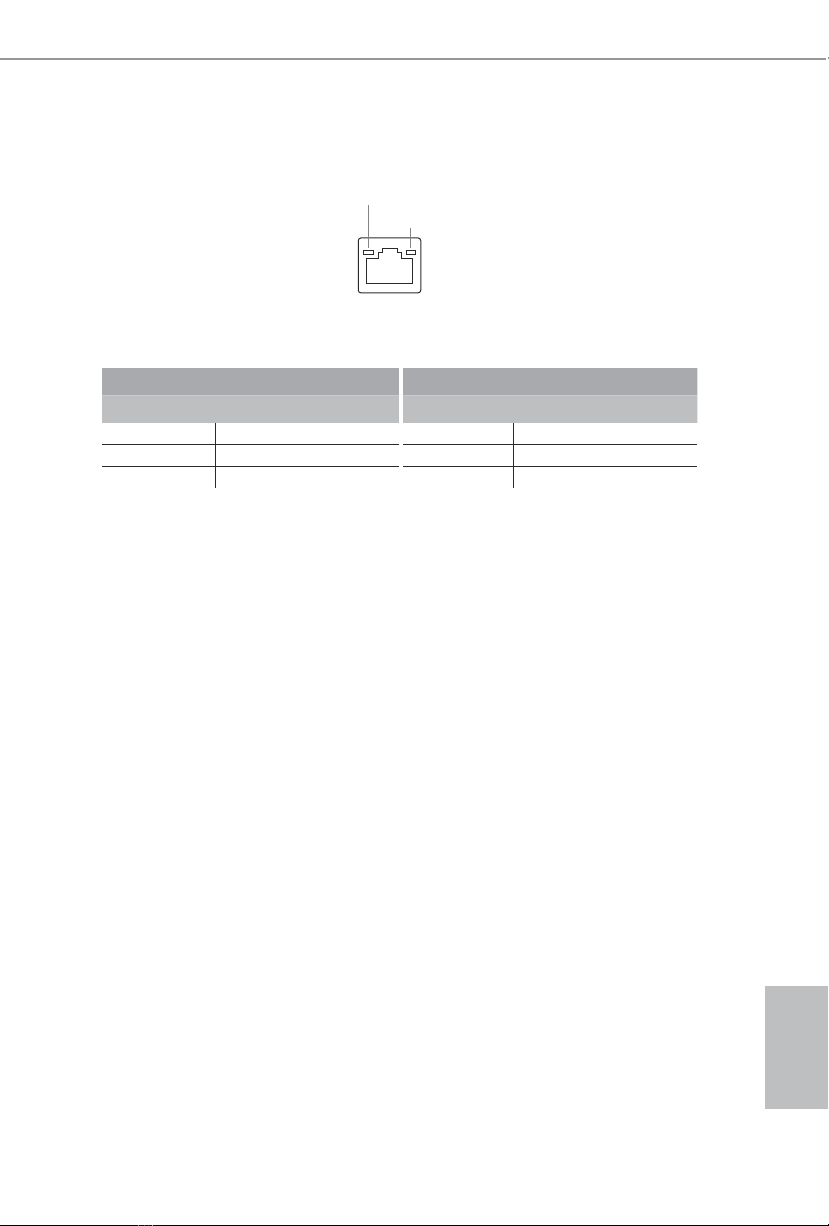

**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2) LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity O 100Mbps connection
On 100Mbps connection Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

12
English
1.6 Block Diagram
DDR3 1066/1333/1600
Avoton
Intel Processor
1283 pin
Channel B
PCI-E X8 SLOT
128-bit Dual-Channel Memory x 4 Slots
DDR3 1066/1333/1600
Channel A
PCI_E BUS
100MHz
100MHz
SATA_5
SATA_0
SATA_2SATA_4
SATA_1
SATA_3
SATA BUS
PEX8608
PCIE x2
100MHz
Marvell 9230
PCIE x1
PCIE x1
PCIE x1
Marvell 9172
BMC AST2300
INTEL I210
PCIE x1
INTEL I210
SATA3_M1
SATA3_M0
SATAIII_M1
SATAIII_M0
SATAIII_M3
SATAIII_M2
SPI FLASH
64Mb
SPI
LPC BUS
33MHz
SIO
Nuvoton NCT5573D
TPM
USB2_0
USB2_1 USB2_2

C2X50D4I Series
13
English
Chapter 2 Installation
This is a Mini-ITX form factor (6.7'' x 6.7'', 17.0 cm x 17.0 cm) motherboard. Before
you install the motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
2.1 Screw Holes
Place screws into the holes indicated by circles to secure the motherboard to the chassis.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components or
change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the motherboard’s components due to static electricity, NEVER
place your motherboard directly on the carpet or the like. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the compo-
nents.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in
the bag that comes with the component.
5. When placing screws into the screw holes to secure the motherboard to the chassis,
please do not over-tighten the screws! Doing so may damage the motherboard.
Make sure to unplug the power cord before installing or removing the motherboard. Failure
to do so may cause physical injuries to you and damages to motherboard components.
Do not over-tighten the screws! Doing so may damage the motherboard.
Before you install or remove any component, ensure that the power is switched o or the
power cord is detached from the power supply. Failure to do so may cause severe damage to
the motherboard, peripherals, and/or components.

14
English
2.3 Installation of Memory Modules (DIMM)
is motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and
supports Dual Channel Memory Technology.
Dual Channel Memory Conguration
Priority DDR3_A1
(Blue)
DDR3_A2
(White)
DDR3_B1
(Blue)
DDR3_B2
(White)
1Populated Populated
2Populated Populated Populated Populated
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one or three memory
module installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise,
this motherboard and DIMM may be damaged.
4. Please install the memory module on DDR3_A1 for the rst priority.
e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
