ASROCK DeskMini H470 Series User manual

Version 1.0
Published June 2020
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
Chapter 2 Product Overview 4
2.1 Front View 4
2.2 Rear View 5
1.3 Motherboard Layout 6
Chapter 3 Hardware Installation 13
3.1 Begin Installation 13

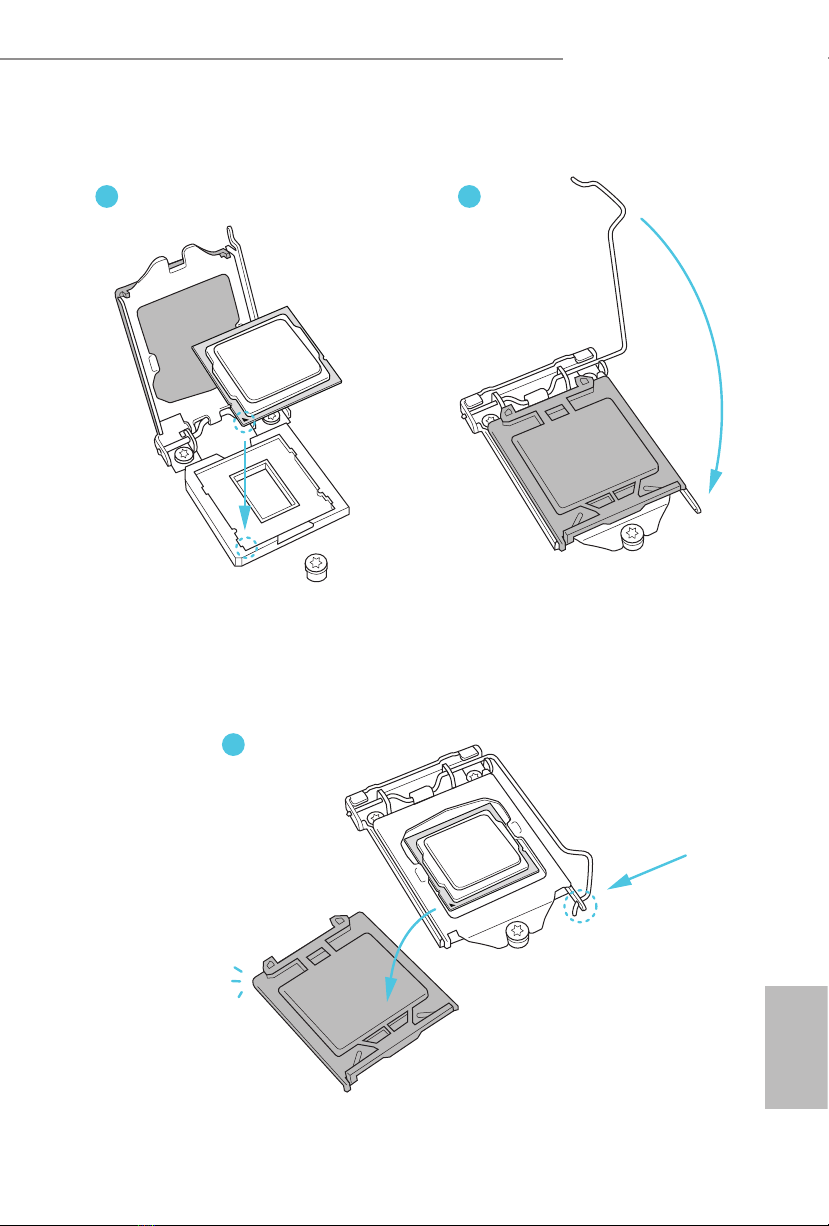

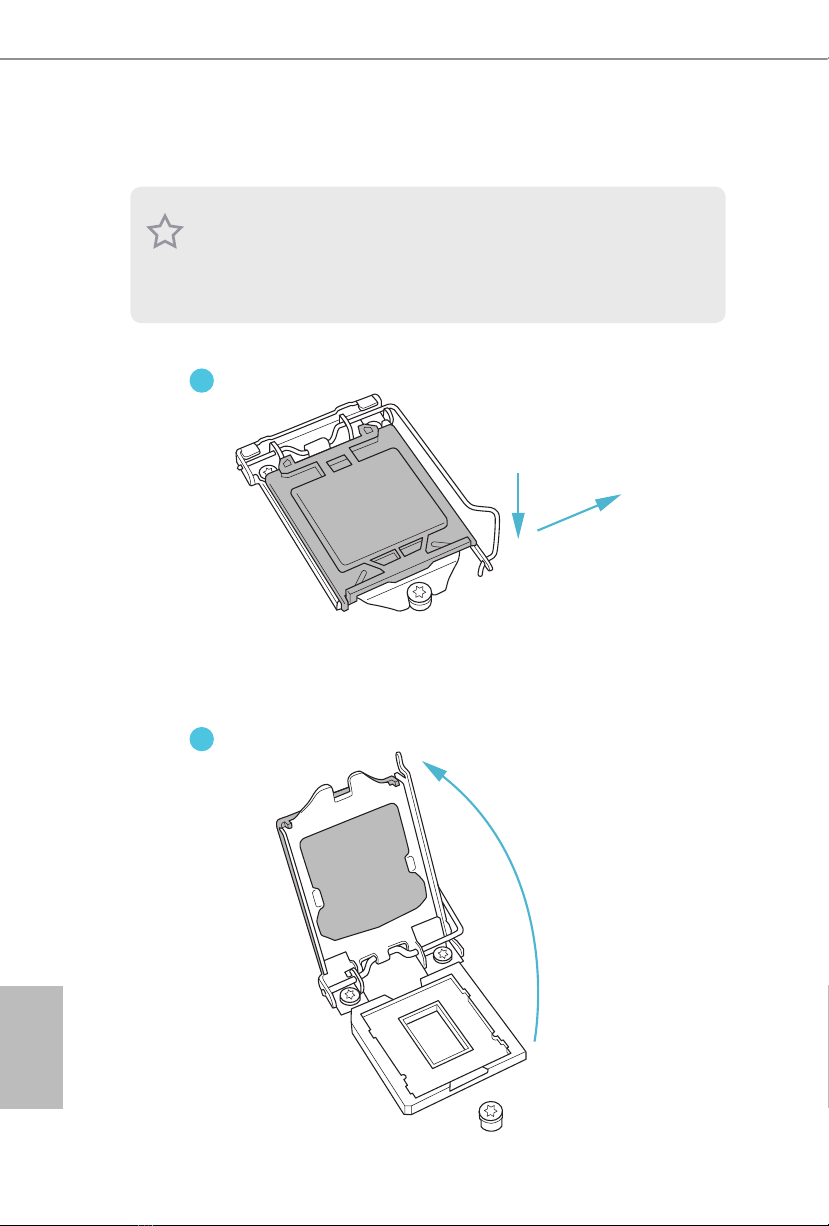

3.2 Installing the CPU 14
3.3 Installing the CPU Fan and Heatsink 16
3.4 Installing Memory Modules (SO-DIMM) 17
3.5 Installing the WiFi Module 18
3.6 Installing the M.2 SSD (Type 2280) 19
3.7 Installing the 2.5-inch HDD/SSD 20
3.8Complete 22
3.9 Installing the VESA Bracket (Optional) 23
3.10 Installing the WiFi Antennas (Optional) 25
Chapter 4 Software and Utilities Operation 27
4.1 Installing Drivers 27

Chapter 5 UEFI SETUP UTILITY 28
5.1 Introduction 28
5.2 EZ Mode 29
5.3 Advanced Mode 30
5.3.1 UEFI Menu Bar 30
5.3.2 Navigation Keys 31
5.4 Main Screen 32
5.5 OC Tweaker Screen 33
5.6 Advanced Screen 41
5.6.1 CPU Conguration 42
5.6.2 Chipset Conguration 44
5.6.3 Storage Conguration 47
5.6.4 ACPI Conguration 48
5.6.5 USB Conguration 49
5.6.6 Trusted Computing 50
5.7 Tools 52
5.8 Hardware Health Event Monitoring Screen 54
5.9 Security Screen 55
5.10 Boot Screen 56

PB 1
English
DeskMini H470 series
Chapter 1 Introduction
ank you for purchasing DeskMini H470 series barebone system. In this
documentation, Chapter 1 and 2 contains the introduction of the barebone system
and step-by-step installation guides. Chapter 3 contains the guide of hardware
installation. Chapter 4 contains the operation guide of the soware and utilities.
Chapter 5 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• DeskMini H470 series Barebone System with:
DeskMini H470 series Chassis
Motherboard (pre-installed)
*e barebone system does not include memory, hard drive, WiFi module and M.2
SSD.
• 120W/19V Power Adapter & Power Cord (Optional)
• SATA Cable (Optional)
• Screws Package (HDD Screw x 6, M.2 Screw x 3pcs, Rubber Foot x 4pcs)
• Support CD (Optional)
• Quick Installation Guide (Optional)
*Package contents may vary based on local distribution.
If any items are missing or appear damaged, contact your authorized dealer.
Because the barebone system specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

2 3
English
1.2 Specications
System
Model
• DeskMini H470
Chassis • 1.92L (155 x 155 x 80mm)
CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)
CPU cooling • Supports Standard Intel Box Fan Coolers
Mother-
board
• H470M-STX
Chipset • Intel®H470
Graphics • Intel® UHD Graphics
Memory • Supports DDR4 2933MHz, 2 x SO-DIMM Slots, Max. 64GB
Audio • Realtek ALC233 Audio Codec
LAN • Intel Gigabit I219V LAN
Expansion
Slot
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
and Intel® CNVi (Integrated WiFi/BT)
Front I/O • Power Button (with power LED & HDD LED)
• 1 x USB 3.2 Gen2 (Type-A), 1 x USB 3.2 Gen1 (Type-C), 1 x
Headphone/Headset Jack , 1 x MIC-In
Rear I/O • 1 x VGA , 1 x HDMI, 1 x DP, 4 x USB 3.2 Gen1 Type-A, 1 x
USB 3.2 Gen1 Type-C , 1 x LAN, 1 x DC-In Jack

2 3
English
DeskMini H470 series
Storage • 2 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, Intel Rapid Storage Technology 17), NCQ, AHCI and
Hot Plug
• 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s
module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
* Supports Intel® OptaneTM Technology
* Supports NVMe SSD as boot disks
Onboard
Connectors
• 2 x CPU Fan Connectors (2 x 4-pin)
• 1 x Internal Speaker Header
• 1 x Front Panel Header
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD
Protection)
• 1 x Audio Header
Drive Bays • 2 x 2.5" HDD or SSD
Power
Adapter
• 120W/19V Power Adapter
Operation
Temp.
• 0~35°C
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

4 5
English
Chapter 2 Product Overview
is chapter provides diagrams showing the location of important components of
the DeskMini H470 Barebone system series.

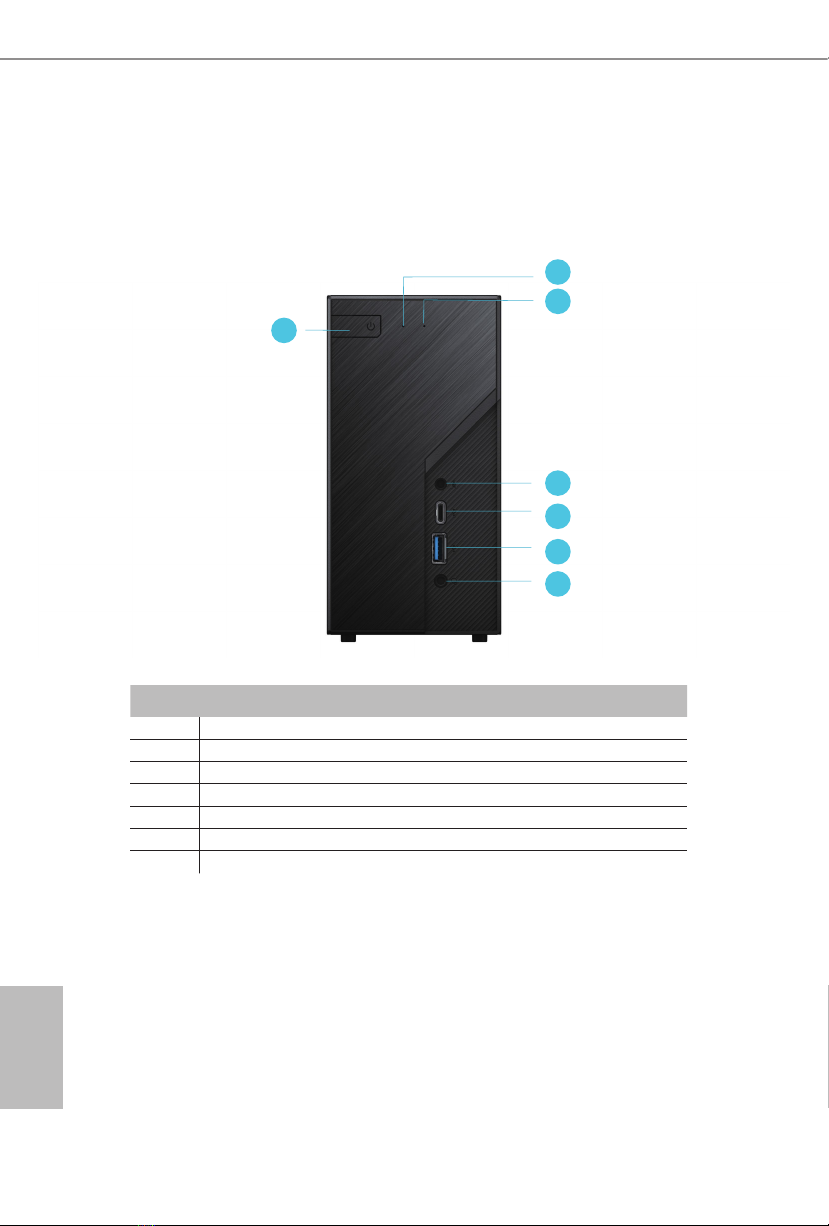

2.1 Front View
No. Description
1 Power Button
2Power LED
3HDD LED
4MIC-In
5 USB 3.2 Gen1 Type-C Port
6 USB 3.2 Gen1 Type-A Port
7Headphone/Headset
1
2
4
5
6
7
3

4 5
English
DeskMini H470 series

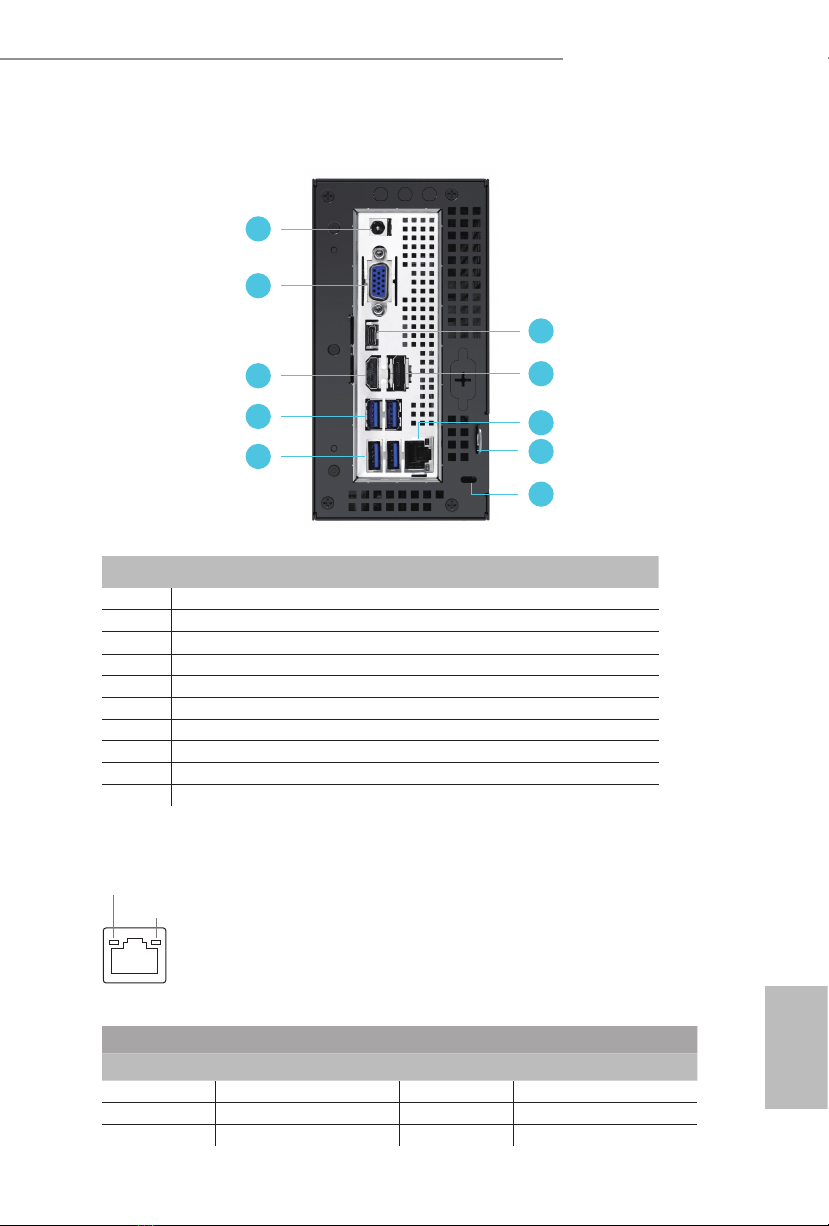

2.2 Rear View
No. Description
1 DC Jack (Supports 19V DC Power Adapters)
2D-Sub Port
3HDMI Port
4 USB 3.2 Gen1 Type-A Ports
5 USB 3.2 Gen1 Type-A Ports
6 USB 3.2 Gen1 Type-C Port ( USB-C / DP Alt mode )
7DisplayPort 1.4
8 LAN RJ-45 Port*
9 Key Lock
10 Kensington Lock
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1
2
3
4
5
6
7
8
9
10

6 7
English
Top:
RJ-45
RoHS
1
5
USB_8_9
1
3
HDLED RESET
PLED PWRBTN
PANEL1
1
Mic In
USB 3.2 Gen1
USB_2
USB 3.2 Gen1
USB_3
USB 3.2 Gen1
USB_1
Headphone
/ Headset
VGA1
8
7
DDR4_A1DDR4_A1 DDR4_B1
DC Jack
SPEAKER1
1
Super
I/O
BIOS
ROM
M2_WIFI
M2 _ 1
M2_WIFI_CT1
M2_1_CT1
CPU_FAN1
CPU_FAN2
1
AUDIO3
H470M-STX
1
CLRMOS1
6
2
CMOS
Battery
4
DP_1
HDMI1
USB 3.2 Gen1
T: USB_6
B: USB_7
USB 3.2 Gen1
T: USB_4
B: USB_5

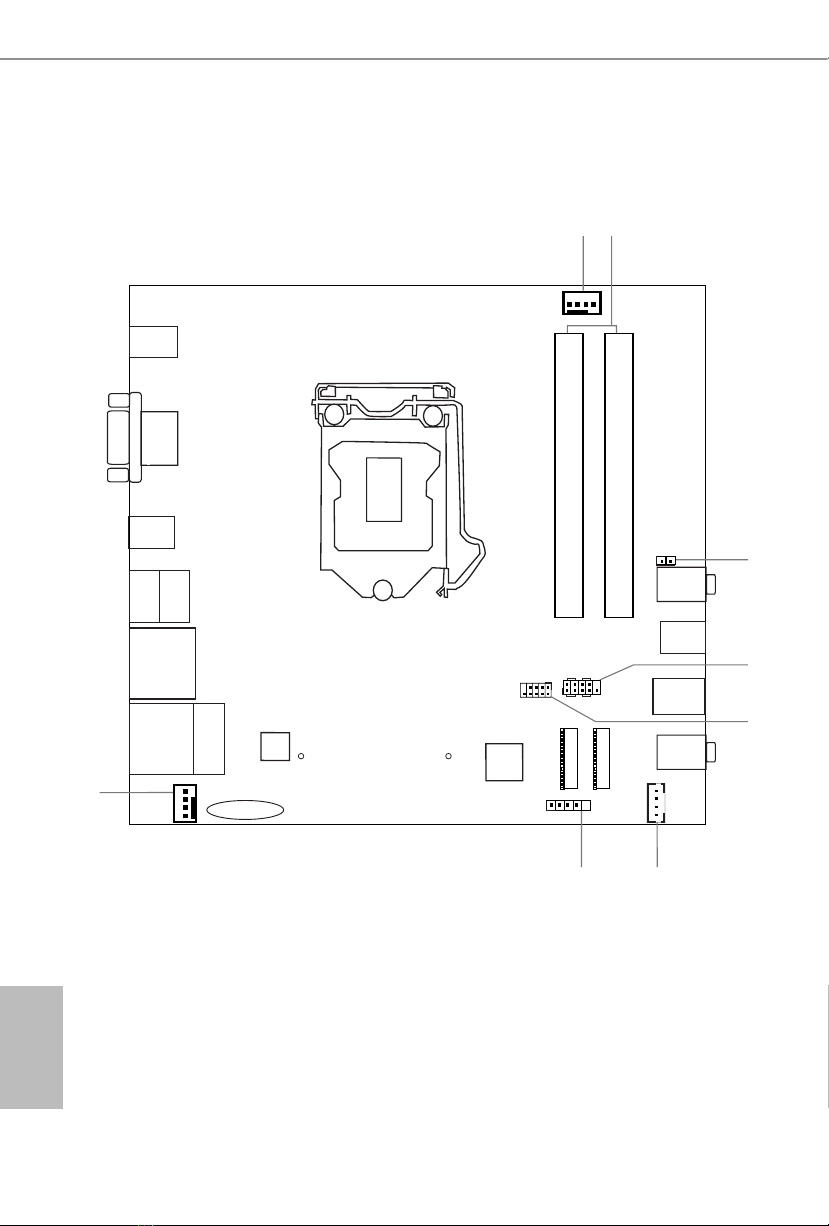

1.3 Motherboard Layout

6 7
English
DeskMini H470 series
Bottom View
910
SATA3SATA3
M2_2

8 9
English
No. Description
1 CPU Fan Connector (CPU_FAN1)
2 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
3 Clear CMOS Jumper (CLRMOS1)
4 System Panel Header (PANEL1)
5 USB 2.0 Header (USB_8_9)
6 MONO Speaker Header (SPEAKER1)
7Audio Header (AUDIO3)
8 CPU Fan Connector (CPU_FAN2)
9 SATA3 Connector (SATA2)
10 SATA3 Connector (SATA1)

8 9
English
DeskMini H470 series

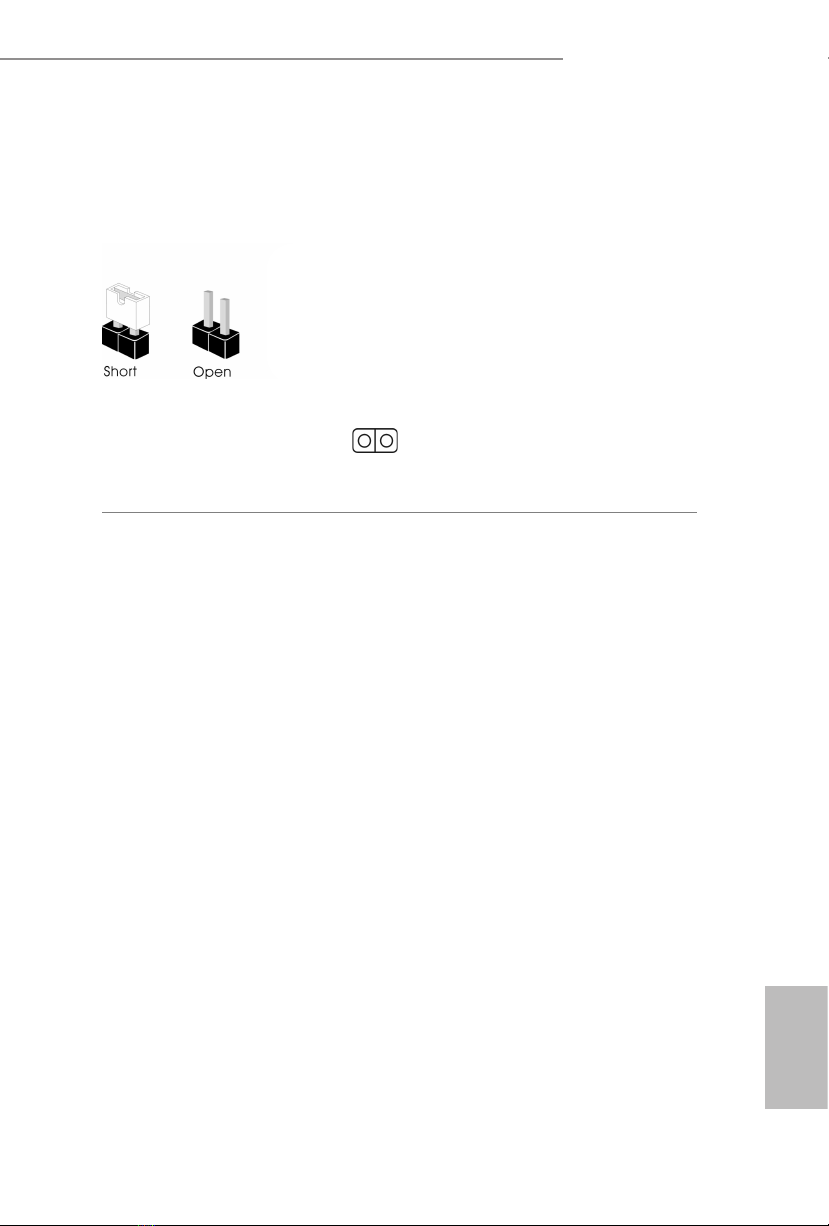

Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper
(CLRCMOS1)
(see p.6, No. 3)
Short: Clear CMOS
Open: Default
CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. To clear and reset the system parameters to default setup, please
turn o the computer and unplug the power cord, then use a jumper cap to short
the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper
cap aer clearing the CMOS. If you need to clear the CMOS when you just nish
updating the BIOS, you must boot up the system rst, and then shut it down
before you do the clear-CMOS action.
2-pin Jumper

10 11
English
Onboard Headers and Connectors

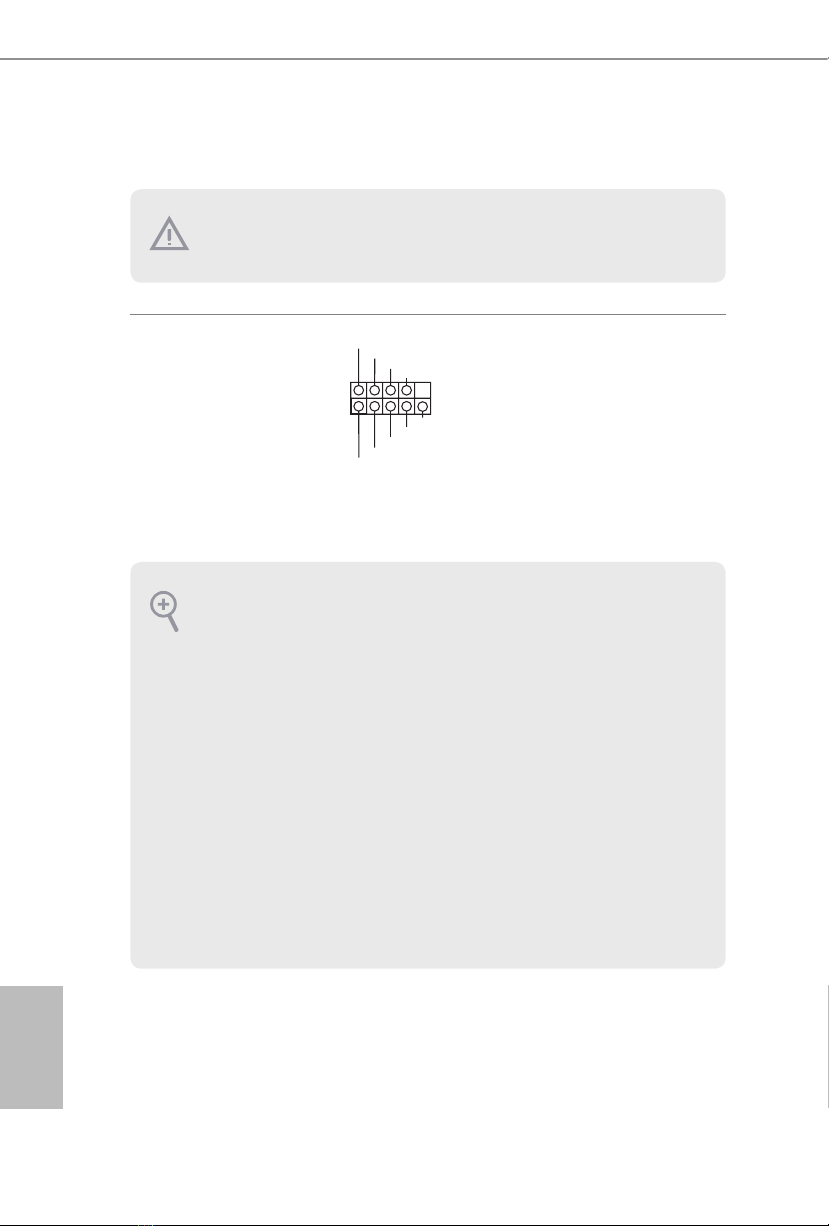

System Panel Header
(9-pin PANEL1)
(see p.6, No. 4)
Connect the power
button, reset button and
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
GND
RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
PWRBTN (Power Button):
Connect to the power button on the chassis front panel. You may congure the way to turn
o your system using the power button.
RESET (Reset Button):
Connect to the reset button on the chassis front panel. Press the reset button to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists of power
button, reset button, power LED, hard drive activity LED, speaker and etc. When connect-
ing your chassis front panel module to this header, make sure the wire assignments and the
pin assignments are matched correctly.

10 11
English
DeskMini H470 series
MONO Speaker Header
(4-pin SPEAKER1)
(see p.6, No. 6)
Please connect the chassis
speaker to this header.
Serial ATA3 Connectors
(see p.7, No. 9 and 10)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
*e SATA3 connectors
support 2.5-inch hard
drive (+5V) and do not
support 3.5-inch hard
drive (+12V)
USB 2.0 Header
(9-pin USB_8_9)
(see p.6, No. 5)
ere is one header on
this motherboard. is
USB 2.0 header can
support two ports.
CPU Fan Connectors
(4-pin CPU_FAN1)
(see p.6, No. 1)
(4-pin CPU_FAN2)
(see p.6, No. 8)
is motherboard
provides two 4-Pin CPU
fan (Quiet Fan)
connectors. If you plan to
connect a 3-Pin CPU fan,
please connect it to Pin
1-3.
Front_L+
Front_R-
Front_R+
Front_L-
1
120
PIN Signal Name PIN Signal Name
1GND 11 N/A
2LVDS _TX+ 12 5V
3LVDS _TX- 13 5V
4GND 14 5V
5GND 15 5V
6LVDS _RX- 16 5V
7LVDS _RX+ 17 N/A
8GND 18 GND
9GND 19 GND
10 GND 20 GND
FAN_VOLTAGE
GND
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
FAN_VOLTAGE
GND
FAN_SPEED
FA
N_SPEED_CONTROL
1
2
3
4
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1

12 13
English
Audio Header
(5-pin AUDIO3)
(see p.6, No. 7)
is Audio header allows you to
connect the audio cable for head-
phone.
1
GND
Jack detect
Audio-L
Audio-R

12 13
English
DeskMini H470 series
Chapter 3 Hardware Installation
3.1 Begin Installation
1. Unscrew the four screws of the back panel.
2. Pull out the motherboard tray while holding the handle .

14 15
English
3.2 Installing the CPU
1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

14 15
English
DeskMini H470 series
4
5
3
