Chapter 1 Introduction
ank you for purchasing ASRock B760M Steel Legend WiFi motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
1.1 Package Contents
• ASRock B760M Steel Legend WiFi Motherboard (Micro ATX Form Factor)
• ASRock B760M Steel Legend WiFi User Manual
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas (Optional)
• 3 x Screws for M.2 Sockets (Optional)
• 3 x Standos for M.2 Sockets (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

English
2
1.2 Specications
Platform • Micro ATX Form Factor
• 2oz Copper PCB
CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors
(LGA1700)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® ermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
Chipset • Intel® B760
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buered memory up to
7200+(OC)*
• Max. capacity of system memory: 128GB
• Supports Intel® Extreme Memory Prole (XMP) 3.0
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
• 1 x PCIe 4.0 x1 Slot (PCIE2)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe
WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/
BT)
* Supports NVMe SSD as boot disks
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Intel® XeGraphics Architecture (Gen 12)

English
3
B760M Steel Legend WiFi
• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and
max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP
2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
Wireless
LAN
• 802.11ax Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax
• Supports Dual-Band 2x2 with extended 6GHz band* sup-
port
* Wi-Fi 6E (6GHz band) will be supported by Microso® Win-
dows® 11. e availability will depend on the dierent regula-
tion status of each country and region. It will be activated (for
supported countries) through Windows Update and soware
updates once available.
* A 6GHz compatible router is required for 6E functionality.
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity
technology
• Supports Bluetooth + High speed class II
• Supports MU-MIMO
USB • 2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection

English
4
Rear Panel
I/O
• 2 x Antenna Ports
• 1 x PS/2 Mouse/Keyboard Port
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
Connector • 1 x eDP Signal Connector
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 1 x CPU Fan Connector (4-pin)***
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)****
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)*****
• 1 x 24 pin ATX Power Connector (Hi-Density Power Con-
nector)

English
5
B760M Steel Legend WiFi
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Con-
nector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
**** CPU_FAN2/WP supports the fan power up to 2A (24W).
***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect
if 3-pin or 4-pin fan is in use.
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
OS • Microso® Windows® 10 64-bit / 11 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.
* For detailed product information, please visit our website: http://www.asrock.com

English
6
1.3 Motherboard Layout
Top Side View

English
7
B760M Steel Legend WiFi
Back Side View

English
8
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 ATX 12V Power Connector (ATX12V2)
3 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
4 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
5 CPU Fan Connector (CPU_FAN1)
6 CPU/Water Pump Fan Connector (CPU_FAN2/WP)
7 Post Status Checker (PSC)
8 Addressable LED Header (ADDR_LED2)
9 Addressable LED Header (ADDR_LED3)
10 ATX Power Connector (ATXPWR1)
11 USB 3.2 Gen1 Header (USB32_6_7)
12 Front Panel Type C USB 3.2 Gen2 Header (USB32_TC2)
13 Chassis/Water Pump Fan Connector (CHA_FAN3/WP)
14 SATA3 Connectors (SATA3_0)(Upper), (SATA3_1)(Lower)
15 SATA3 Connectors (SATA3_2)(Upper), (SATA3_3)(Lower)
16 System Panel Header (PANEL1)
17 Chassis Intrusion and Speaker Header (SPK_CI1)
18 SPI TPM Header (SPI_TPM_J1)
19 USB 2.0 Header (USB_5_6)
20 USB 2.0 Header (USB_3_4)
21 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
22 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
23 RGB LED Header (RGB_LED1)
24 Addressable LED Header (ADDR_LED1)
25 Clear CMOS Jumper (CLRMOS1)
26 Front Panel Audio Header (HD_AUDIO1)
27 eDP Signal Connector (EDP1)

English
9
B760M Steel Legend WiFi
1.4 I/O Panel
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
No. Description No. Description
1 Antenna Ports 8 USB 3.2 Gen2 Type-A Port (USB32_3)
2 USB 2.0 Ports (USB_12) 9 USB 3.2 Gen2 Type-C Port (USB32_TC1)
3 2.5G LAN RJ-45 Port* 10 USB 3.2 Gen1 Ports (USB32_12)
4 Line In (Light Blue)** 11 PS/2 Mouse/Keyboard Port
5 Front Speaker (Lime)** 12 HDMI Port
6 Microphone (Pink)** 13 DisplayPort 1.4
7 USB 3.2 Gen1 Ports (USB32_45)
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
8
9
2
11
13 7
3
6
5
4
1012
1

English
10
1.5 Block Diagram
Intel 700 Series
Chipset
Intel Raptor Lake Processor Socket 1700
Rear USB 2.0 2 ports SATA 4 ports
SATA 6Gb 480Mb/s
Rear USB 3.2 Gen1 4 ports
Channel B Channel A
DDR5 non-ECC Slot x2
SIO NCT6796D
ALC897 (3 jack Audio)
PCIe 5.0 x16 Slot (x16)
DMI Gen4 x4
M.2_2 (PCIe Gen4 x4)
Gen4 x4 Gen4 x4 Gen5 x16
Display Port
Gen4 x1
PCIe x1 Slot
Front USB 3.2 Gen1 2 ports
Front USB 2.0 4 ports
AZ(HD Audio)
eSPI
Gen3 x1
Realtek RTL2.5G LAN
KB/MSFAN x5
H/W Monitor
M.2_1 (PCIe Gen4 x4)
SPI
Flash ROM 128Mb
DDIA
HDMI
Gen4 x16
eDP
DDIB DDIC
DDR5 non-ECC Slot x2
5Gb/s 5Gb/s 480Mb/s 10Gb/s
Rear A+C USB 3.2 Gen2
M.2_3 (PCIe Gen4 x4)
480Mb/s
LED MCU
PCIE3.0/CNVI
M.2 E key WiFi
10Gb/s
Front USB 3.2 Gen2 Type C
Status LED

English
11
B760M Steel Legend WiFi
1.6 802.11ax Wi-Fi 6E Module and ASRock WiFi 2.4/5/6 GHz
Antennas
802.11ax Wi-Fi 6E + BT Module
is motherboard comes with an exclusive 802.11 a/b/g/n/ac/ax Wi-Fi 6E + BT
module that oers support for 802.11 a/b/g/n/ac/ax Wi-Fi 6E connectivity standards
and Bluetooth. Wi-Fi 6E + BT module is an easy-to-use wireless local area network
(WLAN) adapter to support Wi-Fi 6E + BT. Bluetooth standard features Smart Ready
technology that adds a whole new class of functionality into the mobile devices.
BT also includes Low Energy Technology and ensures extraordinary low power
consumption for PCs.
* e transmission speed may vary according to the environment.
* Wi-Fi 6E (6GHz band) will be supported by Microso® Windows® 11. e availability
will depend on the dierent regulation status of each country and region. It will be
activated (for supported countries) through Windows Update and soware updates
once available.
* A 6GHz compatible router is required for 6E functionality.

English
12
WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5/6 GHz Antennas that
come with the package.
Step 2
Connect the two WiFi 2.4/5/6 GHz Antennas
to the antenna connectors. Turn the antenna
clockwise until it is securely connected.
Step 3
Set the WiFi 2.4/5/6 GHz Antenna as shown in
the illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.

English
13
B760M Steel Legend WiFi
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a
grounded wrist strap or touch a safety grounded object before you handle the
components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
14
2.1 Installing the CPU
1. Before you insert the 1700-Pin CPU into the socket, please check if the PnP cap
is on the socket, if the CPU surface is unclean, or if there are any bent pins in the
socket. Do not force to insert the CPU into the socket if above situation is found.
Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2 3

English
15
B760M Steel Legend WiFi
5
76
4
Please save and replace the cover if the processor is removed. e cover must be
placed if you wish to return the motherboard for aer service.

English
16

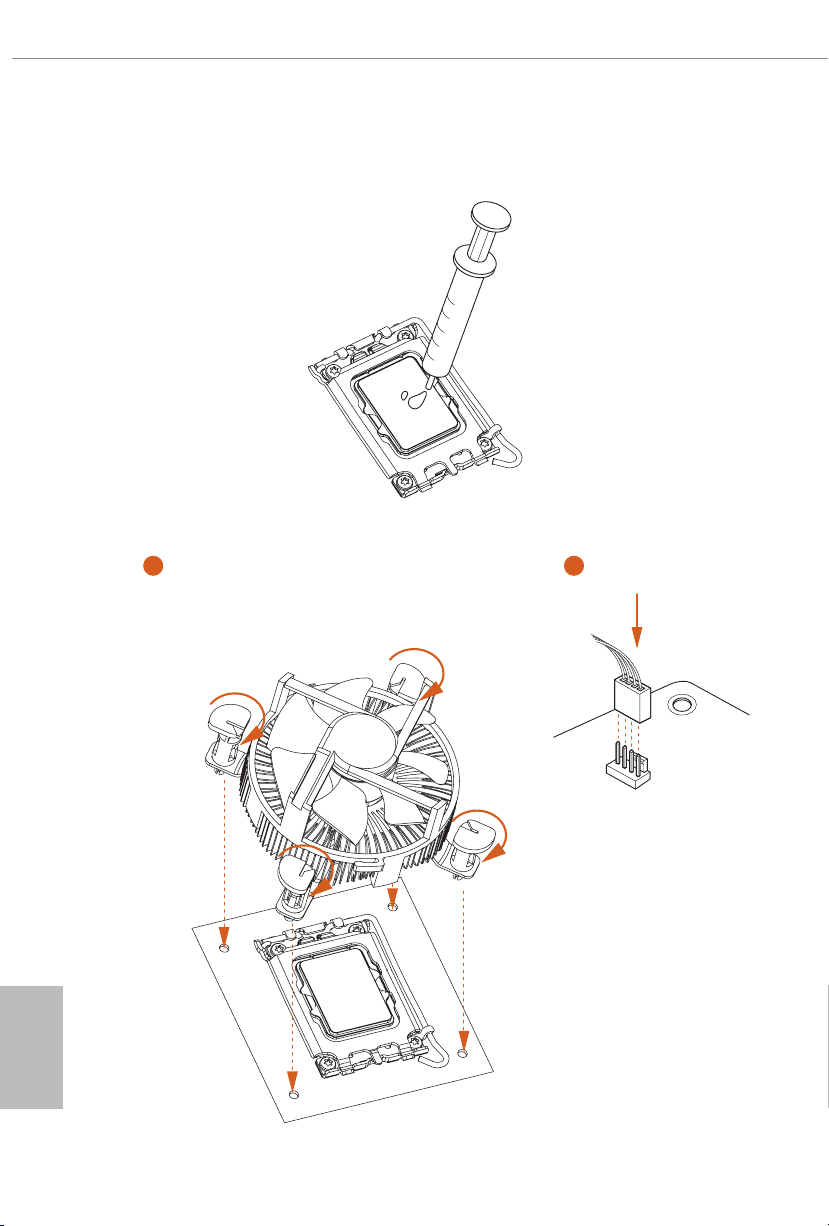

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN
