ASROCK Fatal1ty X99X Killer Series User manual

User Manual

Version 1.0
Published August 2014
Copyright©2014 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535;
7,003,467 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, &
DTS and the Symbol together is a registered trademark & DTS Connect, DTS Interactive,
DTS Neo:PC are trademarks of DTS, Inc. Product includes soware.
© DTS, Inc., All Rights Reserved.

Who knew that at age 19, I would be a World Champion PC gamer. When I was 13, I actually
played competitive billiards in professional tournaments and won four or ve games o guys
who played at the highest level. I actually thought of making a career of it, but at that young
age situations change rapidly. Because I’ve been blessed with great hand-eye coordination and
a grasp of mathematics (an important element in video gaming) I gravitated to that activity.
GOING PRO
I started professional gaming in 1999 when I entered the CPL (Cyberathlete Professional
League) tournament in Dallas and won $4,000 for coming in third place. Emerging as one
of the top players in the United States, a company interested in sponsoring me ew me to
Sweden to compete against the top 12 players in the world. I won 18 straight games, lost
none, and took rst place, becoming the number one ranked Quake III player in the world
in the process. Two months later I followed that success by traveling to Dallas and defending
my title as the world’s best Quake III player, winning the $40,000 grand prize. From there
I entered competitions all over the world, including Singapore, Korea, Germany, Australia,
Holland and Brazil in addition to Los Angeles, New York and St. Louis.
WINNING STREAK
I was excited to showcase my true gaming skills when defending my title as CPL
Champion of the year at the CPL Winter 2001 because I would be competing in a totally
dierent rst person shooter (fps) game, Alien vs. Predator II. I won that competition and
walked away with a new car. e next year I won the same title playing Unreal Tournament
2003, becoming the only three-time CPL champion of the year. And I did it playing a
different game each year, something no one else has ever done and a feat of which I am
extremely proud.
At QuakeCon 2002, I faced o against my rival ZeRo4 in one of the most highly
anticipated matches of the year, winning in a 14 to (-1) killer victory. Competing at Quakecon
2004, I became the World’s 1st Doom3 Champion by defeating Daler in a series of very
challenging matches and earning $25,000 for the victory.
Since then Fatal1ty has traveled the globe to compete against the best in the world, winning
prizes and acclaim, including the 2005 CPL World Tour Championship in New York City for
a $150,000 rst place triumph. In August 2007, Johnathan was awarded the rst ever Lifetime
Achievement Award in the four year history of the eSports-Award for “showing exceptional
sportsmanship, taking part in shaping eSports into what it is today and for being the prime
representative of this young sport. He has become the gurehead for eSports worldwide”.
Fatal1ty Story

LIVIN’ LARGE
Since my rst big tournament wins, I have been a “Professional Cyberathlete”, traveling the
world and livin’ large with lots of International media coverage on outlets such as MTV,
ESPN and a 60 Minutes segment on CBS to name only a few. It's unreal - it's crazy. I’m living
a dream by playing video games for a living. I’ve always been athletic and took sports like
hockey and football very seriously, working out and training hard. is discipline helps me
become a better gamer and my drive to be the best has opened the doors necessary to become
a professional.
A DREAM
Now, another dream is being realized – building the ultimate gaming computer, made
up of the best parts under my own brand. Quality hardware makes a huge difference in
competitions…a couple more frames per second and everything gets really nice. It’s all about
getting the computer processing faster and allowing more uid movement around the maps.
My vision for Fatal1ty hardware is to allow gamers to focus on the game without worrying
about their equipment, something I’ve preached since I began competing. I don’t want to
worry about my equipment. I want to be there – over and done with - so I can focus on
the game. I want it to be the fastest and most stable computer equipment on the face of the
planet, so quality is what Fatal1ty Brand products represent.
Johnathan “Fatal1ty” Wendel
e Fatal1ty name, Fatal1ty logos and the Fatal1ty likeness are registered trademarks of Fatal1ty, Inc., and are used
under license. © 2014 Fatal1ty, Inc. All rights reserved. All other trademarks are the property of their respective
owners.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 9
Chapter 2 Installation 11
2.1 Installing the CPU 12
2.2 Installing the CPU Fan and Heatsink 15
2.3 Installation of Memory Modules (DIMM) 16
2.4 Expansion Slots (PCI Express Slots) 18
2.5 Jumpers Setup 20
2.6 Onboard Headers and Connectors 21
2.7 Smart Switches 26
2.8 Dr. Debug 27
2.9 SLITM , 3-Way SLITMand Quad SLITM Operation Guide 29
2.9.1 Installing Two SLITM-Ready Graphics Cards 29
2.9.2 Installing Three SLITM-Ready Graphics Cards 31
2.9.3 Driver Installation and Setup 33
2.10 CrossFireXTM, 3-Way CrossFireXTM and Quad CrossFireXTM
Operation Guide 34
2.10.1 Installing Two CrossFireXTM-Ready Graphics Cards 34
2.10.2 Installing Three CrossFireXTM-Ready Graphics Cards 36

2.10.3 Driver Installation and Setup 37
2.11 M.2_SSD (NGFF) Module Installation Guide 38
2.12 HDD Saver Cable Installation Guide 41
Chapter 3 Software and Utilities Operation 42
3.1 Installing Drivers 42
3.2 F-Stream 43
3.3 Killer Network Manager 49
3.3.1 Installing Killer Network Manager 49
3.3.2 Using Killer Network Manager 49
3.4 ASRock APP Shop 52
3.4.1 UI Overview 52
3.4.2 Apps 53
3.4.3 BIOS & Drivers 56
3.4.4 Setting 57
3.5 Start8 58
3.6 XSplit Broadcaster 61
3.6.1 Live Streaming Your Gameplay 61
3.6.2 Recording Your Gameplay 64
Chapter 4 UEFI SETUP UTILITY 65
4.1 Introduction 65
4.1.1 UEFI Menu Bar 65
4.1.2 Navigation Keys 66
4.2 Main Screen 67
4.3 OC Tweaker Screen 68

4.4 Advanced Screen 76
4.4.1 CPU Conguration 77
4.4.2 Chipset Conguration 79
4.4.3 Storage Conguration 81
4.4.4 Super IO Conguration 82
4.4.5 ACPI Conguration 83
4.4.6 USB Conguration 84
4.4.7 Trusted Computing 85
4.5 Tools 86
4.6 Hardware Health Event Monitoring Screen 90
4.7 Security Screen 92
4.8 Boot Screen 93
4.9 Exit Screen 96

English
Fatal1ty X99X Killer Series
1
Chapter 1 Introduction
ank you for purchasing ASRock Fatal1ty X99X Killer Series motherboard, a
reliable motherboard produced under ASRock’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRock’s commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
•ASRock Fatal1ty X99X Killer Series Motherboard (ATX Form Factor)
•ASRock Fatal1ty X99X Killer Series Quick Installation Guide
•ASRock Fatal1ty X99X Killer Series Support CD
•1 x I/O Panel Shield
•1 x ASRock SLI_Bridge_2S Card
•1 x ASRock 3-Way SLI-2S1S Bridge Card
•4 x Serial ATA (SATA) Data Cables (Optional)
•1 x HDD Saver Cable
•1 x Screw for Ultra M.2 Socket
•1 x Screw for mini-PCIe Slot
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

English
2
1.2 Specications
Platform •ATX Form Factor
•2oz Copper PCB
•High Density Glass Fabric PCB
•Multiple Filter Cap (MFC) (Filter dierent noise by 3
dierent capacitors: DIP solid cap, POSCAP and MLCC)
CPU •Supports Intel® CoreTM i7 and Xeon® 18-Core Processors
Family for the LGA 2011-3 Socket
•Digi Power design
•12 Power Phase design
•Supports Intel® Turbo Boost 2.0 Technology
•Supports Untied Overclocking Technology
Chipset •Intel® X99
Memory •Quad Channel DDR4 Memory Technology
•8 x DDR4 DIMM Slots
•Supports DDR4 3000+(OC)*/2933+(OC)/2800(OC)/2400
(OC)/2133/1866/ 1600/1333/1066 non-ECC, un-buered
memory
* Please refer to Memory Support List on ASRock's website for
more information. (http://www.asrock.com/)
•Supports non-ECC RDIMM (Registered DIMM)
•Supports DDR4 ECC, un-buered memory/RDIMM with
Intel® Xeon® processors E5 series in the LGA 2011-3 Socket
•Max. capacity of system memory: 128GB (see CAUTION)
•Supports Intel® Extreme Memory Prole (XMP) 2.0
Expansion
Slot
•3 x PCI Express 3.0 x16 Slots (PCIE1 @ x16 mode; PCIE3 @
x16 mode; PCIE5 @ x8 mode)
* If you install CPU with 28 lanes, PCIE1/PCIE3/PCIE5 will run
at x16/x8/x4.
* If M.2 PCI Express module is installed, PCIE5 will be disabled.
•2 x PCI Express 2.0 x1 Slots
•1 x mini-PCI Express Slot
•Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM
and CrossFireXTM

English
Fatal1ty X99X Killer Series
3
•Supports NVIDIA® Quad SLITM, 3-Way SLITM and SLITM
* If you install CPU with 28 lanes, 3-Way SLITM is not supported.
Audio •7.1 CH HD Audio with Content Protection (Realtek
ALC1150 Audio Codec)
•Premium Blu-ray Audio support
•Supports Surge Protection (ASRock Full Spike Protection)
•Supports Purity Sound™ 2
- Nichicon Fine Gold Series Audio Caps
- 115dB SNR DAC with Dierential Amplier
- TI® NE5532 Premium Headset Amplier (Supports up to
600 Ohms headsets)
- Direct Drive Technology
- EMI Shielding Cover
- PCB Isolate Shielding
•Supports DTS Connect
LAN •1 x Intel® I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
•1 x Qualcomm® Atheros® KillerTM E2200 Series (PCIE x1
Gigabit LAN 10/100/1000 Mb/s)
•Supports Qualcomm® Atheros® Security Wake On
Internet Technology (on Qualcomm® Atheros® KillerTM
E2200 Series)
•Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
•Supports Energy Ecient Ethernet 802.3az
•Supports PXE
Rear Panel
I/O
•1 x PS/2 Mouse/Keyboard Port
•1 x Optical SPDIF Out Port
•1 x eSATA Connector
•1 x USB 2.0 Port (Supports ESD Protection (ASRock Full
Spike Protection))
•1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection
(ASRock Full Spike Protection))
•4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD
Protection (ASRock Full Spike Protection))
•2 x USB 3.0 Ports (ASMedia ASM1042) (Supports ESD
Protection (ASRock Full Spike Protection))

English
4
•2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED
LED)
•1 x Clear CMOS Switch
•HD Audio Jacks: Rear Speaker / Central / Bass / Line in /
Front Speaker / Microphone
Storage •10 x SATA3 6.0 Gb/s Connectors, support RAID (RAID
0, RAID 1, RAID 5, RAID 10 and Intel Rapid Storage 13),
NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
(SSATA3_3 connector is shared with the eSATA port)
(SSATA3_2 connector is shared with Ultra M.2 Socket)
* RAID is supported on SATA3_0 ~ SATA3_5 ports only.
•1 x eSATA Connector, supports NCQ, AHCI and Hot Plug
•1 x Ultra M.2 Socket, supports M.2 SATA3 6.0 Gb/s module
and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector •1 x COM Port Header
•1 x TPM Header
•1 x Power LED Header
•2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
•3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan
Speed Control)
•1 x Power Fan Connector (3-pin)
•1 x 24 pin ATX Power Connector
•1 x 8 pin 12V Power Connector (Hi-Density Power
Connector)
•1 x HDD Saver Connector
•1 x PCIe Power Connector
•1 x Front Panel Audio Connector
•1 x underbolt AIC Connector
•2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
•1 x Vertical Type A USB 2.0
•2 x USB 3.0 Headers (Support 4 USB 3.0 ports) (Supports
ESD Protection (ASRock Full Spike Protection))
•1 x Dr. Debug with LED
•1 x Power Switch with LED
•1 x Reset Switch with LED
•1 x BIOS Selection Switch

English
Fatal1ty X99X Killer Series
5
BIOS
Feature
•2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI
support (1 x Main BIOS and 1 x Backup BIOS)
•Supports Secure Backup UEFI Technology
•ACPI 1.1 Compliant wake up events
•SMBIOS 2.3.1 Support
•CPU, DRAM, PCH 1.05V, PCH 1.5V, VPPM Voltage Multi-
adjustment
Hardware
Monitor
•CPU/Chassis temperature sensing
•CPU/Chassis/Power Fan Tachometer
•CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
•CPU/Chassis Fan multi-speed control
•Voltage monitoring: +12V, +5V, +3.3V, CPU Input Voltage,
CPU Internal Voltages
OS •Microso® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-
bit / 7 32-bit / 7 64-bit
Certica-
tions
•FCC, CE, WHQL
•ErP/EuP Ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
* For detailed product information, please visit our website: http://www.asrock.com
Due to limitation, the actual memory size may be less than 4GB for the reservation for sys-
tem usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems
do not have such limitations. You can use ASRock XFast RAM to utilize the memory that
Windows® cannot use.

English
6
Intel
X99
ATX12V1
Supe r
I/O
ATXPWR1
1
USB3_5_ 6
PCIE1
Top:
Central/Bass
Center:
REAR SPK
Top:
LINE IN
Center:
FRONT
Bottom:
Optical
SPDIF
Bottom:
MIC IN
PCIE3
PLED1
1
1
SPEAKER1
HDLED RESET
PLED PWRBTN
PANEL1
1
USB5_6
11
USB3_4
COM1
1
1
HD_AUDIO1
X99X Killer
PCIE5
SSATA3_ 2_ 3
SATA3 _0 _3
SATA3 _1 _4
SATA3 _2 _5
PCIE2
CHA_FAN1
CPU_FAN1
CPU_FAN2
PWR_FAN1
RoHS
9
8
11
10
13
14
15
16
17
22
26
273233
CLRC
BTN1
ESATA1
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
SSATA3_ 0_ 1
346
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
2
1
28
35
Purity
Sound 2
TM
20
Ultra M.2
PCIe Gen3 x4
BIOS_B_LED
128Mb
BIOS
BIOS_B
128Mb
BIOS
BIOS_A
BIOS_A_LED
1
TPMS1
CMOS
Battery
CLRMOS1
1
M2
CT2CT3CT4CT5
T BT1
1
CHA_FAN2
CHA_FAN3
PCIE_PWR1
18
19
29
30
12
34
1
SATA_PWR_1
CT1
DDR4_D1 (64 bit, 288-pin module)
DDR4_D2 (64 bit, 288-pin module)
DDR4_C1 (64 bit, 288-pin module)
DDR4_C2 (64 bit, 288-pin module)
7
5
USB 3.0
T: USB1
B: USB2
2011-3 Socket
Vertical
Type A USB
USB7
1
USB3_7_ 8
Dr.
Debug
Reset Power
21
24 23 25
BIO S_ SEL 1
AB
31
PCIE4
MINI_PCIE1
USB 2.0
T: USB1
B: USB2
PS2
Keyboard
/Mouse
Top:
RJ-45
USB 3.0
T: USB1
B: USB2
Killer
E2200
FATAL TY1
LAN

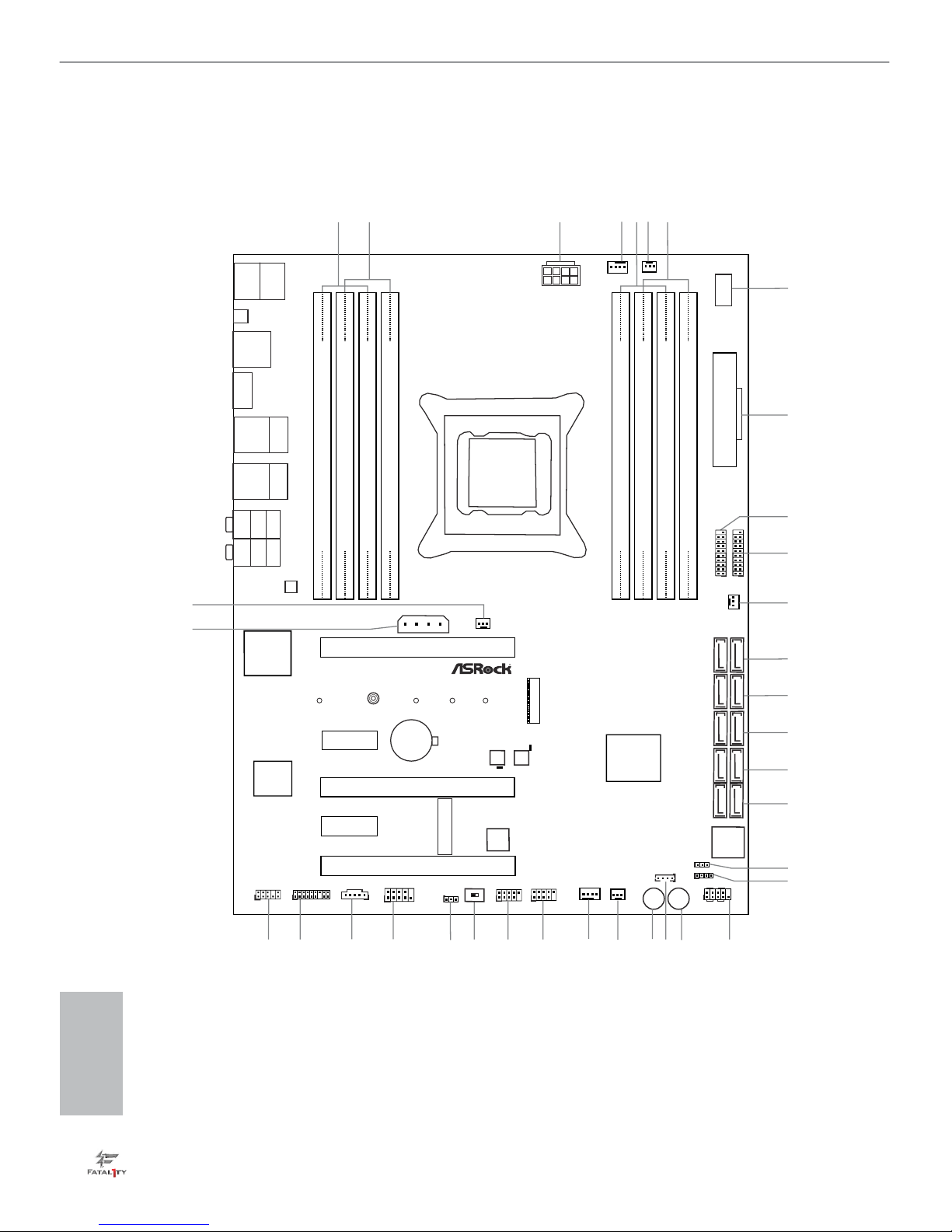

1.3 Motherboard Layout

English
Fatal1ty X99X Killer Series
7
No. Description
1 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
2 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)
3 ATX 12V Power Connector (ATX12V1)
4 CPU Fan Connector (CPU_FAN1)
5 2 x 288-pin DDR4 DIMM Slots (DDR4_D2, DDR4_C2)
6 CPU Fan Connector (CPU_FAN2)
7 2 x 288-pin DDR4 DIMM Slots (DDR4_D1, DDR4_C1)
8 Vertical Type A USB 2.0 (USB7)
9 ATX Power Connector (ATXPWR1)
10 USB 3.0 Header (USB3_7_8)
11 USB 3.0 Header (USB3_5_6)
12 Chassis Fan Connector (CHA_FAN3)
13 SATA3 Connectors (SSATA3_0_1)
14 SATA3 Connectors (SSATA3_2_3)
15 SATA3 Connectors (SATA3_0_3)
16 SATA3 Connectors (SATA3_1_4)
17 SATA3 Connectors (SATA3_2_5)
18 Power LED Header (PLED1)
19 Chassis Speaker Header (SPEAKER1)
20 System Panel Header (PANEL1)
21 Power Switch (PWRBTN1)
22 HDD Saver Connector (SATA_PWR_1)
23 Reset Switch (RSTBTN1)
24 Chassis Fan Connector (CHA_FAN2)
25 Chassis Fan Connector (CHA_FAN1)
26 USB 2.0 Header (USB3_4)
27 USB 2.0 Header (USB5_6)
28 BIOS Selection Switch (BIOS_SEL1)
29 Clear CMOS Jumper (CLRCMOS1)
30 COM Port Header (COM1)
31 underbolt AIC Connector (TBT1)
32 TPM Header (TPMS1)
33 Front Panel Audio Header (HD_AUDIO1)

English
8
No. Description
34 PCIe Power Connector (PCIE_PWR1)
35 Power Fan Connector (PWR_FAN1)

English
Fatal1ty X99X Killer Series
9

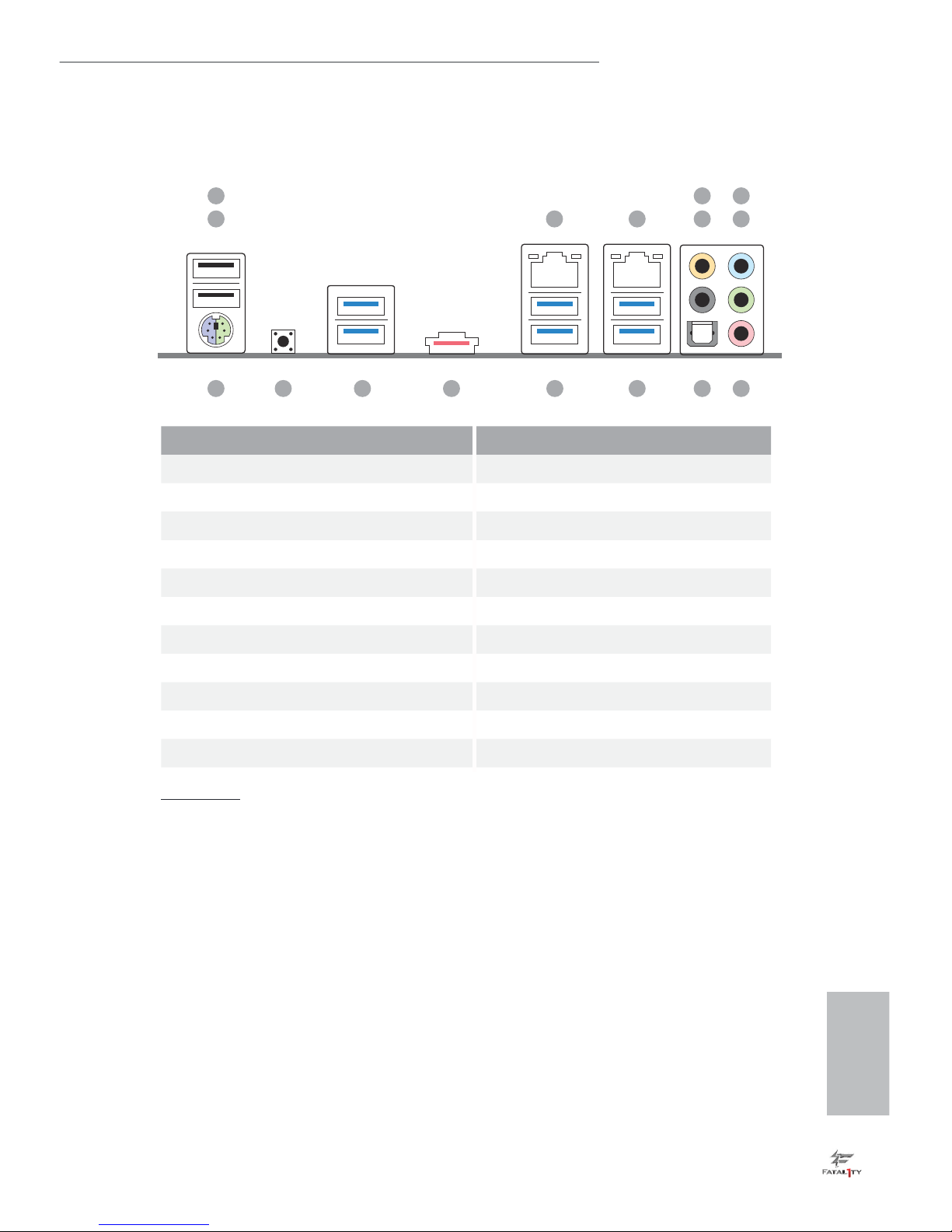

1.4 I/O Panel
No. Description No. Description
1 Fatal1ty Mouse Port (USB1) 10 Optical SPDIF Out Port
2 USB 2.0 Port (USB2) 11 USB 3.0 Ports (USB3_34)
3 LAN RJ-45 Port (ASMedia ASM1074 hub)
(Qualcomm® Atheros® KillerTM E2200) 12 USB 3.0 Ports (USB3_12)
4 LAN RJ-45 Port (ASMedia ASM1074 hub)
(Intel® I218V)* 13 eSATA Connector***
5 Central / Bass (Orange) 14 USB 3.0 Ports (USB31_12)
6 Rear Speaker (Black) (ASMedia ASM1042)
7 Line In (Light Blue) 15 Clear CMOS Switch
8 Front Speaker (Lime)** 16 PS/2 Mouse/Keyboard Port
9Microphone (Pink)
CAUTION:
For operating system installation, be sure to plug your USB ash drive into the USB 2.0
Ports (USB12).
16 9101112131415
43 6
5
2
1
8
7

English
10
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 8)
Rear Speaker
(No. 6)
Central / Bass
(No. 5)
Line In
(No. 7)
2V -- -- --
4V V -- --
6V V V --
8V V V V
*** e eSATA connector supports SATA with cables within 1 meters. e SSATA3_3 connector is
shared with the eSATA port
To enable Multi-Streaming, you need to connect a front panel audio cable to the front
panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your
system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and
click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select
“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,
or select “Realtek HDA Audio 2nd output” to use the front panel audio.
ACT/LINK LED
SPEED LED
LAN Port

English
Fatal1ty X99X Killer Series
11
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
•Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
•In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
•Hold components by the edges and do not touch the ICs.
•Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
•When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
12
2.1 Installing the CPU
CAUTION:
Please note that X99 platform is only compatible with the LGA 2011-3 socket, which is
incompatible with the LGA 2011 socket (for X79 platform).

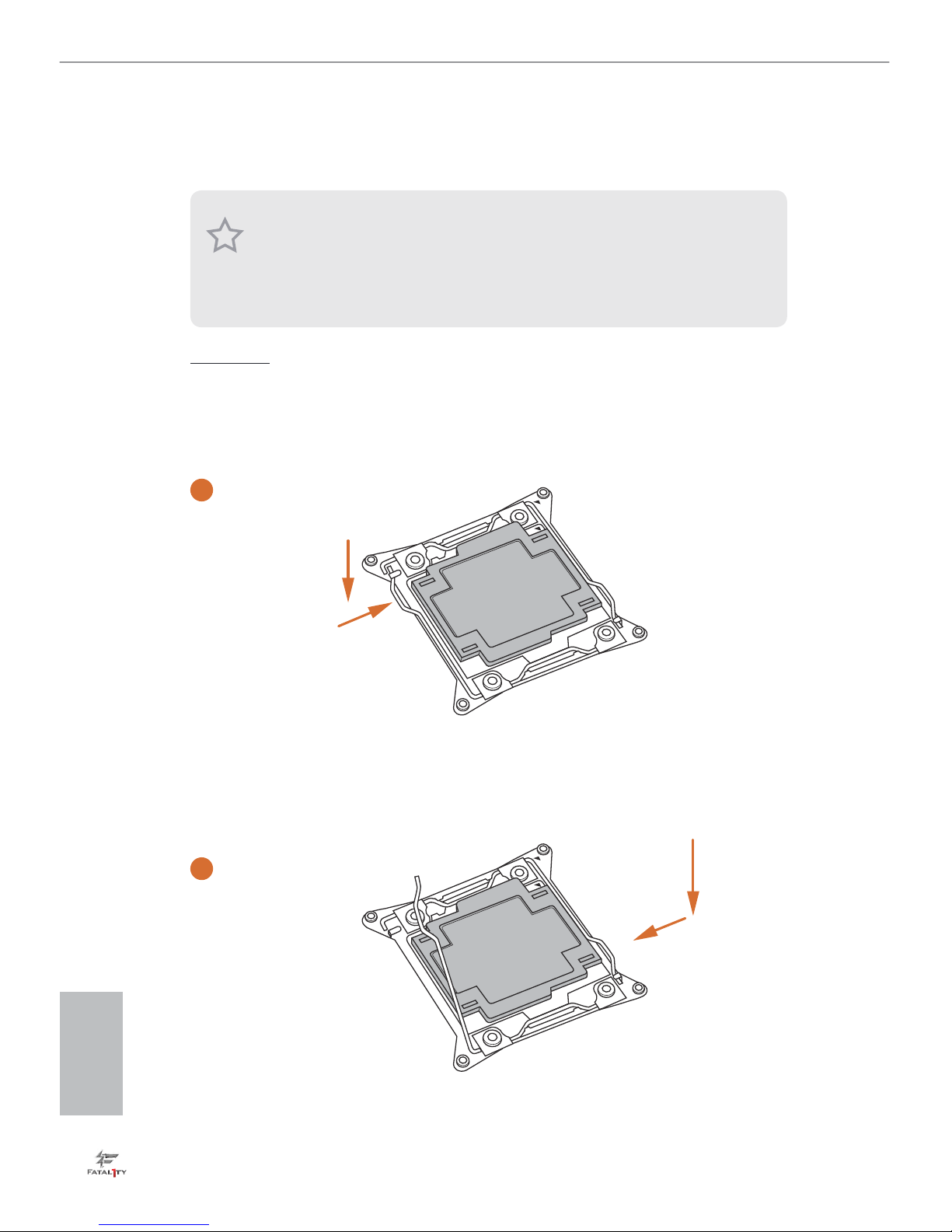

1. Before you insert the 2011-3-Pin CPU into the socket, please check if the PnP cap is on
the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do
not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
A
B
A
B
1
2
