ASROCK H110 Pro BTC+ User manual

Version 1.0
Published June 2017
Copyright©2017 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure. If you require assistance please call ASRock Tel
: [phone] ext.123 (Standard International call charges apply)

1
English
H110 Pro BTC+

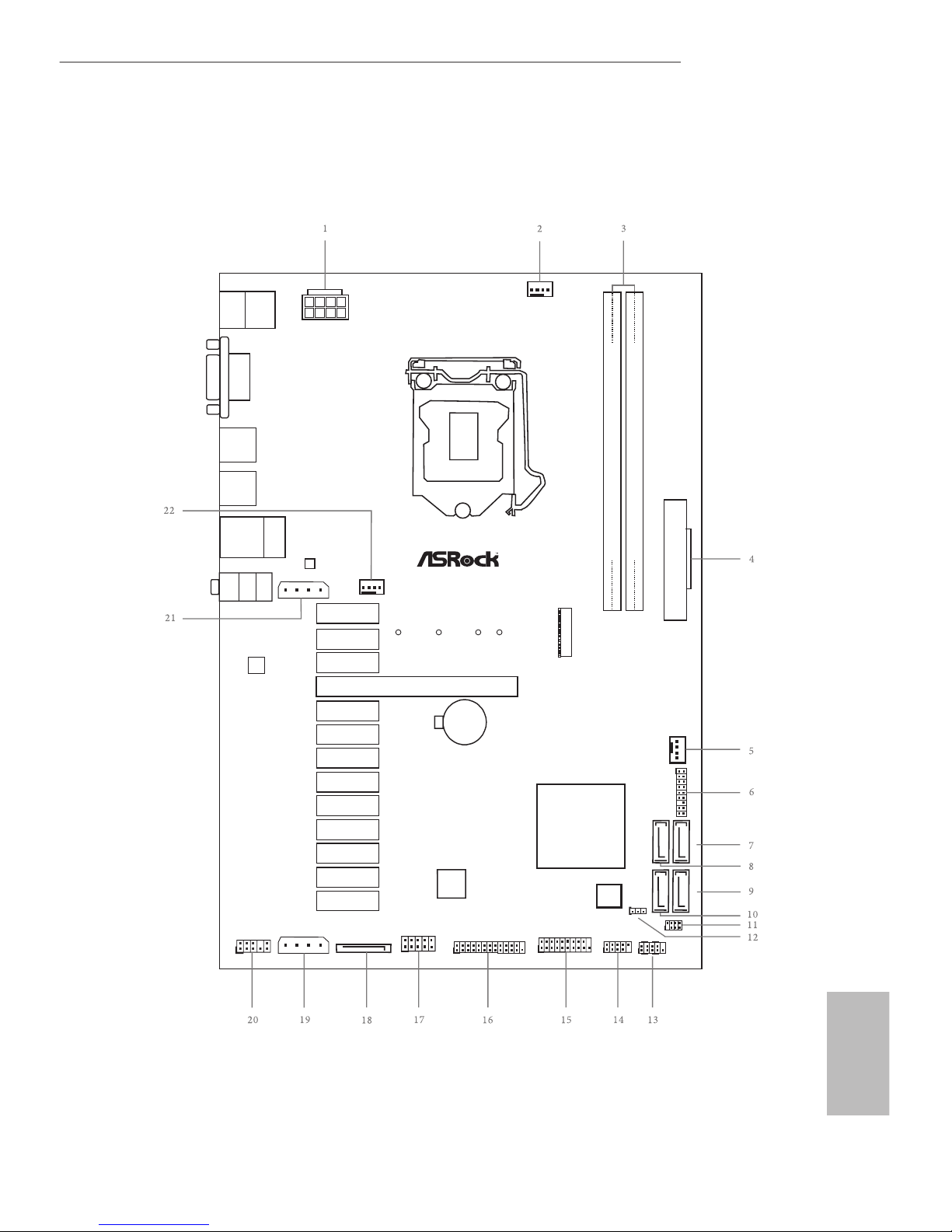

Motherboard Layout
ATXPWR1
Intel
H110
CMOS
Battery
LAN
AUDIO
CODEC
1
HD_AUDIO1
COM1
1
USB_5_6
1
HDLED RESET
PLED PWRBTN
PANEL1
1
CLRMOS2
1
PCIE2_1
RoHS
H110 Pro BTC+
ATX12V1
Top:
RJ-45
USB 2.0
T: USB3
B: USB4
USB 2.0
T: USB1
B: USB2
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
CPU_FAN1
CHA_FAN1
PCIE_PWR1
Front USB 3.0
TPMS1
1
Super
I/O
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
PCI Express 3.0
BIOS
ROM
PCIE1
PCIE3_1
PCIE4_1
PCIE3
PCIE5_1
PCIE4
PCIE6_1
PCIE5
PCIE7_1
PCIE6
PCIE1_1
PCIE2
PCIE_PWR2
SATA3_2
SATA3_3
SATA3_0
SATA3_1
CHA_FAN2
1
LPT1
USB3_3_4
1
1
SPK_CI1
PS2
Keyboard
PS2
Mouse
DVI1
USB 3.0
T: USB1
B: USB2
M2_1
SATA_POW1

2
English
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 ATX Power Connector (ATXPWR1)
5 Chassis Fan Connector (CHA_FAN1)
6 TPM Header (TPMS1)
7 SATA3 Connector (SATA3_1)
8 SATA3 Connector (SATA3_0)
9 SATA3 Connector (SATA3_3)
10 SATA3 Connector (SATA3_2)
11 Chassis Intrusion and Speaker Header (SPK_CI1)
12 Clear CMOS Jumper (CLRMOS2)
13 System Panel Header (PANEL1)
14 USB 2.0 Header (USB_5_6)
15 USB 3.0 Header (USB3_3_4)
16 Print Port Header (LPT1)
17 COM Port Header (COM1)
18 SATA Power Connector (SATA_POW1)
19 PCIe Power Connector (PCIE_PWR2)
20 Front Panel Audio Header (HD_AUDIO1)
21 PCIe Power Connector (PCIE_PWR1)
22 Chassis Fan Connector (CHA_FAN2)

3
English
H110 Pro BTC+
1 2
3
4
5810 9 7 6

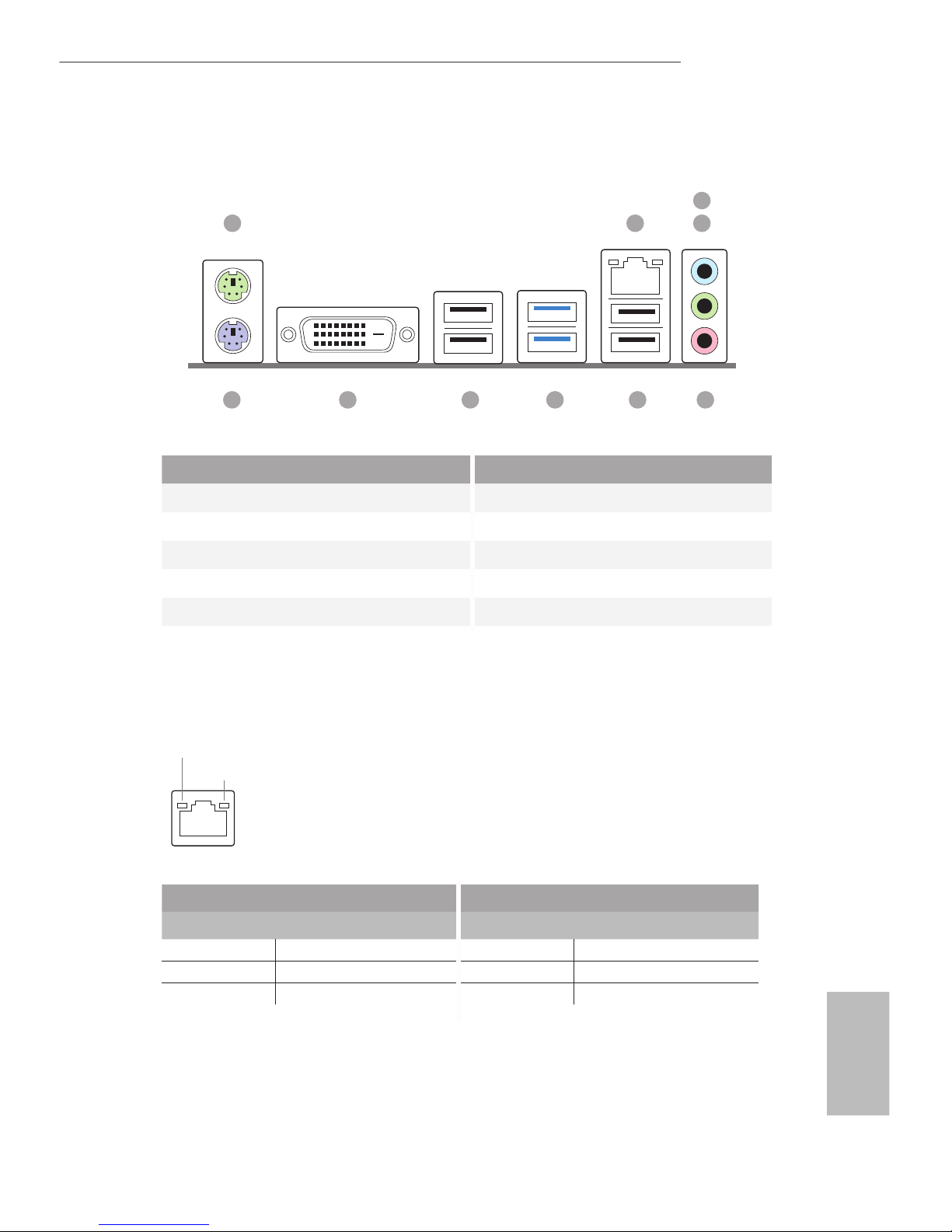

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 6 USB 2.0 Port (USB_34)
2 LAN RJ-45 Port* 7 USB 3.0 Ports (USB3_1_2)
3 Line In (Light Blue)** 8 USB 2.0 Port (USB_12)
4 Front Speaker (Lime)** 9 DVI-D Port
5 Microphone (Pink)** 10 PS/2 Keyboard Port
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

4
English
** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-
channel audio feature through the audio driver.
Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

5
English
H110 Pro BTC+
Chapter 1 Introduction
ank you for purchasing ASRock H110 Pro BTC+ motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
1.1 Package Contents
• ASRock H110 Pro BTC+ Motherboard (ATX Form Factor)
• ASRock H110 Pro BTC+ Quick Installation Guide
• ASRock H110 Pro BTC+ Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any
modications of this documentation occur, the updated version will be available on
ASRock’s website without further notice. If you require technical support related to
this motherboard, please visit our website for specic information about the model
you are using. You may nd the latest VGA cards and CPU support list on ASRock’s
website as well. ASRock website http://www.asrock.com.

6
English
1.2 Specications
Platform • ATX Form Factor
• Solid Capacitor design
CPU • Supports 7th and 6th Generation Intel® CoreTM i7/i5/i3/
Pentium®/Celeron® Processors (Socket 1151)
• Supports CPU up to 91W
• Digi Power design
• 8 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology
Chipset • Intel® H110
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 2400/2133 non-ECC, un-buered memory*
* 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel®
CPU supports DDR4 up to 2133.
• Supports ECC UDIMM memory modules (operate in non-
ECC mode)
• Max. capacity of system memory: 32GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disk
• 12 x PCI Express 2.0 x1 Slots
Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® HD Graphics
• Gen9 LP, DX11.3, DX12
• HWAEncode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For
7th Gen Intel® CPU)

7
English
H110 Pro BTC+
• HWA Encode/Decode: VP8 , HEVC 8b; GPU/SWEncode/
Decode: VP9, HEVC 10b (For 6th Gen Intel® CPU)
• Max. shared memory 1024MB
* e size of maximum shared memory may vary from dierent
operating systems.
• Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
• Supports Accelerated Media Codecs: HEVC, VP8, VP9
• Supports HDCP with DVI-D Port
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D
Port
Audio • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.
• Supports Surge Protection
• ELNA Audio Caps
LAN • Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN (Supported on Black PCIe Slots
only)
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Rear Panel
I/O
• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x DVI-D Port
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.0 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

8
English
Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and
Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will
be disabled.
• 1 x M.2 Socket, supports M Key type 2230/2242/2260/2280
M.2 SATA3 6.0 Gb/s module
Connector • 1 x Print Port Header
• 1 x COM Port Header
• 1 x TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
• 2 x Chassis Fan Connectors (4-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 2 x PCIe Power Connectors
• 1 x SATA Power Connector
• 1 x Front Panel Audio Connector
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports
ESD Protection)
• 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports
ESD Protection)
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 5.0 Compliant wake up events
• SMBIOS 2.7 Support
• CPU, DRAM, PCH 1.05V Voltage multi-adjustment
Hardware
Monitor
• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
• CPU/Chassis Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

9
English
H110 Pro BTC+
OS • Microso® Windows® 10 64-bit (For 7th Gen Intel® CPU)
• Microso® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-
bit (For 6th Gen Intel® CPU)
* To install Windows® 7 OS, a modied installation disk with
xHCI drivers packed into the ISO le is required. Please refer to
page 142 or more detailed instructions.
* For the updated Windows® 10 driver, please visit ASRock’s
website for details: http://www.asrock.com
Certica-
tions
• FCC, CE
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
third-party overclocking tools. Overclocking may aect your system’s stability, or
even cause damage to the components and devices of your system. It should be done
at your own risk and expense. We are not responsible for possible damage caused by
overclocking.

10
English
is is an ATX form factor motherboard. Before you install the motherboard, study
the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

11
English
H110 Pro BTC+
2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on
the socket, if the CPU surface is unclean, or if there are any bent pins in the socket.
Do not force to insert the CPU into the socket if above situation is found. Otherwise,
the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

12
English
4
5
3

13
English
H110 Pro BTC+
Please save and replace the cover if the processor is removed. e cover must be placed
if you wish to return the motherboard for aer service.

14
English
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

15
English
H110 Pro BTC+

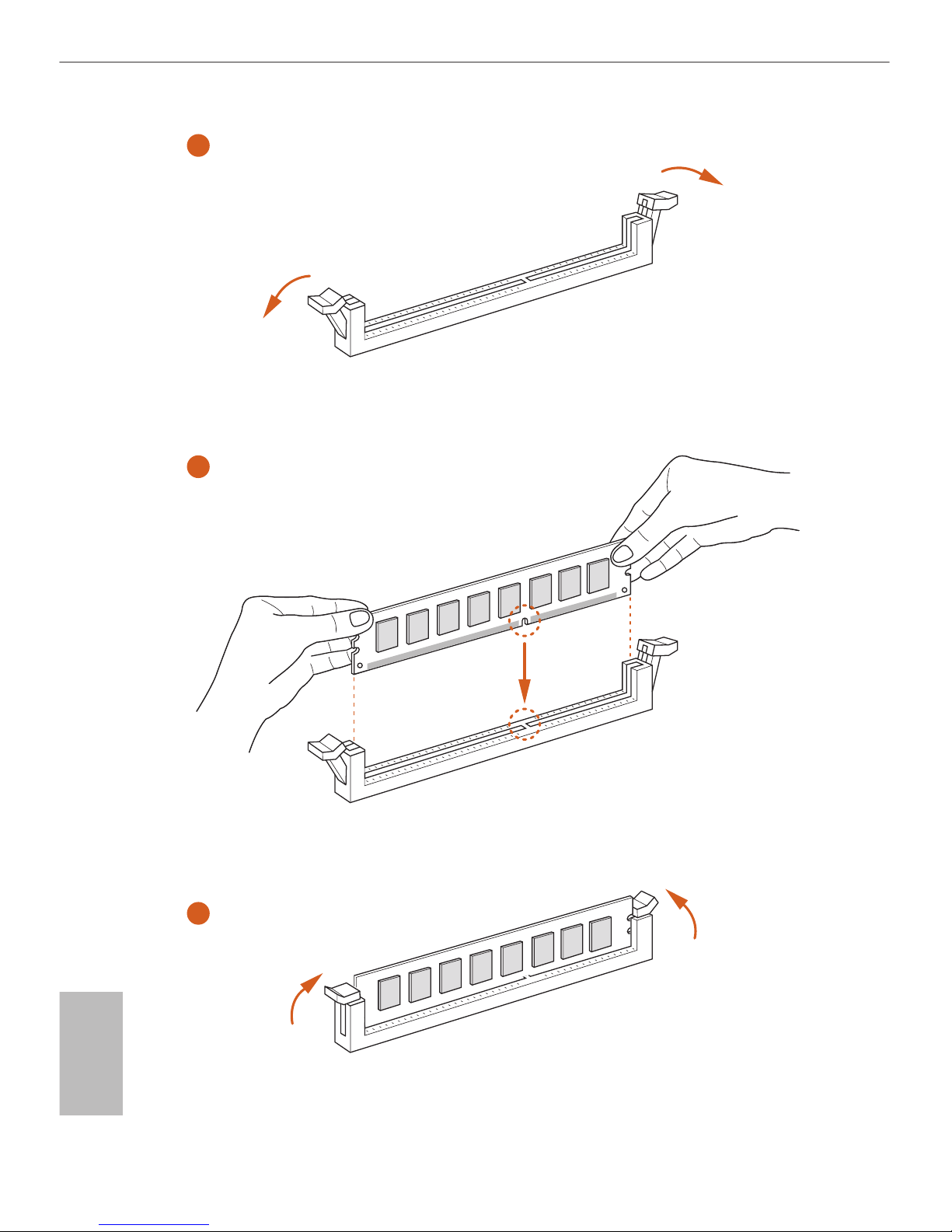

2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.

16
English
1
2
3

17
English
H110 Pro BTC+
2.4 Expansion Slots (PCI Express Slots)
ere are 13 PCI Express slots on the motherboard.
PCIe slots:
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE1_1/PCIE1/PCIE2_1/PCIE3_1/PCIE3/PCIE4_1/PCIE4/PCIE5_1/PCIE5/
PCIE6_1/PCIE6/PCIE7_1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width
graphics cards.
Before installing an expansion card, please make sure that the power supply is
switched o or the power cord is unplugged. Please read the documentation of the
expansion card and make necessary hardware settings for the card before you start
the installation.
1. Please connect the SATA power connector and PCIe power connectors to the power
supply when three graphics cards are installed on this motherboard.
2. 12V power supply can only provide 1.2A current in the white PCIe slots.

18
English
2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS2)
(see p.1, No. 12)
CLRMOS2 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS2 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Clear CMOSDefault
