ASROCK H310M-G/M.2 User manual

Version 1.0
Published March 2018
Copyright©2018 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
compensation for any other reasonably foreseeable loss or damage caused by our
goods. You are also entitled to have the goods repaired or replaced if the goods fail
to be of acceptable quality and the failure does not amount to a major failure. If
you require assistance please call ASRock Tel : [phone] ext.123 (Standard
International call charges apply)
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 I/O Panel 8
Chapter 2 Installation 10
2.1 Installing the CPU 11
2.2 Installing the CPU Fan and Heatsink 14
2.3 Installing Memory Modules (DIMM) 15
2.4 Expansion Slots (PCI Express Slots) 17
2.5 Jumpers Setup 18
2.6 Onboard Headers and Connectors 19
Chapter 3 Software and Utilities Operation 27
3.1 Installing Drivers 27
3.2 A-Tuning 28
3.3 ASRock Live Update & APP Shop 31
3.3.1 UI Overview 31
3.3.2 Apps 32
3.3.3 BIOS & Drivers 35
3.3.4 Setting 36
3.4 ASRock RGB LED 37

Chapter 4 UEFI SETUP UTILITY 40
4.1 Introduction 40
4.2 EZ Mode 41
4.3 Advanced Mode 42
4.3.1 UEFI Menu Bar 42
4.3.2 Navigation Keys 43
4.4 Main Screen 44
4.5 OC Tweaker Screen 45
4.6 Advanced Screen 54
4.6.1 CPU Conguration 55
4.6.2 Chipset Conguration 57
4.6.3 Storage Conguration 59
4.6.4 Super IO Conguration 60
4.6.5 ACPI Conguration 61
4.6.6 USB Conguration 63
4.6.7 Trusted Computing 64
4.7 Tools 65
4.8 Hardware Health Event Monitoring Screen 67
4.9 Security Screen 69
4.10 Boot Screen 70
4.11 Exit Screen 73

English
1
H310M-G/M.2
Chapter 1 Introduction
ank you for purchasing ASRock H310M-G/M.2 motherboard, a reliable
motherboard produced under ASRock’s consistently stringent quality control.
It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
In this documentation, Chapter 1 and 2 contains the introduction of the
motherboard and step-by-step installation guides. Chapter 3 contains the operation
guide of the soware and utilities. Chapter 4 contains the conguration guide of
the BIOS setup.
1.1 Package Contents
•ASRock H310M-G/M.2 Motherboard (Micro ATX Form Factor)
•ASRock H310M-G/M.2 Quick Installation Guide
•ASRock H310M-G/M.2 Support CD
•1 x I/O Panel Shield
•2 x Serial ATA (SATA) Data Cables (Optional)
•1 x Screw for M.2 Socket (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice. In case any modi-
cations of this documentation occur, the updated version will be available on ASRock’s
website without further notice. If you require technical support related to this mother-
board, please visit our website for specic information about the model you are using. You
may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock
website http://www.asrock.com.

English
2
1.2 Specications
Platform •Micro ATX Form Factor
•Solid Capacitor design
CPU •Supports 8th Generation Intel® CoreTM Processors (Socket
1151)
•5 Power Phase design
•Supports Intel® Turbo Boost 2.0 Technology
Chipset •Intel® H310
Memory •Dual Channel DDR4 Memory Technology
•2 x DDR4 DIMM Slots
•Supports DDR4 2666/2400/2133 non-ECC, un-buered
memory
•Max. capacity of system memory: 32GB
•Supports Intel® Extreme Memory Prole (XMP) 2.0
•15 Gold Contact in DIMM Slots
Expansion
Slot
•1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
* Supports NVMe SSD as boot disks
•2 x PCI Express 2.0 x1 Slots
Graphics •Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
•Supports Intel® UHD Graphics Built-in Visuals : Intel®
Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full
HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD
Technology, Intel® InsiderTM, Intel® UHD Graphics
•DirectX 12
•HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode
only), MPEG2, MJPEG, VC-1 (Decode only)
•ree graphics output options: D-Sub, DVI-D and HDMI
* Supports up to 2 displays simultaneously

English
3
H310M-G/M.2
•Supports HDMI with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
•Supports DVI-D with max. resolution up to 1920x1200 @
60Hz
•Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI Port (Compliant
HDMI monitor is required)
•Supports HDCP with DVI-D and HDMI Ports
•Supports 4K Ultra HD (UHD) playback with HDMI Port

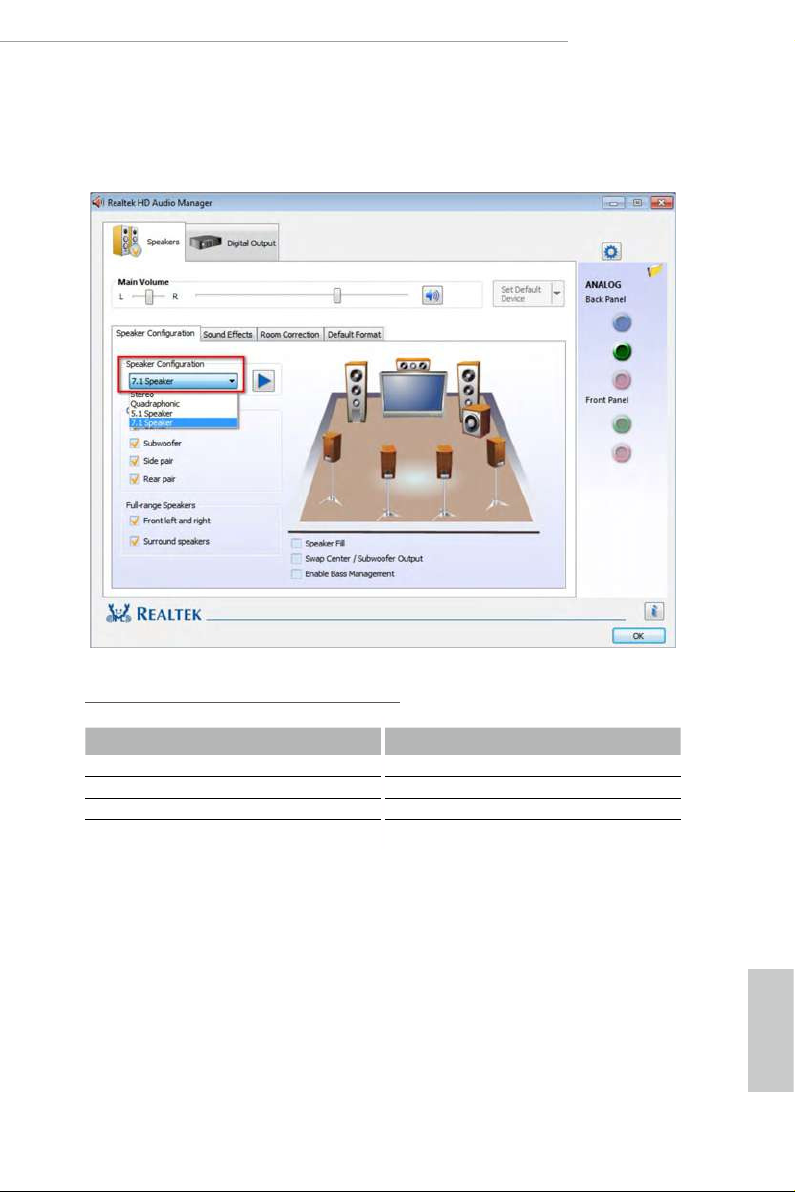

Audio •7.1 CH HD Audio (Realtek ALC887 Audio Codec)
* To congure 7.1 CH HD Audio, it is required to use an HD
front panel audio module and enable the multi-channel audio
feature through the audio driver.
•Supports Surge Protection
•ELNA Audio Caps
LAN •Gigabit LAN 10/100/1000 Mb/s
•Giga PHY Intel® I219V
•Supports Wake-On-LAN
•Supports Lightning/ESD Protection
•Supports Energy Ecient Ethernet 802.3az
•Supports PXE
Rear Panel
I/O
•1 x PS/2 Mouse/Keyboard Port
•1 x D-Sub Port
•1 x DVI-D Port
•1 x HDMI Port
•4 x USB 2.0 Ports (Supports ESD Protection)
•2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
•HD Audio Jacks: Line in / Front Speaker / Microphone

English
4
Storage •4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and
Hot Plug*
* If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will
be disabled.
•1 x M.2 Socket (M2_1), supports M Key type
2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2
PCI Express module up to Gen2 x4 (20 Gb/s)**
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Connector •1 x Print Port Header
•1 x COM Port Header
•1 x TPM Header
•1 x Chassis Intrusion and Speaker Header
•1 x RGB LED Header
* Supports in total up to 5V/3A, 15W LED Strip
•1 x Addressable LED Header
* Supports in total up to 12V/3A, 36W LED Strip
•1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
•2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin
or 4-pin fan is in use.
•1 x 24 pin ATX Power Connector
•1 x 8 pin 12V Power Connector
•1 x Front Panel Audio Connector
•2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports
ESD Protection)
•1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports)
(Supports ESD Protection)
* USB_11_12 is shared with USB_9_10.
BIOS
Feature
•AMI UEFI Legal BIOS with multilingual GUI support
•ACPI 6.0 Compliant wake up events

English
5
H310M-G/M.2
•SMBIOS 2.7 Support
•CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjust-
ment
Hardware
Monitor
•Temperature Sensing: CPU, Chassis/Water Pump Fans
•Fan Tachometer: CPU, Chassis/Water Pump Fans
•Quiet Fan (Auto adjust chassis fan speed by CPU
temperature): CPU, Chassis/Water Pump Fans
•Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
•CASE OPEN detection
•Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,
PCH 1.05V
OS •Microso® Windows® 10 64-bit
Certica-
tions
•FCC, CE
•ErP/EuP ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

English
6
Intel
H310
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
ATXPWR1
PCIE2
Top:
RJ-45
COM1
1
H310M-G/M.2
11
8
9
20
USB 2.0
T: USB5
B: USB6
13
CMOS
Battery
5
12
1
TPMS1
Top:
LINE IN
Cente r:
FRONT
Botto m:
MIC IN
PCIE3
DVI1
VGA1
HDMI1
1
LPT1
BIOS
ROM
21 19
ATX12V1
6
PCIE1
4
13
1
HD_AUDIO1
22
USB 3.1 Gen1
T: USB3
B: USB4
LAN
AUDIO
CODEC
USB 2.0
T: USB1
B: USB2
PS2
Keyboard
/Mouse
M2_1
CT2CT3CT4CT1
10
18
RGB_LED1
1
USB_9_ 10
7
ADDR_LED1
1
17
CLRMOS1
1
CHA_FAN1/WP
CHA_FAN2/WP
SATA3 _0
SATA3 _1
SATA3 _2
SATA3 _3
1
1
USB _11 _1 2
HDLED RESET
PLED PWRBTN
PANEL1
1
1
SPK_CI1
14
15
RoHS
16
USB_7_8
1
2
CPU_FAN1
1.3 Motherboard Layout

English
7
H310M-G/M.2
No. Description
1 ATX 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)
4 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)
5 ATX Power Connector (ATXPWR1)
6 USB 2.0 Header (USB_9_10)
7 USB 3.1 Gen1 Header (USB_11_12)
8 SATA3 Connector (SATA3_2)
9 SATA3 Connector (SATA3_3)
10 Clear CMOS Jumper (CLRMOS1)
11 SATA3 Connector (SATA3_0)
12 SATA3 Connector (SATA3_1)
13 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)
14 System Panel Header (PANEL1)
15 Chassis Intrusion and Speaker Header (SPK_CI1)
16 USB 2.0 Header (USB_7_8)
17 Addressable LED Header (ADDR_LED1)
18 RGB LED Header (RGB_LED1)
19 COM Port Header (COM1)
20 Print Port Header (LPT1)
21 TPM Header (TPMS1)
22 Front Panel Audio Header (HD_AUDIO1)

English
8
1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 7 USB 2.0 Ports (USB5_6)
2D-Sub Port 8 USB 3.1 Gen1 Ports (USB_3_4)
3 LAN RJ-45 Port* 9 HDMI Port
4 Line In (Light Blue)** 10 DVI-D Port
5 Front Speaker (Lime)** 11 PS/2 Keyboard/Mouse Port
6 Microphone (Pink)**
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
11 7 69
10
1 2 3 5
8
4

English
9
H310M-G/M.2
** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-
channel audio feature through the audio driver.
Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

English
10
is is a Micro ATX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
•Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
•In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
•Hold components by the edges and do not touch the ICs.
•Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
•When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

English
11
H310M-G/M.2
2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

English
12
4
5
3

English
13
H310M-G/M.2
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

English
14
2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN

English
15
H310M-G/M.2
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots,
and supports Dual Channel Memory Technology.
e DIMM only ts in one correct orientation. It will cause permanent damage to
the motherboard and the DIMM if you force the DIMM into the slot at incorrect
orientation.
1. For dual channel conguration, you always need to install identical (the same
brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory
module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4
slot; otherwise, this motherboard and DIMM may be damaged.
