ASROCK H310M-STX User manual

Version 1.0
Published April 2018
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”

AUSTRALIA ONLY
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and compensation for
any other reasonably foreseeable loss or damage caused by our goods. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.

Contents
Chapter 1 Introduction 1
1.1 Package Contents 1
1.2 Specications 2
1.3 Motherboard Layout 6
1.4 Front Panel 9
1.5 Rear Panel 10
Chapter 2 Installation 11
2.1 Installing the CPU 12
2.2 Installing the CPU Fan and Heatsink 15
2.3 Installing Memory Modules (SO-DIMM) 16
2.4 Onboard Headers and Connectors 18
2.5 M.2 WiFi/BT Module and Intel® CNVi (Integrated WiFi/BT)
Installation Guide 21
2.6 M.2_SSD (NGFF) Module Installation Guide 23
2.7SD Card Installation Guide 25
Chapter 3 Software and Utilities Operation 26
Chapter 4 UEFI SETUP UTILITY 27
4.1 Introduction 27
4.2 EZ Mode 28
4.3 Advanced Mode 30
4.3.1 UEFI Menu Bar 30
4.3.2 Navigation Keys 31

4.4 Main Screen 32
4.5 OC Tweaker Screen 33
4.6 Advanced Screen 41
4.6.1 CPU Conguration 42
4.6.2 Chipset Conguration 44
4.6.3 Storage Conguration 46
4.6.4 Super IO Conguration 47
4.6.5 ACPI Conguration 48
4.6.6 USB Conguration 49
4.7 Tools 50
4.8 Hardware Health Event Monitoring Screen 53
4.9 Security Screen 54
4.10 Boot Screen 55
4.11 Exit Screen 58

PB 1
English
H310M-STX / H310M-STX/COM
Chapter 1 Introduction
ank you for purchasing H310M-STX / H310M-STX/COM motherboard. In this
documentation, Chapter 1 and 2 contains the introduction of the motherboard
and step-by-step installation guides. Chapter 3 contains the operation guide of the
soware and utilities. Chapter 4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• H310M-STX / H310M-STX/COM Motherboard (Mini-STX Form Factor)
• H310M-STX / H310M-STX/COM Quick Installation Guide
• H310M-STX / H310M-STX/COM Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA(SATA) Data with Power Cable (Optional)
• 1 x Screw for M.2 Socket (M2*2) (Optional)
• 1 x Screw for WiFi Module (M2*2) (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

2 3
English
1.2 Specications
Platform • Mini-STX Form Factor
CPU • Supports 8th Generation Intel® CoreTM Processors (Socket
1151)
• Supports CPU up to 65W
• 5 Power Phase design
• Supports Intel® Turbo Boost 2.0 Technology
Chipset • Intel®H310
Memory • Dual Channel DDR4 Memory Technology
• 2 x DDR4 SO-DIMM Slots
• Supports DDR4 2666/2400/2133 non-ECC, un-buered
memory
• Max. capacity of system memory: 32GB
• Supports Intel® Extreme Memory Prole (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
Expansion
Slot
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
and Intel® CNVi (Integrated WiFi/BT)
Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs
can be supported only with processors which are GPU
integrated.
• Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick
Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW
Encode1,
• Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel®
InsiderTM, Intel® UHD Graphics
• DirectX 12
• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,
HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode
only), MPEG2, MJPEG, VC-1 (Decode only)

2 3
English
H310M-STX / H310M-STX/COM
• Max. shared memory 1024MB
* e size of maximum shared memory may vary from dierent
operating systems.
• ree graphics output options: D-Sub, HDMI and DisplayPort
1.2
* Supports up to 2 displays simultaneously
• Supports HDMI with max. resolution up to 4K x 2K
(4096x2160) @ 30Hz
• Supports D-Sub with max. resolution up to 1920x1200 @
60Hz
• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K
(4096x2304) @ 60Hz
• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR
(High Bit Rate Audio) with HDMI Port (Compliant HDMI
monitor is required)
• Supports HDCP with HDMI and DisplayPort 1.2 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI and
DisplayPort 1.2 Ports
Audio • Realtek ALC233 Audio Codec
• 1 x Headphone/Headset Jack
• 1 x MIC-In
• 1 x Audio Header
LAN • Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Supports Wake-On-LAN
• Supports Lightning/ESD Protection
• Supports Energy Ecient Ethernet 802.3az
• Supports PXE
Front
Panel I/O
• 1 x Headphone/Headset Jack
• 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
• 1 x Microphone Input Jack

4 5
English
Rear Panel
I/O
• 1 x DC Jack (Compatible with the 19V power adapter)*
* Please use 120W power adapter for 65W CPU and 90W power
adapter for 35W CPU.
• 1 x D-Sub Port
• 1 x HDMI Port
• 1 x DisplayPort 1.2
• 1 x USB 2.0 Port (Supports ESD Protection)
• 1 x USB 3.1 Gen1 Port (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
Storage • 2 x SATA3 6.0 Gb/s with Power Connectors, support NCQ,
AHCI and Hot Plug
• 1 x Ultra M.2 Socket, support type 2280 M.2 SATA3 6.0 Gb/s
module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
* Supports NVMe SSD as boot disks
Connector • 1 x COM Port Header (for H310M-STX/COM only)
• 1 x Chassis Intrusion Header
• 2 x CPU Fan Connectors (2 x 4-pin)
• 1 x Internal Speaker Header
• 1 x Front Panel Header
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD
Protection)
• 1 x SD Card Socket
• 1 x Audio Header
BIOS
Feature
• AMI UEFI Legal BIOS with multilingual GUI support
• ACPI 6.0 Compliant wake up events
• SMBIOS 2.7 Support
• DRAM Voltage Multi-adjustment
Hardware
Monitor
• CPU temperature sensing
• CPU Fan Tachometer
• CPU Quiet Fan (Auto adjust chassis fan speed by CPU
temperature)
• CPU Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

4 5
English
H310M-STX / H310M-STX/COM
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Mini-STX Chassis Support List
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.
Vendor Model
SilverStone Technology Inc. VT01S
AKasa A-STX04-A1B / A-STX04-M1B

6 7
English
Intel
Chipset
Top:
RJ-45
T: USB 2.0
USB3
B: USB 3.1 Gen1
USB4
RoHS
12
5
6
7
Audio
CODEC
USB_5_6
1
4
HDLED RESET
PLED PWRBTN
PANEL1
1
Mic In
USB 3.1 Gen1
USB_2
USB 3.1 Gen1
USB_1
Headphone
/ Headset
VGA1
9
8
DDR4_A1DDR4_A1 DDR4_B1
DC Jack
HDMI1
DP1
1
CI1
SPEAKER1
1
Super
I/O
BIOS
ROM
M.2 W i F i
M.2 PCIe S S D
M2_2_CT1M2_1_CT1
COM1
1
CPU_FAN2CPU_FAN1
3
1
AUDIO3
1.3 Motherboard Layout

6 7
English
H310M-STX / H310M-STX/COM
CMOS
Battery
10 11
SATA3SATA3
12 13
Back Side View

8 9
English
No. Description
1 CPU Fan Connector (CPU_FAN2)
2 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)
3 CPU Fan Connector (CPU_FAN1)
4 Internal Speaker Header (SPEAKER1)
5 USB 2.0 Header (USB_5_6)
6 COM Port Header (COM1) (for H310M-STX/COM only)
7 System Panel Header (PANEL1)
8Audio Header (AUDIO3)
9 Chassis Intrusion Header (CI1)
10 SATA3 Connector (SATA1)
11 SATA3 Connector (SATA2)
12 Clear CMOS Pad
13 SD Card Slot

8 9
English
H310M-STX / H310M-STX/COM
1.4 Front Panel
No. Description No. Description
1Headphone/Headset Jack (AUDIO1) 3 USB 3.1 Gen1 Type-C Port (USB3_2)
2 USB 3.1 Gen1 Type-A Port (USB_1) 4 Microphone Input (AUDIO2)
1234

10 11
English

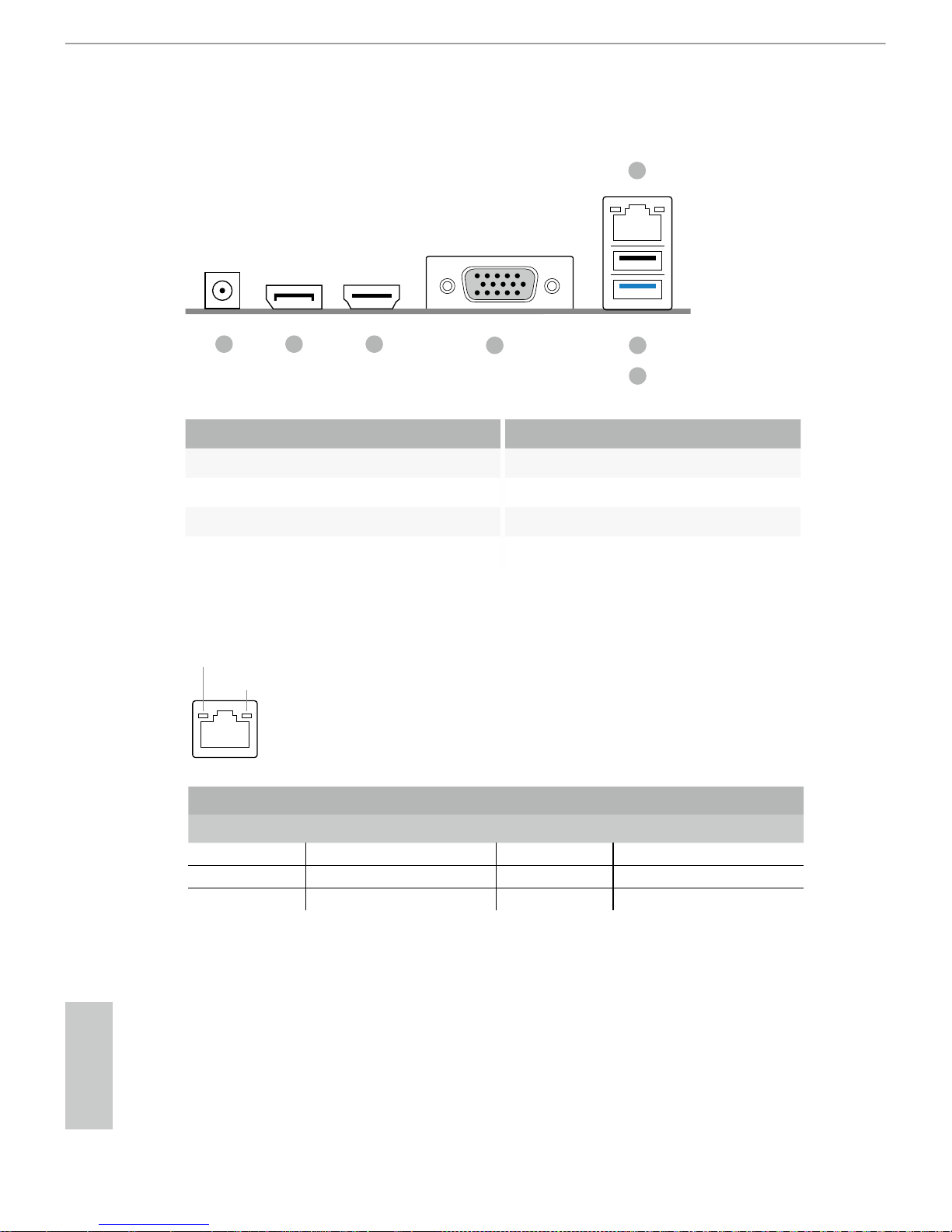

1.5 Rear Panel
No. Description No. Description
1 DC Jack 4 D-Sub Port
(Supports 19V DC Power Adapters) 5 USB 2.0 Port (USB_3)
2 Display Port 6 USB 3.1 Gen1 Port (USB_4)
3 HDMI Port 7 LAN RJ-45 Port*
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 2 3 4 5
6
7

10 11
English
H310M-STX / H310M-STX/COM
is is a Mini-STX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard
components. Failure to do so may cause physical injuries and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

12 13
English

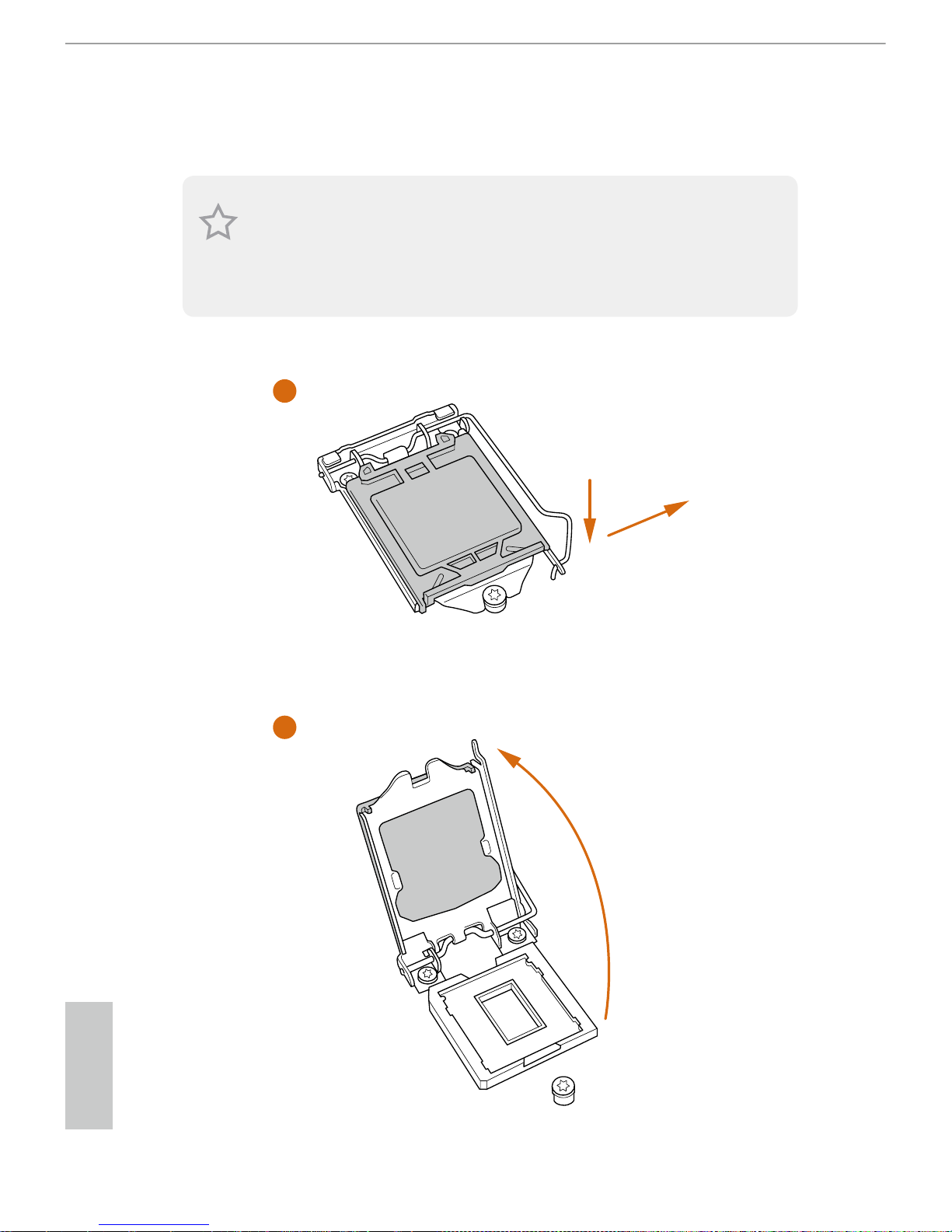

2.1 Installing the CPU
1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
2
A
B

12 13
English
H310M-STX / H310M-STX/COM
4
5
3

14 15
English
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.

14 15
English
H310M-STX / H310M-STX/COM

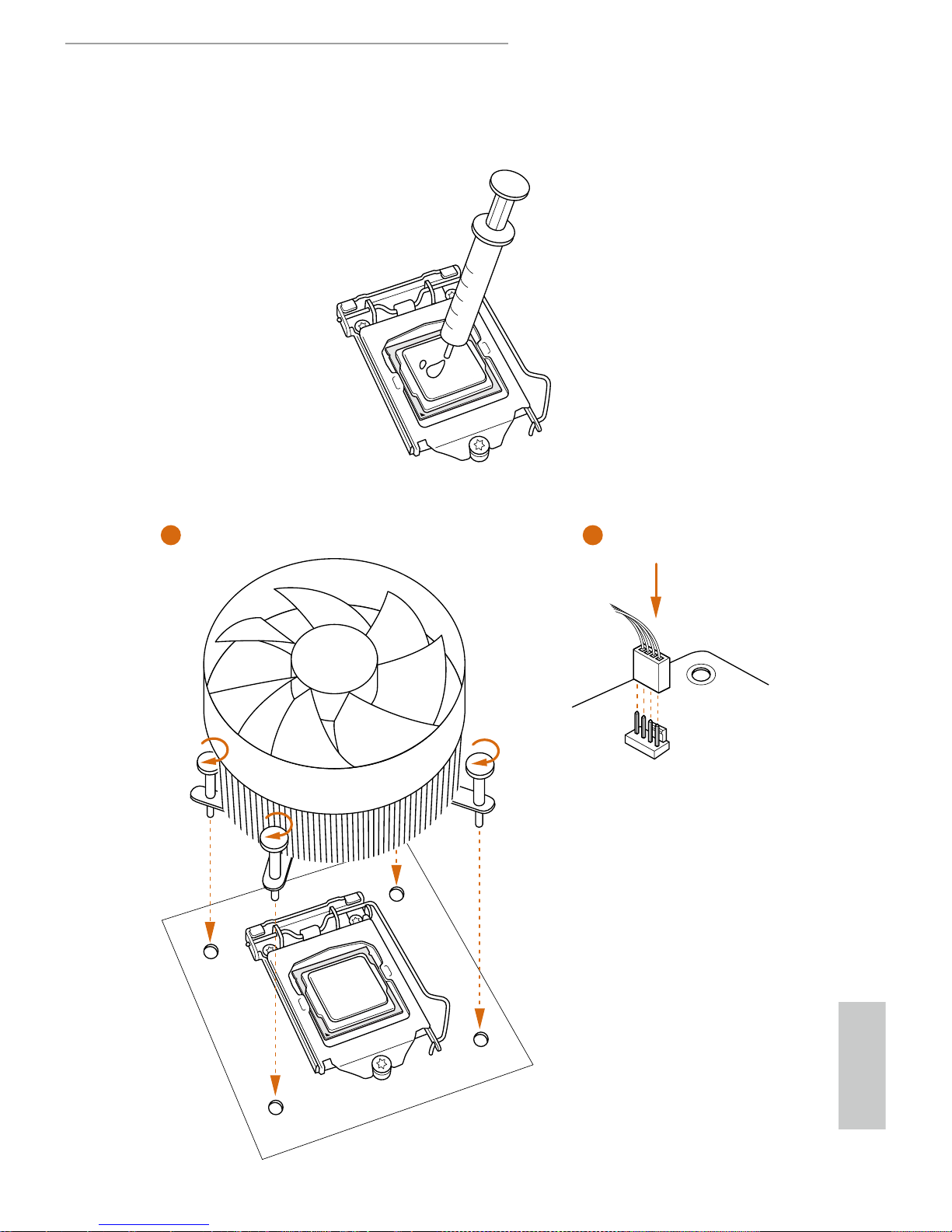

2.2 Installing the CPU Fan and Heatsink
1 2
CPU_FAN
