ASRock H61M-DPS Motherboard
English
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documentation
by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this guide are furnished for informational use
only and subject to change without notice, and should not be constructed as a commit-
ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may
appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or condi-
tions of merchantability or fitness for a particular purpose. In no event shall ASRock, its
directors, officers, employees, or agents be liable for any indirect, special, incidental, or
consequential damages (including damages for loss of profits, loss of business, loss of
data, interruption of business and the like), even if ASRock has been advised of the pos-
sibility of such damages arising from any defect or error in the guide or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
Published December 2012
Copyright©2012 ASRock INC. All rights reserved.

2ASRock H61M-DPS Motherboard

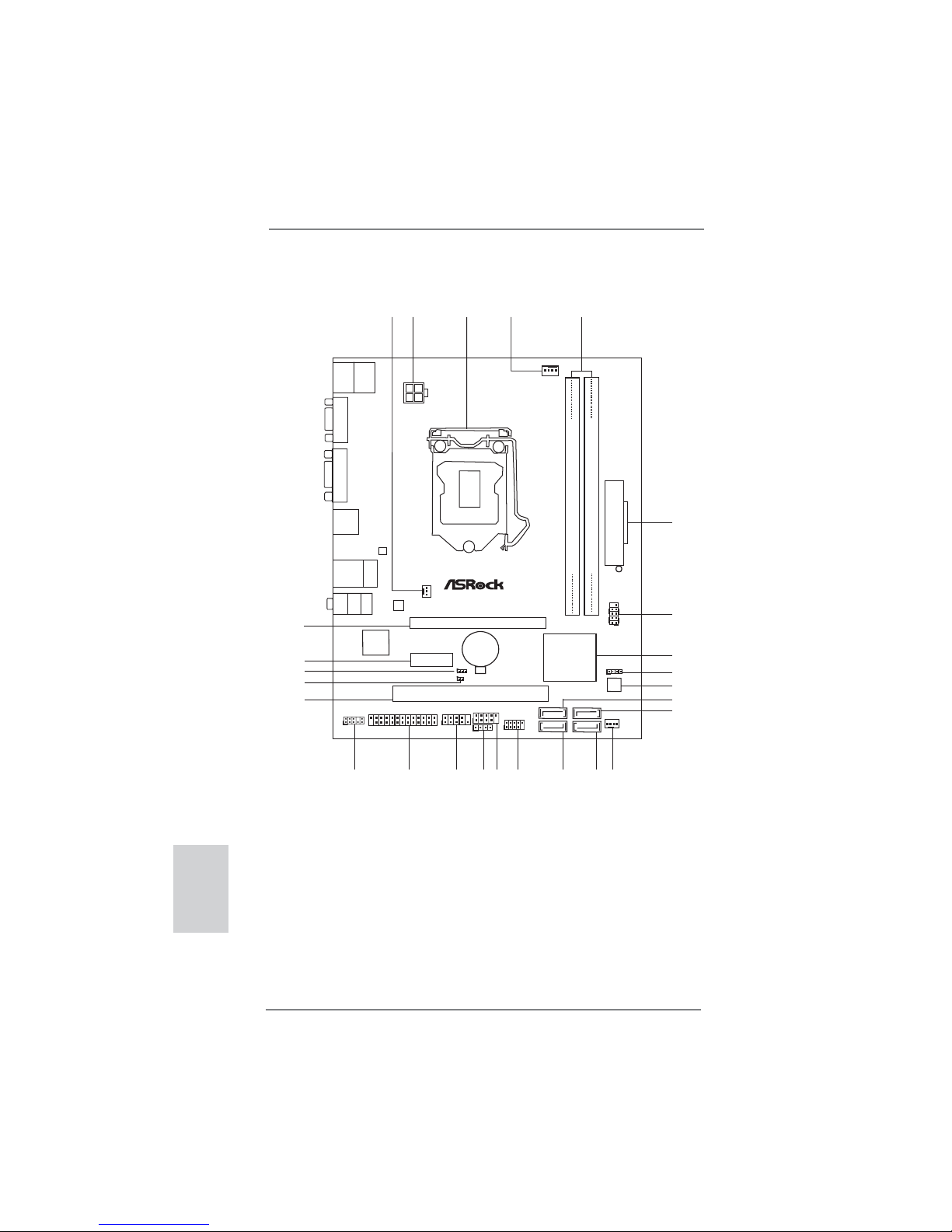

Motherboard Layout
English
1 Power Fan Connector (PWR_FAN1) 14 SATA2 Connector (SATA_0)
2 ATX 12V Power Connector (ATX12V1) 15 SATA2 Connector (SATA_2)
3 1155-Pin CPU Socket 16 USB 2.0 Header (USB6_7)
4 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB4_5)
5 2 x 240-pin DDR3 DIMM Slots 18 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1) 19 COM Port Header (COM1)
6 ATX Power Connector (ATXPWR1) 20 Print Port Header (LPT1)
7 System Panel Header (PANEL1) 21 Front Panel Audio Header (HD_AUDIO1)
8 Intel H61 Chipset 22 PCI Slot (PCI1)
9 Chassis Speaker Header (SPEAKER1) 23 Chassis Intrusion Header (CI1)
10 32Mb SPI Flash 24 Clear CMOS Jumper (CLRCMOS1)
11 SATA2 Connector (SATA_3) 25 PCI Express 2.0 x1 Slot (PCIE2)
12 SATA2 Connector (SATA_1) 26 PCI Express 3.0 x16 Slot (PCIE1)
13 Chassis Fan Connector (CHA_FAN1)
Intel
H61
ATXPWR1
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
PCIE1
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Super
I/O
CMOS
Battery
PWR_FAN1
CPU_FAN1
H61M-DPS
LAN
PHY
1
HD_AUDIO1
AUDIO
CODEC
32Mb
BIOS
1
SPEAKER1
34 5
6
12
22
21
SATA_0
SATA_1
SATA_2
SATA_3
PS2
Mouse
CHA_FAN1
USB6_7
1
X
Fast LAN
X Fast USB
RoHS
COM1
1
LPT1
HDLED RESET
PLED PWRBTN
PANEL1
1
X Fast RAM
ATX12V1
USB4_5
CIR1
1
1
VGA1
DVI1
12
7
8
9
13
15
17
18
19
20
10
11
14
23
16
PCIE2
PCI1
CLRCMOS1
1
CI1
1
24
26
25

3
ASRock H61M-DPS Motherboard
English

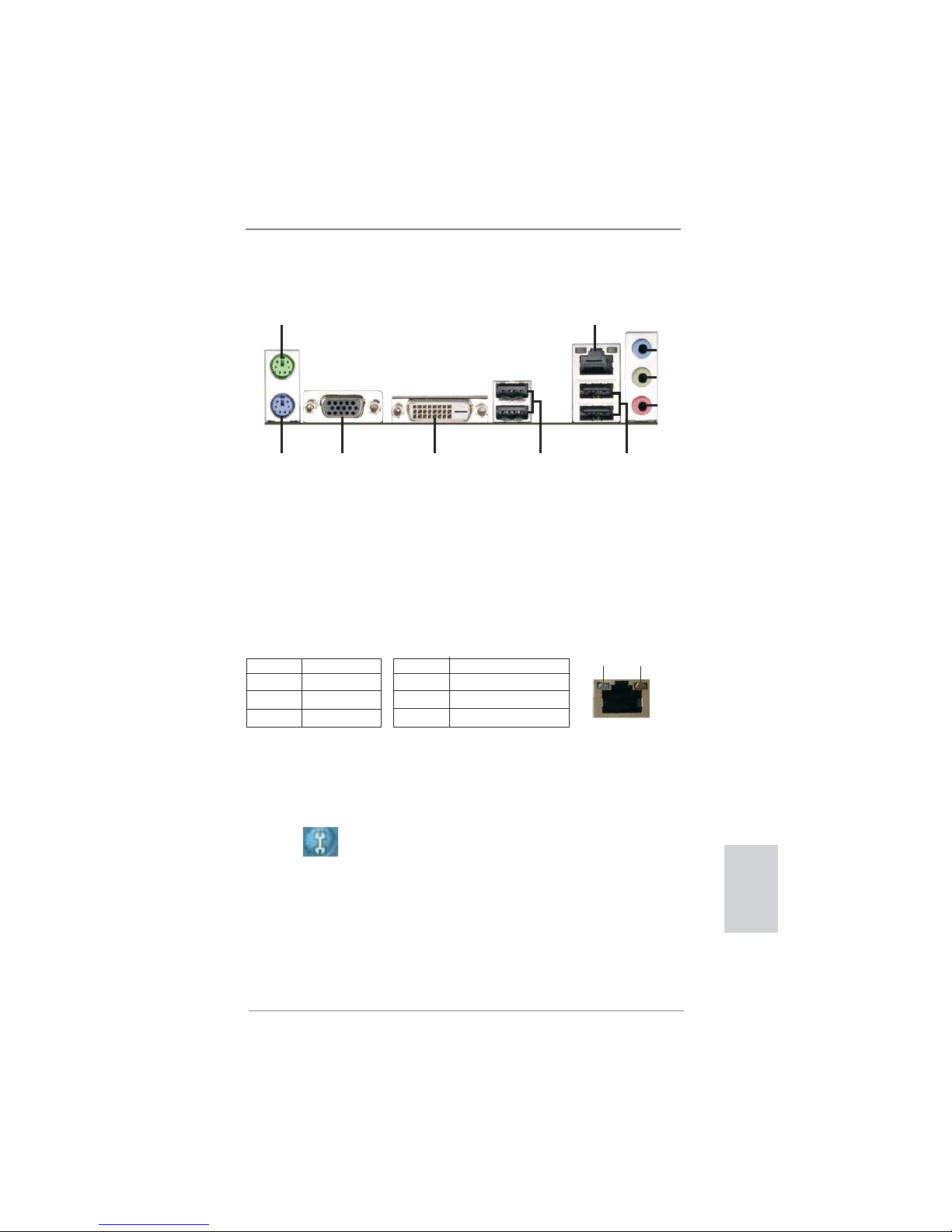

I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB23)
* 2 LAN RJ-45 Port 7 USB 2.0 Ports (USB01)
3 Line In (Light Blue) 8 DVI-D Port
** 4 Front Speaker (Lime) 9 D-Sub Port
5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)
** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. Please refer to below steps for the software setting of Multi-Streaming.
For Windows®XP:
After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer
ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or
“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker
and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then
reboot your system.
For Windows®8 / 7 / VistaTM:
After restarting your computer, please double-click “Realtek HD Audio Manager” on the
system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device
advanced settings”, choose “Make front and rear output devices playbacks two different audio
streams simultaneously”, and click “ok”. Then reboot your system.
12
3
4
5
10 6
7
8
9

4ASRock H61M-DPS Motherboard
1. Introduction
Thank you for purchasing ASRock H61M-DPS motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found
in the user manual presented in the Support CD.
Because the motherboard specifications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modifications of this manual occur, the updated version
will be available on ASRock website without further notice. You may find
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock H61M-DPS Motherboard (Micro ATX Form Factor)
ASRock H61M-DPS Quick Installation Guide
ASRock H61M-DPS Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield
ASRock Reminds You...
To get better performance in Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit, it is recommended to set the BIOS option in Storage Con-
figuration to AHCI mode. For the BIOS setup, please refer to the “User
Manual” in our support CD for details.
English

5
ASRock H61M-DPS Motherboard
English
1.2 Specifications
Platform - Micro ATX Form Factor
- Solid Capacitor for CPU power
CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in
LGA1155 Package
- Supports Intel®Turbo Boost 2.0 Technology
- Supports K-Series CPU
Chipset - Intel®H61
- Supports Intel®Rapid Start Technology and Smart Connect
Technology
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM slots
- Supports DDR3 1600/1333/1066 non-ECC, un-buffered
memory (DDR3 1600 with Intel®Ivy Bridge CPU, DDR3
1333 with Intel®Sandy Bridge CPU)
- Max. capacity of system memory: 16GB (see CAUTION 1)
- Supports Intel®Extreme Memory Profile (XMP) 1.3 / 1.2 with
Intel®Ivy Bridge CPU
Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE1 @ x16 mode)
* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With
Intel®Sandy Bridge CPU, it only supports PCIE 2.0.
- 1 x PCI Express 2.0 x1 slot
- 1 x PCI slot
Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can
be supported only with processors which are GPU
integrated.
- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick
Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000
with Intel®Ivy Bridge CPU
- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick
Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®HD Graphics 2000/3000, Intel®Advanced
Vector Extensions (AVX) with Intel®Sandy Bridge CPU
- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.
Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge
CPU.
- Max. shared memory 1760MB with Intel®Ivy Bridge CPU.
Max. shared memory 1759MB with Intel®Sandy Bridge
CPU.

6ASRock H61M-DPS Motherboard
English
- Dual VGA Output: support DVI and D-Sub ports by
independent display controllers
- Supports DVI with max. resolution up to 1920x1200 @
60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @
75Hz
- Supports HDCP function with DVI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
with DVI port
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Rear Panel I/O I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Connector - 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and
Hot Plug functions
- 1 x CIR header
- 1 x Print Port header
- 1 x COM port header
- 1 x Chassis Intrusion header
- 1 x CPU Fan connectors (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x Power Fan connector (3-pin)
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support
- Supports “Plug and Play”
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree

7
ASRock H61M-DPS Motherboard
English
- SMBIOS 2.3.1 Support
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),
CyberLink MediaEspresso 6.5 Trial, Google Chrome
Browser and Toolbar
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by
CPU Temperature)
- CPU/Chassis Fan Multi-Speed Control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft® Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit / XP / XP 64-bit compliant
Certifications - FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
WARNING
Please realize that there is a certain risk involved with overclocking,
including adjusting the setting in the BIOS, applying Untied Overclocking
Technology, or using third-party overclocking tools. Overclocking may
affect your system’s stability, or even cause damage to the components
and devices of your system. It should be done at your own risk and
expense. We are not responsible for possible damage caused by
overclocking.
CAUTION!
1. Due to the operating system limitation, the actual memory size
may be less than 4GB for the reservation for system usage
under Windows®8 / 7 / VistaTM / XP. For Windows®OS with 64-
bit CPU, there is no such limitation. You can use ASRock XFast
RAM to utilize the memory that Windows®cannot use.

8ASRock H61M-DPS Motherboard

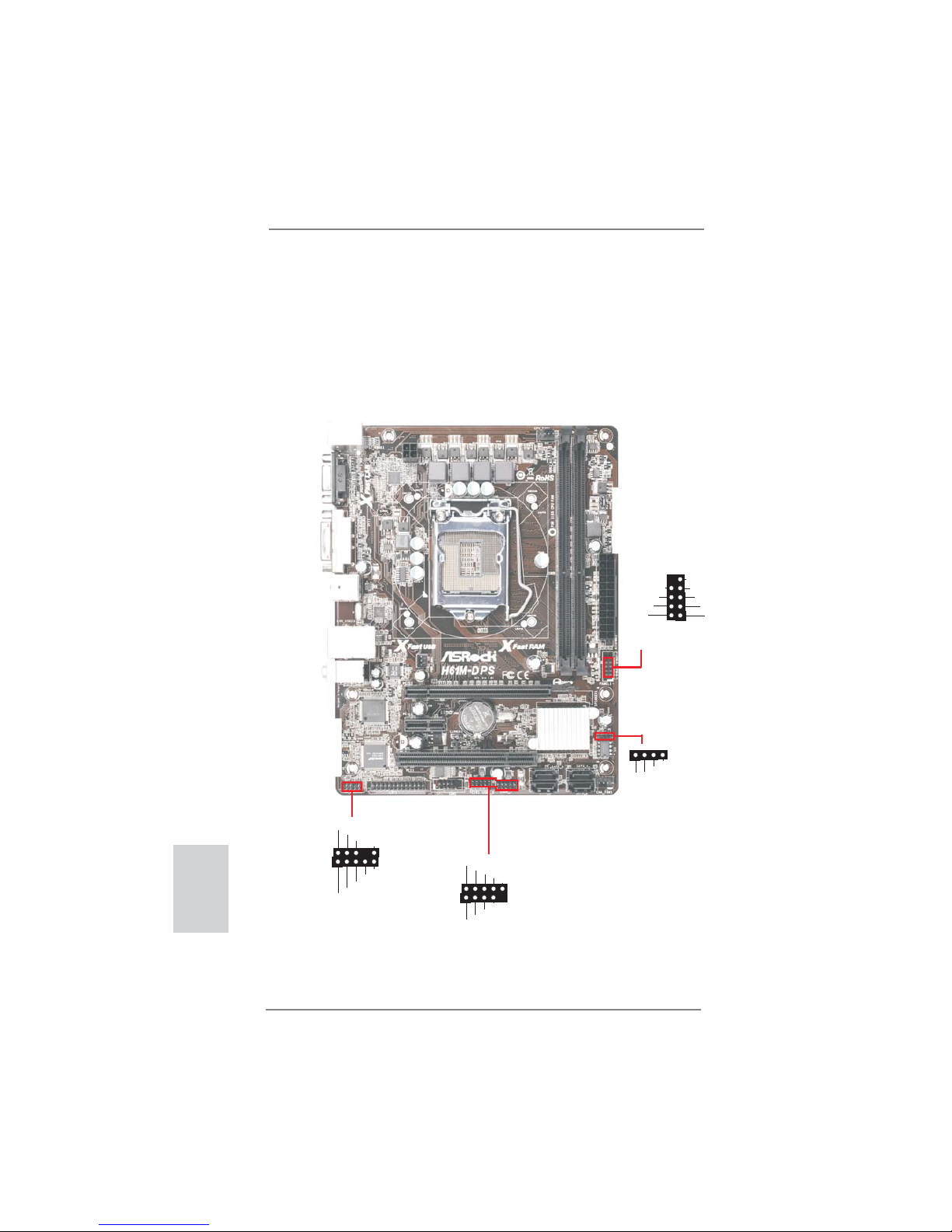

1.3 Pin Header Easy Installation Guide
ASRock motherboard is equipped with pin headers with obvious colors which indi-
cate you to recognize the crucial headers more easily. Please refer to below illustra-
tions for the pin definition of onboard headers. If you want to have more information
about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard
Headers and Connectors“ for details.
1
GND
PRESENCE#
MIC_RET
MIC2_L
MIC2_R
OUT2_R
J_SENSE
OUT2_L
OUT_RET
Front Panel Audio Header
1
PLED+
PLED-
PWRBTN#
HDLED+
HDLED-
GND
REST#
GND
DUMMY
System Panel Header
USB 2.0 Header
1
USB_PWR
P- P+
USB_PWR
P- P+
GND
GND
DUMMY
Chassis Speaker Header
1
+5V
DUMMY
SPEAKER
DUMMY
English

9
ASRock H61M-DPS Motherboard
English
1.4 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1)
(see p.2, No. 23)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just finish updating the BIOS, you must boot up
the system first, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time and user default profile will be
cleared only if the CMOS battery is removed.
Clear CMOSDefault
If you clear the CMOS, the case open may be detected. Please adjust
the BIOS option “Clear Status” to clear the record of previous chassis
intrusion status.

10 ASRock H61M-DPS Motherboard
English

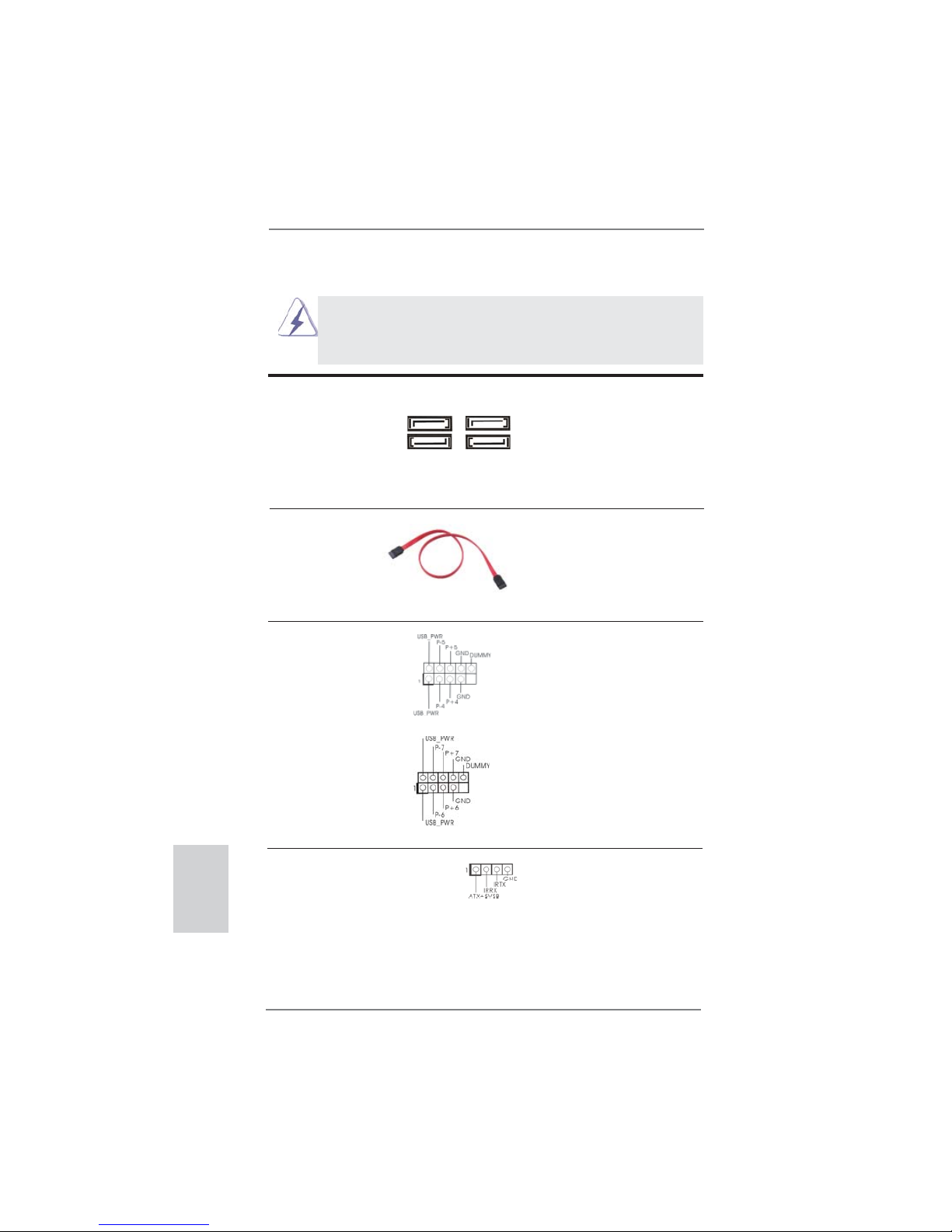

1.5 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA2 Connectors These four Serial ATA2
(SATA_0: see p.2, No. 13) (SATA2) connectors support
(SATA_1: see p.2, No. 11) SATA data cables for internal
(SATA_2: see p.2, No. 14) storage devices. The current
(SATA_3: see p.2, No. 10) SATA2 interface allows up to
3.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA2 hard disk or the SATA2
connector on this motherboard.
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB4_5) ports on the I/O panel, there
(see p.2 No. 16) are two USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB6_7)
(see p.2 No. 15)
Consumer Infrared Module Header This header can be used to
(4-pin CIR1) connect the remote
(see p.2 No. 17) controller receiver.
SATA_3 SATA_1
SATA_2 SATA_0

11
ASRock H61M-DPS Motherboard
English
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

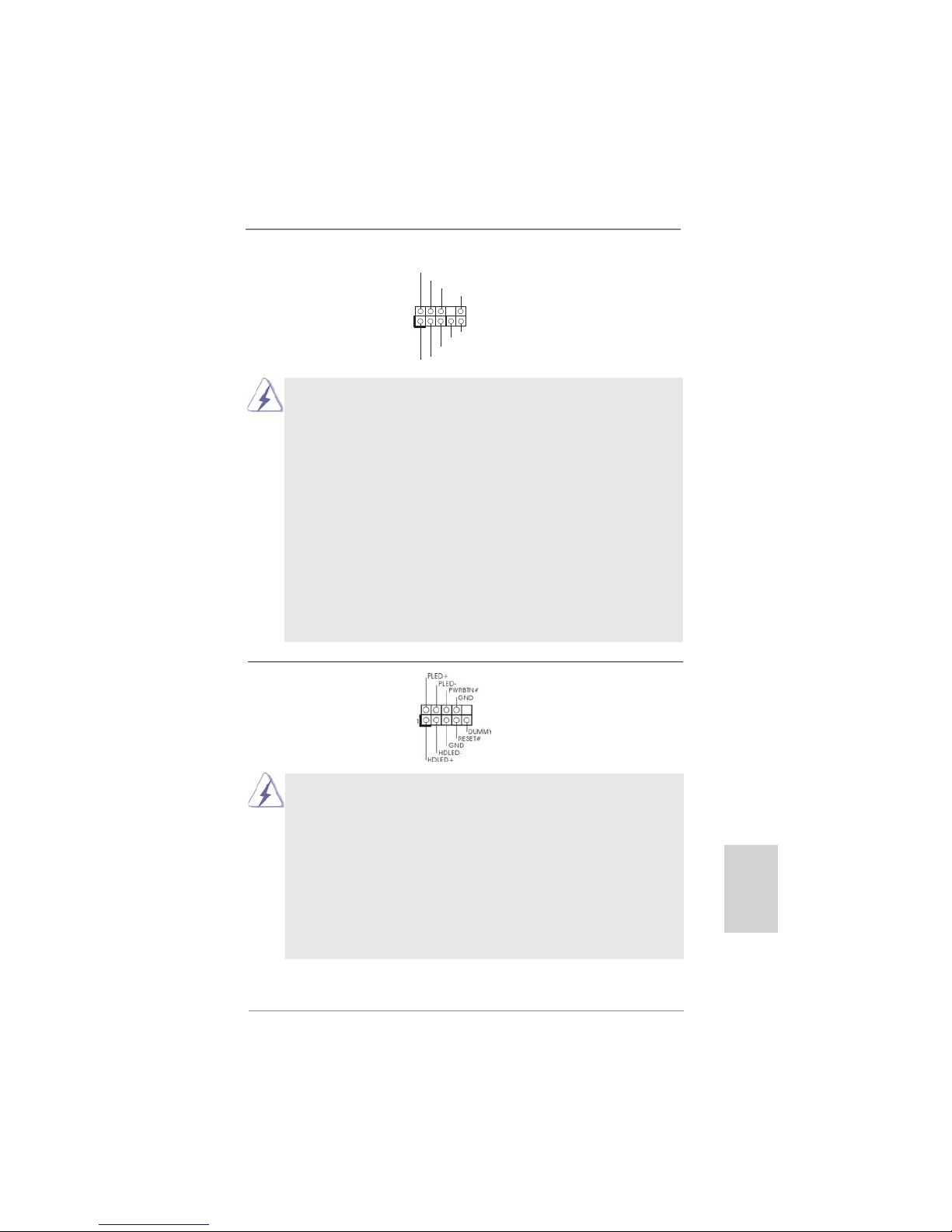

Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2 No. 20) convenient connection and
control of audio devices.
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.
E. To activate the front mic.
For Windows®XP / XP 64-bit OS:
Select “Mixer”. Select “Recorder”. Then click “FrontMic”.
For Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit OS:
Go to the "FrontMic" Tab in the Realtek Control panel. Adjust
“Recording Volume”.
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.2 No. 7) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may configure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.

12 ASRock H61M-DPS Motherboard
English
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.2 No. 4) match the black wire to the
ground pin.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.2 No. 8)
Chassis and Power Fan Connectors Please connect the fan cables
(4-pin CHA_FAN1) to the fan connectors and
(see p.2 No. 12) match the black wire to the
ground pin.
(3-pin PWR_FAN1)
(see p.2 No. 1)
GND
+12V
CHA_FAN_SPEED
FAN_SPEED_CONTROL
PWR_FAN_SPEED
GND
+12V
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1

13
ASRock H61M-DPS Motherboard
English

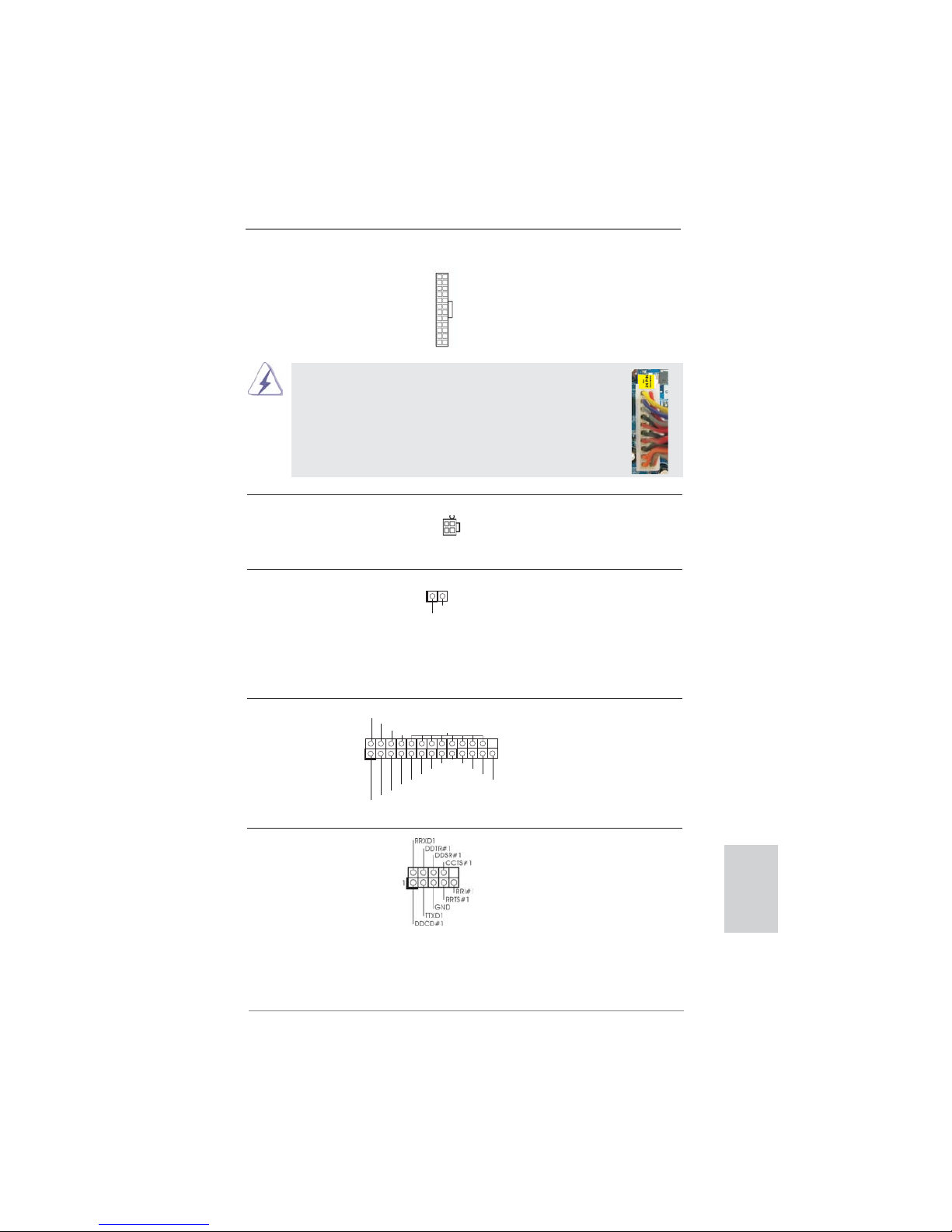

ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1) power supply to this connector.
(see p.2 No. 2)
Chassis Intrusion Header This motherboard supports
(2-pin CI1) CASE OPEN detection feature
(see p.2, No. 22) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.2 No. 6)
12
1
24
13
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your
power supply along with Pin 1 and Pin 13.
12
1
24
13
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.2 No. 19) convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT# GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
Serial port Header This COM1 header supports a
(9-pin COM1) serial port module.
(see p.2 No. 18)

14 ASRock H61M-DPS Motherboard
2. BIOS Information
The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up
the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST)
to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you
wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl>
+ <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS
Setup program is designed to be user-friendly. It is a menu-driven program, which
allows you to scroll through its various sub-menus and to select among the prede-
termined choices. For the detailed information about BIOS Setup, please refer to the
User Manual (PDF file) contained in the Support CD.
3. Software Support CD information
This motherboard supports various Microsoft®Windows®operating systems: 8 / 8
64-bit / 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP / XP 64-bit. The Support CD that
came with the motherboard contains necessary drivers and useful utilities that will
enhance motherboard features. To begin using the Support CD, insert the CD into
your CD-ROM drive. It will display the Main Menu automatically if “AUTORUN” is
enabled in your computer. If the Main Menu does not appear automatically, locate
and double-click on the file “ASSETUP.EXE” from the BIN folder in the Support CD
to display the menus.
English

15
ASRock H61M-DPS Motherboard
Spezifikationen
Plattform - Micro ATX-Formfaktor
- Festkondensator für CPU-Leistung
CPU - Unterstützt Intel®CoreTM i7- / i5- / i3-Prozessoren der 3ten
und 2ten Generation im LGA1155-Package
- Unterstützt Intel®Turbo Boost 2.0-Technologie
- Unterstützt CPU der K-Serie
Chipsatz - Intel®H61
- Unterstützt Intel®Rapid Start Technology und Smart
Connect Technology
Speicher - Unterstützung von Dual-Kanal-Speichertechnologie
- 2 x Steckplätze für DDR3
- Unterstützt DDR3 1600/1333/1066 non-ECC, ungepufferter
Speicher (DDR3 1600 mit Intel®Ivy Bridge-Prozessor,
DDR3 1333 mit Intel®Sandy Bridge-Prozessor)
- Max. Kapazität des Systemspeichers: 16GB
- Unterstützt Intel®Extreme Memory Profile (XMP)1.3/1.2 mit
Intel®Ivy Bridge-Prozessor
Erweiterungs- - 1 x PCI Express 3.0 x16-Steckplatz (PCIE1 für x16-Modus)
steckplätze * PCIE 3.0 wird nur mit Intel®Ivy Bridge-Prozessor
unterstützt. Mit Intel®Sandy Bridge-Prozessor wird nur
PCIE 2.0 unterstützt.
- 1 x PCI Express 2.0 x1-Steckplätze
- 1 x PCI-Steckplätze
Onboard-VGA * Integrierte Intel®HD-Grafikdarstellungen und die VGA-
Ausgänge können nur durch GPU-integrierte Prozessoren
unterstützt werden.
- Unterstützt hochauflösende integrierte Intel®-Grafiklösungen:
Intel®Quick-Sync-Video 2.0, Intel®InTruTM 3D, Intel®Clear-
Video-Technik (HD), Intel®InsiderTM, Intel®HD Graphics
2500/4000 mit Intel®Ivy Bridge-Prozessor
- Unterstützt hochauflösende integrierte Intel®-Grafiklösungen:
Intel®Quick-Sync-Video, Intel®InTruTM 3D, Intel®Clear-
Video-Technik (HD), Intel®HD Graphics 2000/3000, Intel®
Advanced Vector Extensions (AVX) mit Intel®Sandy Bridge-
Prozessor
- Pixel Shader 5.0, DirectX 11 mit Intel®Ivy Bridge-Prozessor,
Pixel Shader 4.1, DirectX 10.1 mit Intel®Sandy Bridge-
Prozessor
- Maximal gemeinsam genutzter Speicher 1760MB mit Intel®
Deutsch

16 ASRock H61M-DPS Motherboard
Ivy Bridge-Prozessor. Maximal gemeinsam genutzter
Speicher 1759MB mit Intel®Sandy Bridge-Prozessor.
- Doppel-VGA Ausgabe: unterstützt DVI und D-Sub Ports
durch unabhängige Bildschirmanzeige Kontrolleure
- Unterstützt DVI mit einer maximalen Auflösung von
1920 x 1200 bei 60 Hz
- Unterstützt D-Sub mit einer maximalen Auflösung von
2048 x 1536 bei 75 Hz
- Unterstützt HDCP-Funktion mit DVI-Port
- Unterstutzt 1080p Blu-ray (BD) / HD-DVD-Wiedergabe mit
DVI-Port
Audio - 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Unterstützt LAN-Kabelerkennung
- Unterstützt energieeffizientes Ethernet 802.3az
- Unterstützt PXE
E/A-Anschlüsse I/O Panel
an der - 1 x PS/2-Mausanschluss
Rückseite - 1 x PS/2-Tastaturanschluss
- 1 x D-Sub port
- 1 x DVI-D port
- 4 x Standard-USB 2.0-Anschlüsse
- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED
LED)
- HD Audiobuchse: Audioeingang / Lautsprecher vorne /
Mikrofon
Anschlüsse - 4 x SATA2 3,0 GB/s-Anschlüsse, unterstützen NCQ-, AHCI-
und „Hot Plug“ (Hot-Plugging)- Funktionen
- 1 x Consumer Infrared-Modul-Header
- 1 x Druckerport-Anschlussleiste
- 1 x COM-Anschluss-Header
- 1 x Verteiler für Gehäuseeindringversuche
- 1 x CPUlüfter-Anschluss (4-pin)
- 1 x Gehäuselüfter-Anschluss (4-pin)
- 1 x Stromlüfter-Anschluss (3-pin)
- 24-pin ATX-Netz-Header
- 4-pin anschluss für 12V-ATX-Netzteil
- Anschluss für Audio auf der Gehäusevorderseite
- 2 x USB 2.0-Anschlüsse (Unterstützung 4 zusätzlicher
USB 2.0-Anschlüsse)
Deutsch

17
ASRock H61M-DPS Motherboard
BIOS - 32Mb AMIs Legal BIOS UEFI mit GUI-Unterstützung
- Unterstützung für “Plug and Play”
- ACPI 1.1-Weckfunktionen
- JumperFree-Übertaktungstechnologie
- SMBIOS 2.3.1
CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (version d’évaluation),
CyberLink MediaEspresso 6.5 Trial, Google Chrome
Browser und Toolbar
Hardware Monitor - Überwachung der CPU-Temperatur
- Motherboardtemperaturerkennung
- Drehzahlmessung für CPUlüfter
- Drehzahlmessung für Gehäuselüfter
- Geräuscharmer CPUlüfter (ermöglicht die au tomatische
Anpassung der Gehäuselüftergeschwindigkeit durch
CPU Temperatur)
- Mehrstufige Geschwindigkeitsteuerung für CPU-/
Gehäuselüfter
- GEHÄUSE OFFEN-Erkennung
- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore
Betriebssysteme - Unterstützt Microsoft®Windows®8 / 8 64-Bit / 7 / 7 64-Bit /
VistaTM / VistaTM 64-Bit / XP / XP 64-Bit
Zertifizierungen - FCC, CE, WHQL
- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung
gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich)
* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website:
http://www.asrock.com
Deutsch

18 ASRock H61M-DPS Motherboard
Spécifications
Format - Facteur de forme Micro ATX
- Condensateur résistant pour alimentation de processeur
CPU - Prend en charge les processeurs Intel®CoreTM i7 / i5 / i3
2ème et 3ème génération sur socket LGA1155
- Prend en charge la technologie Intel®Turbo Boost 2.0
- Prise en charge des unités centrales de série K
Chipsets - Intel®H61
- Prend en charge les technologies Intel®Rapid Start et Smart
Connect
Mémoire - Compatible avec la Technologie de Mémoire à Canal
Double
- 2 x slots DIMM DDR3
- Supporter DDR3 1600/1333/1066 non-ECC, sans
amortissement mémoire (DDR3 1600 avec CPU Intel®Ivy
Bridge, DDR3 1333 avec CPU Intel®Sandy Bridge)
- Capacité maxi de mémoire système: 16GB
- Prend en charge le profil de mémoire extrême Intel®(XMP)
1.3/1.2 avec processeur Intel®Ivy Bridge CPU
Slot d’extension - 1 x slot PCI Express 3.0 x16 (PCIE1 @ mode x16)
* PCIE 3.0 n’est pris en charge qu’avec le processeur Intel®
Ivy Bridge. Avec le processeur Intel®Sandy Bridge, seul
PCIE 2.0 est pris en charge.
- 1 x slot PCI Express 2.0 x1
- 1 x slot PCI
VGA sur carte * Intel®HD Graphics avec visuels intégrés (Built-in Visuals) et
les sorties VGA sont uniquement pris en charge par les
processeurs à GPU intégré.
- Supporte Intel®HD Graphics Built-in Visuals: Intel®Quick
Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000
avec processeur Intel®Ivy Bridge CPU
- Supporte Intel®HD Graphics Built-in Visuals: Intel®Quick
Sync Video, Intel®InTruTM 3D, Intel®Clear Video HD
Technology, Intel®HD Graphics 2000/3000, Intel®Advanced
Vector Extensions (AVX) avec processeur Intel®Sandy
Bridge CPU
- Pixel Shader 5.0, DirectX 11 avec CPU Intel®Ivy Bridge,
Pixel Shader 4.1, DirectX 10.1 avec CPU Intel®Sandy
Bridge
Français

19
ASRock H61M-DPS Motherboard
Français
- Mémoire partagée max 1760MB avec processeur Intel®Ivy
Bridge CPU. Mémoire partagée max 1759MB avec
processeur Intel®Sandy Bridge CPU.
- Output de VGA Duel: supporter DVI et D-Sub ports par
les controleurs de display independents
- Prend en charge le DVI avec une résolution maximale
jusqu’à 1920x1200 @ 60Hz
- Prend en charge le D-Sub avec une résolution maximale
jusqu’à 2048x1536 @ 75Hz
- Prise en charge de la fonction HDCP avec port DVI
- Supporter 1080p Blu-ray(BD)/ lecteur de HD-DVD avec
port DVI
Audio - 5.1 Son haute définition de CH
(codec audio Realtek ALC662)
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Prise en charge de la détection de câble LAN
- Prend en charge la norme Energy Efficient Ethernet
(Ethernet à efficacité énergétique) 802.3az
- Supporte PXE
Panneau arrière I/O Panel
- 1 x port souris PS/2
- 1 x port clavier PS/2
- 1 x port D-Sub
- 1 x port DVI-D
- 4 x ports USB 2.0 par défaut
- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et
LED VITESSE)
- Prise HD Audio: Entrée Ligne / Haut-parleur frontal /
Microphone
Connecteurs - 4 x connecteurs SATA2, prennent en charge un taux de
transfert de données pouvant aller jusqu’à 3.0Go/s,
supporte NCQ, AHCI et « Hot Plug » (Branche ment à
chaud)
- 1 x Barrette pour module à infrarouges grand public
- 1 x embase de port d’impression
- 1 x En-tête de port COM
- 1 x Embase d’intrusion châssis
- 1 x Connecteur pour ventilateur de CPU (br. 4)
- 1 x Connecteur pour ventilateur de Châssis (br. 4)
- 1 x Connecteur pour ventilateur de pouvoir (br. 3)

20 ASRock H61M-DPS Motherboard
- br. 24 connecteur d’alimentation ATX
- br. 4 connecteur d’alimentation 12V ATX
- Connecteur audio panneau avant
- 2 x En-tête USB 2.0 (prendre en charge 4 ports USB 2.0
supplémentaires)
BIOS - 32Mb AMI UEFI Legal BIOS avec support GUI
- Support du “Plug and Play”
- Compatible pour événements de réveil ACPI 1.1
- Gestion jumperless
- Support SMBIOS 2.3.1
CD d’assistance - Pilotes, utilitaires, logiciel anti-virus (version d’évaluation),
CyberLink MediaEspresso 6.5 Trial, Google Chrome
Browser et Toolbar
Surveillance - Contrôle de la température CPU
système - Mesure de température de la carte mère
- Tachéomètre ventilateur processeur
- Tachéomètre ventilateur châssis
- Ventilateur silencieux pour unité centrale (permet le réglage
automatique de la vitesse du ventilateur pour châssis, selon
la température de l’unité centrale)
- Commande de ventilateur CPU/châssis à plusieurs vitesses
- Détection d’OUVERTURE DE BOÎTIER
- Monitoring de la tension: +12V, +5V, +3.3V, Vcore
OS - Microsoft®Windows®8 / 8 64-bit / 7 / 7 64-bit / VistaTM /
VistaTM 64-bit / XP / XP 64-bit
Certifications - FCC, CE, WHQL
- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise)
* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web:
http://www.asrock.com
Français
