ASROCK SBC-211 User manual

1
SBC-211
User Manual
Version 1.0
Published July 2014
Copyright©2014 ASRock INC. All rights reserved.

2
Version 1.0
Published July 2014
Copyright©2014 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRock Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRock. ASRock assumes no responsibility for
any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRock, its directors, ocers, employees, or agents be liable for
any indirect, special, incidental, or consequential damages (including damages for
loss of prots, loss of business, loss of data, interruption of business and the like),
even if ASRock has been advised of the possibility of such damages arising from any
defect or error in the documentation or product.
e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRock Website: http://www.asrock.com

3
Contents
1 Introduction ....................................................... 5
1.1 Package Contents ......................................................... 5
................................................................. 6
1.3 Motherboard Layout....................................................... 8
1.4 I/O Panel........................................................................ 10
2 Installation ......................................................... 11
2.1 Screw Holes................................................................... 11
2.2 Pre-installation Precautions ........................................... 11
2.3 Installation of Memory Modules (SO-DIMM).................. 12
2.4 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA
Slots).............................................................................. 13
2.5 Jumpers Setup............................................................... 14
2.6 Onboard Headers and Connectors................................ 16
3 UEFI SETUP UTILITY......................................... 21
3.1 Introduction .................................................................... 21
3.1.1 UEFI Menu Bar .................................................... 21
3.1.2 Navigation Keys ................................................... 22
3.2 Main Screen................................................................... 22
3.3 Advanced Screen........................................................... 23
 ............................................... 24
........................................... 26
 .......................................... 27
3.3.4 Intel(R) Smart Connect Technology ..................... 28
 ........................................ 29
............................................... 30
 ............................................... 31
3.4 Hardware Health Event Monitoring Screen ................... 32
3.5 Security Screen ............................................................. 33
3.6 Boot Screen ................................................................... 34
3.7 Exit Screen .................................................................... 36

4
4 Software Support .............................................. 37
4.1 Install Operating System................................................ 37
4.2 Support CD Information ................................................. 37
4.2.1 Running Support CD............................................ 37
4.2.2 Drivers Menu........................................................ 37
4.2.3 Utilities Menu........................................................ 37
4.2.4 Contact Information.............................................. 37

5
Chapter 1: Introduction
Thank you for purchasing ASRock SBC-211 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

guide to BIOS setup and information of the Support CD.

updated, the content of this manual will be subject to change without no-


the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit

www.asrock.com/support/index.asp
1.1 Package Contents
ASRock SBC-211 Motherboard (3.5” SBC (5.8-in x 4.0-in) / (148 x 102 mm))
ASRock SBC-211 Driver CD
ASRock SBC-211 Jumper setting instruction

6

Form
Factor Dimensions 3.5" SBC (5.8-in x 4.0-in) / (148 x 102 mm)
Processor
System
CPU
Intel®new Atom™ Baytrail-E3800 Series
Supports Hyper-Threading Technology
Default E3826 Dual core processor
Core
Number (By CPU, Max 4)
Max Speed (By CPU)
Cache (By CPU)
Chipset N/A
BIOS UEFI
Expansion
Slot
PCI 0
Mini-PCIe 1 (Half Size) + 1 (Full Size) shared with mSATA
mSATA 1 (Full Size) shared with SATAII_2
PCIe 0
CFast Card
Socket 0
Memory
Technology Single Channel DDR3L 1066/1333 MHz SDRAM
Max. 8GB
Socket 1 x SO-DIMM
Graphics
Controller Intel®Gen7 Intel Graphics DX 11, OGL3.2
VRAM Shared Memory
VGA Supports max. resolution 1920 x 1200
LVDS Dual channel 24-bit, max resolution 1920 x 1200
@60Hz
HDMI Supports HDMI 1.4a, max resolution 1920 x
1200
DVI N/A
DisplayPort N/A
Multi Display Yes (Dual Display)
Ethernet
Ethernet 10/100/1000 Mbps
Controller GbE LAN: Realtek RTL8111G-CG
Connector 2 x RJ-45
SATA
Max Data
Transfer
Rate
SATA2 (3.0Gb/s)
Rear I/O
VGA 1
DVI 0
HDMI 1
DisplayPort 0

7
Ethernet 2
USB 2 x USB 3.0 compliant
Audio 1 ( Line out)
Serial 0
PS/2 0
Internal
Connector
USB 6 ( 3*2.54 pitch header USB 2.0 compliant)
LVDS/
Inverter 1/1
VGA 0
Serial 4 (RS-232)
SATA 2x SATA2 (3.0Gb/s) (SATAII_2 is shared
with mSATA)
Parallel 0
IrDA 0
GPIO 8-bit 4 x GPI + 4 x GPO
SATA PWR
Output Con 1
Speaker
Header 1
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 segments, 0,1,2…255sec/min
Power
Requirements
Input PWR 9-36V DC-In using 4-pin ATX PWR Con
Power On
AT/ATX Supported
AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8

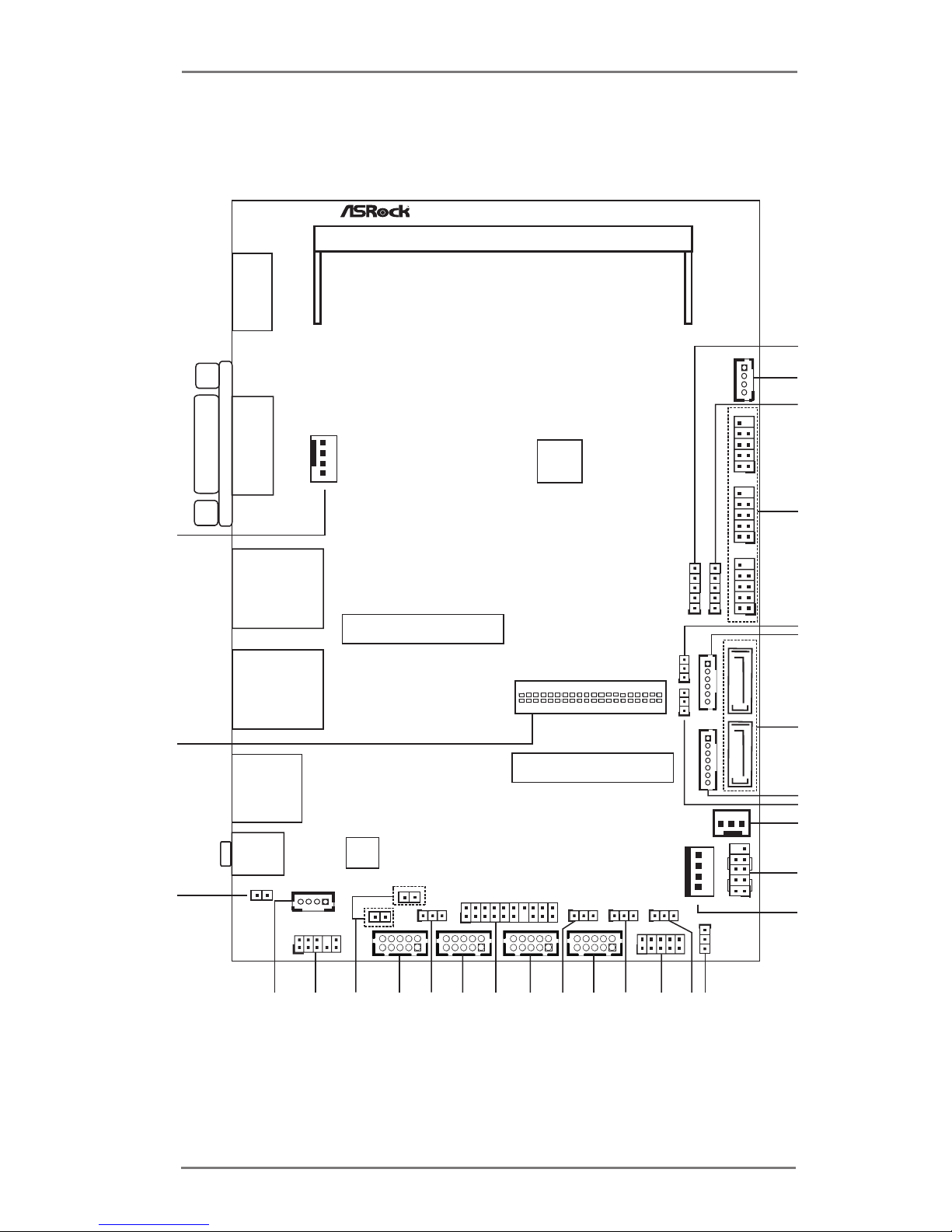

1.3 Motherboard Layout
AUDIO
CODEC
BIOS
Chip
SBC-211
18
21
23
26
27
29
1920
2224
25
28
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
CPU_ FAN1
PWR _JP 1
1
1
JGPIO1
mini-PCIe
1
TPM1
CHA_FAN1
SPEAKER1
1
LAN1
VGA1
Line Out
HDMI1
ATX12V1
1
BLT_ VOL 1
HDLED RESET
PLED PWRBTN
PANEL1
1
mini-PCIe / mini-SATA
CI1
1
SATA_ PW R1
LVDS1
1
1
BLT_PW R1
Industrial
SET_CM1
LAN2
USB 3.0
T: USB1
B: USB0
COM1 COM2 COM3 COM4
CI2
1
JGP IO_ PWR 1
1
CLR MOS 1
1
1
USB4_5
1
USB2_3
1
USB0_1
BUZ Z1
1
DDR3 (Support DDR3L Only)
1
BKT _P WR1
1
PNL _P WR1
1
SATAI I_ 1
SATAI I_ 2
BLT_ PWM 1
1
MSATA_ SEL 1
1
1
HD_AUDIO1
1
JGP IO_ SET 1
1

9
1 : Panel Power Selection (PNL_PWR1)
2 : ATX Power Connector
3 : Backlight Power Selection (BKT_PWR1)
4 : USB2.0 Headers (USB0_1, USB2_3, USB4_5)
5 : mSATA Selection
6 : Inverter Power Control Wafer (BLT_PWR1)
7 : SATA2 Connectors (SATAII_1, SATAII_2)
8 : Backlight & Amp Volume Control (BLT_VOL1)
9 : Backlight Control Level (BLT_PWM1)
10 : 3-Pin Chassis FAN Connector
11 : System Panel Header
1 2 : SATA Power Output Connector
13 : GPIO Default Setting
14 : Clear CMOS Header
15 : Digital Input / Output Pin Header
16 : Digital Input / Output Power Select
17 : COM Port Header (COM4)
18 : ATX/AT Mode Selection
19 : COM Port Header (COM3)
20 : TPM Header
21 : COM Port Header (COM2)
22 : COM1 Pin9 PWR Setting
23 : COM Port Header (COM1)
24 : Chassis Intrusion Headers (CI1, CI2)
25 : Front Panel Audio Header
26 : 3W Audio AMP Output Wafer
27 : 2-Pin Buzzer Header
28 : LVDS Panel Connector
29 : 4-Pin CPU FAN Connector

10

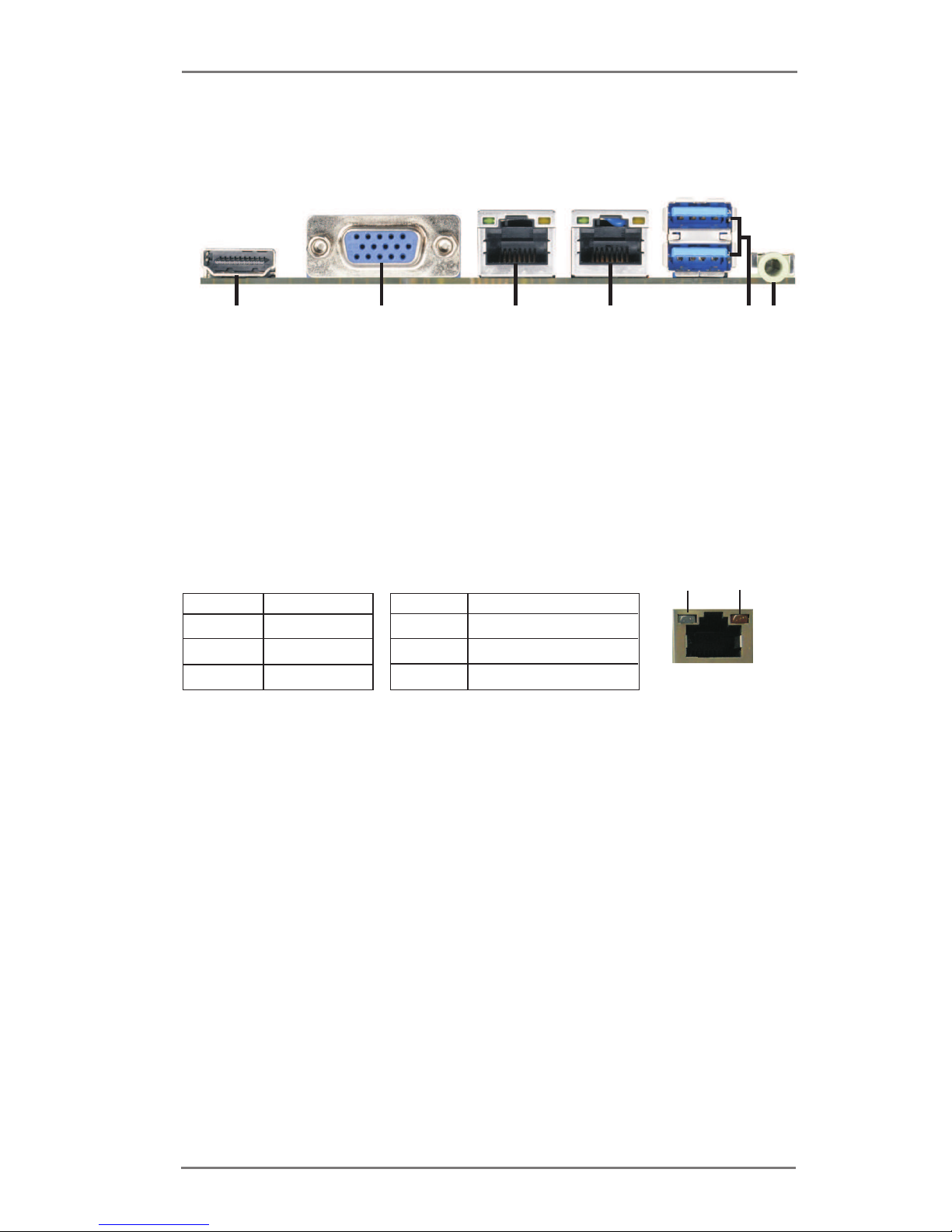

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Off 100Mbps connection
On Link Green 1Gbps connection
1 HDMI Port (HDMI1)
2 VGA Port (VGA1)
3 LAN RJ-45 Port (LAN1)*
4 LAN RJ-45 Port (LAN2)*
5 USB 3.0 Ports (USB01)
6 Line out (Green)
ACT/LINK
LED
SPEED
LED
LAN Port
6
124
35

11
Chapter 2: Installation
This is a 3.5” SBC (5.8-in x 4.0-in) form factor (148 x 102 mm) motherboard. Before
  

Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (SO-DIMM)
SBC-211 provides one 204-pin DDR3 (Double Data Rate 3) SO-DIMM slot, which
supports single channel DDR3L SDRAM only.
Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM
matches the break on the slot.
  
the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at
incorrect orientation.
Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both
ends fully snap back in place and the SO-DIMM is properly seated.

13
2.4 Expansion Slots (mini-PCIe and mini-PCIe/mini-SATA
Slots)
There is 1 mini-PCIe slot and 1 mini-PCIe/mini-SATA slot on this motherboard.
mini-PCIe slot:
MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini
cards.
mini-PCIe/mini-SATA slot:
MINI_PCIE2 (mini-PCIe/mini-SATA slot; full size) is used for PCI Ex-
press mini cards or mSATA cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
 
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

14
2.5 Jumpers Setup

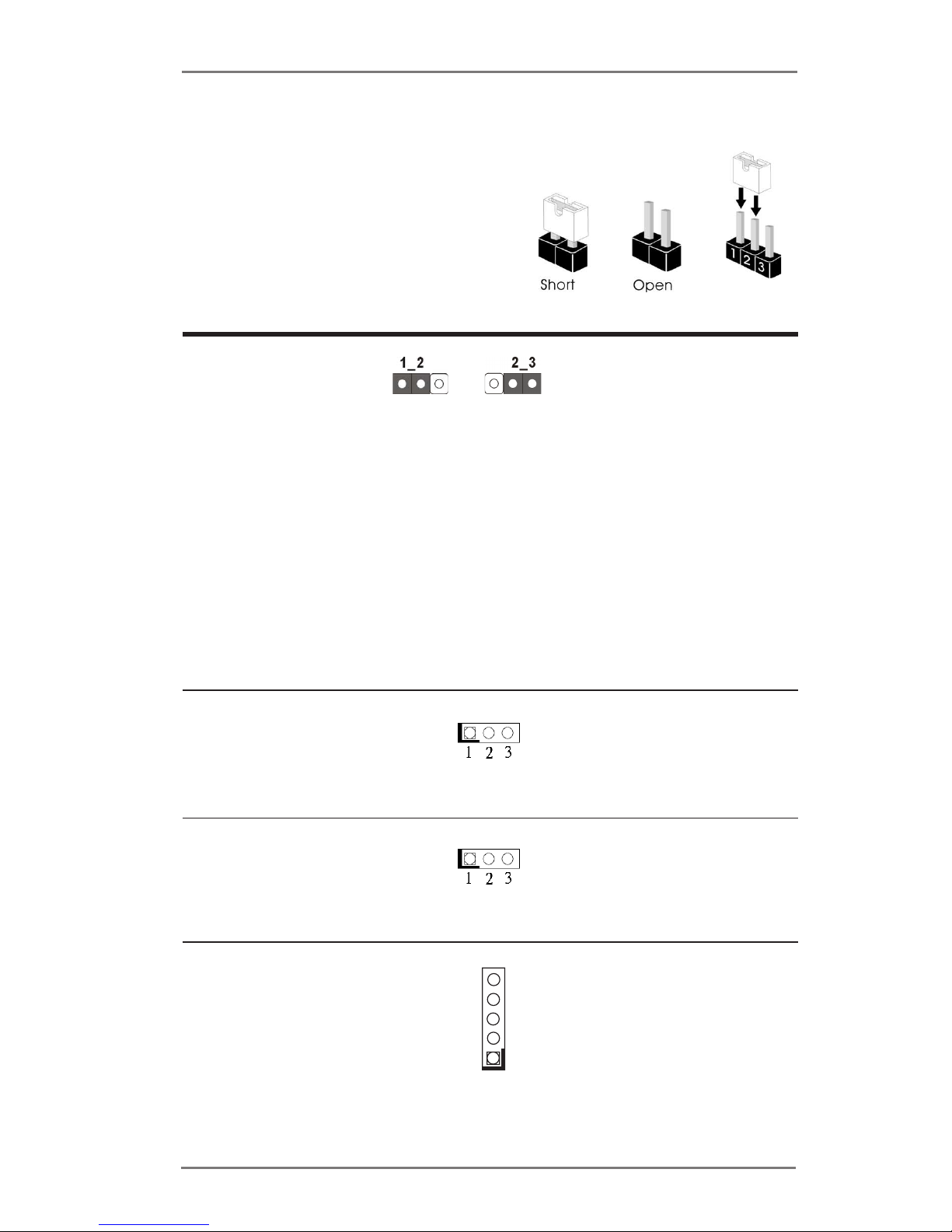

The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.8, No. 14)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need



address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault
Panel Power Selection (LCD_VCC) Use this to set up the VDD
(5-pin PNL_PWR1) power of the LVDS connector.
(see p.8 No. 1) 1-2: +3V
2-3: +5V
3-4: +5V
4-5: +12V
Digital Input/Output PWR Select 1-2: +12V
(3-pin JGPIO_PWR1) 2-3: +5V
(see p.8 No. 16)
ATX/AT Mode Selection 1-2: AT Mode
(3-pin PWR_JP1) 2-3: ATX Mode
(see p.8 No. 18)
1

15

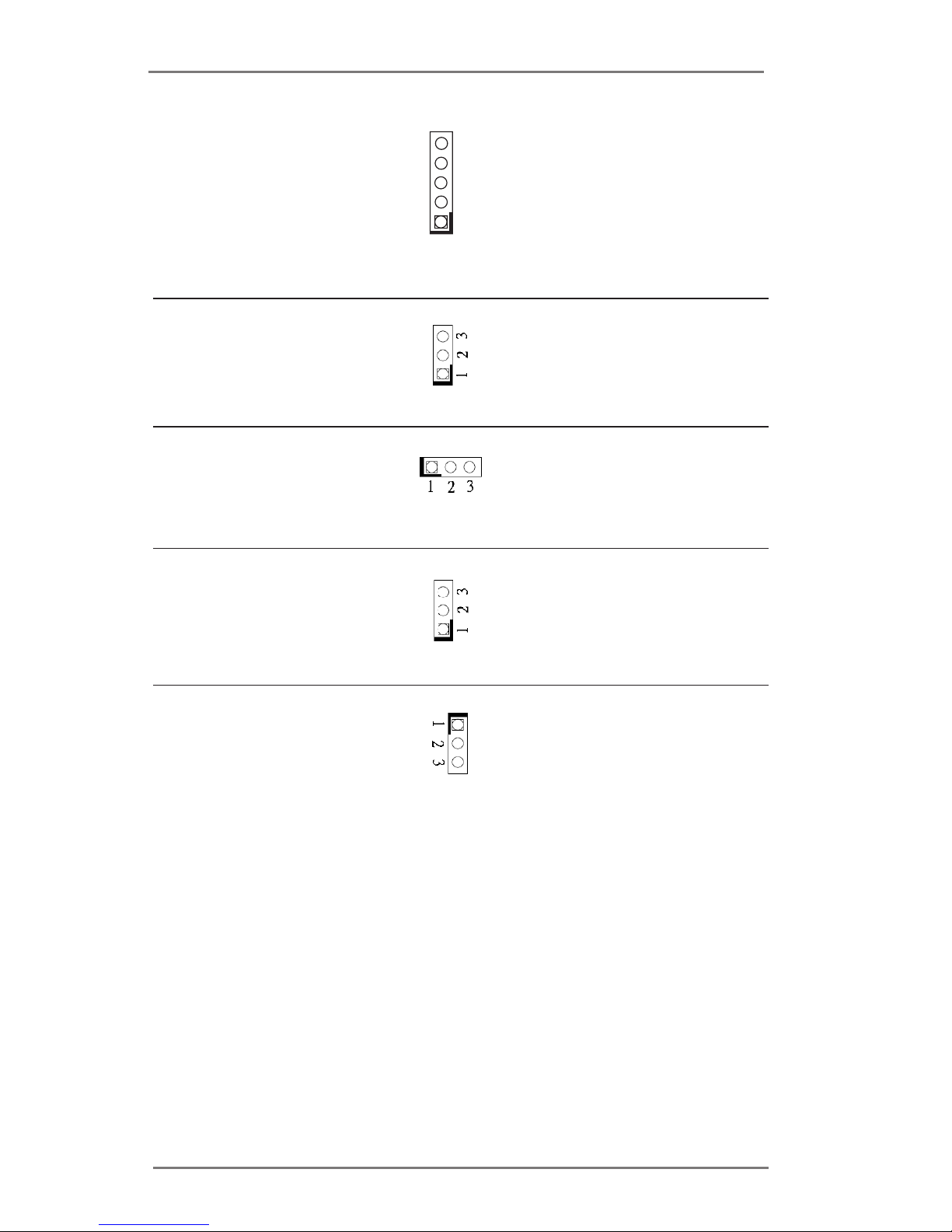

Backlight Power Selection Use this to set up the backlight
(LCD_BLT_VCC) power of the LVDS connector.
(5-pin BKT_PWR1) 1-2: +5V
(see p.8 No. 3) 2-3: +12V
3-4: +12V
4-5: DC_IN Power
COM1 Pin9 PWR Setting 1-2: +5V
(3-pin SET_CM1) 2-3: +12V
(see p.8 No. 22)
Backlight Control Level 1-2: +3V
(3-pin BLT_PWM1) 2-3: +5V
(see p.8 No. 9)
1
mSATA Selection 1-2: SATAII_2 + mini-PCIe
(3-pin MSATA_SEL1) 2-3: mSATA,
(see p.8 No. 5) SATAII_2 no function
GPIO Default Setting 1-2: Pull-High
(3-pin JGPIO_SET1) 2-3: Pull-Low
(see p.8 No. 13)

16
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
SATA2 Connectors These two Serial ATA2
(SATAII_1, SATAII_2: see p.8, No. 7) (SATA2) connectors support
SATA data cables for internal
storage devices. The current
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
USB 2.0 Headers There are three USB 2.0
(see p.8 No. 4) headers on this motherboard.
(9-pin USB0_1, USB2_3, USB4_5)
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8 No. 11) functions.
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
 
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep
state or powered off (S5).
DUMMY
GND GND
+B
-B
+A
-A
USB_PWR USB_PWR
1
GND RESET#
PWRBTN#
PLED-
PLED+
GND
HDLED-
HDLED+
1
GND
SATAII_2
SATAII_1

17
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.
3W Audio AMP Output Wafer
(4-pin SPEAKER1)
(see p.8 No. 26)
1
PIN Signal Name
1 SPK L-
2 SPK L+
3 SPK R+
4 SPK R-
Chassis Fan Connector Please connect the fan cable
(3-pin CHA_FAN1) to the fan connector and
(see p.8 No. 10) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 29) match the black wire to the
ground pin.
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
ATX Power Connector (Input 9V-36V) Please connect a DC power
(4-pin ATX12V1) supply (9V-36V) to this
(see p.8 No. 2) connector.
1-4 : GND
2-3 : DC Input
1

18
COM Port Headers
(10-pin COM1)
(see p.8 No. 23)
(10-pin COM2)
(see p.8 No. 21)
(10-pin COM3)
(see p.8 No. 19)
(10-pin COM4)
(see p.8 No. 17)
1
2
PIN Signal
Name PIN Signal Name PIN Signal Name PIN Signal Name PIN Signal Name
10 DUMMY 8CCTS# 6DDSR# 4DDTR# 2RRXD
9DUMMY 7RRTS# 5GND 3TTXD 1DDCD#
SATA Power Output Connector
(4-pin SATA_PWR1)
(see p.8 No. 12)
+5V
+12V
1
GND
GND
PIN RS232 RS422 RS485
1 DCD TX- RTX-
2 RXD RX+ N/A
3 TXD TX+ RTX+
4 DTR RX- N/A
5 GND GND GND
6 DSR N/A N/A
7 RTS N/A N/A
8 CTS N/A N/A
9 NA/+5V/+12V N/A N/A
This motherboard supports RS232/422/485 on COM1 port. Please refer to below
  
  
page 29 for details.


19
LVDS Connector
(40-pin LVDS1)
(see p.8 No. 28)
40
2
139
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p.8 No. 8)
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
1
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.8 No. 25)
Digital Input/Output Pin Header
(10-pin JGPIO1)
(see p.8 No. 15)
PIN Signal Name PIN Signal Name
1 SIO_GP24 2 SIO_GP20
3 SIO_GP25 4 SIO_GP21
5 SIO_GP26 6 SIO_GP22
7 SIO_GP27 8 SIO_GP23
9 JGPIO_PWR 10 GND
PIN Signal Name PIN Signal Name
1 LCD_VCC 2 LCD_VCC
3 +3V 4 N/A
5 N/A 6 LVDS_A_DATA0#
7 LVDS_A_DATA0 8 GND1
9 LVDS_A_DATA1# 10 LVDS_A_DATA1
11 GND6 12 LVDS_A_DATA2#
13 LVDS_A_DATA2 14 GND2
15 LVDS_A_DATA3# 16 LVDS_A_DATA3
17 GND7 18 LVDS_A_CLK#
19 LVDS_A_CLK 20 GND3
21 LVDS_B_DATA0# 22 LVDS_B_DATA0
23 GND8 24 LVDS_B_DATA1#
25 LVDS_B_DATA1 26 GND4
27 LVDS_B_DATA2# 28 LVDS_B_DATA2
29 DPLVDD_EN 30 LVDS_B_DATA3#
31 LVDS_B_DATA3 32 GND5
33 LVDS_B_CLK# 34 LVDS_B_CLK
35 GND9 36 CON_LBKLT_EN
37 CON_LBKLT_CTR 38 LCD_BLT_VCC
39 LCD_BLT_VCC 40 LCD_BLT_VCC
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET

20

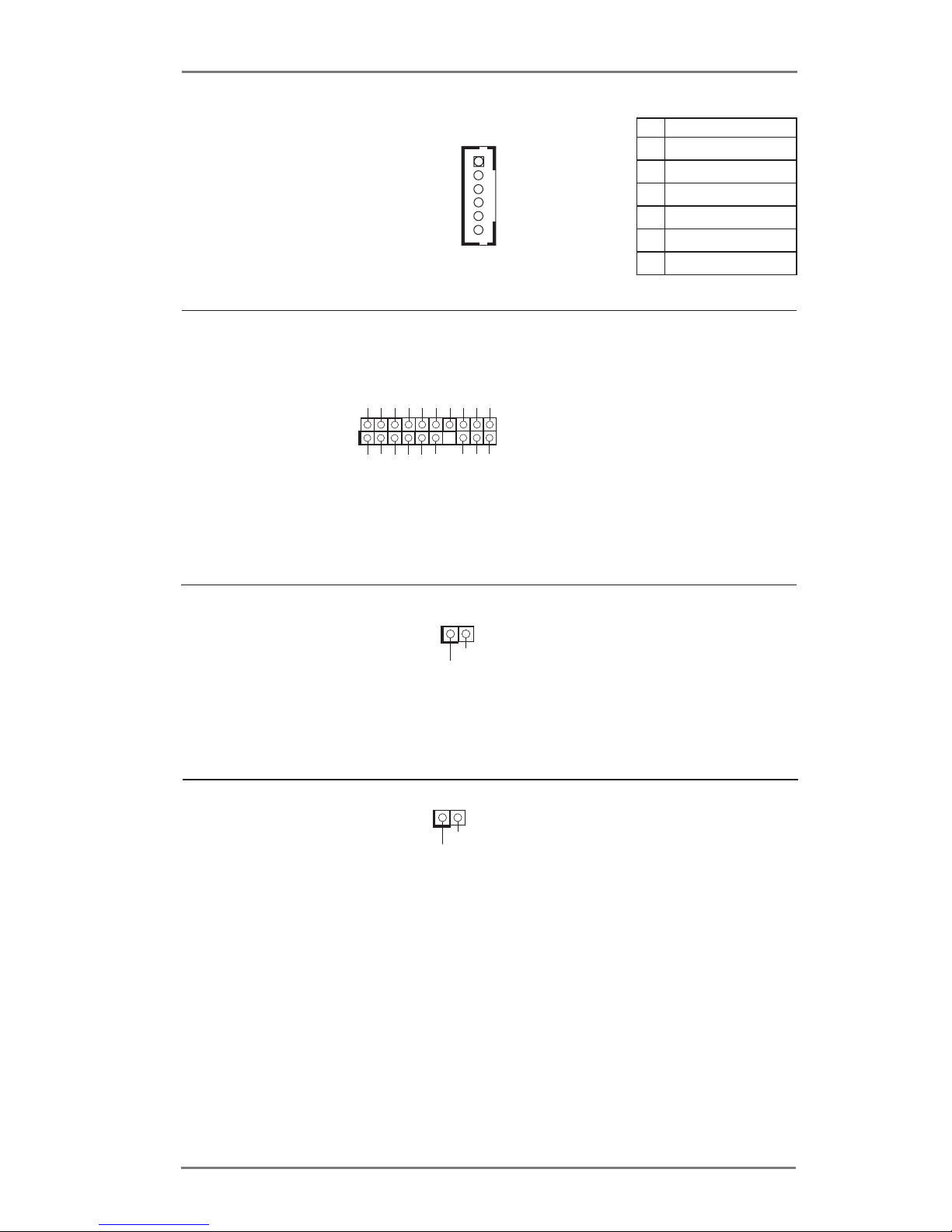

Buzzer Header
(2-pin BUZZ1)
(see p.8 No. 27)
1
+5V
SPKR
Chassis Intrusion Headers This motherboard supports
(2-pin CI1, CI2) CASE OPEN detection feature
(see p.8 No. 24) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
TPM Header This connector supports
(17-pin TPM1) Trusted Platform Module (TPM)
(see p.8 No. 20) system, which can securely
 
passwords, and data. A TPM
system also helps enhance
network security, protects
digital identities, and ensures
platform integrity.
1
GND
GND
S_PWRDWN#
LAD2
SMB_CLK_MAIN
PCICLK
PCIRST#
LAD3
+3V
LAD0
GND
FRAME
SMB_DATA_MAIN
LAD1
SERIRQ#
GND +3VSB
48MHz +5V
Inverter Power Control Wafer
(6-pin BLT_PWR1)
(see p.8 No. 6)
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
1
1
Signal
GND
