Chapter 1: Introduction
Thank you for purchasing ASRock IMB-370 motherboard, a reliable motherboard
produced under ASRock’s consistently stringent quality control. It delivers excellent
performance with robust design conforming to ASRock’s commitment to quality and
endurance.
In this manual, chapter 1 and 2 contain introduction of the motherboard and step-
by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration
guide to BIOS setup and information of the Support CD.
Because the motherboard specications and the BIOS software might be
updated, the content of this manual will be subject to change without no-
tice. In case any modications of this manual occur, the updated version
will be available on ASRock website without further notice. You may nd
the latest VGA cards and CPU support lists on ASRock website as well.
ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specic information about the model you are using.
www.asrock.com/support/index.asp
1.1 Package Contents
ASRock IMB-370 Motherboard
(Micr ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm)
ASRock IMB-370 Driver CD
ASRock IMB-370 Jumper setting instruction
2 x Serial ATA (SATA) Data Cables
1 x Serial ATA (SATA) HDD Power Cable
1 x I/O Panel Shield

6
1.2 Specifications
Form
Factor Dimensions Micro ATX (9.6-in x 9.6-in)
Processor
System
CPU Socket LGA1155 for Intel®Core i7/i5/i3/Celeron
(Sandy Bridge and Ivy Bridge)
Core
Number (By CPU, Max 4)
Max Speed (By CPU)
L3 Cache (By CPU)
Chipset Q77
BIOS UEFI
Expansion
Slot
PCI 2
Mini-PCIE 1
PCIE 1 (x16) + 1 (x4)
CF Card
Socket 0
Memory
Technology Dual Channel DDR3 1066/1333/1600 MHz
SDRAM
Max. 32GB
Socket Long DIMM x 4
Graphics
Controller Intel® HD Graphics (By CPU)
VRAM Shared Memory
DSub Through DVI-I, Supports max resolution
2048x1536
LVDS Dual Channel 24bits, Support max resolution
1920x1200 (Shared with DisplayPort)
HDMI Support HDMI 1.4a, max resolution 1920x1200
DVI Support max resolution 1920x1200
Display Port Support max resolution 2560x1600
Multi Display Yes
Ethernet
Interface 10/100/1000 Mbps
Controller GbE LAN1:Intel®82579LM/V, LAN2: Intel®
82583V
Controller RJ-45 x 2 w/ LED
SATA
Max Data
Transfer
Rate
SATA2 X2 (3.0Gb/S), SATA3 X2 (6.0Gb/S),
Support RAID0/1/5

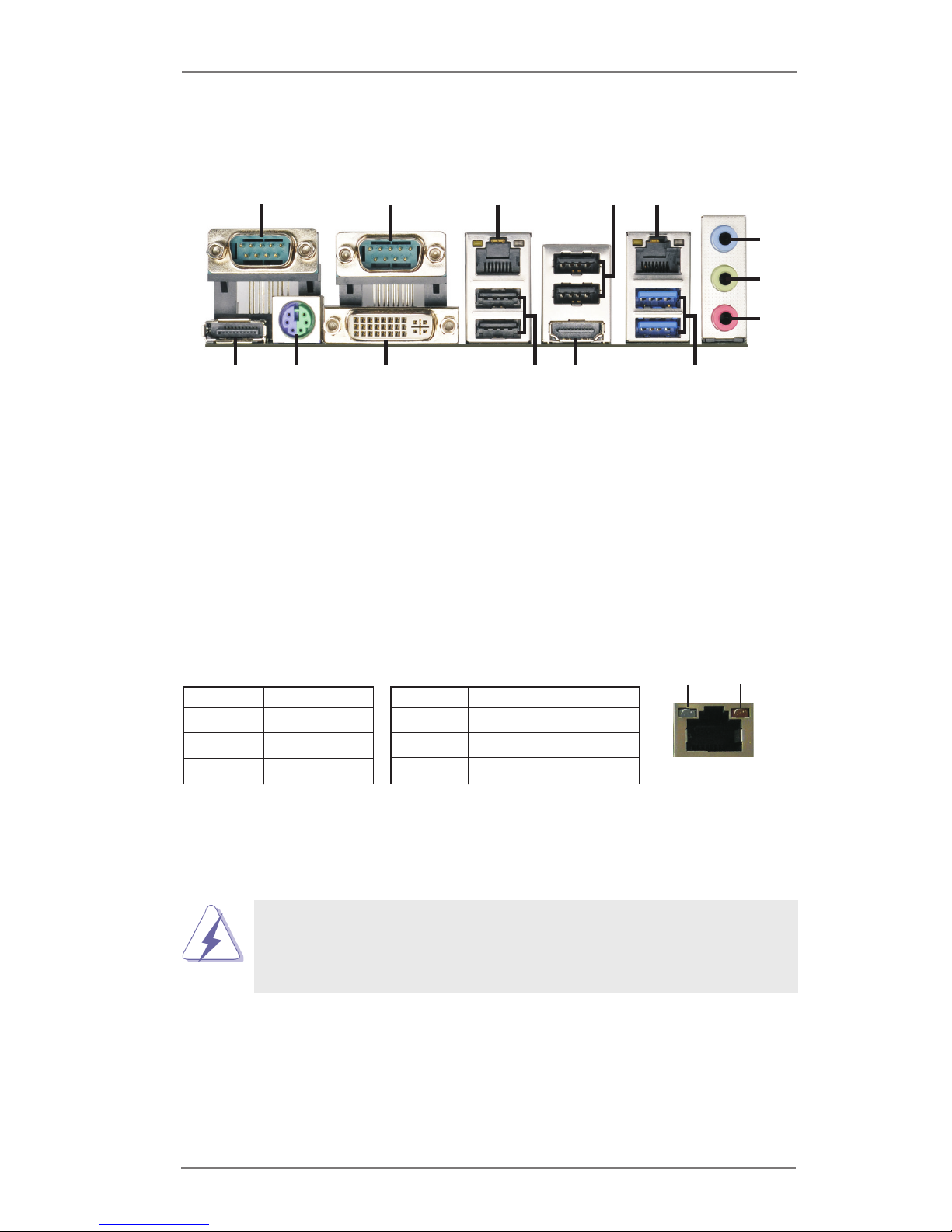

Rear I/O
VGA 0 (Can transfer from DVI-I)
HDMI 1
DVI 1 (DVI-I)

7
Display Port 1
Ethernet 2
USB 6 (USB 2.0 x4, USB 3.0 x2)
Audio 3 (Mic-In, Line-Out, Line-In)
Serial 2 (RS-232/422/485)
PS/2 1 (Combo)
Internal
Connector
USB 6 (USB 2.0 x4, USB 3.0 x2)
LVDS/
Inverter 1/1
VGA 0
Serial 4 (RS-232)
SATA 4 (SATA2 X2 (3.0Gb/S), SATA3 X2 (6.0Gb/
S), Support RAID0/1/5/10)
m-SATA 1
Mini-PCIE 1
Parallel 1
IrDA 0
GPIO 4 x GPI + 4 x GPO
SATA PWR
Output Con 2
Speaker
Header 1
Watchdog
Timer
Output Output from super I/O to drag RESETCON#
Interval 256 Segments, 0,1,2…255 Sec/Min
Power
Requirements
Input PWR ATX PWR
Power On
AT/ATX Supported
-AT : Directly PWR on as power input ready
-ATX : Press button to PWR on after power
input ready
Environment Temperature 0ºC – 60ºC

8

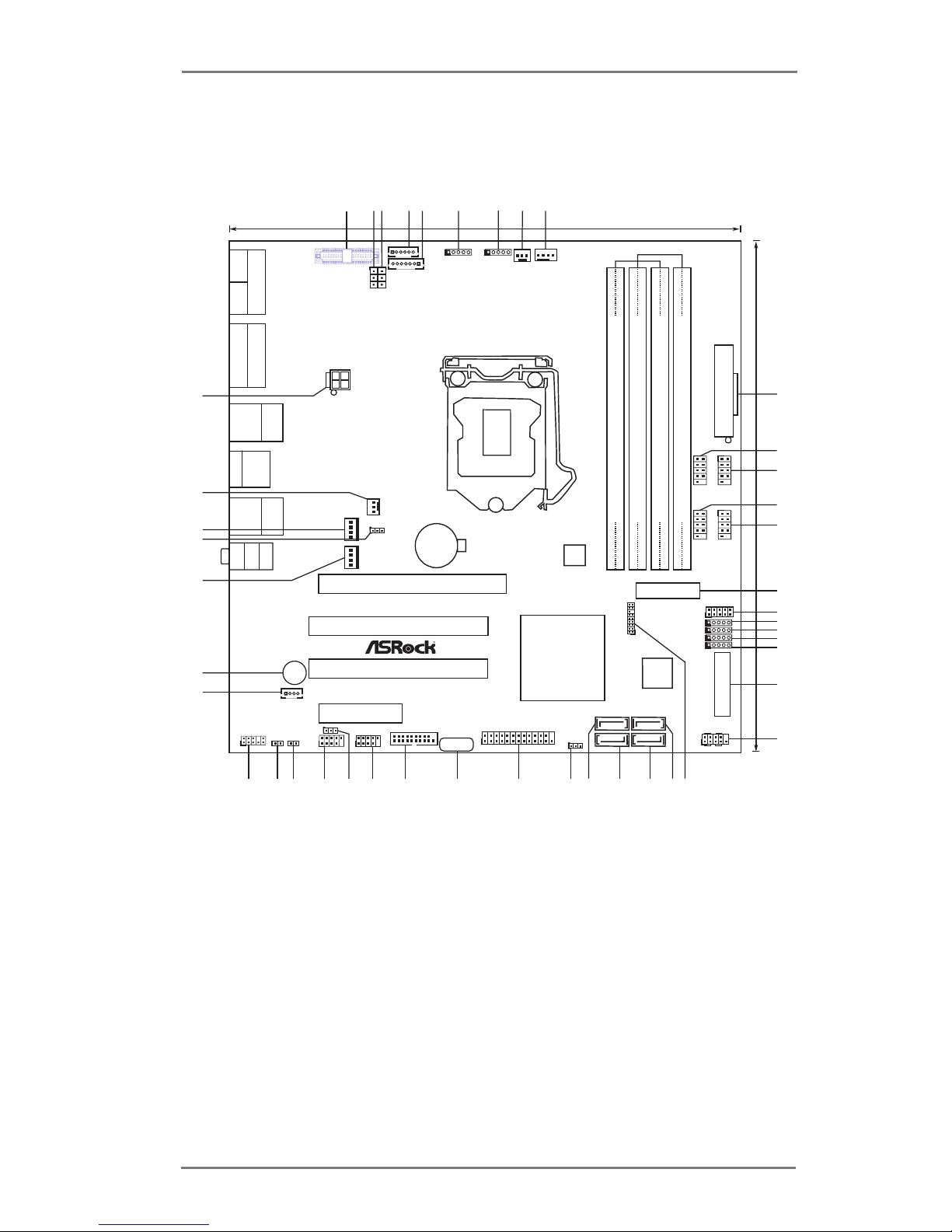

1.3 Motherboard Layout
ATXPWR1
Intel
Q77
DDR3_A2 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
PCI1
PCI2
PCIE1
PCIE2
1
HD_AUDIO1
COM6
1
COM5
1
COM3
1
COM4
1
CMOS
Battery
HDLED RESET
PLED PWRBTN
PANEL1
1
Super
I/O
SATA2_2
SATA3_0
SATA3_1 SATA2_3
CLRCMOS1
1
CHA_FAN1
64Mb
BIOS
ATX12V1
CPU_FAN1
CPU_FAN2
24.4cm (9.6 in)
24.4cm (9.6 in)
USB6_7
1
USB8_9
1
1
CI1
1
CI2
JGPIO_PWR1
1
PWR_JP1
1
1
LPT1
Top:
RJ-45
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
USB 3.0
T: USB4
B: USB5
USB 2.0
T: USB2
B: USB3
HDMI
1
LVDS 1
BKT_PWR1
1
1
PNL_PWR1
BLT_PWR2
1
BLT_VOL1
1
SET_CM1
1
1
SET_CM2
SET_CM6
1
SET_CM5
1
SET_CM4
1
SET_CM3
1
BUZZ1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
MINI_SATA1
MINI_PCIE1
SPEAKER1
1
JPWR1 JPWR2
USB12
1
JGP I O1
COM2
DVI1
USB3_10_11
1* 2*3* 4* 5* 679
10
11
8
12
13
14
16
15
17
18
19
20
21
22
23
24
25
26
27
28
29
30
3132
33
34
3536
37
38
39
40
42
41
43
44
RoHS
Designed in Taipei
IMB-370
COM1
PS2
Keyboard
/Mouse
DISPLAY1
TPM1
1

9
1* LVDS Panel Connector (LVDS1)
2* Panel Power Selection (PNL_PWR1)
3* Blacklight Power Selection (BKT_PWR1)
4* Inverter Power Control Wafer (BLT_PWR2)
5* Backlight & Amp Volume Control (BLT_VOL1)
6 COM Port Signal/Power Setting Jumpers, For COM2 (SET_CM2)
7 COM Port Signal/Power Setting Jumpers, For COM1 (SET_CM1)
8 CPU FAN Connector (CPU_FAN2)
9 CPU FAN Connector (CPU_FAN1)
10 ATX Power Input Connector (ATXPWR1)
11 COM Port Header (COM5)
12 COM Port Header (COM6)
13 COM Port Header (COM4)
14 COM Port Header (COM3)
15 mini-PCIE Slot (MINI_PCIE1)
16 Digital Input/Output Pin Header (JGPIO1)
17 COM Port Signal/Power Setting Jumpers, For COM6 (SET_CM6)
18 COM Port Signal/Power Setting Jumpers, For COM5 (SET_CM5)
19 COM Port Signal/Power Setting Jumpers, For COM4 (SET_CM4)
20 COM Port Signal/Power Setting Jumpers, For COM3 (SET_CM3)
21 mini-PCIE Slot (MINI_SATA1)
22 System Panel Header (PANEL1)
23 TPM Header (TPM1)
24 SATA2 Connector (SATA2_2)
25 SATA2 Connector (SATA2_3)
26 SATA3 Connector (SATA3_1)
27 SATA3 Connector (SATA3_0)
28 Clear CMOS Header (CLRCMOS1)
29 Printer Port Header (LPT1)
30 USB 2.0 Port (USB12)
31 USB 3.0 Header (USB3_10_11)
32 USB 2.0 Header (USB8_9)
33 Digital Input/Output Power Select (JGPIO_PWR1)
34 USB 2.0 Header (USB6_7)
35 Chassis Intrusion Header (CI2)
36 Chassis Intrusion Header (CI1)
37 Front Panel Audio Header (HD_AUDIO1)
38 3W Audio Amp Output Wafer (SPEAKER1)
39 Buzzer (BUZZ1)
40 SATA Power Connector (JPWR1)
41 ATX/AT Mode Selection (PWR_JP1)
42 SATA Power Connector (JPWR2)
43 Chassis FAN Connector (CHA_FAN1)
44 ATX Power Input Connector (ATX12V1)
* For IMB-370L only

10
1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 COM Port (COM1)
2 COM Port (COM2)
* 3 LAN RJ-45 Port
4 USB 2.0 Ports (USB23)
* 5 LAN RJ-45 Port
6 Line In (Light Blue)
7 Line out (Lime)
8 Microphone (Pink)
9 USB 3.0 Ports (USB3_45)
10 HDMI Port (HDMI1)
11 USB 2.0 Ports (USB01)
12 DVI Port (DVI1)
13 PS/2 Mouse/Keyboard Port
** 14 DisplayPort (DP1)
ACT/LINK
LED
SPEED
LED
LAN Port
124
35
6
7
8
9
10
11
12
13
14
** Only IMB-370D has DisplayPort.
DVI, HDMI and DisplayPort monitors cannot be enabled at the sam
time. You can only choose the combination: DVI + HDMI, HDMI + Dis-
playPort, or DVI + DisplayPort.

11
Chapter 2: Installation
This is a Micro ATX form factor (9.6" x 9.6", 24.4 x 24.4 cm) motherboard. Before
you install the motherboard, study the conguration of your chassis to ensure that
the motherboard ts into it.
Make sure to unplug the power cord before installing or removing the
motherboard. Failure to do so may cause physical injuries to you and
damages to motherboard components.
2.1 Screw Holes
Place screws into the holes to secure the motherboard to the chassis.
Do not over-tighten the screws! Doing so may damage the motherboard.
2.2 Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any component.
2. To avoid damaging the motherboard components due to static electricity,
NEVER place your motherboard directly on the carpet or the like. Also
remember to use a grounded wrist strap or touch a safety grounded object
before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded antistatic pad or
in the bag that comes with the component.
Before you install or remove any component, ensure that the power is
switched off or the power cord is detached from the power supply.
Failure to do so may cause severe damage to the motherboard, peripherals,
and/or components.

12
2.3 Installation of Memory Modules (DIMM)
This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM
slots, and supports Dual Channel Memory Technology. For dual channel con-
guration, you always need to install identical (the same brand, speed, size
and chip-type) DDR3 DIMM pair in the slots of the same color. In other words,
you have to install identical DDR3 DIMM pair in Dual Channel (DDR3_A1 and
DDR3_B1; Blue slots) or identical DDR3 DIMM pair in Dual Channel (DDR3_
A2 and DDR3_B2; White slots), so that Dual Channel Memory Technology can
be activated. This motherboard also allows you to install four DDR3 DIMMs for
dual channel conguration, and please install identical DDR3 DIMMs in all four
slots. You may refer to the Dual Channel Memory Conguration Table below.
Dual Channel Memory Congurations
DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
(Blue Slot) (White Slot) (Blue Slot) (White Slot)
(1) Populated - Populated -
(2) - Populated - Populated
(3)* Populated Populated Populated Populated
* For the conguration (3), please install identical DDR3 DIMMs in all four
slots.
1. If you want to install two memory modules, for optimal compatibility
and reliability, it is recommended to install them in the slots of the
same color. In other words, install them either in the set of blue
slots (DDR3_A1 and DDR3_B1), or in the set of white slots (DDR3_
A2 and DDR3_B2).
2. If only one memory module or three memory modules are installed
in the DDR3 DIMM slots on this motherboard, it is unable to activate
the Dual Channel Memory Technology.
3. If a pair of memory modules is NOT installed in the same Dual
Channel, for example, installing a pair of memory modules in
DDR3_A1 and DDR3_A2, it is unable to activate the Dual Channel
Memory Technology .
4. It is not allowed to install a DDR or DDR2 memory module into
DDR3 slot; otherwise, this motherboard and DIMM may be dam-
aged.
5. Some DDR3 1GB double-sided DIMMs with 16 chips may not work
on this motherboard. It is not recommended to install them on this
motherboard.

13
notch
break
notch break
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the
break on the slot.
The DIMM only ts in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into
the slot at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends
fully snap back in place and the DIMM is properly seated.

14
2.4 Expansion Slots (PCI, PCI Express and mini-PCIe Slots)
There are 2 PCI slots, 2 PCI Express slots and 1 mini-PCIe slot on this
motherboard.
PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE slots:
PCIE1 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width
graphics cards.
PCIE2 (PCIE x4 slot; White) is used for PCI Express x4 lane width
graphics cards.
MINI_PCIE1 (mini-PCIe slot) is used for PCI Express mini cards.
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed
in a chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the
screws for later use.
Step 4. Align the card connector with the slot and press rmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.

15
2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(3-pin CLRCMOS1)
(see p.8, No. 28)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot up
the system rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time, user default prole and MAC
address will be cleared only if the CMOS battery is removed.
Panel Power Selection 1-2 : +3V
(3-pin PNL_PWR1)
2-3 : +5V
(see p.8, No. 2)
Backlight Power Selection 1-2 : +5V
(3-pin BKT_PWR1)
2-3 : +12V
(see p.8, No. 3)
ATX/AT Mode Selection 1-2 : AT Mode
(3-pin PWR_JP1)
2-3 : ATX Mode
(see p.8, No. 41)
Digital Input/Output Power Selec 1-2 : +12V
(3-pin JGPIO_PWR1)
2-3 : +5V
(see p.8, No. 33)
Clear CMOSDefault

16
COM Port Signal/Power Setting Jumpers 1-2 : +12V
(5-pin SET_CM2: see p.8, No. 6)
2-3 : +5V
(5-pin SET_CM1: see p.8, No. 7)
4-5 : RI#
(5-pin SET_CM6: see p.8, No. 17)
(5-pin SET_CM5: see p.8, No. 18)
(5-pin SET_CM4: see p.8, No. 19)
(5-pin SET_CM3: see p.8, No. 20)
1

17
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
LVDS Panel Connector
(40-pin LVDS1)
(see p.8, No. 1)
PIN Signal Name PIN Signal Name
2 R_LVDD 1 R_LVDD
4 LDDC_CLK 3 +3V
6 LVDS_A_DATA0# 5 LDDC_DATA
8 GND 7 LVDS_A_DATA0
10 LVDS_A_DATA1 9 LVDS_A_DATA1#
12 LVDS_A_DATA2# 11 GND
14 GND 13 LVDS_A_DATA2
16 LVDS_A_DATA3 15 LVDS_A_DATA3#
18 LVDS_A_CLK# 17 GND
20 GND 19 LVDS_A_CLK
22 LVDS_B_DATA0 21 LVDS_B_DATA0#
24 LVDS_B_DATA1# 23 GND
26 GND 25 LVDS_B_DATA1
28 LVDS_B_DATA2 27 LVDS_B_DATA2#
30 LVDS_B_DATA3# 29 DPLVDD_EN
32 GND 31 LVDS_B_DATA3
34 LVDS_B_CLK 33 LVDS_B_CLK#
36 CON_LBKLT_EN_R 35 GND
38 LCD_BLT_VCC 37 CON_LBKLT_CTL_R
40 LCD_BLT_VCC 39 LCD_BLT_VCC
Inverter Power Control Wafer
(6-pin BLT_PWR2)
(see p.8, No. 4)
PIN Signal Name
1 GND
2 GND
3 CON_LBKLT_CTL
4 CON_LBKLT_EN
5 LCD_BLT_VCC
6 LCD_BLT_VCC
40
2
139
1
Backlight & Amp Volume Control
(7-pin BLT_VOL1)
(see p.8, No. 5)
PIN Signal Name
1 GPIO_VOL_UP
2 GPIO_VOL_DW
3 PWRDN
4 GPIO_BLT_UP
5 GPIO_BLT_DW
6 GND
7 GND
1

18

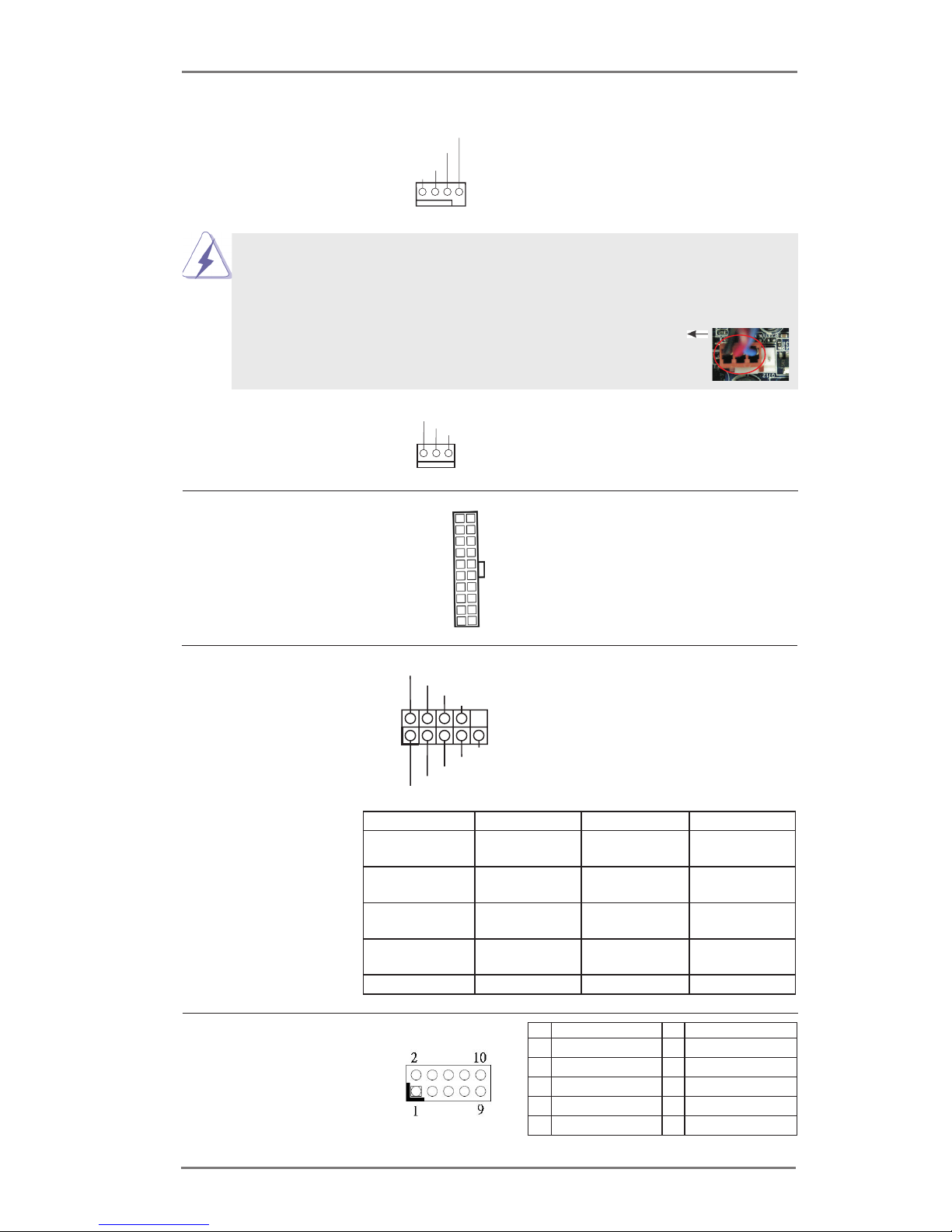

CPU Fan Connectors Please connect the CPU fan
(4-pin CPU_FAN1) cable to the connector and
(see p.8 No. 9) match the black wire to the
ground pin.
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
(3-pin CPU_FAN2)
(see p.8 No. 8)
Pin 1-3 Connected
3-Pin Fan Installation
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND
+12V
CPU_FAN_SPEED
ATX Power Input Connector Please connect an ATX power
(20-pin ATXPWR1) supply to this connector.
(see p.8 No. 10)
COM Port Headers COM port headers support
(9-pin COM5: see p.8 No. 11) serial port modules.
(9-pin COM6: see p.8 No. 12)
(9-pin COM4: see p.8 No. 13)
(9-pin COM3: see p.8 No. 14)
CCTS#1
RRI#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRTS#1
Digital Input / Output Pin Header
(9-pin JGPIO1)
(see p.8, No. 16)
PIN Signal Name PIN Signal Name
1 Digital Output 0 2 Digital Input 0
3 Digital Output 1 4 Digital Input 1
5 Digital Output 2 6 Digital Input 2
7 Digital Output 3 8 Digital Input 3
9 JGPIO_PWR1 10 GND
PIN RS232 RS422 RS485
1DCD, Data
carrier detect TX- RTX-
2RXD, Receive
data RX+ N/A
3TXD, Transmit
data TX+ RTX+
4DTR, Data
terminal ready RX- N/A
5 GND GND GND

19
Connect the power switch, reset switch and system status indicator on the
chassis to this header according to the pin assignments below. Note the
positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure
the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset
switch to restart the computer if the computer freezes and fails to perform a
normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED
is on when the system is operating. The LED keeps blinking when the sys-
tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep
state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED
is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly
consists of power switch, reset switch, power LED, hard drive activity LED,
speaker and etc. When connecting your chassis front panel module to this
header, make sure the wire assignments and the pin assign-ments are
matched correctly.

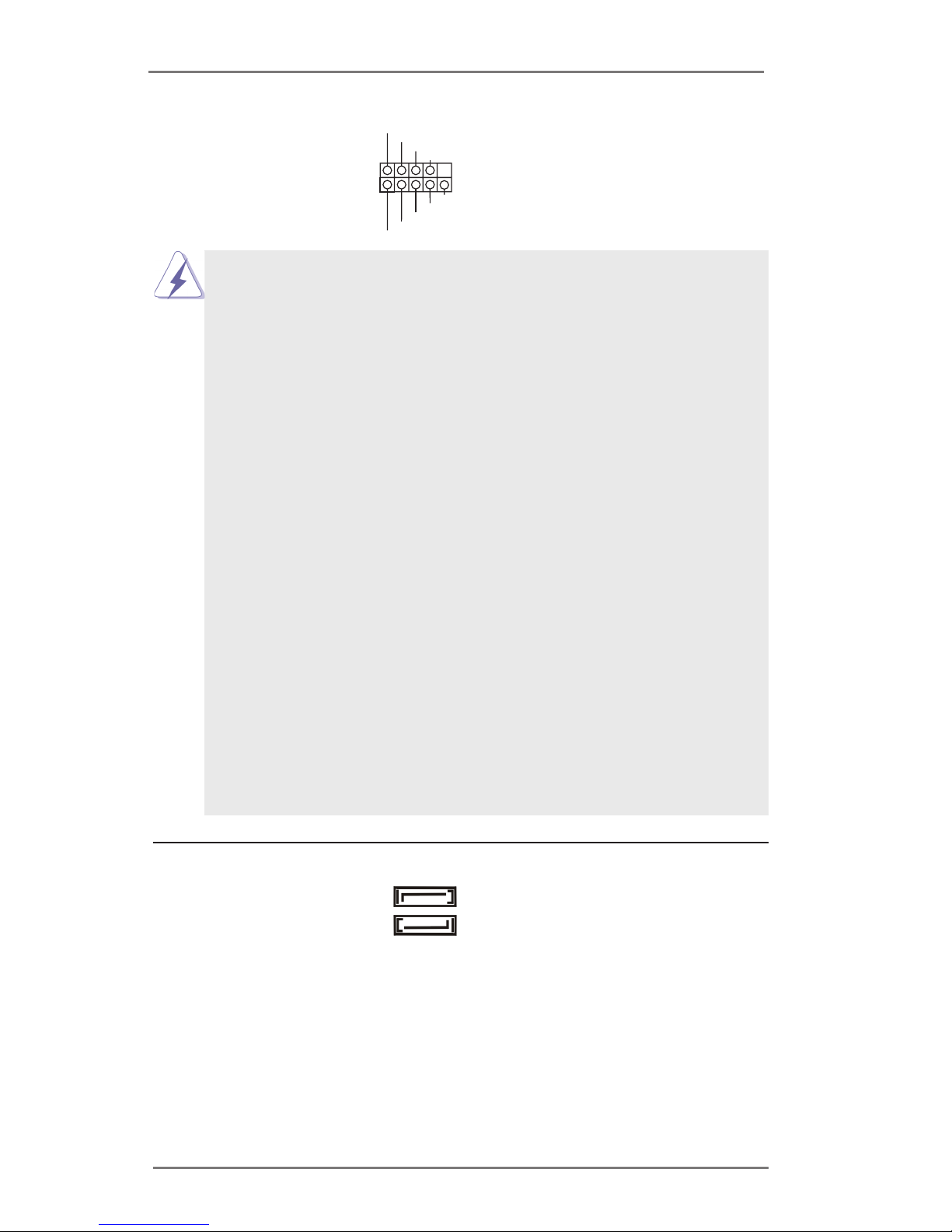

System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.8, No. 22) functions.
GND
GND
PWRBTN#
PLED-
PLED+
RESET#
HDLED-
HDLED+
1
DUMMY

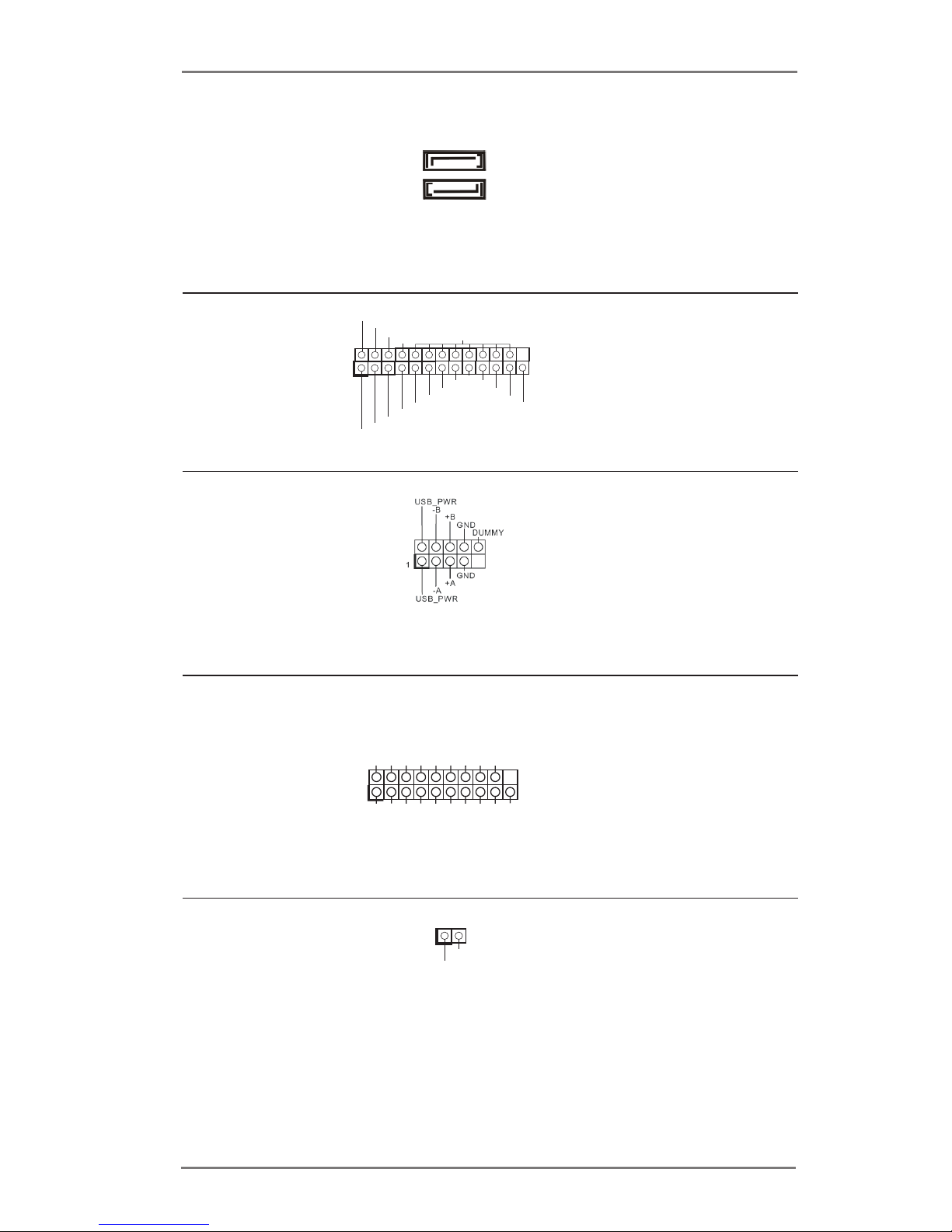

SATA2 Connectors These two Serial ATA2
(SATA2_2: see p.8, No. 24) (SATA2) connectors support
(SATA2_3: see p.8, No. 25) SATA data cables for internal
storage devices. The current
SATA2 interface allows up to
3.0 Gb/s data transfer rate.
SATA2_2
SATA2_3

20
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.8, No. 29) convenient connection of printer
devices.
SATA3 Connectors These two Serial ATA3
(SATA3_1: see p.8, No. 26) (SATA3) connectors support
(SATA3_0: see p.8, No. 27) SATA data cables for internal
storage devices. The current
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SATA3_0
SATA3_1
1
AFD#
ERROR#
PINIT# GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PESLCT
USB 2.0 Headers Besides four default USB 2.0
(USB12: see p.8, No. 30) ports on the I/O panel, there are
(9-pin USB6_7: see p.8, No. 34) two USB 2.0 headers and one
(9-pin USB8_9: see p.8, No. 32) USB 2.0 port on this
motherboard. Each USB 2.0
header can support two USB 2.0
ports.
USB 3.0 Header Besides two default USB 3.0
(19-pin USB3_10_11) ports on the I/O panel, there is
(see p.8 No. 31) one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB
3.0 ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
Vbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
Chassis Intrusion Header This motherboard supports
(2-pin CI2: see p.8, No. 35) CASE OPEN detection feature
(2-pin CI1: see p.8, No. 36) that detects if the chassis cover
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
