ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:Disclaimer:
Disclaimer:
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Published October 2015
Copyright©2015 ASRock INC. All rights reserved.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com

22
22
2ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English

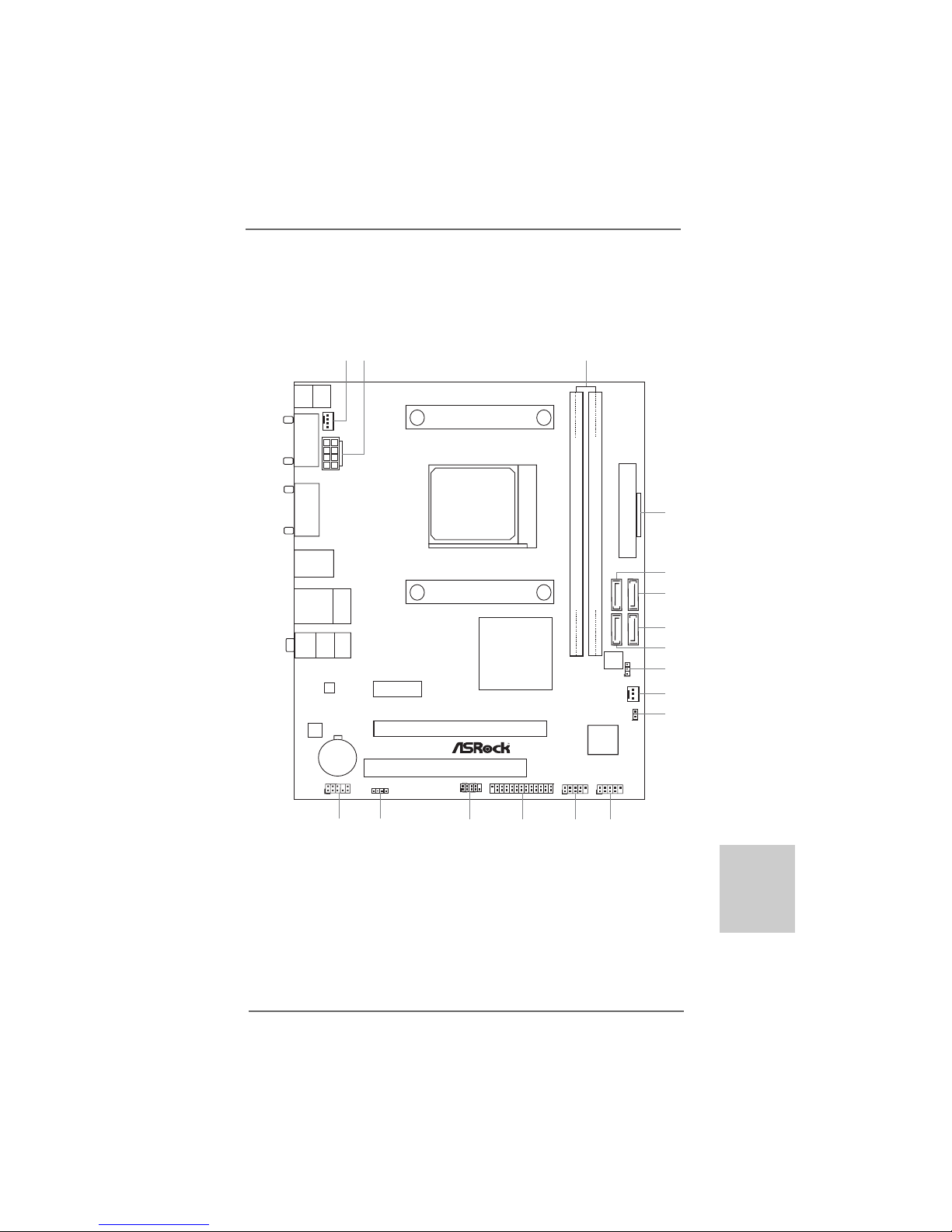

Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard Layoutayout
ayoutayout
ayout
1 CPU Fan Connector (CPU_FAN1) 10 Chassis Fan Connector (CHA_FAN1)
2 ATX 12V Power Connector (ATX12V1) 11 Chassis Intrusion Header (CI1)
3 2 x 240-pin DDR3 DIMM Slots 12 USB 2.0 Header (USB7_8)
(Dual Channel: DDR3_A1, DDR3_B1) 13 USB 2.0 Header (USB5_6)
4 ATX Power Connector (ATXPWR1) 14 Print Port Header (LPT1)
5 SATA2 Connector (SATAII_2 (PORT 0.1)) 15 System Panel Header (PANEL1)
6 SATA2 Connector (SATAII_1 (PORT 0.0)) 16 Chassis Speaker Header (SPEAKER1)
7 SATA2 Connector (SATAII_3 (PORT 1.0)) 17 Front Panel Audio Header (HD_AUDIO1)
8 SATA2 Connector (SATAII_4 (PORT 1.1)) 18 USB 3.0 Header (USB3_1_2)
9 Clear CMOS Jumper (CLRCMOS1)
NVIDIA
GeForce
7025 /
nForce
630a
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
BIOS
ROM
CMOS
BATTERY
Super
I/O
RoHS
N68-GS4/USB3 FX
SOCKET AM3
USB3_1_2
PCIE1
PCIE2
PCI1
LAN
PHY
AUDIO
CODEC
HD_AUDIO1
1
CI1
1
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANEL 1
11
CLRCMOS1
1
USB5_6
1
LPT1
1
1
US7_8
SATAII_4 SATAII_2
(PORT 1.1) (PORT 0.1)
SATAII_3 SATAII_1
(PORT 1.0) (PORT 0.0)
CPU_FAN1
ATX12V1
PS2
Mouse
PS2
Keyboard
VGA1
COM1
USB 3.0
T: US B 3
B: USB4
USB 2.0
T: US B 3
B: USB4
Top:
RJ-45
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
123
4
6
7
5
8
9
10
11
1213
14
15
16
17
18
N68-N68-
N68-N68-
N68-GS4/USB3 FX R2.0:GS4/USB3 FX R2.0:
GS4/USB3 FX R2.0:GS4/USB3 FX R2.0:
GS4/USB3 FX R2.0:

33
33
3
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
N68-N68-
N68-N68-
N68-GS4 FX R2.0:GS4 FX R2.0:
GS4 FX R2.0:GS4 FX R2.0:
GS4 FX R2.0:
1 CPU Fan Connector (CPU_FAN1) 9 Clear CMOS Jumper (CLRCMOS1)
2 ATX 12V Power Connector (ATX12V1) 10 Chassis Fan Connector (CHA_FAN1)
3 2 x 240-pin DDR3 DIMM Slots 11 Chassis Intrusion Header (CI1)
(Dual Channel: DDR3_A1, DDR3_B1) 12 USB 2.0 Header (USB7_8)
4 ATX Power Connector (ATXPWR1) 13 USB 2.0 Header (USB5_6)
5 SATA2 Connector (SATAII_2 (PORT 0.1)) 14 Print Port Header (LPT1)
6 SATA2 Connector (SATAII_1 (PORT 0.0)) 15 System Panel Header (PANEL1)
7 SATA2 Connector (SATAII_3 (PORT 1.0)) 16 Chassis Speaker Header (SPEAKER1)
8 SATA2 Connector (SATAII_4 (PORT 1.1)) 17 Front Panel Audio Header (HD_AUDIO1)
NVIDIA
GeForce
7025 /
nForce
630a
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
ATXPWR1
BIOS
ROM
CMOS
BATTERY
Super
I/O
RoHS
N68-GS4 FX
SOCKET AM3
PCIE1
PCIE2
PCI1
LAN
PHY
AUDIO
CODEC
HD_AUDIO1
1
CI1
1
CHA_FAN1
SPEAKER1
1
HDLED RESET
PLED PWRBTN
1
PANEL 1
11
CLRCMOS1
1
1
LPT1
1
1
ATX12V1
PS2
Mouse
PS2
Keyboard
VGA1
COM1
USB 2.0
T: USB1
B: USB2
USB 2.0
T: USB3
B: USB4
Top:
RJ-45
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
23
4
6
7
5
8
9
10
11
1213
14
15
16
17
CPU_FAN1
1
SATAII_4 SATAII_2
(PORT 1.1) (PORT 0.1)
SATAII_3 SATAII_1
(PORT 1.0) (PORT 0.0)
USB5_6 US7_8

44
44
4ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English
N68-N68-
N68-N68-
N68-GS4/USB3 FX R2.0:GS4/USB3 FX R2.0:
GS4/USB3 FX R2.0:GS4/USB3 FX R2.0:
GS4/USB3 FX R2.0:

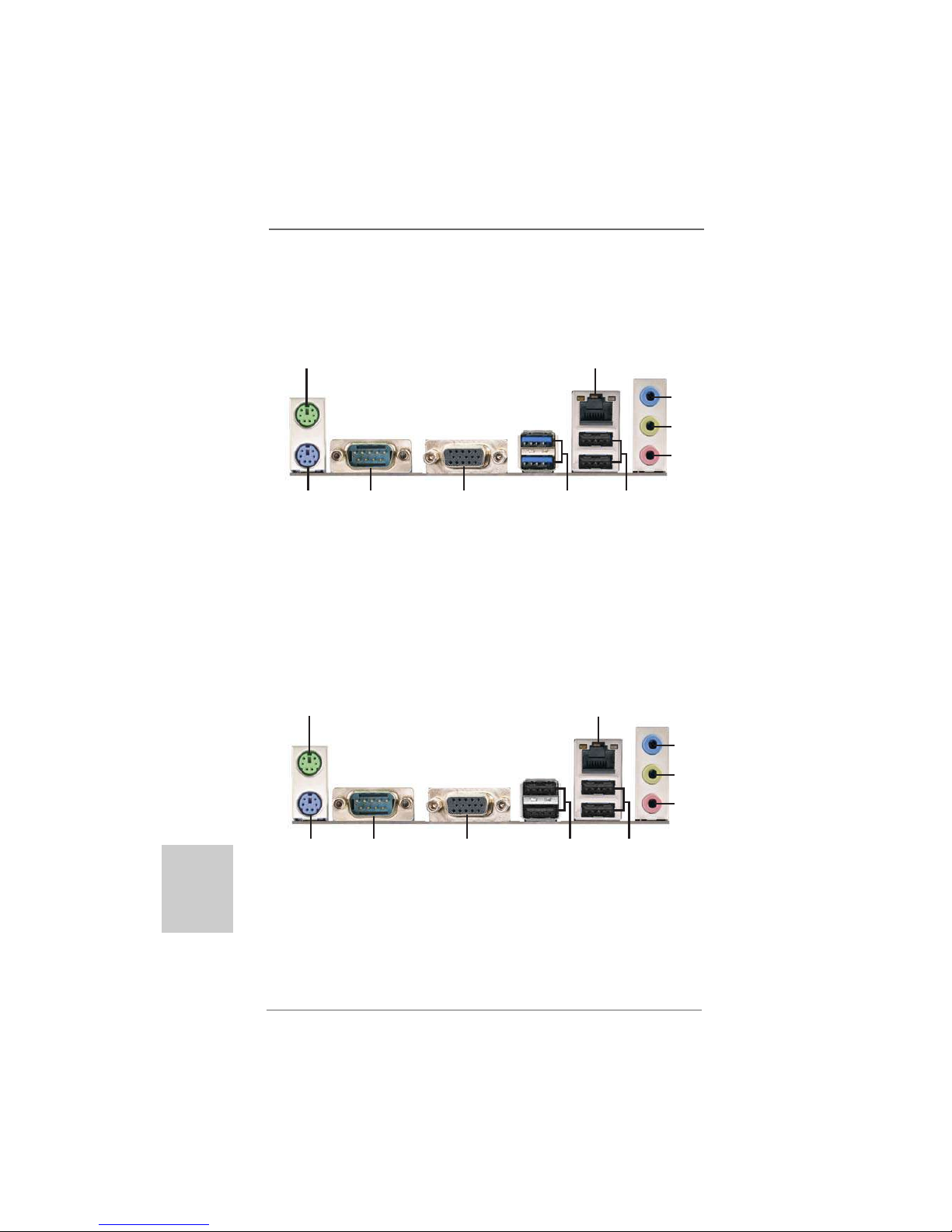

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB34)
2 RJ-45 Port* 7 USB 3.0 Ports (USB3_34)
3 Line In (Light Blue)** 8 D-Sub Port
4 Front Speaker (Lime)** 9 COM Port
5 Microphone (Pink)** 10 PS/2 Keyboard Port (Purple)
N68-N68-
N68-N68-
N68-GS4 FX R2.0:GS4 FX R2.0:
GS4 FX R2.0:GS4 FX R2.0:
GS4 FX R2.0:
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB34)
2 RJ-45 Port* 7 USB 2.0 Ports (USB12)
3 Line In (Light Blue)** 8 D-Sub Port
4 Front Speaker (Lime)** 9 COM Port
5 Microphone (Pink)** 10 PS/2 Keyboard Port (Purple)
12
6
7
4
3
5
8
9
10
12
6
7
4
3
5
8
9
10
I/O PI/O P
I/O PI/O P
I/O Panelanel
anelanel
anel

55
55
5
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEEDLED
Status Description Status Description
Off No Activity Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
Green 1Gbps connection
** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and
enable the multi-channel audio feature through the audio driver.
Please set Speaker Configuration to “7.1 Speaker” in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Configuration
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
LAN Port
ACT/LINK
LED SPEED LED

66
66
6ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English
1.1.
1.1.
1. IntroductionIntroduction
IntroductionIntroduction
Introduction
Thank you for purchasing ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0
motherboard, a reliable motherboard produced under ASRock’s consistently stringent
quality control. It delivers excellent performance with robust design conforming to ASRock’s
commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might
be updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.11.1
1.11.1
1.1 PP
PP
Packack
ackack
ackage Contentsage Contents
age Contentsage Contents
age Contents
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
(Micro ATX Form Factor)
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0X Quick Installation Guide
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Support CD
2 x Serial ATA (SATA) Data Cables (Optional)
1 x I/O Panel Shield

77
77
7
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
1.2 Specifications1.2 Specifications
1.2 Specifications1.2 Specifications
1.2 Specifications
Platform - Micro ATX Form Factor
- Solid Capacitor design
CPU - Support for Socket AM3+ processors
- Support for AM3 processors: AMD PhenomTM II X6 / X4 / X3 /
X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron
processors (see CAUTION 1)
- Supports 8-Core CPU
- 4 + 1 Power Phase design
- Supports UCC feature (Unlock CPU Core) (see CAUTION 2)
- Supports AMD’s Cool ‘n’ QuietTM Technology
- FSB 1000 MHz (2.0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset - NVIDIA®GeForce 7025 / nForce 630a
Memory - Dual Channel DDR3 Memory Technology
- 2 x DDR3 DIMM Slots
- Support DDR3 1866/1600/1333/1066 non-ECC, un-buffered
memory (see CAUTION 3)
- Max. capacity of system memory: 16GB (see CAUTION 4)
Expansion Slot - 1 x PCI Express x16 Slot
- 1 x PCI Express x1 Slot
- 1 x PCI Slot
Graphics - Integrated NVIDIA®GeForce 7025 graphics
- DX9.0 VGA, Pixel Shader 3.0
- Max. shared memory 256MB
- Supports D-Sub with max. resolution up to 1920x1440
@ 60Hz
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
* To configure 7.1 CH HD Audio, it is required to use an HD front
panel audio module and enable the multi-channel audio feature
through the audio driver.
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211E
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike
Protection)
- Supports Energy Efficient Ethernet 802.3az

88
88
8ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English
- Supports PXE
Rear Panel I/O N68-GS4/USB3 FX R2.0:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
- 2 x USB 3.0 Ports (Etron EJ188H) (PCIE GEN1) (Supports
ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Rear Panel I/O N68-GS4 FX R2.0:
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full
Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Storage - 4 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0,
RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug
Connector - 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD
Protection (ASRock Full Spike Protection))
- 1 x USB 3.0 Header by Etron EJ188H (PCIE GEN1) (Supports
2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike
Protection)) (for N68-GS4/USB3 FX R2.0 only)
BIOS Feature - AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- CPU, VCCM, NB Voltage multi-adjustment

99
99
9
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
WARNING
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
the third-party overclocking tools. Overclocking may affect your system stability, or
even cause damage to the components and devices of your system. It should be
done at your own risk and expense. We are not responsible for possible damage
caused by overclocking.
Hardware - CPU temperature sensing
Monitor - Chassis temperature sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, Vcore
OS - Microsoft®Windows®10 32-bit / 10 64-bit / 8.1 32-bit / 8.1
64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / VistaTM 32-bit /
VistaTM 64-bit / XP 32-bit / XP 64-bit (see CAUTION 5)
Certifications - FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com

1010
1010
10 ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English
CAUTION!
1. This motherboard supports CPU up to 140W. Please refer to our website for
CPU support list. ASRock website http://www.asrock.com
2. ASRock UCC (Unlock CPU Core) feature simplifies AMD CPU activation. As
long as a simple switch of the BIOS option “ASRock UCC”, you can unlock
the extra CPU core to enjoy an instant performance boost. When UCC
feature is enabled, the dual-core or triple-core CPU will boost to the quad-
core CPU, and some CPU, including quad-core CPU, can also increase L3
cache size up to 6MB, which means you can enjoy the upgrade CPU perfor-
mance with a better price. Please be noted that UCC feature is supported
with AM3/AM3+ CPU only, and in addition, not every AM3/AM3+ CPU can
support this function because some CPU’s hidden core may be
malfunctioned.
3. Whether 1866/1600MHz memory speed is supported depends on the
AM3/AM3+ CPU you adopt. If you want to adopt DDR3 1866/1600 memory
module on this motherboard, please refer to the memory support list on
our website for the compatible memory modules.
ASRock website http://www.asrock.com
4. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows®10
/ 8.1 / 8 / 7 / VistaTM / XP. For Windows®OS with 64-bit CPU, there is no
such limitation.
5. This motherboard does not support RAID mode under Windows®10
32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit. This motherboard does not
support RAID mode with HDDs of 3TB and above.

1111
1111
11
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
1.3 Jumpers Setup1.3 Jumpers Setup
1.3 Jumpers Setup1.3 Jumpers Setup
1.3 Jumpers Setup
The illustration shows how jumpers are setup.
When the jumper cap is placed on pins, the
jumper is “Short”. If no jumper cap is placed on
pins, the jumper is “Open”. The illustration
shows a 3-pin jumper whose pin1 and
pin2 are “Short” when jumper cap is placed on
these 2 pins.
Jumper Setting
Clear CMOS Jumper
(CLRCMOS1)
(see p.2 or 3, No. 9)
Note: CLRCMOS1 allows you to clear the data in CMOS. The data in CMOS includes
system setup information such as system password, date, time, and system
setup parameters. To clear and reset the system parameters to default setup,
please turn off the computer and unplug the power cord from the power supply.
After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1
for 5 seconds. However, please do not clear the CMOS right
after you update the BIOS. If you need to clear the CMOS when you just finish
updating the BIOS, you must boot up the system first, and then shut it down
before you do the clear-CMOS action.
Clear CMOS
2_3 1_2
Default
If you clear the CMOS, the case open may be detected. Please adjust the
BIOS option “Clear Status” to clear the record of previous chassis intrusion
status.

1212
1212
12 ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper
caps over the headers and connectors will cause permanent dam-
age of the motherboard!
•
Serial ATA2 Connectors These four Serial ATA2 (SATA2)
(SATAII_1 (PORT 0.0): connectors support SATA2
see p.2 or 3, No. 6) or SATA hard disk for internal
(SATAII_2 (PORT 0.1): storage devices. The current
see p.2 or 3, No. 5) SATA2 interface allows up to
(SATAII_3 (PORT 1.0): 3.0 Gb/s data transfer rate.
see p.2 or 3, No. 7)
(SATAII_4 (PORT 1.1):
see p.2 or 3, No. 8)
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB 2.0 Headers There are two USB 2.0 headers
(9-pin USB5_6) on this motherboard. Each
(see p.2 or 3 No. 13) USB 2.0 header can support two
USB 2.0 ports.
(9-pin USB7_8)
(see p.2 or 3 No. 12)
USB 3.0 Header There is one USB 3.0 header on
(for N68-GS4/USB3 FX R2.0 only) this motherboard. This USB 3.0
(19-pin USB3_1_2) header can support two USB
(see p.2 No. 18) 3.0 ports.
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
Print Port Header This is an interface for print
(25-pin LPT1) port cable that allows
(see p.2 or 3 No. 14) convenient connection of printer
devices.
1
AFD#
ERROR#
PINIT#
GND SLIN#
STB#
SPD0
SPD1
SPD3
SPD2
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
SATAII_1
(PORT 0.0)
SATAII_2
(PORT 0.1)
SATAII_3
(PORT 1.0)
SATAII_4
(PORT 1.1)

1313
1313
13
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish EnglishEnglish
English
+5V
DUMMY
DUMMY
SPEAKER
1
GND
PWRBTN#
PLED-
PLED+
DUMMY
RESET#
GND
HDLED+
HDLED-
1
System Panel Header This header accommodates
(9-pin PANEL1) several system front panel
(see p.2 or 3 No. 15) functions.
Chassis Speaker Header Please connect the chassis
(4-pin SPEAKER 1) speaker to this header.
(see p.2 or 3 No. 16)
Chassis Fan Connector Please connect a chassis fan
(3-pin CHA_FAN1) cable to this connector and
(see p.2 or 3 No. 10) match the black wire to the
ground pin.
CPU Fan Connector Please connect the CPU fan
(4-pin CPU_FAN1) cable to this connector and
(see p.2 or 3 No. 1) match the black wire to the
ground pin.
GND
+12V
CHA_FAN_SPEED
1
2
3
4
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1) panel audio cable that allows
(see p.2 or 3, No. 17) convenient connection and
control of audio devices.
1. High Definition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for HD audio panel only. You don’t
need to connect them for AC’97 audio panel.

1414
1414
14 ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
EnglishEnglish
EnglishEnglish
English

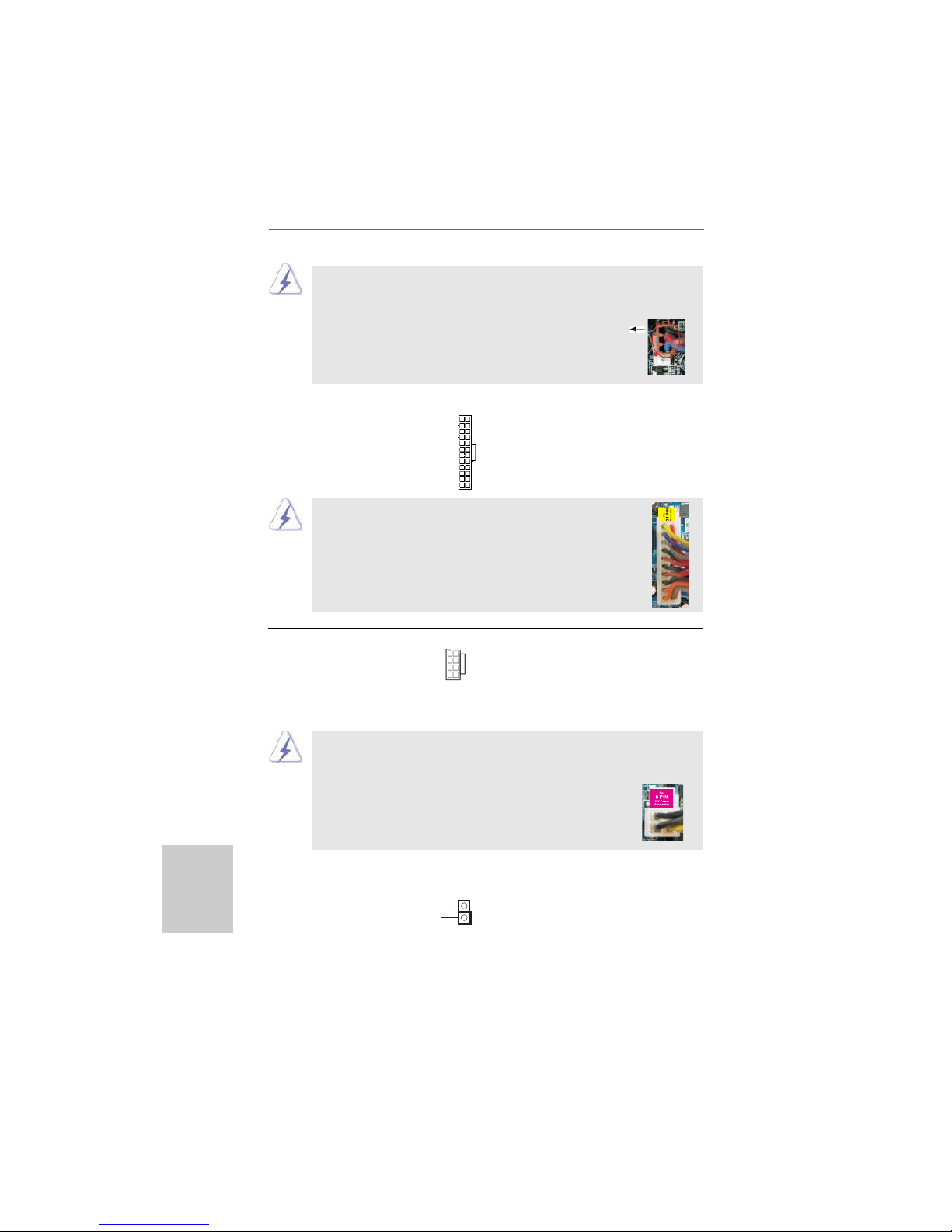

ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1) supply to this connector.
(see p.p.2 or 3 No. 4)
Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin
CPU fan still can work successfully even without the fan speed control function.
If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this
motherboard, please connect it to Pin 1-3.
3-Pin Fan Installation
Pin 1-3 Connected
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector,
it can still work if you adopt a traditional 20-pin ATX power supply.
To use the 20-pin ATX power supply, please plug your power
supply along with Pin 1 and Pin 13.
12
1
24
13
12
1
24
13
ATX 12V Power Connector Please note that it is necessary
(8-pin ATX12V1) to connect a power supply with
(see p.2 or 3 No. 2) ATX 12V plug to this connector.
Failing to do so will cause power
up failure.
Chassis Intrusion Header This motherboard supports CASE
(2-pin CI1) OPEN detection feature that
(see p.2 or 3 No. 11) detects if the chassis cover has
been removed. This feature
requires a chassis with chassis
intrusion detection design.
1
Signal
GND
4 8
1 6
4-Pin ATX 12V Power Supply Installation
Though this motherboard provides 8-pin ATX 12V power connector, it can still
work if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin
ATX power supply, please plug your power supply along with Pin 1 and Pin 5.
4 8
1 6

1515
1515
15
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
SpezifikationenSpezifikationen
SpezifikationenSpezifikationen
Spezifikationen
Plattform - Micro ATX-Formfaktor
- Feststoffkondensator-Design
CPU - Unterstützung von Socket AM3+-Prozessoren
- Unterstützung von Socket AM3-Prozessoren: AMD PhenomTM
II X6 / X4 / X3 / X2 (außer 920 / 940) / Athlon X4 / X3 / X2 /
Sempron-Prozessor
- Acht-Kern-CPU-bereit
- 4 + 1-Stromphasendesign
- Unterstützt UCC (Unlock CPU Core)
- Unterstützt Cool ‘n’ QuietTM-Technologie von AMD
- FSB 1000 MHz (2.0 GT/s)
- Unterstützt Untied-Übertaktungstechnologie
- Unterstützt Hyper-Transport-Technologie
Chipsatz - NVIDIA®GeForce 7025 / nForce 630a
Speicher - Unterstützung von Dual-Kanal-Speichertechnologie
- 2 x Steckplätze für DDR3
- Unterstützt DDR3 1866/1600/1333/1066 non-ECC,
ungepufferter Speicher
- Max. Kapazität des Systemspeichers: 16GB
Erweiterungs- - 1 x PCI Express x16-Steckplätze
steckplätze - 1 x PCI Express x1-Steckplätze
- 1 x PCI -Steckplätze
Onboard-VGA - Integrierter NVIDIA®GeForce 7025 Grafikchip
- DX9.0 VGA, Pixel Shader 3.0
- Maximal gemeinsam genutzter Speicher 256 MB
- Unterstützt D-Sub mit einer maximalen Auflösung von
1920 x 1440 bei 60 Hz
Audio - 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
* Zur Konfiguration von 7.1-Kanal-HD-Audio mussen Sie ein
HD-Frontblenden-Audiomodul nutzen und den Mehrkanalton uber
den Audiotreiber aktivieren.
- Unterstützt überspannungsschutz (ASRock Full Spike
Protection)
- ELNA-Audiokondensatoren
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211E
- Unterstützt Wake-On-LAN
- Unterstutzt Blitzschutz/Schutz gegen elektrostatische
Entladung (ASRock Full Spike Protection)
DeutschDeutsch DeutschDeutsch
Deutsch

1616
1616
16 ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
DeutschDeutsch
DeutschDeutsch
Deutsch
- Unterstutzt energieeffizientes Ethernet 80 
- Unterstützt PXE
E/A-Anschlüsse N68-GS4/USB3 FX R2.0:
an der - 1 x PS/2-Mausanschluss
Rückseite - 1 x PS/2-Tastaturanschluss
- 1 x Serieller port: COM1
- 1 x D-Sub port
- 2 x Standard-USB 2.0-Anschlüsse (unterstutzt Schutz gegen
elektrostatische Entladung (ASRock Full Spike Protection))
- 2 x Standard-USB 3.0-Anschlüsse (Etron EJ188H) (PCIE GEN1)
(unterstutzt Schutz gegen elektrostatische Entladung (ASRock
Full Spike Protection))
- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
- HDAudiobuchse: Audioeingang / Lautsprecher vorne /
Mikrofon
E/A-Anschlüsse N68-GS4 FX R2.0:
an der - 1 x PS/2-Mausanschluss
Rückseite - 1 x PS/2-Tastaturanschluss
- 1 x Serieller port: COM1
- 1 x D-Sub port
- 4 x Standard-USB 2.0-Anschlüsse (unterstutzt Schutz gegen
elektrostatische Entladung (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED LED)
- HDAudiobuchse: Audioeingang / Lautsprecher vorne /
Mikrofon
Speicher - 4 x SATA2-Anschlüsse, unterstützt bis 3.0 Gb/s
Datenübertragungsrate, unterstützt RAID (RAID 0, RAID 1,
RAID 0+1, RAID 5, JBOD), NCQ und “Hot Plug” Funktionen
Anschlüsse - 1 x Druckerport-Anschlussleiste
- 1 x Verteiler fur Gehauseeindringversuche
- 1 x CPU-Lüfteranschluss (4-polig)
- 1 x Gehäuse-Lüfteranschluss (3-polig)
- 1 x 24-pin ATX-Netz-Header
- 1 x 8-pin anschluss für 12V-ATX-Netzteil
- 1 x Anschluss für Audio auf der Gehäusevorderseite
- 2 x USB 2.0-Anschlüsse (Unterstützung 4 zusätzlicher
USB 2.0-Anschlüsse) (unterstutzt Schutz gegen
elektrostatische Entladung (ASRock Full Spike Protection))
- 1 x Etron EJ188H USB 3.0-Anschlüsse (PCIE GEN1)
(Unterstützung 2 zusätzlicher USB 3.0-Anschlüsse) (unterstutzt
Schutz gegen elektrostatische Entladung (ASRock Full Spike
Protection)) (N68-GS4/USB3 FX R2.0)

1717
1717
17
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
DeutschDeutsch DeutschDeutsch
Deutsch
BIOS - AMI legal BIOS
- Unterstützung für “Plug and Play”
- ACPI 1.1-Weckfunktionen
- JumperFree-Modus
- SMBIOS 2.3.1
- CPU, VCCM, NB Stromspannung Multianpassung
Hardware Monitor - CPU-Temperatursensor
- Motherboardtemperaturerkennung
- Drehzahlmessung für CPU-Lüfter
- Drehzahlmessung für Gehäuselüfter
- CPU-Lüftergeräuschdämpfung
- GEHAUSE OFFEN-Erkennung
- Spannungsüberwachung: +12V, +5V, +3.3V, Vcore
Betriebssysteme - Unterstützt Microsoft®Windows®10 32-Bit / 10 64-Bit / 8.1
32-Bit / 8.1 64-Bit / 8 32-Bit / 8 64-Bit / 7 32-Bit / 7 64-Bit /
VistaTM 32-Bit / VistaTM 64-Bit / XP 32-Bit / XP 64-Bit
Zertifizierungen - FCC, CE, WHQL
- Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung
gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich)
* Für die ausführliche Produktinformation, besuchen Sie bitte unsere Website:
http://www.asrock.com

1818
1818
18 ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
SpécificationsSpécifications
SpécificationsSpécifications
Spécifications
Format - Facteur de forme Micro ATX
- Conception a condensateurs solides
CPU - Prise en charge des processeurs sur socket AM3+
- Prise en charge des processeurs sur socket AM3: Processeur
PhenomTM II X6 / X4 / X3 / X2 (sauf 920 / 940) / Athlon II X4 / X3
/ X2 / Sempron d’AMD
- Prêt pour processeurs Huit-Core
- Conception 4 + 1 Power Phase
- Supporte UCC (Unlock CPU Core)
- Supporte la technologie Cool ‘n’ QuietTM d’AMD
- FSB 1000 MHz (2.0 GT/s)
- Prend en charge la technologie Untied Overclocking
- Prise en charge de la technologie Hyper Transport
Chipsets - NVIDIA®GeForce 7025 / nForce 630a
Mémoire - Compatible avec la Technologie de Mémoire à Canal Double
- 2 x slots DIMM DDR3
- Supporter DDR3 1866/1600/1333/1066 non-ECC, sans
amortissement mémoire
- Capacité maxi de mémoire système: 16GB
Slot d’extension - 1 x slot PCI Express x16
- 1 x slot PCI Express x1
- 1 x slot PCI
VGA sur carte - NVIDIA®graphique GeForce 7025 intégré
- VGA DX9.0, nuanceur de pixels 3.0
- mémoire partagée max 256MB
- Prend en charge le D-Sub avec une résolution maximale
jusqu’à 1920x1440 @ 60Hz
Audio - 7.1 Son haute définition de CH (codec audio Realtek ALC887)
* Pour configurer l’audio 7.1 CH HD, il est necessaire d’utiliser
un module audio HD pour panneau frontal et d’activer la fonction
audio multicanal via le pilote audio.
- Protection contre les surtensions (Protection complete contre
les pics ASRock)
- Capuchons ELNA Audio
LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Realtek RTL8211E
- Support du Wake-On-LAN
- Protection contre les orages/decharges electrostatiques
(Protection complete contre les pics ASRock)
FrançaisFrançais
FrançaisFrançais
Français

1919
1919
19
ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
FF FF
Franran
ranran
rançaisçais
çaisçais
çais
- Prend en charge la fonction d’economie d’energie Ethernet
802.3az
- Support du PXE
Panneau arrière N68-GS4/USB3 FX R2.0:
E/S - 1 x port souris PS/2
- 1 x port clavier PS/2
- 1 x port série: COM1
- 1 x port D-Sub
- 2 x ports USB 2.0 par défaut (Protection contre les decharges
electrostatiques (Protection complete contre les pics ASRock))
- 2 x ports USB 3.0 par défaut (Etron EJ188H) (PCIE GEN1)
(Protection contre les decharges electrostatiques (Protection
complete contre les pics ASRock))
- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et
LED VITESSE)
- Prise HD Audio: Entrée Ligne / Haut-parleur frontal /
Microphone
Panneau arrière N68-GS4 FX R2.0:
E/S - 1 x port souris PS/2
- 1 x port clavier PS/2
- 1 x port série: COM1
- 1 x port D-Sub
- 4 x ports USB 2.0 par défaut (Protection contre les decharges
electrostatiques (Protection complete contre les pics ASRock))
- 1 x port LAN RJ-45 avec LED (ACT/LED CLIGNOTANTE et
LED VITESSE)
- Prise HD Audio: Entrée Ligne / Haut-parleur frontal /
Microphone
Stockage - 4 x connecteurs SATA2, prennent en charge un taux de
transfert de données pouvant aller jusqu’à 3.0Go/s,
supporte RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD),
NCQ et “Hot-Plug” (Connexion à chaud)
Connecteurs - 1 x embase de port d’impression
- 1 x Embase d’intrusion chassis
- 1 x Connecteur pour ventilateur de CPU (br. 4)
- 1 x Connecteur pour ventilateur de Châssis (br. 3)
- 1 x br. 24 connecteur d’alimentation ATX
- 1 x br. 8 connecteur d’alimentation 12V ATX
- 1 x Connecteur audio panneau avant
- 2 x En-tête USB 2.0 (prendre en charge 4 ports USB 2.0
supplémentaires) (Protection contre les decharges
electrostatiques (Protection complete contre les pics ASRock))

2020
2020
20 ASRock N68-GS4/USB3 FX R2.0 / N68-GS4 FX R2.0 Motherboard
FrançaisFrançais
FrançaisFrançais
Français
- 1 x En-tête Etron EJ188H USB 3.0 (PCIE GEN1) (prendre en
charge 2 ports USB 3.0 supplémentaires) (Protection contre
les decharges electrostatiques (Protection complete contre les
pics ASRock)) (N68-GS4/USB3 FX R2.0)
BIOS - BIOS AMI
- Support du “Plug and Play”
- Compatible pour événements de réveil ACPI 1.1
- Gestion jumperless
- Support SMBIOS 2.3.1
- CPU, VCCM, NB Tension Multi-ajustement
Surveillance - Détection de la température de l’UC
système - Mesure de température de la carte mère
- Tachéomètre ventilateur CPU
- Tachéomètre ventilateur châssis
- Ventilateur silencieux d’unité centrale
- Detection d’OUVERTURE DE BOITIER
- Monitoring de la tension: +12V, +5V, +3.3V, Vcore
OS - Microsoft®Windows®10 32-bit / 10 64-bit / 8.1 32-bit / 8.1
64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / VistaTM 32-bit /
VistaTM 64-bit / XP 32-bit / XP 64-bit
Certifications - FCC, CE, WHQL
- Prêt pour ErP/EuP (alimentation Prêt pour ErP/EuP requise)
* Pour de plus amples informations sur les produits, s’il vous plaît visitez notre site web:
http://www.asrock.com
