ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish EnglishEnglish
English
Copyright Notice:Copyright Notice:
Copyright Notice:Copyright Notice:
Copyright Notice:
No part of this installation guide may be reproduced, transcribed, transmitted, or trans-
lated in any language, in any form or by any means, except duplication of documen-
tation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this guide may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identifica-
tion or explanation and to the owners’ benefit, without intent to infringe.
Disclaimer:Disclaimer:
Disclaimer:Disclaimer:
Disclaimer:
Specifications and information contained in this guide are furnished for informational
use only and subject to change without notice, and should not be constructed as a
commitment by ASRock. ASRock assumes no responsibility for any errors or omissions
that may appear in this guide.
With respect to the contents of this guide, ASRock does not provide warranty of any kind,
either expressed or implied, including but not limited to the implied warranties or
conditions of merchantability or fitness for a particular purpose. In no event shall
ASRock, its directors, officers, employees, or agents be liable for any indirect, special,
incidental, or consequential damages (including damages for loss of profits, loss of
business, loss of data, interruption of business and the like), even if ASRock has been
advised of the possibility of such damages arising from any defect or error in the guide
or product.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic
substance controlled in Perchlorate Best Management Practices (BMP) regulations
passed by the California Legislature. When you discard the Lithium battery in
California, USA, please follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate”
ASRock Website: http://www.asrock.com
Published May 2008
Copyright©2008ASRock INC.All rights reserved.

22
22
2ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard Layoutayout
ayoutayout
ayout
(P45R2000-(P45R2000-
(P45R2000-(P45R2000-
(P45R2000-WiFWiF
WiFWiF
WiFi / P45R2000)i / P45R2000)
i / P45R2000)i / P45R2000)
i / P45R2000)
1 CPU Fan Connector (CPU_FAN1) 22 USB 2.0 Header (USB8_9, Blue)
2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 23 System Panel Header (PANEL1)
3 eSATAII Connector (eSATAII_TOP (Port 4)) 24 USB 2.0 Header (USB6_7, Blue)
4 775-Pin CPU Socket 25 Chassis Fan Connector (CHA_FAN1)
5 PS2_USB_PWR1 Jumper 26 SPI BIOS Chip
6 2 x 240-pin DDR2 DIMM Slots 27 Front Panel IEEE 1394 Header
(Dual Channel A: DDRII_1, DDRII_2; Yellow) (FRONT_1394)
7 2 x 240-pin DDR3 DIMM Slots 28 DeskExpress Hot Plug Detection Header
(Dual Channel B: DDR3_A1, DDR3_B1; Green) (IR1)
8 2 x 240-pin DDR3 DIMM Slots 29 Floppy Connector (FLOPPY1)
(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 COM Port Header (COM1)
9 IDE1 Connector (IDE1, Blue) 31 WiFi/E Header (WIFI/E)
10 FSB3 Jumper 32 Front Panel Audio Header (HD_AUDIO1)
11 FSB2 Jumper 33 HDMI_SPDIF Header (HDMI_SPDIF1)
12 FSB1 Jumper 34 Internal Audio Connector: CD1 (Black)
13 South Bridge Controller 35 PCI Slots (PCI1 - 3)
14 Clear CMOS Jumper (CLRCMOS1) 36 PCI Express 2.0 x16 Slot (PCIE4, Blue)
15 Chassis Speaker Header (SPEAKER 1) 37 SLI/XFire Switch Card Retention Slot
16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express x1 Slot (PCIE3)
17 SATAII Connector (SATAII_5 (Port4), Orange) 39 PCI Express 2.0 x16 Slot (PCIE2, Green)
18 SATAII Connector (SATAII_3 (Port2), Red) 40 PCI Express x1 Slot (PCIE1/DE)
19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX Power Connector (ATXPWR1)
20 SATAII Connector (SATAII_1 (Port0), Red) 42 ATX 12V Connector (ATX12V1)
21 SATAII Connector (SATAII_2 (Port1), Red)

33
33
3
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish EnglishEnglish
English
Motherboard LMotherboard L
Motherboard LMotherboard L
Motherboard Layout (P45Tayout (P45T
ayout (P45Tayout (P45T
ayout (P45TurboTurboT
urboTurboT
urboTwins2000)wins2000)
wins2000)wins2000)
wins2000)
1 CPU Fan Connector (CPU_FAN1) 21 SATAII Connector (SATAII_2 (Port1), Red)
2 eSATAII Connector (eSATAII_BOTTOM (Port 5)) 22 USB 2.0 Header (USB8_9, Blue)
3 eSATAII Connector (eSATAII_TOP (Port 4)) 23 System Panel Header (PANEL1)
4 775-Pin CPU Socket 24 USB 2.0 Header (USB6_7, Blue)
5 PS2_USB_PWR1 Jumper 25 Chassis Fan Connector (CHA_FAN1)
6 2 x 240-pin DDR2 DIMM Slots 26 SPI BIOS Chip
(Dual Channel A: DDRII_1, DDRII_2; Yellow) 27 DeskExpress Hot Plug Detection Header
7 2 x 240-pin DDR3 DIMM Slots (IR1)
(Dual Channel B: DDR3_A1, DDR3_B1; Green) 28 Floppy Connector (FLOPPY1)
8 2 x 240-pin DDR3 DIMM Slots 29 COM Port Header (COM1)
(Dual Channel C: DDR3_A2, DDR3_B2; Pink) 30 WiFi/E Header (WIFI/E)
9 IDE1 Connector (IDE1, Blue) 31 Front Panel Audio Header (HD_AUDIO1)
10 FSB3 Jumper 32 HDMI_SPDIF Header (HDMI_SPDIF1)
11 FSB2 Jumper 33 Internal Audio Connector: CD1 (Black)
12 FSB1 Jumper 34 PCI Slots (PCI1 - 3)
13 South Bridge Controller 35 PCI Express 2.0 x16 Slot (PCIE4, Blue)
14 Clear CMOS Jumper (CLRCMOS1) 36 SLI/XFire Switch Card Retention Slot
15 Chassis Speaker Header (SPEAKER 1) 37 PCI Express x1 Slot (PCIE3)
16 SATAII Connector (SATAII_6 (Port5), Orange) 38 PCI Express 2.0 x16 Slot (PCIE2, Green)
17 SATAII Connector (SATAII_5 (Port4), Orange) 39 PCI Express x1 Slot (PCIE1/DE)
18 SATAII Connector (SATAII_3 (Port2), Red) 40 ATX Power Connector (ATXPWR1)
19 SATAII Connector (SATAII_4 (Port3), Red) 41 ATX 12V Connector (ATX12V1)
20 SATAII Connector (SATAII_1 (Port0), Red)

44
44
4ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
ASRASR
ASRASR
ASRock DualLock DualL
ock DualLock DualL
ock DualLAN_SPDIF I/OAN_SPDIF I/O
AN_SPDIF I/OAN_SPDIF I/O
AN_SPDIF I/O
(P45R2000-(P45R2000-
(P45R2000-(P45R2000-
(P45R2000-WiFWiF
WiFWiF
WiFi / P45R2000)i / P45R2000)
i / P45R2000)i / P45R2000)
i / P45R2000)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDAAudio 2nd output” to use front panel audio.
** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE forAudio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 10) (No. 7) (No. 8) (No. 6)
2 V -- -- --
4VV----
6 VVV--
8 VVVV
LAN Port
ACT/LINK
LED
SPEED
LED
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
SPEED LED Activity/Link LED
Status Description Status Description
Off 10Mbps connection Off No link
Orange 100Mbps connection Orange Linked
Green 1Gbps connection Blinking Data Activity
1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)
2 Coaxial SPDIF Out Port 11 Microphone (Pink)
3 IEEE 1394 Port 12 USB 2.0 Ports (USB45)
* 4 LAN RJ-45 Port 13 USB 2.0 Ports (USB23)
* 5 LAN RJ-45 Port 14 USB 2.0 Ports (USB01)
6 Side Speaker (Gray) 15 eSATAII Port (eSATAII_TOP)
7 Rear Speaker (Black) 16 eSATAII Port (eSATAII_BOTTOM)
8 Central / Bass (Orange) 17 Optical SPDIF Out Port
9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

55
55
5
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish EnglishEnglish
English
LAN Port
ACT/LINK
LED
PEED
LED
ASRASR
ASRASR
ASRock SPDIF I/O Plus (P45Tock SPDIF I/O Plus (P45T
ock SPDIF I/O Plus (P45Tock SPDIF I/O Plus (P45T
ock SPDIF I/O Plus (P45TurboTurboT
urboTurboT
urboTwins2000)wins2000)
wins2000)wins2000)
wins2000)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “Mixer” tool on your system.
Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click
“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA
Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDAAudio 2nd output” to use front panel audio.
** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 8) (No. 5) (No. 6) (No. 4)
2 V -- -- --
4VV----
6 VVV--
8 VVVV
LAN Port
ACT/LINK
LED
SPEED
LED
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
SPEED LED Activity/Link LED
Status Description Status Description
Off 10Mbps connection Off No link
Orange 100Mbps connection Orange Linked
Green 1Gbps connection Blinking Data Activity
1 PS/2 Mouse Port (Green) 9 Microphone (Pink)
2 Coaxial SPDIF Out Port 10 USB 2.0 Ports (USB45)
* 3 LAN RJ-45 Port 11 USB 2.0 Ports (USB23)
4 Side Speaker (Gray) 12 USB 2.0 Ports (USB01)
5 Rear Speaker (Black) 13 eSATAII Port (eSATAII_TOP)
6 Central / Bass (Orange) 14 eSATAII Port (eSATAII_BOTTOM)
7 Line In (Light Blue) 15 Optical SPDIF Out Port
** 8 Front Speaker (Lime) 16 PS/2 Keyboard Port (Purple)

66
66
6ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
ASRock WiFi-802.11g Module SpecificationsASRock WiFi-802.11g Module Specifications
ASRock WiFi-802.11g Module SpecificationsASRock WiFi-802.11g Module Specifications
ASRock WiFi-802.11g Module Specifications
(F(F
(F(F
(For P45R2000-or P45R2000-
or P45R2000-or P45R2000-
or P45R2000-WiFWiF
WiFWiF
WiFi Only)i Only)
i Only)i Only)
i Only)

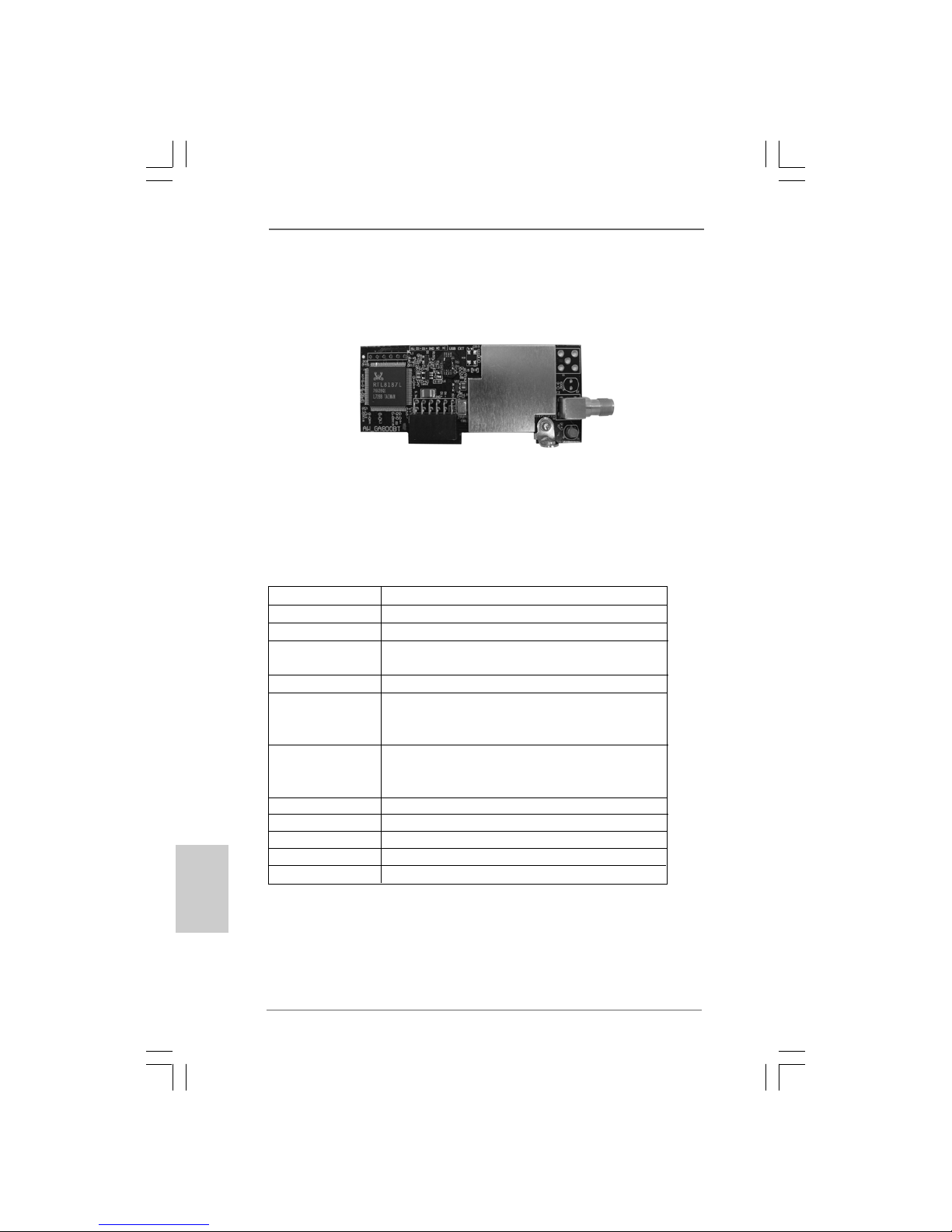

ASRock WiFi-802.11g module is an easy-to-use wireless local area network (WLAN)
adapter to support WiFi+AP function. WithASRock WiFi-802.11g module, you can
easily create a wireless environment and enjoy the convenience of wireless network
connectivity.Therefore, from anywhere within the signal range, you will be able to play
LANgames, connect to the internet, access and share printers, and make Internet
phone calls easily.
Standard - IEEE 802.11g
Data Rate - 6, 9, 12, 18, 24, 36, 48, 54Mbps
Security - Access Point mode (AP mode): WEP, WPA
Network -Access Point mode (AP mode)
Architecture Types - Station mode: Infrastructure mode andAd-Hoc mode
Frequency Band - 2.4~2.5GHz
Operating Range - Indoor: 80ft (30m)
Outdoor: 200ft (60m)
* The range varies in different environments
Number of - up to 16 stations
Connected Devices
(AP Mode)
Antenna -ASRock WiFi-802.11g omni-directional antenna
LED -Green data transmission (AIR) LED
Support OS - Windows®XP / XP 64-bit / VistaTM / VistaTM 64-bit
Compatibility - Full compatible with IEEE 802.11g standard products
Software Support -ASRock WiFi-802.11g Wizard
If you want to start to use ASRock WiFi-802.11g module on this motherboard, please
carefully read “ASRock WiFi-802.11g Module Operation Guide” in the package for
the detailed introduction and operation procedures. You can also read the document in
the following path ofASRock motherboard support CD:
..\ ASRock WiFi-802.11g \ Vista64_Vista_XP64_XP

77
77
7
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
1. Introduction1. Introduction
1. Introduction1. Introduction
1. Introduction
Thank you for purchasingASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000
motherboard, a reliable motherboard produced underASRock’s consistently stringent
qualitycontrol.ItdeliversexcellentperformancewithrobustdesignconformingtoASRock’s
commitment to quality and endurance.
This Quick Installation Guide contains introduction of the motherboard and step-by-
step installation guide. More detailed information of the motherboard can be found in
the user manual presented in the Support CD.
Because the motherboard specifications and the BIOS software might be
updated, the content of this manual will be subject to change without
notice. In case any modifications of this manual occur, the updated
version will be available on ASRock website without further notice. You
may find the latest VGA cards and CPU support lists on ASRock website
as well. ASRock website http://www.asrock.com
If you require technical support related to this motherboard, please visit
our website for specific information about the model you are using.
www.asrock.com/support/index.asp
1.1 P1.1 P
1.1 P1.1 P
1.1 Packack
ackack
ackage Contentsage Contents
age Contentsage Contents
age Contents
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Quick Installation Guide
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Support CD
ASRock WiFi-802.11g Module OperationGuide (For P45R2000-WiFi Only)
Motherboard Accessories
OneASRock SLI/XFire Switch Card
One 80-conductor UltraATA66/100/133 IDE Ribbon Cable
One Ribbon Cable for a 3.5-in Floppy Drive
Four SerialATA (SATA)Data Cables (Optional)
One SerialATA (SATA) HDD Power Cable (Optional)
OneHDMI_SPDIFCable (Optional)
One “ASRockDualLAN_SPDIF I/O” I/O Panel Shield (P45R2000-WiFi / P45R2000)
One “ASRock SPDIF I/O Plus” I/O Panel Shield (P45TurboTwins2000)
WiFi Accessories (For P45R2000-WiFi Only)
OneASRock WiFi-802.11g Module
OneAntenna
One WiFi Bracket
EnglishEnglish EnglishEnglish
English

88
88
8ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
1.21.2
1.21.2
1.2 SpecificationsSpecifications
SpecificationsSpecifications
Specifications
Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
-All Solid Capacitor design
CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM
2Duo / Pentium®DualCore/ Celeron®,supportingPenryn Quad
Core Yorkfield andDual Core Wolfdale processors
- Compatible with FSB2000/1600/1333/1066/800 MHz
(see CAUTION 1)
- Supports Hyper-ThreadingTechnology (see CAUTION 2)
- Supports Untied Overclocking Technology (see CAUTION 3)
- Supports EM64T CPU
Chipset -Northbridge: Intel®P45
- Southbridge: Intel®ICH10R (P45R2000-WiFi / P45R2000)
-Southbridge:Intel®ICH10 (P45TurboTwins2000)
Memory -Dual ChannelDDR3/DDR2 Memory Technology
(see CAUTION 4)
- 4 xDDR3DIMM slots
- SupportDDR3 1333/1066 non-ECC, un-buffered memory
(see CAUTION 5)
- Max. capacity of system memory: 8GB (see CAUTION 6)
- 2 xDDR2DIMM slots
- SupportDDR2 1066/800/667 non-ECC, un-buffered memory
(see CAUTION 5)
- Max. capacity of system memory: 8GB (see CAUTION 6)
Expansion Slot - SupportsATITM CrossFireTM (see CAUTION 7)
- 2 x PCI Express 2.0 x16 slots
(green @ x16 mode, blue @ x8 mode)
- 2 x PCI Express x1 slots
- 3 x PCI slots
Audio P45R2000-WiFi / P45R2000
- 7.1 CH Windows® VistaTM Premium Level HDAudio with
Content Protection
-DAC with 110dB dynamic range (ALC890Audio Codec)
P45TurboTwins2000
- 7.1 CH Windows® VistaTM Premium Level HDAudio
(ALC888Audio Codec)
LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s
-RealtekRTL8111B/RTL8111C
- Supports Wake-On-LAN

99
99
9
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish EnglishEnglish
English
- SupportsDual LANfeature (For P45R2000-WiFi / P45R2000
Only)
Wireless LAN -ASRock WiFi-802.11g module
(For - 54Mbps IEEE 802.11g / 11Mbps IEEE 802.11b
P45R2000-WiFi - Supports SoftwareAccess Point mode (AP mode) and
Only) Station mode (Infrastructure mode andAd-hoc mode)
Rear Panel I/O P45R2000-WiFi/ P45R2000
ASRockDualLAN_SPDIF I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 2 x RJ-45 LAN Ports with LED
(ACT/LINK LEDand SPEEDLED)
- 1 x IEEE 1394 Port
- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/
Line in/Front Speaker/Microphone (see CAUTION 8)
P45TurboTwins2000
ASRock SPDIF I/O Plus
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 6 x Ready-to-Use USB 2.0 Ports
- 2 x eSATAII Ports
- 1 x RJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)
- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/
Line in/Front Speaker/Microphone (see CAUTION 8)
Connector - 6 x SATAII 3.0Gb/s connectors, support RAID(RAID0,
RAID1, RAID 10, RAID5 and Intel Matrix Storage),NCQ,
AHCI and “Hot Plug” functions (see CAUTION 9)
* RAID functions are for P45R2000-WiFi / P45R2000 only
- 2 x eSATAII 3.0Gb/s connectors (shared with 2 SATAII
connectors) (see CAUTION 10)
- 1 xATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 xDeskExpress Hot PlugDetection header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- 1 x IEEE 1394 header (P45R2000-WiFi / P45R2000)

1010
1010
10 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
WARNING
Please realize that there is a certain risk involved with overclocking, including
adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using
the third-party overclocking tools. Overclocking may affect your system stability, or
even cause damage to the components and devices of your system. It should be
done at your own risk and expense. We are not responsible for possible damage
caused by overclocking.
- CPU/Chassis FANconnector
- 24 pinATX power connector
- 8 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
(see CAUTION 11)
- 1 x WiFi/E header (see CAUTION 12)
BIOS Feature - 8MbAMI BIOS
-AMI Legal BIOS
- Supports “Plug and Play”
-ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
-AMBIOS 2.3.1 Support
- CPU,DRAM,NB, SB, VTTVoltage Multi-adjustment
- Supports I. O. T. (Intelligent Overclocking Technology)
Support CD -Drivers, Utilities,AntiVirus Software (TrialVersion)
Unique Feature -ASRock OC Tuner (see CAUTION 13)
- Hybrid Booster:
- CPU Frequency Stepless Control (see CAUTION 14)
-ASRock U-COP (see CAUTION 15)
- Boot FailureGuard (B.F.G.)
Hardware - CPU Temperature Sensing
Monitor - Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /
VistaTM 64-bit compliant (see CAUTION 16)
Certifications - FCC, CE, WHQL
* For detailed product information, please visit our website: http://www.asrock.com

1111
1111
11
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish EnglishEnglish
English
CAUTION!
1. Some CPU you adopt may be overclocked to FSB2000 MHz, in this
situation, please adopt DDR3 1333 memory modules on this
motherboard. This motherboard supports native FSB1600/1333/1066/
800 MHz. For normal operation, you do no need to adjust the jumper
settings. For special overclocking mode, please refer to page 25 for
proper jumper settings.
2. About the setting of “Hyper Threading Technology”, please check page
55 of “User Manual” in the support CD.
3. This motherboard supports Untied Overclocking Technology. Please read
“Untied Overclocking Technology” on page 37 for details.
4. This motherboard supports Dual Channel Memory Technology. Before
you implement Dual Channel Memory Technology, make sure to read
the installation guide of memory modules on page 16 for proper
installation.
5. Please check the table below for the CPU FSB frequency and its
corresponding memory support frequency.
CPU FSB Frequency Memory Support Frequency
1600 DDR2 800, DDR2 1066,
DDR3 1066, DDR3 1333
1333 DDR2 667, DDR2 800, DDR2 1066,
DDR3 1066, DDR3 1333
1066 DDR2 667, DDR2 800, DDR2 1066,
DDR3 1066
800 DDR2 667, DDR2 800
6. Due to the operating system limitation, the actual memory size may be
less than 4GB for the reservation for system usage under Windows®XP
and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM
64-bit with 64-bit CPU, there is no such limitation.
7. This motherboard supports ATITM CrossFireTM technology. If you want to
use CrossFireTM function, please follow the instructions on page 21 to
reverse the direction of ASRock SLI/XFire Switch Card in advance.
8. For microphone input, this motherboard supports both stereo and mono
modes. For audio output, this motherboard supports 2-channel, 4-
channel, 6-channel, and 8-channel modes. Please check the table on
page 4 and 5 for proper connection.
9. Before installing SATAII hard disk to SATAII connector, please read the
“SATAII Hard Disk Setup Guide” on page 40 of “User Manual” in the
support CD to adjust your SATAII hard disk drive to SATAII mode. You can
also connect SATA hard disk to SATAII connector directly.
10. This motherboard supports eSATAII interface, the external SATAII
specification. Please read “eSATAII Interface Introduction” on page 32
for details about eSATAII and eSATAII installation procedures.
11. Power Management for USB 2.0 works fine under Microsoft®Windows®
VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

1212
1212
12 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
1.31.3
1.31.3
1.3 Minimum Hardware RMinimum Hardware R
Minimum Hardware RMinimum Hardware R
Minimum Hardware Requirement Tequirement T
equirement Tequirement T
equirement Table forable for
able forable for
able for
WindowsWindows
WindowsWindows
Windows®®
®®
® VistaVista
VistaVista
VistaTMTM
TMTM
TM Premium 2008 and Basic LogoPremium 2008 and Basic Logo
Premium 2008 and Basic LogoPremium 2008 and Basic Logo
Premium 2008 and Basic Logo
For system integrators and users who purchase this motherboard and
plan to submit Windows®VistaTM Premium 2008 and Basic logo, please
follow below table for minimum hardware requirements.
CPU Celeron 420
Memory 1GB system memory (Premium)
512MB Single Channel (Basic)
VGA DX10 with WDDM Driver
with 128bit VGA memory (Premium)
with 64bit VGA memory (Basic)
* After June 1, 2008, all Windows®VistaTM systems are required to meet above
minimum hardware requirements in order to qualify for Windows®VistaTM
Premium 2008 logo.
12. WiFi/E header supports WiFi+AP function with ASRock WiFi-802.11g or
WiFi-802.11n module, an easy-to-use wireless local area network
(WLAN) adapter. It allows you to create a wireless environment and
enjoy the convenience of wireless network connectivity. Please visit our
website for the availability of ASRock WiFi-802.11g or WiFi-802.11n
module. ASRock website http://www.asrock.com
13. It is a user-friendly ASRock overclocking tool which allows you to surveil
your system by hardware monitor function and overclock your hardware
devices to get the best system performance under Windows®
environment. Please visit our website for the operation procedures of
ASRock OC Tuner. ASRock website: http://www.asrock.com
14. Although this motherboard offers stepless control, it is not recom-
mended to perform over-clocking. Frequencies other than the recom-
mended CPU bus frequencies may cause the instability of the system
or damage the CPU.
15. While CPU overheat is detected, the system will automatically shutdown.
Before you resume the system, please check if the CPU fan on the
motherboard functions properly and unplug the power cord, then plug it
back again. To improve heat dissipation, remember to spray thermal
grease between the CPU and the heatsink when you install the PC
system.
16. ASRock WiFi-802.11g module and RAID / AHCI functions are not
supported under Windows® 2000 OS. It is recommended to use IDE
mode under Windows® 2000. Please refer to page 61 of “User Manual”
in the support CD for detailed setup.

1313
1313
13
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
2.2.
2.2.
2.InstallationInstallation
InstallationInstallation
Installation
Pre-installation PrecautionsPre-installation Precautions
Pre-installation PrecautionsPre-installation Precautions
Pre-installation Precautions
Take note of the following precautions before you install mother-
board components or change any motherboard settings.
1. Unplug the power cord from the wall socket before touching any
component. Failure to do so may cause severe damage to the
motherboard, peripherals, and/or components.
2. To avoid damaging the motherboard components due to static
electricity,NEVER place your motherboard directly on the carpet
or the like. Also remember to use a grounded wrist strap or touch
a safety grounded object before you handle components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded
antstatic pad or in the bag that comes with the component.
5. When placing screws into the screw holes to secure the
motherboard to the chassis, please do not over-tighten the
screws! Doing so may damage the motherboard.
2.12.1
2.12.1
2.1 CPU InstallationCPU Installation
CPU InstallationCPU Installation
CPU Installation
For the installation of Intel 775-LAND CPU,
please follow the steps below.
Before you insert the 775-LAND CPU into the socket, please check if
the CPU surface is unclean or if there is any bent pin on the socket.
Do not force to insert the CPU into the socket if above situation is
found. Otherwise, the CPU will be seriously damaged.
775-Pin Socket Overview
EnglishEnglish EnglishEnglish
English

1414
1414
14 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
Step 1. Open the socket:
Step 1-1. Disengaging the lever by depressing
down and out on the hook to clear
retention tab.
Step 1-2. Rotate the load lever to fully open po-
sition at approximately 135 degrees.
Step 1-3. Rotate the load plate to fully open po-
sition at approximately 100 degrees.
Step 2. Insert the 775-LAND CPU:
Step 2-1. Hold the CPU by the edges where are
marked with black lines.
Step 2-2. Orient the CPU with IHS (Integrated
Heat Sink) up. Locate Pin1 and the two
orientation key notches.
For proper inserting, please ensure to match the two orientation key
notches of the CPU with the two alignment keys of the socket.
Step 2-3. Carefully place the CPU into the socket
by using a purely vertical motion.
Step 2-4. Verify that the CPU is within the socket
and properly mated to the orient keys.
Step 3. Remove PnP Cap (Pick and Place Cap):
Use your left hand index finger and thumb to
support the load plate edge, engage PnP cap
with right hand thumb and peel the cap from the
socket while pressing on center of PnP cap to
assist in removal.
black line
black line
775-PinSocket
Pin1
alignment key alignment key
Pin1
orientation
key notch orientation
key notch
775-LAND CPU

1515
1515
15
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
1. It is recommended to use the cap tab to handle and avoid kicking
off the PnP cap.
2. This cap must be placed if returning the motherboard for after
service.
Step 4. Close the socket:
Step 4-1. Rotate the load plate onto the IHS.
Step 4-2. While pressing down lightly on load
plate, engage the load lever.
Step 4-3. Secure load lever with load plate tab
under retention tab of load lever.
2.22.2
2.22.2
2.2 Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
Installation of CPU Fan and HeatsinkInstallation of CPU Fan and Heatsink
Installation of CPU Fan and Heatsink
For proper installation, please kindly refer to the instruction manuals of your CPU fan
and heatsink.
Below is an example to illustrate the installation of the heatsink for 775-LAND CPU.
Step 1. Apply thermal interface material onto center
of IHS on the socket surface.
Step 2. Place the heatsink onto the socket. Ensure
fan cables are oriented on side closest to the
CPU fan connector on the motherboard
(CPU_FAN1, see page 2/3,No. 1).
Step 3. Align fasteners with the motherboard
throughholes.
Step 4. Rotate the fastener clockwise, then press
down on fastener caps with thumb to install
and lock. Repeat with remaining fasteners.
If you press down the fasteners without rotating them clockwise,
the heatsink cannot be secured on the motherboard.
Step 5. Connect fan header with the CPU fan
connector on the motherboard.
Step 6. Secure excess cable with tie-wrap to ensure
cable does not interfere with fan operation or
contact other components.
EnglishEnglish EnglishEnglish
English

1616
1616
16 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
2.3 Installation of Memor2.3 Installation of Memor
2.3 Installation of Memor2.3 Installation of Memor
2.3 Installation of Memory Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)y Modules (DIMM)
y Modules (DIMM)
Thismotherboardprovides two240-pinDDR2(DoubleData Rate2)DIMM slotsand
four 240-pinDDR3 (DoubleData Rate 3) DIMM slots, and supportsDual Channel
Memory Technology. For dual channel configuration, you always need to install
identical (the same brand, speed, size and chip-type)DDR2/DDR3DIMM pair in
the slots of the same color. In other words, you have to install identical DDR2
DIMM pair in Dual Channel A (DDRII_1 andDDRII_2; Yellow slots; see p.2/3 No.
6), identicalDDR3DIMM pair in Dual Channel B (DDR3_A1andDDR3_B1;Green
slots; see p.2/3No.7), or identicalDDR3DIMM pair in Dual Channel C (DDR3_A2
and DDR3_B2; Pink slots; see p.2/3No.8), so thatDual Channel MemoryTechnol-
ogy can be activated. This motherboard also allows you to install fourDDR3DIMMs
for dual channel configuration, and please install identical DDR3 DIMMs in all four
slots. You may refer to theDual Channel Memory Configuration Table below.
DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
(Green Slot) (Pink Slot) (Green Slot) (Pink Slot)
2 memory modules SS X SS X
2 memory modules DS X DS X
2 memory modules X SS X SS
2 memory modules X DS X DS
4 memory modules SS SS SS SS
4 memory modules DS DS DS DS
Dual Channel DDR3 Memory Configurations
(DS: Double Side, SS: Single Side)
DDRII_1 DDRII_2
(Yellow Slot) (Yellow Slot)
2 memory modules SS SS
2 memory modules DS DS
Dual Channel DDR2 Memory Configurations
(DS: Double Side, SS: Single Side)
1. If you want to install two memory modules, for optimal compatibil-
ity and reliability, it is recommended to install them in the slots of
the same color. In other words, install them in the set of yellow
slots (DDRII_1 and DDRII_2), in the set of green slots (DDR3_A1
and DDR3_B1), or in the set of pink slots (DDR3_A2 and
DDR3_B2).

1717
1717
17
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish EnglishEnglish
English
2. If only one memory module or three memory modules are in-
stalled in DDR3 DIMM slots on this motherboard, it is unable to
activate the Dual Channel Memory Technology. If only one memory
module is installed in DDR2 DIMM slots on this motherboard, it is
unable to activate the Dual Channel Memory Technology.
3. If a pair of memory modules is NOT installed in the same Dual
Channel, for example, installing a pair of memory modules in
DDR3_A1 and DDR3_B2, it is unable to activate the Dual Channel
Memory Technology.
4. It is not allowed to install a DDR3 memory module into DDR2 slot
or install a DDR2 memory module into DDR3 slot; otherwise, this
motherboard and DIMM may be damaged.
5. DDR2 and DDR3 memory modules cannot be installed on this
motherboard at the same time.
Installing a DIMMInstalling a DIMM
Installing a DIMMInstalling a DIMM
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align aDIMM on the slot such that the notch on the DIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the slot
at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.

1818
1818
18 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)
2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)
2.4 Expansion Slots (PCI and PCI Express Slots)
There are 3 PCI slots and 4 PCI Express slots on this motherboard.
PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI
interface.
PCIE Slots:PCIE1/DE (PCIE x1 slot; White) is used for PCI Express cards with x1
lane width cards, such as Gigabit LANcard, SATA2 card andASRock
PCIE_DE card.
PCIE2 (PCIE x16 slot;Green) is used for PCI Express x16 lane width
graphics cards, or used to install PCI Express graphics cards to support
CrossFireTM function.
PCIE3 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane
width cards, such as Gigabit LANcard, SATA2 card, etc.
PCIE4 (PCIE x16 slot; Blue) is used for PCI Express x1 lane width cards,
such asGigabit LANcard, SATA2 card, etc., or used to install PCI
Express graphics cards to support CrossFireTM function.

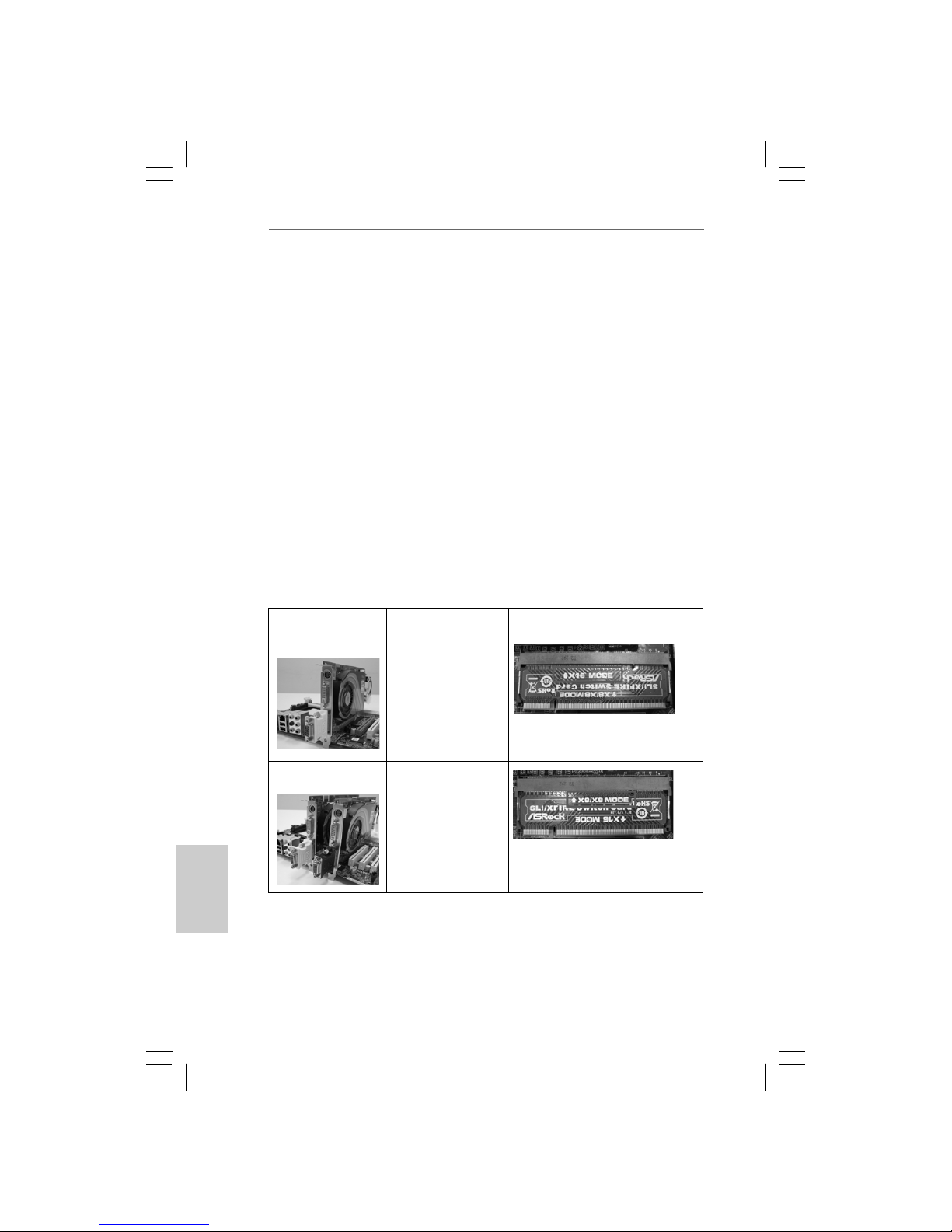

PCIE2 / PCIE4 / SLI/XFire Switch Card Retention Slot
Configurations
PCIE2 Slot PCIE4 Slot SLI/XFire Switch Card
(Green) (Blue) Retention Slot
Single Graphics Card PCIE x16 N/A
Dual Graphics Cards PCIE x8 PCIE x8
in CrossFireTM Mode
(Default)
EnglishEnglish
EnglishEnglish
English

1919
1919
19
ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
1. If you plan to install only one PCI Express VGA card on this
motherboard, please install it on PCIE2 slot (Green). In this mode,
you do not need to adjust the default setting of ASRock SLI/XFire
Switch Card, and please do not remove or lose ASRock SLI/XFire
Switch Card when it is still in working condition.
2. For the information of the compatible CrossFireTM Mode PCI
Express VGA cards and CrossFireTM setup procedures, please refer
to “CrossFireTM Operation Guide” on page 20.
3. If you want to use ASRock DeskExpress function on this motherboard,
please install ASRock PCIE_DE card on PCIE1/DE slot.
Installing an expansion cardInstalling an expansion card
Installing an expansion cardInstalling an expansion card
Installing an expansion card
Step 1. Before installing the expansion card, please make sure that the power
supply is switched off or the power cord is unplugged. Please read the
documentation of the expansion card and make necessary hardware
settings for the card before you start the installation.
Step 2. Remove the system unit cover (if your motherboard is already installed in a
chassis).
Step 3. Remove the bracket facing the slot that you intend to use. Keep the screws
for later use.
Step 4. Align the card connector with the slot and press firmly until the card is
completely seated on the slot.
Step 5. Fasten the card to the chassis with screws.
Step 6. Replace the system cover.
EnglishEnglish EnglishEnglish
English

2020
2020
20 ASRock P45R2000-WiFi / P45R2000 / P45TurboTwins2000 Motherboard
EnglishEnglish
EnglishEnglish
English
1. If a customer incorrectly configures their system they will not see the
performance benefits of CrossFireTM. All three CrossFireTM components, a
CrossFireTM Ready graphics card, a CrossFireTM Ready motherboard and a
CrossFireTM Edition co-processor graphics card, must be installed correctly to
benefit from the CrossFireTM multi-GPU platform.
2. If you pair a 12-pipe CrossFireTM Edition card with a 16-pipe card, both cards will
operate as 12-pipe cards while in CrossFireTM mode.
What graphics cards work with CrossFireTM?
A complete CrossFireTM system requires a CrossFireTM Ready motherboard, a
CrossFireTM Edition graphics card and a compatible standard Radeon (CrossFireTM
Ready) graphics card from the same series, or two CrossFireTM Ready cards. This
applies to cards from ATITM or any of its partners. Please refer to below table for
CrossFireTM VGA card support list according to the OS you install.
For Windows®XP
Vendor Chipset Model Driver
ATI Radeon HD2900XT MSI RX2900XT-VT2D512E Catalyst 7.11
Radeon HD 2600XT Gigabyte GV-RX26T256HP-B Catalyst 7.9
Radeon HD 2600PRO MSI RX2600PRO-T2D256EZ Catalyst 7.9
Radeon X1950XTX GeCube RX1950XTX Catalyst 7.11
Radeon X1950PRO Gecube Radeon X1950Pro 256MB Catalyst 7.11
For Windows®Vista
Vendor Chipset Model Driver
ATI Radeon HD2900XT MSI RX2900XT-VT2D512E Catalyst 7.11
Radeon HD 2600XT Gigabyte GV-RX26T256HP-B Catalyst 7.9
Radeon HD 2600PRO MSI RX2600PRO-T2D256EZ Catalyst 7.9
Radeon X1950XTX GeCube RX1950XTX Catalyst 7.11
Radeon X1950PRO Gecube Radeon X1950Pro 256MB Catalyst 7.11
Radeon X1600PRO MSI RX1600PRO-TD256E Catalyst 7.3
Radeon X1300 PRO MSI RX1300PRO-TD256E Catalyst 7.3
2.5 CrossFire2.5 CrossFire
2.5 CrossFire2.5 CrossFire
2.5 CrossFireTMTM
TMTM
TM Operation GuideOperation Guide
Operation GuideOperation Guide
Operation Guide
This motherboard supports CrossFireTM feature. CrossFireTM technology offers the most
advantageous means available of combining multiple high performance Graphics
Processing Units (GPU) in a single PC. Combining a range of different operating modes
with intelligent software design and an innovative interconnect mechanism, CrossFireTM
enables thehighestpossible levelof performance and imagequality inany3Dapplication.
Currently CrossFireTM feature is supported with Windows®XP with Service Pack 2 and
VistaTM OS. Please checkAMDwebsite forATITM CrossFireTM driver updates.
