Chapter 1 Introduction
ank you for purchasing X600-ITX motherboard. In this documentation, Chapter
1 and 2 contains the introduction of the motherboard and step-by-step installation
guides. Chapter 3 contains the operation guide of the soware and utilities. Chapter
4 contains the conguration guide of the BIOS setup.
1.1 Package Contents
• X600-ITX Motherboard (Deep mini-ITX Form Factor)
• 1 x I/O Panel Shield
• 2 x SATA Cables (Optional)
• 2 x Screws for M.2 Sockets (M2*2) (Optional)
• 1 x Screw for WiFi Module (M2*2) (Optional)
Because the motherboard specications and the BIOS soware might be updated, the
content of this documentation will be subject to change without notice.

English
2
1.2 Specications
Platform • Deep mini-ITX Form Factor
• Solid Capacitor design
CPU • Supports AMD Socket AM5 RyzenTM 7000 Series Processors
• Supports CPU up to 65W
• 6+2 Power Phase design
Chipset • AMD X600
Memory • Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buered memory up to
7200+(OC)*
• Max. capacity of system memory: 192GB
• Supports Extreme Memory Prole (XMP) and EXTended
Proles for Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock’s website for
more information. (http://www.asrock.com/)
Expansion
Slot
CPU:
• 1 x PCIe 4.0 x16 Slot, supports x16 mode*
* Supports NVMe SSD as boot disks
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
Graphics • Integrated AMD RDNATM 2 graphics (Actual support may
vary by CPU)
• ree graphics output options: 1x HDMI, 2 x DisplayPort 1.4
• Supports Triple Monitor
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR,
HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x DisplayPort 1.4 with DSC (compressed), support HDCP
2.3 and max. resolution up to 4K 120Hz

X600-ITX
3
English
Audio • Realtek ALC897 Audio Codec
LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Soware
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and
Streaming Modes
- User Customized Priority Control
Front
Panel I/O
• 1 x Headphone/Headset Jack
• 2 x USB 3.2 Gen1 Type-A Ports
• 1 x USB 3.2 Gen1 Type-C Port
• 2 x USB 2.0 Ports
Rear Panel
I/O
• 1 x HDMI Port
• 2 x DisplayPort 1.4
• 2 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone
Storage CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280
PCIe Gen5x4 (128 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280
PCIe Gen4x4 (64 Gb/s) mode*
ASMedia ASM1061:
• 2 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks

English
4
RAID • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe stor-
age devices*
* Requires additional M.2 NVMe expansion cards to support
RAID 10
Connector • 1 x Chassis Intrusion Header
• 1 x CPU Fan Connector
* e CPU Fan Connector supports the CPU fan of maximum 1A
(12W) fan power.
• 1 x Chassis Fan Connector (4-pin)
* e Chassis Fan Connector supports the chassis fan of maxi-
mum 1A (12W) fan power.
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Header
• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
BIOS
Feature
• AMI UEFI Legal BIOS with GUI support
Hardware
Monitor
• CPU, Chassis Temperature Sensing
• CPU, Chassis Fan Tachometer
• CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by
CPU temperature)
• CPU, Chassis Fan Multi-Speed Control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS • Microso® Windows® 10 64-bit
Certica-
tions
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
Please realize that there is a certain risk involved with overclocking, including adjusting
the setting in the BIOS, applying Untied Overclocking Technology, or using third-party
overclocking tools. Overclocking may aect your system’s stability, or even cause damage to
the components and devices of your system. It should be done at your own risk and expense.
We are not responsible for possible damage caused by overclocking.

X600-ITX
5
English
1.3 Motherboard Layout
USB 3.2 Gen1
USB3_TC_1
Headphone
/ Headset
CPU_FAN1
RoHS
6
DDR5_A2 (64 bit, 288-pin module)
DDR5_A1 (64 bit, 288-pin module)
DDR5_B2 (64 bit, 288-pin module)
DDR5_B1 (64 bit, 288-pin module)
SATA3_A2SATA3_A1
CHA_
FAN1
PANEL1
1
HDLED RESET
PLED PWRBTN
ATX12V1
M.2 WiFi
M.2 PCIe SSD
PCIE1
USB 3. 2 Gen1
T: USB3_1
B: USB3_2
USB 2.0
T: USB_1
B: USB_2
USB 2.0
T: USB_3
B: USB_4
2
12
3
4
9
RJ-45
USB 3.2 Gen 1
USB3 34_
USB_5_6
1
10
11
CLRCMOS1
1
1
ATXPWR1
X600-ITX
BIOS
_FB1
HDMI
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
DP_2
DP_1
78
CI1
1
5
Top Side View

English
6
7
M2_2
Back Side View

X600-ITX
7
English
No. Description
1 8 pin 12V Power Connector (ATX12V1)
2 CPU Fan Connector (CPU_FAN1)
3 2 x 288-pin DDR5 DIMM Slots (DDR5_A1, DDR5_B1)
4 2 x 288-pin DDR5 DIMM Slots (DDR5_A2, DDR5_B2)
5 Chassis Intrusion Header (CI1)
6 ATX Power Connector (ATXPWR1)
7 USB 2.0 Header (USB_5_6)
8 SATA3 Connector (SATA3_A1)
9 SATA3 Connector (SATA3_A2)
10 System Panel Header (PANEL1)
11 Chassis Fan Connector (CHA_FAN1)
12 Clear CMOS Jumper (CLRCMOS1)

English
8
1.4 Front Panel

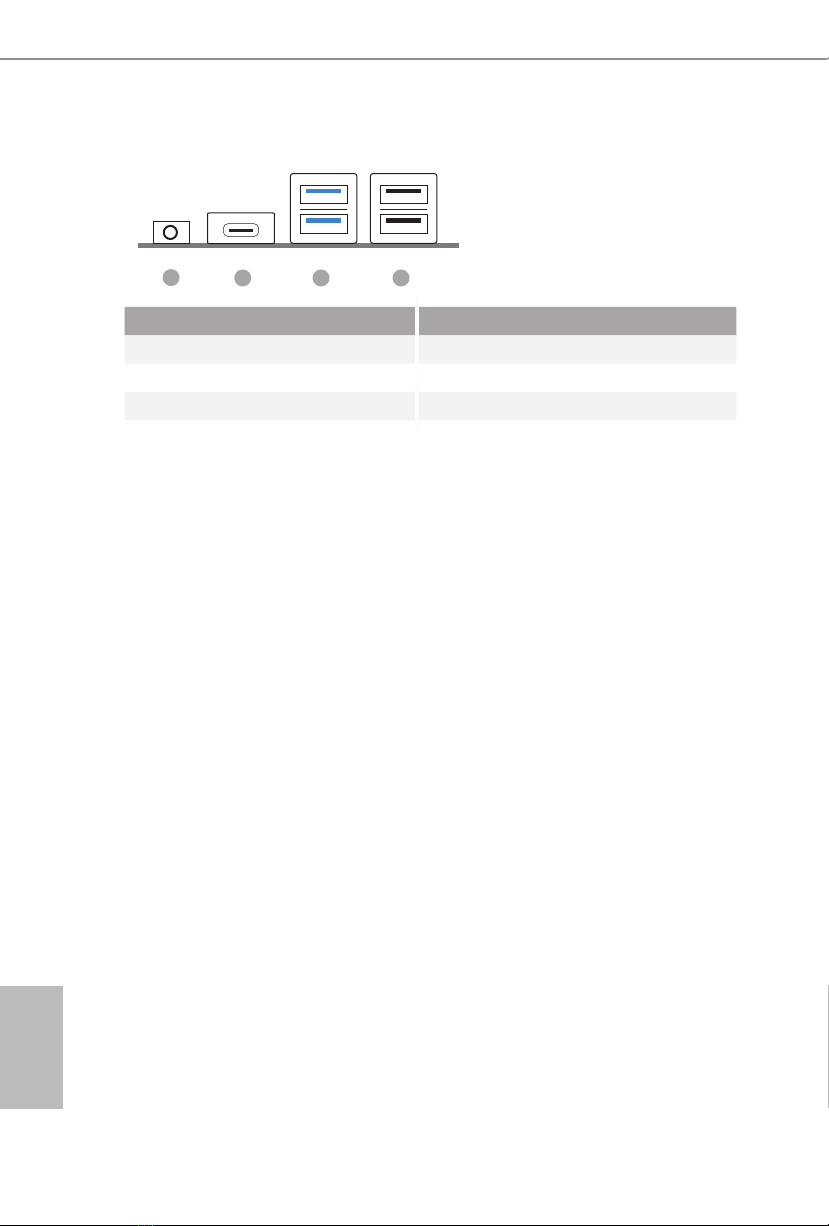

No. Description No. Description
1Headphone/Headset Jack (AUDIO1) 3 USB 3.2 Gen1 Type-A Ports
2 USB 3.2 Gen1 Type-C Port (USB3_12)
(USB3_TC_1) 4 USB 2.0 Ports (USB_12)
12 3 4

X600-ITX
9
English
1.5 Rear Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 6 BIOS Flashback Button
2 Line In (Light Blue)** 7 USB 2.0 Ports (USB_34)
3 Front Speaker (Lime)** 8 DisplayPort 1.4 (DP_1)
4 Microphone (Pink)** 9 DisplayPort 1.4 (DP_2)
5 USB 3.2 Gen1 Ports (USB3_34) 10 HDMI Port
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
89
10
7 6 4
2
3
5
1

English
10
is is a Deep mini-ITX form factor motherboard. Before you install the
motherboard, study the conguration of your chassis to ensure that the
motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
Chapter 2 Installation

X600-ITX
11
English
2.1 Installing the CPU

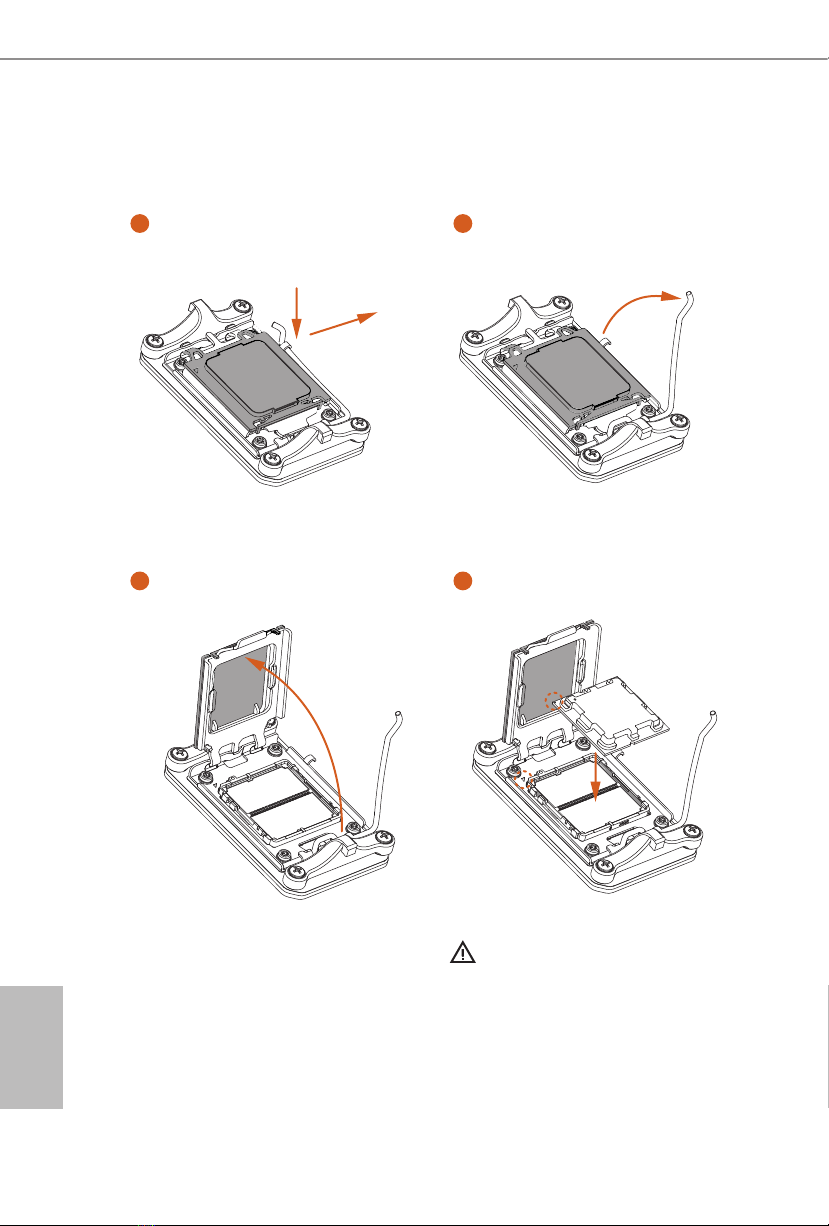

1. Before you insert the 1718-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
Tutorial Video
Turn your CPU to the correct orientation before opening
the CPU socket cover.

English
12
Carefully place the CPU in as at as
possible. Do not drop it.
4
12
A
B
3

X600-ITX
13
English
6
7
5

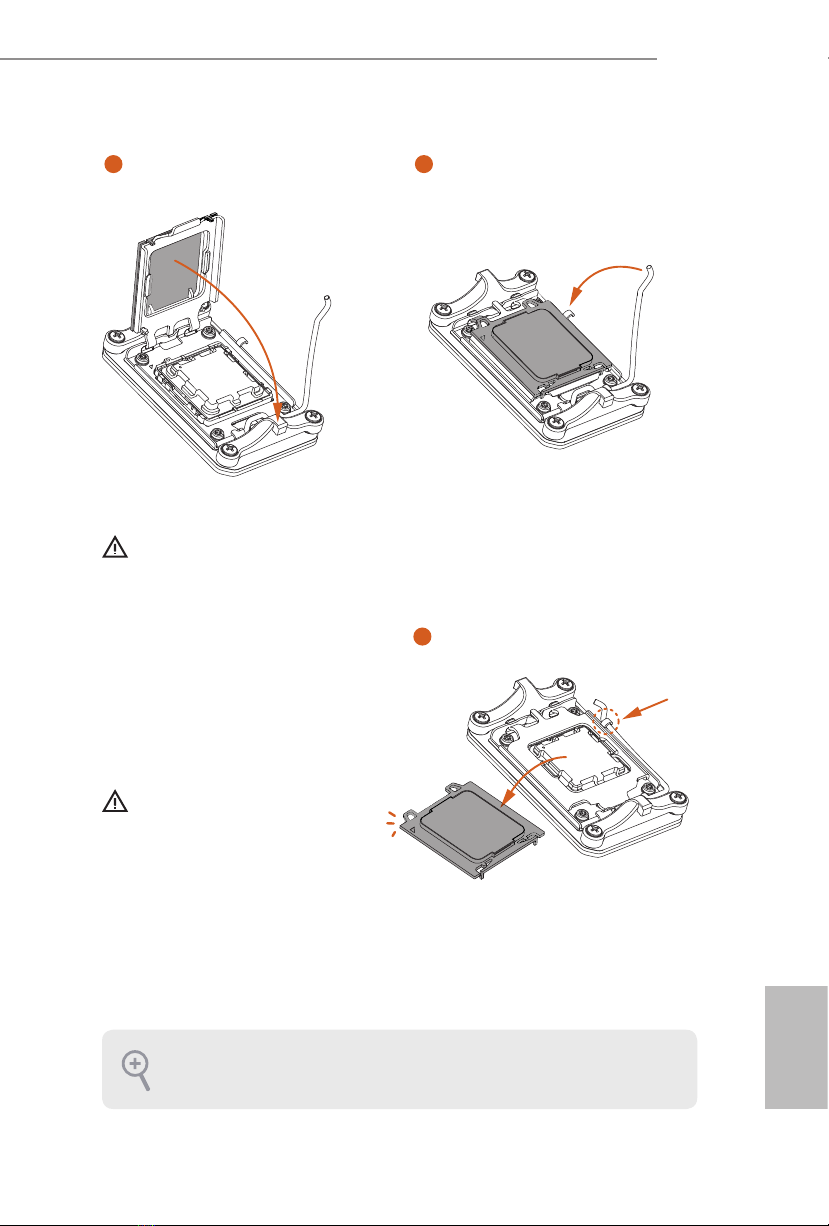

Please save the cover if the processor is removed. e cover must be placed if you wish to
return the motherboard for aer service.
Make sure the black cover plate
is always in place until it pops o
when closing the socket lever.
Make sure the CPU is aligned with the
socket before locking it into place.

English
14
2.2 Installing the CPU Fan and Heatsink
Aer you install the CPU into this motherboard, it is necessary to install a larger
heatsink and cooling fan to dissipate heat. You also need to spray thermal grease
between the CPU and the heatsink to improve heat dissipation. Make sure that the
CPU and the heatsink are securely fastened and in good contact with each other.

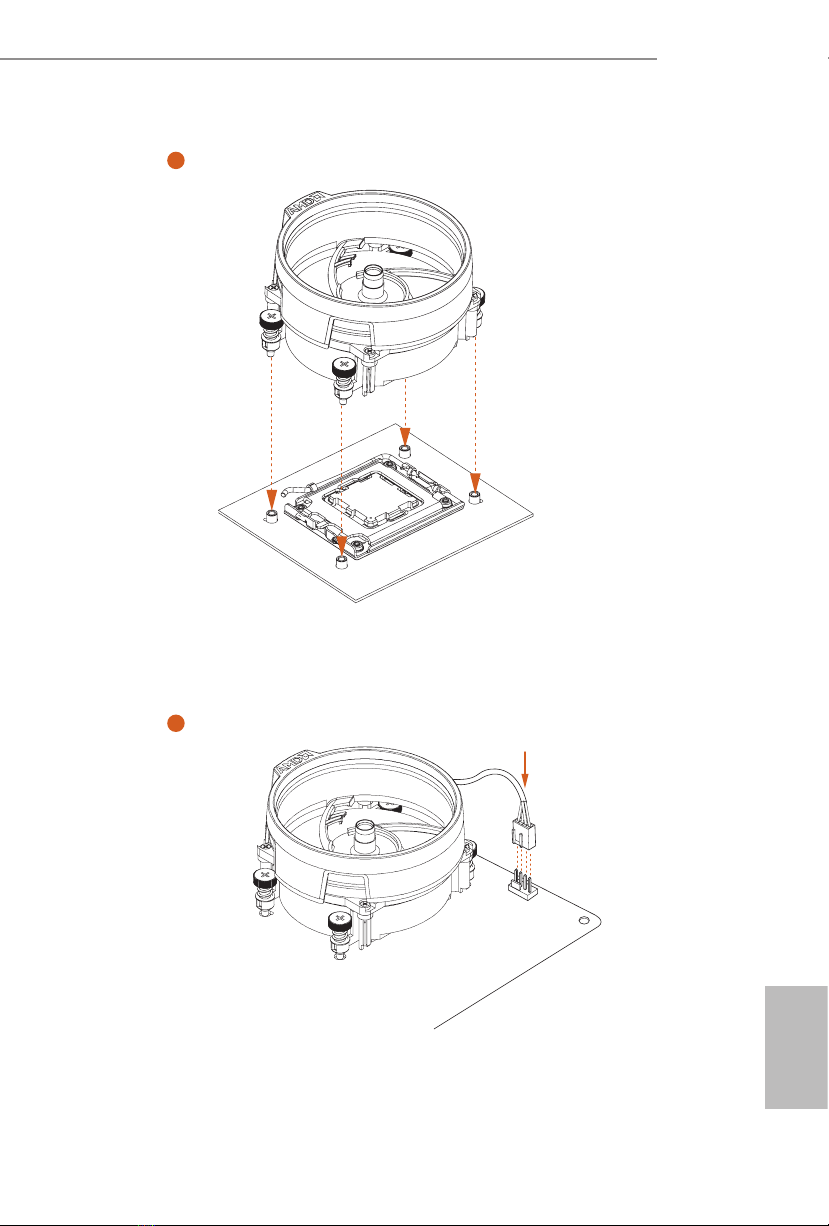

Installing the CPU Cooler
Please turn o the power or remove the power cord before changing a CPU or heatsink.
2
1

X600-ITX
15
English
4
3
CPU_FAN1
