Astor-Bannerman Rio Operating instructions

Rio & Kiva Owner’s Manual
and
Installation Instructions
Height adjustable bath
Important: Read this manual before use

Rio & Kiva Owner’s
Manual and Installation
Instructions
Contents:
Our policy is one of continuous improvement and we therefore reserve the right to make
technical alterations without notice. The content of this publication may not be copied either
whole or in part without the consent of Astor–Bannerman.
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
•Safety Information
•Technical Information
•Instructions for use
•Low height thermostatic taps
•Baths fitted with Neatfold stretcher
•Operating instructions for optional guards
•Operating the spa system
•Contents of packages
•Assembly diagrams
•LTT tap kits
•Commissioning Rio/Kiva LTT mixers
•Commissioning shower mixer
•Preventative maintenance
•Certificate of conformity Page 16
Version 8 12/20188

Page 3
Safety Information
Version 8 12/2018
Equipment data labels
Thank you for purchasing your Rio or Kiva bath.
WARNING:
Before installing or using this equipment you must read and fully understand
these instructions.
Product Description:
The bath is powered by a 24 volt direct current control system with battery
backup, for use in the event of a mains electrical supply failure. It is
essential that the mains power remains switched on at all times to maintain
a charge in the batteries.
The bath is intended for bathing children and adults, weighing up to 150kg
who are capable of maintaining an upright sitting position.
Warranty:
This product is guaranteed against all defects in manufacture for a period of
three years. This does not affect your statutory rights.

Page 4
Technical Information
Version 8 12/20188
Product Dimensionss
No obstructions can be laid on the floor in the red shaded areas.
Water capacity, tub full without client: Kiva: 280 litres (e)
Rio: 200 litres (e)
Lifting capacity including client: Kiva: 280 kg
Rio: 250 kg
Duty cycle: 10% maximum, 2 mins use, 18 mins rest
IP rating: IP X5
Supply voltage: 230v, 50Hz
Protection class: Class 1
Power consumption: 250w
Dry weight of bath: Kiva: 126kg
Rio: 90kg
Add a further 14kg if a full length Neatfold stretcher is used.
Weight of spa option: 6kg
Total output power: 1100w

Page 5
Instructions for use.
Version 8 12/2018
Daily maintenance (before using bath):
•Check the bath is permanently connected to a 230v mains electrical supply.
•Check there are no obstructions above or below the bath when in operation.
•Check the tub will raise and lower properly using the handset.
•Check the temperature of the water in the tub before use.
Instructions for use:
Before using, check that the bath will raise and lower using the
handset and the electrical supply is turned on.
Filling the tub:
Ensure the water temperature is correct when filling the bath and
before the client enters the tub.
Adjusting the height of your bath:
The bath is operated with a two button handset. Pressing one of
the buttons will either raise or lower the bath as required.
Tap options:
Thermostatic mixers taps. TMV2 compliant.
•Rotate the temperature knob until it has reached the preset
temperature.
•Depressing the red button and rotating the knob further will
increase the water temperature up the system (boiler)
temperature.
•Lift the spherical button to divert the water to the shower.
•For the flow rate, rotate the flow rate knob anti-clockwise
until desired flow rate has been achieved.
Thermostatic mixer taps. TMV3 compliant.
•Use the large center knob to control the water temperature
for both bathing and showering.
•Rotate the knob anti-clockwise to increase the temperature
to the preset temperature for both bathing and showering.
The bathing temperature will be 3°c hotter than the preset
temperature for showering.
•The lever control is used to divert the water from the bath
to the shower and control the flow rate. When the lever is
in the central position, water will cease to run.

Page 6
Low profile thermostatic taps
Version 8 12/2018
Shower control Bath temperature
control
1122
Filling the bath:
•A handset is now supplied
with the low profile taps, as
shown in the image.
•The bath raise and bath
lower buttons remain the
same.
•The bath fill button is in the
image shown on the right.
This button on the handset
now replaces the fill button
that was fitted to the tub.
•To fill the bath to the first
level, press the bath fill
button once.
•To continue filling to the
next level, press the bath fill
button again. The tap will
turn off once the second
level sensor has been
reached.
•During either of the filling
operations, the flow can be
stopped by pressing the
bath fill button once.
Operating the shower:
•Lift the shower handset
from the wall mounted
holder and hold over the
bath tub.
•Rotate the shower control
valve to the required flow
and temperature. Lower
buttonr
Raise
button
Bath fill
Do not leave the bath unattended when filling.
Thermostatic valves must be serviced on a regular
basis to ensure safe operation.
12

Page 7
Baths fitted with Neatfold stretcher
Version 8 12/2018
The Neatfold stretcher is designed as a personal support platform fitted to the top of the
bath. It can be quickly and conveniently folded and stowed vertically if the bath is against
a wall, or potentially alongside the bath, maximizing the space available in the room.
Carry out the following checks before using the Neatfold stretcher:
•Check the stretcher is secure and correctly positioned over the tub.
•Visually check the stretcher cover for damage and security before use.
To use the stretcher when stowed down the side of the bath:
•Stand in a suitable position beside the bath so that you can operate the Neatfold
stretcher.
•Lift the assembly upwards so that it resembles Picture A.
•Hold onto the center of the stretcher frame at the point where the material has been
removed (the handhold).
•Pull the stretcher at the handhold and the Neatfold can be folded horizontally down in
place. A small jolt will be felt as the stretcher becomes horizontal, this is normal and part
of the stretcher function.
•Ensure that the stretcher is now resting on the rim of the bath. The Neatfold is now ready for
use (Picture C).
To stow the Neatfold:
•Hold the stretcher frame at the handhold.
•Push upwards and outwards gently so that the Neatfold starts to fold down the middle (Picture
B).
•Once the Neatfold replicates Picture A, it is then ready to be stowed away down the side of
the bath (Picture D).

Page 8
Operating instructions for optional guards (if fitted)
Version 8 12/2018
•Ensure that the stretcher is correctly deployed.
•Carefully align and engage the two vertical tubes of the guard assembly into the black nylon
recievers fitted to the stretcher.
•To remove the guard, lift the guard out vertically from its position and store in a safe place.
Caution:
The persistent or heavy use of oil based products may adversely affect the white stretcher
material. Oils and other petro-chemicals should be avoided or used sparingly and any residue
removed.
Cleaning:
The stretcher, frame, guard and guard bumper may be cleaned using most mild cleaning
agents. Abrasive cleaners should be avoided in order to maintain the semi-gloss finish of the
white high-tension stretcher material and the painted finish of the frame.
The stretcher and frame may be cleaned using a high temperature pressure water or non-
chemical steam cleaner but under no circumstances should it be placed into an autoclave.
Chemical agents and solvents must not be used i.e. drain cleaners, acetone, oven cleaners or
acids. Attention should always be paid to instruction labels on the outside of the cleaning agent
containers.

Fill the tub with water. The spa unit is controlled using the round button attached to the bath tub.
To turn the air pump on, pressing the button once will operate the spa at its lowest setting.
Pressing the button for a second time will operate the spa at its medium setting. Pressing the
button for a third time will operate the spa at its highest setting. Once the unit has been turned on,
it will remain active for 20 minutes before automatically turning off. Pressing the button again will
operate the spa system for a further 20 minutes. Use of the spa bath system for longer than 20
minutes is not recommended.
Hygiene management:
The spa system is designed to be self-maintaining with regards to hygiene. Approximately 20
minutes after use, the spa system will automatically turn itself on and operate for approximately 20
seconds. This is called the "Auto-Purge" cycle. Any water remaining within the jet system will be
ejected, keeping the jets clean. When cleaning the bath, using the bath for showering only, or
bathing without the spa system, it is recommended that a manual purge is performed. The Auto-
Purge will then operate 20 minutes later.
Cleaning the bath:
The bath may be cleaned using most mild cleaning agents. Chemical agents and solvents must not
be used, i.e. drain cleaners, acetone, oven cleaners or acids. The taps, side & end panels and
handset should be cleaned using a warm soapy solution and wipe down with a damp cloth.
Attention should always be paid to instruction labels for the cleaning agent.
Page 9
Operating the Spa system (optional)
Version 8 12/2018
Troubleshooting:
In the unlikely event that problems occur with theunit, carry out the following easy checks to
determine where or not an engineer is required.
Fault: The Rio or Kiva bath doesn't travel up or down or moves downwards very slowly whilst
beeping.
Cause: The mains power supply has been disconnected for some time and the unit's batteries
are now flat.
Remedy: Examine the mains fuses/circuit breakers and reset as necessary and ensure that the
mains voltage is fully reconnected. Allow the battery back-up system to re-charge for
approximately 2 hours.
Fault: The bath doesnt move upward or downards at all.
Cause: The handset has been pulled from the socket fitted to the underside of the unit.
Remedy: Push the plug fitted to the handset more firmly into the socket.
Fault: Only one end of the bath moves up and down.
Remedy: You need to contact Astor Bannerman as there is a malfunction with the equipment.
Fault: Water temperature is incorrect from thermostatic mixer tap.
Remedy: The thermostatic mixer taps will need recalibrating.
Fault: The water has stopped running.
Remedy: Check that you have both a hot and cold water supply.

Page 10
Contents of packages:
Version 8 12/2018

Installation
Assembly Diagrams
Securing the Tub
Use cable ties through the metal strips to
support the waste.
Secure the outer panels using the
plastic rivets.
Plastic rivett
If the inner panels are not fitted
prior to shipping, secure as above.
Version 8 12/2018
Waste arrangement
Fit the tub onto the frame and secure
using the screws provided.
Inner panel fixing Plastic rivets
Rivet positions: do not
separate the two parts of
the rivets. Place the rivet
through the cover and
then press the
mushroom head firmly
flush with the cover.
Panel layout Handset socket
Page 11
Plastic rivett
Fir treet

Commissioning Rio/Kiva LTT Mixers
Commissioning must be carried out in
accordance with these instructions, and
must be conducted by designated,
qualified and competent personnel.

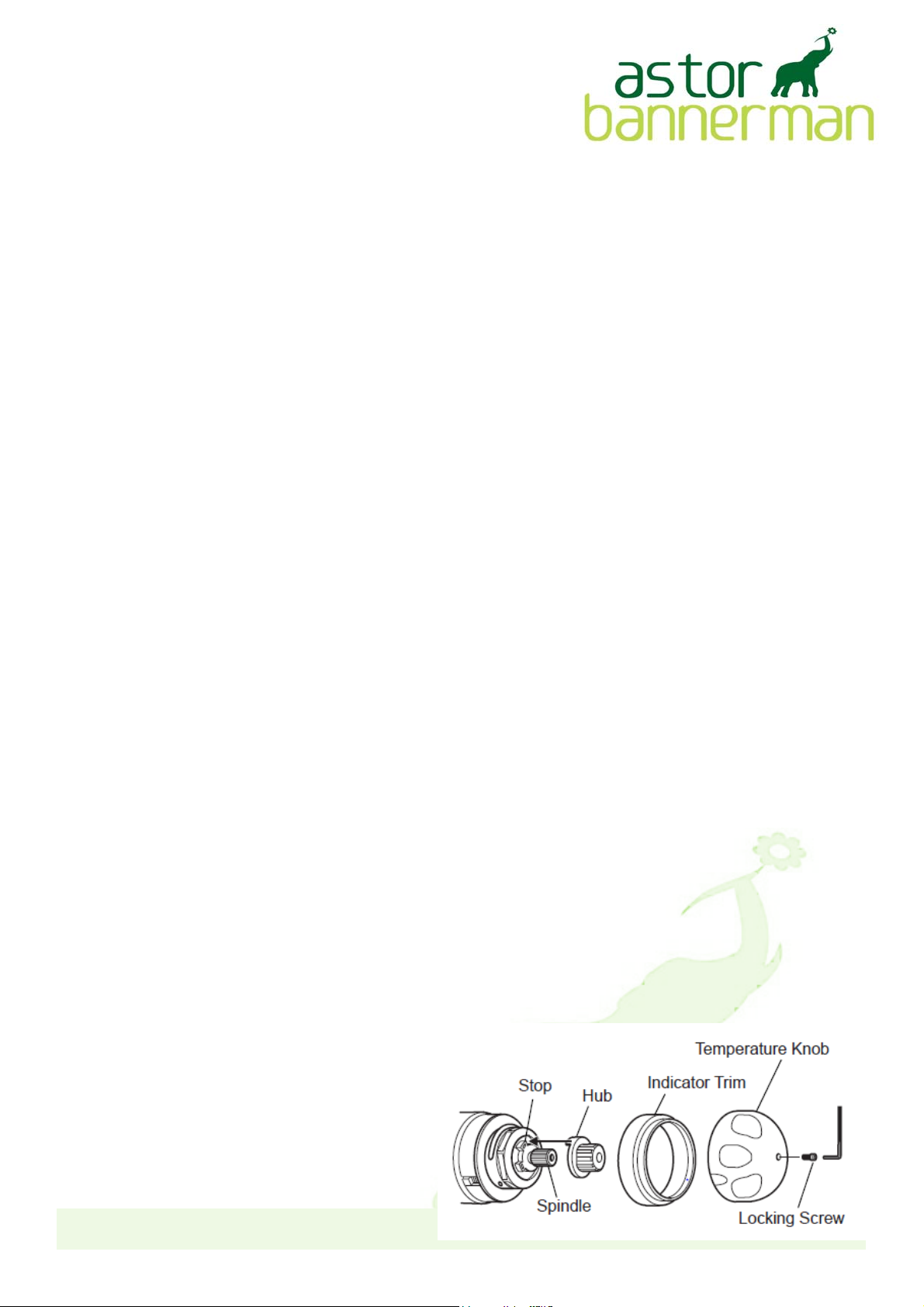

Exercising the Thermostat; Thermostatic
mixing valves with wax thermostats are
inclined to lose their responsiveness if not
used. Valves which have been in storage,
installed but not commissioned, or simply
not used for some time should be
exercised before setting the maximum
temperature or carrying out any tests. A
simple way to provide this exercise is:
•Make sure that the hot and cold
water are available at the valve inlets,
and the outlet is open.
•Move the temperature control rapidly
from cold to hot and back to cold
several times, pausing at each
extreme.
Bath Fill Maximum Temperature:
Note! For Type 3 Healthcare installations
the maximum blend temperature is
determined by the application, refer to the
TMV3 Requirements Manual.
The maximum blend temperature
obtainable by the user should be limited, to
prevent accidental selection of a
temperature that is too hot. All Rada
thermostatic mixing valves are fully
performance tested and the maximum
temperature is preset to approximately 41°c
(222 models -44°c) under ideal installation
conditions at the factory. Site conditions
and personal preference may dictate that
the maximum temperature has to be reset
following installation. This mixing valve is
provided with two methods of temperature
setting, an adjustable temperature control
knob which allows the user to select the
blend temperature between ambient cold up
to a preset maximum, or if considered more
appropriate, a locked cap can be fitted,
allowing no user adjustment.
Maximum Temperature Setting:
Check that an adequate supply of hot water
is available at the hot inlet of the mixing
valve. The minimum temperature of the hot
water must be at least 12°c above the
desired blend, however during resetting
this should be close to the typical storage
maximum to offset the possibility of any
blend shift due to fluctuating supply
temperatures. Check that both inlet
isolating valves are fully open and the inlet
filters are clean. Temperatures should
always be recorded using a thermometer
with proven accuracy.
1. Remove the temperature knob and
indicator trim or locking cap using a
3mm hexagonal key.
2. Pull of the temperature hub.
3. Using the temperature hub, rotate the
spindle until the required maximum
blend temperature is obtained at the
discharge point (rotate clockwise to
decrease temperature). If resistance
is felt, do not use force to turn any
further, as this can damage internal
parts.
4. Once the desired maximum blend
temperature has been achieved, refit
the hub without disturbing the spindle.
For adjustable temperature: Position
the hub such that the lug is against the
side of the stop of the cartridge face,
thus preventing anticlockwise rotation
past the maximum temperature stop.
For locked temperature: Position the
hub such that the lug is between the
stops on cartridge face, thus
preventing any rotation.
Version 8 12/2018 Page 13
Commissioning bath fill

Commissioning shower mixer
Page 14
Version 8 12/2018
Maximum temperature setting:
Before using the shower, the maximum temperature must be checked to make sure that it is at a
safe level. It has been preset to approximately 43°c at the factory but due to variations in site
conditions, the maximum temperature may need adjustment. Note: Make sure that the hot water
temperature is at least 55°c and that there is sufficient supply. Note: For Type 3 valves in
healthcare installations the maximum blend temperature is determined by the application, refer
to the TMV3 Requirements Manual.
1. Turn on the mixer to the maximum temperature (i.e.. fully anticlockwise) and allow the
temperature to stabilize.
If the temperature is too hot or too cold, adjust as follows:
2. Use the 2.5mm hexagon key to slacken the grub screw retaining the control lever. Remove
the control lever.
3. Unscrew the hub retaining screw.
4. Push the hexagon key down through the threads and rotate the hexagon key until the
required maximum temperature is obtained at the shower. Anti-clockwise to increase the
temperature, or clockwise to decrease the temperature (1/4 turn = approximately 1°c).
5. Once the desired maximum blend temperature has been achieved, turn off the mixer.
6. Refit the hub retaining screw.
7. Locate the bearing with the lug in the 8o'clock position.
8. Align the control lever at the 6o'clock position and refit, securing with the securing screw.
9. Check that the shower temperature is correct.
10. Fit the rubber plug to conceal the grub screw.

Version 8 12/2018
Page 15
Preventative maintenance:

Page 16
Version 8 12/2018

Notes:

Astor-Bannerman Ltd
Unit 11f Coln Park Industrial Estate
Andoversford
Cheltenham
GL54 4HJ
Email: sales @astorbannerman.co.uk
Tel: [phone]
Fax: [phone]
Technical Helpline: [phone]
