Asus VW246 User manual

VW246/VK246
LCD Monitor
User’s manual
MENU
1.3
MEGA
PIXELS
MENU

ii
E4076
First Edition V1
August 2008
Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any
means, except documentation kept by the purchaser for backup purposes, without the express written
permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless
such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the
product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS
OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS
DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS,
LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE),
EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR
INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE,
AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO
RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS
MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies, and are used only for identication or explanation and to the
owners’ benet, without intent to infringe.

iii
Contents
Contents ...................................................................................................... iii
Notices......................................................................................................... iv
Safety information ....................................................................................... v
Care & Cleaning ......................................................................................... vi
1. Product introduction....................................................................... 1
1.1 Welcome! ......................................................................... 1
1.2 Package contents .............................................................. 1
1.3 Monitor introduction ........................................................... 2
2. Setup ................................................................................................ 4

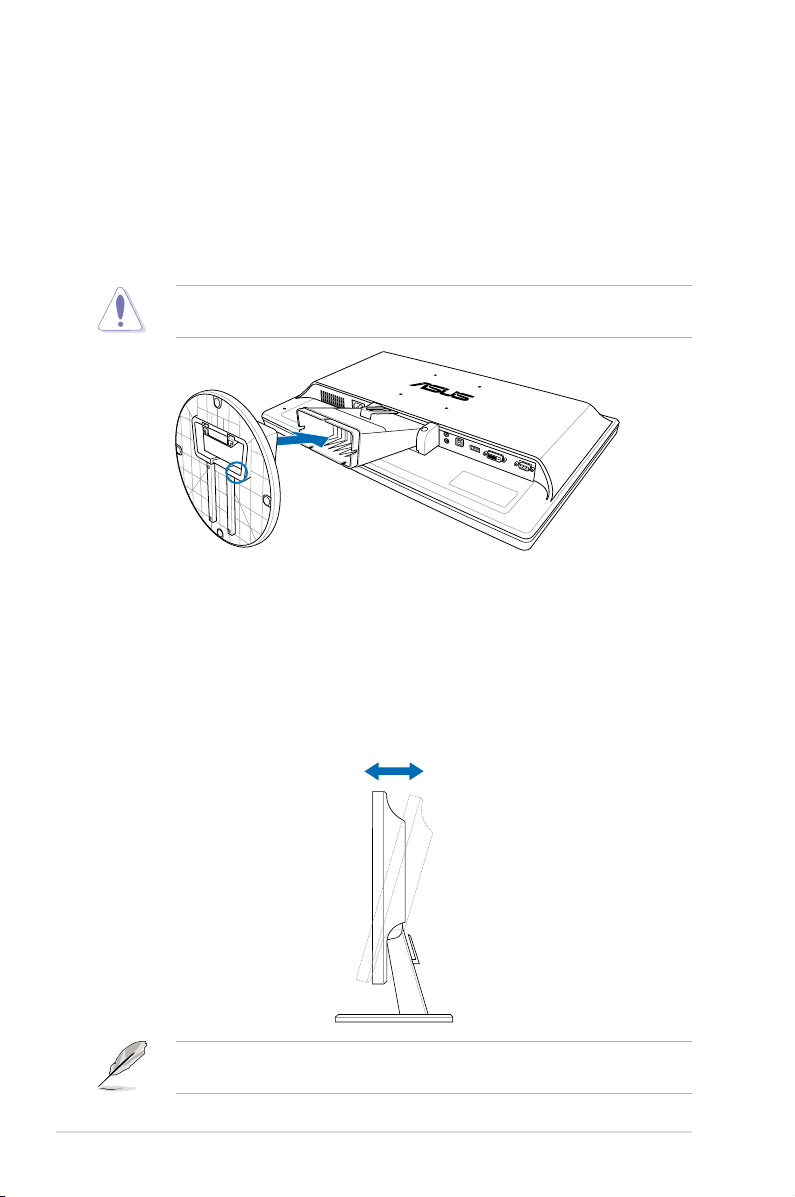

2.1 Assembling the monitor base............................................. 4
2.2 Adjusting the monitor ......................................................... 4

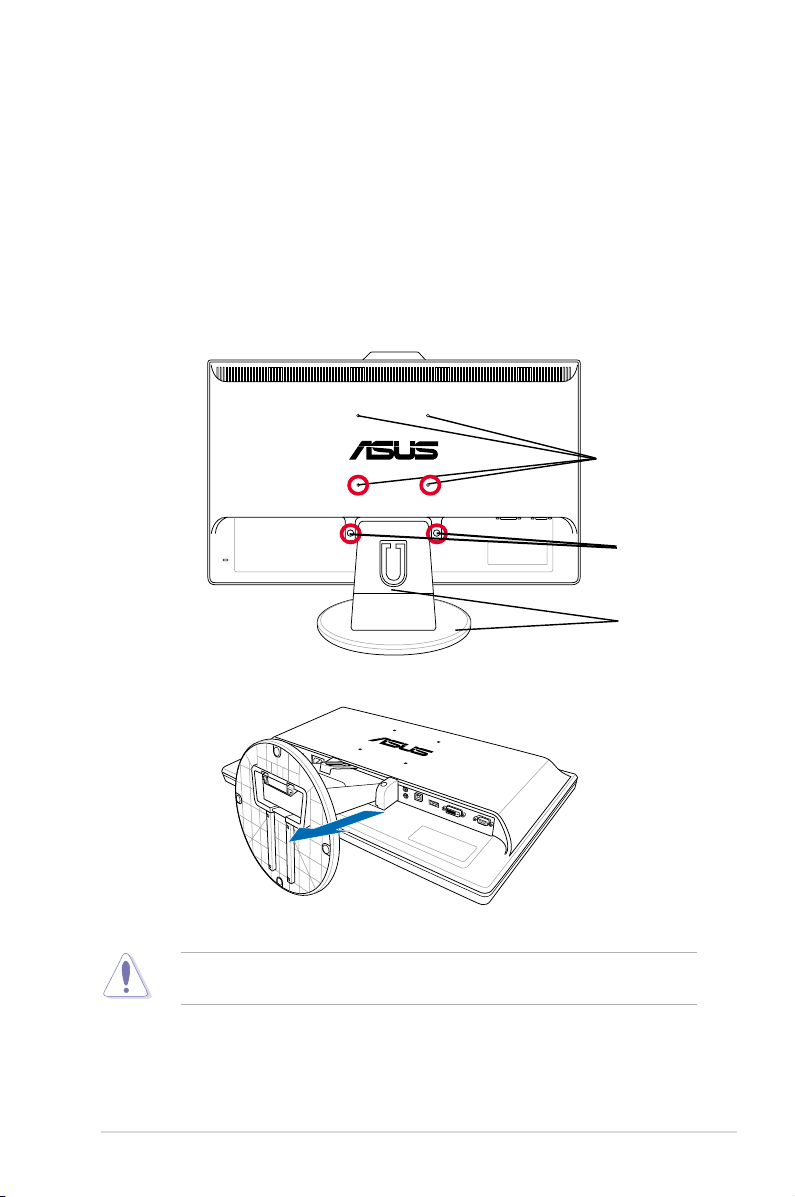

2.3 Detaching the arm/base (for VESA wall mount)................. 5

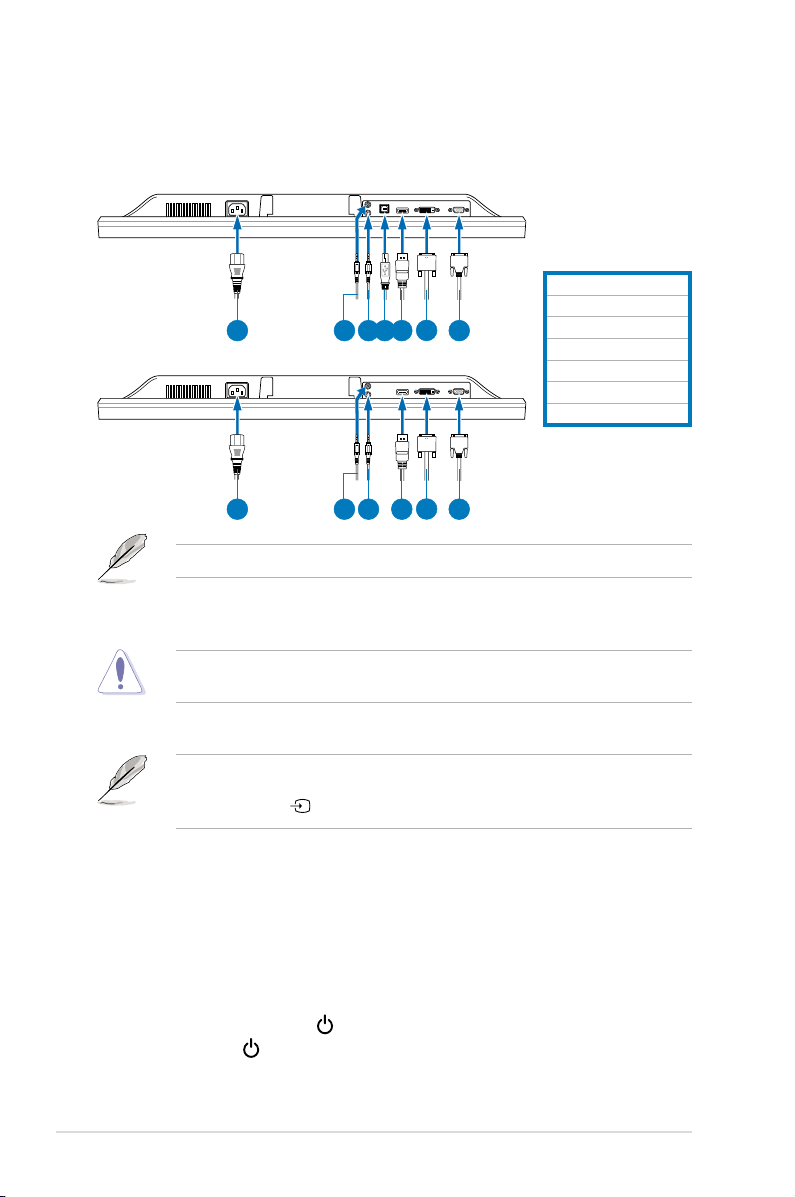

2.4 Connecting the cables ....................................................... 6
2.5 Turning on the monitor ....................................................... 6
2.6 Built-in webcam support..................................................... 7
2.7 LifeFrame 2 software ......................................................... 7
3. General Instruction ......................................................................... 8
3.1 OSD (On-Screen Display) menu ....................................... 8
3.2 Specications summary ....................................................11
3.3 Troubleshooting (FAQ)..................................................... 13
3.4 Supported operating modes............................................. 14

iv
Notices
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer’
s instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The use of shielded cables for connection of the monitor to the graphics card is
required to assure compliance with FCC regulations. Changes or modications
to this unit not expressly approved by the party responsible for compliance could
void the user’s authority to operate this equipment.
As an Energy Star® Partner, our company has determined that this product meets
the Energy Star® guidelines for energy efciency.
Canadian Department of Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the
Canadian Department of Communications.
This class B digital apparatus complies with Canadian ICES-003.

v
Safety information
This symbol of the crossed out wheeled bin indicates that the product (electrical,
electronic equipment and mercury-containing button cell battery) should not
be placed in municipal waste. Please check local regulations for disposal of
electronic products.
• Before setting up the monitor, carefully read all the documentation that came
with the package.
• To prevent re or shock hazard, never expose the monitor to rain or moisture.
• Never try to open the monitor cabinet. The dangerous high voltages inside the
monitor may result in serious physical injury.
• If the power supply is broken, do not try to x it by yourself. Contact a qualied
service technician or your retailer.
• Before using the product, make sure all cables are correctly connected and the
power cables are not damaged. If you detect any damage, contact your dealer
immediately.
• Slots and openings on the back or top of the cabinet are provided for
ventilation. Do not block these slots. Never place this product near or over a
radiator or heat source unless proper ventilation is provided.
• The monitor should be operated only from the type of power source indicated
on the label. If you are not sure of the type of power supply to your home,
consult your dealer or local power company.
• Use the appropriate power plug which complies with your local power
standard.
• Do not overload power strips and extention cords. Overloading can result in
re or electric shock.
• Avoid dust, humidity, and temperature extremes. Do not place the monitor in
any area where it may become wet. Place the monitor on a stable surface.
• Unplug the unit during a lightning storm or if it will not be used for a long period
of time. This will protect the monitor from damage due to power surges.
• Never push objects or spill liquid of any kind into the slots on the monitor
cabinet.
• To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate congured receptacles marked between
100-240V AC.
• If you encounter technical problems with the monitor, contact a qualied
service technician or your retailer.

vi
Care & Cleaning
• Before you lift or reposition your monitor, it is better to disconnect the cables
and power cord. Follow the correct lifting techniques when positioning the
monitor. When lifting or carrying the monitor, grasp the edges of the monitor.
Do not lift the display by the stand or the cord.
• Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor
surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed
with a cloth dampened with mild cleaner.
• Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended
for use with the LCD. Never spray cleaner directly on the screen, as it may drip
inside the monitor and cause an electric shock.
The following symptoms are normal with the monitor:
• The screen may icker during the initial use due to the nature of the uorescent
light. Turn off the Power Switch and turn it on again to make sure that the
icker disappears.
• You may nd slightly uneven brightness on the screen depending on the
desktop pattern you use.
• When the same image is displayed for hours, an afterimage of the previous
screen may remain after switching the image. The screen will recover slowly or
you can turn off the Power Switch for hours.
• When the screen becomes black or ashes, or cannot work anymore, contact
your dealer or service center to x it. Do not repair the screen by yourself!
Conventions used in this guide
To make sure that you perform certain tasks properly, take note of the following
symbols used throughout this manual.
DANGER/WARNING: Information to prevent injury to yourself
when trying to complete a task.
CAUTION: Information to prevent damage to the components
when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a
task.
NOTE: Tips and additional information to help you complete a
task.

vii
Where to nd more information
Refer to the following sources for additional information and for product and
software updates.
1. ASUS websites
The ASUS websites worldwide provide updated information on ASUS
hardware and software products. Refer to http://www.asus.com
2. Optional documentation
Your product package may include optional documentation that may have
been added by your dealer. These documents are not part of the standard
package.

viii

1ASUS VW246/VK246 LCD Monitor
1. Product introduction
1.1 Welcome!
Thank you for purchasing the ASUS®VW246/VK246 LCD monitor!
The latest widescreen LCD monitor from ASUS provides a crisper, broader, and
brighter display, plus a host of features that enhance your viewing experience.
Besides, VK246 provides the built-in 1.3 mega-pixel webcam, which enhances
image quality. No need for installing additional driver while having a video
conference or chatting with friends online!
With these features, you can enjoy the convenience and delightful audio-visual
experience that VW246/VK246 brings you!
1.2 Package contents
Check your VW246/VK246 LCD monitor package for the following items:
• LCD monitor
• Support CD (VK246 only)
• Quick start guide
• Power cord x1
• VGA cable x1
• DVI cable x1
• USB 2.0 cable x1 (VK246 only)
• Audio cable x1
If any of the above items is damaged or missing, contact your retailer
immediately.

2 ASUS VW246/VK246 LCD Monitor
1.3 Monitor introduction

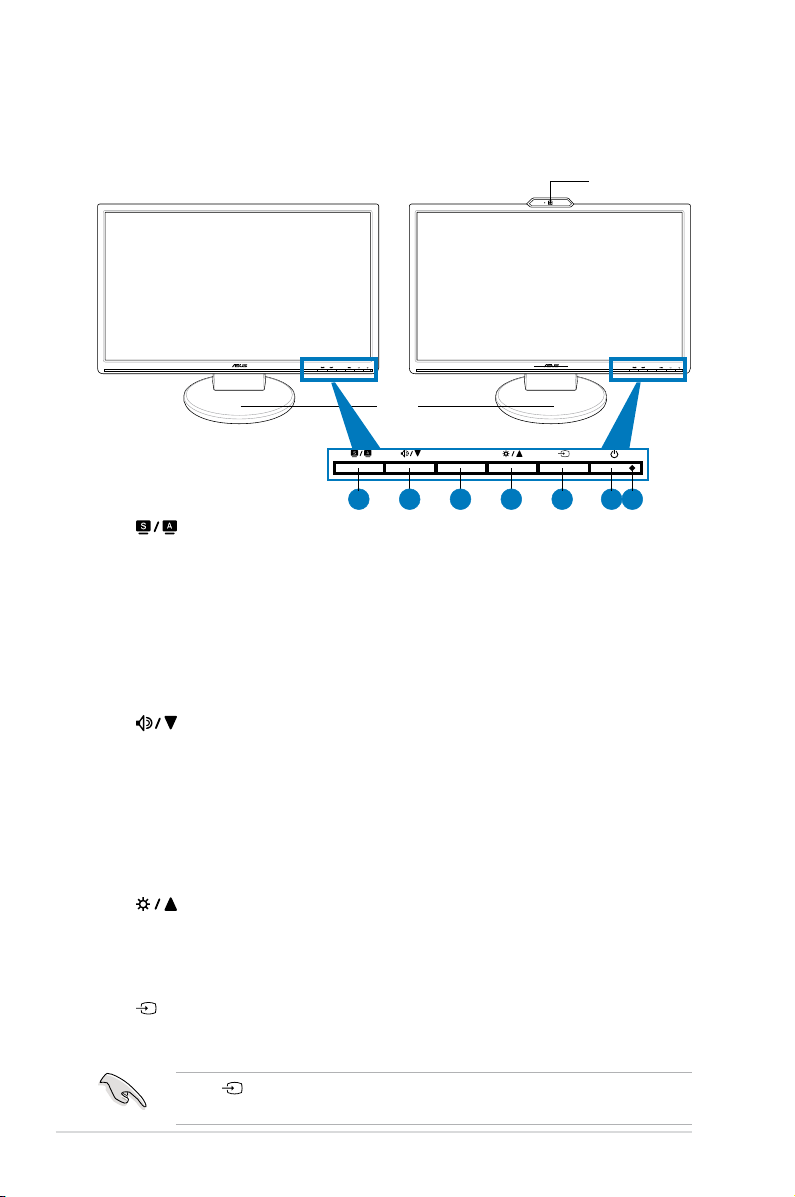

1.3.1 Front view
1. button:
• Use this hotkey to switch from ve video preset modes (Game Mode,
Night View Mode, Scenery Mode, Standard Mode, Theater Mode) with
SPLENDID™ Video Enhancement Technology.
• Exit the OSD menu or go back to the previous menu as the OSD menu
is active.
• Automatically adjust the image to its optimized position, clock, and phase
by pressing this button for 2–3 seconds (VGA input only).
2. button:
• Press this button to decrease the value of the function selected or move
left/up to the previous function.
• This is also a hotkey for Volume adjustment.
3. MENU button:
• Press this button to enter/select the icon (function) highlighted while the
OSD is activated.
4. button:
• Press this button to increase the value of the function selected or move
right/down to the next function.
• This is also a hotkey for Brightness adjustment.
5. button
• Use this hotkey to switch among the three input sources (VGA, DVI,
HDMI).
Press (Input Select Button) to display HDMI signals after you connect HDMI
cable with monitor.
MENU
1.3
MEGA
PIXELS
1.3 mega-pixel
Webcam
Control panel
MENU
ME NU
156 72 3 4
Base
VW246 VK246

3ASUS VW246/VK246 LCD Monitor
1.3.2 Back view
Rear connectors
1. AC-IN port. Connects the power cord.
2. Audio out port. Connects to external speakers.
3. Audio in port. Connects to PC audio source.
4. USB 2.0 port (VK246 only). For activating the built-in webcam.
5. HDMI port. For high-denition multimedia interface (HDMI) signal connection.
6. DVI port. For DVI-D digital signal connection.
7. VGA port. For VGA analog signal connection.
The VESA wall mount kit (100 mm x 100 mm) is purchased separately.
6. button
• Press this button to turn the monitor on/off
7. Power indicator
• The color denition of the power
indicator is as the table at the right
side.
Status Description
Blue ON
Amber Standby mode
OFF OFF
VESA
wall
mount
screw
holes
3
2
14 5 6 7
Cable
hook
Stereo speakers
(2Wx2) 1.3 mega-pixel
Webcam
VW246 VK246

4 ASUS VW246/VK246 LCD Monitor
2. Setup
2.1 Assembling the monitor base
To assemble the monitor base:
1. Have the front of the monitor face down on a table.
2. Connect the base with the arm according to the below drawing. A click sond
shows that the base has been connected successfully.
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
2.2 Adjusting the monitor
• For optimal viewing, we recommend that you look at the full face of the
monitor, then adjust the monitor to the angle that is most comfortable for you.
• Hold the stand to prevent the monitor from falling when you change its angle.
• You can adjust the monitor’s angle from -3˚–20˚.
It is normal that the monitor slightly shakes while you adjust the the viewing
angle.
-3˚–20˚

5ASUS VW246/VK246 LCD Monitor
2.3 Detaching the arm/base (for VESA wall mount)
The detachable arm/base of the VW246/VK246 LCD monitor is specially designed
for VESA wall mount.
To detach the arm/base:
1. Have the front of the monitor face down on a table.
2. Remove the rubbers in the four screw holes (Figure 1).
3. Use a screwdriver to remove the two arm screws, and then slide out the
arm/base to detach it from the monitor (Figure 2).
We recommend that you cover the table surface with soft cloth to prevent
damage to the monitor.
Arm/base
Rubbers in the
screw holes
Figure 1
Arm screws
Figure 2

6 ASUS VW246/VK246 LCD Monitor
2.4 Connecting the cables
Connect the cables as shown:
2.5 Turning on the monitor
Gently press the power button . See page 2 for the location of the power button.
The power indicator lights up in blue to show that the monitor is ON.
• To connect the power cord: connect one end of the power cord
securely to the monitor’s AC input port, the other end to a power outlet.
Before you connect the cables, ensure that your PC is switched off or the power
cord is unpluged from the wall socket.
• To connect the signal cables: connect one end of the signal cable(s) to
the monitor, the other end to your computer or any other video device.
When the HDMI, DVI, and VGA cables are connected simultaneously, you can
switch the input source from the Input Select item of the OSD functions, or by
using the hotkey on the front panel.
• To connect the audio cable: connect the audio cable from the monitor’s
audio-in port to the computer's audio-out port.
• To connect to external speakers: Connect an audio-out cable from
the audio-out port of the LCD monitor to the audio-in port of external
speakers.
The HDMI cable and audio-out cable are purchased separately.
1
VK246
7
6
5432
VW246
1 7
6
532
1. Power cord
2. Audio-out cable
3. Audio-in cable
4. USB 2.0 cable
5. HDMI signal cable
6. DVI signal cable
7. VGA signal cable

7ASUS VW246/VK246 LCD Monitor
2.7 LifeFrame 2 software
ASUS VK246 provides the easy-to-use LifeFrame 2 software that can work with
the webcam, allowing users to create their own photos or video clips.
• LifeFrame 2 only supports Microsoft®Windows®Vista / XP Service Pack 2 (3)
operating systems.
• The LifeFrame 2 software is bundled in the support CD.
Installation instructions
1. Close all other applications.
2. Insert the support CD into the optical drive and run the LifeFrame 2 program.
3. Follow the on-screen instructions to complete the installation
2.6 Built-in webcam support
With the built-in webcam, VK246 allows you to take pictures, have a video
conference, or record video clips. While chatting with friends via Internet-based
communication tools, you can directly show your vivid image.
System requirements
• A personal computer with Pentium® III 800 MHz or higher processor
• Microsoft®Windows®Vista / XP Service Pack 2 (3) operating systems
• Minimum 200 MB free hard disk space to run the program
• 128 MB of RAM or above
• A display card supporting 16-bit high color mode
• Make sure that the bundled USB cable is connected to both the LCD
monitor and your PC. Otherwise, the webcam will not be activated.
• Make sure that you have installed the Windows®Vista / XP Service Pack 2 (3)
or later versions before using the device.
Using the device
The device transmits images to your PC through the USB 2.0 port. Therefore,
make sure that the bundled USB cable is connected to both the LCD monitor and
your PC before you use the device.

8 ASUS VW246/VK246 LCD Monitor
3. General Instruction
3.1 OSD (On-Screen Display) menu
3.1.1 How to recongure
1. Press the MENU button to activate the
OSD menu.
2. Press and to navigate through
the functions. Highlight and activate the
desired function by pressing the MENU
button. If the function selected has a sub-
menu, press and again to
navigate through the sub-menu functions.
Highlight and activate the desired sub-
menu function by pressing the MENU button.
3. Press and to change the settings of the selected function.
4. To exit the OSD menu, press the button. Repeat step 2 and step 3 to
adjust any other function.
3.1.2 OSD Function Introduction
1. Splendid
This function contains ve sub-functions
you can select for your preference. Each
mode has the Reset selection, allowing
you to maintain your setting or return to
the preset mode.
• Scenery Mode: best choice for
scenery photo display with
SPLENDID™ Video Enhancement.
• Standard Mode: best choice for document editing with SPLENDID™
Video Enhancement.
• Theater Mode: best choice for movie with SPLENDID™ Video
Enhancement.
• Game Mode: best choice for game playing with SPLENDID™ Video
Enhancement.
• Night View Mode: best choice for dark-scene game or movie with
SPLENDID™ Video Enhancement.
• In the Standard Mode, the ASCR, Satuation, and Sharpness functions are
not user-configurable.
• Except in the Standard Mode, the sRGB function is not user-congurable.

9ASUS VW246/VK246 LCD Monitor
3. Color
Select the image color you like from this
function.
• Color Temp.: contains five color
modes including Cool, Normal, Warm,
sRGB, and User mode.
• Skin Tone: contains three color
modes including Reddish, Natural,
and Yellowish.
In the User mode, colors of R (Red), G (Green), and B (Blue) are user-
congurable; the adjusting range is from 0-100.
2. Image
You can adjust brightness, contrast,
sharpness, saturation, position (VGA input
only), ASCR, and focus (VGA input only)
from this main function.
• Brightness: the adjusting range is
from 0 to 100. is a hotkey to
activate this function.
• Contrast: the adjusting range is from
0 to 100.
• ASCR: turns on/off the ASCR(ASUS Smart Contrast Ratio) function.
• Sharpness: the adjusting range is from 0 to 100.
• Saturation: the adjusting range is from 0 to 100.
• Position: adjusts the horizontal postition (H-Position) and the vertical
position (V-Position) of the image. The adjusting range is from 0 to 100.
• Focus: reduces Horizonal-line noise and Vertical-line noise of the image
by adjusting (Phase) and (Clock) separately. The adjusting range is from
0 to 100.
• Phase adjusts the phase of the pixel clock signal. With a wrong phase
adjustment, the screen shows horizontal disturbances.
• Clock (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the image is not proportional.

10 ASUS VW246/VK246 LCD Monitor
4. Input Select
Select from VGA, DVI, and HDMI input
sources.
5. System Setup
Allow you to adjust the system.
• Volume: the adjusting range is from
0 to 100. is a hotkey to activate
this function.
• OSD Setup:
* Adjusts the horizontal postition
(H-Position)/ the vertical position
(V-Position) of the OSD from 0 to 100.
* Adjusts the OSD timeout from 10 to 120.
* Enables or disables the DDC/CI function.
• Language: there are ten languages for your selection, including English,
German, Italian, French, Dutch, Spanish, Russian, Traditional Chinese,
Simplified Chinese, and Japanese.
• Aspect Control: adjusts the aspect ratio to “Full” or “4:3”.
• Information: shows the monitor information.
• All Reset: “Yes” allows you to restore the default setting.

11ASUS VW246/VK246 LCD Monitor
3.2 Specications summary (VK246)
Panel Type TFT LCD
Panel size 24" (16:9) wide screen
Max. Resolution Full HD 1920 x 1080
Pixel pitch 0.277mm
Brightness (Typ.) 240cd/m2
Brightness (Max.) 300cd/m2
Contrast Ratio (Typ.) 1000:1
Contrast Ratio (Max.) 20000:1 (with ASCR ON)
Viewing angle(H/V) CR>10 170˚/160˚
Display colors 16.7M
Response time 2ms (Gray to Gray)
Built-in webcam 1.3 mega-pixels
SPLENDID™ Video
Enhancement Yes
SPLENDID™ selection 5 video preset modes (by hotkey)
Auto adjustment Yes (by hotkey)
Color temperature selection 5 color temperatures
Skin-Tone selection 3 skin-tones
HDMI input HDMI (VK246H)
Digital input DVI-D with HDCP (VK246H/U)
Analog input D-Sub
Audio-in port 3.5 mm Mini-jack
Earphone Jack 3.5 mm Mini-jack
Colors Black
Speaker (Built-in) 2W x 2 Stereo, RMS
Power LED Blue (On)/ Amber (Standby)
VESA wall mount 100 x 100mm
Tilt -3˚–20˚
Kensington lock Yes
Voltage rating AC: 100~240V
Power consumption Power On : < 49W, Standby: < 2W, Power Off: <1W
Dimension (W x H x D) 568 mm x 422 mm x 230 mm (machine)
645 mm x 477 mm x 186 mm (package)
Weight (Esti.) 5.5 kg (Net) ; 8 kg (Gross)
Temperature (Operating) 0˚C–40˚C
Temperature (Non-operating) -20˚C–60˚C
Humidity (Operating) 10%~90%
Humidity (Non-operating) 5%~90%
Multi-languages 10 languages (English, German, Italian, French, Dutch, Spanish,
Russian, Traditional Chinese, Simplied Chinese, Japanese)
Accessories VGA cable, DVI cable, audio cable, USB cable, power cord, quick
start guide, warranty card
Regulation approvals
Energy Star®, CB, CE, Gost-R, CCC, UL/cUL, FCC,
Vista Premium (VK246H/U), Vista Basic (VK246S),
C-Tick, BSMI, VCCI, RoHS, WEEE, PSB
*Specications are subject to change without notice.

12 ASUS VW246/VK246 LCD Monitor
Specications summary (VW264)
Panel Type TFT LCD
Panel size 24" (16:9) wide screen
Max. Resolution Full HD 1920 x 1080
Pixel pitch 0.277mm
Brightness (Typ.) 240cd/m2
Brightness (Max.) 300cd/m2
Contrast Ratio (Typ.) 1000:1
Contrast Ratio (Max.) 20000:1 (with ASCR ON)
Viewing angle(H/V) CR>10 170˚/160˚
Display colors 16.7M
Response time 2ms (Gray to Gray)
SPLENDID™ Video
Enhancement Yes
SPLENDID™ selection 5 video preset modes (by hotkey)
Auto adjustment Yes (by hotkey)
Color temperature selection 5 color temperatures
Skin-Tone selection 3 skin-tones
HDMI input HDMI (VW246H)
Digital input DVI-D with HDCP (VW246H/U)
Analog input D-Sub
Audio-in port 3.5 mm Mini-jack
Earphone Jack 3.5 mm Mini-jack
Colors Black
Speaker (Built-in) 2W x 2 Stereo, RMS
Power LED Blue (On)/ Amber (Standby)
VESA wall mount 100 x 100mm
Tilt -3˚–20˚
Kensington lock Yes
Voltage rating AC: 100~240V
Power consumption Power On : < 49W, Standby: < 2W, Power Off: <1W
Dimension (W x H x D) 568 mm x 410 mm x 230 mm (machine)
645 mm x 477 mm x 186 mm (package)
Weight (Esti.) 5.5 kg (Net); 8 kg (Gross)
Temperature (Operating) 0˚C–40˚C
Temperature
(Non-operating) -20˚C–60˚C
Humidity (Operating) 10%~90%
Humidity (Non-operating) 5%~90%
Multi-languages 10 languages (English, German, Italian, French, Dutch, Spanish,
Russian, Traditional Chinese, Simplied Chinese, Japanese)
Accessories VGA cable, DVI cable, audio cable, power cord, quick start guide,
warranty card
Regulation approvals
Energy Star®, CB, CE, Gost-R, CCC, UL/cUL, FCC,
Vista Premium (VW246H/U), Vista Basic (VW246S),
C-Tick, BSMI, VCCI, RoHS, WEEE, PSB
*Specications are subject to change without notice.
