Asus CUC2000-M User manual

®
CUC2000-M
microATX Camino Motherboard
USER’S MANUAL

2ASUS CUC2000-M User’s Manual
USER'S NOTICE
Product Name: ASUS CUC2000-M
Manual Revision: 1.03 E515
Release Date: April 2000
No part of this manual, including the products and software described in it, may be repro-
duced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITYOR FITNESS FORAPAR-
TICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDEN-
TAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF
PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSI-
NESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY
OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL
OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing byASUS; or (2)
the serial number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered trade-
marks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent to infringe.
• Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
• Intel, LANDesk, and Pentium are registered trademarks of Intel Corporation.
• Vortex and Wavetracing are trademarks of Aureal Semiconductor Incorporated.
• Trend and ChipAwayVirus are trademarks of Trend Micro, Inc.
• Windows and MS-DOS are registered trademarks of Microsoft Corporation.
• ADI and SoundMAX are trademarks of Analog Devices, Inc..
The product name and revision number are both printed on the product itself. Manual revi-
sions are released for each product design represented by the digit before and after the period
of the manual revision number. Manual updates are represented by the third digit in the manual
revision number.
For previous or updated manuals, BIOS, drivers, or product release information, contactASUS
at http://www.asus.com.tw or through any of the means indicated on the following page.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUALARE FUR-
NISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT
ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COM-
MITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR
ANYERRORS ORINACCURACIESTHATMAYAPPEARINTHISMANUAL, INCLUD-
ING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Copyright © 2000 ASUSTeK COMPUTER INC. All Rights Reserved.

ASUS CUC2000-M User’s Manual 3
ASUS CONTACT INFORMATION
ASUSTeK COMPUTER INC. (Asia-Pacific)
Marketing
Address: 150 Li-Te Road, Peitou, Taipei, Taiwan 112
Telephone: [phone]
Fax: [phone]
Email: [email protected]
Technical Support
MB/Others (Tel): [phone] (English)
Notebook (Tel): [phone] (English)
Desktop/Server (Tel):[phone] (English)
Fax: [phone]
Email: [email protected]
WWW: www.asus.com.tw
FTP: ftp.asus.com.tw/pub/ASUS
ASUS COMPUTER INTERNATIONAL (America)
Marketing
Address: 6737 Mowry Avenue, Mowry Business Center, Building 2
Newark, CA 94560, USA
Fax: [phone]
Email: [email protected]
Technical Support
Fax: [phone]
Email: [email protected]
WWW: www.asus.com
FTP: ftp.asus.com/Pub/ASUS
ASUS COMPUTER GmbH (Europe)
Marketing
Address: Harkortstr. 25, 40880 Ratingen, BRD, Germany
Fax: [phone]
Email: [email protected] (for marketing requests only)
Technical Support
Hotline: MB/Others: [phone] Notebook: [phone]
Fax: [phone]
Support (Email): www.asuscom.de/de/support (for online support)
WWW: www.asuscom.de
FTP: ftp.asuscom.de/pub/ASUSCOM

4ASUS CUC2000-M User’s Manual
CONTENTS
1. INTRODUCTION ............................................................................. 7
1.1 How This Manual Is Organized .................................................. 7
1.2 Item Checklist ............................................................................. 7
2. FEATURES ........................................................................................ 8
2.1 The ASUS CUC2000-M ............................................................. 8
2.1.1 Specifications .................................................................. 8
2.1.2 Specifications–Optional Components ............................. 9
2.1.3 Performance................................................................... 10
2.1.4 Intelligence .................................................................... 11
2.2 CUC2000-M Motherboard Components .................................. 12
3. HARDWARE SETUP ...................................................................... 14
3.1 CUC2000-M Motherboard Layout ........................................... 14
3.2 Layout Contents ........................................................................ 15
3.3 Hardware Setup Procedure ....................................................... 17
3.4 Motherboard Settings................................................................ 17
3.5 System Memory (DIMM) ......................................................... 24
3.5.1 SDRAM Configurations ................................................ 24
3.5.2 DIMM Installation ......................................................... 26
3.6 Central Processing Unit (CPU) ................................................. 27
3.7 Expansion Cards ....................................................................... 28
3.7.1 Expansion Card Installation Procedure ......................... 28
3.7.2 Assigning IRQs for Expansion Cards............................ 29
3.7.3 Accelerated Graphics Port (AGP) Pro Slot ................... 30
3.7.4 Audio Modem Riser (AMR) Slot .................................. 31
3.8 Connectors ................................................................................ 32
3.9 Starting Up the First Time ........................................................ 43
4. BIOS SETUP..................................................................................... 45
4.1 Managing and Updating Your BIOS......................................... 45
4.1.1 Upon First Use of the Computer System....................... 45
4.1.2 Updating BIOS Procedures ........................................... 46
4.2 BIOS Setup Program ................................................................ 49
4.2.1 BIOS Menu Bar ............................................................. 50
4.2.2 Legend Bar .................................................................... 50
4.3 Main Menu................................................................................ 52
4.3.1 Primary & Secondary Master/Slave .............................. 53
4.3.2 Keyboard Features ......................................................... 56

ASUS CUC2000-M User’s Manual 5
CONTENTS
4.4 Advanced Menu ........................................................................ 58
4.4.1 Chip Configuration ........................................................ 62
4.4.2 I/O Device Configuration .............................................. 64
4.4.3 PCI Configuration ......................................................... 66
4.4.4 Shadow Configuration ..................................................... 67
4.5 Power Menu .............................................................................. 68
4.5.1 Power Up Control.......................................................... 70
4.5.2 Hardware Monitor ......................................................... 72
4.6 Boot Menu ................................................................................ 73
4.7 Exit Menu ................................................................................. 75
5. SOFTWARE SETUP....................................................................... 77
5.1 Install Operating System........................................................... 77
5.2 Start Windows........................................................................... 77
5.3 820 Series Support CD ............................................................. 80
5.4 Intel LDCM Administrator Setup ............................................. 83
5.5 Intel LDCM Client Setup.......................................................... 85
5.6 ASUS BIOS Flash Utility for LDCM ....................................... 86
5.7 INF Update Utility for Intel 820 Chipset .................................. 87
5.8 Install Intel Ultra ATA Storage Driver ...................................... 88
5.9 Install Audio Driver .................................................................. 89
5.10 Install ASUS PC Probe Vx.xx .................................................. 90
5.11 Install ASUS Update Vx.xx ...................................................... 90
5.12 Install PC-Cillin 98 Vx.xx ........................................................ 92
5.13 Install YAMAHA S-YXG50 SoftSynthesizer ........................... 93
5.14 Install Adobe Acrobat Reader Vx.x .......................................... 94
5.15 Uninstalling Programs .............................................................. 95
6. SOFTWARE REFERENCE ........................................................... 97
6.1 ASUS PC Probe ........................................................................ 97
6.2 ASUS Update.......................................................................... 102
6.3 YAMAHA XGPlayer .............................................................. 103
7. APPENDIX...................................................................................... 107
7.1 Modem Riser........................................................................... 107
7.2 ASUS CIDB Intrusion Detection Module .............................. 109
7.3 Glossary .................................................................................. 111
INDEX ................................................................................................. 115

6ASUS CUC2000-M User’s Manual
FCC & DOC COMPLIANCE
FederalCommunicationsCommission Statement
This device complies with FCC Rules Part 15. Operation is subject to the following
two conditions:
• This device may not cause harmful interference, and
• This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly ap-
proved by the manufacturer could void any assurances of safety or performance
and could result in violation of Part 15 of the FCC Rules.
Reprinted from the Code of Federal Regulations #47, part 15.193, 1993. Washington DC: Office of the
Federal Register, National Archives and Records Administration, U.S. Government Printing Office.
CanadianDepartmentof Communications Statement
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
This Class B digital apparatus complies with Canadian ICES-003.
CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.

ASUS CUC2000-M User’s Manual 7
1.1 How This Manual Is Organized
This manual is divided into the following sections:
1. INTRODUCTION Manual information and checklist
2. FEATURES Production information and specifications
3. HARDWARE SETUP Intructions on setting up the motherboard.
4. BIOS SETUP Intructions on setting up the BIOS
5. SOFTWARE SETUP Intructions on setting up the included software
6. SOFTWARE REFERENCE Reference material for the included software
7. APPENDIX Optional items and general reference
1.2 Item Checklist
Check that your package is complete. If you discover damaged or missing items,
contact your retailer.
1. INTRODUCTION
1. INTRODUCTION
Manual / Checklist
Package Contents
(1) ASUS Motherboard
(1) 40-pin 80-conductor ribbon
cable for internal UltraDMA/
66 or UltraDMA/33 IDE
drives
(1) Ribbon cable for master and
slave IDE drives
(1) Ribbon cable for (1) 5.25”and
(2) 3.5”floppy disk drives
(1) ASUS 3-port USBconnector set
with bracket (optional)
(1) Bag of spare jumpers
(1) Support drivers and utilities
(1) This Motherboard User’s
Manual
Optional Items
I/O Shield (for LAN model only)
ASUS consumer infrared set (op-
tional)
ASUS IrDA-compliant infrared
module (optional)
ASUS CIDB chassis intrusion de-
tection module (optional)
Modem riser (optional)

8ASUS CUC2000-M User’s Manual
2.1 The ASUS CUC2000-M
The ASUS CUC2000-M motherboard is carefully designed for the demanding PC
user who wants advanced features processed by the fastest processors.
2.1.1 Specifications
•Latest Intel Processor Support
Intel Pentium
®
III 133MHz FSB Coppermine core FC-PGA
Intel Pentium
®
III 100MHz FSB Coppermine core FC-PGA
Intel Celeron™100MHz FSB Mendocino core PPGA
•Intel 820 Chipset: Features the Intel
®
820 chipset (Memory Controller Hub, I/
O Controller Hub, and Firmware Hub) with support for AGP 4X mode, which
can transport twice the amount of data compared to the current AGP standard;
100/133MHz Front Side Bus (FSB); UltraDMA/66, which allows burst mode
data transfer rates of up to 66.6MBps; and Intel Random Number Generator,
which will improve cryptography, digital signing, and other security protocols.
•PC100 Memory Support: Equipped with four Dual Inline Memory Module
(DIMM) sockets to support Intel PC100-compliant SDRAMs (available in 64,
128, 256, or 512MB densities) up to 1GB.
•AGPPro Slot: Comes with anAccelerated Graphics Port Pro slot that supports
AGP cards for high performance, component level interconnect targeted at 3D
graphical applications using a 1X, 2X, or 4X mode bus. Backward compatible
to support AGP 4X and AGP 2X.
•UltraDMA/66 Support: Comes with an onboard PCI Bus Master IDE controller
with two connectors that support four IDE devices on two channels. Supports
UltraDMA/66, UltraDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode
2,andEnhanced IDE devices, suchasDVD-ROM,CD-ROM, CD-R/RW, LS-120,
and Tape Backup drives.
•More USB Ports: Supports a total of 5 USB ports for more peripheral connec-
tivity options.
•Wake-Up Support: Supports Wake-On-LAN and Wake-On-Ring, Keyboard
Wake-Up, and BIOS Wake-Up.
•JumperFree™Mode:Allows processor settings and easy overclocking of fre-
quency and Vcore voltage all through BIOS setup when JumperFree™mode is
enabled. Easy-to-use DIP switches instead of jumpers are included to allow
manual adjustment of the processor’s external frequency.
•Around-the-Clock Intrusion Detection: Chassis intrusion circuitry can log
chassis open events into LDCM. The onboard battery supports detection even
when normal power is removed and through a new design, battery drain is even
lower than the RTC used for keeping time!
•FirmwareHub:Provides security-enhancements in computer platforms by sup-
porting Random Number Generator (RNG).
•SMBus:Features the System Management Bus interface, which is used to physi-
cally transport commands and information between SMBus devices.
2. FEATURES
Specifications
2. FEATURES

ASUS CUC2000-M User’s Manual 9
2. FEATURES
2. FEATURES
Optional Components
•PC Health Monitoring: Provides an easy way to examine and manage system
status information, such as CPU and systerm voltages, temperatures, and fan
status through the onboard hardware ASUS ASIC and the bundled ASUS PC
Probe or Intel LDCM software.
•AMR Slot: Audio Modem Riser slot supports a very affordable audio and/or
modem riser card.
•Legacy Free: Provides two 32-bit PCI (PCI 2.2 compliant) with no ISA, elimi-
nating bottlenecks and system memory management issues. All PCI slots can
support Bus Master PCI cards, such as SCSI or LAN cards. (PCI supports up to
133MB/s maximum throughput.)
•Low Pin Count (LPC) Multi-I/O: Provides two high-speed UART compatible
serial ports and one parallel port with EPP and ECP capabilities. UART2 can
also be directed from COM2 to the Infrared Module for wireless connections.
•Enhanced ACPI & Anti-Boot Virus Protection: Programmable BIOS (Flash
EEPROM), offering enhancedACPI for Windows 98/2000/Millenium compat-
ibility, built-in firmware-based virus protection, and autodetection of most de-
vices for virtually automatic setup.
•Smart BIOS: 4Mbit firmware gives a new easy-to-use interface which provides
more control and protection over the motherboard. Provides Vcore and CPU/
SDRAM frequency adjustments, boot block write protection, and HD/SCSI/MO/
ZIP/CD/Floppybootselection.Hardware random number generator supports new
security software for data protection and secured Internet transactions.
•IrDA: Supports an optional infrared port module for wireless interface.
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter busses to the memory and processor.
•Onboard LED: The onboard LED will light up when there is standby power to
the motherboard. This acts as a reminder to the user to turn OFF the power
before plugging and unplugging devices so as not to damage the motherboard,
peripherals, and/or components.
2.1.2 Specifications–Optional Components
The following onboard components are optional at the time of purchase:
•PCI Audio: Features Aureal’s Vortex 2 positional 3D audio chip with A3D 2.0
hardware support.A3D 2.0 provides many advanced 3D audio features, includ-
ing Aureal Wavetracing™, which traces sound waves in real-time to simulate
the acoustic characteristics of the environment for true 3D audio.
•SmartAudio: AC97 V2.1 compliantAudio Codec with sample rate conversion
from 7kHz to 48kHz.
•SmartNetworking:Features3Com’sEthernetController,which supportsWired
for Management, remote wake-up, and OnNow initiative to reduce Total Cost
of Ownership (TCO).
•No Messy Wires: Integrated Consumer IR and Standard IR supports an op-
tional remote control package for wireless interfacing with external peripherals,
personal gadgets, or an optional remote controller.

10 ASUS CUC2000-M User’s Manual
2. FEATURES
Performance
2. FEATURES
2.1.3 Performance
•UltraPerformance:OnboardIDE Bus Mastercontrollerwithtwoconnectors that
support four IDE devices in two channels. Supports UltraDMA/66, UltraDMA/33
(IDEDMAMode2), PIO Modes 3 &4,andsupportsEnhanced IDE devices, such
as DVD-ROM, CD-ROM, CD-R/RW, LS-120, and Tape Backup drives.
•Dual Speeds: CPU frequency can operate at either 133MHz or 100MHz.
•High-Speed Data Transfer Interface: IDE transfers using UltraDMA/33 Bus
Master IDE can handle rates up to 33MB/s. This motherboard with its chipset
and support for UltraDMA/66 doubles the UltraDMA/33 burst transfer rate to
66.6MB/s. UltraDMA/66 is backward compatible with both DMA/33 and DMA
and with existing DMA devices and systems so there is no need to upgrade
current EIDE/IDE drives and host systems. (UltraDMA/66 requires a 40-pin
80-conductor cable to be enabled and/or for UltraDMA Mode 4.)
•Concurrent PCI: Concurrent PCI allows multiple PCI transfers from PCI mas-
ter buses to memory and processor.
•SDRAM Optimized Performance: This motherboard supports PC100-com-
pliant Synchronous Dynamic RandomAccess Memory (SDRAM), which increases
the data transfer rate to 800MB/s max
•ACPIReady:ACPI (Advanced ConfigurationandPowerInterface) is alsoimple-
mented on all ASUS smart series motherboards. ACPI provides more Energy
Saving Features for future operating systems (OS) supporting OS Direct Power
Management (OSPM) functionality.With these features implemented in the OS,
PCs can be ready around the clock, yet satisfy all the energy saving standards.
To fully utilize the benefits ofACPI, an ACPI-supported OS, such as Windows
98/2000/Millenium, must be used.
•Suspend and Go: Suspend-to-RAM (STR) provides maximum power savings
as an alternative to leaving the computer ON and QuickStart™so that you do
not have to wait for a long time for system bootup.
•NewCompliancy:Both the BIOS and hardware levels of the motherboard meet
the stringent requirements for PC 99 certification. The new PC 99 requirements
for systems and components are based on the following high-level goals: sup-
port for Plug and Play compatibility and power management for configuring
and managing all system components, and 32-bit device drivers and installation
procedures for Windows 95/NT and later. Color-coded connectors and descrip-
tive icons make identification easy as required by PC 99.

ASUS CUC2000-M User’s Manual 11
2. FEATURES
2. FEATURES
Intelligence
2.1.4 Intelligence
•Fan Status Monitoring and Alarm: To prevent system overheat and system
damage, the CPU, power supply, and system fans can be monitored for RPM
and failure. All the fans are set for its normal RPM range and alarm thresholds.
•TemperatureMonitoringandAlert:Topreventsystemoverheat andsystem dam-
age, this motherboard supports processor thermal sensing and auto-protection.
•Voltage Monitoring andAlert: System voltage levels are monitored to ensure
stable current to critical motherboard components. Voltage specifications are
more critical for future processors, so monitoring is necessary to ensure proper
system configuration and management.
•System Resources Alert: Today’s operating systems, such as Windows 98/
Millenium,Windows NT/2000, and OS/2, require much more memory and hard
drive space to present enormous user interfaces and run large applications. The
onboard hardware ASUS ASIC in conjunction with either the bundled ASUS
PC Probe or Intel LDCM will warn the user before the system resources are
used up to prevent possible application crashes. Suggestions will give the user
information on managing their limited resources more efficiently.
•Dual Function Power Button: Through BIOS, the power button can be defined
as the “Stand by”(a.k.a. Suspend or Sleep) button or as the Soft-Off (see ATX
Power / Soft-Off Switch Lead in 3.8 Connectors for more information) button.
Regardless of the setting, pushing the power button for more than 4 seconds will
enter the Soft-Off mode.
•Remote Ring On (requires modem): This allows a computer to be turned on
remotely through an internal or external modem. With this benefit on-hand, users
can access any information from their computers from anywhere in the world.
•Message LED (requires ACPI OS support): Message LEDs now act as infor-
mation providers. Through the way a particular LED illuminates, the user can
determine if a message has been received from a fax/modem.A simple glimpse
provides useful information to the user. This function requires ACPI OS and
driver support.
•Peripheral Power Up: Keyboard or Mouse power up can be enabled or dis-
abled through BIOS setup to allow the computer to be powered ON using your
keyboard or mouse click.

12 ASUS CUC2000-M User’s Manual
2. FEATURES
2. FEATURES
MB Components
2.2 CUC2000-M Motherboard Components
See opposite page for locations. Location
Processor Support Socket 370 for Pentium III/Celeron Processors ....................... 2
Feature Setting DIP Switches ................................................. 11
Chipsets Intel 820 Memory Controller Hub (MCH) ............................... 1
Intel 82805 Memory Translator Hub (MTH) ........................... 3
Intel I/O Controller Hub (ICH) .............................................. 21
4Mbit Firmware Hub (FWH) ................................................... 8
Low Pin Count (LPC) Multi-I/O Chipset ................................. 6
Main Memory Maximum 1GB support
4 DIMM Sockets ...................................................................... 5
PC100 SDRAM support
Expansion Slots 2 PCI Slots .............................................................................. 19
1 Accelerated Graphics Port (AGP) Pro Slot ......................... 22
1 Audio Modem Riser (AMR) Slot ........................................ 18
System I/O 2 IDE Connectors (UltraDMA/66 support).............................. 7
1 Floppy Disk Drive Connector ............................................... 9
2 USB Headers (supports 3 USB ports) ................................. 10
2 USB Port Connectors ......................................... (Bottom) 27
1 Parallel Port Connector ............................................. (Top) 25
1 Serial COM1/COM2 Port Connectors .......... (Bottom) 26, 24
1 PS/2 Mouse Connector .............................................. (Top) 28
1 PS/2 Keyboard Connector ................................... (Bottom) 28
Audio Aureal 8830 PCI Audio Chipset (optional) ............................ 16
AC’97 V2.1Audio Codec (optional)...................................... 20
1 Game/MIDI Connector (on audio model only) ......... (Top) 23
1 Line Out Connector (on audio model only) ........ (Bottom) 23
1 Line In Connector (on audio model only) ........... (Bottom) 23
1 Microphone Connector (on audio model only) ... (Bottom) 23
Network Features 3Com Ethernet Controller (on LAN model only) .................. 17
1 LAN (RJ45) Connector (optional) ............................ (Top) 27
Wake-On-LAN Connector...................................................... 12
Wake-On-Ring Connector ...................................................... 13
Hardware Monitoring System Voltage Monitoring (integrated in ASUS ASIC) ....... 14
3 Fan Power and Speed Monitoring Connectors
Power ATX Power Supply Connector ................................................. 4
Special Feature Onboard LED ......................................................................... 15
Form Factor microATX

ASUS CUC2000-M User’s Manual 13
2. FEATURES
2. FEATURES
Component Locations
2.2.1 Component Locations
5
27
25
23
24
28
2
18
3
26
14
4
19
22
19
11
7
1015
21
6
16
20
17 1213
8

14 ASUS CUC2000-M User’s Manual
3. HARDWARE SETUP
3.1 CUC2000-M Motherboard Layout
Motherboard Layout
3. H/W SETUP
Grayed components are available only on certain models at the time of purchase.
24.5cm (9.64in)
24.5cm (9.64in)
CHA_FAN
USB3
DIP Switches
COM1
PARALLEL PORT
COM 2
PS/2KBMS
T: Mouse
B: Keyboard
CPU_FAN1
WOR
WOL_CON
GAME_AUDIO
Mic
In
Line
Out
Line
In
PANEL
IDELED
FLOPPY
IDE2
IDE1
Intel I/O
Controller
Hub (ICH)
MIC2
VIDEO
MODEM
CD_IN
AUX
SAFE_MODE
PWR_FAN
Intel 82805
Memory
Translator
Hub (MTH)
LED1
IR
LAN_EN ASUS
ASIC
with Hardware
Monitor
USBJ2
JTPWR
Audio Modem Riser
(AMR)
Socket 370
Audio
Codec
Setting
CHASSIS
JP3
PCI1
PCI2
Accelerated Graphics Port (AGP Pro)
DIMM
0
(64/72 bit, 168-pin module)
1 0
DIMM
1
(64/72 bit, 168-pin module)
3 2
DIMM
2
(64/72 bit, 168-pin module)
0 1
DIMM
3
(64/72 bit, 168-pin module)
2 3
CR2032 3V
Lithium Cell
CMOS Power
Intel 820
Memory
Controller
Hub (MCH)
ATXPWR
Super
I/O
JP1
SMB
SW1
4Mbit
Firmware
Hub
Aureal
Audio
Chipset
3Com
Ethernet
Controller
CUC2000-M
Bottom:
USB1
USB 2
Top:
RJ45
SPDIFOUT
Audio
Codec
USB2
NO_REBOOT
JEN
USBPJ2

ASUS CUC2000-M User’s Manual 15
3. HARDWARE SETUP
3.2 Layout Contents
Motherboard Settings
1) JEN p.18 JumperFree™Mode (Enable/Disable)
2) NO_REBOOT p.19 AutomaticTimeoutReboot Setting (Normal/NoReboot)
3) SAFE_MODE p.19 Safe Mode Setting (Normal/Safe Mode)
4) USBJ2/USBJP2 p.20 USB Device Wake Up (Enable/Disable)
5) LAN_EN p.20 Onboard LAN Setting (Enable/Disable)
6) AUD_EN1, AUD_EN2 p.21 Onboard Audio CODEC Setting (Enable/Disable)
7) AUDIOEN p.21 Onboard Audio Setting (Enable/Disable)
8) JP1/JP3 p.22 MCH/MTH Voltage Setting (Normal/Test)
9) SW1 p.22 CPU External Frequency Setting
Expansion Slots
1) DIMM0/1/2/3 p.24 168-Pin System Memory Support
2) CPU p.27 Central Processing Unit (CPU)
3) PCI1/PCI2 p.29 32-bit PCI Bus Expansion Slots
4) AGP p.31 Accelerated Graphics Port (AGP Pro) Slot
5) AMR p.32 Audio Modem Riser Slot
Connectors
1) PS2KBMS p.32 PS/2 Mouse Connector (6-pin female)
2) PS2KBMS p.32 PS/2 Keyboard Connector (6-pin female)
3) USB p.33 Universal Serial Bus Ports 0 & 1 (Two 4-pin female)
4) PRINTER p.33 Parallel Port Connector (25-pin female)
5) COM1/COM2 p.33 SerialPortCOM1/COM2Connectosr(Two 9-pin male)
6) GAME_AUDIO p.34 Joystick/MIDI Connector (15-pin female) (optional)
7) GAME_AUDIO p.34 Audio Port Connectors (Three 1/8”female) (optional)
8) RJ45 p.34 Fast-Ethernet Port Connector (optional)
9) CHASSIS p.34 Chassis Intrusion Connector (4-1 pins)
10) IDE1/IDE2 p.35 Primary/Secondary IDE Connectors (Two 40-1pins)
11) FLOPPY p.35 Floppy Disk Drive Connector (34-1pins)
12) WOL_CON p.36 Wake-On-LAN Connector (3 pins)
13) WOR p.36 Wake-On-Ring Connector (2 pins)
14) IDELED p.37 IDE Activity LED (2 pins)
15) CPU_FAN1, PWR_FAN p.37 CPU, Power Supply,Chassis Fan Connectors(Three3-pin)
CHA_FAN
Layout Contents
3. H/W SETUP

16 ASUS CUC2000-M User’s Manual
3. HARDWARE SETUP
16) CD_IN, AUX, p.38 Internal Audio Connectors (Four 4-pins) (optional)
VIDEO, MODEM
17) IR p.38 Serial & Consumer Infrared Module Connector (10-pin)
18) USB2, USB3 p.39 USB Headers (10-pin block, 5-pin)
19) MIC2 p.39 Internal Microphone Connector (3 pins)
20) SMB p.40 SMBus Connector (5-1 pins)
21) SPDIFOUT p.40 Digital Audio Interface Header (3 pins)
22) PWR.LED (PANEL) p.41 System Power LED Lead (3-1 pins)
23) KEYLOCK (PANEL) p.41 Keyboard Lock Switch Lead (2 pins)
24) SPEAKER (PANEL) p.41 System Warning Speaker Connector (4 pins)
25) MSG.LED (PANEL) p.41 System Message LED (2 pins)
26) SMI (PANEL) p.41 System Management Interrupt Switch Lead (2 pins)
27) PWRSW (PANEL) p.41 ATX Power / Soft-Off Switch Lead (2 pins)
28) RESET (PANEL) p.41 Reset Switch Lead (2 pins)
29) ATXPWR p.42 ATX Power Supply Connector (20 pins)
30) JTPWR p.42 Power Supply Thermal Sensor Connector (2 pins)
Layout Contents
3. H/W SETUP

ASUS CUC2000-M User’s Manual 17
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3.3 Hardware Setup Procedure
Before using your computer, you must complete the following steps:
•Check Motherboard Settings
•Install Memory Modules
•Install the Central Processing Unit (CPU)
•Install Expansion Cards
•Connect Ribbon Cables, Panel Wires, and Power Supply
3.4 Motherboard Settings
WARNING! Computer motherboards and expansion cards contain very delicate
Integrated Circuit (IC) chips. To protect them against damage from static electric-
ity, you should follow some precautions whenever you work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do
nothave one, touch both of your hands to a safely grounded object or to a metal
object, such as the power supply case.
3. Hold components by the edges and try not to touch the IC chips, leads or con-
nectors, or other components.
4. Placecomponentsona grounded antistatic pad or onthebagthatcame with the
component whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or
remove the ATX power connector on the motherboard.
WARNING! Make sure that you unplug your power supply when adding or
removing system components. Failure to do so may cause severe damage to
your motherboard, peripherals, and/or components. The onboard LED when
lit acts as a reminder that the system is in suspend or soft-off mode and not
powered OFF.
ON OFF
Standby
Power Powered
Off
CUC2000-M
CUC2000-M Onboard LED

18 ASUS CUC2000-M User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
Motherboard Feature Settings
The motherboard’s onboard functions are either adjusted through jumpers or DIP
switches. When using DIP switches, the white block represents the switch’s posi-
tion. The example below shows all the switches in the OFF position.
CUC2000-M
1. Frequency Selection
2. Frequency Selection
3. Frequency Selection
4. Frequency Selection
5. Frequency Selection.

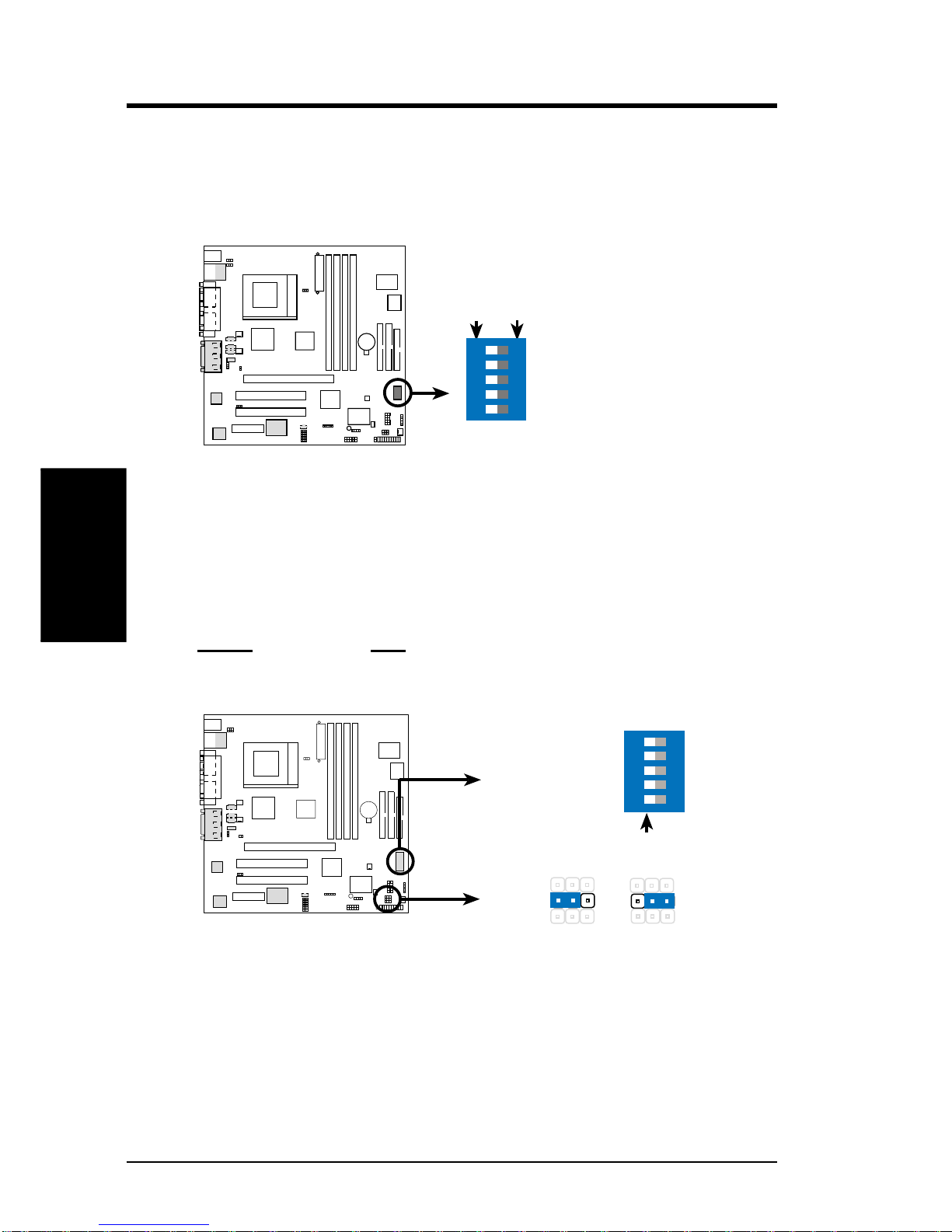

CUC2000-M DIP Switches
SW1
OFF ON
ON
12345
1) JumperFree™Mode (JEN)
This jumper allows you to enable or disable the JumperFree™mode. The
JumperFree™mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
NOTE: In JumperFree™mode, all dip switches (SW1) must be set to OFF.
Setting JEN
Enable (JumperFree) [2-3] (default)
Disable (Jumper) [1-2]
CUC2000-M
CUC2000-M JumperFree™ Mode Setting
JEN
SW1
ON
12345
OFF
JumperFree
(Default)
Jumper
11

ASUS CUC2000-M User’s Manual 19
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
3) Safe Mode Setting (SAFE_MODE)
Usually processors have locked frequency multiples. In this case, there is no way
to exceed the specified multiple whether through motherboard settings or BIOS
setup. With unlocked processors, exceeding the specified multiple is possible
through BIOS setup. Exceeding the specified multiple may result in hanging dur-
ing bootup. If this occurs, set this jumper to Safe Mode to force a multiple of 2 and
100MHz FSB to enter BIOS setup to correct the problem.
Setting SAFE_MODE
Normal [1-2] (default)
Safe Mode [2-3]
CUC2000-M
CUC2000-M Safe Mode Setting
Normal
(Default) Safe Mode
1223
SAFE_MODE
2) Automatic Timeout Reboot Setting (NO_REBOOT)
The motherboard is set so that when the BIOS detects a hang (timeout) during
bootup, the motherboard will automatically reboot. If rebooting is repeating in-
effectively, set this jumper to No Reboot to disable auto-reboot. However, if
Safe Mode Setting (SAFE_MODE) is set to Safe Mode, setting Automatic
Timeout Reboot Setting (NO_REBOOT) to No Reboot will bring the system
to Safe Mode so you may be able to correct any problems.
Setting NO_REBOOT
Normal [1-2] (default)
No Reboot [2-3]
CUC2000-M
CUC2000-M Reboot Setting
Normal
(Default) No Reboot
NO_REBOOT
1223

20 ASUS CUC2000-M User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
4) USB Device Wake Up (USBJ2/USBPJ2)
These jumpers allow you to disable or enable the USB device power up function
for USB devices connected to your system. These two jumpers must be set in
unison; that is, either both must be set to Disable or both must be set to Enable.
This feature requires an ATX power supply that can supply at least 2A on the
+5VSB lead. The default is set to Disable because not all computers have the
appropriate ATX power supply. Your computer will not power ON if you set
these to Enable and do not have the appropriate ATX power supply. NOTE:
These jumpers must be set in conjunction with Wake On USB Device in 4.5.1
Power Up Control.
NOTE: For suspend to RAM to function, these jumpers must be set to Enable.
Setting USBJ2/USBPJ2
Disable [1-2] (default)
Enable [2-3]
CUC2000-M
CUC2000-M USB Device Wake Up
Disable
(Default) Enable
1
USBJ2
1
USBPJ2
EnableDisable
(Default)
11
5) Onboard LAN Setting (LAN_EN)
The onboard LAN may be enabled/disabled with this jumper.
Setting LAN_EN
Enable [1-2] (default)
Disable [2-3]
CUC2000-M
CUC2000-M Onboard LAN Setting
Enable
(Default) Disable
123 123
LAN_EN
